Citroen C4 Cactus (2016 year). Instruction

207

In the event of a breakdown

CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.

Installing electrical
accessories

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.

208

In the event of a breakdown

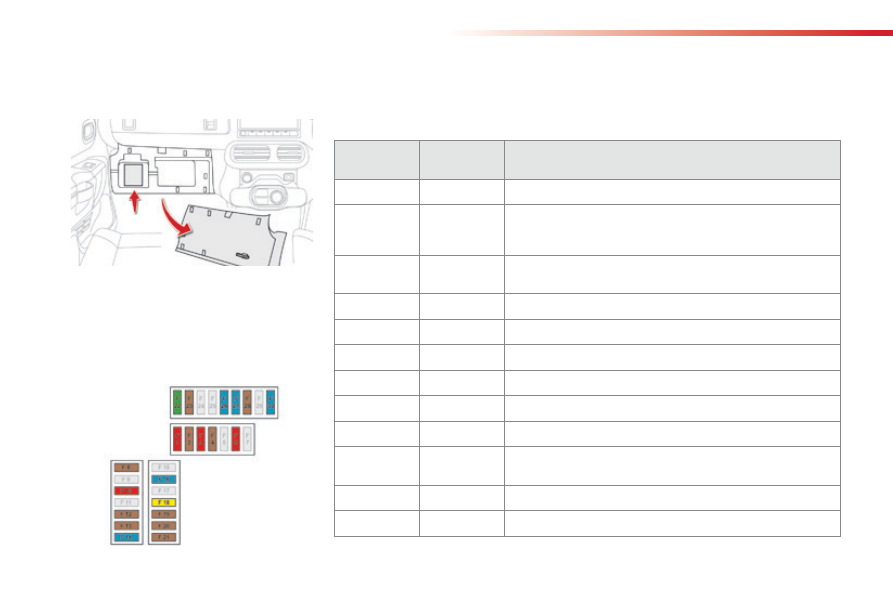

Dashboard fuses

The two fuseboxes are placed in the lower
dashboard, at the glove box.

Fuse

N°

Rating

(A)

Functions

F01

Brake pedal (switch 2), Stop & Start.

F02

Headlamp beam height adjuster, additional heater (Diesel),
parking sensors, diagnostic socket, door mirrors (electric
adjustment), Grip Control.

F03

Diesel additive pump, electric power steering, clutch pedal
(switch).

F04

Rain and sunshine sensor.

F06

Brake pedal (switch 1), diagnostic socket.

F08

Top of steering column contacts with steering mounted controls.

F10

Emergency call / Assistance call.

F12

Stop & Start, ABS, ESC.

F13

Parking sensors, reversing camera

F14

Electronic gearbox, switch panel (below the touch screen
tablet), air conditioning, touch screen tablet.

F16

12 Volt socket.

F18

Radio.

Access to the fuses

Unclip the cover by pulling at top left, then

right.

Left hand fusebox

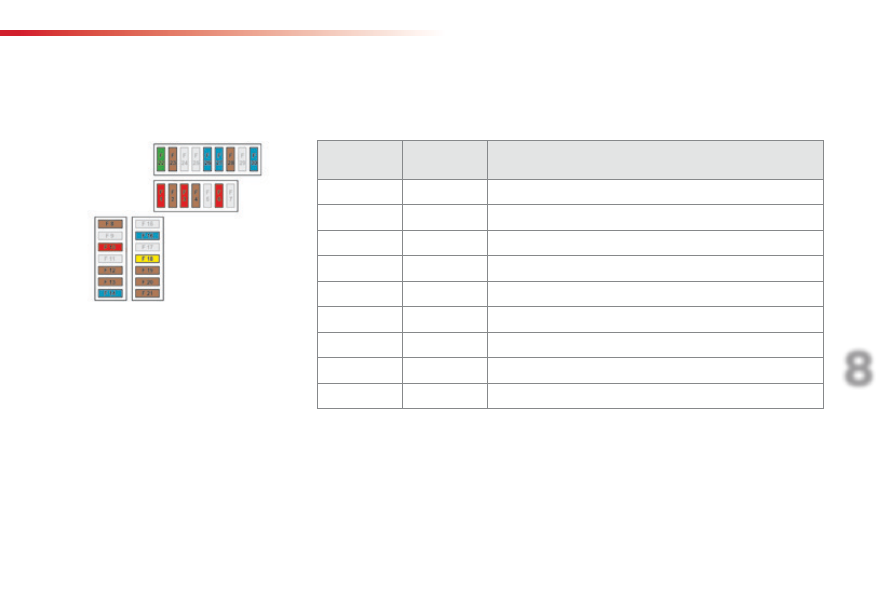

209

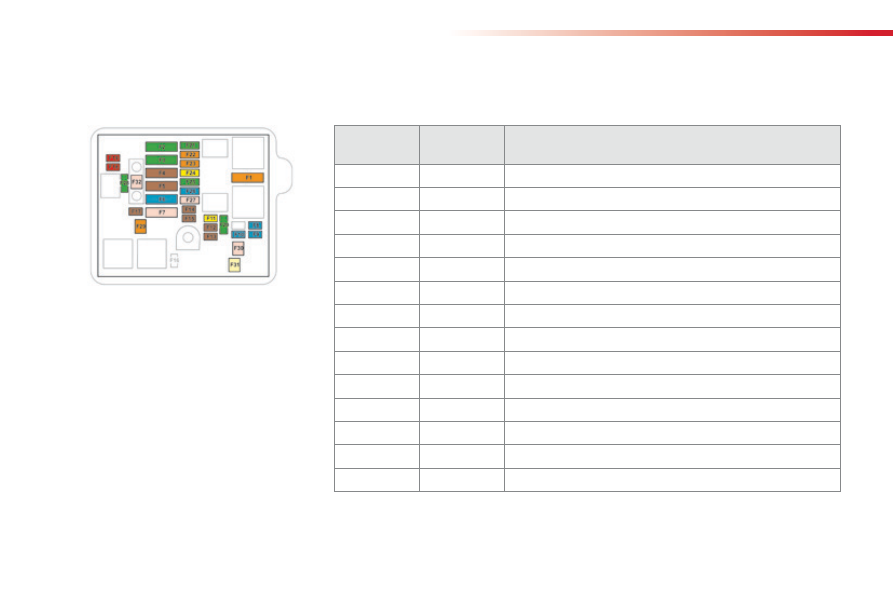

In the event of a breakdown

Fuse

N°

Rating

(A)

Functions

F19

Seat belt unfastened warning.

F20

Airbags.

F21

Instrument panel.

F22

Locks.

F23

Courtesy lamp. map reading lamp.

F26

Horn.

F27

Front and rear screenwash.

F28

Ignition switch.

F30

Rear wiper

210

In the event of a breakdown

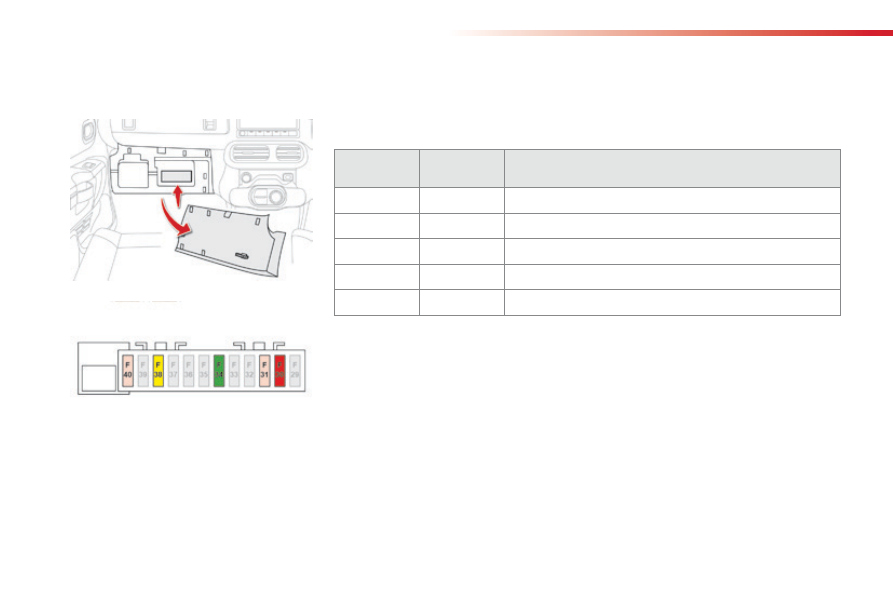

Right hand fuse box

Fuse

N°

Rating

(A)

Functions

F30

Heated mirrors.

F31

Heated rear screen.

F34

Front electric windows.

F38

Trailer interface unit.

F40

Trailer interface unit.

211

In the event of a breakdown

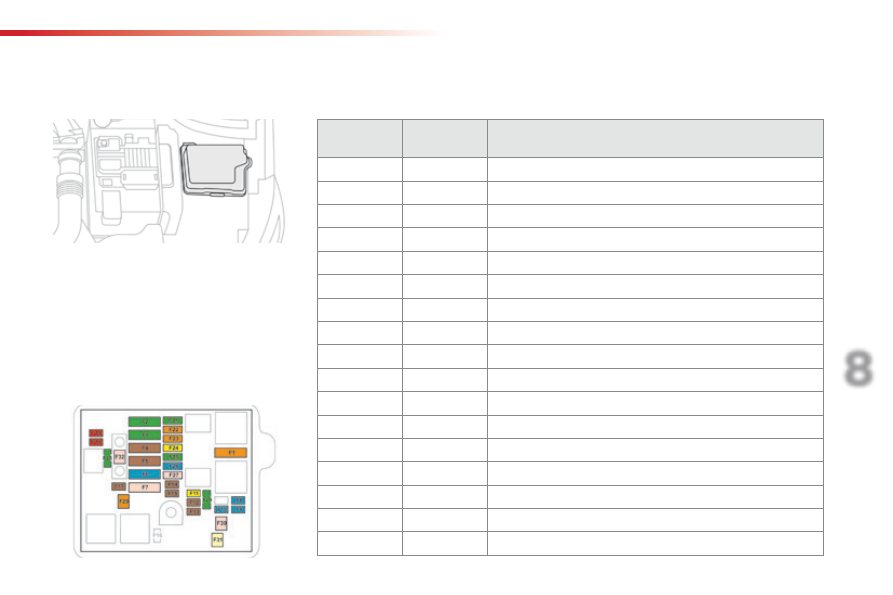

Engine compartment fuses

Access to the fuses

Unclip the cover.

Change the fuse (see corresponding

paragraph).

When you have finished, close the cover

carefully to ensure correct sealing of the
fusebox.

Fuse

N°

Rating

(A)

Functions

Air conditioning.

30 / 40

Stop & Start.

Passenger compartment fusebox.

Built-in Systems Interface (BSI).

Cooling fan assembly.

Built-in Systems Interface (BSI).

Engine management, petrol pump.

Engine management.

F10

Engine management.

F11

Engine management.

F12

Cooling fan assembly.

F13

Built-in Systems Interface (BSI).

F14

Battery charge unit (non Stop & Start engine).

F15

Stop & Start.

F17

Built-in Systems Interface (BSI).

F18

Right hand main beam headlamp.

The fusebox is placed in the engine
compartment near the battery.

212

In the event of a breakdown

Fuse

N°

Rating

(A)

Functions

F19

Left hand main beam headlamp.

F20

Engine management.

F21

Starter motor.

F22

Electronic gearbox.

F23

ABS, ESC.

F24

ABS, ESC.

F25

Passenger compartment fusebox.

F26

Electronic gearbox.

F27

Built-in Systems Interface (BSI).

F28

Diesel emissions control system (AdBlue

F29

Windscreen wipers.

F30

Preheater control unit.

F31

100

Additional heater (Diesel).

F32

Electric power steering.

213

In the event of a breakdown

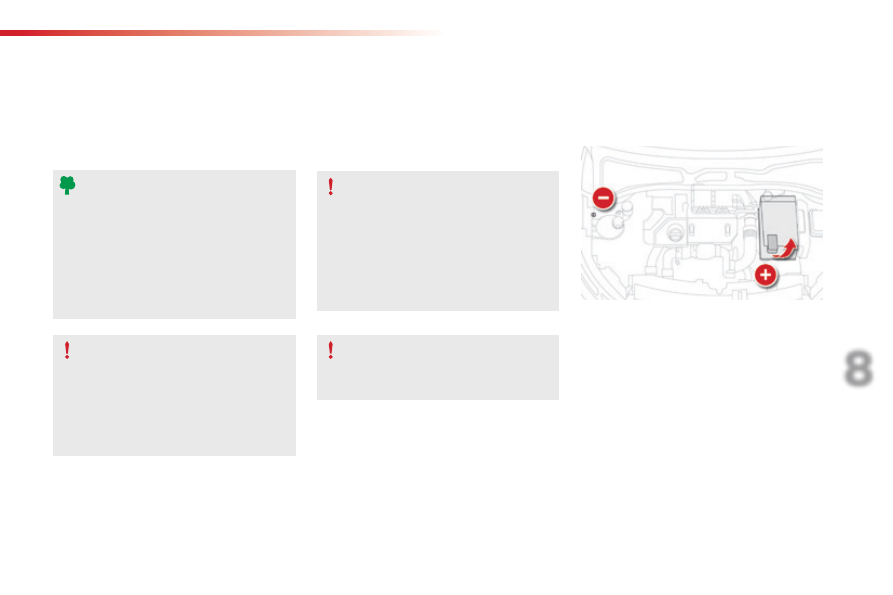

12 V battery

The battery is located under the bonnet.
To gain access to it:
F

open the bonnet using the interior release

lever, then the exterior safety catch,

F secure the bonnet stay,
F

lift the plastic cover on the (+) terminal.

Access to the battery

Procedure for starting the engine using another battery or charging a discharged battery.

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.

Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.

General points

Lead-acid starter batteries

Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

With an electronic gearbox, do not try to
start the engine by pushing the vehicle.

The (-) battery terminal is not accessible.
A remote earth point is located on the right-
hand front wing.

214

In the event of a breakdown

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.

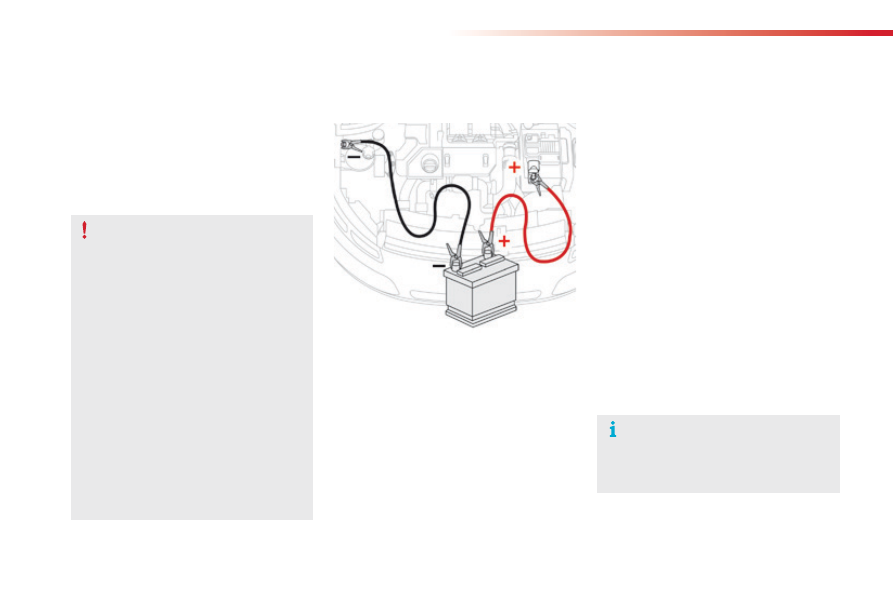

Starting using another battery

Raise the plastic cover on the (+) terminal,

if your vehicle has one.

Connect the red cable to the positive

terminal (+) of the flat battery A (at
the metal elbow) then to the positive
terminal (+) of the slave battery B or
the booster.

Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).

Connect the other end of the green or black

cable to the earth point C

on the broken

down vehicle.

Start the engine of the vehicle with the

good battery and leave it running for a few
minutes.

Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.

Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.

Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

Refit the plastic cover to the (+) terminal, if

your vehicle has one.

Allow the engine to run for at least

30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

215

In the event of a breakdown

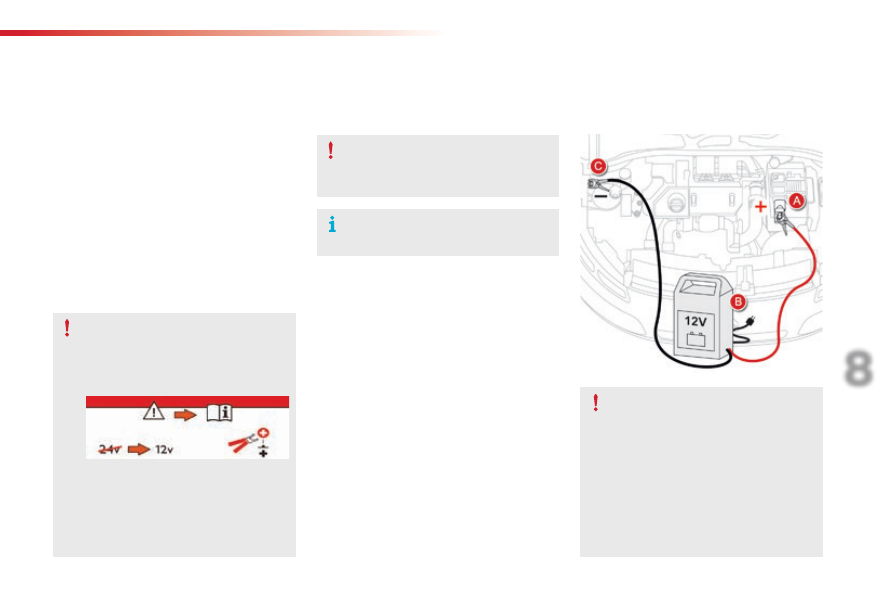

Charging the battery using
a battery charger

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
- if you use your vehicle essentially for short

journeys,

- if the vehicle is to be taken off the road for

several weeks.

Contact a CITROËN dealer or a qualified
workshop.

It is not necessary to disconnect the
battery.

Never try to charge a frozen battery.
If the battery has been frozen, have
it checked by a CITROËN dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.

If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.

Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.

Switch off the ignition.

Switch off all electrical consumers (audio

system, lighting, wipers, ...).

Switch off the charger B before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

Ensure that the charger cables are in good

condition.

Connect the charger B cables as follows:

- the positive (+) red cable to the (+)

terminal of the battery A,

- the negative (-) black cable to the earth

point C

on the vehicle.

At the end of the charging operation, switch

off the charger B before disconnecting the
cables from the battery A.

216

In the event of a breakdown

Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.

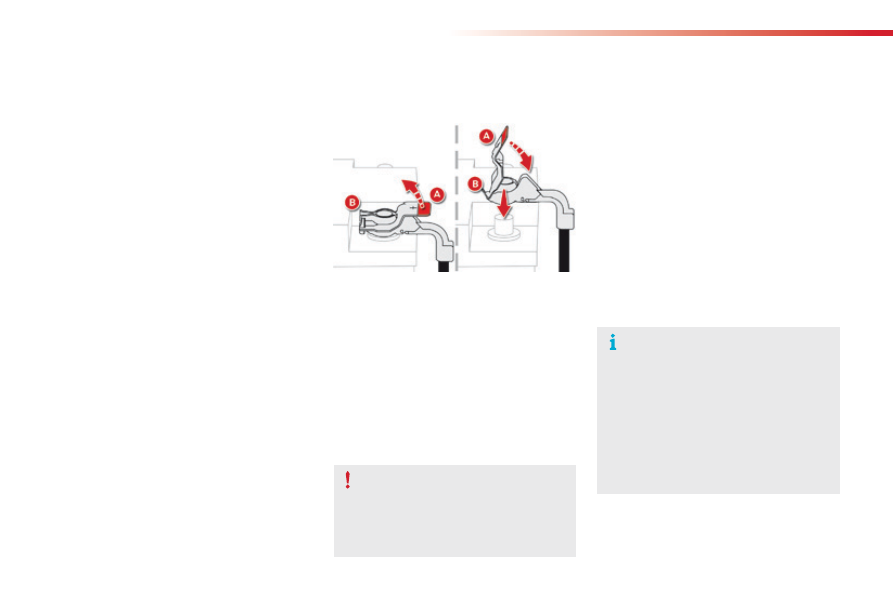

Quick release terminal

Disconnecting the (+) terminal

F Raise the lever A fully to release the

clamp B.

The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).

It is recommended that the battery be
disconnected if the vehicle is not to be used
for a very long period, so as to maintain an
adequate state of charge for starting the
engine.
Before disconnecting the battery:
F

close all openings (doors, boot, windows,

roof),

switch off all electrical consumers (audio

system, wipers, lighting...),

switch off the ignition and then wait

four minutes.

At the battery, simply detach the (+) terminal.

Disconnecting the battery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise (depending on
version):
- the remote control key,
- ...

Following reconnection of the battery

Reconnecting the (+) terminal

Position the open clamp B of the cable on

the positive post (+) of the battery.

Press down on the clamp to position it

correctly on the battery post.

Lock the clamp by lowering the lever A.

217

In the event of a breakdown

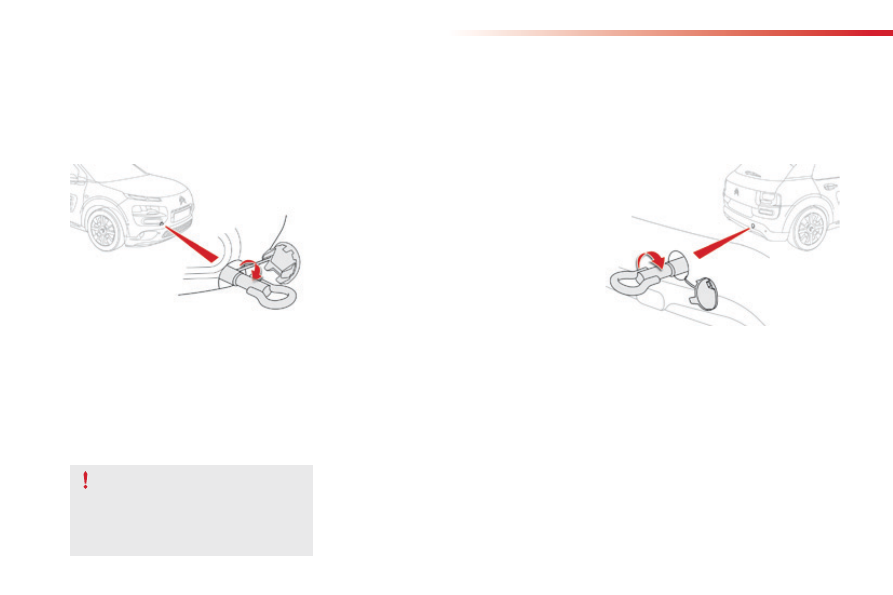

Towing

General recommendations

Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing arm;
rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for braking
or steering.
In the following cases, you must always call on a professional recovery service:
-  vehicle broken down on a motorway or fast road,
-  four-wheel drive vehicle,
-  when it is not possible to put the gearbox into neutral, unlock the steering, or release the

parking brake,

- towing with only two wheels on the ground,
- where there is no approved towing arm available...

Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

The towing eye

is stowed under the boot floor,

or may be located under the front passenger
seat, depending on version.

218

In the event of a breakdown

Towing another vehicle

On the rear bumper, press the bottom of

the cover to unclip it.

Screw the towing eye in fully.

Install a towing arm.

Switch on the hazard warning lamps on

both vehicles.

Move off gently and drive slowly over a

short distance only.

On the front bumper, press at the bottom of

the cover to unclip it.

Screw the towing eye in fully.

Install a towing arm.

Put the gear lever into neutral (control N for

an electronic gearbox).

Towing the vehicle

Failure to follow this instruction could
lead to damage to certain components
(brakes, transmission, ...) and the
absence of braking assistance on
restarting the engine.

Unlock the steering by turning the ignition

key one notch and release the parking
brake.

Switch on the hazard warning lamps on

both vehicles.

Move off gently and drive slowly over a

short distance only.

219

In the event of a breakdown

Running out of fuel (Diesel)

On vehicles fitted with HDi engines, the fuel
system must be primed if you run out of fuel.

e-HDi 92 engine

Fill the fuel tank with at least five litres of

diesel.

Open the bonnet.

If necessary, unclip the styling cover for

access to the priming pump.

Squeeze and release the priming pump

repeatedly until resistance is felt (there
may be resistance at the first press).

Operate the starter until the engine starts

(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).

If the engine does not start after a few

attempts, operate the priming pump again
then start the engine.

Clip the styling cover back in place.

Close the bonnet.

If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.

BlueHDi engine

Fill the fuel tank with at least five litres of

Diesel.

Switch on the ignition (without starting the

engine).

Wait around 6 seconds and switch off the

ignition.

Repeat the operation 10 times.

Operate the starter to run the engine.

220

Technical data

Engine

PureTech 75

PureTech 82

PureTech 82 S&S

PureTech 110 S&S

Gearbox

Manual

(5-speed)

Manual

(5-speed)

ETG electronic

(5-speed)

Manual

(5-speed)

Model code

0PHMU

0PHMZ

0PHNZ

Cubic capacity (cc)

1 199

Bore x stroke (mm)

75 x 90.5

Max power: EU standard (kW)*

Max power engine speed (rpm)

5 750

5 500

Max torque: EU standard (Nm)

116

118

205

Max torque engine speed (rpm)

2 750

1 500

Fuel

Unleaded

Catalytic converter

yes

Engine oil capacity with replacement of the oil
filter (in litres)

3.25

3.5

* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation

(directive 1999/99/EC).

Engines and gearboxes - PETROL

221

Technical data

Engine

PureTech 75

PureTech 82

PureTech 82 S&S

PureTech 110 S&S

Gearbox

Manual

(5-speed)

Manual

(5-speed)

ETG electronic

(5-speed)

Manual

(5-speed)

Model code

0PHMU

0PHMZ

0PHNZ

Unladen weight

965

975

1 020

Kerb weight*

1 040

1 050

1 095

Gross vehicle weight
(GVW)

1 500

1 510

1 555

Gross train weight (GTW)
on a 12 % gradient

1 900

1 910

2 155

Braked trailer**
on a 10 % or 12 % gradient

720

725

825

Unbraked trailer**

520

525

545

Recommended nose weight (towbar)

Weights and towed loads (in kg) - PETROL

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

* The kerb weight is equal to the unladen weight + driver (75 kg).
** Maximum trailer weight within the GTW limit.

222

Technical data

Engine

e-HDi 92

BlueHDi 100

BlueHDi 100 S&S

Gearbox

ETG6 electronic

(6-speed)

Manual

(5-speed)

Manual

(5-speed)

ETG6 electronic

(6-speed)

Model code

0B9HP

0BBHY

Cubic capacity (cc)

1 560

Bore x stroke (mm)

75 x 88.3

Max power: EU standard (kW)*

Max power engine speed (rpm)

4 000

3 750

Max torque: EU standard (Nm)

230

254

Max torque engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

yes

Particle filter

yes

Engine oil capacity with replacement of the oil
filter (in litres)

3.75

* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation

(Directive 1999/99/EC).

Engines and gearboxes - DIESEL

Citroen C4 Cactus (2016 year). Instruction - part 14
