Citroen C4 Cactus (2016 year). Instruction - part 15

223

Technical data

Engine

e-HDi 92

BlueHDi 100

BlueHDi 100 S&S

Gearbox

ETG6 electronic

(6-speed)

Manual

(5-speed)

Manual

(5-speed)

ETG6 electronic

(6-speed)

Model code

0B9HP

0BBHY

Unladen weight

1 055

1 068

1 070

1 085

Kerb weight*

1 130

1 143

1 145

1 160

Gross vehicle weight (GVW)

1 605

1 610

1 630

Gross train weight (GTW)
on a 12% gradient

2 205

2 210

2 230

Braked trailer (within GTW limit)
on a 10% or 12% gradient

825

Unbraked trailer

565

570

580

Recommended nose weight (towbar)

Weights and towed loads (in kg) - DIESEL

* The kerb weight is equal to the unladen weight + driver (75 kg).

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

224

Technical data

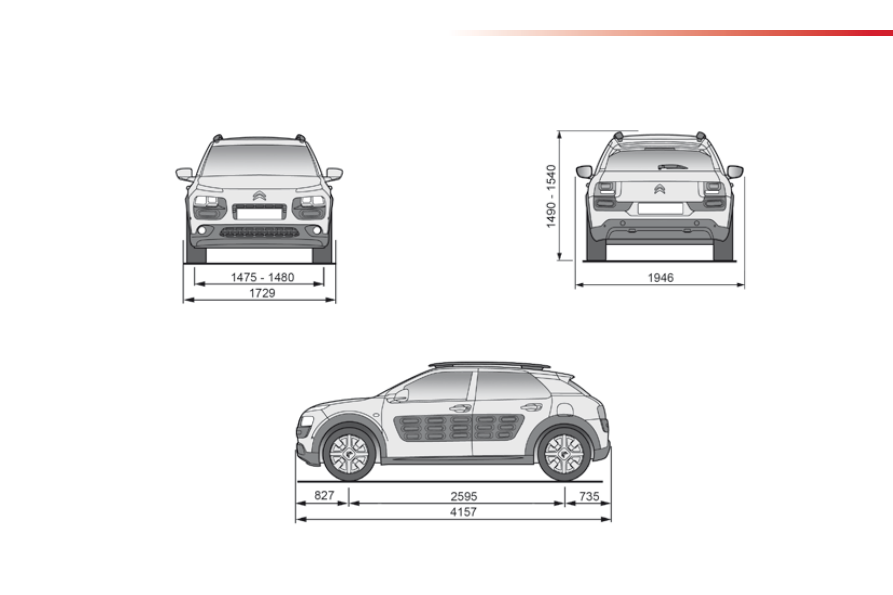

Dimensions (in mm)

These dimensions have been measured on an unladen vehicle.

225

Technical data

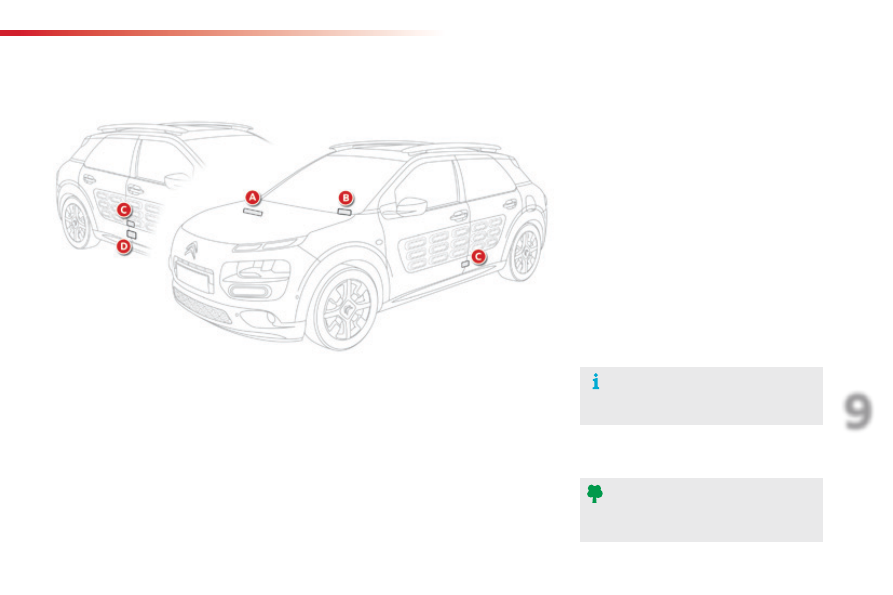

Identification markings

Various visible markings for the identification of your vehicle.

A. Vehicle Identification Number (VIN)

under the bonnet.

This number is engraved on the chassis
near the right hand front wheel arch.

The tyre pressures must be checked
when the tyres are cold, at least once
a month.

If the tyre pressures are too low, this
increases fuel consumption.

C. Manufacturer's label.

This self-destroying label on the middle
door pillar, right or left hand side, contains
the following information:

- the manufacturer's name,

- the European whole vehicle type

approval number,

- the vehicle identification number (VIN),

- the maximum authorised weight (gross

vehicle weight),

- the maximum authorised weight with

trailer (gross train weight),

- the maximum front axle weight,

- the maximum rear axle weight.

D. Tyre/paint label.

This label on the middle door pillar, driver's
side, contains the following information:
- the tyre inflation pressures, laden and

unladen,

- the tyre sizes (including the tyre load

index and speed rating),

- the inflation pressure for the spare

wheel,

- the paint colour code.

B. Vehicle Identification Number (VIN) on

the windscreen lower cross member.

This number is indicated on a self-
adhesive label which is visible through
the windscreen.

Audio and Telematics

226

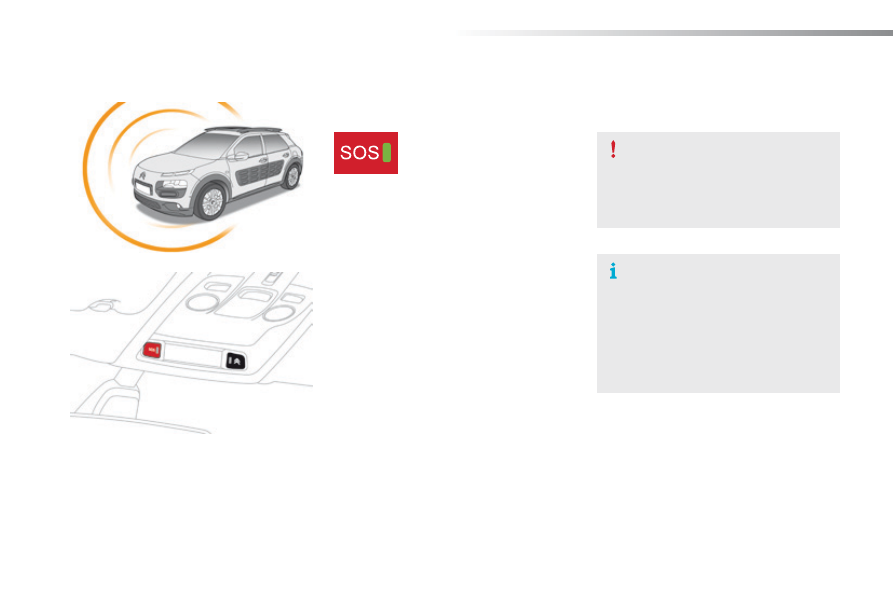

Emergency or assistance call

If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.

Localised Emergency Call

In an emergency, press this
button for more than 2 seconds.
Flashing of the green indicator
lamp and a voice message
confirm that the call has
been made to the "Localised
Emergency Call"* centre.

Pressing this button again immediately cancels
the call.
The green indicator lamp goes off.
At any time, pressing this button for more than
8 seconds cancels the call.

The green indicator lamp remains on (without
flashing) when communication is established.
It goes off at the end of the call.

This call is dealt with by the "Localised
Emergency Call" centre, which receives
locating information from the vehicle and
can send a detailed alert to the appropriate
emergency services.
In countries in which a centre is not
operational, or when the locating service
has been expressly declined, the call is dealt
with directly by the emergency services (112)
without the vehicle location.

* These services are subject to conditions and

availability.

Consult a CITROËN dealer.

If you benefit from the CITROËN
Connect Box offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyCITROËN personal space, via
the CITROËN Internet website in your
country, accessible on www.citroen.com.

Audio and Telematics

227

Localised Assistance Call

If you purchased your vehicle outside
the CITROËN dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.

For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to
carry out updates to the vehicle's on-
board telematic system.

The fault with the system does not
prevent the vehicle being driven.

Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been started*.

Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.

The orange indicator lamp is on fixed: the back-
up battery should be replaced.
In both cases, the emergency and assistance
calls service may not work.
Contact a qualified repairer as soon as
possible.

Operation of the system

When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.

The orange indicator lamp
flashes then goes off: the system
has a fault.

* These services are subject to conditions and

availability.

Consult a CITROËN dealer.

Audio and Telematics

229

7-inch touch screen tablet

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

230

Steering mounted controls

DAB (Digital Audio Broadcasting) radio

Navigation - Guidance

CITROËN Multicity Connect

273

Telephone

274

Frequently asked questions

282

The system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.

Audio and Telematics

230

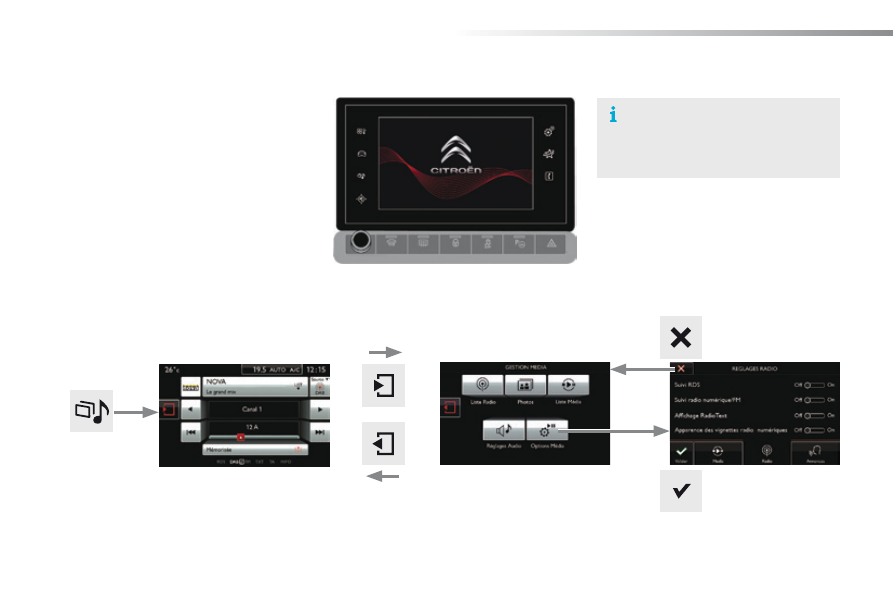

First steps

Use the buttons on either side of the touch
screen tablet for access to the menus, then
press the virtual buttons in the touch screen
tablet.
Each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page

In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.

Audio and Telematics

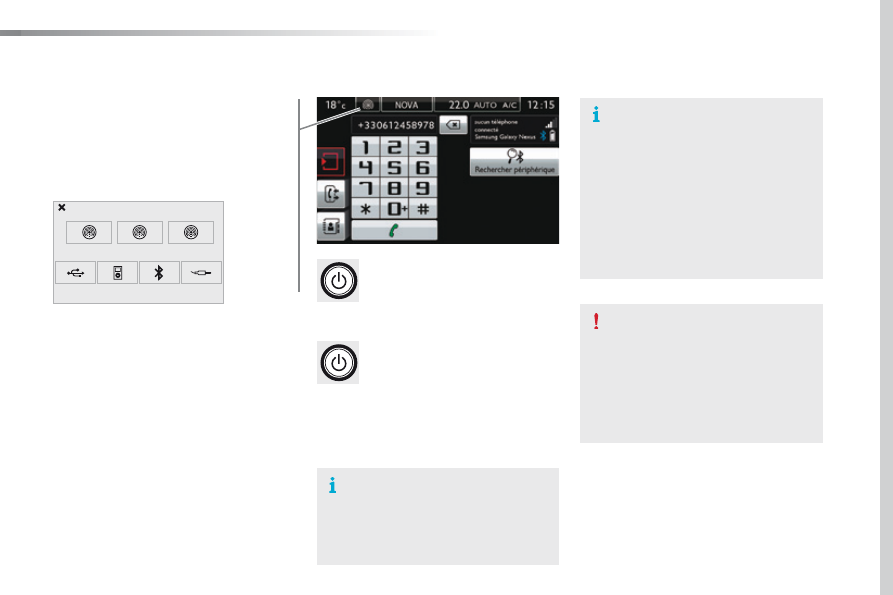

231

With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.

Volume adjustment (each source
is independent, including Traffic
announcements (TA) and navigation
instructions).

Selecting the audio source (depending on
version):
-  "FM" / "AM" / "DAB"* stations.
-  "USB" memory stick.
-  Telephone connected by Bluetooth* and

Bluetooth* audio streaming.

- Media player connected to the auxiliary

socket (jack, cable not supplied).

* Depending on equipment.

Short-cuts: using the touch buttons in the upper
band of the touch screen tablet, it is possible
to go directly to the selection of audio source,
the list of stations (or titles, depending on the
source) or to the temperature setting.

The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures.

In very hot conditions, the volume may
be limited to protect the system. The
return to normal takes place when
the temperature in the passenger
compartment drops.

To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

Audio and Telematics

233

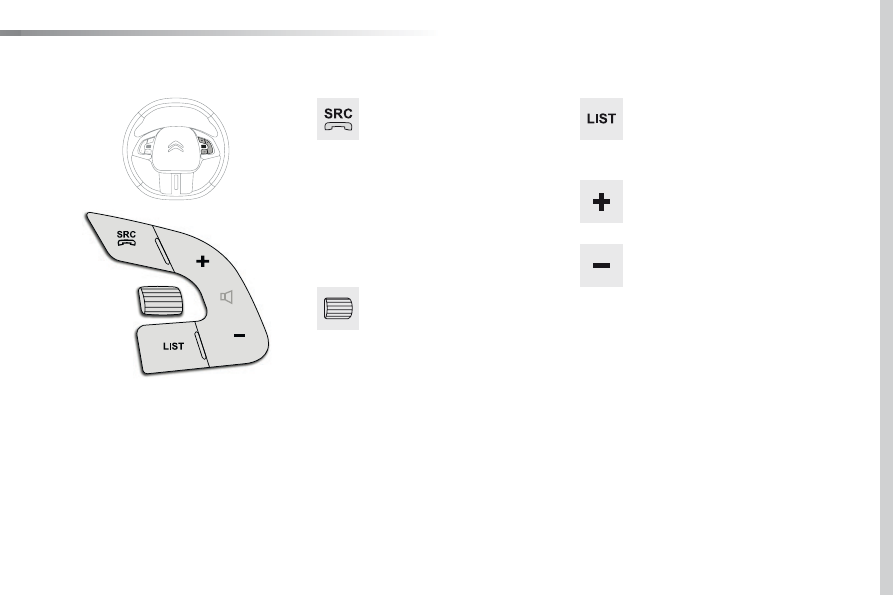

Steering mounted controls

Media: change the multimedia
source.
Telephone: start a call.
Call in progress: access to the
telephone menu (End call, Secret
mode, Hands-free mode).
Telephone, press and hold: reject an
incoming call, end a call in progress;
other than a call in progress, access
to the telephone menu.

Decrease volume.

Radio, turn: automatic search for the
previous / next station.
Media, turn: previous / next track.
Press: confirm a selection.

Radio: display the list of stations.
Media: display the list of tracks.
Radio, press and hold: update the list
of stations received.

Increase volume.

Audio and Telematics

234

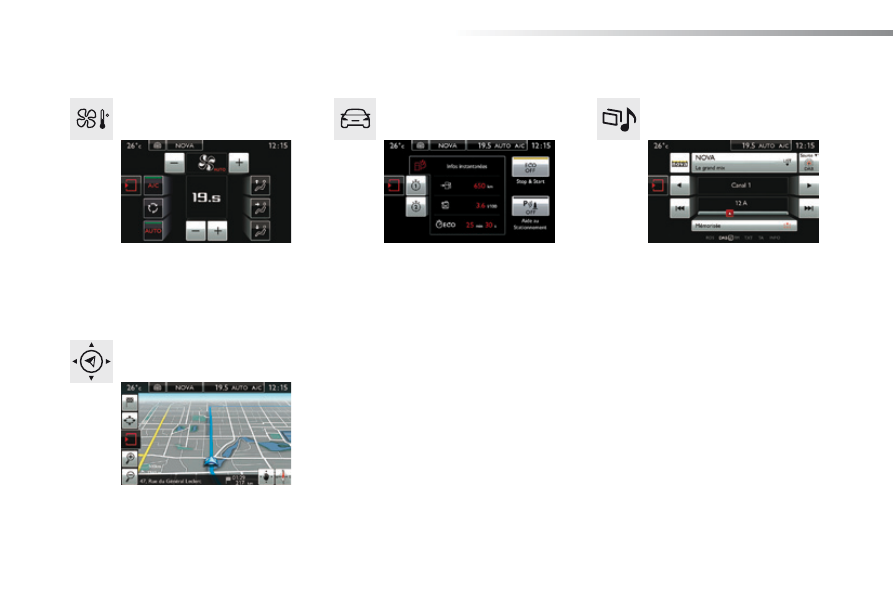

Menus

Media

Air conditioning

Driving assistance

Navigation

Select an audio source, a radio station, display
photographs.

Control of the settings for temperature and air
flow.

Access to the trip computer.
Activate, deactivate, adjust settings for certain
vehicle functions.

Enter navigation settings and choose a
destination.

(Depending on equipment)

Audio and Telematics

235

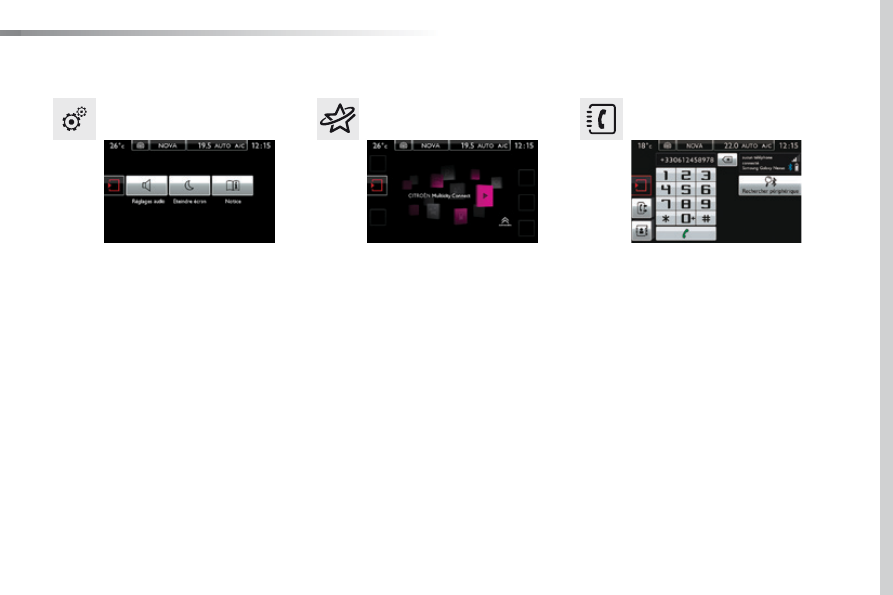

Telephone

Configuration

Connected services

Connect a telephone by Bluetooth

Adjust the audio settings (balance,
ambience...), the brightness of the instruments
and controls, the display settings (language,
units, date, time...) and access the interactive
help for the main vehicle systems and warning
lamps.

CITROËN MULTICITY CONNECT
Connect to an applications portal to facilitate,
make safe and personalise journeys by means
of a connection key available on subscription
from a CITROËN dealer.

(Depending on equipment)

Audio and Telematics

236

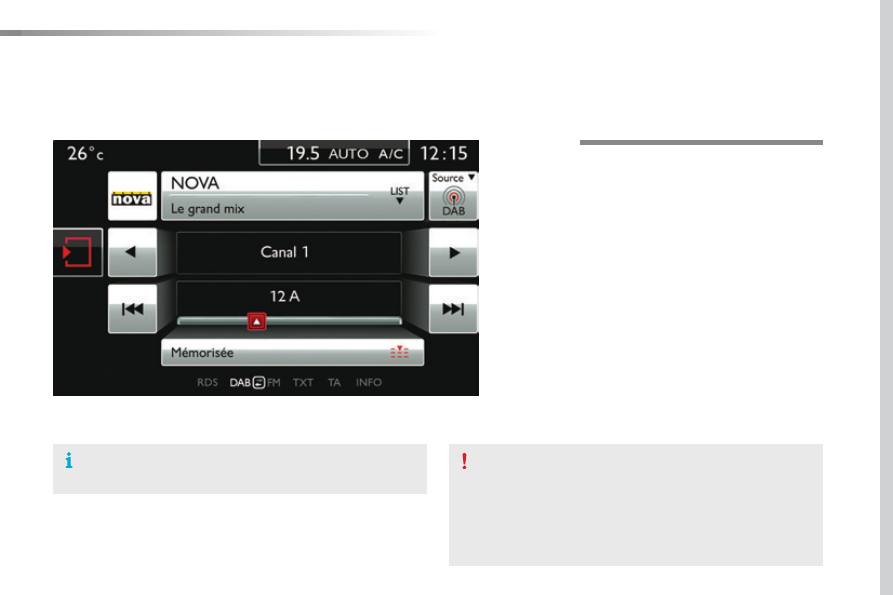

Media

Level 1

Level 2

List of FM stations

Preset

"Media"

Primary page

Audio and Telematics

237

Level 1

Level 2

Comments

Media

List

List of FM stations

Press on a radio station to select it.

Media

Source

FM Radio

Select change of source

DAB Radio

AM Radio

USB

iPod

Bluetooth

AUX

Media

Preset

Press on an empty location to "Preset" (save) to it.

Audio and Telematics

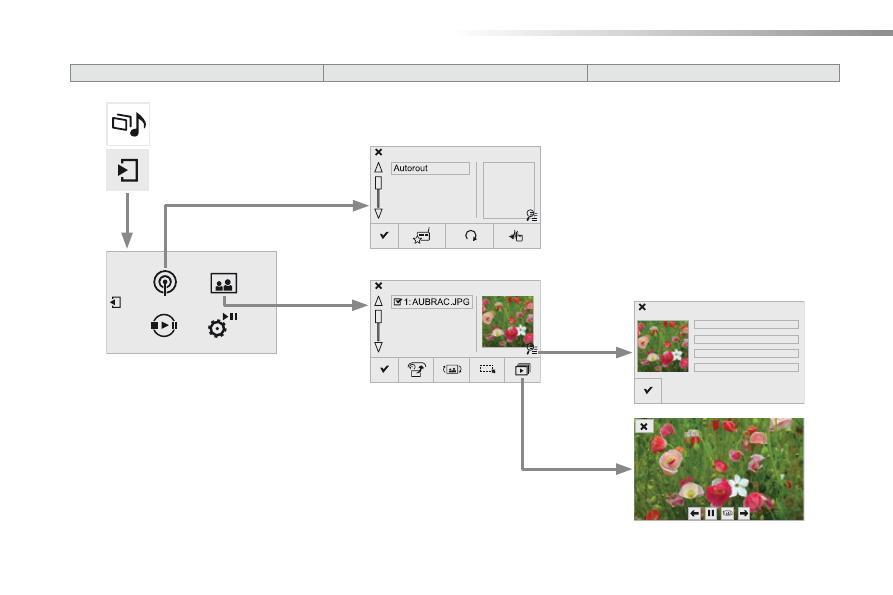

238

Level 1

Level 2

Level 3

Media

Photos

List of FM stations

"Media"

Secondary page
