Citroen C4 Cactus (2016 year). Instruction

159

Practical information

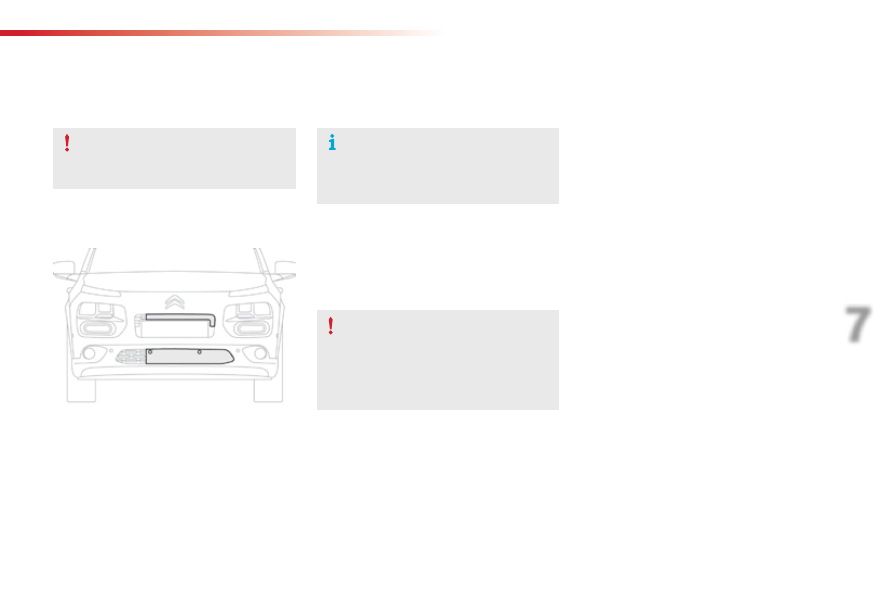

Very cold climate screens

Removable protective screens which prevents the accumulation of snow at the radiator
cooling fan.

Offer up the corresponding screen to the

front bumper upper grille.

Press on the edge to engage its fixing clips

in turn.

Proceed in the same way for the screen on the
lower grille.

Using a screwdriver, lever in turn on the

fixings of each screen to unclip them.

Do not forget to remove the very cold
climate screens when:
- the ambient temperature exceeds

10° C,

- towing,
- at speeds above 75 mph (120 km/h).

Removal

Fitting

Before fitting or removing a screen,
ensure that the engine is off and the
cooling fan has stopped.

It is recommended that the screens
be fitted and removed by a CITROËN
dealer or a qualified workshop.

160

Practical information

When not towing a trailer, remove the
quickly-detachable tow ball before
driving.

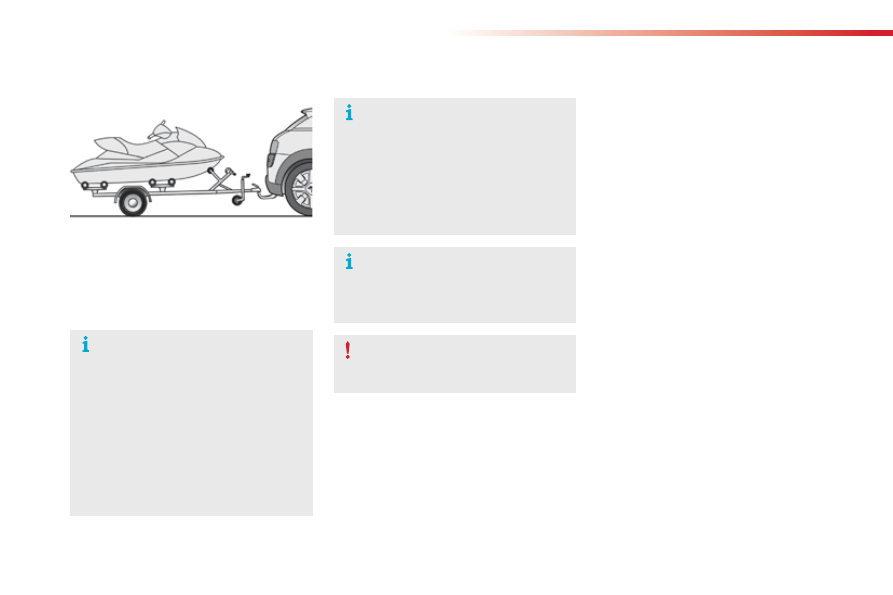

Towing a trailer

We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.

Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.

Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
For more advice on driving when
towing, refer to the corresponding
section.

For more information on weights (and
the towed loads which apply to your
vehicle) refer to the corresponding
section.

161

Practical information

Load reduction mode

System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc. for
a maximum combined duration of about
forty minutes.

Energy economy mode

Switching to economy mode

A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.

Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
- for less than ten minutes, to use the

equipment for approximately five minutes,

- for more than ten minutes, to use the

equipment for up to approximately
thirty minutes.

Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.

A flat battery prevents the engine from
starting.
For more information on the battery,
refer to the corresponding section.

162

Practical information

Accessories

A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.

"Comfort"

Door deflectors, side sun blinds, insulated
module, coat hanger fixed to head restraint,
mobile reading lamp, front and rear parking
sensors, portable ashtray, scented air
freshener, blind for sunroof...

"Transport systems"

Boot carpet, boot liner, boot net, boot spacers,
transverse roof bars, ski carrier, roof box,
towbar, towbar wiring harnesses, bicycle carrier
for mounting on the towbar and on the roof
bars, towbars with fixed and quickly detachable
towball...

"Styling"

Aluminium foot rest, alloy wheels, front spoiler,
rear diffuser, exterior expressive stickers...

"Security and safety":

Anti-intrusion alarm, vehicle tracking system,
first aid kit, fire extinguisher, warning triangle,
high visibility vest, wheel security bolts, snow
chains, non-slip covers, front foglamp kit, dog
guard, pet seat belt, seat belt cutter/glass
hammer...

"Protection"

Mats*, seat covers, mud flaps, vehicle cover...

If a towbar and wiring harness are
fitted outside the CITROËN dealer
network, the installation must be done
strictly in line with the manufacturer's
recommendations.

* To avoid any risk of jamming the pedals:

- ensure that mats are correctly positioned

and secured,

- never fit one mat on top of another.

"Multimedia"

Bluetooth hands-free kits, portable satellite
navigation system, driving assistance systems,
smartphone carriers, DVD player, CD player,
230 V socket, semi-integral satellite navigation
system, rear multimedia carrier, navigation
mapping updates, aftermarket digital radio...

By visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact
colour of your vehicle, refills (sealant cartridge
for the temporary puncture repair kit...)...

163

Practical information

The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITROËN dealer
for information on the range of
recommended equipment and
accessories.

Installation of radio
communication
transmitters

Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).

Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.

164

Practical information

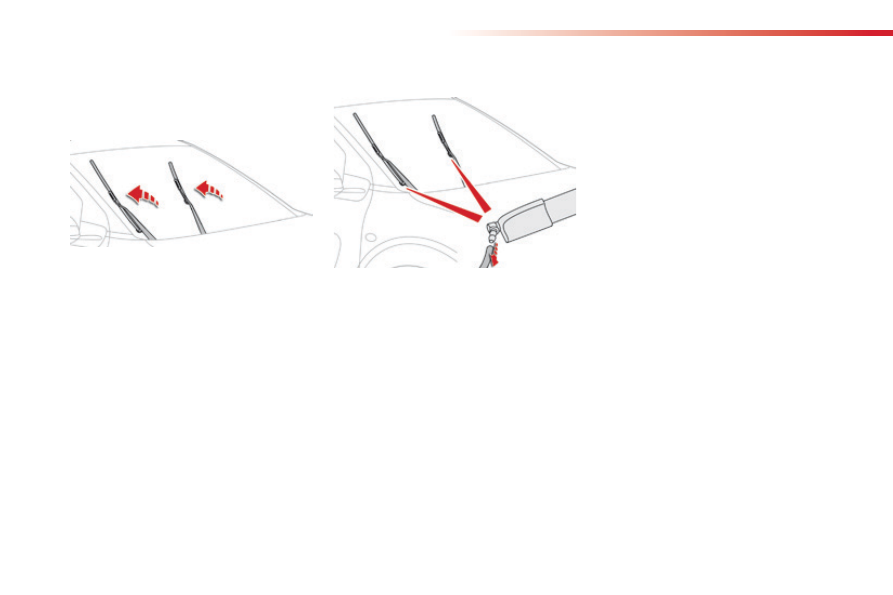

Changing a wiper blade

Within one minute after switching off

the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.

Removing

Raise the corresponding wiper arm.

Pull the screenwash delivery pipe to

disconnect it from the jet (located on the
wiper blade).

Unclip the wiper blade and remove it.

Fitting

Put the corresponding new wiper blade in

place and clip it.

Connect the screenwash delivery pipe to

the jet on the wiper blade.

Fold down the wiper arm carefully.

After fitting a front wiper
blade

Switch on the ignition.

Operate the wiper stalk again to park the

wiper blades.

Before removing a front
wiper blade

165

Practical information

Roof bars

For safety reasons and to avoid
damaging the roof, it is essential to use
transverse roof bars that are approved
for your vehicle.

Observe the fitting instructions and
the conditions of use given in the
information provided with the roof bars.

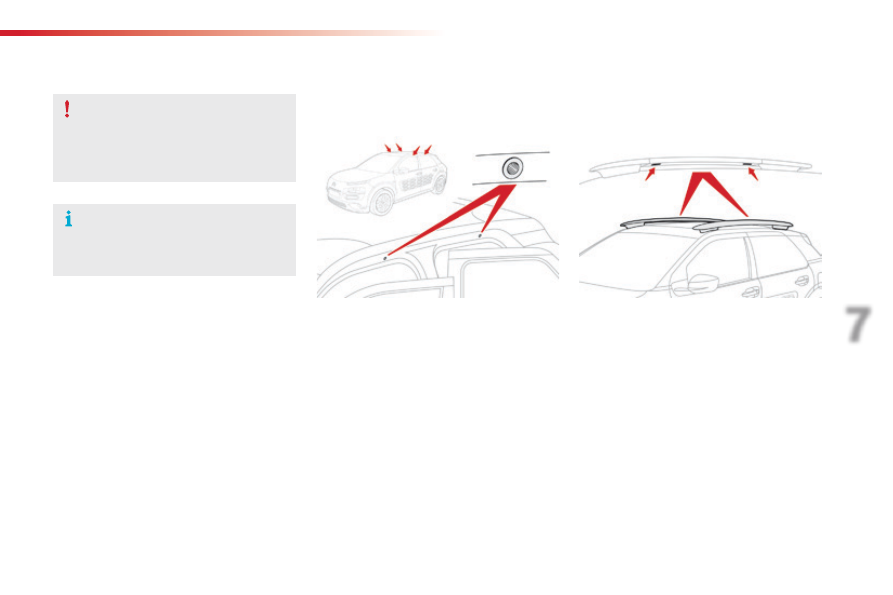

Version without longitudinal
bars

To install the roof bars, you must secure
them only to the four anchorage points in the
roof frame. These points are masked by the
vehicle's doors when closed.
The roof bar fixings include a stud that should
be introduced into the aperture at each
anchorage point.

Version with longitudinal
bars

You must fit the transverse bars to the
longitudinal bars at the fixing points indicated
by engraved markings on the longitudinal bars.

166

Practical information

Maximum load, distributed over the roof
bars, for a loading height not exceeding
40 cm: 80 kg.
This value is subject to change, please
check the maximum load stated in the
instructions provided with he roof bars.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the vehicle.
Please refer to national legislation so as
to meet the requirements on carrying
objects that are longer than the vehicle.

Recommendations

Distribute the load evenly, avoiding

overloading on one side.

Arrange the heaviest part of the load as

close as possible to the roof.

Anchor the load securely and fit a warning

flag if part of it overhangs the vehicle.

Drive gently, as the vehicle will be more

liable to the effects of side winds (vehicle
stability may be affected).

Remove the roof bars as soon as they are

no longer needed.

167

Practical information

TOTAL & CITROËN

Partners in performance
and protecting
the environment

Innovation in the search for
performance

For over 40 year, the TOTAL Research and
Development departments have developed lubricants
for CITROËN, to match the latest technical innovations
on CITROËN vehicles, both for competition and for
everyday motoring.
For you, this is an assurance that you will obtain the
best performance from your engine.

Optimum protection for
your engine

By having your CITROËN vehicle
serviced with TOTAL lubricants, you are
contributing towards improving the life
and performance of your engine, while
also protecting the environment.

168

Practical information

Bonnet

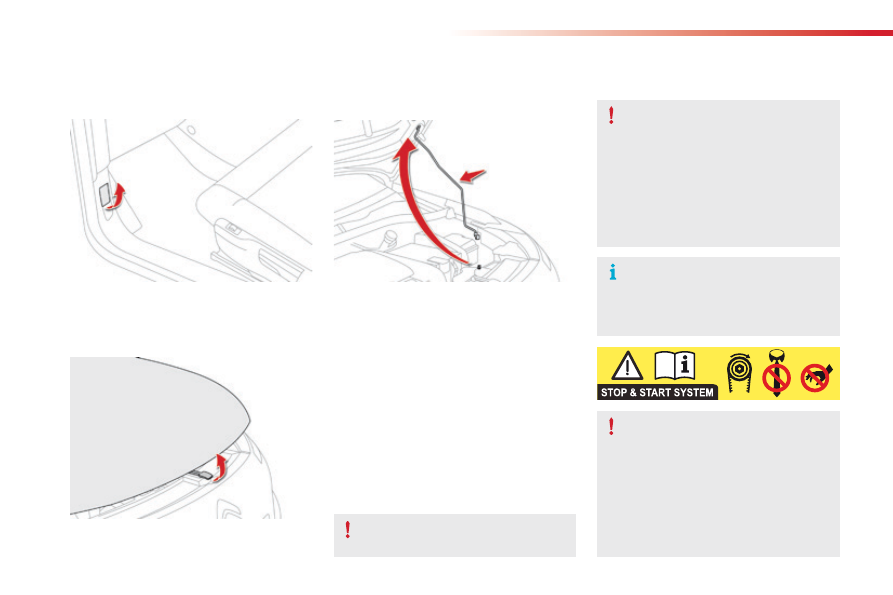

Open the left hand front door.

The location of the interior bonnet

release lever prevents opening of the

bonnet when the left hand front door

is shut.

When the engine is hot, handle the

exterior safety catch and the stay with

care (risk of burns), using the protected

area.

When the bonnet is open, take care not

to damage the safety catch.

Lift the safety catch and raise the bonnet.

Unclip the stay from its housing and place

it in the support slot to hold the bonnet
open.

Opening

Pull the release lever, located at the bottom

of the door aperture, towards you.

The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
be caught by the fan blades.

Do not open the bonnet under very
windy conditions.

Closing

Take the stay out of its support slot.

Clip the stay back into its housing.

Lower the bonnet and release it at the end

of its travel.

Pull on the bonnet to check that it has

latched correctly.

Because of the presence of electrical

equipment under the bonnet, it is

recommended that exposure to water

(rain, washing, ...) be limited.

Before doing anything under the
bonnet, switch off the Stop & Start

system to avoid any risk of injury

resulting from an automatic change to

START mode.

169

Practical information

Screenwash fluid reservoir.

Coolant header tank.

Brake fluid reservoir.

Battery.

Fusebox.

Air filter.

Engine oil dipstick.

Engine oil filler cap.

Remote earth point.

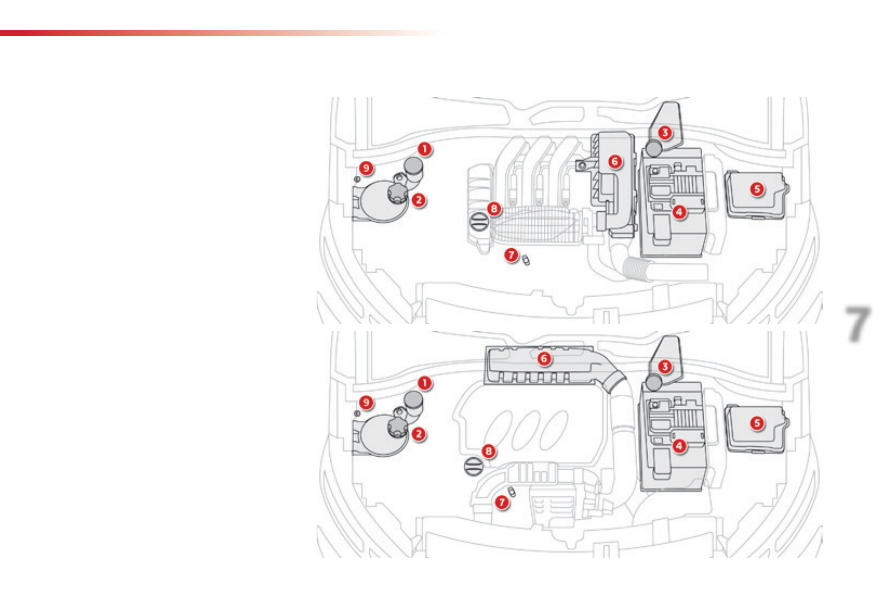

Petrol engines

170

Practical information

Screenwash fluid reservoir.

Coolant header tank.

Brake fluid reservoir.

Battery.

Fusebox.

Air filter.

Engine oil dipstick.

Engine oil filler cap.

Priming pump*.

10.

Remote earth point.

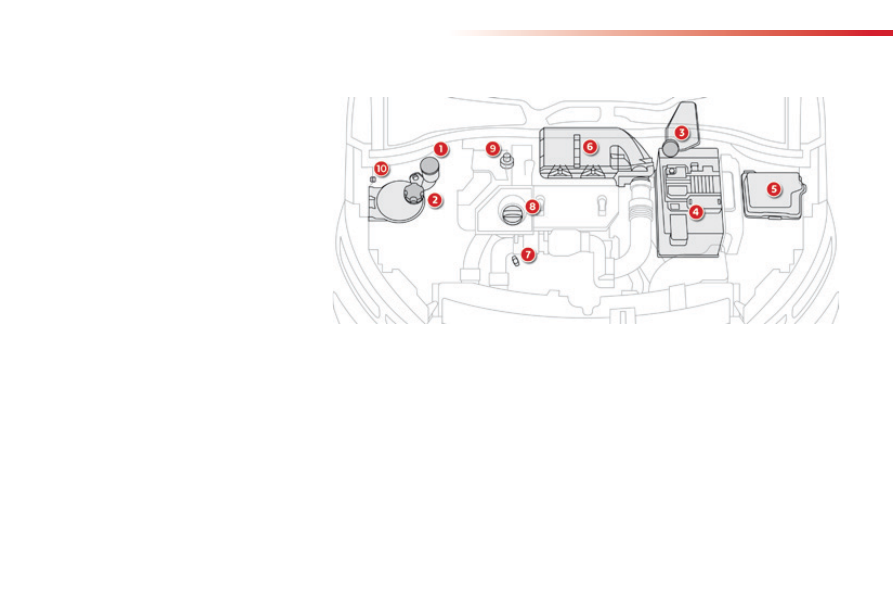

Diesel engines

* According to engine.

171

Practical information

Checking levels

Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns)
and the cooling fan could start at any
time (even with the ignition off).

Engine oil level

The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.

Checking using the dipstick

Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless otherwise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.

If you find that the level is above the A mark or
below the B

mark, do not start the engine.

- If the level is above the MAX mark (risk

of damage to the engine), contact a
CITROËN dealer or a qualified workshop.

- If the level is below the MIN mark, you

must top up the engine oil.

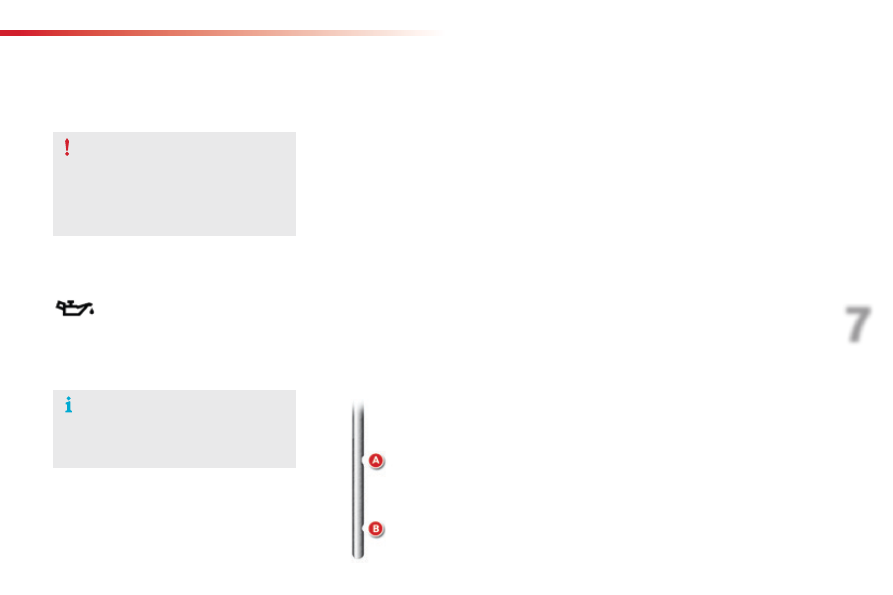

A = MAX

B = MIN

To ensure that the reading is correct,
your vehicle must be parked on a level
surface with the engine having been off
for more than 30 minutes.

It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).

The location of the dipstick is shown in the
corresponding underbonnet layout view.
F

Take the dipstick by its coloured grip and

remove it completely.

Wipe the end of the dipstick using a clean

non-fluffy cloth.

Refit the dipstick and push fully down, then

pull it out again to make the visual check:
the correct level is between the marks A
and B.

Oil grade

Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.

172

Practical information

After topping-up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping up.

Topping-up the engine oil level

The location of the oil filler cap is shown in the
corresponding underbonnet layout view.
F Unscrew the oil filler cap to reveal the filler

aperture.

Add oil in small quantities, avoiding any

spills on engine components (risk of fire).

Wait a few minutes before checking the

level again using the dipstick.

Add more oil if necessary.

After checking the level, carefully refit the

oil filler cap and the dipstick in its tube.

Engine oil change

Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.

The brake fluid level should be close
to the "MAX" mark. If it is not, check
the brake pad wear.

Brake fluid level

Changing the fluid

Refer to the manufacturer's service schedule
for details of the interval for this operation.

Fluid specification

The brake fluid must conform to the
manufacturer's recommendations.

173

Practical information

Coolant level

The coolant level should be close
to the "MAX" mark but should never
exceed it.

In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
To avoid any risk of scalding, unscrew the cap by
two turns to allow the pressure to drop. When the
pressure has dropped, remove the cap and top
up the level.

Changing the coolant

The coolant does not have to be replaced at routine services.

The cooling fan may start after switching
off the engine: take care with articles and
clothing that might be caught by the fan
blades.

When the engine is warm, the temperature of
the coolant is regulated by the fan.

Fluid specification

The coolant must conform to the
manufacturer's recommendations.

Fluid specification

For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
In wintry conditions, it is recommended that you
use an ethyl alcohol or methanol based fluid.

Screenwash fluid level

Top up the level when necessary.

Topping up

The reservoir must be topped up without delay
by a CITROËN dealer or a qualified workshop.

Diesel fuel additive
level (Diesel with particle
filter)

The additive reservoir low level is
indicated by fixed illumination of

Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.

Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.

Used products

this warning lamp, accompanied by an audible
signal and a message that the particle filter
additive level is too low.

174

Practical information

Checks

12 V battery

The battery does not require any maintenance.
However, check regularly that the terminals
are correctly tightened (versions without quick
release terminals) and that the connections
are clean.

Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.

Air filter and passenger compartment filter

Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.

Oil filter

Unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Otherwise, have them checked by a CITROËN dealer or a qualified workshop.

Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary

A clogged passenger compartment filter may
have an adverse effect on the performance
of the air conditioning system and generate
undesirable odours.

Particle filter (Diesel)

The start of saturation of the
particle filter is indicated by the
fixed illumination of this warning
lamp accompanied by a warning
message.

As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this indicates a
low additive level.
Refer to the "Diesel additive level" section.

On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is perfectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.

When carrying out any operation on the 12 V
battery, refer to the corresponding section for
details of the precautions to be taken before
starting work.

Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.

Citroen C4 Cactus (2016 year). Instruction - part 11
