Citroen C4 Aircross (2017 year). Instruction - part 19

287

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Level 1

Level 2

Level 3

Comments

Map Reg. Code

Display the registration code for the navigation system.

Mobile Phone

Make and receive telephone calls.

Version Info.

View the software version and mapping data version.

288

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Press the MODE button then "Bluetooth Audio" to

start Bluetooth mode.

Pairing a telephone

In the Bluetooth menu on your telephone, select the

system name in the list of devices detected.

Enter the code "1212" in the telephone and confirm.

Select the telephone to connect then press this

button.

Press "Select Device to Connect

Wait until the telephone detected is displayed.

Press SETTINGS

Press "Edit

" to connect the telephone.

Press "System" then "Pairing

You can register or delete a device in the list.

BLUETOOTH

STREAMING - TELEPHONE

289

C4-Aircross_en_Chap10c_Mitsu5_ed01-2016

AUDIO-CD TOUCH SCREEN
SYSTEM

The system is protected in such a way that it will only

operate in your vehicle.

01 First steps - Control panel

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.

When the engine is switched off and to prevent

discharging of the battery, the system switches off

following the activation of the energy economy mode.

Contents

03 General operation

02 Steering mounted controls

04 Radio

05 Music

06 Bluetooth

telephone

290

FIRST STEPS

MENU: chose the audio source from the

main menu.

Use the buttons offered on the screen.

PWR: audio system on/off.

Off: mute (with black screen).

VOL: adjust volume.

EJECT: eject the CD.

Move a finger over the screen to operate

the system.

For safety reasons, the driver
must only carry out operations
which require prolonged
attention with the vehicle
stationary.

291

C4-Aircross_en_Chap10c_Mitsu5_ed01-2016

STEERING MOUNTED CONTROLS

Increase / reduce audio volume.

Search for a higher / lower radio frequency.

Next / previous CD track.

CD fast forward / back.

Long press: audio system on / off.

Short press: selection of the source in the

following order (in a loop):

CD, USB, iPod, Bluetooth, AUX, FM, MW, LW.

292

293

C4-Aircross_en_Chap10c_Mitsu5_ed01-2016

GENERAL OPERATION

Description of controls - Menus

Setting

switch off the screen,

- adjust the touch beep,

- adjust the time or display it continuously,

- select the guidance voice,

- select the picture quality for the screen and reversing

camera,

- select RDS.

/ MW / LW: select a radio

station from:

- frequency modulation (FM),

- medium wave (MW),

- long wave (LW).

BT Audio

: connect a Bluetooth

(2.0) telephone then play the

music files by streaming.

AUX

: connect a portable player

to the Jack auxiliary socket then

play the music files.

Phone

: make or receive

telephone calls.

Change from one screen

to the other.

Voice

: use the voice

commands.

USB

/ iPod

: connect a

portable player by USB or an

iPod

, then play the music files.

: play the music files

through the CD player

(WAV, MP3, WMA, AAC).

DAB

: select the digital

radio (Digital Audio

Broadcasting).

294

GENERAL OPERATION

Level 1

Level 2

Level 3

295

C4-Aircross_en_Chap10c_Mitsu5_ed01-2016

Level 1

Level 2

Level 3

Comments

Select the tabs for access to the 6 preset stations.

FM = 12 stations.

DAB = 18 stations.
Preset stations.

After selecting a frequency, press and hold the number to preset the current

station.

Activate station tracking (automatic selection of the strongest frequency).
Activate regional station tracking mode to track the frequency of a regional station

in the network.
Activate the temporary transfer to a station with traffic information.

Activate station tracking according to programme/theme.

Adjust the audio quality (balance, equaliser, etc.).
Change frequency. Maintain pressure until a beep is heard for an automatic search

for the next station.
Display the list of stations received.

Display radio text (if there is no information, "no text" is displayed).

Information on the track being played.

Repeat in a loop the track being played.

Play the first 10 seconds of each track.

Play all tracks in random order.

Adjust the audio quality (balance, equaliser, etc.).

Select a track or maintain pressure for fast forward or rewind.

Go down or up in the folders.

Click on a folder or sub-folder to play the first track.

Sort the tracks by category.

296

GENERAL OPERATION

Level 1

Level 2

Level 3

The telephone must first

be connected by the

"Phone

" menu.

297

C4-Aircross_en_Chap10c_Mitsu5_ed01-2016

Level 1

Level 2

Level 3

Comments

Information on the track being played.

Repeat in a loop the track being played.

Play the first 10 seconds of each track.

Play all tracks in random order.

Adjust the audio quality (balance, equaliser, ...).

Select a track or maintain pressure for fast forward or back.

Stop play of the track.

Play or pause the track.

Use the keypad to enter a number then click on the telephone.

Start the call.

Transfer the call from the vehicle to the mobile phone.

Cut the vehicle microphone (the contact no longer hears your voice but stays on hold).

End the call.

Call back the last number.

Select a contact in the vehicle phone book.

Select a contact in the mobile phone book.

Select a contact and press "Edit" to view the numbers.
Select a telephone from the list of connected telephones.
Pair/connect a new telephone.
Delete a telephone from the list of connected telephones.
Register a code used for pairing telephones.
Lock the telephone keypad.
Erase all registered telephones.

298

Level 3

GENERAL OPERATION

Level 1

Level 2

Refer to section

299

C4-Aircross_en_Chap10c_Mitsu5_ed01-2016

Level 1

Level 2

Level 3

Comments

Display a black screen. Press the screen to return to the last display.

Adjust the touch tone.

Adjust the date and time.

Select the language for voice commands.

Adjust the brightness, contrast and black level for the menu screen, ...

Adjust the brightness, contrast and black level for the image from the rear

camera.
Adjust the sound level of each speaker.

Select the type of sound (rock, pop, hiphop, jazz, normal).

Select the type of surround (DTS, premidia wide) and the audio field.
Adjust the depth of sound by optimising the compression of bass and treble

audio data.

SCV

speed compensated volume

Adjust the volume according to the speed of the vehicle.

Dolby Volume

Adjust the volume automatically according to audio source for clear and natural

sound.
Display the time continuously.

Activate station tracking (automatic selection of the strongest frequency).
Activate regional station tracking mode to track the frequency of a regional

station in the network.
Activate the temporary transfer to stations with traffic information.

Activate station tracking according to programme/theme.

Select a telephone from the list of connected telephones.

Connect/pair a new telephone.

Delete a telephone from the list of connected telephones.

Display the version of the system.

300

Selecting an FM / MW / LW station

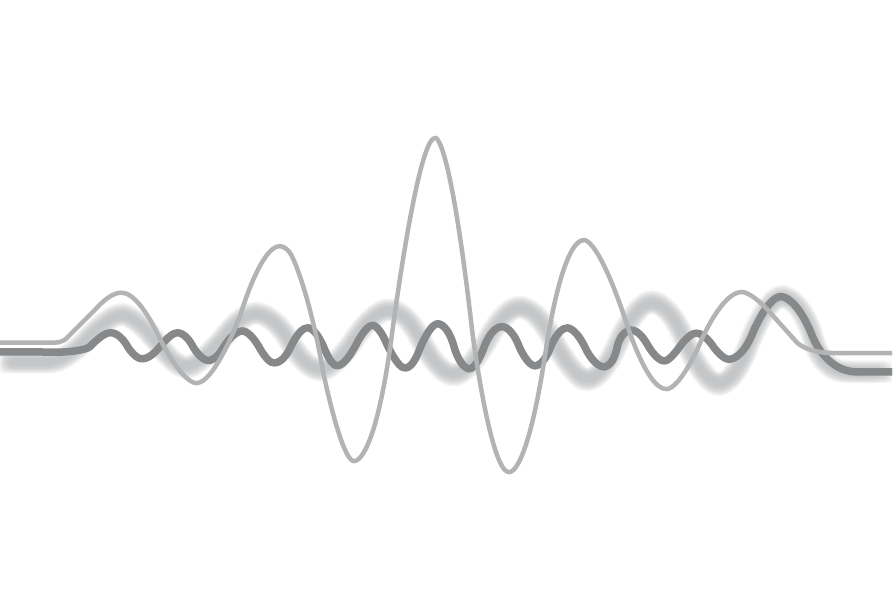

The exterior environment (hills, buildings, tunnel, car park, below ground...) may prevent reception, even in RDS station tracking mode.

This phenomenon is normal in the propagation of radio waves and is in no way indicative of a fault with the audio system.

Select "FM" or "MW" or "LW

Press MENU

to display the choice of source.

Select a radio station in the list (1 to 6) or press

"Tune

" to change the frequency.

Maintain pressure on "Tune" until a beep is

heard, for an automatic search for the next

station.

RADIO

Press the arrow

to adjust the RDS or the audio

settings (balance, equaliser, ...).

Press "Station list

" to display the list of radio

stations received locally.

A long press on one of the numbered buttons

presets the current station.

Preset up to 12 stations between FM1 and

FM2.

301

C4-Aircross_en_Chap10c_Mitsu5_ed01-2016

RDS

The Radio Data System (RDS) function on the FM waveband permits:

- automatic retuning to alternative frequencies carrying the same

station while travelling through different regions (if the transmitters

of this station cover the area through which you are travelling),

- temporary tuning to traffic information announcements,

- display of the name of the station, etc...

Most FM stations use RDS.

These stations transmit non-audible data in addition to their

programmes.

The data transmitted in this way allows you access to various

functions, mainly displaying of the name of the station, temporary

tuning to traffic information announcements or automatic retuning to

alternative frequencies.

RDS allows you to continue listening to the same station automatically

by means of alternative frequencies. However, alternative frequencies

may not be provided throughout the country. Radio stations do not

cover the whole country, which explains the loss of reception of the

station during a journey.

Regional mode

Some stations are organised in a network.

In different regions, they broadcast different or shared programmes

depending on the time of day.

You can follow:

- a regional station only,

- the entire network, with the possibility that you will be listening

to a different programme.

RDS, AF, REG, TP, PTY

RADIO

RDS alternative frequencies

Your radio automatically checks and selects the best frequency for

the radio station to which it is tuned (if the station broadcasts on

several transmitters or frequencies).

The frequency of a radio station covers approximately 30 miles

(50 km). The change from one frequency to another explains the

loss of reception during a journey.

If the station to which you are listening does not have several

frequencies in the region in which you are currently located, you can

deactivate automatic alternative frequencies.

Traffic information function

The Traffic Programme (TP) function permits automatic and

temporary switching to an FM station broadcasting traffic

information.

The radio station or the source that you are listening to at this point

is paused.

Once the traffic information has ended, the system switches back to

the radio station or the source that you were listening to initially.

Programme types

Some stations offer the option of listening to a themed type of

programme as a priority, selected from the list available below:
NEWS, AFFAIRS, INFOS, SPORT, EDUCATE, DRAMA, CUlTURE,
SCIENCE, VARIED, POP M, ROCK M, EASY M, lIGHT M,
ClASSICS, OTHER M, WEATHER, FINANCE, CHIlDREN,

SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ,

COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT.

302

RDS settings: AF, Reg, TP, PTY

Select the arrow

Select "Setting" then "RDS Setting

Press the MENU button, then "Next

RADIO

then

Activate or not the settings.

Press the MENU button then select the

radio source (FM / MW / LW).
