Citroen C4 Aircross (2017 year). Instruction - part 17

255

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Level 1

Level 2

Level 3

Comments

Go Home

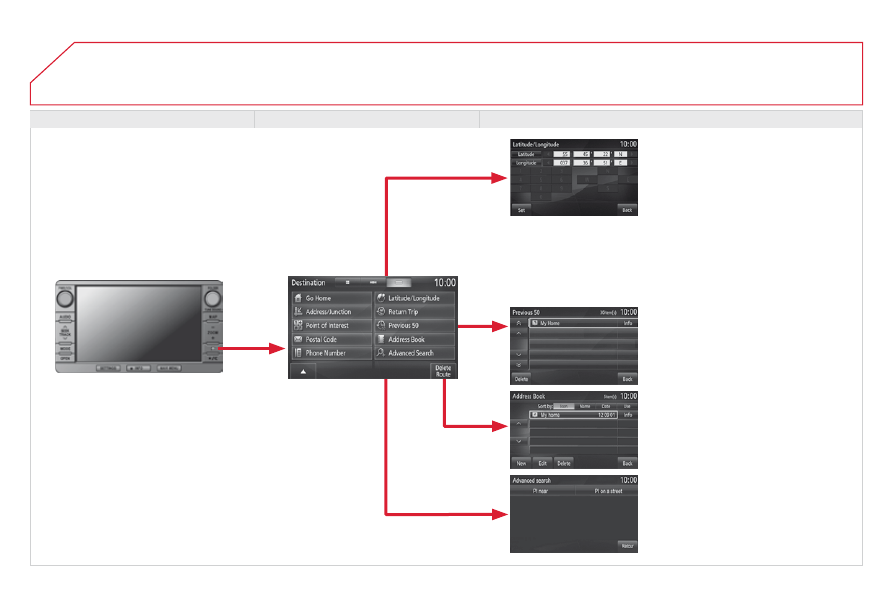

Address Book

Select a direct return home.

Press Yes to save your home location (the first time).

Go Home

Special location

My Categories

Address/Junction

Country

Select a location using the address or name of the street of the

destination.

City

Street

House #

Junction

Set

Save the settings.

Point of Interest

Country

Select a location using the name of a point of interest (POI).

City

Point of Interest

Category

Delete

Delete a destination from the list.

Address Book

Icon

Select a location using an address saved in the address book.

Name

Date

Use

New

Create an address.

Edit

Display an address from the list.

Delete

Delete an address from list.

Advanced Search

POI nearby

Select a location using an advanced search based on a POI.

POI along a Street

258

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

NAVIGATION

Level 1

Level 2

Level 3

259

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Level 1

Level 2

Level 3

Comments

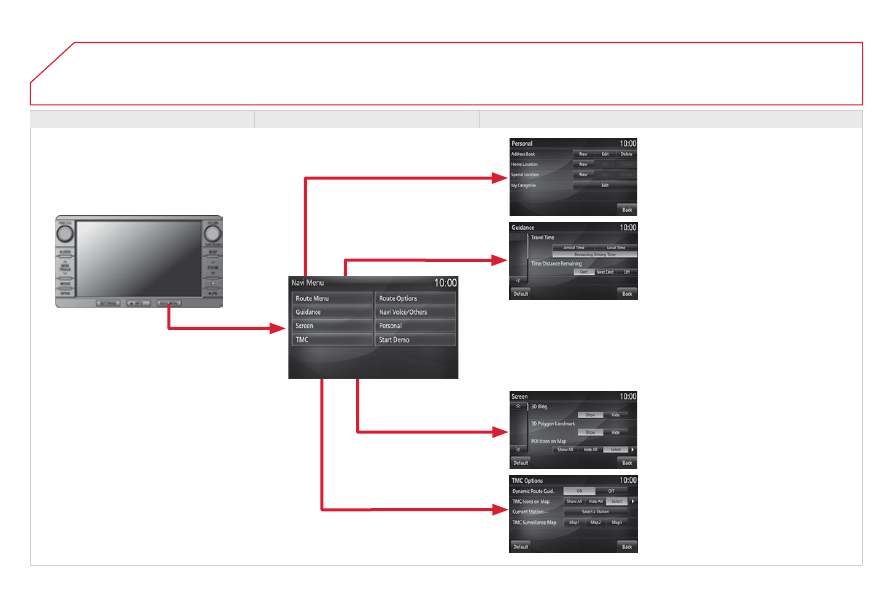

Route Menu

Check and view the maps of the surroundings on a journey.

Guidance

Travel Time

Adjust the route guidance mode and display the results of the route

search.

Time/Distance Remaining

Screen

3D Bldg.

Adjust the screen display settings.

3D Polygon Landmark

POI Icons on Map

TMC

Dynamic Route Guidance

Display and select traffic information transmitted in real time, such as

traffic jams and roadworks by selecting dynamic route guidance.

TMC Icons on Map

Current Station

TMC Surveillance Map

260

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

NAVIGATION

Level 1

Level 2

Level 3

261

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Level 1

Level 2

Level 3

Comments

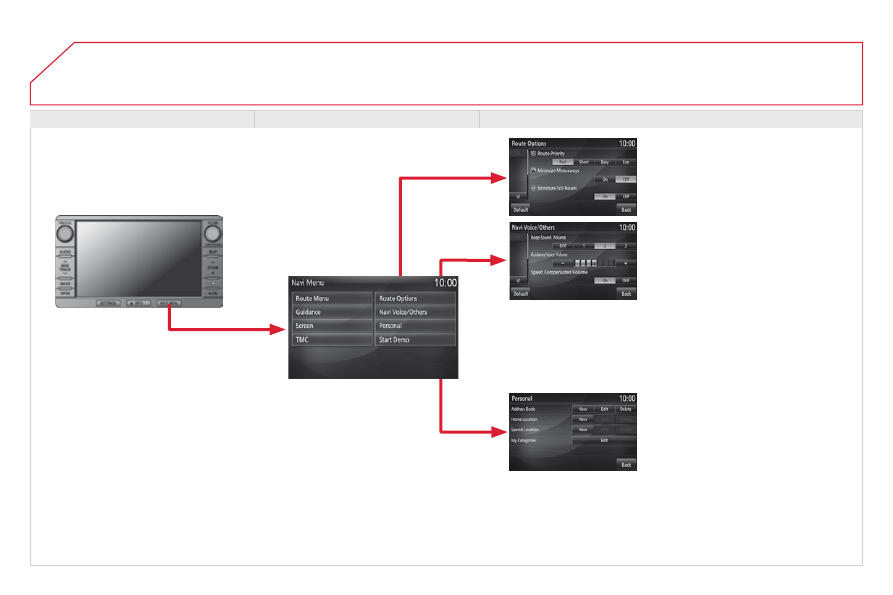

Route Options

Route Priority

Adjust the roads used conditions.

Minimize Motorways

Minimize Toll Roads

Navi Voice/Others

Beep Sound Volume

Set the voice used for navigation instructions and adjust the volume.

Guidance Voice Volume

Speed Compensated Volume

Personal

Address Book

Save, modify or delete an entry in the address book.

Go Home

Special location

My Categories

Start Demo

Play the video to check the prepared route.

262

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

The satellite navigation system guides the driver to the destination

set in accordance with a chosen route.

Initially, it searches for the destination required by the user, then

it calculates the route and finally it provides the visual and vocal

guidance instructions.

A point of interest (POI) is represented by an icon on

the map, it represents an airport, a station, a town

hall, ...

What is a point of interest (POI)?

Up to 40 different icons may be displayed (refer to the

section "Points of interest icon").

They are classified in 5 groups and identified by one

colour for each group:

- Shops, finance and businesses (Green),

- Vehicles and travel (Dark blue),

- Restaurants (Orange),

- Public places and emergency services (Brown),

- Entertainment and attractions (Blue).

GPS (Global Positioning System) consists of several

satellites arranged around the earth. They continuously

transmit digital signals which travel at the speed of

light, on 2 different frequencies.

At any given time, the system receives its position

in relation to the satellites detected and the time of

transmission of the signal.

This enables the telematic unit to calculate its position

and therefore that of the vehicle.

A repositioning process using the map database stored

on the hard disk allows the vehicle to be positioned

on the road network, so improving the accuracy of the

vehicle location function.

GPS system

What is the navigation system and GPS?

The system's measurements may be inaccurate if the vehicle is:

- in a tunnel or underground car park,

- underneath a two-level motorway,

- in an area with several very high buildings,

- surrounded by closely planted trees.

Depending on the vehicle's situation and the reception of the GPS

information, the displayed information may disappear from the

screen temporarily.

What precautions should be observed in order to make
best use of the system?

Do not place anything on or near the GPS aerial.

Do not use any digital communication equipment (personal

computers, etc.) near the GPS aerial.

Do not affix any reflective films or films containing carbon to the

windows.

NAVIGATION - GUIDANCE

263

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

NAVIGATION - GUIDANCE

Press the OPEN button to open the

screen panel.

Insert the SD card containing the

navigation mapping data in the left-

hand SD card reader.

Push the SD card until it clicks into

place.
Press the OPEN button to close the

screen panel.

To restore the navigation data and/or if the power from the battery is

cut, contact a CITROËN dealer.

Installing the navigation SD card

Navigation SD card

264

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Selecting points of interest (POI) icons
displayed on the map

You can select point of interest icons which are

displayed on your map screen.
Press DESTINATION then "Point of Interest

Press "All Categories" then choose between
"My Categories", "Last 5

" and "Show All".

Press each POI required.

General

Town centre

locality

Shops, finance and businesses (Green)

Major companies
Shopping centre

Vehicles and travel (Dark blue)

CITROËN

Airport

Bus stop

Vehicle hire
Suburban / main line station
Ferry terminal
Hotel
Park and ride
Car park (press +)
Service station

Rest area

Toll booth
Tourist information
Railway station

Restaurant (Orange)

Night life / night club
Restaurant

Public places and emergency services (Brown)

Town Hall
Community centre
Convention / exhibition centre
Hospital
University / college

Entertainment and attractions (Blue)

Theme park
Bowling alley
Casino
Cinema
Golf course
Historical monument
Skating rink
Marina
Museum
Flying club
leisure area
Ski station
Sports centre
Theatre / opera
Tourist attraction
Vineyard / wine and spirit store

NAVIGATION - GUIDANCE

265

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Press the DESTINATION

button.

Towards a new destination

Selecting a destination

Press "Address/Junction

Press "Country

" and enter the name of the country

using the touch keypad.

You can select one of the 5 most recently selected

countries, cities or streets cities by pressing Last 5 in

the line.

Press "All Cities

" and enter the name of the city

using the touch keypad.

Press "All Streets

" and enter the name of the street

using the touch keypad.

Press "All House Numbers

" and enter the street

number using the touch keypad.

If you agree with the information, press "Set",

otherwise press one of the buttons to correct.

Press "Start

" to start the navigation.

You can enter the name of a junction instead of the

street number. Press "All Junctions" and select the

name from the list displayed.

When a character of the name of the country, city and road is

entered, and if 5 cities or streets or fewer are recognised, you

can select a country, city or street from a list which is displayed or

press "List

You can select a city using the post code.
Press "Postal Code

" and enter the number.

NAVIGATION - GUIDANCE

266

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

267

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Set the filtering and display of TMC messages

TMC messages (Traffic Message Channel) on the Navigation-GPS system give traffic information transmitted in real time.

Press on the pull-down secondary menu.

The navigation system suggests a detour route, if dynamic guidance

has been activated by pressing the NAVI MENU button, then "TMC".

Select "

Confirm Route" then "Entire Route" or

"Remaining Route

" to validate or add to the route.

Select "Change Route", then "Alternative Route" or
"Delete Route

" to modify or delete the route.

Select "Search Nearby", then "POI nearby

" to add a

point of interest to the route.

Select "Stop Guidance

" to suspend navigation

guidance.

Select "Voice Guide ADJ

" to modify the volume for

the voice or adapt the volume to the speed of the

vehicle.

Red and yellow triangle: traffic information, for example:

Black and blue triangle: general information, for example:

Weather reports

Modified signage

Risk of explosion

Traffic reports

Narrow carriageway

Road closed

Wind

Slippery surface

Demonstration

Fog

Accident

Danger

Parking

Delay

No entry

Snow / ice

Roadworks

Traffic jam

TRAFFIC

268

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

MEDIA

Level 1

Level 2

Level 3

269

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Level 1

Level 2

Level 3

Comments

RDS Settings

AF Check

The name of the station is displayed while RDS data is received. if the

name is not transmitted, the frequency is displayed.

Reg

list of stations

To display in the screen the list of stations received. PTY (programme

type) is displayed if the RDS data received is displayed, to display

in the screen programmes by type, e.g.: sport, rock, classical,

information, ... Press PTY again to quit.

Scan

To search for stations that can be received in the current location, until

a station is found.

TP Standby

Choose to activate or deactivate traffic announcements (TP).

270

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

OPEN: Opens or closes the

screen panel to insert or remove a

CD or SD card.

MEDIA

Level 1

Level 2

Level 3
