255

Technical data

B618_en_Chap09_caracteristiques-techniques_ed01-2016

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation

(Directive 1999/99/EC).

Engines and towed loads - PETROL

Engine

PureTech 70

manual

PureTech 82

manual

PureTech 110 S&S

VTI 115 EAT6

Gearbox

5-speed

manual

(BVM5)

5-speed

manual

(BVM5)

5-speed

manual

(BVM5)

6-speed

automatic

(EAT6)

6-speed

automatic

(EAT6)

Code

EB2FB - MA

EB2F - MA

EB2DT - BM -

STTd

EB2DT - AT6III -

STTd

EC5F - AT6III

Model code

Wheel 640 = /A...
Wheel 620 = /B…

SXHMP6/B0 -

SXHMP6/A0

SXHMZ6/…

B0 - B1 - A0 -

B0M - A0M

SXHNZ6/A0S

SXHNZT/A0S

SXNFPT/A0

Capacity (cm

)

1 199

1 587

Maximum power: EU standard (kW)*

Fuel

Unleaded

Braked trailer (within GTW limit) on a 10 or 12%
gradient (kg)

450

600

450

Unbraked trailer (kg)

450

Recommended nose weight (kg)

256

Technical data

B618_en_Chap09_caracteristiques-techniques_ed01-2016

Engines and towed loads - DIESEL

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Engine

BlueHDi 75 S&S manual

HDi 90

BlueHDi 100 S&S manual

Gearbox

5-speed manual

(BVM5)

5-speed manual

(BVM5)

5-speed manual

(BVM5)

Code

DV6FE - BE - STTd

DV6DM - BE

DV6FD - BE - STTd

Model code

Wheel 640 = /A...
Wheel 620 = /B…

SXBHW6/…

B0S - B1S - A0S

SX9HJC/B0 - SX9HJC/A0

SXBHY6/B0S - SXBHY6/A0S

Capacity (cm

)

1 560

Maximum power: EU standard (kW)*

Fuel

Diesel

Braked trailer (within GTW limit) on a 10 or 12%
gradient (kg)

600

Unbraked trailer (kg)

450

Recommended nose weight (kg)

257

Technical data

B618_en_Chap09_caracteristiques-techniques_ed01-2016

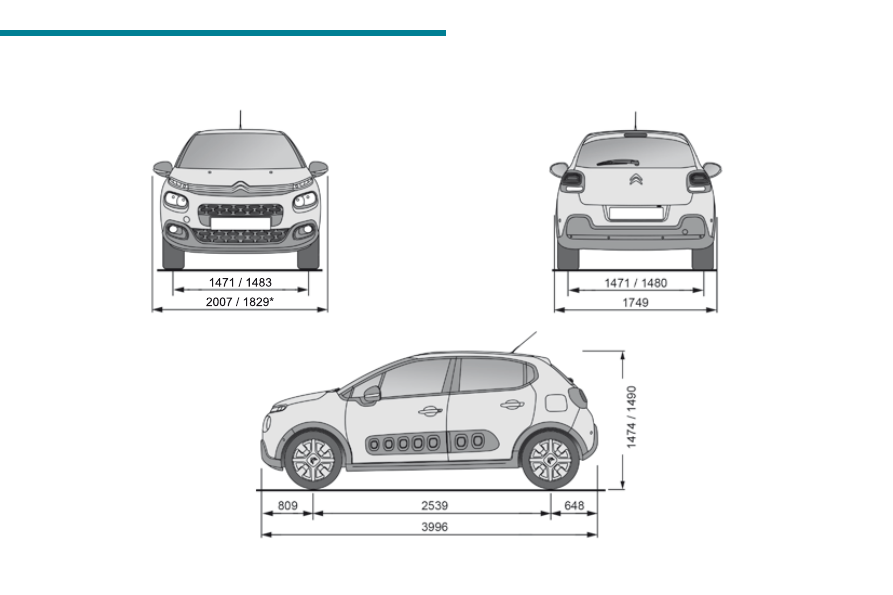

Dimensions (in mm)

These dimensions have been measured on an unladen vehicle.

* Mirrors folded.

258

Technical data

B618_en_Chap09_caracteristiques-techniques_ed01-2016

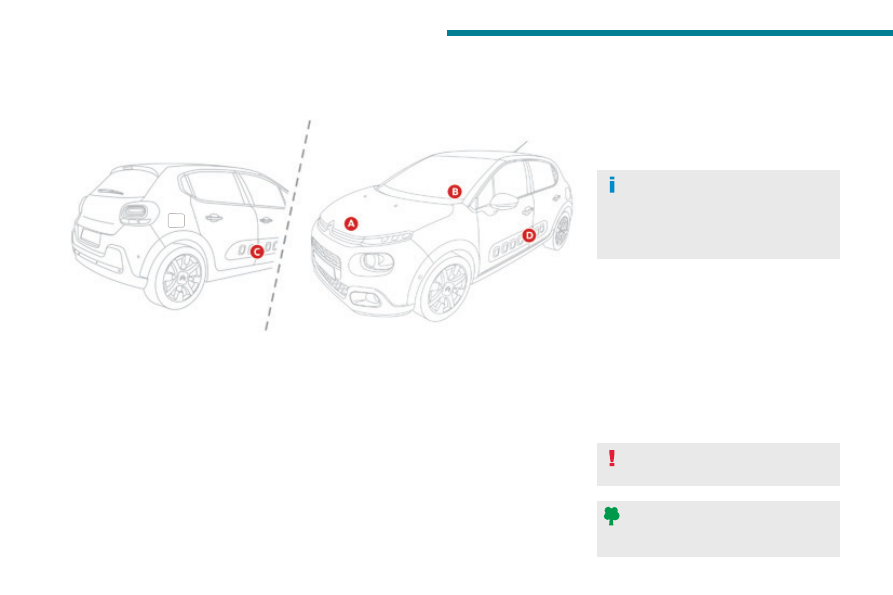

Identification markings

A. Vehicle identification number (VIN),
under the bonnet.
The number is engraved on the body structure.

- the maximum authorised vehicle weight

(the Gross Vehicle Weight or GVW),

- the maximum authorised vehicle + trailer

weight (the Gross Train Weight or GTW),

- the maximum weight on the front axle,

- the maximum weight on the rear axle.

- the spare tyre pressure.
It also indicates the paint colour code.

B. Vehicle identification number (VIN), on
the dashboard.
The number is on a label, visible through the
windscreen.

Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm; in this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.

Different visible markings for the identification of your vehicle.

Low tyre pressures increase fuel
consumption.

Never reduce the pressure of a warm
tyre.

The original tyres fitted to the vehicle
may have a load index or speed rating
higher than those given on the label;
this has no effect on the inflation
pressures.

C. Manufacturer's label.

This self-destructing label is affixed to the right-

hand door aperture.

It bears the following information:

- the name of the manufacturer,
-

the European Whole Vehicle Type Approval

number,

- the vehicle identification number (VIN),

D. Tyres / paint code label.
This label is affixed to the driver's door
aperture.
It bears the following information on the tyres:
-

the tyre pressures, unladen and laden,

- the reference, size, type, load index and

speed rating,

259

Technical data

B618_en_Chap09_caracteristiques-techniques_ed01-2016

260

Alphabetical index

B618_en_Chap11_index-alpha_ed01-2016

Accessories

...........................................117, 1 57

AdBlue

.....................................26, 3 6 , 215, 2 16

Adjusting headlamps .................................... 112

Adjusting head restraints ................................77

Adjusting seat .................................................76

Adjusting the air distribution .....................85, 8 8

Adjusting the air flow .................................85, 8 8

Adjusting the date .....................................41 , 54

Adjusting the height and reach of

the steering wheel ........................................82

Adjusting the temperature ........................85, 8 8

Adjusting the time ...............................41 , 54, 5 5

Advice on driving .................................. 151, 152

Airbags ............................................29 , 129 , 137

Airbags, curtain .....................................132, 133

Airbags, front.........................................130, 133

Airbags, lateral ...................................... 131, 133
AIRBUMP

....................................................219

Air conditioning ...........................................9, 87

Air conditioning, automatic .......................84, 8 8

Air conditioning, manual ...........................84, 8 6

Air intake ...................................................86, 8 8
Air vents

..........................................................83

Alarm ...............................................................72

Anti-lock braking system (ABS) ....................123

Anti-slip regulation (ASR) .............................123
Anti-theft

.......................................................153

Armrest, front ............................................96, 9 8
Assistance call

...................................... 119 , 121

Assistance, emergency braking ...................123

Audio system ...................................................41

Auxiliary socket ...............................................98

Child seats, ISOFIX

.......................143 -145, 147

CITROËN

Connect Box ....................... 119 , 121

CITROËN

Localised Emergency Call... 119 , 121

Closing the boot ........................................57, 6 9

Closing the doors ..........................57 , 60, 6 1, 6 8

Coat hanger ....................................................99

Configuration, vehicle .........................41, 4 4, 4 6
ConnectedCAM CITROËN™

.......................193

Control, electric windows

................................74

Control, emergency boot release ...................69

Control, emergency door ................................64
Control, heated seats

......................................78

Control stalk, lighting ..............16 , 105 , 106, 1 10

Control stalk, wipers .............................. 113-115

Courtesy lamp .........................................94, 24 0
Cruise control

................................ 170, 1 73 , 178

Cruise control by speed limit recognition .....173
Cup holder

.......................................................96

Capacity, fuel tank ........................................196
Cap, fuel filler

................................................196

Central locking ....................................60, 6 1 , 70

Changing a bulb ........................... 234, 2 38, 24 0

Changing a fuse ............................241 , 243, 24 6

Changing a wheel ................................ 226, 2 27

Changing a wiper blade ........................116, 204

Changing the remote control battery ..............66

Checking the engine oil level ..........................35

Checking the levels ............................... 209-212

Checking tyre pressures (using the kit) ........221

Checks .................................. 207, 2 08, 2 13 , 214

Child lock .......................................................150
Children

.................................. 141, 143-145, 147

Children (safety)

............................................150

Child seats

............128 , 134-136 , 140 , 141, 1 49

Child seats, conventional

...................... 140, 141

Child seats, i-Size

.........................................147

Date (setting) .............................................41 , 54

Daytime running lamps .........106 , 110 , 234 , 235

Deactivating the passenger airbag .......130, 137

Deadlocking .............................................. 57, 6 2

Demisting - defrosting ...............................92, 9 3

Dimensions ...................................................257

Dipstick ....................................................35, 2 09
Direction indicators

...... 108, 1 10, 2 34 , 235 , 238

Display screen, instrument panel .................165
Doors

...............................................................68

Driving economically.........................................9

Driving time warning .....................................182

Dynamic stability control (DSC) ......22, 1 23, 1 25

Battery

................................... 203, 2 13 , 248-251

Battery, charging ...........................................250

Battery, remote control .............................63 , 66

Blanking screen (snow shield) ......................201

Blind, panoramic roof ......................................95

Blind spot monitoring system ........................184
Blind spot sensors

..................................18, 184

BlueHDi

.....................................32, 3 6 , 215, 2 20

Bonnet

...........................................................206

Boot

.................................................. 69, 9 5 , 100

Brake discs ....................................................214

Brake lamps ..................................................238

Brakes .....................................................22, 214

Bulbs (changing) .................................. 234, 2 38

261

Alphabetical index

B618_en_Chap11_index-alpha_ed01-2016

Earth point, remote ...............................207 , 208

Eco-driving (advice) ..........................................9

Economy mode .............................................203

Electronic brake force distribution (EBFD) ...123

Emergency braking assistance (EBA) ..........123

Emergency call ..................................... 119 , 121

Emergency switching off ...............................158

Emergency warning lamps ...................118, 220

Emissions control system, SCR .....................27

Energy economy mode .................................203

Engine compartment ............................207 , 208

Engine, Diesel .............................. 199 , 208 , 220

Engine, petrol ........................................199 , 207

Engines ................................................. 254-256

Environment ................................................9, 6 3
Electronic stability control (ESC)

..................123

Gauge, fuel....................................................196

Gearbox, automatic ... 9, 1 61 , 166 , 167 , 214 , 248

Gearbox, manual ........9, 9 6 , 160 , 166, 1 67, 2 14
Gear efficiency indicator

...............................165

Gear lever

.........................................................9

Gear lever, manual gearbox .........................160

Glove box ..................................................96, 9 7

Hazard warning lamps ..........................118, 220

Headlamps, automatic

illumination .................................. 106, 1 09, 1 11

Headlamps, dipped beam ............ 105 , 234, 2 35

Headlamps, main beam ............... 105 , 234, 2 36
Head restraints, front

......................................77

Head restraints, rear

.......................................79

Heating ..................................................9, 8 5 , 86
Hill start assist

...............................................166

Hooks ............................................................101
Horn

............................................................... 118

Folding the rear seats .....................................79
Fuel

............................................................9 , 199

Fuel consumption ..............................................9

Fuel tank........................................................198

Fusebox, engine compartment .....................246
Fuses

.............................................241, 24 3, 24 6

Fatigue detection ..........................................182

Filling the fuel tank ........................196 , 198 , 199
Filter, air

........................................................213

Filter, Diesel fuel

...........................................208

Filter, oil

.........................................................213

Filter, particle

........................................ 212, 213

Filter, passenger compartment .....................213

Fitting a wheel ...............................................229

Fitting roof bars .............................................205

Fittings, boot .........................................100, 102

Fittings, interior .........................................96, 9 7
Flap, fuel filler

........................................196, 198

Flashing indicators ........................108 , 110 , 235

Foglamps, rear ......................................107 , 238

Foglamps, front .............................107 , 234 , 236

Ignition .............................................91, 1 55 , 157

Immobiliser, electronic ............................63, 1 53
Indicator, AdBlue

range ...........................26, 3 6

Indicator, coolant temperature ........................31

Indicator, engine oil level ................................35

Indicator lamps, operation ........................16 , 19
Indicators, direction

..............................108 , 235

Inflating tyres ....................................9, 2 21 , 258

Instrument panel ....................................... 11 , 13
ISOFIX

..................................................143, 144

Key

......................................... 56 , 59 , 61, 6 3, 6 4

Key, electronic

........................................... 59-61

Keyless Entry and

Starting .............................59 , 61, 6 3, 1 53, 1 56

Key not recognised .......................................158

Key with remote control ................................153

Kit, temporary puncture repair ..............101, 221

Jack ...................................................... 226, 2 27

Jump starting ................................................249

262

Alphabetical index

B618_en_Chap11_index-alpha_ed01-2016

Maintenance (advice)

....................................219

Maintenance, routine

........................................9

Map reading lamps .........................................94

Markings, identification .................................258
Mat

............................................................96 , 99

Memorising a speed .....................................170
Mirror, rear view

............................................104

Mirrors, door

..........................................103 , 184

Misfuel prevention

.........................................198

Mountings, Isofix ...........................................143

Oil change .....................................................209

Oil consumption ............................................209

OIl, engine .....................................................209

Opening the bonnet ......................................206

Opening the boot ................................57 , 59 , 69

Opening the doors ..............................57 , 59 , 68

Pads, brake ...................................................214
Paint colour code

..........................................258

Panoramic glass sunroof ................................95
Parcel shelf, rear

...................................101, 102

Parking brake .................................. 17 , 159 , 214

Parking sensors, rear....................................187
Plates, identification

......................................258

Port, USB

..................................................96, 9 8

Pre-heater, Diesel

...........................................17

Pressures, tyres

....................................225 , 258

Pre-tensioning seat belts ..............................128

Priming the fuel system ................................220

Protecting children ........................130, 134 -136,

141, 143 -145, 147

Protectors

......................................................219

Puncture

........................................................221

Number plate lamps ......................................239

Range, AdBlue ..........................................26, 3 6

Rear screen, demisting ...................................93

Recharging the battery .................................250
Recirculation, air

.......................................86, 8 8

Reduction of electrical load

..........................203

Regeneration of the particle filter .................213
Reinitialisation of the under-inflation

detection system .................................191, 192

Reinitialising the remote control .....................67

Reminder, key in ignition ...............................155

Reminder, lighting on ....................................108

Remote control ........................ 56, 5 7, 5 9-61, 6 3

Removing a wheel ........................................229

Labels, identification

.....................................258

Lamp, boot ..............................................95 , 240

Lamps, parking ............................................. 110

Lane Departure Warning System (LDWS) ...183

LEDs - Light-emitting diodes ........................ 110
Level, AdBlue

................................................212

Level, brake fluid ...........................................210
Level, Diesel additive

....................................212

Level, engine coolant .............................. 31, 2 11

Level, engine oil ......................................35 , 209

Levels and checks .................................207-212
Level, screenwash fluid

................................ 211

Light-emitting diodes - LEDs ................110, 240

Lighting ............................................................16

Lighting, guide-me home .............................. 111

Lighting, interior ..............................................94

Lighting, welcome ......................................... 111

Loading .............................................................9

Load reduction mode ....................................203
Localised Assistance Call

..................... 119 , 121

Locating your vehicle ......................................58

Locking ......................................................57, 6 3

Locking from the inside ...................................70
Low fuel level

................................................196

263

Alphabetical index

B618_en_Chap11_index-alpha_ed01-2016

Safety, children

.............................130, 134 -136,

141, 143-145, 147

Screen, cold climate .....................................201

Screen, monochrome .....................................41
Screenwash, front

......................................... 114

Screenwash, rear

.......................................... 114

SCR (Selective Catalytic Reduction)

system ................................................... 27 , 215

Seat belts

.......................................126-128, 140

Seats, front

......................................................76

Seats, heated

..................................................78

Seats, rear

.......................................................79

Selector, gear ................................................161

Serial number, vehicle ..................................258
Service indicator

.......................................32 , 34

Servicing ...........................................................9

Tables of fuses

..............................241, 24 3, 2 46

Tank, fuel ...............................................196, 198

Temperature, coolant ......................................31

Third brake lamp ...........................................239
Three flashes (direction indicators)

..............108

Time (setting) ......................................41, 5 4 , 55

Settings, equipment ......................40 , 41 , 44 , 46

Sidelamps .................... 105 , 110, 2 34 , 235, 2 38
Side repeater

................................................237

Snow chains

..........................................190, 2 00

Socket, 12 V accessory ............................96, 9 7

Socket, auxiliary ..............................................98

Sockets, audio ................................................98

Speed limiter ................................. 170 , 173, 1 75

Speed limit recognition ................................. 171
Stability control (ESC)

...................................123

Starting the engine .......................153 , 156, 1 61

Starting using another battery ..............158 , 249
Stay, bonnet

..................................................206

Steering wheel, adjustment ............................82
Stop

.................................................................20

Stopping the vehicle .....................153 , 156, 1 61
Stop & Start

.......................... 18, 5 2, 8 4, 9 2 , 167,

196 , 206, 2 13, 2 51

Stop (warning lamp) ........................................20

Storage ............................................................97
Sun visor

...................................................96, 9 7

Switching off the engine ...............................153

Synchronising the remote control ...................67

Removing the mat ...........................................99

Replacing bulbs ................................... 234 , 238

Replacing fuses ....................................241 , 243

Replacing the air filter ...................................213

Replacing the oil filter ...................................213

Replacing the passenger

compartment filter ......................................213

Reservoir, screenwash

................................. 211

Resetting the service indicator .......................34

Resetting the trip recorder ..............................39

Reversing camera .........................................189

Reversing lamp .............................................238
Roof bars

.......................................................205

Running out of fuel (Diesel) ..........................220

Tools

..................................................... 226, 2 27

Total distance recorder

...................................39

Touch screen

.............................................44, 4 6

Towbar

...................................................152, 2 02

Towing another vehicle .................................252

Towing eye ....................................................101
Traction control (ASR)

....................22 , 123 , 125

Trailer

....................................................152, 2 02

Triangle, warning...................................101, 220

Trip computer ............................................ 50-52
Trip distance recorder

.....................................39

Tyres

..........................................................9 , 258

Tyre under-inflation

detection

.............................. 30 , 190 , 192 , 225

Under floor storage .......................................101
Under-inflation (detection)

............................190

Unlocking ..................................................57, 5 9

Unlocking from the inside ...............................70

Updating the date ............................................54

Updating the time ......................................54, 5 5

264

Alphabetical index

B618_en_Chap11_index-alpha_ed01-2016

Warning and indicator lamps ........15 , 16 , 19, 2 0

Warning lamp, braking system .......................22

Warning lamp, Diesel engine pre-heater .......17

Warning lamp, driver's seat belt not

fastened

......................................................127

Warning lamp, low fuel level ...........................28

Warning lamps ................................................20

Warning lamp, seat belts ..............................127

Warning lamp, Service....................................21

Warning lamp, Stop ........................................20

Weights ................................................. 254-256
Wheel, spare

.................................226, 2 27 , 258

Window controls

.............................................74

Wiper blades (changing) .......................116, 204
Wiper, rear

..................................................... 114

Wipers

................................................... 113, 115

Wipers, automatic rain sensitive ........... 113, 115

Ventilation

...................................... 9 , 83 , 84, 8 6

06-16

B618_en_Chap12_couverture_fin_ed01-2016

Automobiles CITROËN declares, by application of the

provisions of the European legislation (Directive 2000/53)

relating to End of Life Vehicles, that it achieves the

objectives set by this legislation and that recycled materials

are used in the manufacture of the products that it sells.

Reproduction or translation of all or part of this document

is prohibited without written authorisation from Automobiles

CITROËN.

Printed in the EU

Anglais

4Dconcept

Diadeis

Interak

B618_en_Chap12_couverture_fin_ed01-2016

16B61.0040

Anglais

*16B61.0040*

Content .. 15 16 17 18 ..
