In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

F

  Check that the compressor switch is at the

"O

" position.

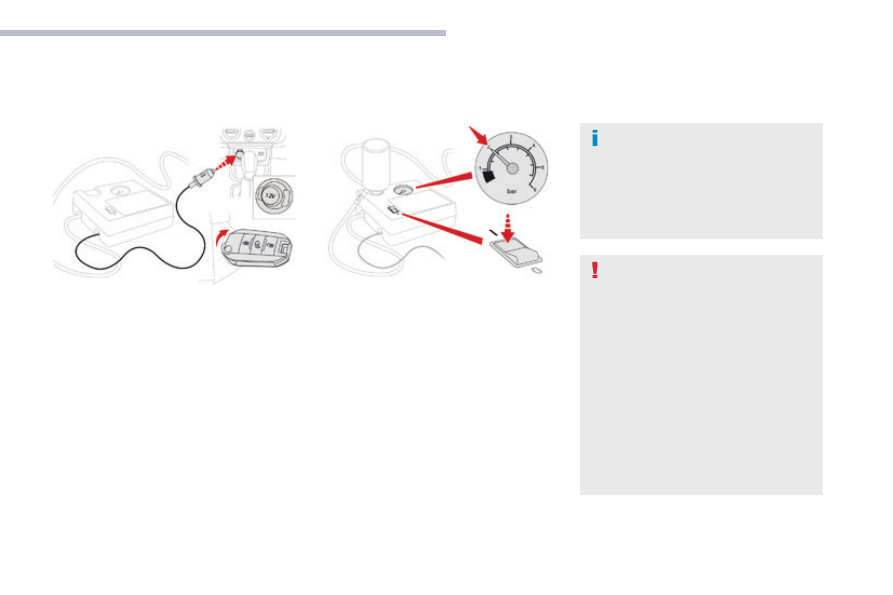

F  Uncoil fully the electric cable, stowed under

the compressor.

F

  Connect the compressor's plug to the

vehicle's 12 V socket.

F

  Switch on the ignition.

If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a CITROËN dealer or a qualified
workshop for assistance.

F

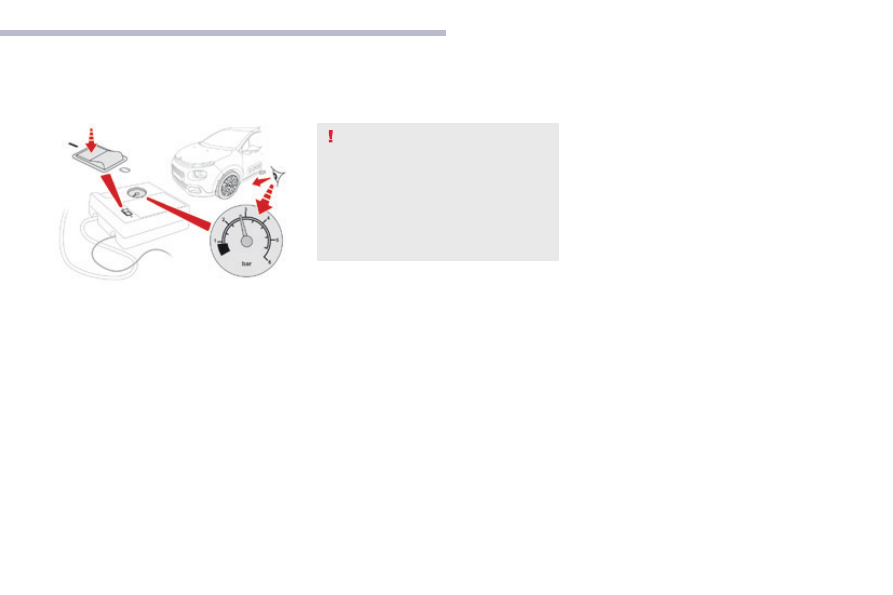

  Start the compressor by placing the switch

at the "I

" position and leave it running until

the tyre pressure reaches 2.0 bar.



The sealant product is injected into the tyre
under pressure; do not disconnect the pipe
from the valve during this operation (risk of
splashing and stains).

Take care, the sealant product is
harmful if swallowed and causes
irritation to the eyes.
Keep this product out of the reach of
children.
The use-by date is marked on the
cartridge.
After use, do not discard the
cartridge by the roadside, take it to
a CITROËN dealer or an authorised
waste disposal site.
Don't forget to obtain a new sealant
cartridge, available from a CITROËN
dealer or a qualified workshop.

224

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

F  Place the switch in the "O

" position.

F

  Remove the kit.

F

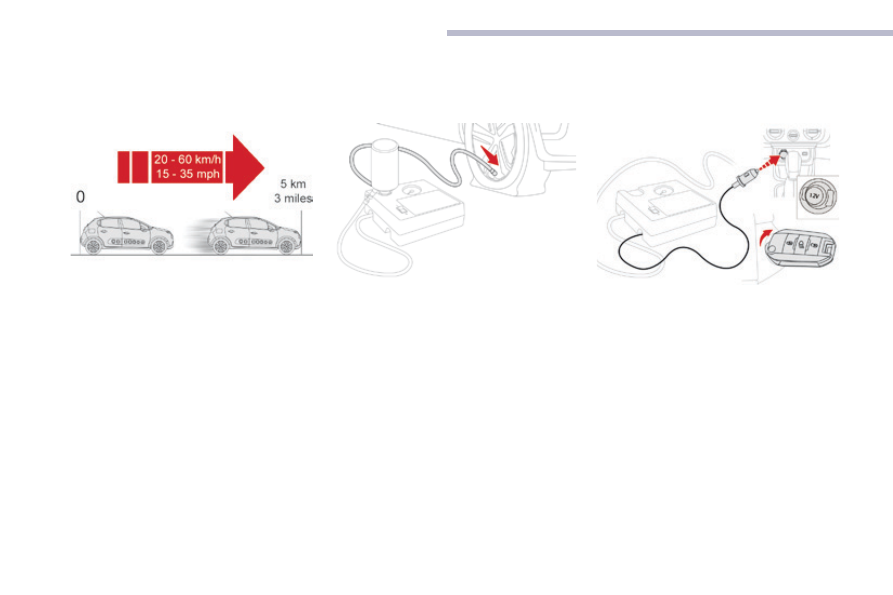

  Drive immediately for approximately

three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60 km/h)), to plug the puncture.

F

  Stop to check the repair and the tyre

pressure using the kit.

Checking / adjusting tyre pressures

You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures

F

  Remove the valve cap from the tyre and

place it in a clean area.

F  Uncoil the pipe stowed under the

compressor.

F

  Screw the pipe onto the valve and tighten

firmly.

F

  Check that the compressor switch is at the

"O

" position.

F  Uncoil fully the electric cable, stowed under

the compressor.

F

  Connect the compressor's plug to the

vehicle's 12 V socket.

F

  Switch on the ignition.

225

8

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on Under-
inflation detection, refer to the
corresponding section.

F

  Start the compressor by placing the switch

at the "I

" position and adjust the pressure

to the value shown on the vehicle's tyre
pressure label.



To deflate: press the black button on the
compressor pipe, at the valve connector.

F  Once the correct pressure is reached, put

the switch to the "O

" position.

F

  Remove the kit then stow it.

226

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Spare wheel

The tools are installed in the boot under the
floor.
To gain access to them:
F  open the boot,
F

  lift the floor and remove it,

F

  remove the storage box containing the

tools.

Access to the tools

List of tools

These tools are specific to your vehicle and
may vary according to the level of equipment.
Do not use them for any purpose other than
those detailed below.

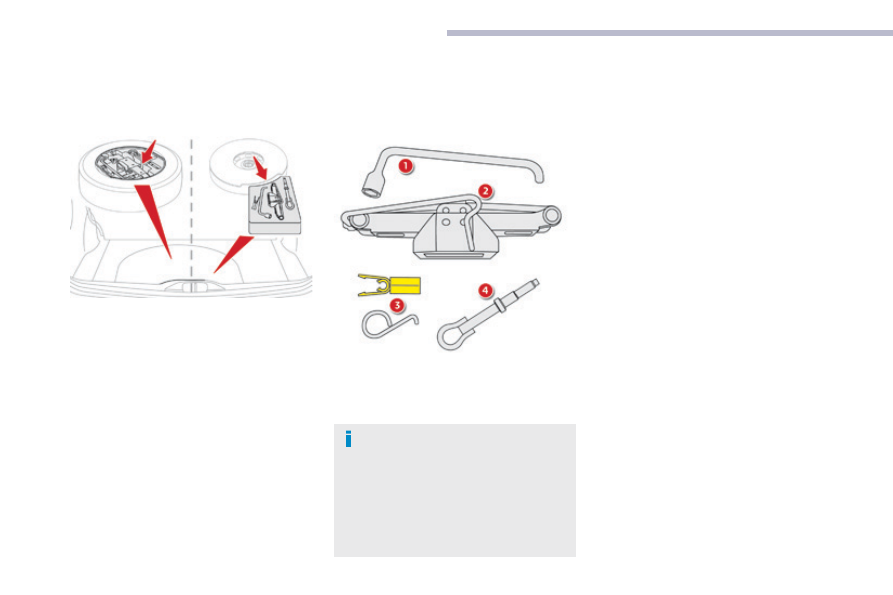

1.

  Wheelbrace.



For removing the wheel trim and removing
the wheel bolts.

2.

  Jack with integral handle.



For raising the vehicle.

3.

  Wheel bolt cover removal tool.



For removing the wheel bolt cover on alloy
wheels or the central bolt cover (depending
on version).

4.

  Removable towing eye.

Procedure for changing a wheel with a punctured tyre for the spare wheel using the tools provided with the vehicle.

For more information on Towing, refer to the
corresponding section.

The jack must only be used to change a
wheel with a damaged tyre.
The jack does not require any
maintenance.

The jack conforms to European
legislation, such as defined in the
Machinery Directive 2006/42/CE.

227

8

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Taking out the wheel

F

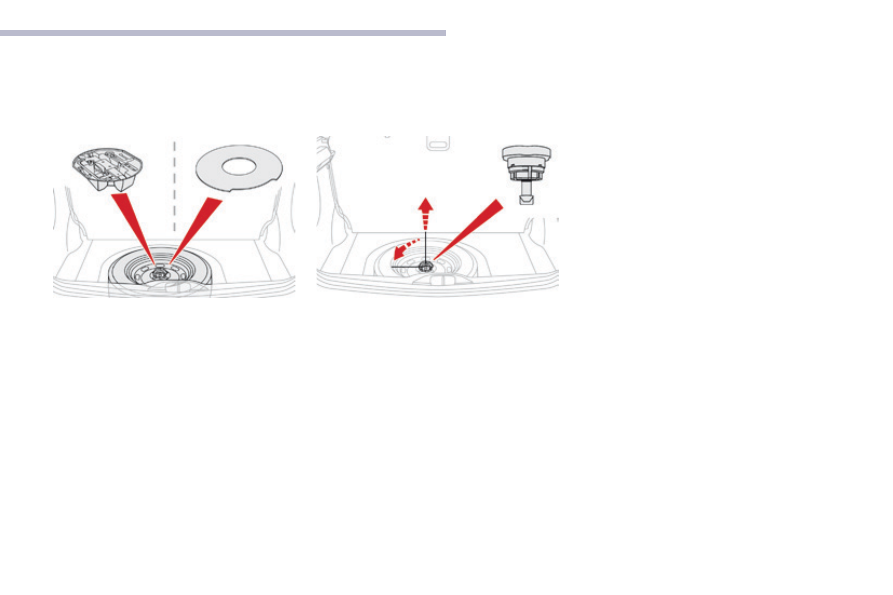

  Unclip the tool storage box (standard spare

wheel).

F

  Unscrew the central nut.

F

  Remove the fixing parts (nut and bolt).

F

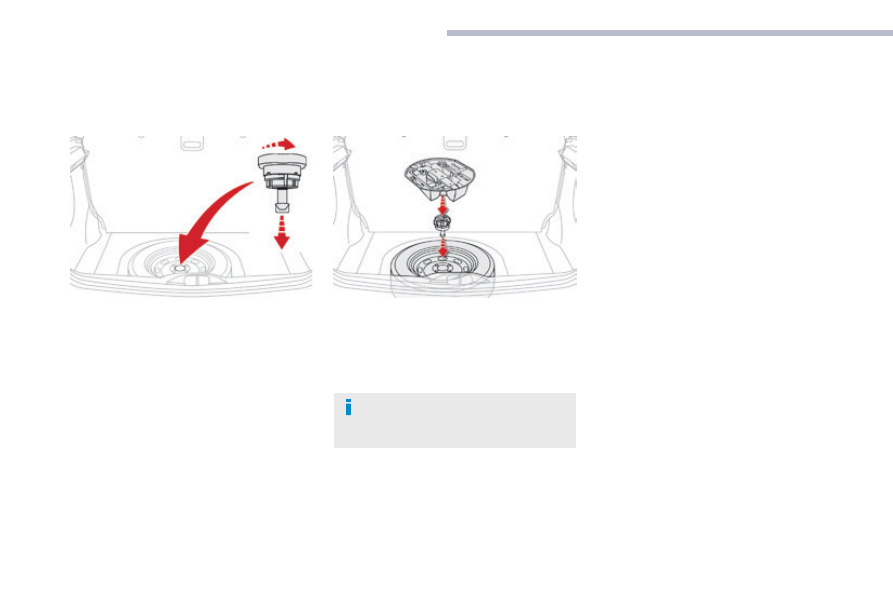

  Raise the spare wheel towards you from

the rear.

F

  Take the wheel out of the boot.

The spare wheel is installed in the boot under
the floor.
Depending on engine, the spare wheel is
a standard wheel or the space-saver type
(BlueHDi).

Access to the spare wheel

228

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Putting the wheel back in place

F

  Put the wheel back in its housing.

F

  Unscrew the nut a few turns on the bolt.

F

  Position the fixing parts (nut and bolt) in the

middle of the wheel.

F

  Tighten the central nut until it clicks to

retain the wheel correctly.

F

  Clip the tool storage box back into place

(standard spare wheel).

If there is no wheel in the well, the fixing
parts (nut and bolt) cannot be refitted.

229

8

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake, switch off the
ignition and engage first gear* to block
the wheels.
Check that the parking brake warning
lamp in the instrument panel comes on
fixed.
The occupants must get out of the
vehicle and wait where they are safe.
Ensure that the jack is correctly
positioned at one of the vehicle's
jacking points.
Incorrect use of the jack could cause
the vehicle to drop.
Never go underneath a vehicle raised
using a jack; use an axle stand.

Wheel with wheel trim

When removing the wheel, first
remove the wheel trim using the
wheelbrace 1 by pulling at the valve
aperture.
When refitting the wheel, refit the
wheel trim, starting by placing its
cut-out in line with the valve and then
pressing around its edge with the palm
of your hand.

Do not use a jack other than the one
supplied by the manufacturer.

* Position P

 for an automatic gearbox.

F

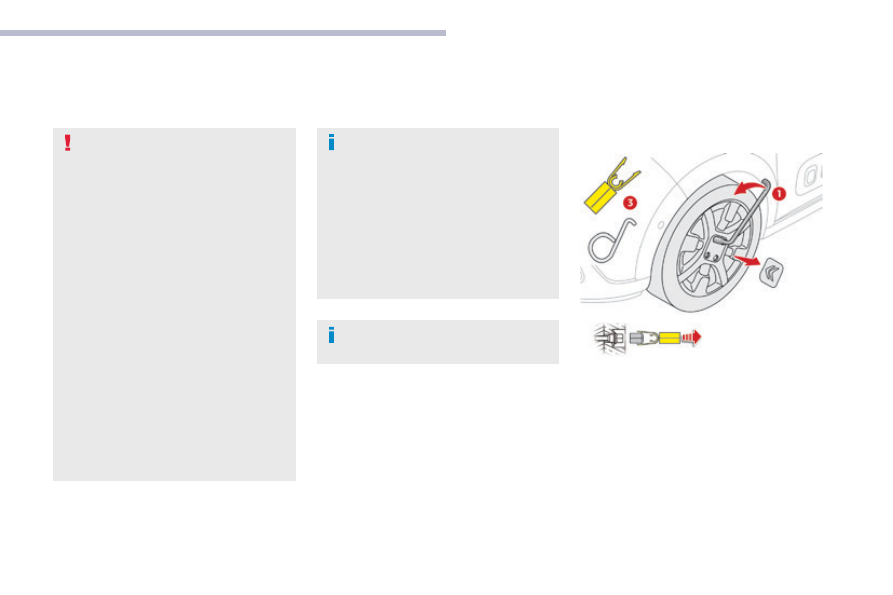

  Remove the wheel bolt cover(s) using the

tool 3

 (depending on version).

F

  Slacken the bolts using the wheelbrace 1

only.

List of operations

230

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

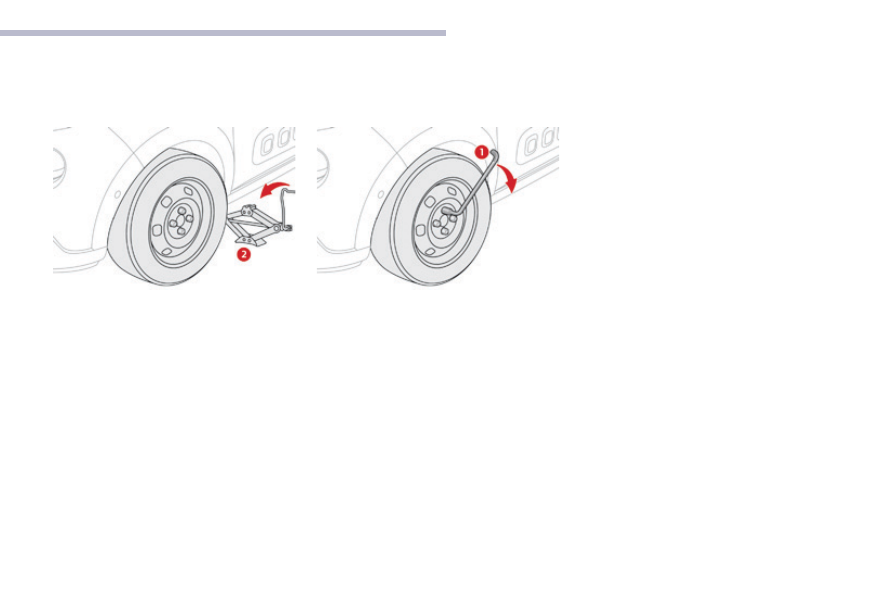

F

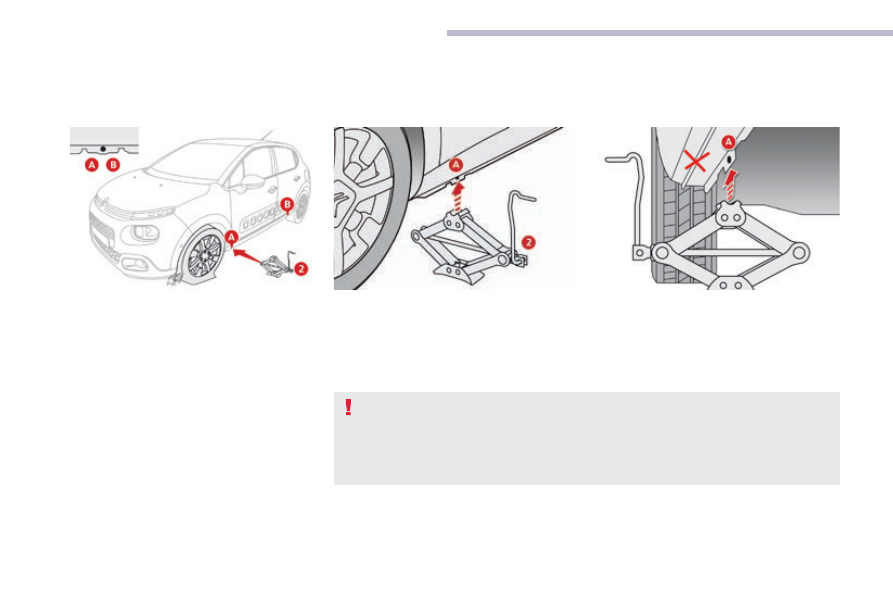

  Place the foot of the jack 2 on the ground

and ensure that it is directly below the
front A or rear B

 jacking point provided on

the underbody, whichever is closest to the
wheel to be changed.

F

  Extend the jack 2 until its head comes into contact with the jacking point A or B used; the

vehicle’s contact surface at A or B must engage with the central part of the head of the jack.

F

  Raise the vehicle until there is sufficient space between the wheel and the ground to admit the

spare (not punctured) wheel easily.

Ensure that the jack is stable. If the ground is slippery or loose, the jack might slip or drop - Risk of
injury!
Take care to position the jack only at one of the vehicle’s jacking points A or B under the vehicle,
ensuring that the contact surface of the vehicle’s jacking point is centred on the head of the jack.
Otherwise there is a risk of damage to the vehicle and/or that the jack might drop - Risk of injury!

231

8

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

F

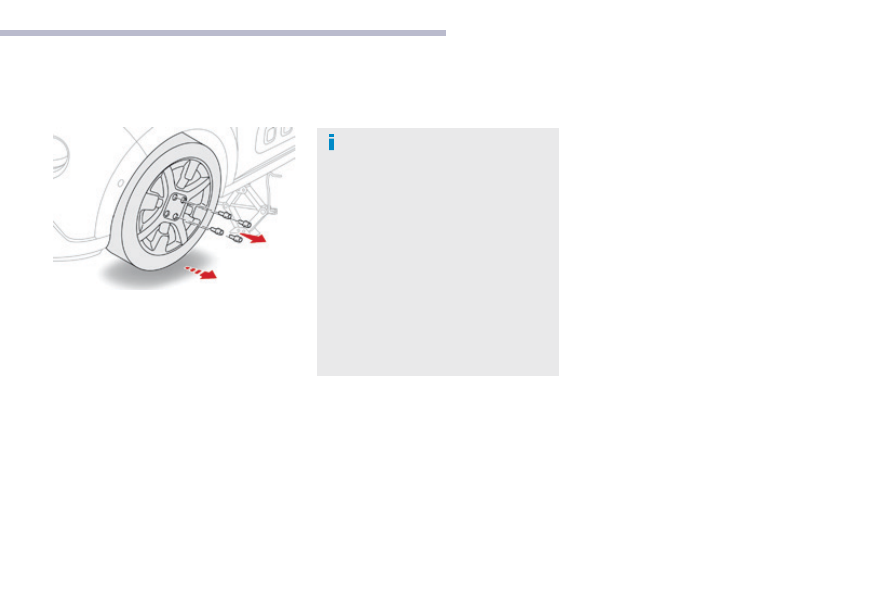

  Remove the bolts and store them in a clean

place.

F

  Remove the wheel.

Stowing the wheel with
punctured tyre

The wheel with punctured tyre can be
stowed under the floor, in the housing
for the standard spare wheel.
To stow an alloy wheel, first remove the
trim from the middle of the wheel so that
the fixing parts (nut and bolt) can be put
in place.
In the case of a "space-saver" type
spare wheel, the wheel with punctured
tyre cannot be stowed under the floor. It
must be stowed in the boot; use a cover
to protect the inside of the boot.

232

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

List of operations

F

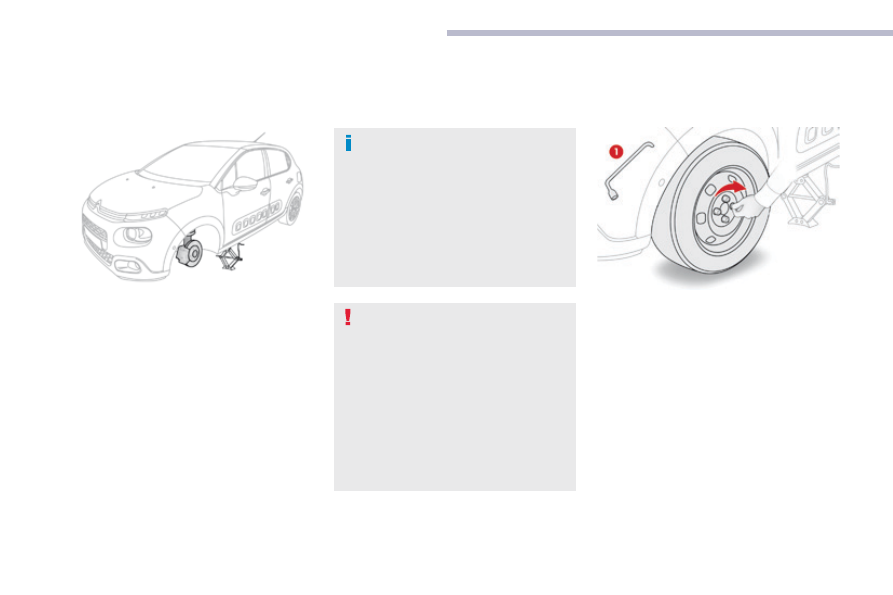

  Put the wheel in place on the hub.

F

  Screw in the bolts fully by hand.

F

  Pre-tighten the bolts using the

wheelbrace 1

 only.

Fitting a wheel

Fitting the spare wheel

If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it is
normal to notice that the washers do not
come into contact with the spare wheel.
The wheel is secured by the conical
surface of each bolt.

After changing a wheel

When using a "space-saver" type of
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.

233

8

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

F

  Lower the vehicle fully.

F

  Fold the jack 2 and detach it.

F

  Tighten the bolts using the wheelbrace 1

only.

F

  Refit the wheel bolt cover (alloy wheels).

F

  Stow the tools in their box.

234

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Changing a bulb

Front lamps

Model with halogen lamps

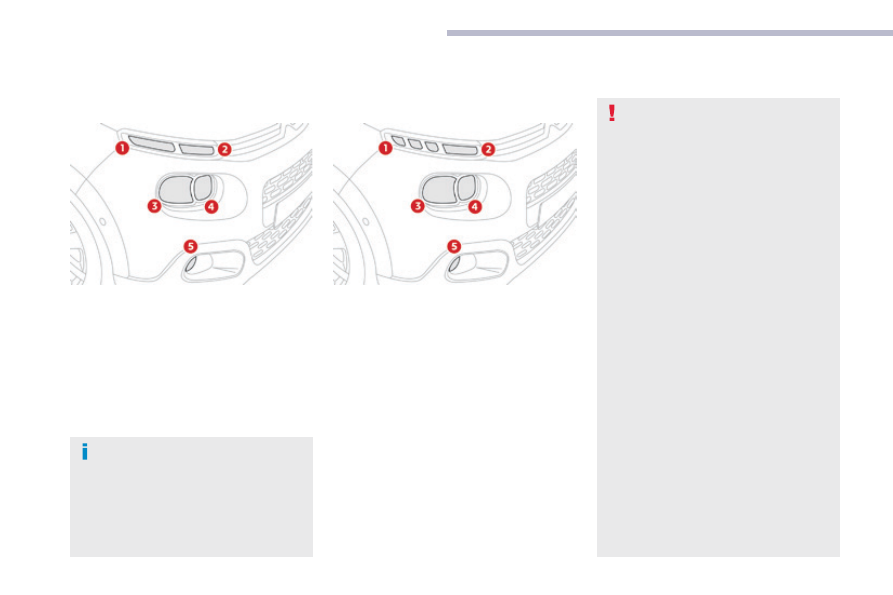

1.

  Daytime running lamps / Sidelamps

(W21/5W).

2.

  Direction indicators (PY21W).

3.

  Dipped beam headlamps (H7).

4.

  Main beam headlamps (H7).

5.

  Front foglamps (PSX24W).

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

The headlamps have polycarbonate
lenses with a protective coating:
F  do not clean them using a dry

or abrasive cloth, nor with a
detergent or solvent product,

F

  use a sponge and soapy water or a

pH neutral product,

F

  when using a high pressure washer

on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.

Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F  Do not touch the bulb directly with

your fingers, use a lint-free cloth.

It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

* LEDs: light-emitting diodes.

Model with LED lamps

1.

  Daytime running lamps / Sidelamps

(LEDs)*.

2.

  Direction indicators (PY21W).

3.

  Dipped beam headlamps (H7).

4.

  Main beam headlamps (H7).

5.

  Front foglamps (PSX24W).

235

8

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Daytime running lamps / sidelamps

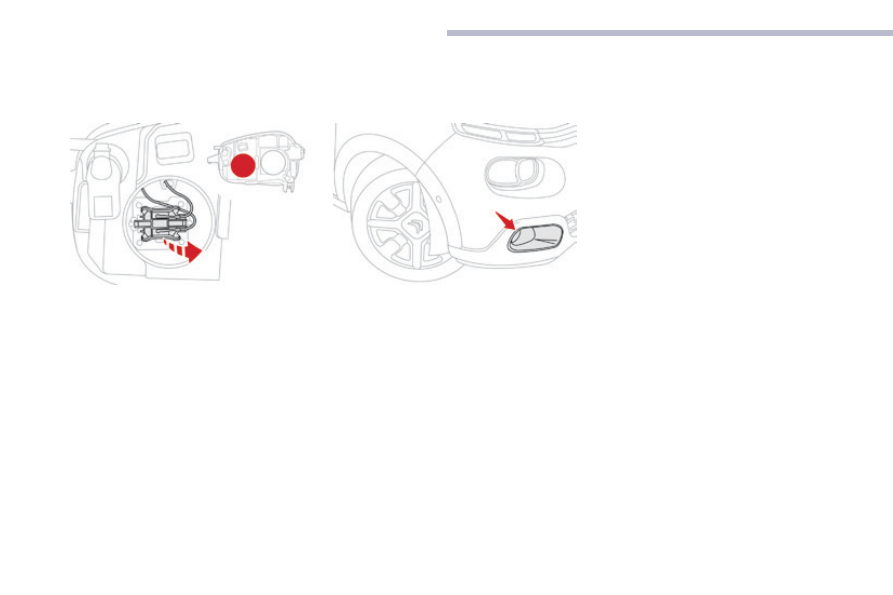

F

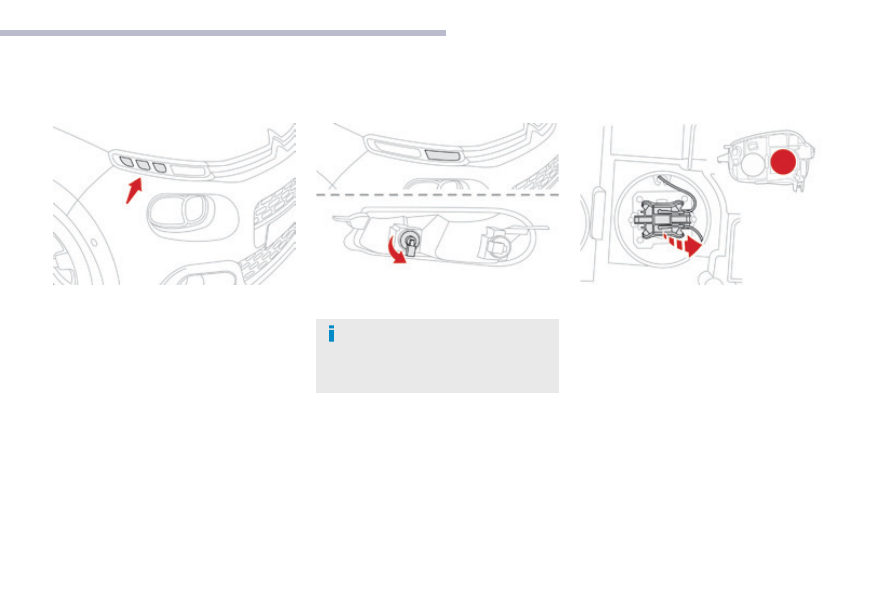

  Turn the bulb holder an eighth of a turn

anticlockwise and pull it out.

F

  Remove the bulb and replace it.

To reassemble, carry out these operations in
reverse order.

Daytime running lamps /
sidelamps (LEDs)

For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.

Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.

Direction indicators

Amber coloured bulbs, such as the direction
indicators, must be replaced with bulbs of
identical specifications and colour.

F

  Turn the bulb holder an eighth of a turn

anti-clockwise and extract it.

F

  Remove the bulb and change it.

To reassemble, carry out these operations in
reverse order.

Dipped beam headlamps

F

  Remove the protective cover by pulling the

tab.

F

  Disconnect the bulb connector.

F

  Remove the bulb and change it.

To reassemble, carry out these operations in
reverse order, directing the bulb alignment
lug upwards

.

236

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Front foglamps

Contact a CITROËN dealer or a qualified
workshop for the replacement of these bulbs.

Main beam headlamps

F

  Remove the protective cover by pulling the

tab.

F

  Disconnect the bulb connector.

F

  Remove the bulb and change it.

To reassemble, carry out these operations in
reverse order, directing the bulb positioning
lug downwards

.

237

8

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

Integrated direction indicator
side repeaters

To reassemble, carry out these operations in
reverse order.

You should contact a CITROËN
dealer or a qualified workshop for the
replacement of these bulbs.

F

  Press the central tab and remove the side

repeater.

F  Pull the bulb holder out and replace the

failed bulb.

F

  Insert a flat screwdriver between the mirror

glass and its base.

F

  Use the screwdriver as a lever to extract

the mirror glass.

F

  Unclip the mirror shell by pressing on the

two retaining clips.

238

In the event of a breakdown

B618_en_Chap08_En-cas-de-panne_ed01-2016

1.

  Sidelamps (R10W).

2.

  Brake lamps (P21W).

3.

  Direction indicators (PY21W).

4.

  Reversing lamp (P21W), right-hand side or

Foglamp (PR21W), left-hand side.

Rear lamps

Changing bulbs

To reassemble, carry out these operations in
reverse order.

F

  Spread the bulb holder retaining tabs and

remove the bulb holder.

F

  Turn the bulb a quarter turn and change it.

These bulbs are changed from inside the boot.
F

  Open the boot.

F

  Remove the access cover on the

corresponding side trim.

F

  Disconnect the lamp unit connector.

F

  Slacken and remove the nut (take care not

to drop it inside the wing

).

F

  Unclip the lamp unit and carefully remove

it by pulling it horizontally towards the
outside.

Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten sufficiently to ensure sealing,
but without damaging the lamp.

It may be necessary to use slip joint pliers or
the wheelbrace (depending on equipment) to
remove the nut.
