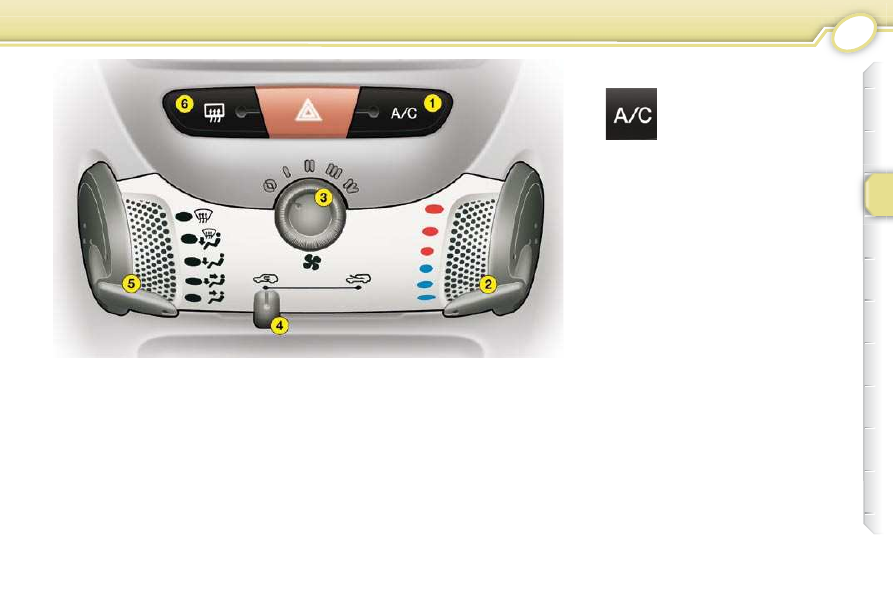

Citroen C1 Dag (2010 year). Instruction

COMFORT

1. Air conditioning On/Off

With the engine running,
press the button, the indi-
cator lamp comes on.

   1.   Air conditioning On/Off
  2.   Temperature adjustment
  3.

Air ﬂ ow adjustment

AIR CONDITIONING

2. Temperature adjustment

Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.

  4.   Air recirculation/Air intake
  5.   Air distribution adjustment
  6.   Rear screen demisting

3. Air ﬂ ow adjustment
When the ignition is switched on,

turn the control to obtain a ﬂ ow of

air which is sufﬁ cient to ensure your

comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 whenever possible.
In position 0

, a slight ﬂ ow of air, due

to the movement of the vehicle, can
still be felt.

The air conditioning will not operate

if the air ﬂ ow adjustment control 3 is

in position 0.

COMFORT

Footwells.

4. Air recirculation/Air intake

The  recirculation  of  interior
air (control  4  to the left) en-
ables you to isolate the pas-
senger  compartment  from
exterior odours and smoke.

5. Air distribution adjustment

Windscreen and side
windows.

The air distribution can be ad-
justed by placing the control
in an intermediate position.

Windscreen, side windows
and footwells.

Footwells, diffusion grille
and side vents.

Diffusion grille and side
vents.

6. Rear screen demisting

As  soon  as  possible,  move  control   4
to  the  right  to  the  "Intake  of  exterior
air" position to avoid the risks of dete-
rioration of the air quality and misting
of the windscreen and side windows.

The  intake  of  exterior  air
(control   4   to  the  right)  en-
ables  you  to  prevent  and
eliminate misting of the wind-
screen and side windows.

With  the  engine  running,
press  button   6 ,  the  indica-
tor lamp comes on.
The  system  demists  the
rear screen.

It is switched off by pressing button 6
again.

In a humid climate, use of the
air recirculation may cause
misting of the windows.

Switch the system off as
soon

you

consider

this  necessary  as  a  lower
consumption  of  current  re-
duces fuel consumption.

Demisting and defrosting

To quickly demist or defrost the wind-
screen and side windows:
-

set the air distribution to
"Windscreen and side windows",

place the temperature control 2

and the air ﬂ ow control 3 at

maximum,

close the side vents,

place the air intake control 4 in
the "Air intake" position,

switch on the air conditioning by
pressing button 1 .

COMFORT

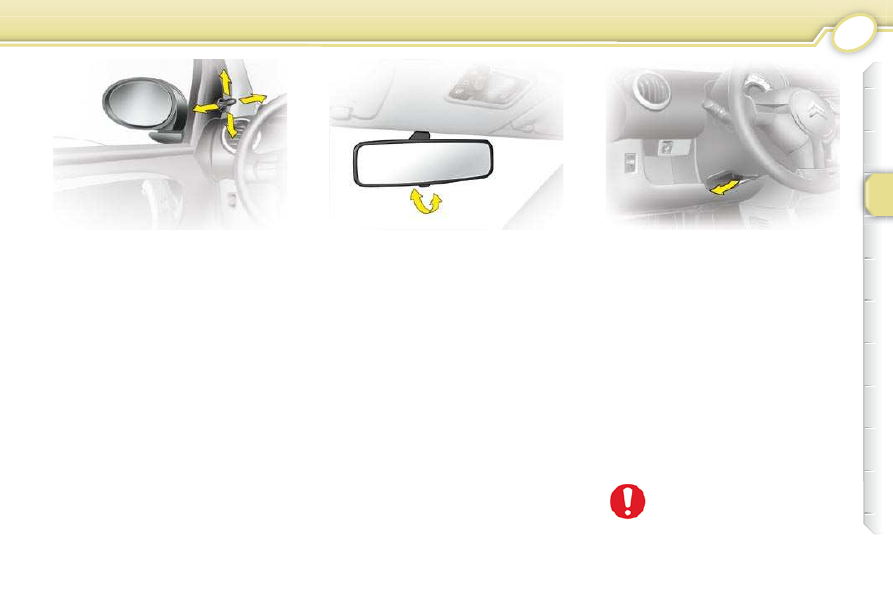

MIRRORS

STEERING WHEEL HEIGHT
ADJUSTMENT
(WITH POWER STEERING)

When stationary , lower the lever to
release the steering wheel adjustment.
Adjust to the desired height and lift the
lever to lock the steering wheel adjust-
ment.

  Folding/Unfolding
When  the  vehicle  is  parked,  the
door mirrors can be folded back and
unfolded manually.

Manual rear view mirror

The rear view mirror has two positions:
-

day (normal),

night (anti-dazzle).

To  change  from  one  to  the  other,
push  or  pull  the  lever  on  the  lower
edge of the mirror.

Door mirrors

Move the lever in all four directions to
adjust the mirror.

For safety reasons, these
operations must not be car-
ried out while driving.

COMFORT

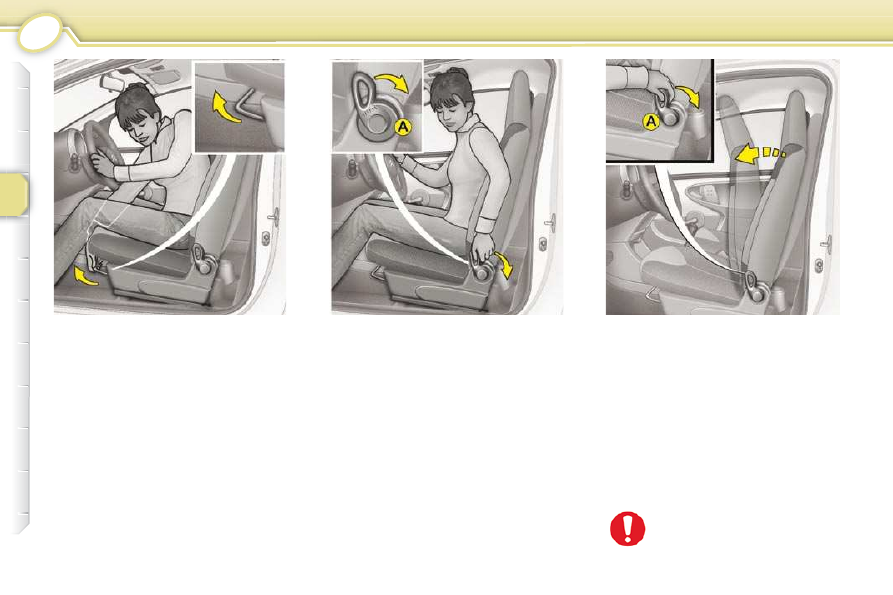

FRONT SEATS

   2. Seat back angle adjustment
Push  control   A   rearwards  while  ad-
justing the angle of the seat back.

1. Forwards-backwards

adjustment

Raise the control and slide the seat
forwards or backwards.

3. Access to the rear seats

(3-door)

Position the seat belt along the door
pillar.
Push control  A  rearwards to fold the
seat  back  and  move  the  seat  for-
wards.
To  put  the  seat  back  in  place,  push
the seat back until the seat locks.
Reset  the  forwards-backwards  ad-
justment  of  the  seat  and  the  seat
back angle.

No person or object must
prevent the seat from return-
ing to the required position.

COMFORT

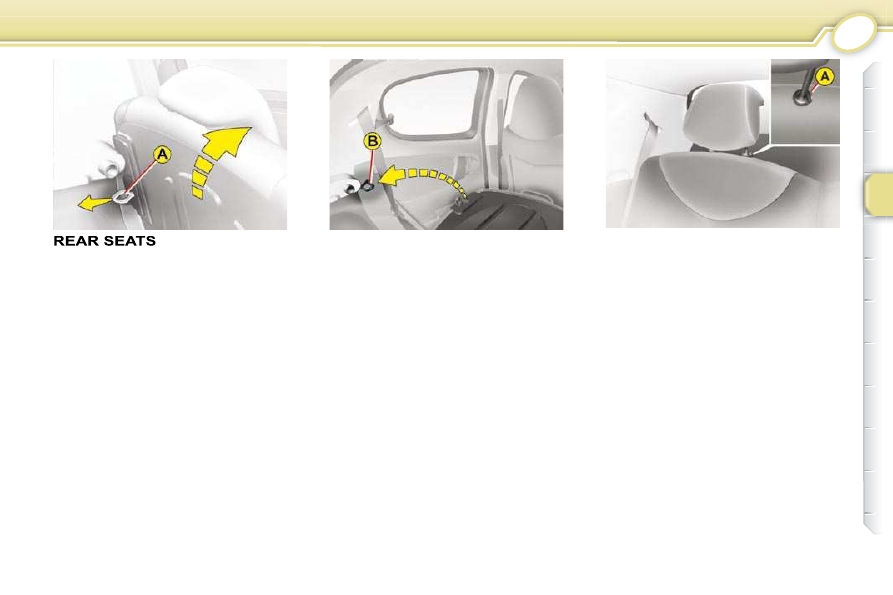

Returning the backrest of the

bench seat to its initial position

Push  the  backrest  towards  the  rear
and engage it on mounting  B .

Take care not to trap the seat belts,

in particular between the seat back

and the mounting B.
Check that the backrest has engaged
correctly.

Rear head restraints *

The rear head restraints can be re-
moved and have two positions:
-

high, position for use.

low, storage position.

To raise the head restraint, pull it up-
wards.
To lower it, press lug A then the head
restraint.
To remove it:
-

tilt the seat back slightly,

move the head restraint to the high
position,

press lug A pulling the head
restraint upwards at the same time.

To reﬁ t it:
-

tilt the seat back slightly,

engage the rods of the head
restraint in the openings.

To reach the low position, press lug A .

Folding the backrest of

the bench seat

The seat backrest is folded from
the rear of the vehicle, with the boot
open:
-

check that the seat belt is
positioned correctly on the
side of the seat back to avoid
damaging it,

place the head restraints in the
low position (see "rear head
restraints"),

while folding the seat backrest,
pull the strap(s) A , located
behind the seat back.

* According to version.

COMFORT

Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.

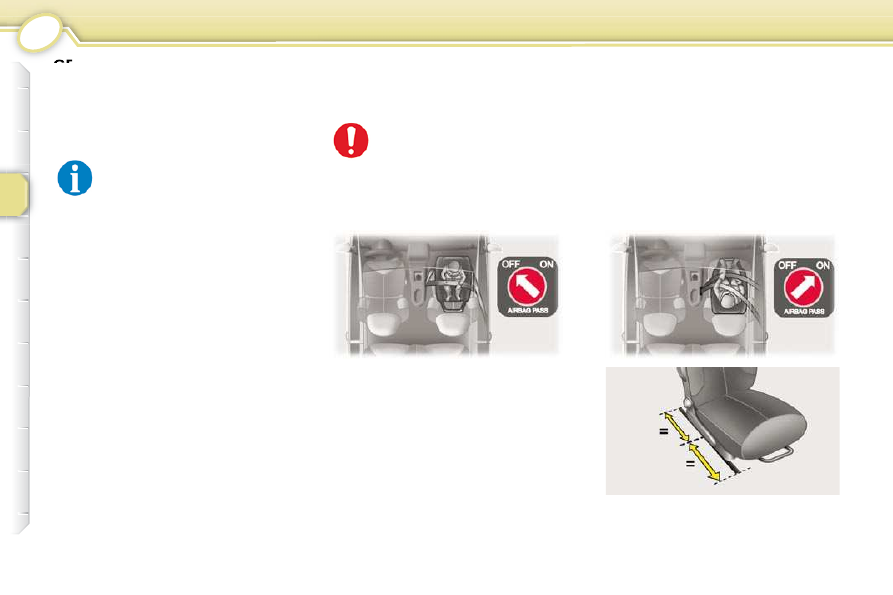

CHILD SEAT IN THE FRONT

* The rules for carrying children are

speciﬁ c to each country. Refer to the

current legislation in your country.

GENERAL POINTS
RELATING TO CHILD SEATS

"Rearwards-facing"

For maximum safety, please
observe the following recom-
mendations:

in accordance with European
regulations,

all children under

the age of 12 or less than one

and a half metres tall must

travel in approved child seats

suited to their weight , on seats

ﬁ tted with a seat belt or ISOFIX

mountings * ,

statistically, the safest seats

in your vehicle for carrying

children are the rear seats,

a child weighing less than 9 kg

must travel in the "rearwards-

facing" position both in the
front and in the rear.

When  a  "rearwards-facing"
child  seat  is  installed  on  the
front  passenger  seat ,  it  is
essential that the passenger

airbag is deactivated. Otherwise, the

child would risk being seriously

injured or killed if the airbag were

to inﬂ ate .

  CITROËN  recommends   that  chil-
dren  should  travel  in  the   rear  seats
of your vehicle:
   -

"rearwards-facing" up to the

age of 2,

"forwards-facing" over the

age of 2.

  "Forwards-facing"
When  a  "forwards-facing"  child  seat
is  installed  on  the   front  passenger
seat , adjust the vehicle's seat to the
intermediate

longitudinal

position

with the seat back upright and leave
the passenger airbag activated.

Intermediate longitudinal

position

COMFORT

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured
using a

three point seat belt :

Passenger airbag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"RÖMER

Baby-Safe Plus"

Installed in the

rearwards-facing

position.

"KIDDY Life"

The use of the

restraining

cushion is

compulsory for
carrying young

children

(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age

of 6 years

(approximately

22 kg), the

booster is used

on its own.

"RÖMER KIDFIX"

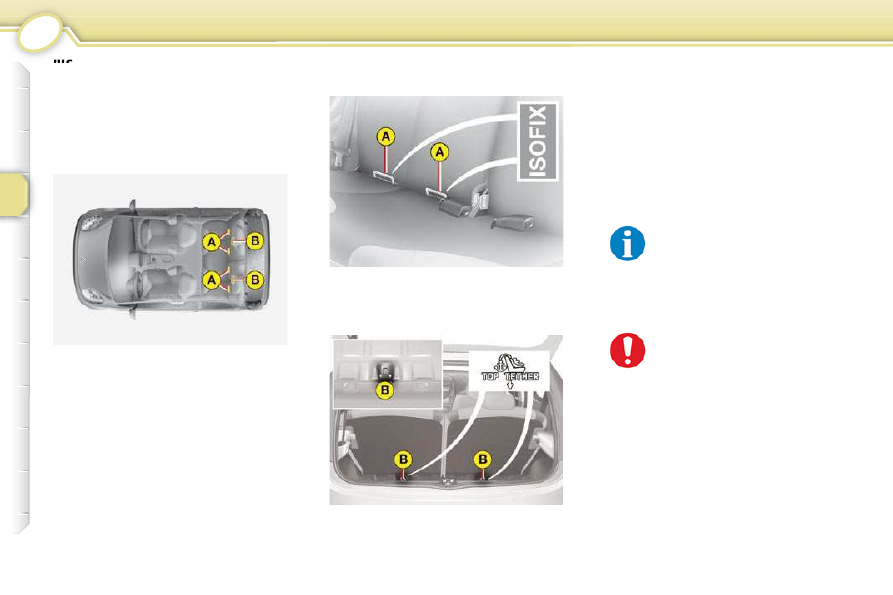

Can be ﬁ tted to the vehicle's ISOFIX mountings.

The child is restrained by the seat belt.

COMFORT

ADVICE ON CHILD
SEATS

The incorrect installation of a

child  seat  in  a  vehicle  compromises
the  child's  protection  in  the  event  of
an accident.
Remember to fasten the seat belts or
the  child  seat  harness

keeping the

slack in relation to the child's body

to  a  minimum ,  even  for  short  jour-
neys.
To  install  a  child  seat  using  the  ve-
hicle's seat belt, ensure that the belt
is  well  tightened  on  the  child  seat

and that it holds the child seat ﬁ rmly

against the vehicle's seat.
For  optimum  installation  of  the  "for-
ward  facing"  child  seat,  ensure  that
the back of the child seat is in contact
with  the  back  of  the  vehicle's  seat
and that the head restraint does not
cause any discomfort.
If  the  head  restraint  has  to  be  re-
moved,  ensure  that  it  is  stored  or
attached  securely  to  prevent  it  from
being  thrown  around  the  vehicle  in
the event of sharp braking.

Children under the age of 10 must not
travel  in  the  "forward  facing"  position
on  the  front  passenger  seat,  unless
the rear seats are already occupied by
other  children,  cannot  be  used  or  are
absent.
Deactivate  the  passenger  airbag *
when a "rear facing" child seat is in-
stalled on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag

were to inﬂ ate.

As a safety precaution, do not leave:
-

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

the keys within reach of children
inside the vehicle.

To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

  Installing a booster seat
The  chest  part  of  the  seat  belt  must
be positioned on the child's shoulder
without touching the neck.
Ensure  that  the  lap  part  of  the  seat
belt passes correctly over the child's
thighs.
CITROËN  recommends  the  use  of

a booster seat which has a back, ﬁ t-

ted with a seat belt guide at shoulder
level.

* According to country.

COMFORT

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured
using a

three point seat belt :

Passenger airbag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"RÖMER

Baby-Safe Plus"

Installed in the

rearwards-facing

position.

"KIDDY Life"

The use of the

restraining

cushion is

compulsory for
carrying young

children

(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age

of 6 years

(approximately

22 kg), the

booster is used

on its own.

"RÖMER KIDFIX"

Can be ﬁ tted to the vehicle's ISOFIX mountings.

The child is restrained by the seat belt.

COMFORT

LOCATIONS FOR CHILD SEATS ATTACHED USING THE SEAT BELT

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved in accordance with the weight of the child and the seat in the vehicle.

  a:  Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
  b:  consult the legislation in force in your country before installing your child on this seat.
  U:   seat suitable for the installation of a universally approved child seat secured using a seat belt, "rear facing" and/or "forward

facing".

L1 to L4: only the child seats indicated and recommended by CITROËN can be installed on the seat concerned (according

to country).

Weight of the child and indicative age

Seat

Under 13 kg
(groups 0 ( a )

and 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

1 to 3 years approx

From 15 to 25 kg

(group 2)

3 to 6 years approx

From 22 to 36 kg

(group 3)

6 to 10 years approx

Front passenger
seat ( b )

L2, L3, L4

Rear seats

COMFORT

ADVICE ON CHILD
SEATS

The incorrect installation of a

child  seat  in  a  vehicle  compromises
the  child's  protection  in  the  event  of
an accident.
Remember to fasten the seat belts or
the  child  seat  harness

keeping the

slack in relation to the child's body

to  a  minimum ,  even  for  short  jour-
neys.
To  install  a  child  seat  using  the  ve-
hicle's seat belt, ensure that the belt
is  well  tightened  on  the  child  seat

and that it holds the child seat ﬁ rmly

were to inﬂ ate.

As a safety precaution, do not leave:
-

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

the keys within reach of children
inside the vehicle.

To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

a booster seat which has a back, ﬁ t-

ted with a seat belt guide at shoulder
level.

* According to country.

COMFORT

"ISOFIX" MOUNTINGS

Your vehicle has been approved in
accordance with the

new ISOFIX

regulation .

The seats * , represented below, are ﬁ t-

ted with regulation ISOFIX mountings:

These are three rings for each seat:

This ISOFIX mounting system pro-

vides fast, reliable and safe ﬁ tting of

the child seat in your vehicle.
The

ISOFIX child seats are ﬁ tted

with  two  latches  which  are  secured
easily on these lower rings  A .
Some  also  have  an   upper  strap
which is attached to the upper ring  B .

two lower rings A , located
between the vehicle seat back
and cushion, indicated by a
label,

* According to version.

an upper ring B for securing the
upper strap, referred to as the
TOP TETHER , indicated by a
marking on the rear seat back
panel.

To attach this strap, raise the
vehicle seat's head restraint
then pass the hook between

its rods. Then ﬁ x the hook on

the upper ring B and tighten the up-
per strap.

The

incorrect

installation

of a child seat in a vehicle
compromises the child's pro-
tection in the event of an ac-
cident.

For information regarding the ISOFIX

child seats which can be installed in
your vehicle, refer to the table of lo-

cations for ISOFIX child seats.

COMFORT

This child seat can also be used on seats which are not ﬁ tted with ISOFIX mountings. In this case, it must be attached

to the vehicle seat using the three point seat belt.

Follow the instructions for ﬁ tting the child seat given in the seat manufacturer's installation guide.

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE

RÖMER Duo Plus ISOFIX (size category B1 )

Group 1: from 9 to 18 kg

Installed in the forwards-facing position.

Fitted with an upper strap to be secured on the upper ring B ,

referred to as the TOP TETHER.

Three seat body angles: sitting, reclining, lying.

COMFORT

LOCATIONS FOR ISOFIX CHILD SEATS

IUF : seat approved for a Universal

Isoﬁ x seat, "Forward facing" with the

"Top Tether" upper strap.

IL-SU : seat suitable for the installa-

tion of a semi-universal ISOFIX seat,

that is:

- "rear facing" ﬁ tted with an upper

strap or a support

- "forward facing" ﬁ tted with a

support

- an infant carrier ﬁ tted with an

upper strap or a support.

* The ISOFIX infant car seat is ﬁ xed

to the lower rings of an ISOFIX seat

and occupies the two rear seats.

X : seat not suitable for the installa-

tion of an ISOFIX child seat of the

size category indicated.

In accordance with the European
regulation, this table indicates the

options for the installation of ISOFIX

child seats on the vehicle seats ﬁ tted

with ISOFIX mountings.

In the case of the universal and semi-

universal ISOFIX child seats, the

child seat's ISOFIX size category,

determined by a letter A , B , B1 , C ,
D , E , F , G , is indicated on the child

seat next to the ISOFIX logo.

Weight of the child /indicative age

Less than 10 kg

(group 0)

Up to 6 months approx

Less than 10 kg

(group 0)

Less than 13 kg

(group 0+)

Up to 1 year approx

From 9 to 18 kg (group 1)

From 1-3 years approx

Type of ISOFIX child seat

Infant carrier *

"rear facing"

"forward facing"

ISOFIX size category

Universal ISOFIX child seats

which can be installed on

the rear seats

IUF

IL-SU

COMFORT

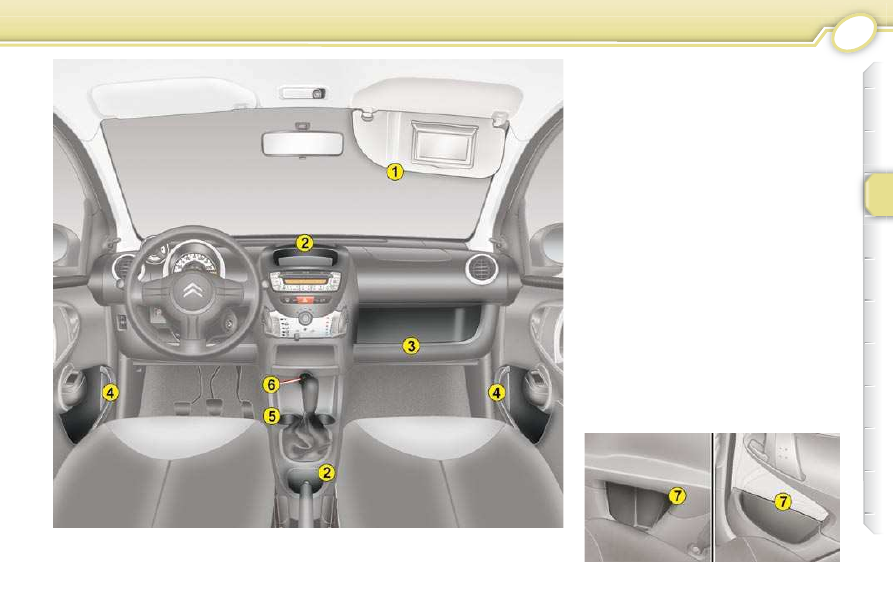

INTERIOR FITTINGS

3-door

5-door

1. Sun visor
Each sun visor has a courtesy mir-

ror with a concealing ﬂ ap and a card

holder.
  2. Storage compartments
  3. Storage box
  4.

Front door pockets

Before opening the door, check that
there are no objects protruding from
the door pockets.

5. Cup holder

6. 12 volt accessories socket

(120 W max)

This is supplied from the accesso-
ries position (1st notch of the ignition
switch).
7. Storage compartments in the

rear doors

ACCESS

KEYS/REMOTE CONTROL

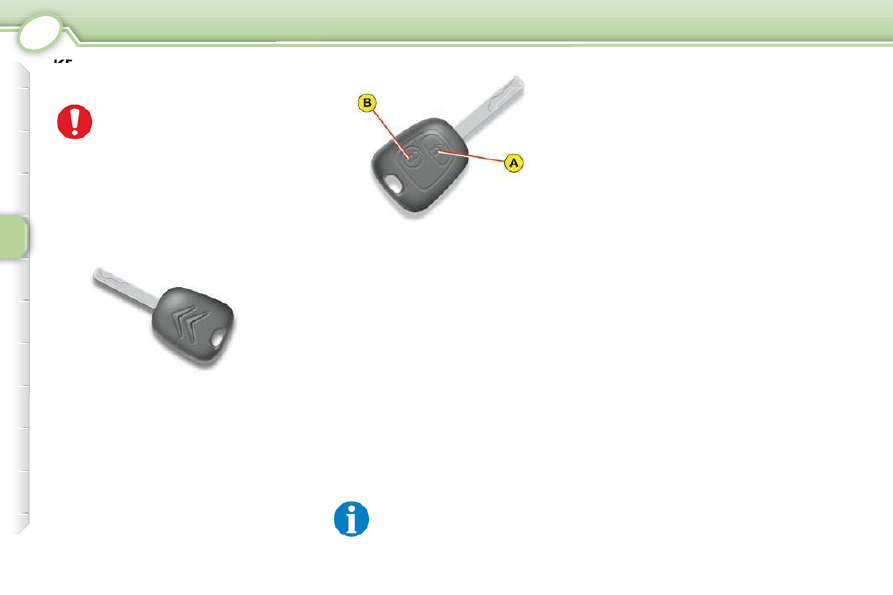

Remote control

This carries out the vehicle locking -
unlocking and locating functions at a
distance.

Keys

The keys allow you to switch on the
ignition and operate the locks on the
front doors, the boot, the fuel tank
cap, the steering lock and the pas-
senger's airbag deactivation switch.

Locking

Press button A to lock the vehicle from

a distance. This is conﬁ rmed by brief

lighting of the direction indicators.

Central locking and unlocking

From the driver's door, the keys allow
you to lock and unlock the doors and
boot simultaneously.

Unlocking

Press button B to unlock the vehicle.
This is conﬁ rmed by two successive

ﬂ ashes of the direction indicators.

Locating the vehicle

To locate your vehicle in a car park, if
you have locked it:


press button A , the direction indi-

cators come on brieﬂ y.

  After  locking,  if  you  notice
that  a  door  is  not  closed
properly,  close  it  then  lock
the vehicle again.

The  set  of  keys  or  remote
controls,  supplied  with  your
vehicle,  enable  you  to  ob-
tain a maximum of three new
keys.

If  all  of  the  keys  in  your  possession
are  lost,  a  major  operation  will  have
to be carried out on your vehicle.
Contact  a  CITROËN  dealer  or  a

qualiﬁ ed workshop.

Citroen C1 Dag (2010 year). Instruction - part 3
