Citroen C1 Dag (2010 year). Instruction - part 2

MONITORING

Deactivating

the passenger's

airbag

ﬁ xed.

The passenger's airbag
control is set to the OFF
position.
The passenger's front
airbag is deactivated.
In this case you can
install a "rear facing" child
seat.

Set the control to the ON position to activate the

passenger's front airbag. In this case, do not ﬁ t a

child seat in the rear-facing position.

Battery

charge

ﬁ xed.

The battery charging
circuit has a fault (dirty or
loose terminals, slack or
cut alternator belt, ...).

The warning lamp should go off when the engine
is started.
If it does not go off, contact a CITROËN dealer

or a qualiﬁ ed workshop.

Electric power

steering

ﬁ xed.

The electric power
steering has a fault.

Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or

qualiﬁ ed workshop.

Driver's seat

belt not

fastened

(according to

version)

ﬂ ashing, then

above 9 mph

(15 km/h),

accompanied
by an audible

signal.

The driver has not
fastened their seat belt.

Pull the strap then insert the tongue in the
buckle.

Emission

control

system

ﬁ xed.

The emission control
system has a fault.

This lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer

or a qualiﬁ ed workshop without delay.

Warning lamp

is on

Cause

Action/Observations

MONITORING

"SensoDrive"

gearbox

ﬁ xed.

The "SensoDrive"
gearbox has a fault.

Contact a CITROËN dealer or a qualiﬁ ed

workshop without delay.

Warning lamp

is on

Cause

Action/Observations

MONITORING

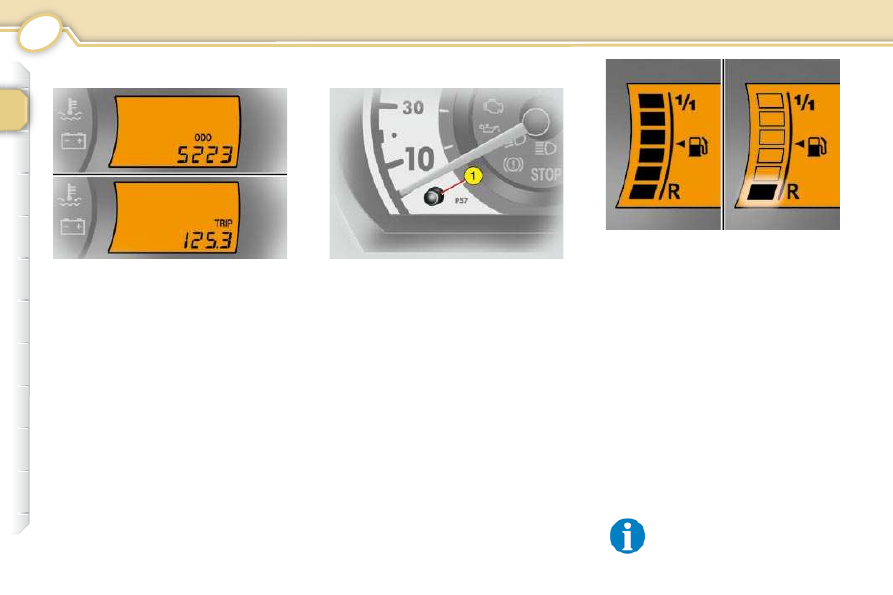

TOTAL/TRIP DISTANCE
RECORDER

FUEL GAUGE

This indicates the quantity of fuel
available:
-

1/1 and six bars, the fuel tank is full.

and one bar ﬂ ashing, the fuel

tank is on the reserve.

Low fuel level
When the minimum level in the fuel

tank is reached, the last bar ﬂ ashes

accompanied by an audible signal.
In  certain  driving  conditions  and  de-
pending  on  the  engine,  the  distance
which  can  be  travelled  with  the  fuel
remaining may be less than 30 miles
(50 km).
  You  have  approximately  5  litres
remaining.
When  the  frequency  of  the  ﬂ ashing

increases, you have approximately
3 litres remaining .

At least 5 litres must be added
after running out of fuel.

When  the  ignition  is  switched  on,
the distance recorder selected when
the  engine  was  switched  off  is  dis-
played.
Press  button   1   to  alternate  the  dis-
tance display:
   -

total with "ODO" displayed,

trip with "TRIP" displayed.

To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 .

MONITORING

TOTAL/TRIP DISTANCE
RECORDER

FUEL GAUGE

This indicates the quantity of fuel
available:
-

1/1 and six bars, the fuel tank is full.

and one bar ﬂ ashing, the fuel

tank is on the reserve.

Low fuel level
When the minimum level in the fuel

tank is reached, the last bar ﬂ ashes

increases, you have approximately
3 litres remaining .

At least 5 litres must be added
after running out of fuel.

When  the  ignition  is  switched  on,
the distance recorder selected when
the  engine  was  switched  off  is  dis-
played.
Press  button   1   to  alternate  the  dis-
tance display:
   -

total with "ODO" displayed,

trip with "TRIP" displayed.

To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 .

MONITORING

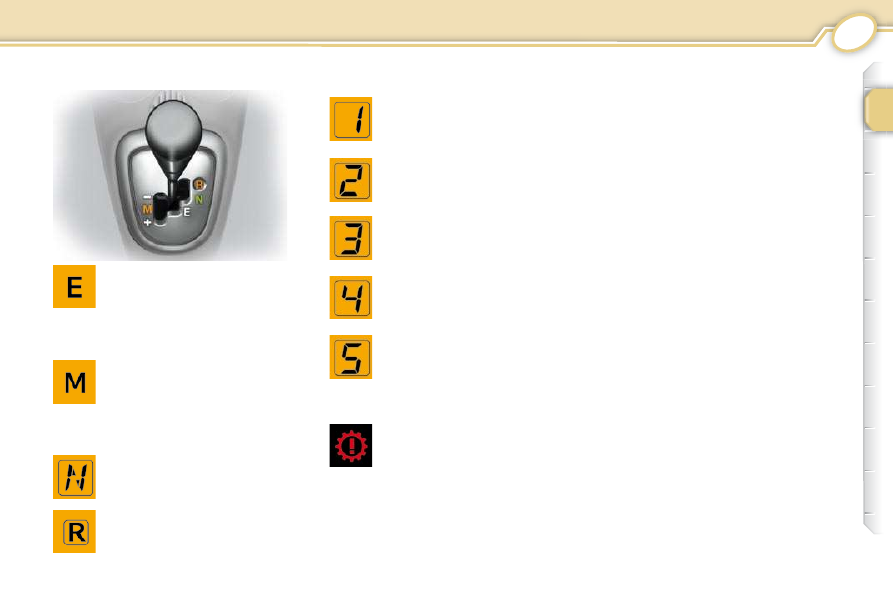

"SENSODRIVE" GEARBOX
INDICATOR

Lever in EASY mode
(automatic mode)

"E" is displayed when this
operating mode is selected.

It goes off on switching to manual
mode.

Lever in manual mode

"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.

"Neutral"

"Reverse"

Operating mode:

1st gear

2nd gear

3rd gear

4th gear

5th gear

If  this  warning  lamp  comes
on  with  the  engine  running,
this indicates a fault with the
" SensoDrive "  gearbox.

"!" warning lamp

Contact a CITROËN dealer or a

qualiﬁ ed workshop.

AUDIO

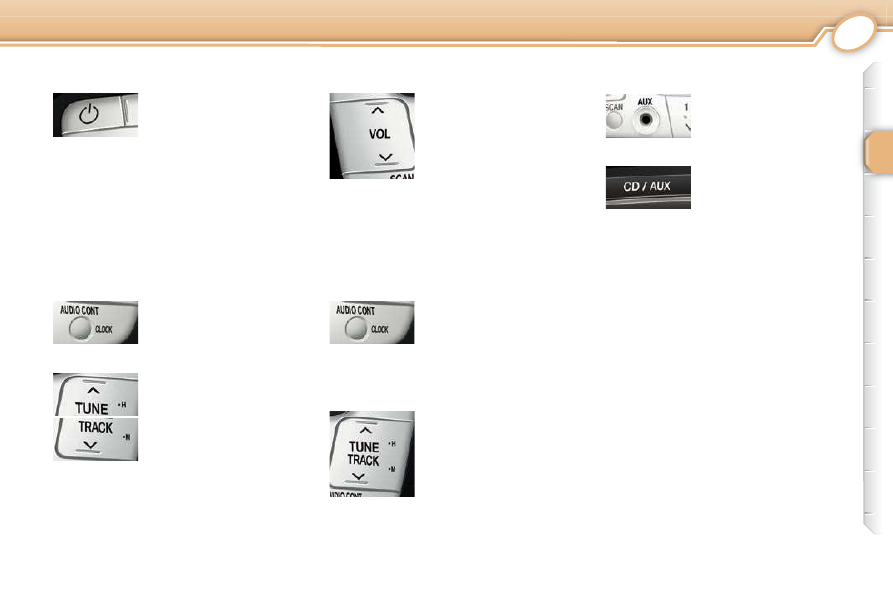

GENERAL FUNCTIONS

On/Off

Selection of the source: auxiliary

(or CD or CD changer)

Clock adjustment: press for more

than 2 seconds/Access to the

audio settings

Volume adjustment

Auxiliary socket for portable

equipment (MP3 player, ...)

Hours adjustment/

Audio settings

Minutes adjustment/

Audio settings

AUDIO

On/off

With the ignition key
in

the

accessories

position or with the
ignition on, press this

button to switch the audio equipment
on or off.
  After the engine has been switched
off, the audio equipment can only
operate  for  approximately  30  mi-
nutes,  to  prevent  discharging  of
the battery.

Press  the  upper  part
of  this  button  several
times in succession to
increase  the  volume
of  the  audio  equip-
ment or the lower part
of  this  button  to  de-
crease it.

Volume adjustment

Setting the clock

Press this button sev-
eral  times  in  succes-
sion  to  gain  access
to  the  bass   (BASS) ,

treble (TREB) , front/rear balance
(FAD) and left/right balance (BAL)
settings.

Audio settings

Press this button for
more than 2 seconds,
the

clock

display

ﬂ ashes:

Auxiliary socket

An auxiliary socket
"AUX" is provided for
the connection of por-
table equipment (MP3
player, etc.).

When the parameter
is displayed, change
the setting using these
two buttons.

You exit from this mode automati-
cally after a few seconds without any
action.

In  order  to  listen  to  it,
connect  your  equip-
ment  then  press  this
button.

The audio equipment controls enable
you to adjust the volume and the au-
dio settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: in-
crease the volume of the radio signif-
icantly (between 30 and 60) to obtain
a satisfactory playing volume.

- to adjust the hours,

press this button,

- to adjust the minutes,

press this button.

You exit from this mode automati-
cally after a few seconds without any
action.

AUDIO

Selection of the AM/FM

(FM1, FM2, FM3) wavebands

Autostore: automatic storing of

6 stations on AM and FM3

TA function on/off:

trafﬁ c information priority

Automatic search for a higher

frequency: double press/

Successive tuning in to

the stations

Selection of the type of radio

programme: News, Sports, Talk,

Pop, Classics

AF function on/off: alternative

frequency

Manual search for a higher

frequency

Selection of the stored station/

Storing of a station: press for

more than 2 seconds

Manual search for a lower

frequency

RADIO

AUDIO

Stereo reception

When the audio equipment receives
a station broadcasting in stereo it au-
tomatically  transmits  stereo  sound
and the screen displays  "ST" . If the
reception  conditions  deteriorate,  the
audio  equipment  returns  to  mono
transmission  and   "ST"   is  no  longer
displayed.

Press one of these

two buttons brieﬂ y to

increase or decrease
the

frequency

dis-

played respectively.
If you maintain the
pressure on the button
in the chosen direc-

tion, the frequency will be scanned
continuously.
The scan stops when you release the
button.

Manual station search

Automatic station search

Manual station storing

Selection of the radio source

Selection of a waveband

Press this button.

Press this button twice
to select the next sta-
tion.

Press this button brieﬂ y to listen to

each  station  available  on  the  FM
waveband for three seconds. To stop
the  station  scan,  press  this  button
again.
If  the  trafﬁ c  information  programme

TA   is  selected,  only  stations  which
broadcast  this  type  of  programme
are selected.

Press the button suc-
cessively

select

the wavebands FM1,
FM2, FM3 and AM.

Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds.
An audible signal conﬁ rms that the

station has been stored.

AUDIO

Radio reception

Your audio equipment will
be subjected to phenomena

which do not affect domestic radio
sets. Both MW/LW and FM reception
are subject to various forms of inter-

ference. This is no reﬂ ection on the

quality of the equipment but is due to
the nature of the signals and the way
in which they are transmitted.
On  MW/LW,  interference  may  be
noticed  when  passing  under  high
voltage power lines or bridges, or in
tunnels.
On  FM,  interference  may  be  the  re-
sult  of  increasing  distance  from  the

transmitter, deﬂ ection of the signal

by obstacles (mountains, hills, build-
ings, etc) or of being in an area which
is not covered by a transmitter.

Automatic storing of FM
stations (autostore)

Press this button.
Your audio equipment
automatically

stores

the six best transmit-

ters  received  on   AM   and   FM   in  your
current  location.  These  stations  are
stored  on  the   AM   and   FM3   wave-
bands. The end of the search is sig-
nalled by two audible signals.

Recalling stored stations

On each waveband, a brief press on
one of the buttons "1" to "6" recalls
the corresponding stored station.

If it was not possible to ﬁ nd

six transmitters, the remain-
ing memories remain empty:
three dashes are displayed

on the audio equipment screen for
each empty memory.

AUDIO

Regional mode (REG)

Some stations, organised in a network,
broadcast  regional  programmes  in  the
various  regions  which  they  serve. The
regional mode enables you to continue
listening to the same programme.

Search by type of programme
(PTY)

This enables you to listen to sta-
tions which broadcast a type of pro-
gramme which has a theme (NEWS,
SPORTS, TALK, POP, CLASSICS).

EON system

This system links stations which be-
long to the same network. It permits

the transmission of trafﬁ c information

broadcast by a station which belongs
to the same network as the station to
which you are listening.
In order to beneﬁ t from this, select the

trafﬁ c information programme TA .

Using the AF (alternative
frequency) function on the FM
waveband

The   RDS  (Radio  Data  System)   en-
ables you to continue listening to the
same  station  irrespective  of  the  fre-
quency  that  it  uses  in  your  current
location.  The  audio  equipment  con-
tinuously searches for the transmitter
which provides the best reception.

Press this button suc-
cessively to activate
or deactivate the func-
tion.

On FM, the multifunction display will
indicate:
-

"TP" or "TP EON" : the radio
transmits a programme while
awaiting the broadcasting of traf-

ﬁ c information.

"TA" or "TA EON" : the pro-
gramme transmitted by the radio
is put on standby while awaiting

the broadcasting of trafﬁ c infor-

mation.

If you wish to interrupt the transmis-
sion of a message, press this button
again.

Traffic information
programme (TA)

Press this button suc-
cessively to activate
or deactivate the func-
tion.

The screen will indicate:
-

"AF" if the function is activated,

"AF REG" if the function is acti-
vated at regional level,

"AF"

ﬂ ashing if the function is not

available.

When FM is selected,
press this button:

The volume of the trafﬁ c in-

formation  is  independent  of
the  volume  of  normal  radio
listening.
You  can  adjust  it  using  the

volume  button,  when  the   TA   pro-
gramme is being transmitted.
The setting will be stored and will be
used  during  subsequent  message
transmissions.

RDS

"no pty" is displayed,

- then press the button brieﬂ y to

select a programme.

After a few seconds without any ac-
tion, your selection is stored.

AUDIO

CD eject

Selection of the source: CD or CD

changer (or auxiliary)

Selection of the next track

Play the start of each track on

the CD: brief press

 : fast forwards play

 : fast backwards play

Selection of the previous track

Random play of the tracks on the

CD currently being played

CD changer:

 : selection of the previous CD

 : selection of the next CD

CD: repeat the current track/CD changer, press for

more than 2 seconds: repeat the current CD

CD/CD CHANGER

AUDIO

Press this button to
select the next track.

CD AND CD CHANGER
FUNCTIONS

Introscan (SCAN)

Press this button to lis-
ten to the start of each
track on the current
CD.

Fast play

Press  and  hold  one
of  these  buttons  for
fast forwards or back-
wards  play  respec-
tively.
  The  fast  play  stops
when the button is re-
leased.

When  a  CD  is  insert-
ed,  printed  face  up-
permost,  play  begins
automatically.

If there is a CD in the player already,
press this button.

CD FUNCTIONS

Repeat of a track on the CD
(RPT)

Random play of the CD
(RAND)

When the CD player
is selected, press this
button.

  If  you  wish  to  listen
to  the  current  track
again,  press  this  but-
ton.  To  cancel  the
repetition,  press  the
button again.

CD eject

Press this button to
eject the CD from the
player.

The tracks on the CD will be played
in  a  random  order.  Press  the  button
again to return to normal play.
The  random  play  mode  is  deacti-
vated  when  the  audio  equipment  is
switched off.

The use of copied CDs may
cause faults.
Insert circular CDs only.

Selection of a track on a CD

  Press  this  button  to
return  to  the  start  of
the  current  track  or
to  select  the  previous
track.

Selection of the CD player

AUDIO

Press this button.

CD CHANGER FUNCTIONS

Random play of a CD (RAND)

When the CD changer
is selected, press this
button for 2 seconds.

The tracks of the current CD will be
played in a random order.
Press the button again for 2 seconds
to return to normal play.

Selection of a CD

Press  one  of  these
buttons  on  the  audio
equipment  to  select
the  previous  or  next
CD respectively.

Repeat of a CD (RPT)

If you wish to listen to
the current CD again,
press and hold this
button.

The use of copied CDs may
cause faults.
Insert circular CDs only.

To cancel the repetition, press the
button again.

Selection of the CD changer

COMFORT

VENTILATION

Recommendations for use

If the interior temperature re-
mains very high after a pro-

longed period parked in the sun, ﬁ rst

ventilate the passenger compartment
for a few minutes.
For  an  even  air  distribution,  make
sure  that  you  do  not  block  the  out-
side  air  inlet  grille,  the  vents,  the  air
passages  and  the  air  outlets  to  the
footwells.
Ensure that the passenger compart-

ment ﬁ lter, located below the wind-

screen, in the engine compartment,

is in good condition. Have the ﬁ lter

elements  replaced  regularly.  If  you
drive  in  dusty  conditions,  change
them twice as often.
Operate  the  air  conditioning  system
for  5  to  10 minutes,  once  or  twice  a
month,  to  keep  it  in  perfect  working
order.
In order to ensure that your air condi-
tioning  system  continues  to  operate
correctly,  you  are  advised  to  have  it
checked regularly.
The condensation created by the air

conditioning results in a ﬂ ow of wa-

ter under the vehicle when stationary
which is perfectly normal.
If the system does not produce
cold air, do not use it and contact a

CITROËN dealer or a qualiﬁ ed work-

shop.

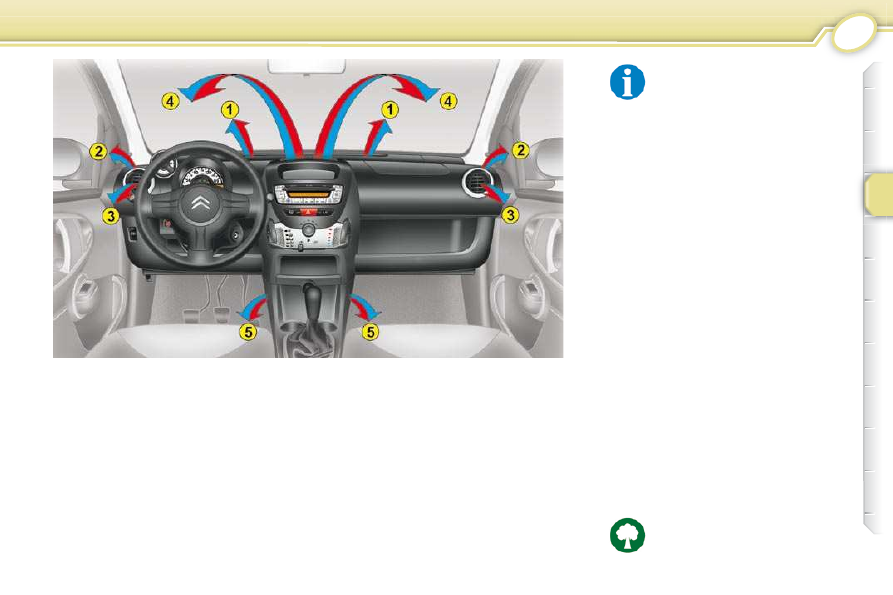

  3.   Side vents.
  4.   Diffusion grille.
  5.   Air outlets to the footwells.

1. Windscreen demisting/defrosting

vent.

2. Side window demisting/

defrosting vents.

The  air  conditioning  system
does  not  contain  chlorine
and  does  not  present  any
danger to the ozone layer.

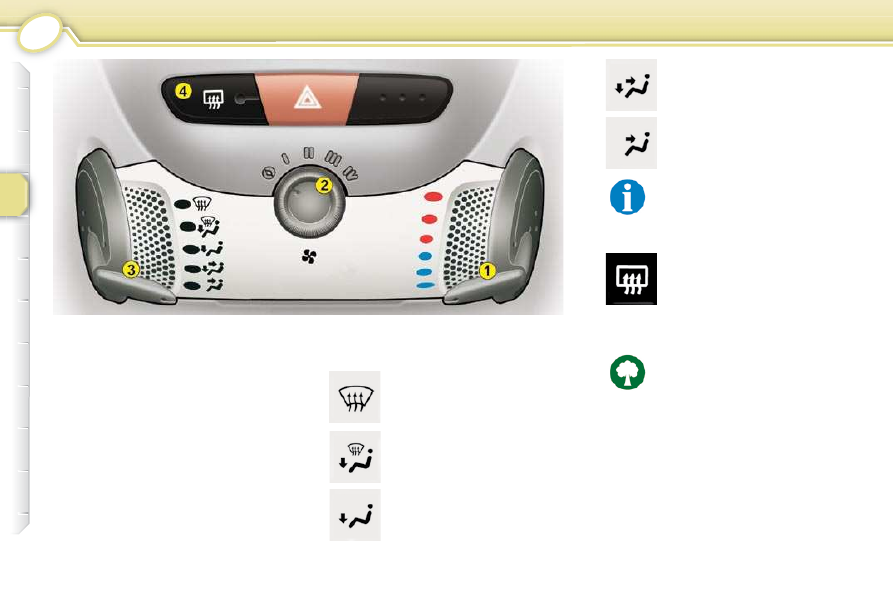

COMFORT

HEATING

1. Temperature adjustment

Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.

2. Air ﬂ ow adjustment
When the ignition is switched on,

turn the control to obtain a ﬂ ow of

air which is sufﬁ cient to ensure your

comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 whenever possible.
In position 0

, a slight ﬂ ow of air, due

to the movement of the vehicle, can
still be felt.

The air distribution can be ad-
justed by placing the control
in an intermediate position.

Footwells.

4. Rear screen demisting

With  the  engine  running,
press  button   4 ,  the  indica-
tor lamp comes on.
The  system  demists  the
rear screen.

It is switched off by pressing control 4 .

Windscreen, side windows
and footwells.

Footwells, diffusion grille
and side vents.

Diffusion grille and side
vents.

3. Air distribution adjustment

Windscreen and side windows.

Switch the system off as
soon

you

consider

this  necessary  as  a  lower
consumption  of  current  re-
duces fuel consumption.

Demisting and defrosting

To quickly demist or defrost the wind-
screen and side windows:
-

set the air distribution to
"Windscreen and side windows",

place the temperature control 1

and the air ﬂ ow control 2 at

maximum,

close the side vents.

Content .. 1 2 3 ..
