Citroen C1 Dag (2010 year). Instruction - part 1

FAMILIARISATION

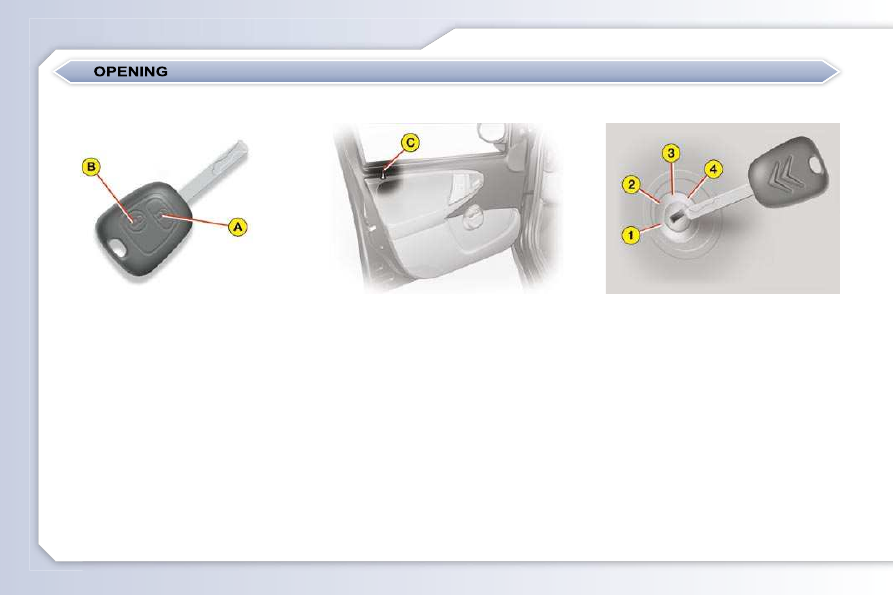

C. Locking/unlocking the vehicle

from the inside (driver's side).

   1.   Stop position.
  2.   Accessories position (1st notch).
  3.   Running position (2nd notch).
  4.   Starting position.

A. Locking the vehicle.
B. Unlocking the vehicle.

 48

Remote control key

Manual central control

STARTING

When this bar ﬂ ashes, ac-

companied by an audible

signal, you have around

5 litres of fuel remaining.

   1.   Interior release lever.
  2.   Exterior safety catch.
  3.   Bonnet stay.

 68

 53

Low fuel level

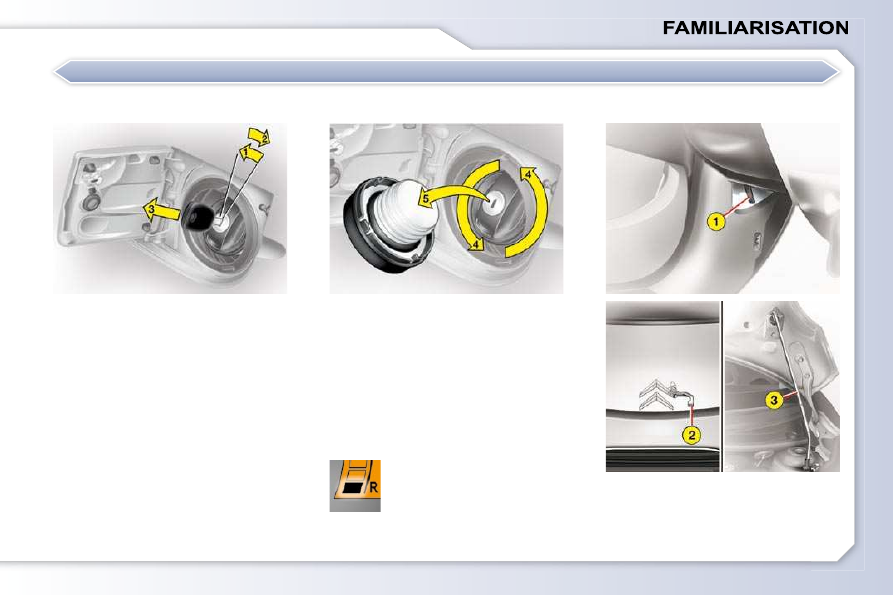

Remove the key and unscrew the
cap.
After ﬁ lling the fuel tank, screw the

cap back on fully to the right until it

clicks and close the ﬂ ap.
Fuel tank capacity: approximately
35 litres.

After opening the ﬂ ap, insert the key,

turn it slightly to the left then return to
the right. The key returns to its initial
position and the cap is unlocked.

OPEN

Fuel tank

Bonnet

FAMILIARISATION

Manual air conditioning
This air conditioning system opti-

mises the distribution of the air and
its temperature inside the passenger
compartment.
 35

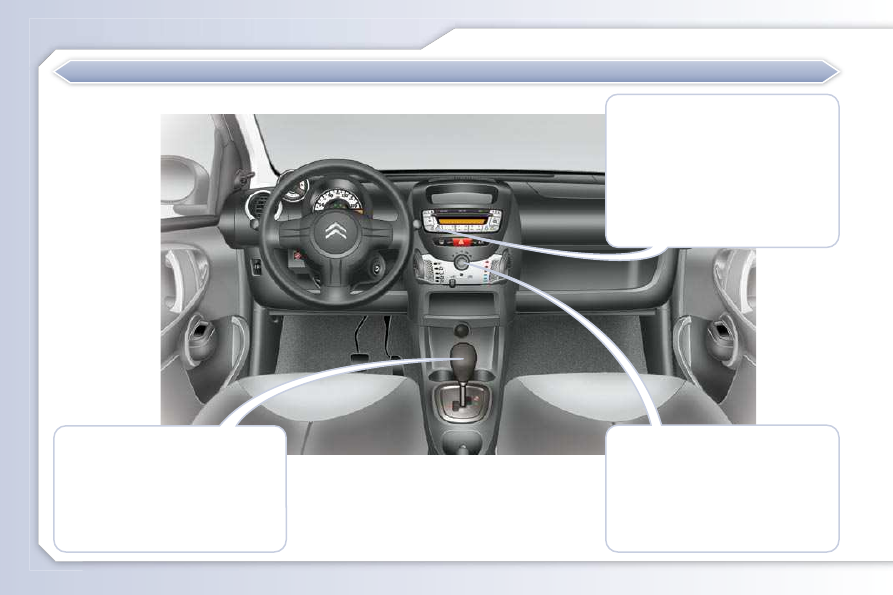

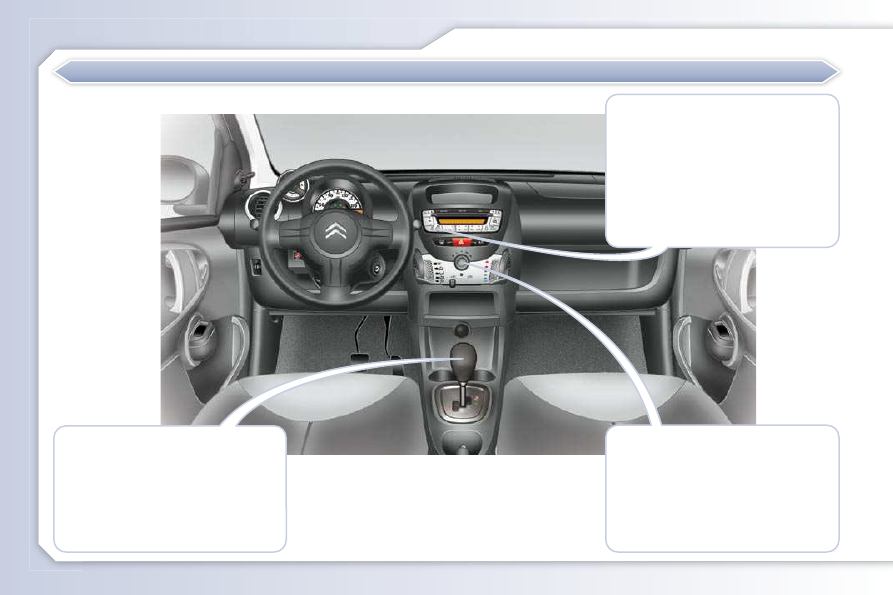

SensoDrive gearbox
This ﬁ ve-speed electronic gearbox

offers a choice between the comfort

of automated operation or the plea-

sure of manual gear changing.
 65

Auxiliary socket for portable
equipment
Compatible with many MP3 players,

this socket allows you to listen to
your favourite tracks while travelling.
Refer to the conditions of use in the
"Audio" section.
 25

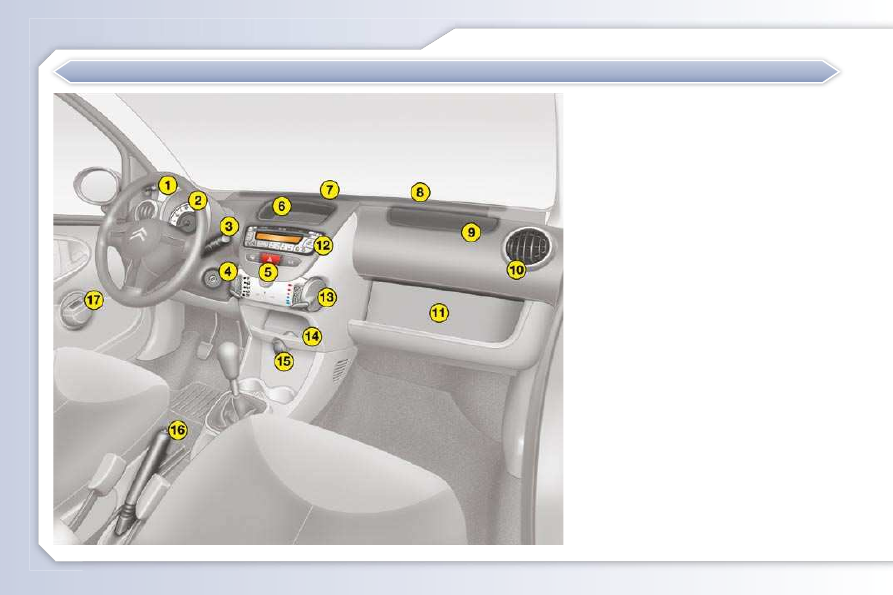

INTERIOR

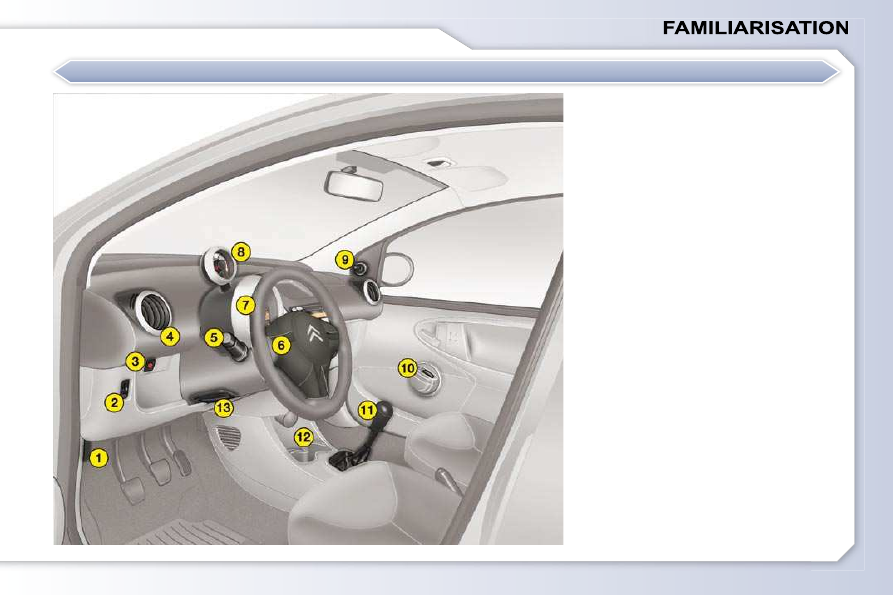

1. Bonnet release

2. Headlamp adjustment

3. Passenger's airbag deactivation

4. Adjustable side air vent

5. Lighting and direction indicator

stalk

6. Driver's front airbag

Horn

7. Dashboard fusebox (under the

instrument panel trim, on the

right and on the left)

8. Rev counter

9. Passenger's door mirror control

10. Passenger's electric window

control

11. Gear lever

12. Cup holder

13. Steering wheel height adjustment

INSTRUMENTS AND CONTROLS

FAMILIARISATION

1. Driver's door mirror control
2. Instrument panel

3. Wiper stalk

4. Steering lock and ignition

5. Hazard warning lamps

6. Storage compartments

7. Diffusion grille

8. Windscreen demisting and

defrosting vent

9. Passenger's front airbag

10. Adjustable side air vent

11. Storage box

12. Audio system

13.

Ventilation, heating or air

conditioning controls

14. Storage compartments

15. 12 V socket (120 W max)

16. Parking brake

17. Driver's electric window control

INSTRUMENTS AND CONTROLS

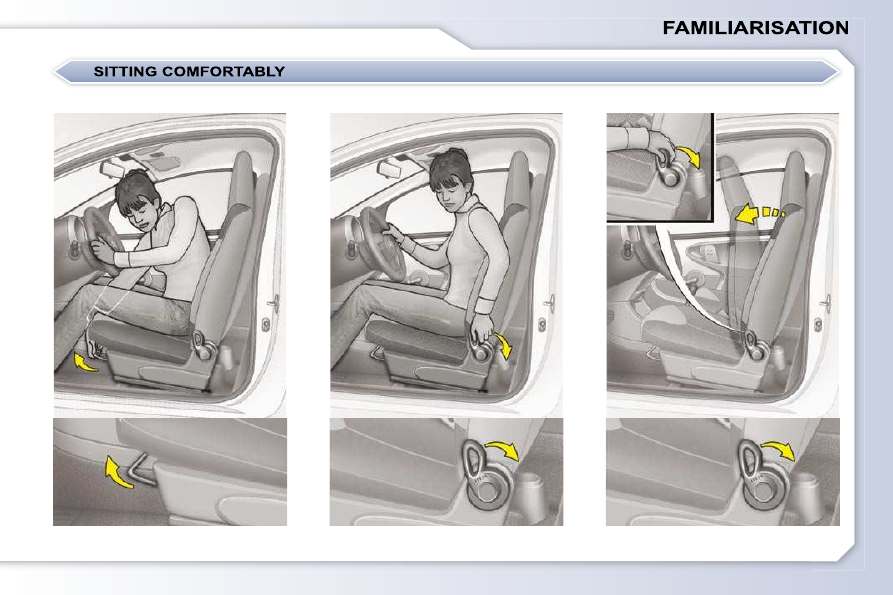

Forwards-backwards adjustment.

2. Seat back angle adjustment.

3. Access to rear seats.
 38

Front seats

FAMILIARISATION

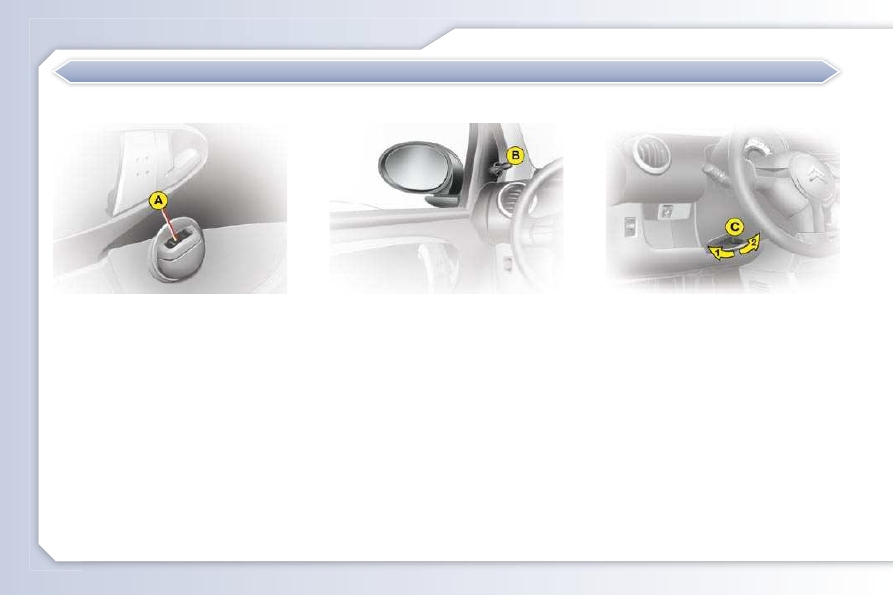

A. Opening and closing control.

Push or pull control A .
 50

B. Door mirrors adjustment control.
When the vehicle is parked, the

mirrors can be folded and unfolded
manually.
 37

C. Steering wheel height

adjustment release and locking
control.

1. Control released.
2. Control locked.

 37

SITTING COMFORTABLY

Front electric windows

Mirrors

Steering wheel adjustment
(with power steering)

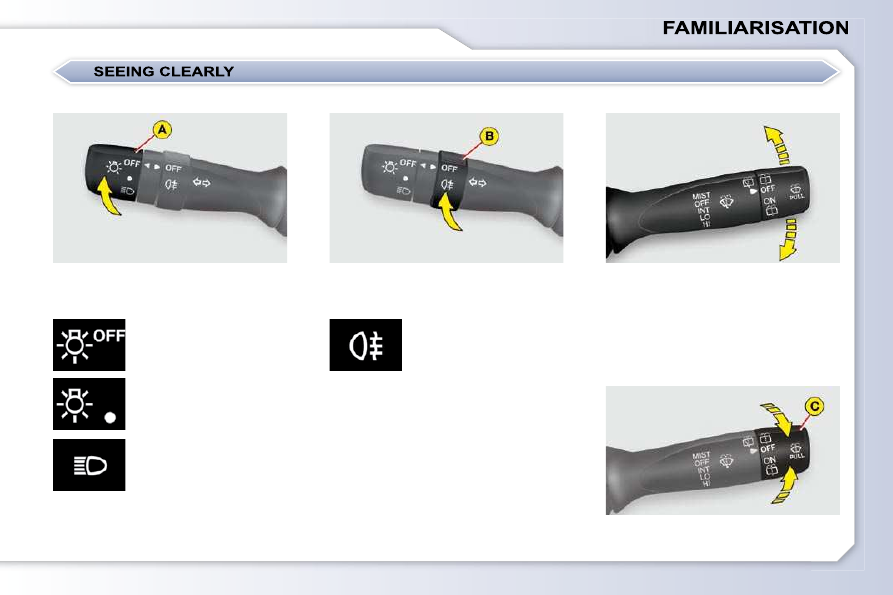

Lighting stalk

Front and rear lamps

Ring A

Lighting off.

Sidelamps.

Dipped/Main beam head-

lamps.

Rear foglamp

Ring B

 55

Wiper stalk

Windscreen wipers

  MIST   Single wipe.
  OFF   Off.
  INT

Intermittent wipe.

Normal wipe (moderate rain).

Rapid wipe (heavy rain).

Rear wiper and rear screenwash

Ring C

 56

FAMILIARISATION

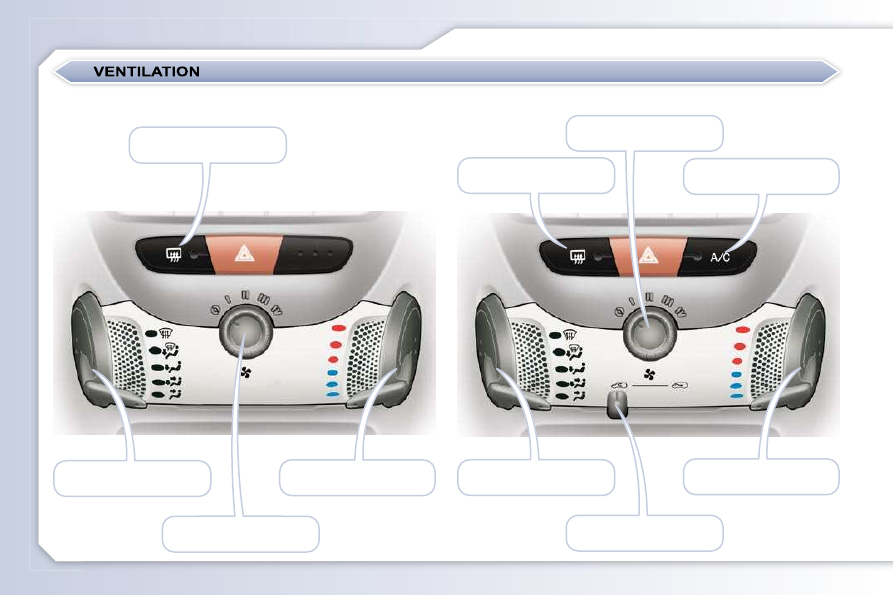

Temperature

adjustment

Air ﬂ ow

adjustment

Air distribution

adjustment

Rear screen

demisting

 34

Air conditioning

Temperature

adjustment

Air recirculation/

Air intake

Air distribution

adjustment

Air conditioning

On/Off

 35

Air ﬂ ow adjustment

Rear screen

demisting

Heating

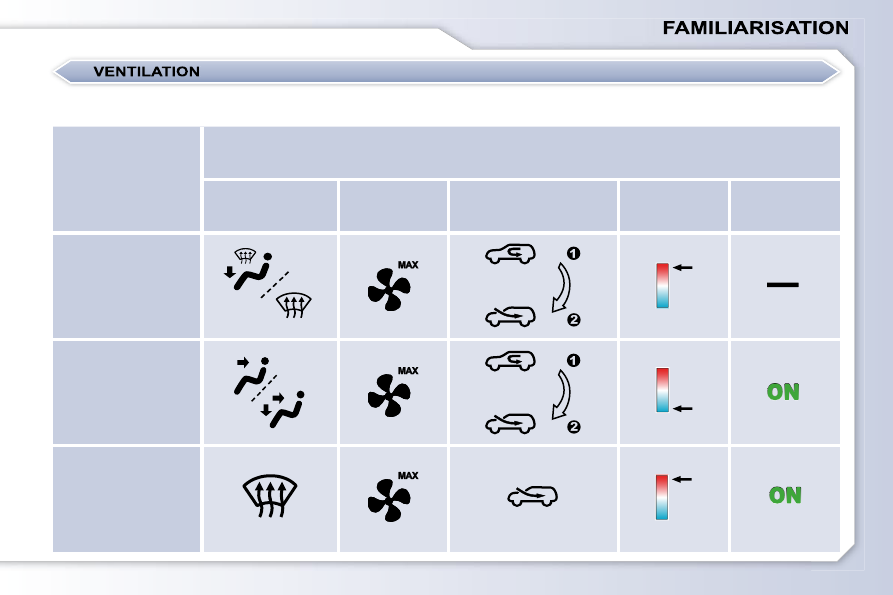

I require...

Heating or Manual air conditioning

Air distribution

Air ﬂ ow

Air recirculation/

Intake of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DEFROSTING

Recommended interior settings

FAMILIARISATION

When the ignition is on, the orange

and red warning lamps come on.
When the engine is running, these

warning lamps should go off.
If warning lamps remain on, refer to

the relevant page.
 18

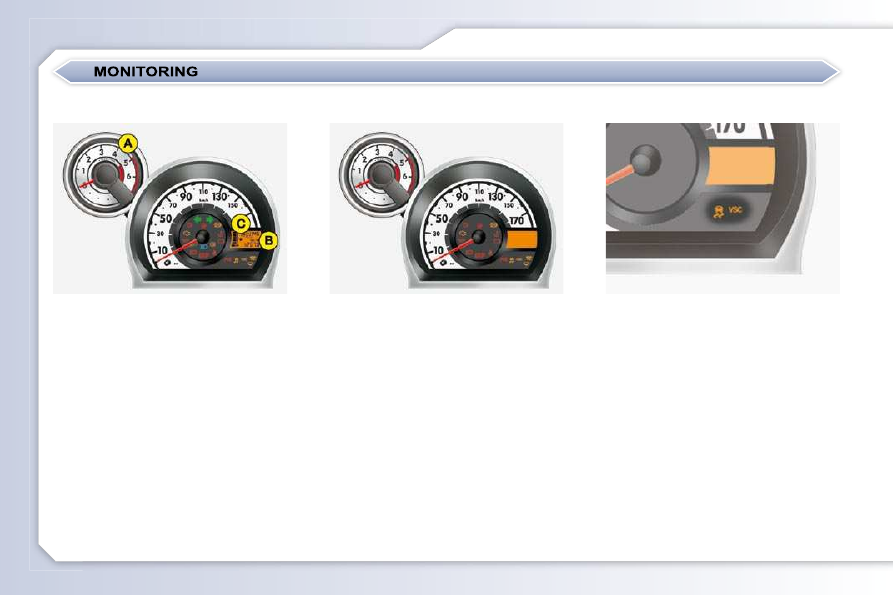

   A.   Rev counter
  B.   Screen
  C.   Fuel gauge

 17

The dynamic stability control system
(ASR/ESP) optimises the vehicle's
road holding.
For correct operation of the system,

refer to the relevant page.
 59

Instrument panel

Warning lamps

ASR/ESP option

Your vehicle has been approved in
accordance with the new ISOFIX
regulation.
The rear seats are ﬁ tted with regula-

tion ISOFIX mountings.
These are three rings for each seat:

- two lower rings A , located

between the vehicle's seat back

and cushion,

- an upper ring B , referred to as

the TOP TETHER, located at

the rear of the seat back at the
bottom.

The ISOFIX child seats

are ﬁ tted

with two latches and/or a strap which

are secured easily on these rings,

indicated by labels or a mark on the
rear seat back panel.
 44

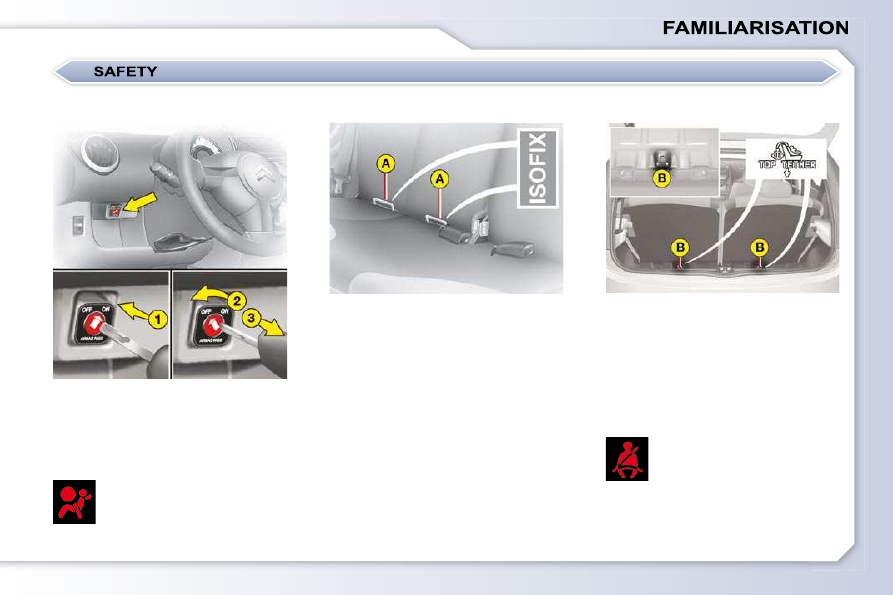

Passenger's airbag deactivated

 63

If the passenger's airbag is

deactivated, this warning lamp

remains on until the passen-

ger's airbag is reactivated.

Driver's seat belt not fastened
warning lamp

   1.   Insert the key.
  2.   Select the  "OFF"  position
  3.   Remove the key in the OFF

position.

When the ignition is switched

on, the warning lamp ﬂ ashes

until the driver fastens their
seat belt.

Above a speed of approximately

10 mph (15 km/h), the warning lamp

ﬂ ashes accompanied by an audible

signal until the driver fastens their
seat belt.

Passenger's airbag
deactivation

"ISOFIX" mountings

FAMILIARISATION

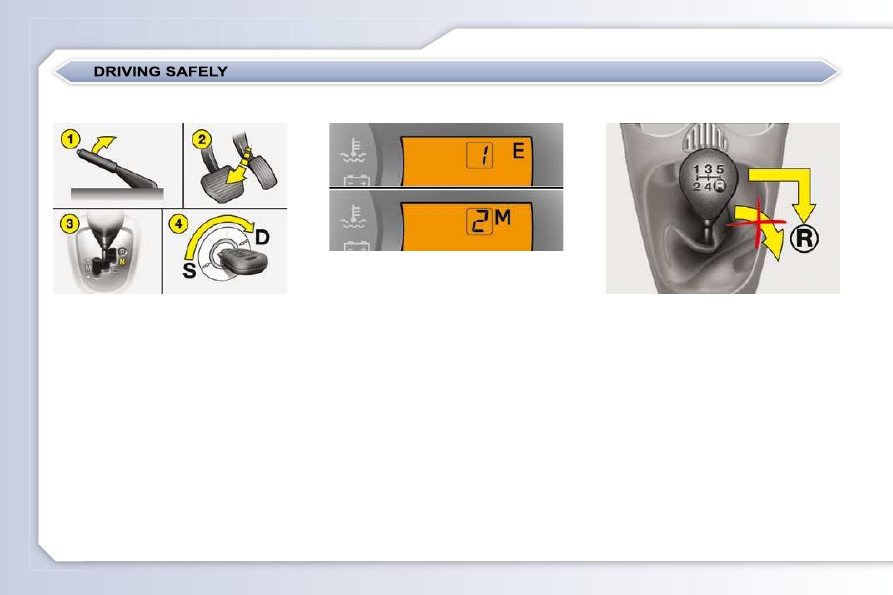

"SensoDrive" gearbox

Moving off
With the parking brake applied, press

the brake pedal then select position N
to start the engine.
With your foot on the brake, select

position R

, E or M .

Release the parking brake, take your

foot off the brake pedal, then accel-

erate.
 65

Select  position   E   using  the  gear
lever.
The gear engaged is displayed in the
instrument panel screen.
The  gearbox  continuously  selects
the most suitable gear.
     66

Manual mode

Place the gear lever in position M

then change up or down through the
gears by pressing:

- rearwards, "+" to change up,

- forwards, "-" to change down.
The gear engaged is displayed in the
instrument panel screen.
 66

Press the clutch pedal fully when
changing gear.

Reverse
To engage reverse gear, push the

gear lever fully to the right then to-

wards the rear.
Reverse gear can only be engaged
when the vehicle is stationary, en-
gine at idle.

EASY mode (automatic mode)

Manual gearbox

MONITORING

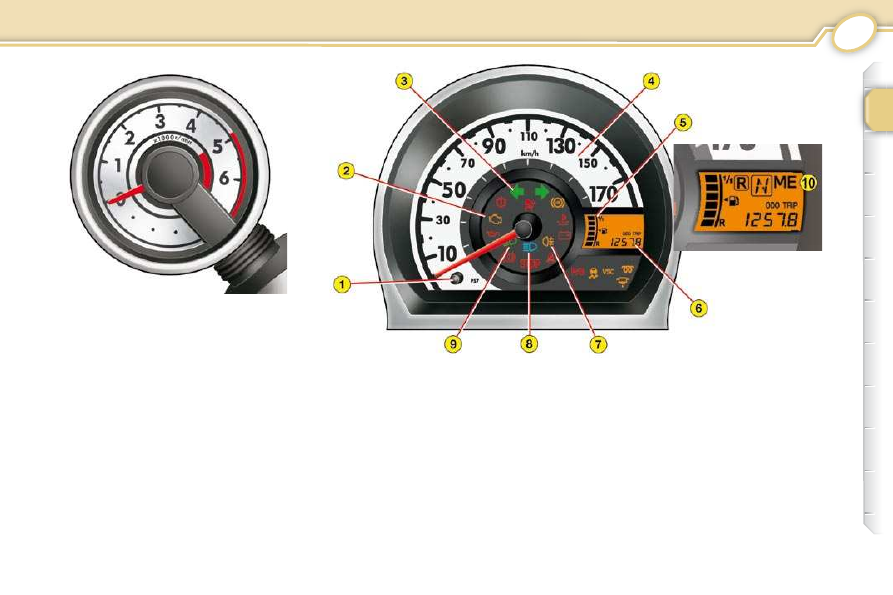

INSTRUMENT PANEL

1. Total/trip distance recorder zero

reset button

2. Warning lamps and indicators

display

  3.   Direction indicators
  4.   Speedometer
  5.   Fuel gauge

  6.   Total/trip distance recorder
  7.   Rear foglamp warning lamp
  8.   Main beam headlamp warning

lamp

9. Dipped beam headlamp warning

lamp

REV COUNTER

Approaching the maximum engine
speed, when the rev counter needle
crosses into the red zone, you must
change up.

10. "SensoDrive" gearbox gear and

gear lever positions indicator

MONITORING

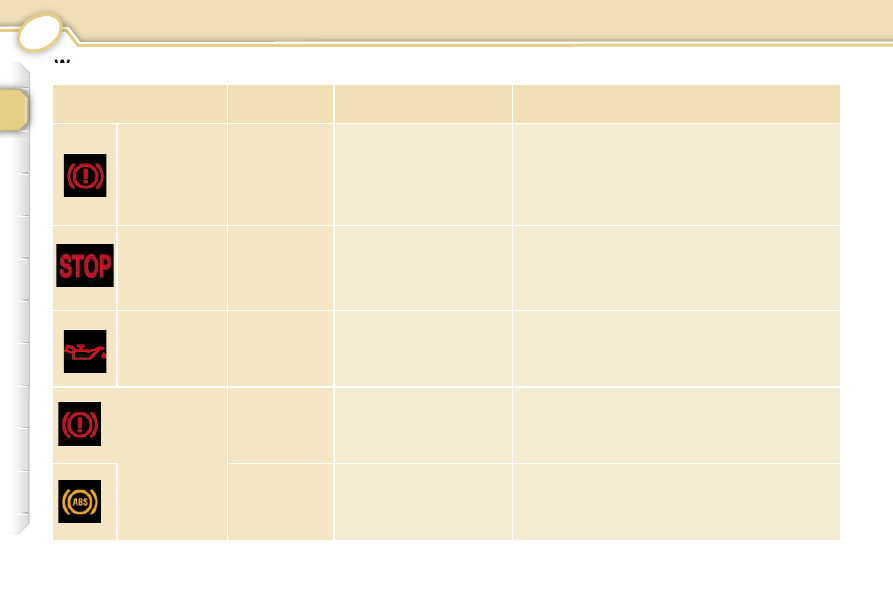

WARNING LAMPS

Warning lamp

is on

Cause

Action/Observations

Parking brake

ﬁ xed.

The parking brake is
applied or not properly
released.

Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Safety" section.

STOP

ﬁ xed, associated

with another

warning lamp.

It is associated with
the engine oil pressure
or the engine coolant
temperature.

Stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN

dealer or qualiﬁ ed workshop.

Engine oil

pressure

ﬁ xed, associated

with the STOP

warning lamp.

The engine oil pressure is
too low.

Stop as soon it is safe to do so.
Park, switch off the ignition and contact a

CITROËN dealer or a qualiﬁ ed workshop.

Braking

ﬁ xed.

The braking system

ﬂ uid level has dropped

signiﬁ cantly.

Top up with brake ﬂ uid recommended by

CITROËN.
If the problem persists, have the system checked

by a CITROËN dealer or a qualiﬁ ed workshop.

ﬁ xed, associated

with the ABS

warning lamp.

The braking system has
a fault.

Stop as soon as it is safe to do so. Park, switch
off the ignition and contact a CITROËN dealer or

a qualiﬁ ed workshop.

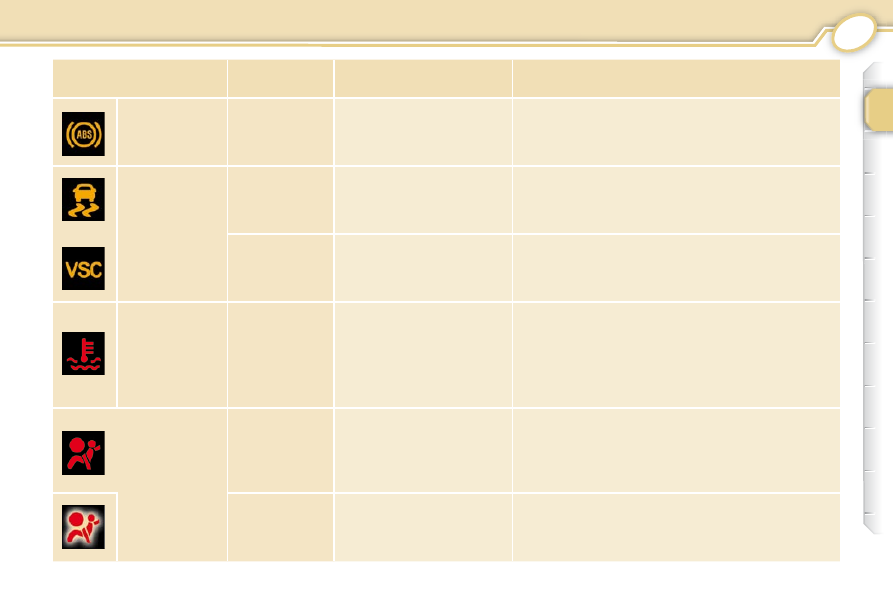

MONITORING

Anti-lock

Braking

System (ABS)

ﬁ xed.

The anti-lock braking
system has a fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a

CITROËN dealer or a qualiﬁ ed workshop without

delay.

Electronic

stability

programme

( ASR / ESP )

ﬁ xed.

The ASR/ESP system
is in action.

The system optimises traction and improves
the directional stability of the vehicle.

ﬁ xed.

The ASR/ESP system
has a fault.

Have it checked by a CITROËN dealer or a

qualiﬁ ed workshop.

Coolant

temperature

ﬁ xed.

The temperature of the
engine coolant is too
high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
checking up the level; top up if necessary.
If the problem persists, contact a CITROËN

dealer or qualiﬁ ed workshop.

Airbags

temporarily.

This lamp comes on for
a few seconds when you
turn on the ignition, then
goes off.

This lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer

or a qualiﬁ ed workshop.

ﬂ ashing.

At least one of the
airbags has a fault.

The airbags may not be deployed in the event of
a serious impact. Have it checked by a CITROËN

dealer or a qualiﬁ ed workshop.

Warning lamp

is on

Cause

Action/Observations
