Changing a bulb

QUICK HELP

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

CHANGING A BULB

Type C
Halogen bulb: release the

retaining spring from its

housing.

Type A
All glass bulb: pull gently

as it is fitted by pressure.

TYPES OF BULB

Various types of bulb are installed on your vehicle. To remove them:

Type B
Bayonet bulb: press

on the bulb then turn it

anticlockwise.

Halogen bulbs must be changed after

the headlamp has been off for several

minutes (risk of serious burns). Do not touch

the bulb directly with your fingers, use lint-

free cloths.
When each operation has been completed,

check the operation of the lighting.

144

Changing a bulb

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

3. Direction indicators

Type B , PY21W - 21W (amber)

- Turn the bulb holder a quarter turn

anticlockwise.

- Remove the bulb by pressing it lightly

while turning it anticlockwise.

- Change the bulb.

- Ensure that the cover is refitted

correctly all the way round to ensure

sealing.

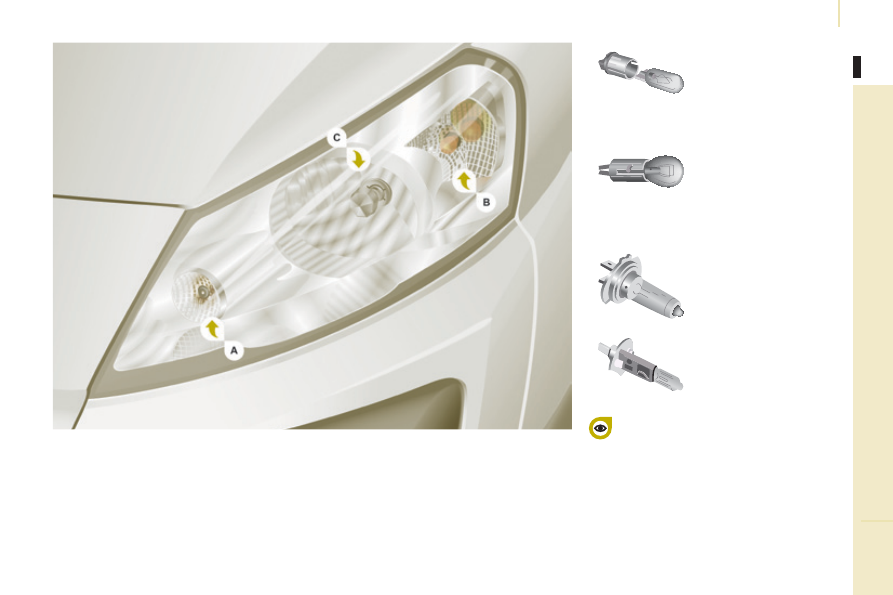

FRONT LAMPS

Open the bonnet. To access the bulbs, reach

behind the headlamp unit.
Carry out the operations in reverse order to

refit each bulb.

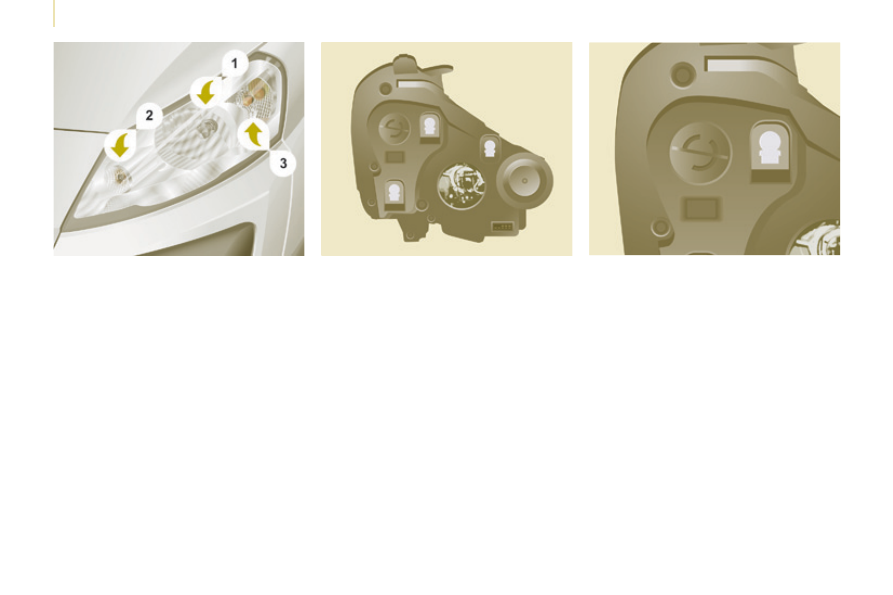

1. Dipped / Main beam headlamps

Type C , H4 - 55W

- Remove the centre cover by pulling

the flexible rubber tab.

-   Disconnect  the  electrical  connector.
-   Release  the  retaining  spring.
  -   Change the bulb taking care to align

the metal part with the slots in the

lamp.

2. Sidelamps

Type A , W5W - 5W

- Remove the cover by pulling the

flexible rubber tab.

- Remove the bulb holder fitted by

pressure by pulling the connector.

- Change the bulb.
- Ensure that the cover is refitted

correctly all the way round to ensure

sealing.

4. Foglamps

Type C , H1 - 55W

Contact a CITROËN dealer or a qualified

workshop.

145

Changing a bulb

QUICK HELP

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

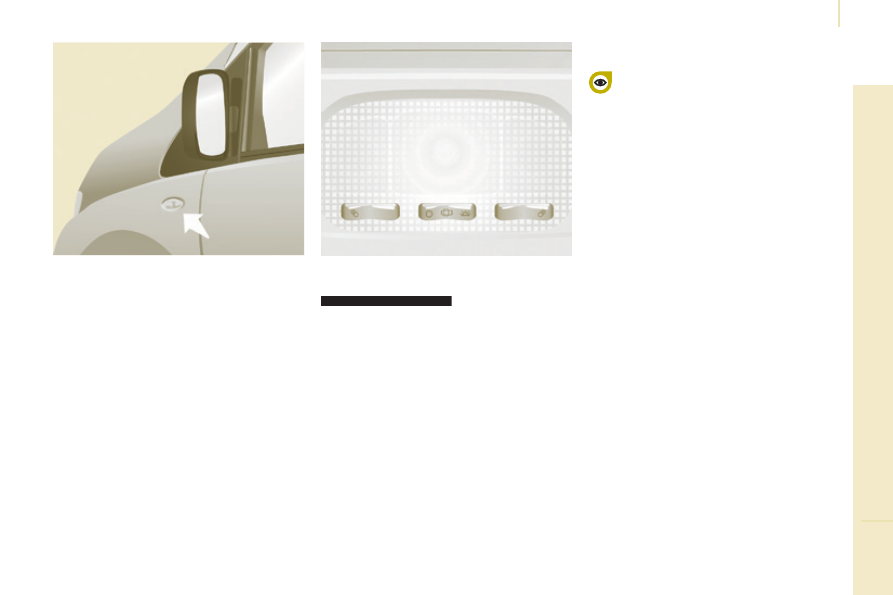

DIRECTION INDICATOR SIDE

REPEATER

Type A , WY5W - 5W (amber)
- Push the repeater towards the rear and

disengage it.

- Support the connector and turn the bulb

holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left,

remove it and change it.

- When refitting, engage the repeater

towards the rear and bring it towards the

front.

Front / Rear

Amber coloured bulbs (direction indicators

and side repeaters) must be replaced with

bulbs of identical specification and colour.

Type A , 12V 5W - 5W
- Unclip the lens by sliding a screwdriver

in the slots on each side of the courtesy

lamp.

- Pull the bulb and change it.
- Clip the lens in its housing and ensure

that it is secured correctly.

High pressure jet washing

When using this type of jet washer

on stubborn dirt, do not persist on the

headlamps, the lamps and their surrounds to

avoid damaging their coating and seals.

146

Changing a bulb

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

REAR LAMPS

For more information on bulbs, refer to the

"Types of bulb".

- Identify the faulty bulb then open the

rear doors to 180°. Refer to the "Access"

section of chapter 2.

- Remove the two fixing nuts.

Pull the lens unit from the outside.

- Holding the lamp unit, disconnect the

electrical connector.

- Move aside the 8 tabs then extract the

bulb holder.

- Remove the failed bulb by pressing it

lightly while turning it anticlockwise.

Change the bulb.

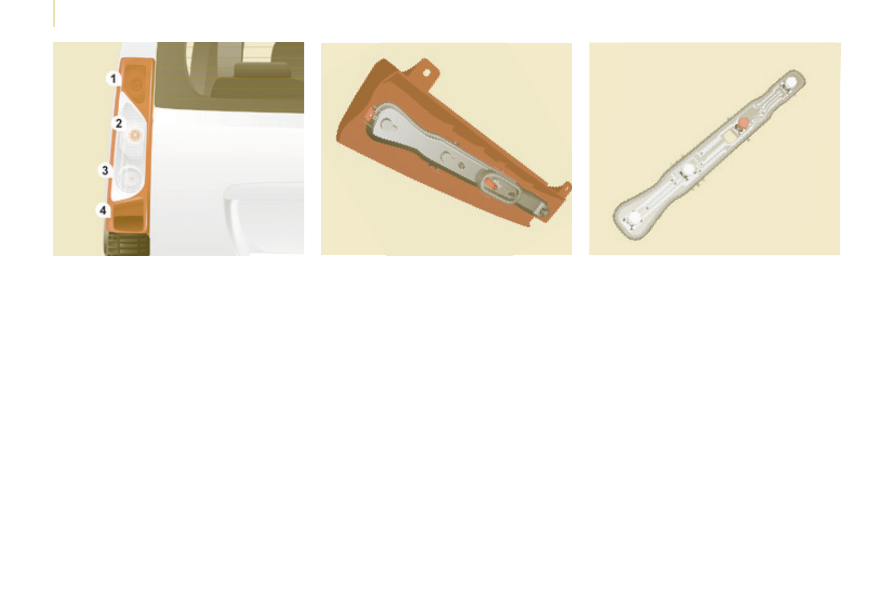

1. Brake lamps / sidelamps

Type B , P21/5W - 21/5W

2. Direction indicators

Type B , PY21W - 21W (amber)

3. Reversing lamps

Type B , P21W - 21W

4. Foglamps

Type B , P21W - 21W

When refitting, take care to correctly

reposition:
-

the 8 tabs,

- the two white lugs in the two rubber

holes to maintain the sealing of the lamp

unit,

- the supply wire to avoid trapping it.

147

Changing a bulb

QUICK HELP

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

THIRD BRAKE LAMP

Type A , W5W - 5W

Type B , P21W - 21W

NUMBER PLATE LAMPS

Type A , W5W - 5W

With tailgate

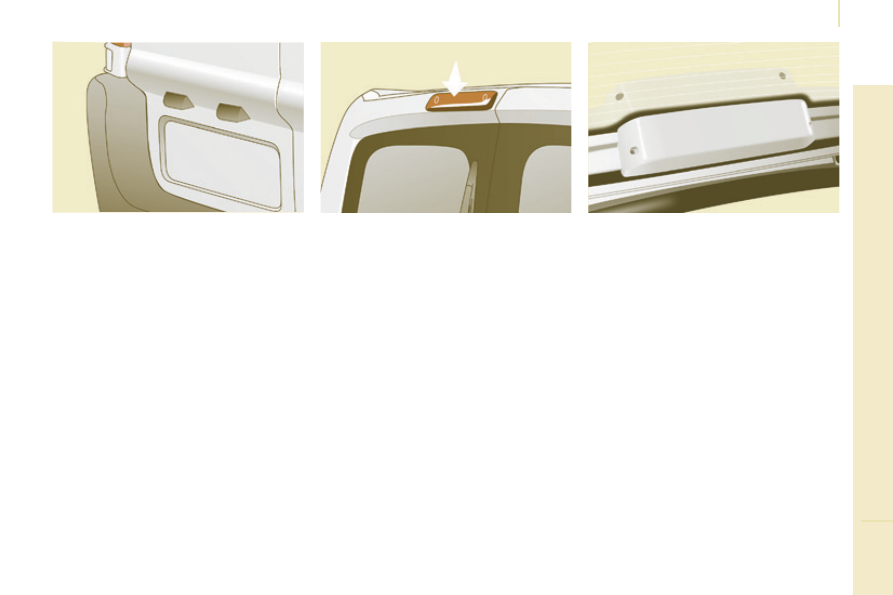

- Move aside the plastic lens using a

screwdriver, on the point indicated by

the arrow.

Change the bulb.

- Replace the plastic lens and press on it.

With hinged doors
-

Unclip the interior trim.

- Disconnect the connector by moving

aside its tab.

Remove the plastic cover.

- Turn the bulb holder a quarter turn

anticlockwise.

Change the bulb.

Lamp located on the outside (hinged

doors)
- Unscrew the two screws using a Torx

20 screwdriver.

Remove the lamp.

Change the bulb.

Lamp located on the inside (tailgate)
- Unscrew the two screws using a Torx

20 screwdriver.

Remove the plastic cover.

- Remove the bulb holder moving aside

the two tabs.

- Remove the failedbulb by pressing it

lightly while turning it anticlockwise.

Change the bulb.

148

Changing a fuse

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

CHANGING A FUSE

The three fuseboxes are placed:
- in the dashboard on the right-hand side (behind the

storage compartment, retractable),

- in the passenger compartment (battery compartment),
- under the bonnet.

Removing and fitting a fuse

Before changing a fuse, the cause of the

fault must be found and rectified.

Always replace a failed fuse with a fuse

of the same rating.

CITROËN will not accept responsibility for

the cost incurred in repairing your vehicle

or for rectifying malfunctions resulting from

the installation of auxiliary accessories

not supplied and not recommended by

CITROËN and not installed in accordance

with its instructions, in particular when

the combined consumption of all of the

additional equipment connected exceeds

10 milliamperes.

The descriptions communicated are only the

fuses which can be changed by the user.

For any other operations, go to a CITROËN

dealer or a qualified workshop.

For motor trade technicians: for

complete fuse and relay information,

refer to the "Procedures" wiring diagrams via

the dealer network.

149

Changing a fuse

QUICK HELP

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

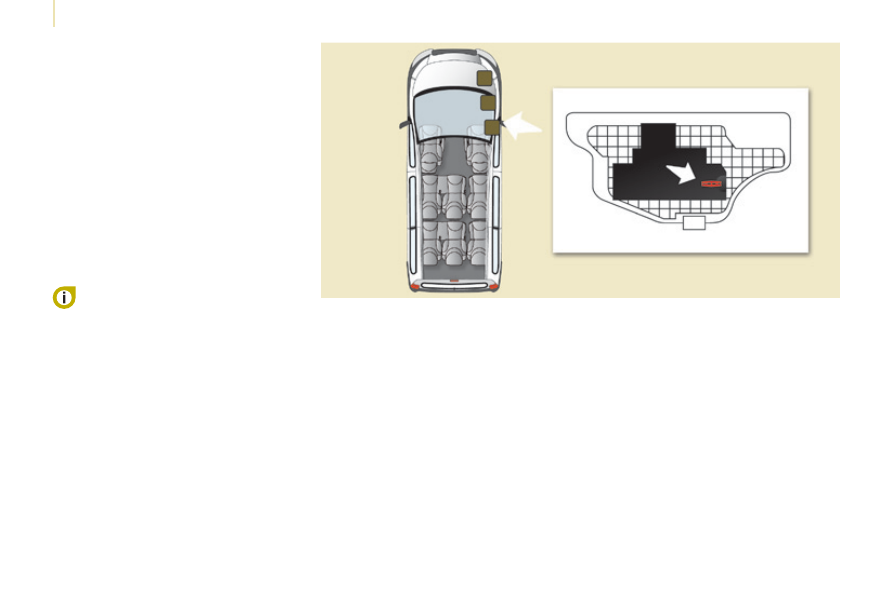

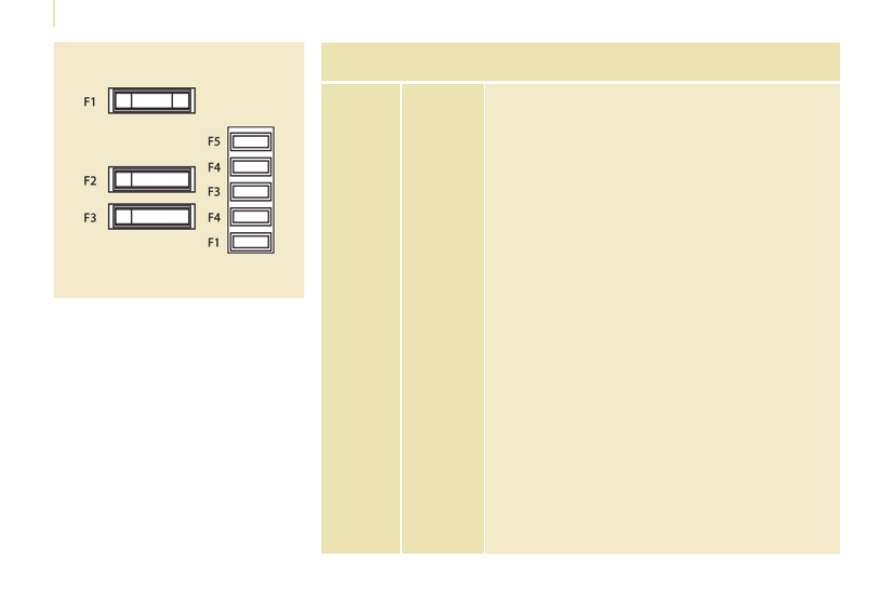

RIGHT-HAND SIDE DASHBOARD

FUSES

- Tilt the storage compartment then pull it

firmly to access the fuses.

Fuses

A (amps)

Allocation

Rear wiper

Free

Airbag control unit

Steering wheel angle sensor, Diagnostic socket, DSC sensor,

Manual ventilation, Clutch switch, Headlamp beam height,

Particle emission filter pump

Electric mirrors, Passenger electric window

motor

Front electric windows supply

Courtesy lamps and glove box lamp

Multifunction screen, Anti-theft alarm siren, Audio equipment,

Compact disc changer, Audio/telephone, Trailer fusebox

(accessory)

Row 2 accessory socket

Rear ride height corrector, Steering wheel switching,

Instrument panel

Diagnostic socket, Ignition switch

Hands-free kit, Airbag control unit, Parking sensors control

unit

Engine fusebox, Trailer fusebox

Rain sensor, Rear ventilation, Digital air conditioning,

Instrument panel

Locking/unlocking/deadlocking

Free

Heated rear screen, Heated mirrors

150

Changing a fuse

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

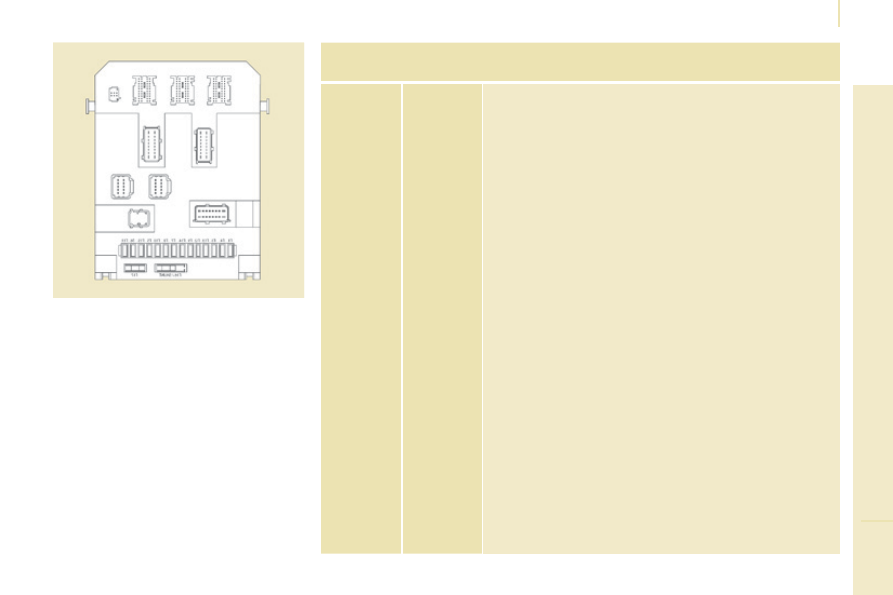

PASSENGER COMPARTMENT

FUSES

Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover

carefully.

Fuses

A (amps)

Allocation

Heated seats

Row 3 12V socket

40/50

Trailer fusebox (accessory)

Free

Hinged door locks

Hinged door rear wiper

Rear ventilation

Folding mirrors

151

Changing a fuse

QUICK HELP

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

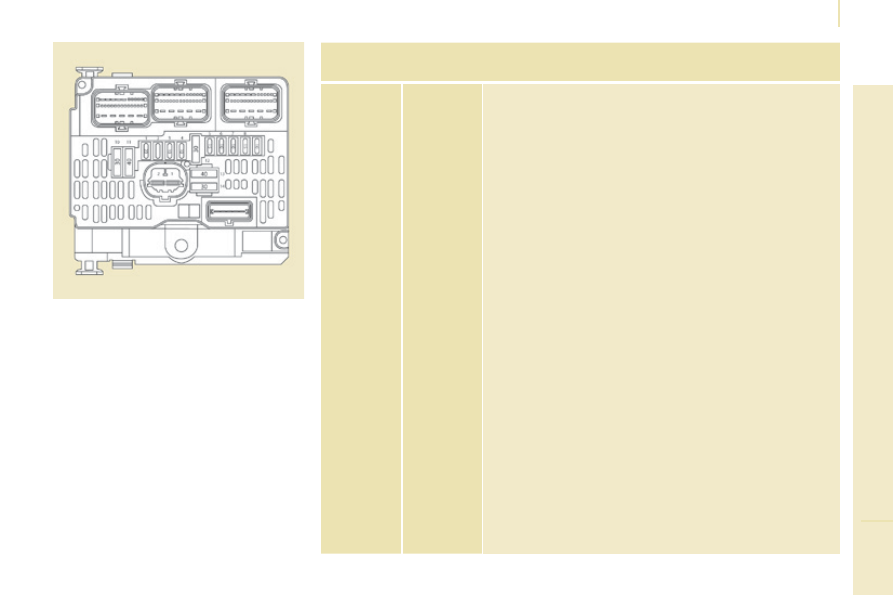

FUSES UNDER THE BONNET

- After opening the bonnet, slide aside the

screenwash reservoir support to make

access easier.

- Unclip and tilt the box to access the

fuses.

Fuses

A (amps)

Allocation

Engine control unit, Fuel supply and air supply systems,

Fan assembly

Horn

Front and rear screenwash pump

Headlamp wash pump

Fuel supply system

Power steering, Secondary brake pedal switch

Braking system (ABS/DSC)

Starter motor control

Main brake pedal switch

Fuel supply and air supply systems, Emissions control

systems

Front ventilation

Windscreen wipers

Built-in systems interface

Free

152

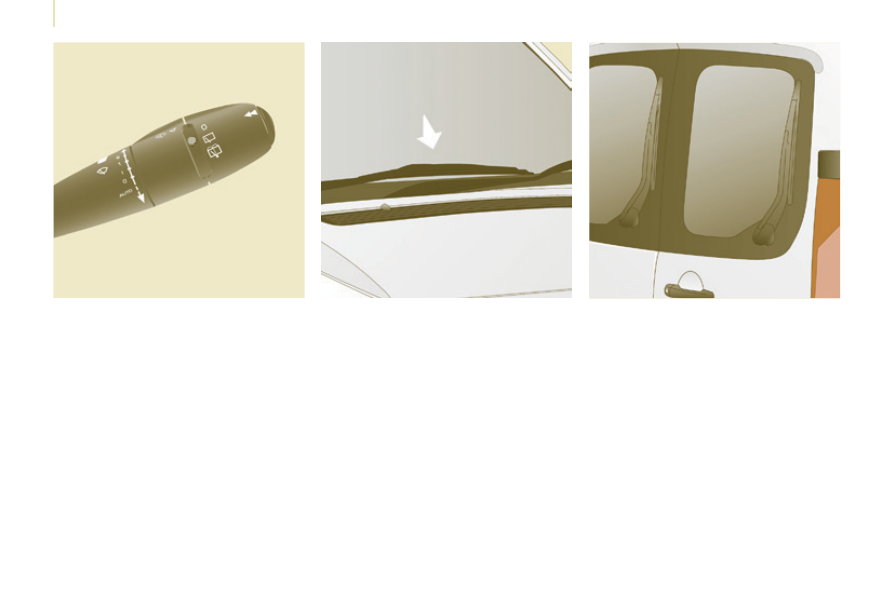

Changing a wiper blade

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

Placing the windscreen wiper blades

in the special position

- Less than a minute after switching

off the ignition, press the wiper stalk

downwards to position the wiper blades

along the windscreen pillars (special

position).

Changing a front wiper blade
-

Lift the wiper arm.

- Unclip the blade and remove it.
-

Fit the new blade.

- Push back the wiper arm.

Changing the rear wiper blade
- Lift the wiper arm, then unclip the blade

and remove it.

- Fit the new blade and push back the

wiper arm.

CHANGING A WIPER BLADE

To return the windscreen wipers to their

normal position, switch on the ignition and

operate the wiper stalk.

153

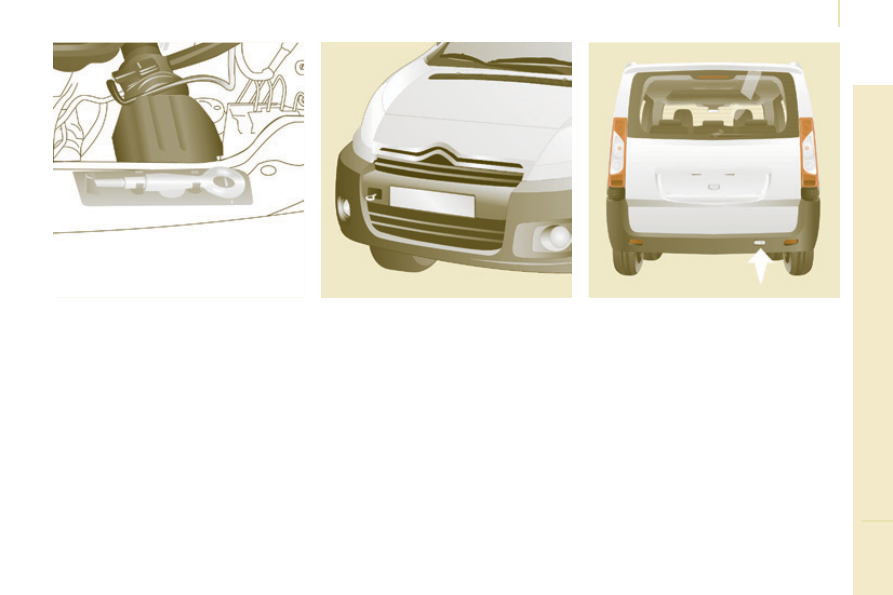

Having your vehicle towed

QUICK HELP

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

Without lifting (4 wheels on the ground)

You should always use a towing bar.

From the front

- Unclip the cover by pressing at the

bottom,

- Fully screw in the removable towing eye.

TOWING THE VEHICLE

Lifting (2 wheels on the ground only)

It is preferable to lift the vehicle using

professional lifting equipment.

From the rear

- Unclip the cover using a coin or the flat

part of the towing eye,

- Fully screw in the removable towing eye.

Vehicles fitted with a manual

gearbox (Diesel version)

In the case of vehicles fitted with a manual

gearbox, the gear lever must be in the

neutral position. Failure to observe this

special condition may result in damage

to certain braking components and the

absence of braking assistance the next time

the engine is started.

154

Having your vehicle towed

JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014

General recommendations

Observe the legislation in force in your

country.
Ensure that the weight of the towing vehicle

is higher than that of the towed vehicle.
The driver must remain at the wheel of the

towed vehicle and must have a valid driving

licence.
When towing a vehicle with all four wheels

on the ground, always use an approved

towing bar; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off,

there is no longer any power assistance for

braking or steering.
In the following cases, you must always call

on a professional recovery service:
- vehicle broken down on a motorway or

fast road,

four-wheel drive vehicle,

- when it is not possible to put the

gearbox into neutral, unlock the

steering, or release the parking brake,

- towing with only two wheels on the

ground,

- where there is no approved towing bar

available...

157

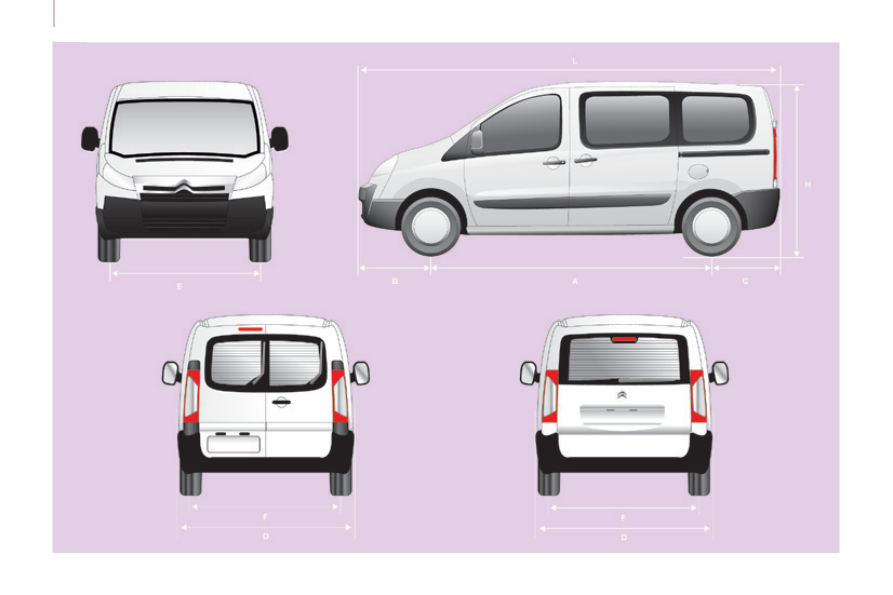

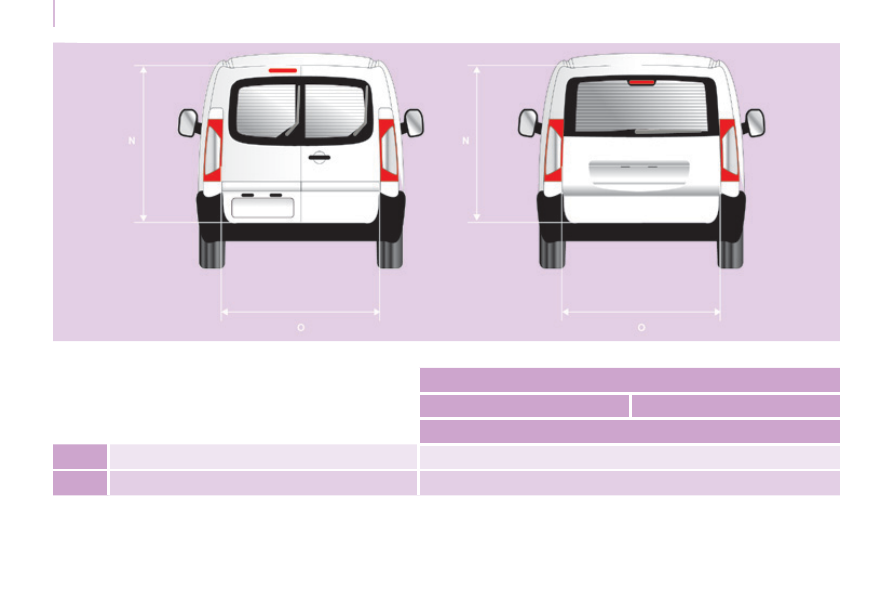

Dimensions

TECHNICAL

JUMPY-ATLANTE-VP_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014

Overall length

4 805

5 135

Overall height pneumatic / metal suspension

1 895/1 942

Wheelbase

3 000

3 122

Front overhang

975

Rear overhang

830

1 038

Overall width:

on panel

1 870

with mouldings

1 895

with mirrors folded

1 986

with mirrors unfolded

2 194

Width of front tracks

1 574

Width of rear tracks

1 574

Turning circle between kerbs (m)

12.18

12.59

Maximum loads (kg)

Payload

1 000

On roof

170

DIMENSIONS (MM)

The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),

refer to the tables:

158

Dimensions

JUMPY-ATLANTE-VP_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014

REAR DOORS (mm)

Usable height

1 272

Usable width

1 237

Citroen Jumpy Multispace (2014 year). Instruction - part 10
