In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Spare wheel

Procedure for changing a wheel with a damaged or punctured tyre for the spare wheel, using the tools supplied with the vehicle.

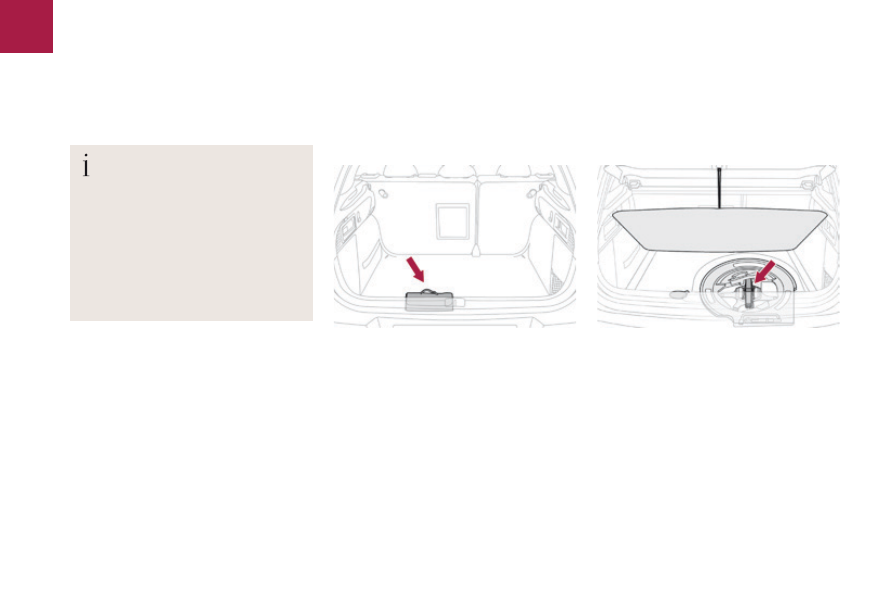

The tools are installed in the boot under the
floor.
To gain access to them:
F open the boot,
F raise the floor,
F

secure it by hooking its cord on the hook

on the rear shelf support,

with a standard size spare wheel, unclip

and remove the box in the middle of the
wheel containing the tools,

or
F with a "space-saver" spare wheel; lift the

wheel at the rear towards you for access to
the storage box containing the tools.

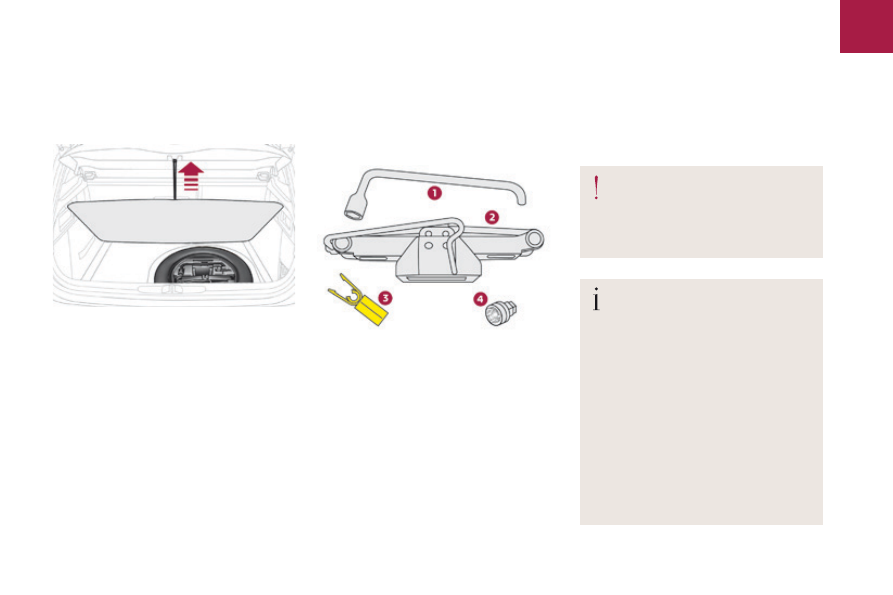

Access to the tools

Wheelbrace.

For removing the wheel trim and the wheel
fixing bolts.

Jack with integral handle.

For raising the vehicle.

Bolt cover removal tool.

For removing the bolt head protectors on
alloy wheels.

Socket for the security bolts (located in the

glove box).

For adapting the wheelbrace to the special
"security" bolts.

All of these tools are specific to your
vehicle and can vary according to
equipment.
Do not use them for any other
purposes.

The jack must only be used to change
a wheel with a damaged or punctured
tyre.
Do not use any jack other than the one
supplied with this vehicle.
If the vehicle does not have its original
jack, contact a CITROËN dealer or a
qualified workshop to obtain the correct
jack for it.
The jack meets European standards,
as defined in the Machinery Directive
2006/42/CE.
The jack does not require any
maintenance.

List of tools

272

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

For BlueHDi Diesel versions

If your vehicle has a manual parking brake,
the jack is stowed under the spare wheel and
under the storage box:
F

remove the "space-saver" type spare

wheel,

remove the polystyrene storage box,

push the jack forward, then lift it by its rear

part.

If your vehicle has an electric parking brake,
the jack is stowed in a bag placed in the boot.

Wheel with trim

When removing the wheel

, detach the

trim first using the wheelbrace 1 pulling
at the valve passage hole.
When refitting the wheel

, refit the trim

starting by placing its notch facing the
valve and press around its edge with
the palm of your hand.

273

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

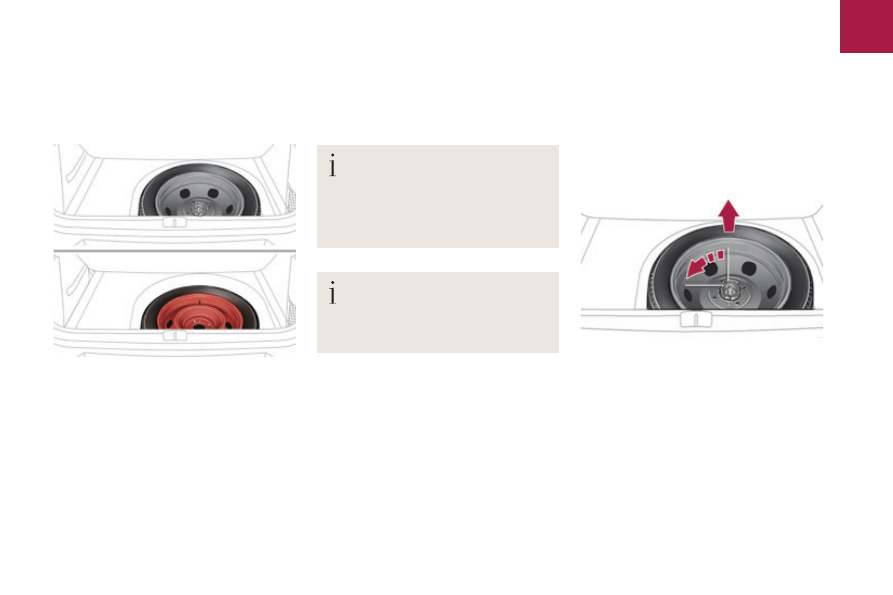

The spare wheel is installed in the boot under
the floor.
Depending on version, the spare wheel may be
a standard size steel or alloy wheel; for some
countries of sale it is the "space saver" type.

Access to the spare wheel

If your vehicle has an electric parking
brake, only a "space saver" type of
wheel can be stowed in the boot.

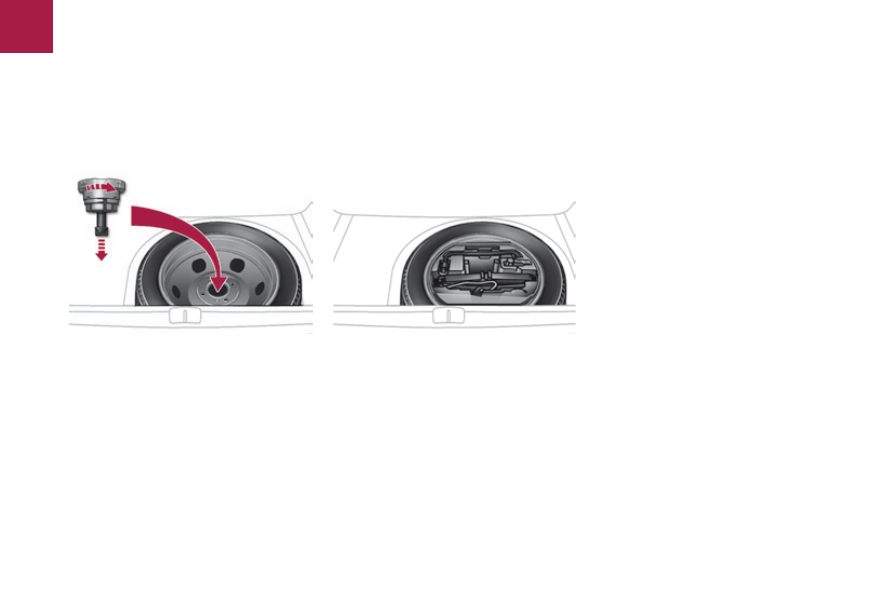

Unscrew the central nut.

Remove the fixing assembly (nut and bolt).

Raise the spare wheel towards you from

the rear.

Take the wheel out of the boot.

Tyre under-inflation detection

The spare wheel is not fitted with a
sensor. The punctured wheel must be
repaired by a CITROËN dealer or a
qualified workshop.

Taking out the standard wheel

274

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Putting the standard wheel back in place

Put the box back in place in the centre of

the wheel and clip it.

Put the wheel back in its housing.

Unscrew the nut on the bolt by a few turns.

Put the fixing assembly (nut and bolt) in

place in the centre of the wheel.

Tighten fully until the central nut clicks to

retain the wheel correctly.

275

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does
not block traffic: the ground must be
level, stable and non-slippery ground.
Apply the parking brake unless it has
been programmed to automatic mode,
switch off the ignition and engage first
gear* to lock the wheels.
Check that the braking warning lamps
in the instrument panel are on (not
flashing).
The occupants must get out of the
vehicle and wait where they are safe.
If necessary, place a chock under the
wheel diagonally opposite the wheel to
be changed.
Never go underneath a vehicle raised
using a jack; use an axle stand.

Remove the bolt cover from each of

the bolts using the tool 3 (according to
equipment).

Fit the security socket 4 on the

wheelbrace 1

to slacken the security bolt.

Slacken the other bolts using the

wheelbrace 1

only.

* Position P for an automatic gearbox.

List of operations

276

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

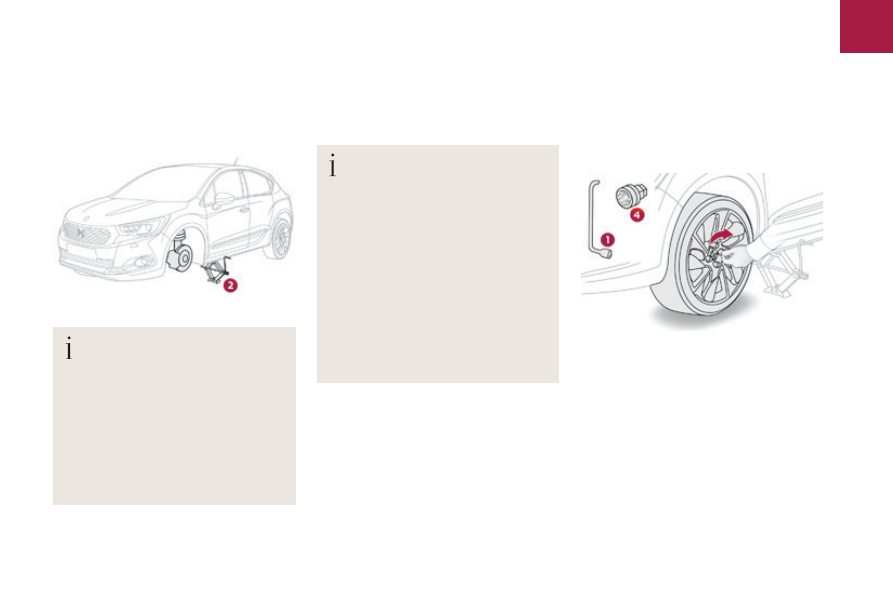

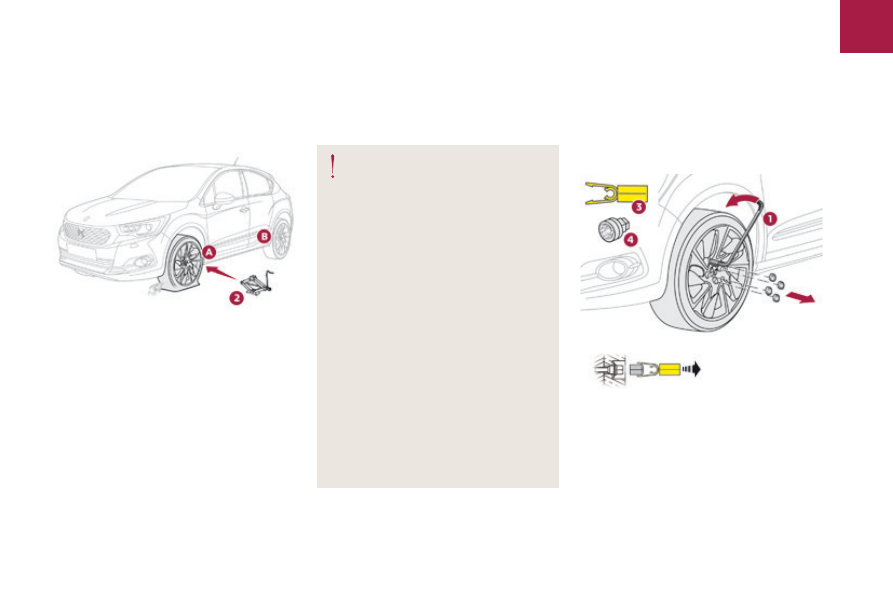

Place the foot of the jack 2 on the ground

and ensure that it is directly below the
front A or rear B

jacking point provided on

the underbody, whichever is closest to the
wheel to be changed.

Remove the bolts and store them in a clean

place.

Remove the wheel.

Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop - Risk of injury!
Take care to position the jack only at one of the jacking points A or B under the vehicle, ensuring that the head of the jack is centred under the
contact area of the vehicle. Otherwise, there is a risk of damage to the vehicle and/or the jack dropping - Risk of injury!

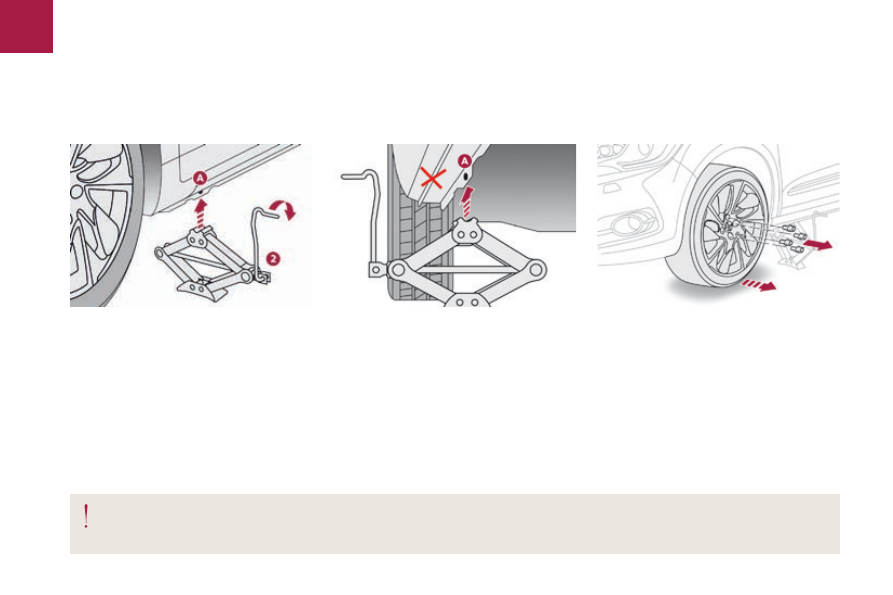

Extend the jack 2 until its head comes into

contact with the jacking point A or B used;
the contact area A or B

on the vehicle must

be engaged with the central part of the
head of the jack.

F Raise the vehicle until there is sufficient

space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.

277

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Fitting a wheel

Fitting a steel or "space-

saver" spare wheel

If your vehicle is fitted with alloy
wheels, when tightening the bolts on
fitting it is normal to notice that the
washers do not come into contact with
the steel or "space-saver" spare wheel.
The wheel is secured by the conical
contact of each bolt.

Put the wheel in place on the hub.

Screw in the bolts by hand to the stop.

Pre-tighten the security bolt using the

wheelbrace 1

fitted with the security

socket 4.

Pre-tighten the other bolts using the

wheelbrace 1

only.

After changing a wheel

To store the punctured wheel in the
boot correctly, first remove the central
cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired and
replace it on the vehicle as soon as
possible.

List of operations

278

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

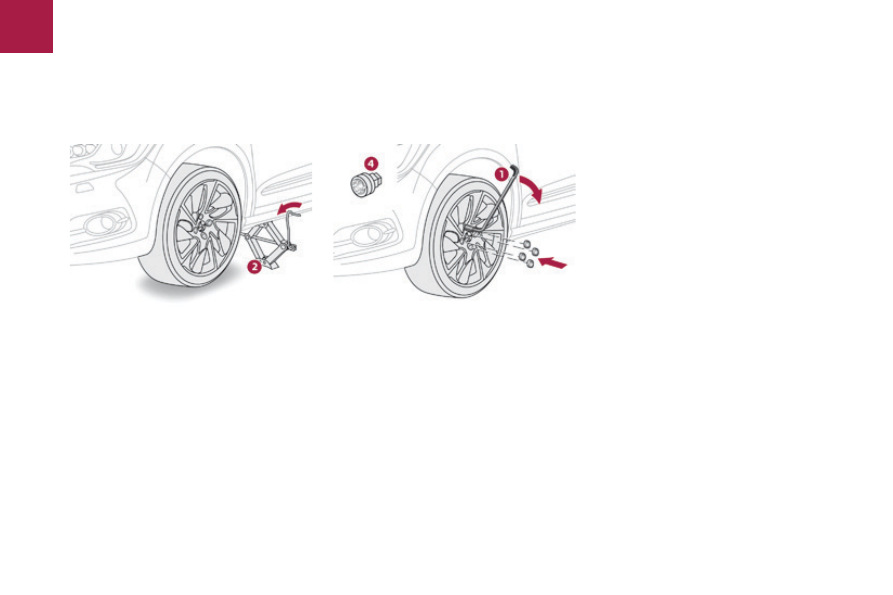

Lower the vehicle fully.

Fold the jack 2 and detach it.

Tighten the security bolt using the

wheelbrace 1

fitted with the security

socket 4.

Tighten the other bolts using the

wheelbrace 1

only.

Refit the bolt covers to the bolts (according

to equipment).

Store the tools in the box.

279

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Changing a bulb

The headlamps have polycarbonate
lenses with a protective coating:
F do not clean them using a dry

or abrasive cloth, nor with a
detergent or solvent product,

use a sponge and soapy water or a

pH neutral product,

when using a high pressure

washer on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals.

Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

Do not touch the bulb directly with

your fingers, use a lint-free cloth.

It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

Light-emitting diodes (LED)

For the replacement of this type of
lamp, go to a CITROËN dealer or a
qualified workshop.
LED (light-emitting diode) replacement
kits are available from CITROËN
dealers.

Risk of electrocution

Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.

280

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.

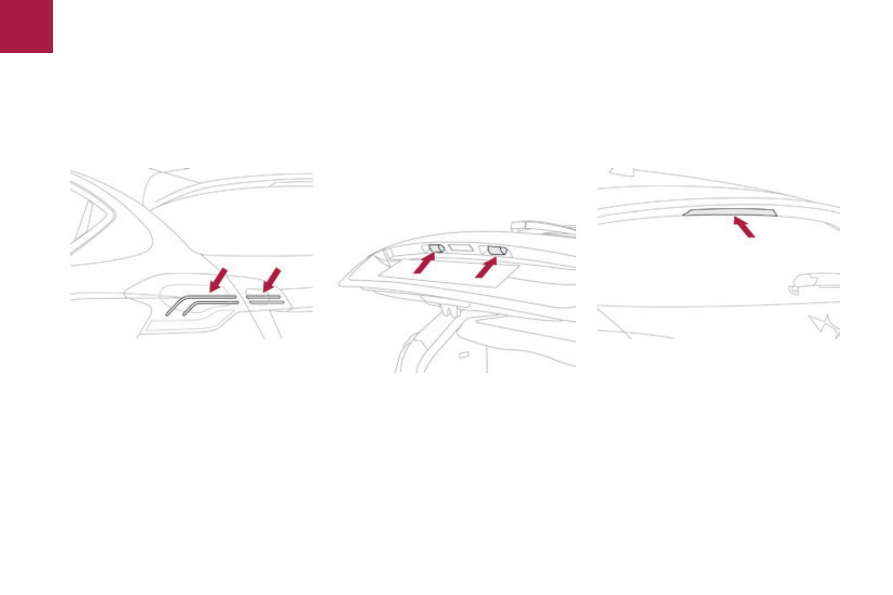

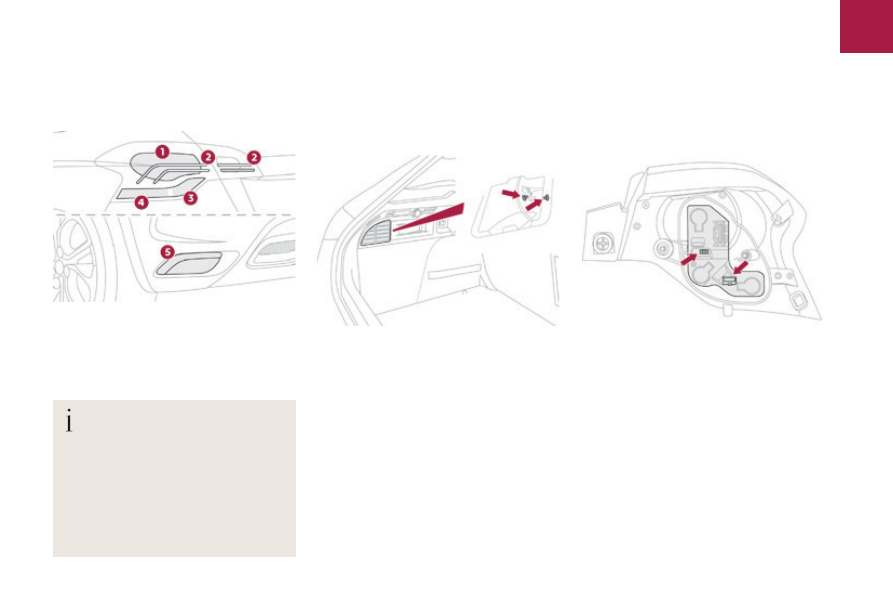

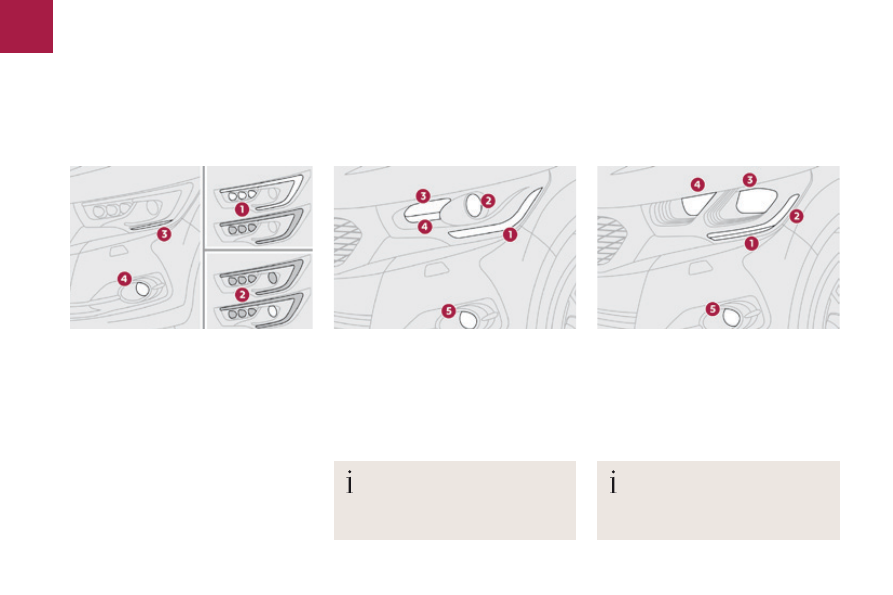

1. Daytime running lamps / sidelamps

(LEDs).

2. Directional main beam / dipped beam

headlamps (D1S).

3. Direction indicators (LEDs).
4. Directional foglamps (LEDs).

1.  Direction indicators (H21 clear).
2.  Dipped beam headlamps (H7).
3.  Main beam headlamps (H1).
4.  Daytime running lamps / sidelamps

(P21/5W XL).

5. Directional front foglamps (H11).

Front lamps

1. Direction indicators (LEDs).
2. Daytime running lamps / sidelamps

(LEDs).

3.  Dipped beam headlamps (H7).
4.  Main beam headlamps (H7).
5.  Directional front foglamps (H11).

Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.

* LED: light emitting diodes.

Model with directional xenon and

full-LED headlamps

Model with halogen headlamps

(type 1)

Model with halogen headlamp and

LED light signature (type 2)*

281

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Changing direction indicator bulbs

Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.

Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.

Model with halogen (type 2) and xenon
headlamps
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.

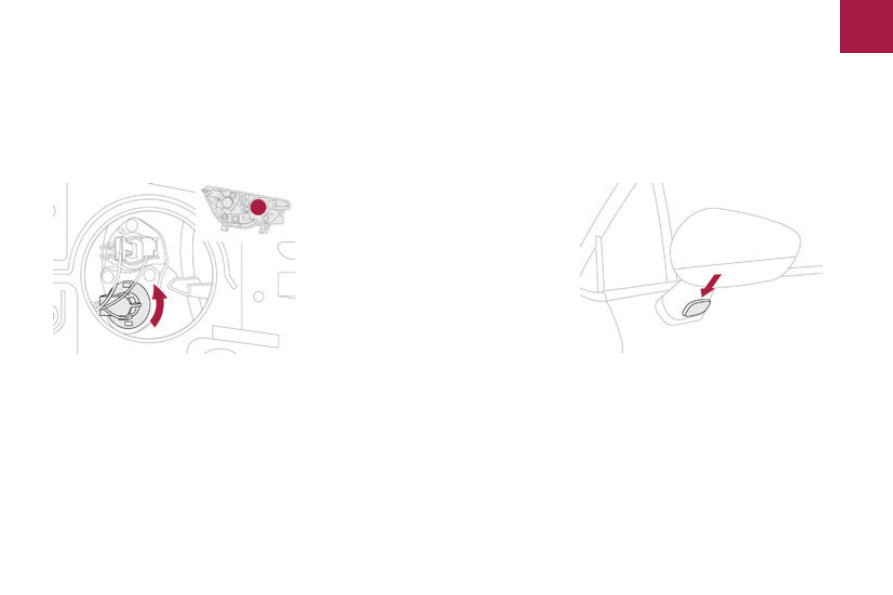

Turn the bulb holder a quarter of a turn and

extract it.

Pull out the bulb and change it.

To reassemble, carry out these operations in
reverse order.

Access to bulbs

Depending on the engine and only on the left
hand side, you must first carry out the following
operations for access to the protective covers
on the bulbs.

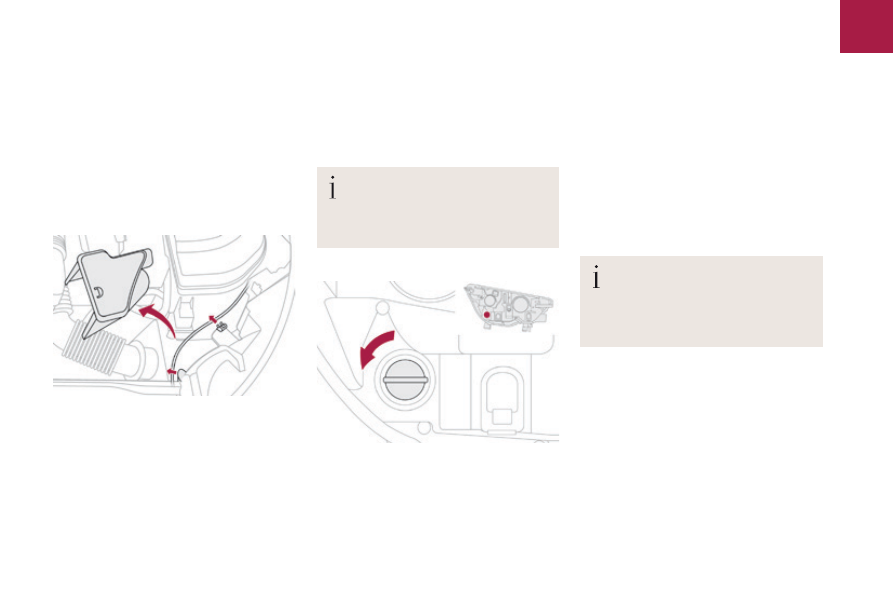

Remove the air deflector by unclipping

each of its three attachment points.

Unclip the bonnet release cable at its

two fixings.

Move the cable down.

After changing the failed bulb, remember to
put everything back in place (cable and air
deflector).

Model with halogen headlamps (type 1)

282

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

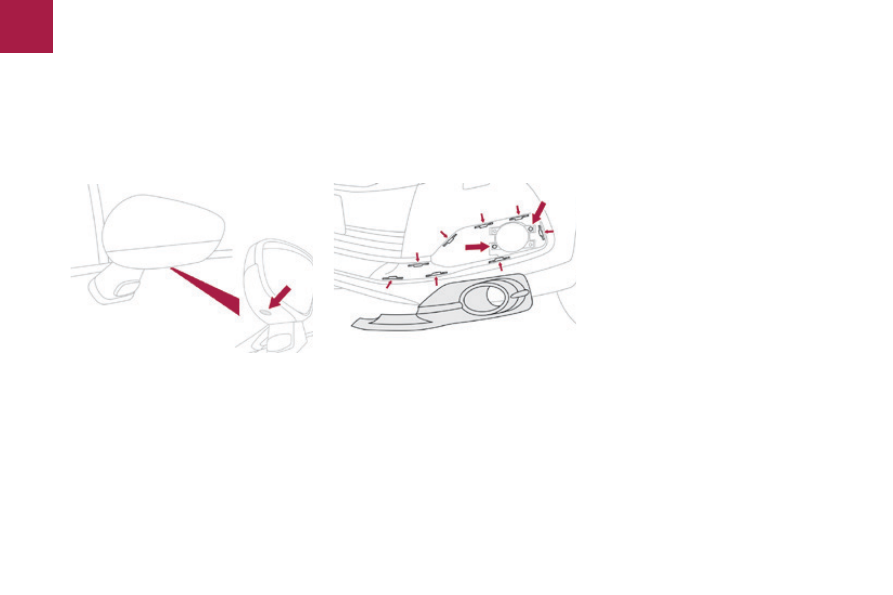

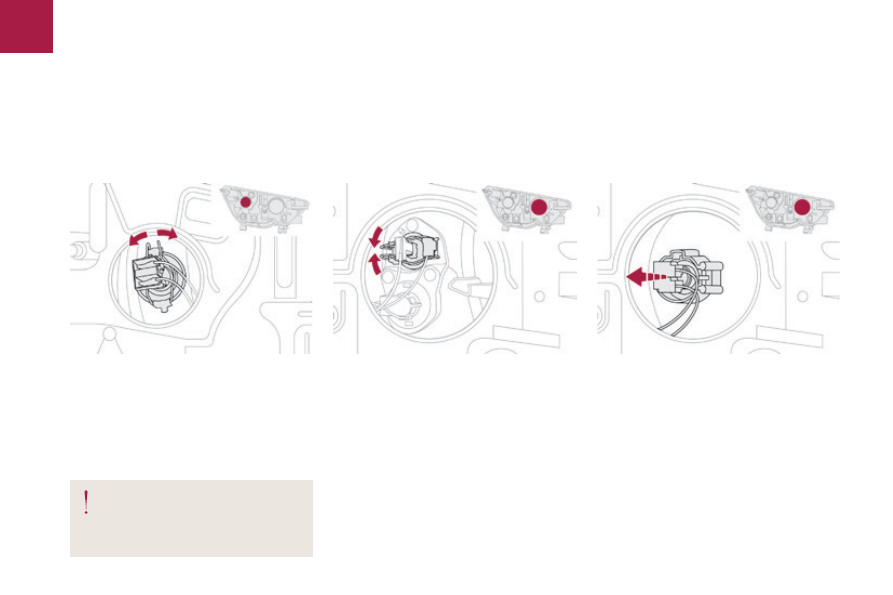

Remove the protective cover by pulling

the tab.

Disconnect the connector.

Spread the springs to release the bulb.

Pull the bulb out and change it.

To reassemble, carry out these operations in
reverse order.

When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.

Remove the protective cover by pulling

the tab.

Disconnect the connector.

Squeeze the springs to release the bulb.

Pull the bulb out and change it.

To reassemble, carry out these operations in
reverse order.

Remove the protective cover by pulling

the tab.

Disconnect the connector.

Pull the bulb out and change it.

To reassemble, carry out these operations in
reverse order.

Changing dipped beam headlamp

bulbs (on models with halogen

headlamps)

Changing main beam headlamp

bulbs (on models with type 1

halogen headlamps)

Changing main beam headlamp

bulbs (on models with type 2

halogen headlamps)

283

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Remove the protective cover by pulling

the tab.

Disconnect the wiring connector.

Turn the bulb holder a quarter of a turn and

extract it.

Pull the bulb and change it.

To reassemble, carry out these operations in
reverse order.

Insert a flat screwdriver towards the centre

of the repeater between the repeater and
the base of the mirror.

Tilt the flat screwdriver to extract the

repeater and remove it.

Disconnect the repeater connector.

To reassemble, carry out these operations in
reverse order.
Contact a CITROËN dealer or a qualified
workshop to obtain replacement repeaters.

For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.

Changing daytime running lamp /

sidelamp bulbs (on models with

type 1 halogen headlamps)

Changing daytime running lamp /

sidelamp bulbs (on models with

type 2 halogen or xenon headlamps)

Changing integrated direction

indicator side repeaters

284

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Changing the side spotlamps

(LEDs)

For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.

Introduce a flat screwdriver in the hole in

the finisher.

Pull and lever to unclip the bumper finisher.

Remove the two module fixing screws and

remove it from its housing.

Disconnect the bulb holder connector.

Turn the bulb holder a quarter of a turn and

extract it.

Pull the bulb and change it.

To refit, carry out these operations in reverse
order.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.

Changing foglamp bulbs (on models

with halogen headlamps)

285

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

1. Brake lamps (P21/5W).
2. Sidelamps (LEDs)

3.  Direction indicators (PY21W amber).
4.  Reversing lamp (P21W).
5.  Rear foglamps (P21W).

Rear lamps

Amber bulbs, such as those for the
direction indicators, must be replaced
by bulbs of the same rating and colour.
The lamps on the tailgate, other than
the guide lamps, are dummy units.
They are there for aesthetic purposes
only.

These three bulbs are changed from inside the boot:

F open the boot,
F

remove the access grille from the

corresponding side trim panel,

slacken the two nuts using a 10 mm tube

spanner then remove the nuts by hand,

unclip the lamp unit connector,

extract the lamp unit carefully pulling in its

middle towards the outside,

remove the foam seal,

unclip the two small secondary connectors,

spread the two tabs and remove the bulb

holder,

turn the bulb a quarter of a turn and change it.

To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without forcing, so as to avoid damaging
the lamp.

* LED: light-emitting diodes.

Changing stop lamp, reversing lamp and direction indicator bulbs

286

In the event of a breakdown

DS4_en_Chap08_en-cas-de-panne_ed01-2016

Changing the light guides /

sidelamps

Number plate lamps (W5W)

For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.

For the replacement of this type of light-
emitting diode lamp, contact a CITROËN dealer
or a qualified workshop.

Insert a thin screwdriver into the lens

cutout.

Push it outwards.

Remove the lens.

Change the faulty bulb.

To refit, press on the lens to clip it in place.

Third brake lamp (LEDs)

To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.

Content .. 16 17 18 19 ..
