C H A N G I N G A W H E E L

Replacing the spare wheel in the carrier
Replace the jack and its handle in the protective

holder in the spare wheel and slide them into

the carrier.

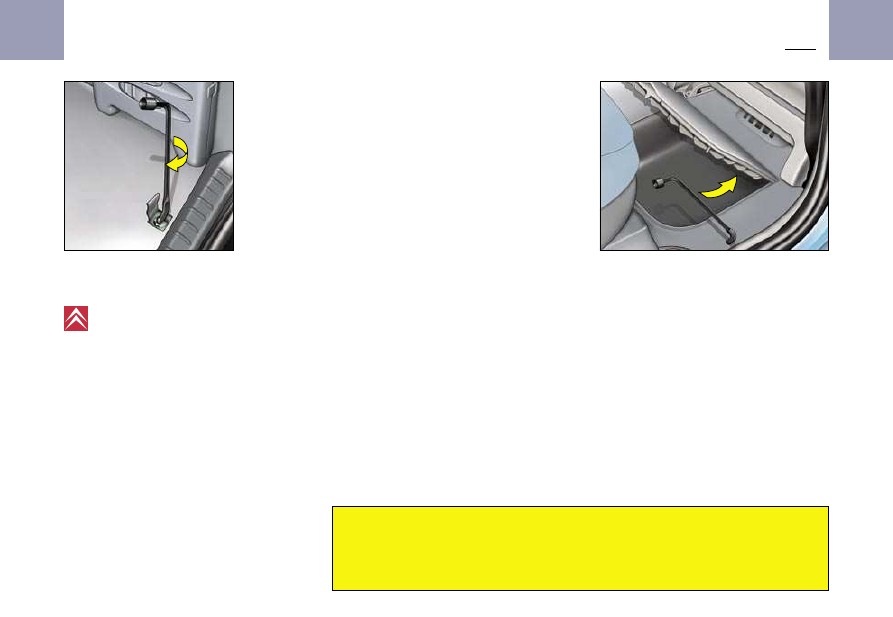

Lift the carrier up to the safety catch.
Retighten the bolt from inside the boot.
Return the wheelbrace to the stowage area.

Advice

The wheel bolts are specific to the type of wheel fitted (alloy or steel).
If the type of wheel is changed, check with your CITROËN dealer that the wheel bolts are compatible.

The jack is designed specifically for your vehicle,

do not use it for other applications.

Tyre฀pressures
These฀are฀indicated฀on฀the฀label฀positioned฀on฀the฀front฀door฀aperture,฀see฀«Vehicle฀identiﬁcation»฀and฀«User฀

Precautions».

119

T O W I N G - L I F T I N G

Towing with all wheels on the

ground

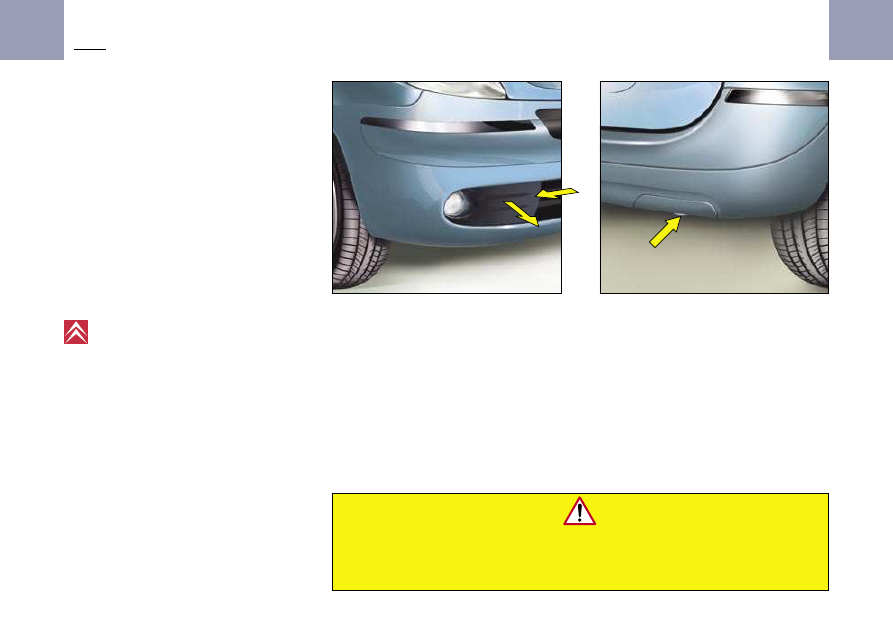

Rings, concealed by covers, are

positioned at the front and at the

rear of the vehicle.
The ignition key should be in po-

sition “A” to maintain steering.
Use a bar that can be attached to

the rings.

Advice:

In exceptional circumstances, it is

permitted to tow the vehicle at low

speed over a short distance (in

accordance with the local legisla-

tion in force).
In all other cases, the vehicle

must be transported by a trans-

porter.

CAUTION - TOWING A VEHICLE

WITH AUTOMATIC TRANSMIS-

SION
Put the selector lever in position

N (neutral).

Towing with the front or rear wheels lifted
Use special towing equipment with a rigid bar and straps.
Attach the hooks to each of the suspension arms.
Take the necessary precautions to protect the bumper and the front or rear of

the vehicle.

NEVER TOW THE VEHICLE WITH THE FRONT OR REAR ENDS LIFTED

AND THE WHEELS HANGING FREE.

If the engine is not running, the steering and braking systems

will not be power- assisted.

If towing another vehicle, the latter should be free-wheeling

(that is, gearbox in neutral).

120

121

G E N E R A L

฀

฀ ฀

฀

2.0i

฀ Engine฀type฀

1.6i฀

16V฀

HDi฀

HDi฀ HDi

฀ ฀

฀

BVA฀

90฀

92฀

110

฀ Capacity฀of฀fuel฀tank฀in฀

฀Approx.฀

฀

Approx.

฀ litres฀

฀ 55฀ ฀

฀

฀ ฀

฀Unleaded

฀ Fuels฀to฀be฀used฀

฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀petrol฀ ฀

฀

Diesel฀fuel

฀ ฀

฀RON฀95

฀ ฀

฀RON฀98

฀฀Turning฀circle฀between

฀ walls฀(in฀metres)฀

฀

฀ Calculated฀maximum฀speed฀in฀km/h฀(mph)฀ 171฀(106)฀฀ 192฀฀(119)฀ 175฀(109)฀ 175฀(109)฀ 183฀(114)

฀

Weights฀(kg)

฀ Unladen฀weight฀

1฀268฀฀ 1฀290฀ 1฀300฀ 1฀290฀ 1฀313

฀ Gross฀vehicle฀weight฀

1฀800฀฀ 1฀840฀ 1฀850฀ 1฀850฀ 1฀850

฀ Maximum฀weight฀on฀rear฀axle฀

1฀000฀฀ 1฀000฀ 1฀000฀ 1฀000฀ 1฀000

฀ Gross฀train฀weight฀

3฀000฀฀ 3฀140฀ 3฀150฀ 3฀150฀ 3฀150

฀ Gross฀trailer฀weight฀(within
฀ the฀gross฀train฀weight฀limit)
฀ ฀

10%฀to฀12%฀incline฀

1฀200฀฀ 1฀300฀ 1฀300฀ 1฀300฀ 1฀300

฀ ฀

8%฀to฀10%฀incline฀

1฀300฀฀ 1฀300฀ 1฀300฀ 1฀300฀ 1฀300

฀ ฀

Incline฀of฀up฀to฀8%฀

1฀300฀฀ 1฀300฀ 1฀300฀ 1฀300฀ 1฀300

฀ Gross฀trailer฀weight฀(without฀brakes)฀ 670฀ ฀ 655฀

685฀

670฀

690

฀ Trailer฀nose฀weight฀

80฀ ฀

80฀

฀ Maximum฀load฀on฀roof฀bars฀

80฀ ฀

80฀

฀ Dimensions฀of฀chainable฀tyres฀

฀

฀ 185/65฀R15

Weights฀ :฀ refer฀ to฀ the฀ vehicle฀฀

identiﬁcation฀plate.

BVA฀:฀Automatic฀gearbox.

Observe฀ your฀ vehicle’s฀ towing฀

limits.
It฀ is฀ essential฀ to฀ comply฀ with฀

the฀ max.฀ Gross฀ Trailer฀ Weights฀

and฀ speed฀ limits฀ as฀ speciﬁed฀ by฀฀

legislation฀in฀each฀country.

These฀fuel฀consumption฀values฀are฀set฀out฀in฀conformity฀with฀directive฀80/1268/CEE.฀
They฀can฀vary฀according฀to฀driving฀style,฀road฀conditions,฀weather฀conditions,฀vehicle฀loading,฀vehicle฀mainte-

nance฀and฀use฀of฀accessories.

122

F U E L ฀ C O N S U M P T I O N * ฀ ฀

I n ฀ l i t r e s / 1 0 0 ฀ k m ฀ ( m p g )

฀ ฀

฀

Circuit

฀ ฀

Engine฀type฀

Urban฀

Extra-฀

Combined฀

CO2

฀ ฀

฀

urban฀

฀

emissions

(1)

฀

฀
฀ 1.6฀i฀

฀

9.5฀(29.7)฀

6.0฀(47.1)฀

7.3฀(38.7)฀

172

฀ 2.0฀i฀16V฀฀฀BVA฀

12.5฀(22.6)฀

6.4฀(44.1)฀

8.6฀(32.8)฀

205

฀ HDi฀90฀

฀

7.0฀(40.4)฀

4.6฀(61.4)฀

5.5฀(51.4)฀

147

฀ HDi฀92฀

฀

6.5฀(43.5)฀

4.3฀(65.7)฀

5.1฀(55.4)฀

135

฀ HDi฀110฀

฀

6.4฀(44.1)฀

4.4฀(64.2)฀

5.1฀(55.4)฀

136

(1)฀Units฀in฀g/km฀on฀combined฀circuit.฀
BVA฀:฀Automatic฀gearbox.

*฀The฀fuel฀consumption฀ﬁgures฀quoted฀are฀correct฀at฀the฀time฀of฀going฀to฀press.

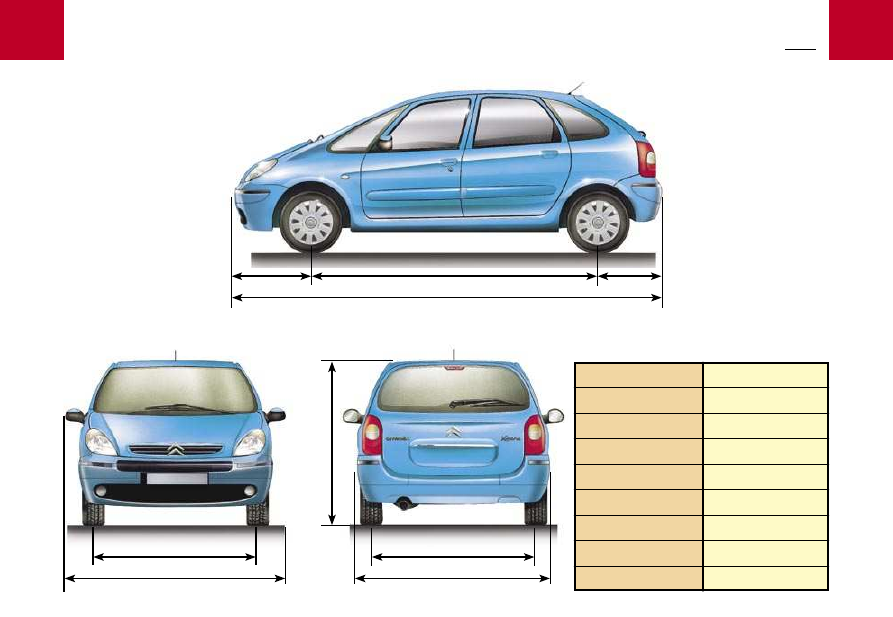

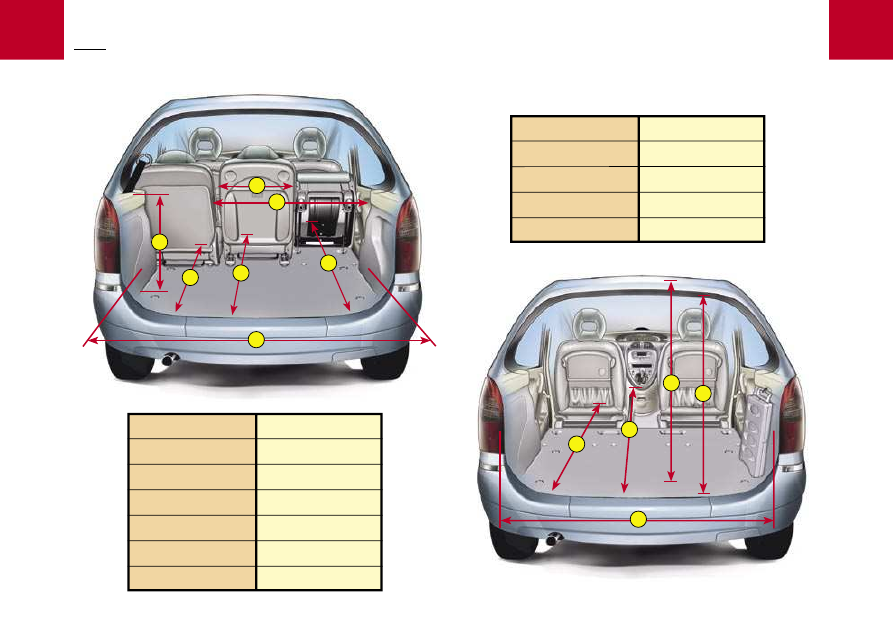

D I M E N S I O N S

( i n m e t r e s )

2.76

4.28

0.84

0.68

1.45

1.43

1.75

1.63/1.64*

2.00

* With glass sun roof.

123

D I M E N S I O N S

( i n m e t r e s )

0.45

0.82

0.57

0.65

0.79

1.31

1.16

1.07

0.90

1.54

2.35

1.28

124

1
2
3
4
5
6

V E H I C L E I D E N T I F I C A T I O N

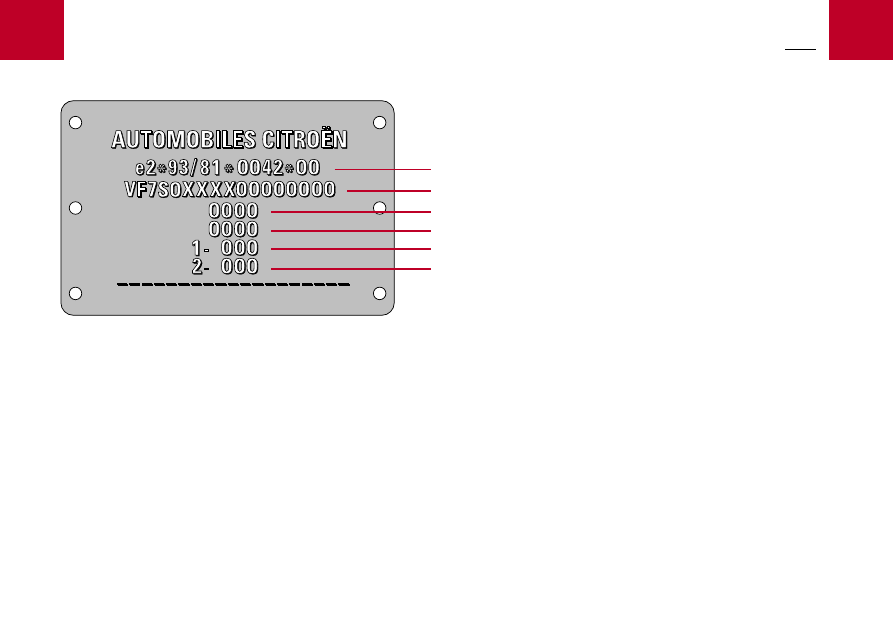

Chassis number plate
It is located at the base of the central pillar on the

right hand side of the vehicle.

1: EU type approval number.
2: Vehicle Identification N°. (VIN).
3: Gross vehicle weight.
4: Gross train weight.
5: Maximum weight on front axle.
6: Maximum weight on rear axle.

Colour code
The colour reference is indicated on the back of the fuse box cover.

Tyre pressures
The tyre pressure label is to be found on the front door pillar.

All original CITROËN replacement parts are available from CITROËN. It is in the user’s interest, for his safety and for the

sake of the warranty, to reject all other parts. Fitting parts or units not supplied by CITROËN may even result in violation

of the law, if it involves non- compliance with regulations concerning safety, pollution control, interference suppression

and the noise level of the vehicle. Fitting such parts or units could also deprive the user of any recourse against the

maker.
This applies in particular to:

- braking equipment components,

- lighting and signalling equipment,

- engine equipment,

- the exhaust system,

- steering system, structural and suspension parts.

125

successive  presses  on  the  end  of
the  wiper  control  at  the  steering
wheel).
Press for at least two seconds :
display disappears.
One  press  on  any  button  brings
the display back.
Escape button: Esc
Short  press:  cancels  the  current
operation or warning message and
returns you to the previous menu.
Press for at least two seconds :
return to the main menu.
This  button  can  be  used  to  exit
from any menu.

Menu button: menu

This button gives access to the
main menu.
It can be used at any time.

Introduction

The  On-board  Navigation  system
guides  you  to  the  destination  of
your  choice,  by  means  of  voice
messages and visual instructions.
The  system  uses  a  cartographic
database

and

GPS

satellite

guidance,  the  latter  enabling  your
position to be plotted by means of
several satellites.
On-board  Navigation  comprises
the following components:
-  the remote control,
-  the control panel display,
-  the electronic control unit,
-  the CD Rom,
-  the  last  voice  message  recall

command,

- the satellite receiver aerial.

Specifi c  functions  or  services
may  vary  depending  on  the  CD
ROM  version  or  on  the  country
where the system is to be used.
For  safety  reasons,  drivers  are
recommended  not  to  use  the
remote control when the vehicle
is moving, but to park safely and
legally before modifying parame-
ters or inputting data.
The  system  may  be  affected  by
disturbance  or  interruption  in
certain  conditions  (for  example
under bridges or in underground
car parks, etc.).

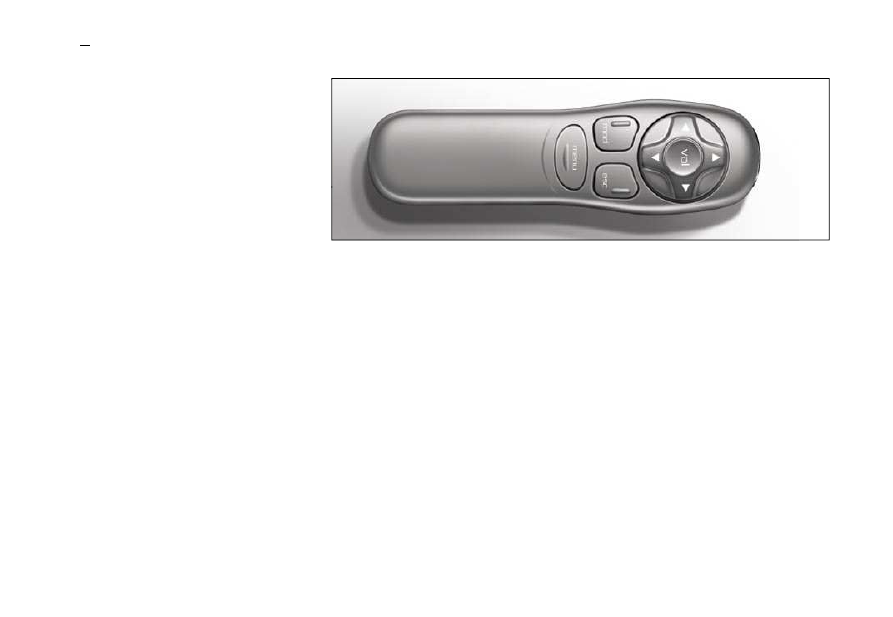

The remote control

When pointed towards the right
hand screen, the remote control
allows you to select the information
contained in the different displays.

Direction arrows :

These allow you to move around
the screen and thus to choose
functions.

Validate button: VAL
Validates the function or letter
chosen.

Enables you, during navigation , to
access the Rapid Tools menu.

Mode button: MOD

Short press: each successive press
allows you to select from the types
of information permanently displayed
on the right hand side of the screen:
date, navigation, trip computer and
audio system (trip computer infor-
mation can also be accessed by

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

The display
When driving, the display indicates:
1 status of the central locking.
2 status of the child locks.
3 last mode used, radio, CD, CD

changer, on-board computer, etc.

4 the date.
5 exterior temperature.
6 the time.

When menus are in use, a variety of
tabs will appear at the bottom of the
screen, denoting access to the diffe-
rent functions
1 Function selected (highlighted).
2 Function inaccessible in this situa-

tion (dotted outline).

3 Function accessible (plain outline).

3
Use the direction arrows to move
between tabs.

While  using  On-board  Navigation,
the  screen  displays  various  types
of  information  according  to  the
manoeuvres to be carried out:
1 Manoeuvre to be carried out.
2 Distance to the next manoeuvre.
3 Next manoeuvre to be carried out.

3
4 Next road to take.
5 Road currently being taken.
6 The time.
7 Exterior temperature.
8 Distance to ﬁ nal destination.
9 Visual warning indicating that the

voice messaging is deactivated.

Enter city

City:RAMBOUILLET

Correction

List 37844

Change

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

The electronic control unit

This is located inside the boot on
the left hand side.

To gain access, turn the buttons
one quarter turn.
1 CD Rom eject button.
2 CD Rom compartment.
3 The ON warning lamp indicates

that the control unit is supplied
with power.

4 The CD warning lamp indicates

the presence of a CD ROM in the
control unit.

The CD-ROM

It contains all the cartographic
data on the country chosen.

It must be inserted with the printed
face upwards.

The last voice message recall
command

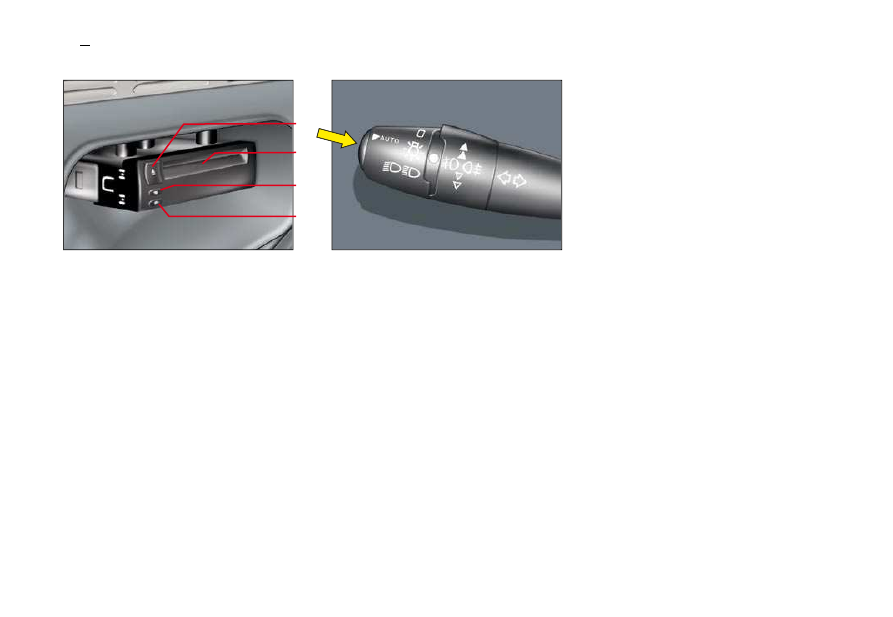

During navigation, a press on
the end of the headlamp control
repeats the last voice message.

During the course of a message,
the volume can be regulated using
the

radio

volume

adjustment

button or its counterpart at the
steering wheel.

Note: the message volume is not
linked to the radio or trafﬁ c infor-
mation volume.

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

Navigation is an electronic help system.
It cannot replace the driver's decisions.
All guidance instructions must be
carefully checked by the user.

Main menu

Configure display

Navigation options

Navigation/Guidance

Select a service

Select destination from memory

Go back to current guidance

Main menu

Switch on the ignition.

Press the “MENU” button to access
the main menu.
Select a function using the direc-
tion arrows, then validate your
choice (“VAL” button).

Navigation/guidance

Following

the

selection

“Navigation/guidance”  the  screen
will warn you about the use of navi-
gation.  Respect  the  regulations  in
force  and  do  not  use  the  remote
control when your vehicle is moving.

Press the “VAL” button to progress
to the next menu.

The “Navigation/guidance” menu
offers you several options:

- entering the address of a new

destination,

- selecting a service (hotel, railway

station, airport, etc.) at a speciﬁ c
town,

- selecting a stored address from

one of the two directories,

- resuming a guidance that was

previously interrupted or ending
a guidance in progress.

Two  messages  may  be  displayed
depending  on  previous  actions:
“Resume  guidance”  or  “Stop
guidance”.

A press on the “ESC” button allows
you, after a validation, to suspend
a guidance in progress and return
to the main menu.

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

Enter street

Street:

Validate

Correction

List 3

City centre

Enter city

Correction

City:RAMBOUILLET

List 37844

Change

Enter number

Number:

Validate

Correction

From 1 to 19

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

Entering a new destination

The last town entered is displayed.

To  enter  the  name  of  a  different
town,  select  each  letter  with  the
direction  arrows,  validating  each
letter with the “VAL” button.

When the complete town name is
displayed, select the “Validate”
function then press the “VAL”
button.

In the case of an inputting error, the
“Correction” function enables you
to delete the last letter entered.

Note: As each letter is validated,
only those letters that can make up
a name will appear.

The “List” function indicates to you
the number of towns beginning with
these letters. This function is acces-
sible when the tab has a plain out-
line.

When the list contains less than ﬁ ve
names, these are displayed auto-
matically.
Select a town, then validate (“VAL”
button).

The “Change” function allows you
to delete completely the town you
have entered and to enter a new
one.

Enter the name of the road.

Select the “Validate” function then
press the “VAL” button.

Tip: satellite guidance can be acti-
vated after the town name and just
the road name have been entered.

For this, select the “Town centre”
function.

If you see numbers displayed, you
can select the road number.

Enter the road number. Select the
“Validate” function then press the
“VAL” key.

Tip: satellite guidance can be acti-
vated after the town name and just
the road name have been entered.

For this, select the “Validate” func-
tion.

Programmed destination

City
Street
Number

Change

Store

Keep criteria

Minimum time?

Programmed destination

City
Street
Number

Change

Store

Minimum time
Minimum distance
Minimum time without freeway
Priority to city roads

The

complete

destination

displayed.
Select the “Validate” function, then
press the “VAL” button to start the
route calculation.

Note: by using the “Change” func-
tion you can delete or change the
destination, or by using the “Store”
function you can store it in one of
the two directories (see section on
storing an address in a directory).

The last-used navigation parameter
is displayed.

Guidance commences automati-
cally, provided this parameter is left
on the screen and no further action
is taken for 5 seconds, or when you
have validated the “YES” function.

Follow the instructions.

If you wish to modify the guidance
parameter, select the “NO” func-
tion, then press the “VAL” button.

Choose a parameter from the list
then validate (“VAL” button).

When the cursor is on your chosen
parameter, select the “Validate”
function, then press the “VAL”
button.

Guidance commences, follow the
instructions.

Note: during guidance, you still have
the option to modify your destina-
tion  or  guidance  parameters  by
pressing  the  “VAL”  button,  which
will  return  you  to  the  guidance
tools menu.
Depending on your preferences, the
system  will  use  different  parame-
ters to calculate the route.

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

Selecting a service

The

last-entered

address

displayed.

There are 3 ways you can deﬁ ne the
area in which you wish to obtain a
service:
- retain the last-entered address

using the “Validate” function.

- enter a new address using the

“Change” function.

- automatically enter the area you

are in, using the “Current loca-
tion” function.

When you have validated the
address, choose a service from the
list using the direction arrows.

Press the “VAL” button to select
one of them.

The cursor on the left-hand side of
the screen indicates your position
in the total list of services.

The system provides a list of
addresses in increasing order of
distance.

The ﬁ rst address for the desired
service is displayed.
An indication on the right of the
screen (e.g. 1/50) tells you if there
are

several

establishments

(maximum of 50) offering the same
service within roughly a thirty mile
(50 km) radius.
A signal in the top left of the screen
(e.g.  280  m)  tells  you  how  far  you
are from the chosen establishment
(280 metres).
Use “Next” or “Previous” function
to consult the list.
When  your  chosen  establishment
is displayed, select the “Validate”
function  then  press  the  “VAL”
button.  Select  a  navigation  para-
meter.
Guidance  commences,  follow  the
instructions.

Select a service

City
Street

Change

Current location

Conference centres
Ferry terminals
Golf courses
Historical monuments

Validate

Hotels

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

Programmed destination

City
Street
Number

Change

Validate

Archive in directory

Label BRUNO

Correction

fessional dir.

Directory

Personnal dir

Storing an address in a directory
When entering a new address, you
can save it by selecting the “Store”
function.

Enter the ﬁ rst line of the address
(this will be classiﬁ ed automatically
in alphabetical order).

If the name already exists with a
different address, you can replace
the old address with a new address.

Choose either the Personal direc-
tory or the Professional directory,
then press the “VAL” button.

The address is then stored in the
directory of your choice.

Selecting a stored destination

Select the directory in which your
desired address is stored, using the
direction arrows, then press the
“VAL” button.

The stored addresses are displayed
in alphabetical order.
The cursor on the left of the screen
shows your position on the list.
Use  the  direction  arrows  to  scroll
up  and  down  the  list,  then  select
a  name  by  pressing  the  “VAL”
button.
The complete address is displayed.
Select the “Validate” function then
press the “VAL” button.
Select a guidance parameter.
Guidance  commences,  follow  the
instructions.

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

Configure display

Set date and time

Set format and units

Navigation options

Sound volume

Delete directories

Guidance tools

Programmed destination

Vocal synthetis

Confi guring the display

Starting from the main menu,
“Confi gure display” gives access
to the following function menus:
- selection of display and voice

language

(English,

French,

German, Italian, Spanish),

- adjustment of time and date,
- adjustment of formats and units

(KM/H or MPH, °C or °F).

Navigation options

From  the  main  menu,  select
“Navigation  options”  to  access  the
following function menus:
-  directory  manager.  This  allows

you to alter or delete an address
stored under a particular name,
by selec ting the directory and
the name to be altered,

- adjustment of synthesised voice

volume,

- deletion of all data stored in the

two directories.

Note: the directory deletion menu
enables you to delete all your pri-
vate and business addresses when
you come to resell your vehicle.

Guidance tools rapid menu

This menu can be accessed only
during guidance, using the “VAL”
button.

It gives fast access to the most
frequently-used functions:

- modiﬁ cation of parameters during

guidance,

- display or modiﬁ cation of your

entered destination,

- adjustment of synthesised voice

volume.

T H E O N - B O A R D N AV I G AT I O N S Y S T E M

Content .. 6 7 8 9 ..
