LOAD SPACE LAYOUT

Support for stowing rail

Supports for securing a stowing rail are
available above the trims, on each side of
the vehicle.

12 volt socket

When used as a socket: 180 W max.

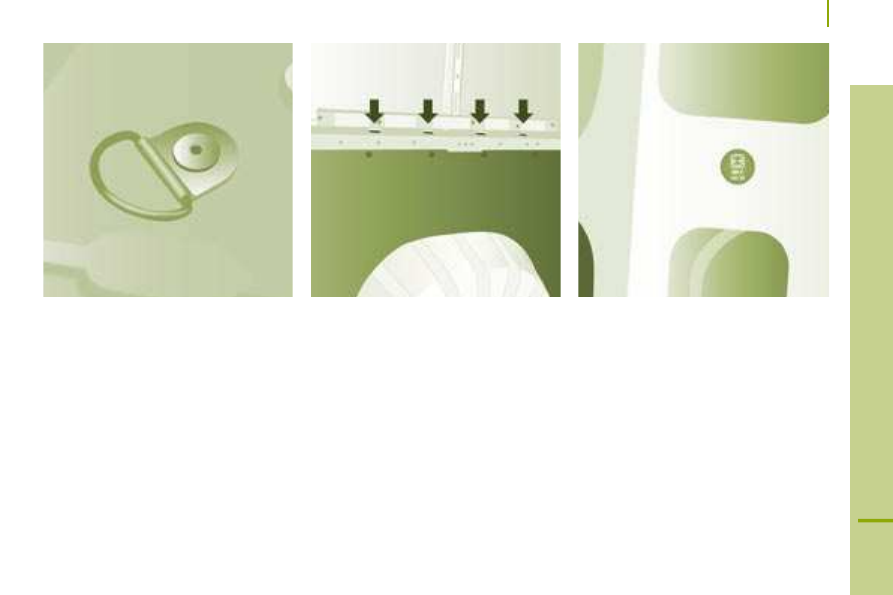

Stowing rings

Eight stowing rings are provided for securing
your loads. Six rings are located on the floor
and two on the partition behind the cab.

As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the cab as
possible.

Trims

The lower parts of the sides are fitted with
load protection trims.

Practical information

Practical information

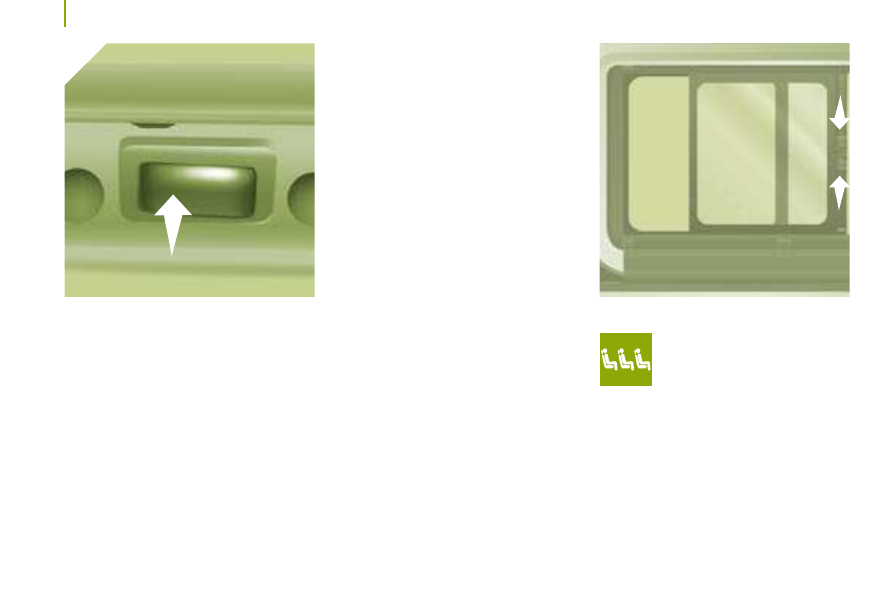

Sliding side windows

Depending on the vehicle's
equipment, the side windows of
row 2 can be opened.

Squeeze the two controls then

slide the window.

While driving, the window must be closed or
secured in an intermediate position.

Step

To make access and exit easier, your vehicle
may be fitted with a step which unfolds when
the sliding side door is opened.

Courtesy lights

If fitted on your vehicle, one or two courtesy
lights are located above the rear and side
doors.

They can be activated by:

tilting the courtesy light (to the left or to
the right),

opening or closing the rear or side
doors.

This lighting switches off automatically, after
a few minutes, if the doors are left open.

Roof box

This is a storage compartment located in the
load space, above the cab roof. Its capacity
varies depending on the height of the van
roof.

Torch

If provided in your vehicle.

Ladder type vertical partition

Behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.

Load retainer

On the floor, behind the front seats, a
horizontal partition protects the driver and
front passengers against the risk of load
movement.

Glazed separation partition

Use this control to open/close the sliding
window of the separation partition.

MIRRORS AND WINDOWS

MIRRORS

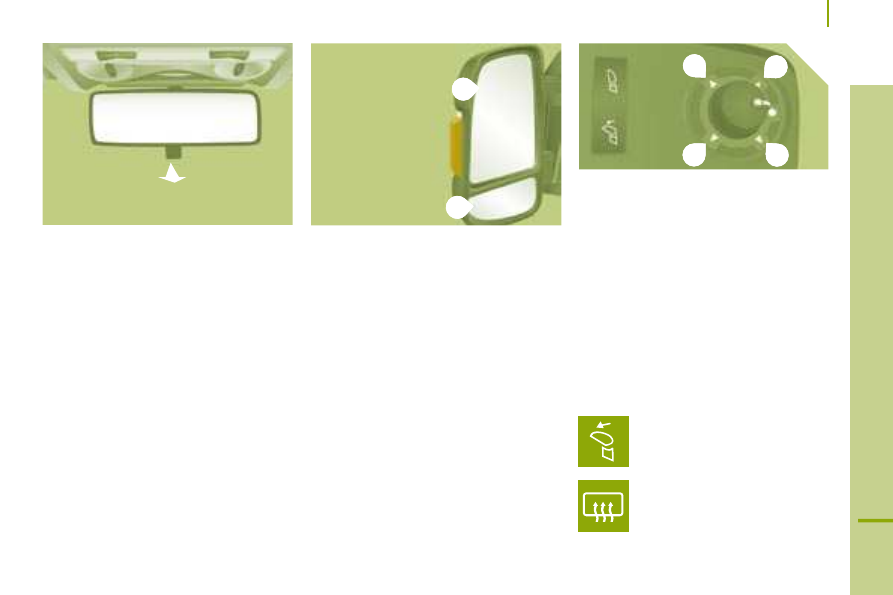

Exterior mirrors

These are divided into two zones:

A - Upper mirror

B - Lower mirror

The mirror glass is spherical in order to
widen the lateral field of vision. Objects
seen in the mirror are in reality closer than
they appear. Therefore, this must be taken
into account in order to assess the distance
correctly.

The shell incorporates the direction indicator
side repeater and the aerials, according to
the equipment available on board (GPS,
GSM, Radio, ...).

Electrical controls

Turn the control to select the mirror zone.

1 Driver's mirror:

A1 - Upper mirror

B1 - Lower mirror

Then move the control in the direction of the
adjustment required.

2 Passenger mirror:

A2 - Upper mirror

B2 - Lower mirror

Then move the control in the direction of the
adjustment required.

Interior mirror

The lever located on the lower edge moves
the mirror into two positions.

For the day position, the lever is pushed.

For the night position to prevent dazzle, pull
the lever towards you.

Electric folding

Press this control.

De-icing of the mirrors

Press the rear screen de-icing
button.

Mirrors and windows

Mirrors and windows

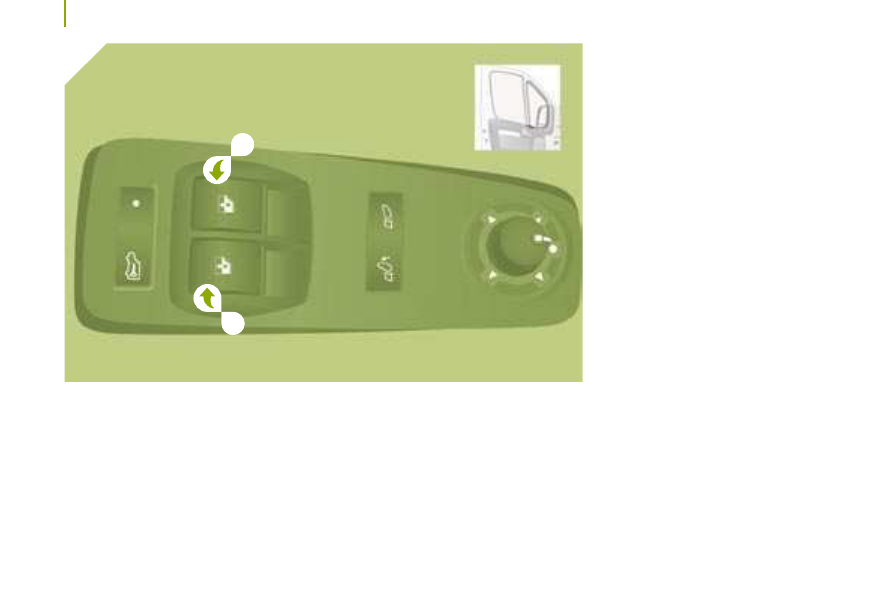

ELECTRIC WINDOWS

A. Driver's electric window control

B. Passenger electric window control

You have two options:

Automatic operation

Press or pull control A/B, beyond the point of
resistance: the window opens or closes fully
when the control is released.

Pressing the control again stops the
movement of the window.

Manual operation

Press or pull control A, without passing the
point of resistance. The window stops when
you release the control.

Good practice

Always remove the key from the ignition
when leaving the vehicle, even for a short
time.

If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.

When the driver operates the passenger
electric window controls, he must ensure
that no one is preventing correct closing of
the windows.

The driver must ensure that the passengers
use the electric windows correctly.

Be aware of children when operating the
windows.

The electrical functions of the electric
windows are deactivated one minute after
the ignition is switched off.

-C

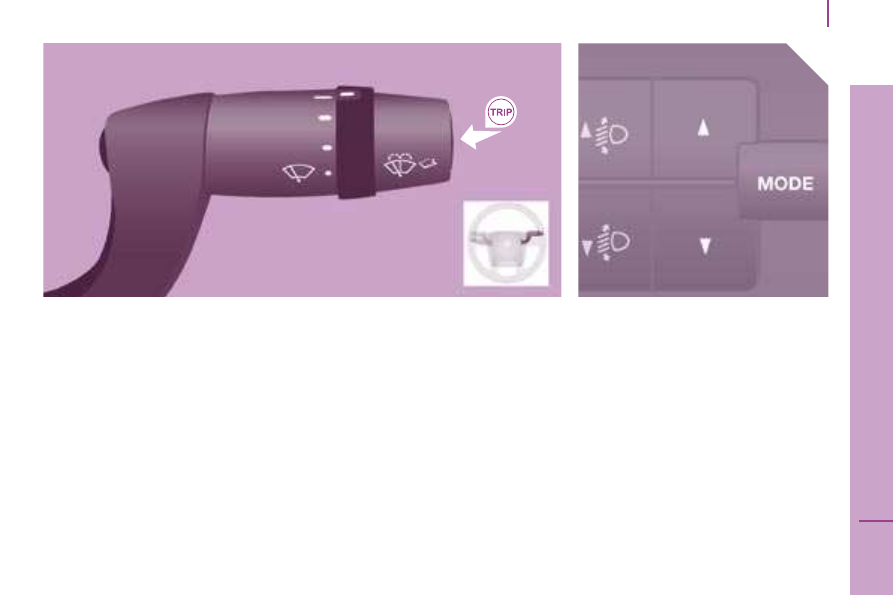

Trip computer

The TRIP button, located at the end of
the wipers stalk, provides access to the
following information:

If TRIP B is activated on the MODE menu:

Distance B

Average consumption B

Average speed B

Trip duration B.

Range

Distance A

Average consumption A

Current consumption A

Average speed A

Trip duration A

TRIP COMPUTER

Mode

MODE

Configuration-Personalisation

If your vehicle is fitted with the control pad
located to the left of the steering wheel, this
provides access to menus which permit the
personalisation of some of your equipment.

Seven languages are offered: Italian,
English, German, French, Spanish,
Portuguese, Dutch.

As a safety precaution, some menus can
only be accessed when the ignition is off.

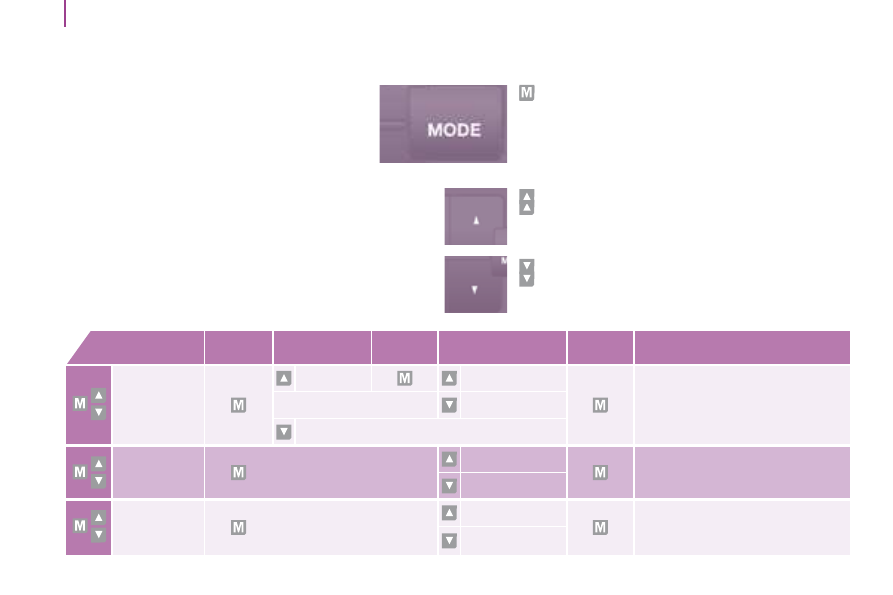

This MODE button enables you to:

access the menus and sub-menus,

confirm your selections, within a menu,

exit from the menus.

A long press enables you to return to the welcome
screen.

This button enables you to:

scroll up through a menu,

increase a value.

This button enables you to:

scroll down through a menu,

decrease a value.

Menu...

Press...

Sub-menu…

Press...

Select…

Confirm
and exit

Enables you to...

1 Bleep Speed

Increase

Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed.

Decrease

OFF

2 Headlamps

sensor

Increase

Set the sensitivity of the brightness
sensor (1 to 3).

Decrease

3 Activation

Trip B

Activate

Display a second distance "Trip B".

Deactivate

Mode

-C

Menu…

Press...

Sub-menu…

Press...

Select…

Confirm
and exit

Enables you to...

4 Setting the

time

Hours/
Minutes

Increase

Set the clock.

Decrease

Time format

Select the clock display mode.

5 Setting the

date

Year/Month/
Day

Activate

Set the date.

Deactivate

6 See radio

Display the name of the station.

OFF

7 Autoclose

While moving

Activate/Deactivate the
automatic locking of the doors
above approx 12 mph (20 km/h)

OFF

8 Measurement

unit

Distance

Select the distance display unit.

Miles

Consumption

km/l

Select the consumption display
unit.

l/100 km

9 Languages

List of languages
available

Select the display language.

10 Volume of

announce-
ments

Increase

Increase/decrease the volume of
the announcements.

Decrease

Mode

Menu...

Press...

Sub-menu…

Press...

Select…

Confirm
and exit

Enables you to...

11 Volume of

the buttons

Increase

Increase/decrease the volume of
the buttons.

Decrease

12 Service

Service (Km/
Miles before oil
change)

Display the kilometres/miles
remaining before the next oil
change.

Oil

Display the oil level.

13 Passenger

air bag

Yes

Activate the passenger air bag

OFF

Yes

Disarm the passenger air bag.

14 Exit from

Exit from the menu. Press the
arrow at the bottom to go to the
first menu.

C I T Y

Parking assistance

-C

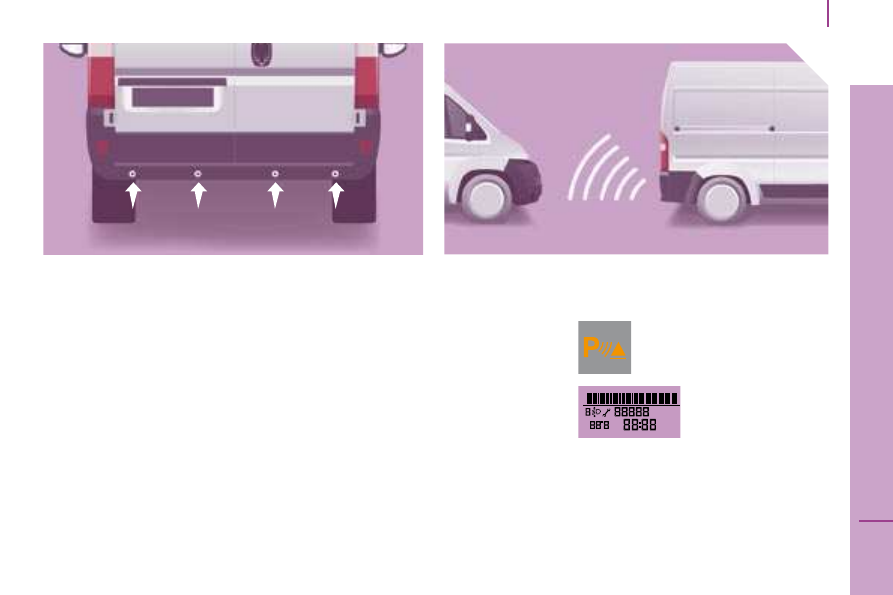

AUDIBLE REAR PARKING ASSISTANCE

If fitted on your vehicle, the system consists
of four proximity sensors, installed in the
rear bumper.

They detect any obstacle: person, vehicle,
tree, fence, behind the vehicle during the
manoeuvre.

However, objects the size or thickness of
which are detected at the beginning of the
manoeuvre will no longer be detected at the
end of the manoeuvre: blind spots between
and below the sensors. Examples: stake,
roadworks cone or pavement post.

Engage reverse gear

The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.

When the distance between the rear of the vehicle
and the obstacle is less than approximately thirty
centimetres, the audible signal becomes continuous.

The system cannot, in any circumstances,
take the place of the vigilance and
responsibility of the driver.

Stop the assistance

Change to neutral.

Operating fault

If this warning light comes on on
the instrument panel, contact a
CITROËN dealer.

If your vehicle is fitted
with this display, a
message appears.

Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.

Reversing camera

REVERSING CAMERA

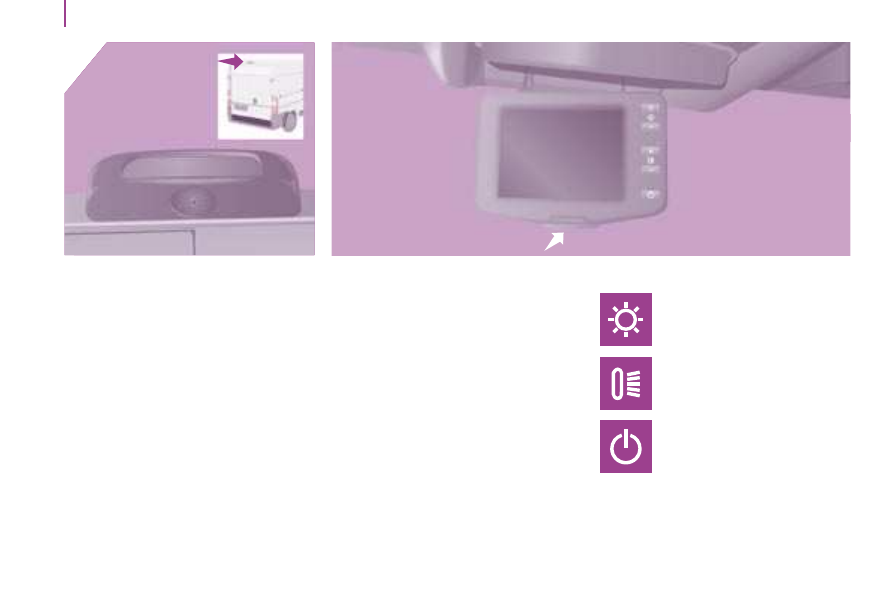

If your vehicle is fitted with this camera, it
is located at the rear of the van, next to the
third brake light.

It sends views to the screen installed
in the cab. This rear vision is an aid to
manoeuvring.

Screen

The camera sends the images to a 4 inch or
6.5 inch adjustable colour LCD which takes
the place of the interior mirror.

Press the button and place the screen in the
required position.

Activation

With the key in the running position, unfold
the screen.

The camera comes into operation when
reverse gear is engaged and remains active
up to approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).

When a forward gear is engaged, the last
image remains displayed for approximately
5 seconds then switches off.

Fold the screen.

Buttons

Brightness adjustment.

Back-lighting adjustment.

ON/OFF enables you to see rear
views without engaging reverse
gear.

Reversing camera

-C

Initial settings

With reverse gear not engaged,
press and hold the ON/OFF
button for approximately
3 seconds. The button
flashes twice to confirm the
reinitialisation.

Alarm display on the screen

In the ON position, information in text
format accompanies the manoeuvre and is
displayed on the screen:

each time reverse gear is engaged, a
message appears before the first view is
transmitted,

at 11 mph (18 km/h) in reverse gear,
the rear view disappears and the
screen switches to "Stand by". The view
appears again when the vehicle returns
to a speed below 9 mph (15 km/h).

Change of language

With reverse gear not engaged, press
the ON/OFF button and any other button
simultaneously.

Scroll through the languages by pressing
ON/OFF.

When the language has been selected, wait
approximately 3 seconds for it to be stored.

Good practice

When vehicle conditions are optimum
(position on the road, loading level) the
maximum area of visibility covered by the
camera has a field depth approximately 3 m
long and 5.5 m wide.

The area of visibility may vary depending on
the external weather conditions (brightness,
rain, snow, fog, ...), the load in the vehicle
and the position of the vehicle on the road.

Please store the screen in its housing when
no longer in use.

When cleaning the camera and the screen,
avoid using a detergent or a tool which may
scratch the glass.

Use a non-abrasive cloth or a small brush.

Following a collision, if the screen glass has
cracked and allows liquid crystal to flow out:
do not touch it.

If you have come into contact with it, quickly
wash the contaminated part of the body with
soapy water.

Contact a CITROËN dealer to have the
screen repaired.

Pneumatic suspension

PNEUMATIC SUSPENSION

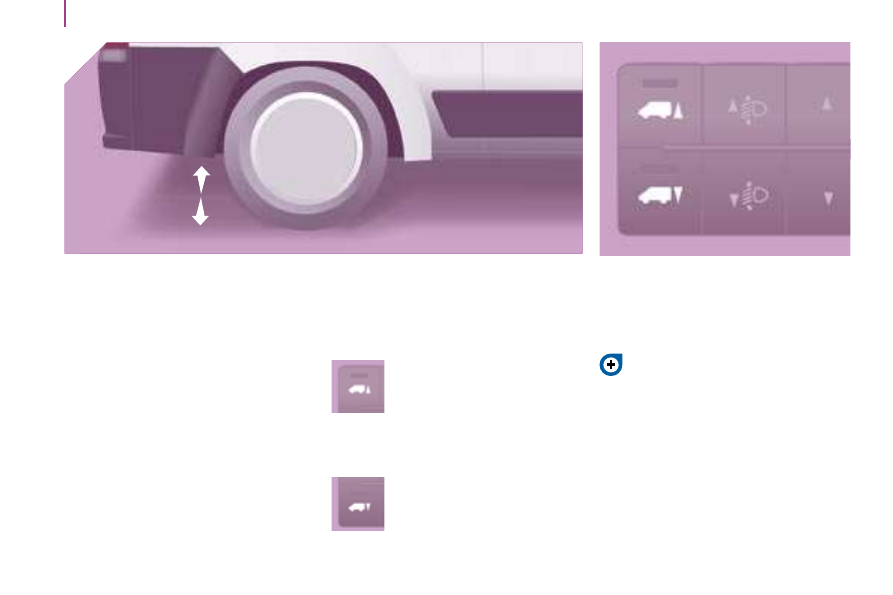

If your vehicle is fitted with the pneumatic
suspension, you can adjust the height of
the rear sill to make loading and unloading
easier.

The control pad is located on the fascia.

There is a nominal level as well as 6 sill
adjustment levels, raising (from +1 to +3) or
lowering (from -1 to -3). Each level reached
is indicated on the instrument panel display.

Manual adjustment of the loading
sill

Raise: upwards adjustment of the
platform sill

Press the control, release to
stop the movement. Each press
increases by one level: +1 to +3.

Lower: downwards adjustment of
the platform sill

Press the control, release to stop
the movement.

Each press decreases by one
level: -1 to -3.

Return to the optimum sill height

Press the same number of times in reverse
as the level of the position displayed.

Warning light

Refer to the "Instruments and controls"
section of chapter 2.

Good practice

Driving with the sill too high or too low risks
damaging the components under the body.

You must avoid this control in the following
circumstances:

when working underneath the vehicle,

when changing a wheel,

when the vehicle is being transported by
lorry, train, ferry, boat, ...

Chronotachograph

-C

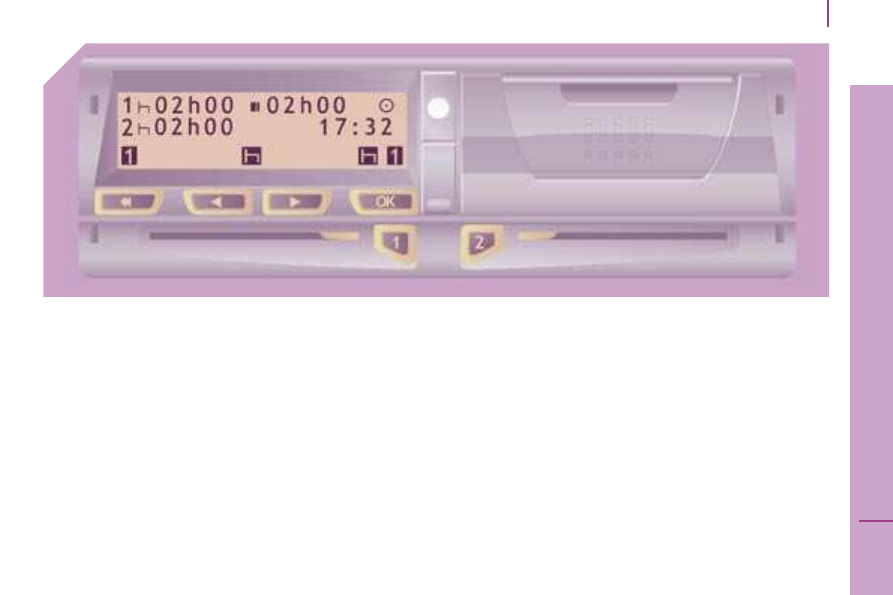

CHRONOTACHOGRAPH

If your vehicle is fitted with a
chronotachograph, this permits storing of
all of the data relating to the vehicle in the
equipment and on a card inserted in it.

Example: at the beginning of each journey
or change of team.

When the card is inserted, all of the data
can be:

displayed on the tachograph screen,

printed,

transferred to external storage media via
an interface.

For further information, refer to the
documents supplied by the manufacturer of
the chronotachograph.

If your vehicle is fitted with a
chronotachograph, disconnection of the
negative (-) terminal of the battery (located
under the floor on the left-hand side, in the
cab) is recommended if the vehicle is not to
be used for a period of more than 5 days.

Audio equipment

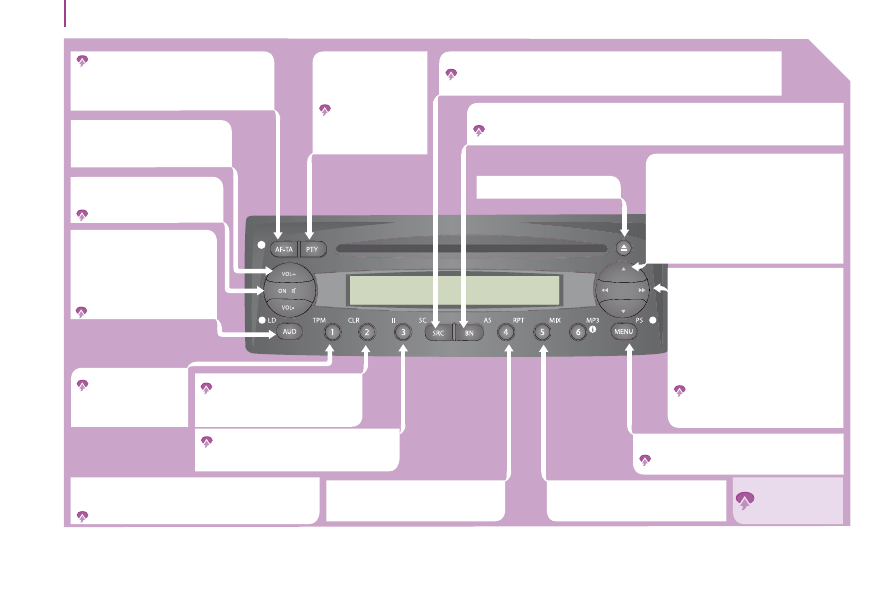

01 FIRST STEPS

Selection of the source: radio or CD/MP3.

Scanning of radio stations (if PTY is not selected) or of

the CD/MP3 tracks.

Repeating of the CD/MP3
tracks.

Random playing of the CD/
MP3 tracks.

Access to the menu.

Scanning of the stored stations.

Manual search for a lower/
higher radio frequency.
Selection of the PTY
(themed radio) programmes.
Previous/next menu function
settings.
Next/previous CD/MP3
track.

Fast backwards/forwards

playing of the current CD/
MP3 track.

Automatic search for a higher/
lower radio frequency.

Higher/lower audio settings.

Next/previous menu function.

CD eject.

Selection of wavebands FM1, FM2, FMt, MW and LW.

Automatic storing of stations (autostore).

1/2/3/4/5/6: selection of the stored
station.

Storing of a station.

Pausing/resuming of playing

of the CD/MP3 track.

Clearing of the
programming of playing
of the CD or MP3.

Programming

of playing of the
CD or MP3.

Setting of the audio
options: bass, treble,
fader (front/rear),
balance (left/right).

Loudness.

Volume increase/
decrease.

Mute.
On.

Off.

PTY (themed radio
programmes)
on/off.

EON (stations

of the same
network) on/off.

RDS (AF) on/off.

Traffic information priority
(TA/TP).

Requires a
long press.

Audio equipment

-C

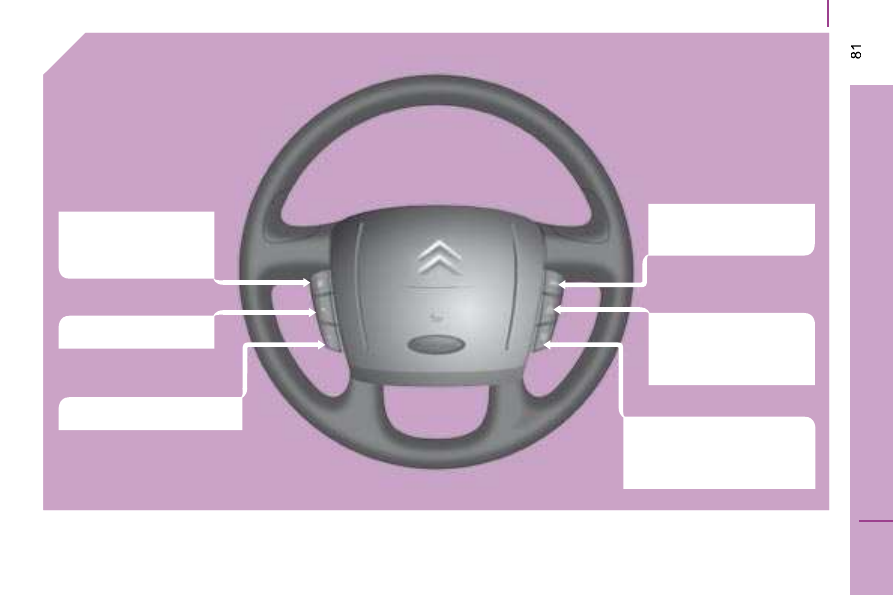

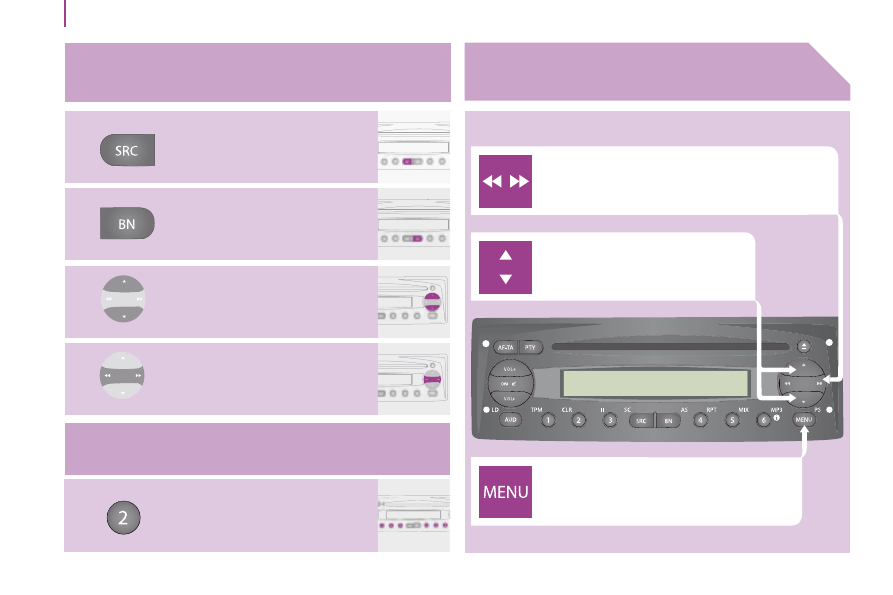

02 CONTROL SHORT-CUTS

Change of source: CD/
MP3 or radio.

Automatic search for a
higher radio frequency.

Selection of the next CD/
MP3 track.

Automatic search for a lower
frequency.

Selection of the previous CD/
MP3 track.

Mute/Restoring of the sound
(or by pressing + or -).

Volume increase.

Volume decrease.

Audio equipment

RADIO

Access to and exit from the menus.

Confirmation and storing of the choices from
the current menu.

Scrolling of the menus.

Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET).

Selection of the choices from the current menu.

Switching from one band to another on the
equaliser (EQ SET).

MENU

SELECTING A STATION

Press the source SRC button
several times in succession and
select the radio.

Press the band BN button to
select a waveband: FM1, FM2,
FMt, MW, LW.

Briefly press one of the buttons
to carry out an automatic search
of the radio stations.

Press one of the buttons to carry
out a manual search of the radio
stations.

STORING A STATION

Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.

Citroen Jumper Dag (2008 year). Instruction - part 5
