Citroen C-Crosser Dag (2008 year). Instruction - part 10

P R A C T I C A L I N F O R M A T I O N

143

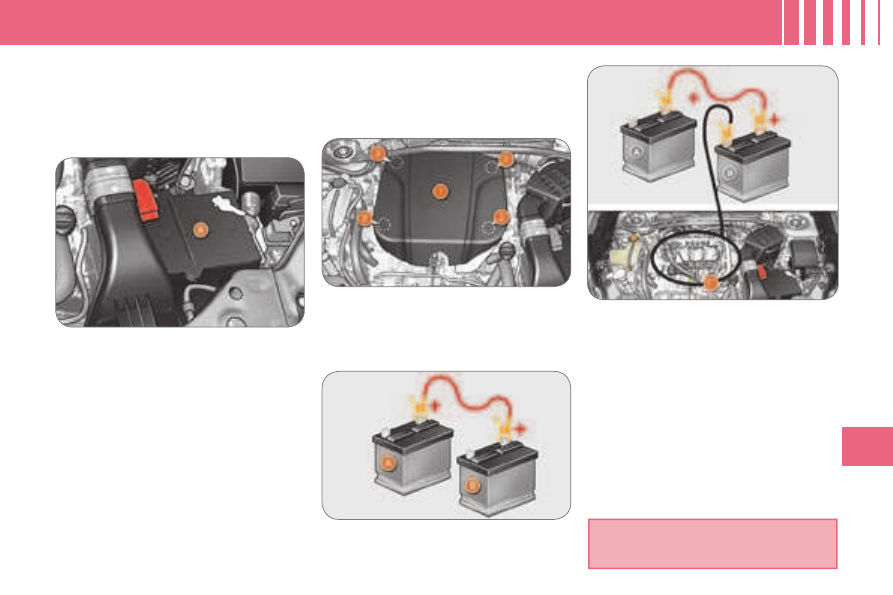

The battery A is located under the
bonnet on the left.
To gain access to it:


open the bonnet using the interior

lever, then the exterior lever,



secure the bonnet strut.

BATTERY

Access to the battery



Connect the red cable to the positive

terminal (+) of the ﬂ at battery A ,

then to the positive terminal (+) of
the slave battery B .



Connect one end of the green or

black cable to the negative terminal
(-) of the slave battery B .



Connect the other end of the green

or  black  cable  to  an  earth  point   C
on  the  broken  down  vehicle,  as
far  as  possible  from  the  battery

(for example, right-hand engine

mounting).



Start the engine of the assisting

vehicle.



Operate the starter, let the engine

run.



Wait until the engine returns to idle

and disconnect the cables.



Raise the front of the cover 1 to

release the three clips 2 .



Then pull the cover 1 towards you

to release the clip 3 and remove the
cover.

  Check the electrolyte level regularly.
If  necessary,  top  up  the  level  with
distilled water.

Starting using another battery

Looking for an earth point at
the right-hand engine mounting

Procedure for charging your battery

when it is ﬂ at or for starting the engine

using another battery.

P R A C T I C A L I N F O R M A T I O N

144

Charging the battery using a
battery charger



Disconnect the battery from the

vehicle.



Remove the battery and place it in a

ventilated area.



Remove the top-up caps and top

up the level with distilled water if
necessary.



Connect the battery to the charger

observing the instructions for use
provided by the manufacturer and
start charging.



Disconnect the battery from the

charger and let it cool.



If necessary, top up the level with

distilled water.



Clean the top of the battery

carefully.



Put the top-up caps back in place.



Check that the terminals and

connectors  are  clean.  If  they  are
covered  with  sulphate  (whitish  or
greenish  deposit),  remove  them
and clean them.



Reconnect the battery starting with

the positive terminal (+).

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without

disconnecting

the

terminals ﬁ rst.

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight

difﬁ culties are encountered following this

operation, contact a CITROËN dealer.

Referring to the corresponding section,
you must yourself reinitialise:
-

the one-touch electric windows,

the sunroof,

the satellite navigation system.

Avoid prolonged contact of the
electrolyte with the skin.
Most of these ﬂ uids are harmful

to health and very corrosive.

It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.

The

batteries

contain

harmful

substances  such  as  sulphuric  acid
and lead. They must be disposed of
in  accordance  with  regulations  and
must  not,  in  any  circumstances,  be
discarded with household waste.
Take  used  remote  control  batteries
and  vehicle  batteries  to  a  special
collection point.

When  charging  the  battery,  it  is
normal  to  observe  an  increase  in
temperature  and  bubbling  of  the
electrolyte.

  Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close  the  windows,  the  sunroof,  the
doors  and  the  tailgate  before  discon-
necting the battery.

P R A C T I C A L I N F O R M A T I O N

145

CHANGING A WIPER BLADE

Procedure for replacing a worn wiper
blade with a new one without the use
of tools.

Removing a front or rear wiper
blade



Raise the corresponding wiper arm.



Remove the wiper blade, sliding it

towards the outside.

Fitting a front or rear wiper
blade



At the front, check the size of the

wiper blade as the shorter blade is

ﬁ tted on the right-hand side of the

vehicle.



Put the corresponding new wiper

blade in place and ﬁ x it.



Fold down the wiper arm carefully.

P R A C T I C A L I N F O R M A T I O N

146

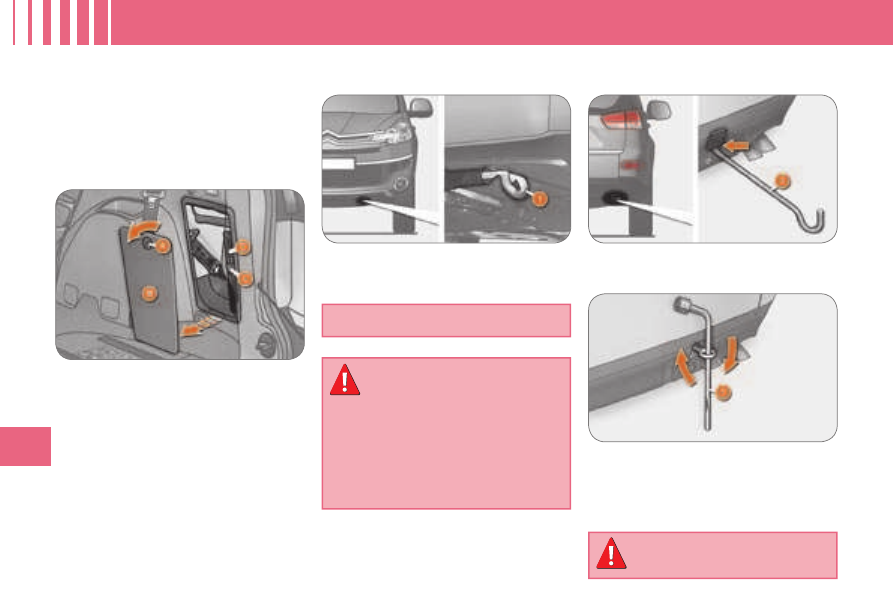

TOWING

Access to the tools

Having your vehicle towed on a
flatbed



Below the front bumper, install the

towing system on the towing eye 1 .



On the rear bumper, remove the

cover by pulling at the bottom using
the jack handle 2 .

Towing another vehicle

The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To access them:


open the boot,



turn button A to the left,



remove the cover B ,



remove the ﬁ xing band C and take

out the tool bag D containing the
tools,



take the towing eye and the tools

required out of the tool bag.

When being towed with the
engine off, there is no longer any
braking or steering assistance.

Place the gear lever in neutral.

Always have the vehicle

towed on a ﬂ atbed.
Never have the vehicle towed

with  the  four  wheels  on  the  ground,
this could damage the transmission.
The  vehicle  must  not  be  towed  with
the front or rear wheels on the ground
even  if  it  is  in  front  “2WD”  (2  wheel
drive) mode.



Screw in the towing eye fully using

the wheelbrace 3 .



Install the towbar.



Switch on the hazard warning lights

on the towed vehicle.

Operating procedure for having your

vehicle towed on a ﬂ atbed or for towing

another vehicle using a removable
mechanical device.

P R A C T I C A L I N F O R M A T I O N

147

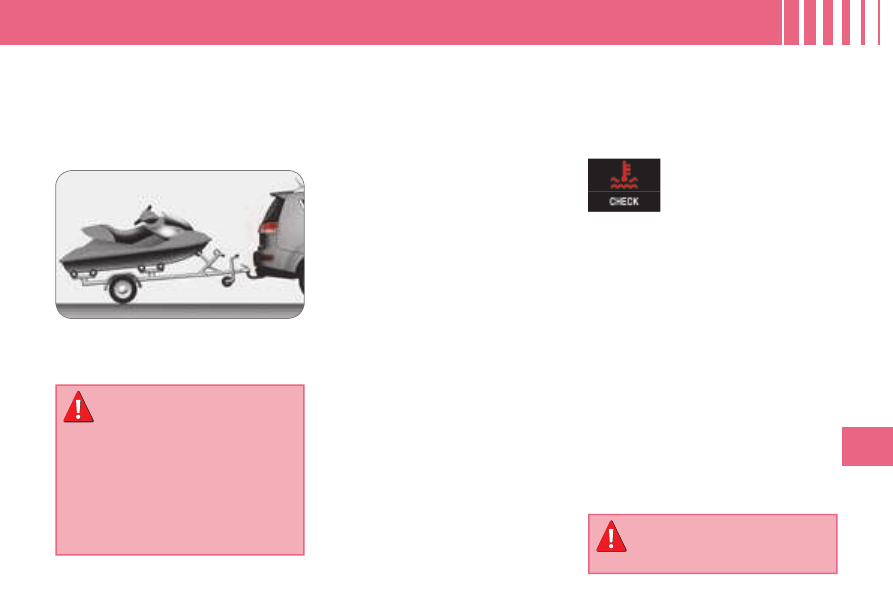

TOWING A TRAILER,
CARAVAN, ETC.

Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.

Driving advice

The maximum towing load on a long

slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.

Side wind


Take into account the increased

sensitivity to side wind.

  Cooling
Towing  a  trailer  on  a  slope  increases
the temperature of the coolant.
As  the  fan  is  electrically  controlled,  its
cooling  capacity  is  not  dependent  on
the engine speed.
   

To lower the engine speed, reduce

your speed.

  Braking
Towing  a  trailer  increases  the  braking
distance.

Tyres


Check the tyre pressures of the

towing vehicle and of the trailer,
observing

the

recommended

pressures.

Lights


Check the electrical signalling on

the trailer.



this

message

displayed,  stop  your
vehicle as  soon  as  it
is safe to do so.

If the message ﬂ ashes

slowly, wait for the engine to cool before
topping up the level, if necessary.
If the message ﬂ ashes rapidly, contact

a CITROËN dealer without delay.

Opening of the lower tailgate
is prohibited if a towbar is be-
ing used.

Driving with a trailer subjects the towing

vehicle to more signiﬁ cant stress and

its driver must be particularly careful.

We recommend the use of
original

CITROËN

towbars

and their harnesses that have

been tested and approved from the
design stage of your vehicle and that

the ﬁ tting of the towbar is entrusted

to a CITROËN dealer.
If the towbar is not ﬁ tted by a

CITROËN dealer, it is imperative

that it is ﬁ tted using the electrical pre-

equipment located at the rear of the
vehicle and in accordance with the
manufacturer’s instructions.

Towbar suited to the attachment of
a trailer or caravan with additional
signalling and lighting.

Distribution of loads


Distribute the load in the trailer so

that the heaviest items are as close

as possible to the axle and the nose

weight approaches the maximum

permitted without exceeding it.

Air density decreases with altitude, thus
reducing engine performance. Above

1 000 metres, the maximum towing

load must be reduced by 10 % of the
GTW and so on for every 1 000 metres
of altitude.
Refer to the “Technical Data” section for
details of the weights and towing loads
which apply to your vehicle.

P R A C T I C A L I N F O R M A T I O N

148

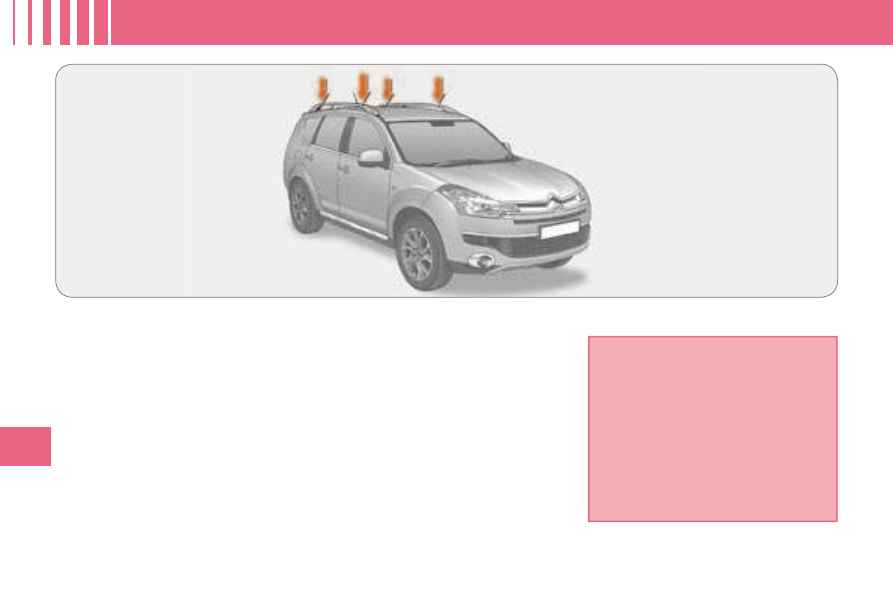

FITTING ROOF BARS

Maximum authorised weight on the

roof bars, for a loading height not

exceeding 40 cm (except bicycle

carriers): 80 kg.
If the height exceeds 40 cm, adapt

the  speed  of  the  vehicle  to  the
condition  of  the  road,  to  avoid
damaging  the  roof  bars  and  the

ﬁ xings on the roof.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which
are longer than the vehicle.

   Consult  a   CITROËN   dealer  for  the
installation of longitudinal roof bars.
When  ﬁ tting  transverse  roof  bars,

ensure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.

Use accessories recommended by
CITROËN and follow the accessory

manufacturer’s ﬁ tting instructions.
In order to place a load on the roof, your

vehicle must be ﬁ tted with longitudinal

roof bars with transverse roof bars ﬁ tted

on top of these.
The longitudinal roof bars cannot be
removed.

T E C H N I C A L D A T A

149

ENGINE AND GEARBOX

Model code

VUSFZC - VVSFZC

VUSFZF - VVSFZF

U4HNH - V4HNH

Engine

2.4 litre 16V

2.2 litre HDI PEF 16V

Cubic capacity (cm

)

2360

2179

Bore x stroke (mm)

88 x 97

85 x 96

EU standard maximum power (kW)

125

115

Max power engine speed (rpm)

6000

4000

EU standard max torque (Nm)

232

380

Max torque engine speed (rpm)

4100

2000

Fuel

Unleaded

Diesel

Catalytic converter

yes

Particle emission ﬁ lter (PEF)

yes

Gearbox

Manual

(5-speed)

CVT

(5-speed)

Manual

(6-speed)

Oil capacity (in litres)
Engine

5.25

T E C H N I C A L D A T A

150

CONSUMPTION

The consumption values presented here correspond to the values communicated at the time of printing.
The consumption values were established in accordance with Directive 80/1268/CEE. They may vary depending on the style

of driving, trafﬁ c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the

accessories.

In accordance with directive 80/1268/CEE

Engine

Gearboxes

Model
codes

Wheels

Urban

driving mpg

(litres/100 km)

Inter-urban

driving mpg

(litres/100 km)

Mixed

driving mpg

(litres/100 km)

Emission of

by weight

(g/km) mixed

2.4 litre 16V

Manual

(5-speed)

VUSFZC -

VVSFZC

22.4 (12.6)

37.7 (7.6)

30.1 (9.4)

225

CVT

(6-speed)

VUSFZF

- VVSFZF

22.4 (12.6)

37.6 (7.5)

30.4 (9.3)

222

2.2 litre HDI

PEF 16V

Manual

(6-speed)

U4HNH
V4HNH

16”

29.7 (9.5)

47.9 (5.9)

39.3 (7.2)

191

2.2 litre HDI

PEF 16V

Manual

(6-speed)

U4HNH
V4HNH

18”

29.4 (9.6)

47.1 (6.0)

38.7 (7.3)

194

T E C H N I C A L D A T A

151

WEIGHTS AND TOWED LOADS (IN KG)

* The kerb weight is equal to the weight without load + driver (75 kg).

** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

*** The braked trailer value corresponds to the towing capacities of the vehicle on a 12% gradient.

High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; reduce

the towed weight by 450 kg when your altitude increases by 1000 m.

Engines

2.4 litre 16V

2.2 litre HDI PEF 16V

Gearbox

Manual

(5-speed)

CVT

(5-speed)

Manual

(6-speed)

Model codes

VUSFZC

VVSFZC

VUSFZF

VVSFZF

U4HNH

V4HNH

Version

5 seats

7 seats

5 seats

7 seats

5 seats

7 seats

• Kerb weight *

1650

1685

1680

1715

1790

1825

• Gross vehicle weight (GVW)

2290

2410

• Gross train weight (GTW) **

3870

4510

• Unbraked trailer

750

• Braked trailer ***

1500

2000

• Recommended nose weight

100

T E C H N I C A L D A T A

152

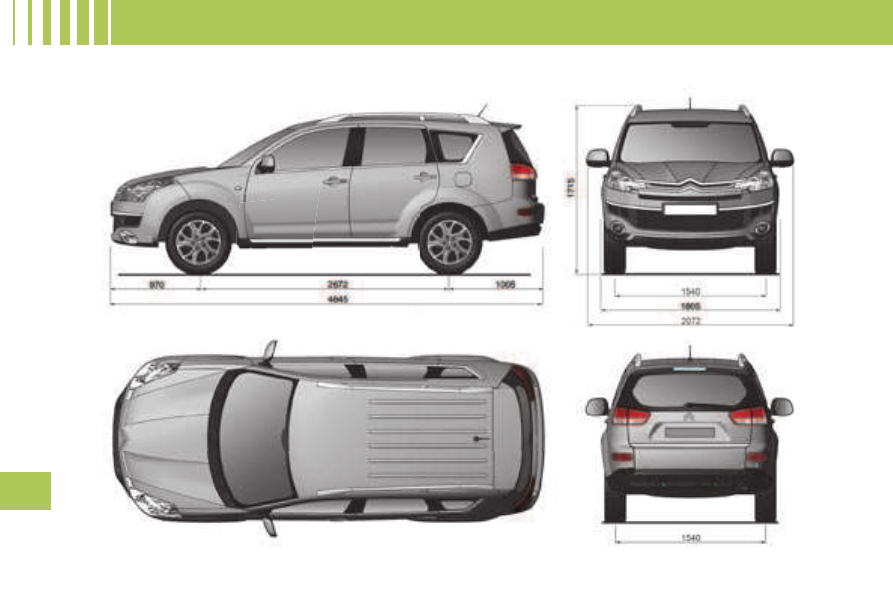

DIMENSIONS (IN MM)

T E C H N I C A L D A T A

153

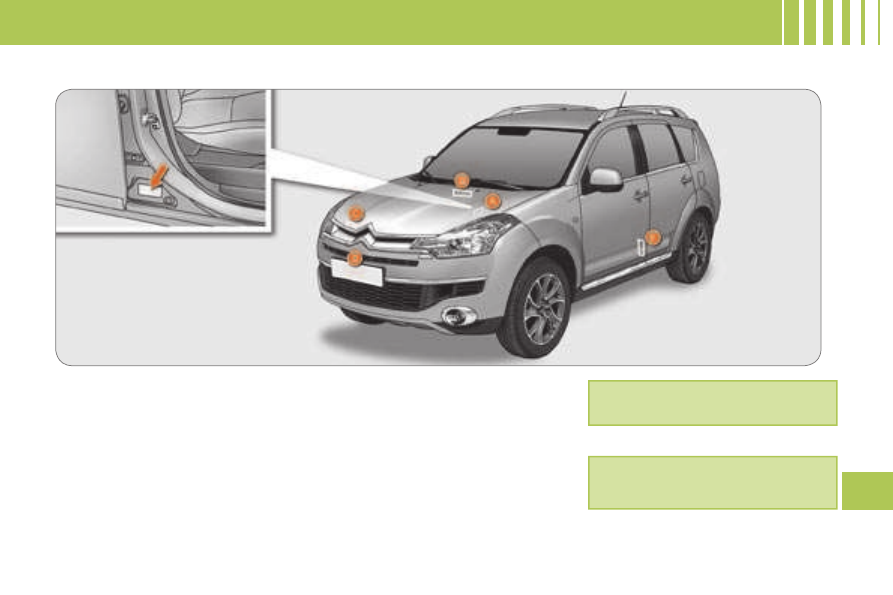

A. Manufacturer’s plate.

This number is indicated on a plate
riveted on the centre pillar, on the
passenger’s side.

B. Serial number under the bonnet.

This number is engraved on the
bodywork near the windscreen.

C. After Sales plate.

This plate is riveted on the inside of
the bonnet.

D. Front number plate.

E. Tyres / paint label.

This label is afﬁ xed to the driver’s

door centre pillar.

It indicates the following information:
-

the tyres pressures without load and
with load,

the rim and tyre sizes,

the pressure of the spare wheel,

the paint colour reference.

IDENTIFICATION FEATURES

The tyre pressures must be checked
when cold at least once a month.

Low tyre pressures increase fuel
consumption.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S

154

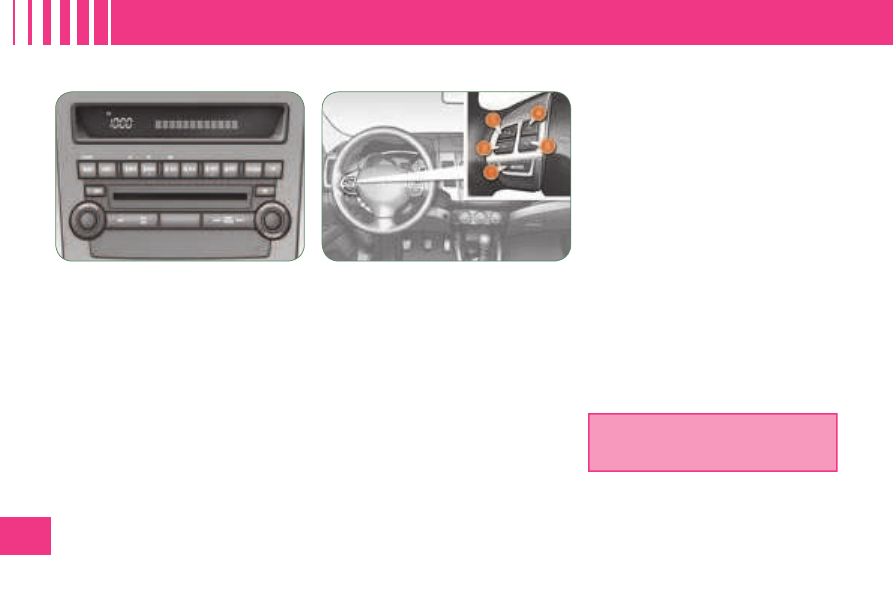

YOUR AUDIO-CD SYSTEM

This

consists

the

following

components:
-

a control panel,

a multifunction display,

steering wheel audio controls,

4 or 6 speakers (according to version),

a CD changer (according to version),

- auxiliary sockets, located at the rear

of the centre console (according to
version),

a radio aerial, located on the roof at
the rear of the vehicle.

Steering wheel audio controls

1. On / Off and selection of the

radio or CD mode

  2.    Decreasing of the volume
  3.    Increasing of the volume
  4.    Search for a higher radio

frequency / Next track / Fast
forwards play

. Search for a lower radio frequency /

Previous track / Rewind play

They can be used when the ignition
switch is in the “ON” or “ACC” position.

  Switching on
Press  button   1   for  more  than  two
seconds.
The last source selected before switching
off comes back into operation.

  Selecting the source
Press button  1 .
The  source  changes  in  the  following
order:  FM1  /  FM2  /  FM3  /  MW  /  LW  /
CD / FM1...

  Searching in radio mode
Press button  4  or  5  to search for a higher
or lower radio frequency respectively.

While  a  track  is  being  played,
press  button   5   once  to  return  to  the
beginning of this track.

  Adjusting the volume
Press and hold button  2  or  3  to decrease
or increase the volume respectively.

It allows you to:
-

listen to the radio in FM/MW/LW,

listen to audio CDs (CD-DA, CD-

Text, CD-R/RW) or CDs with MP3

ﬁ les.

  Switching off
Press  button   1   for  more  than  two
seconds.

Searching in CD mode
Press button 4 or 5

to select the next or

previous track on the CD respectively.
Press and hold button 4 or 5 for fast
forwards or rewind playing of the current
track of the CD respectively.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S

155

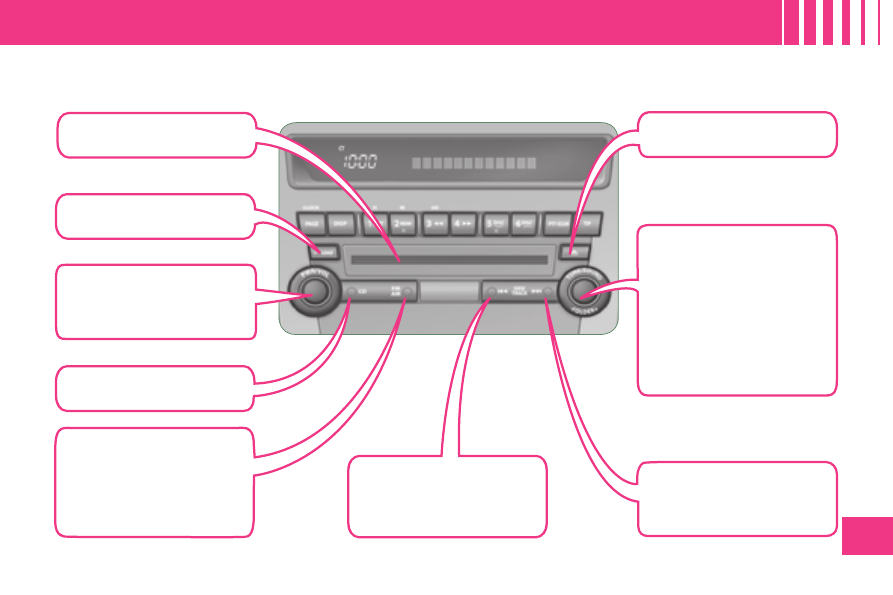

Audio equipment On / Off.

Decreasing / Increasing of

the volume.

Selection of the CD /

Changer / AUX mode.

Automatic search for a

lower radio frequency.

Search for the previous

track.

Selection and setting of

the audio modes (BASS,

TREBLE, ...).

Manual search for a lower

or higher radio frequency /

PTY.

Functions setting mode

(AF, REG, TP, SCV, ...).

Search for the previous or

next MP3 folder.

Ejecting of one

or more CDs.

CD slot.

Loading of one or more

discs.

Control panel

Selection of the radio

mode.

Selection of the wavebands

(FM, MW, LW).

Automatic station storing

(autostore).

Automatic search for a

higher radio frequency.

Search for the next track.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S

156

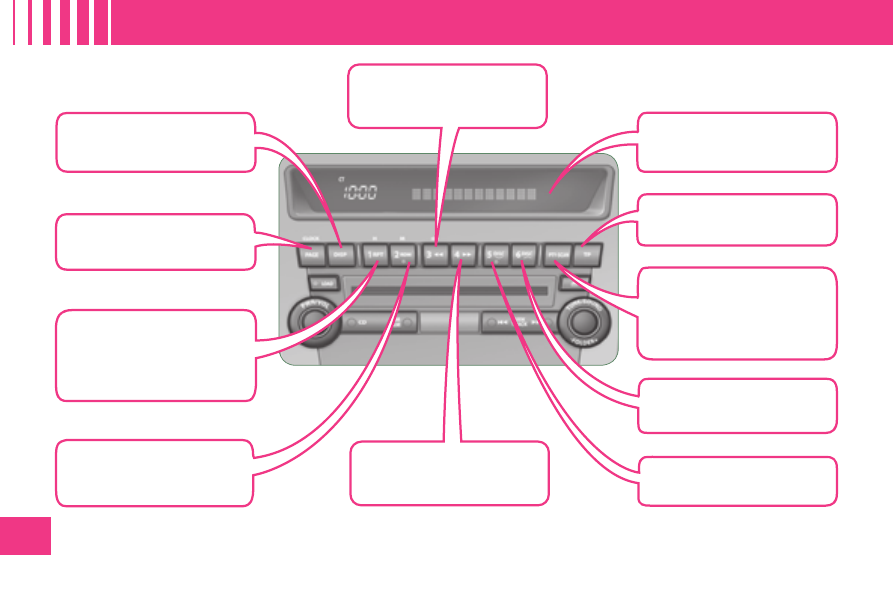

Scrolling of the information

by page.

Displaying of the CD-Text /

MP3 / Tag ID3 information.

Repeat (track / MP3 folder /

disc).

Manual storing and recall-

ing of the radio stations /

PTY (12 to 17).

Random play (tracks / MP3

folder / disc).

Multifunction display.

Rewind play.

Fast forwards play.

Search for TP trafﬁ c

information.

Activation / Deactivation of

the PTY.

Playing of the beginning of

each track

(MP3 folder / disc).

Selection of the previous

disc.

Selection of the next disc.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S

157

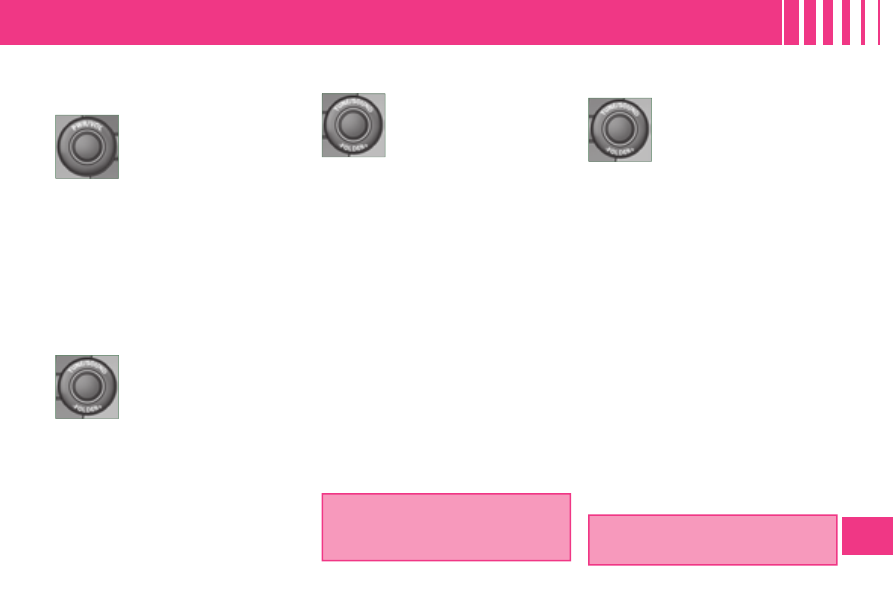

GENERAL FUNCTIONS

Switching on

Press the “PWR” button.
The last source selected
before switching off resumes
operation.

The  audio  equipment  functions  can  be
used  when  the  ignition  switch  is  in  the
“ON or “ACC” position.

Adjusting the volume

Turn

the

“VOL”

dial

respectively  to  the  left  to
decrease  the  volume  or  to
the right to increase it.

Switching off

Press the “PWR” button again.

Setting the audio modes

Press the “SOUND” button
several times; the audio
modes

change

the

following order:
SUB PUNCH / TYPE /
FIELD / BASS / MID /

TREBLE / FADER / BALANCE / OFF.

Quick access mode

To  access  the  personalised  sound
functions  quickly,  press  and  hold
this  button,  then  turn  it  to  reach  the
personalised  sound  setting  of  your
choice.
Release the button to store the setting.

“Hold” mode

If  you  press  this  button  for  more  than
2 seconds in the audio setting mode, the
system  switches  to  “Hold”  mode.  The
audio  mode  selected  will  be  retained
until  you  press  this  button  again  for
more than 2 seconds.

Selecting the musical ambience
“TYPE”

Turn the “SOUND” dial; the
musical  ambiences  change
in the following order:
CLASSIC  /  JAZZ  /  POP  /
ROCK / HIP-HOP.
Once  the  ambience  has

been selected, press the “SOUND” but-

ton to conﬁ rm.

“CLASSIC”:  optimises  the  acoustics  to
obtain perfect equalisation of the sound
for classical music.
“JAZZ”:  optimises  the  acoustics  to
obtain  an  ambient  sound  with  speciifc
modulations  in  the  bass,  mid  tone  and
treble for jazz.
“POP”: optimises the acoustics to obtain
clear vocals and modulation of the bass
and treble for pop music.
“ROCK”:  optimises  the  acoustics  to
obtain  a  sound  in  harmony  with  the
rhythm  which  places  the  emphasis  on
the mid tone for rock music.
“HIP-HOP”:  optimises  the  acoustics
to  obtain  a  powerful  sound  and
accentuation  of  the  bass  for  hip-hop
music.

If the “TYPE” is changed, the sound

cuts out brieﬂ y.

The audio setting mode is deactivated
when the radio is operated or a CD

is played or after approximately

10 seconds without any action.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S

158

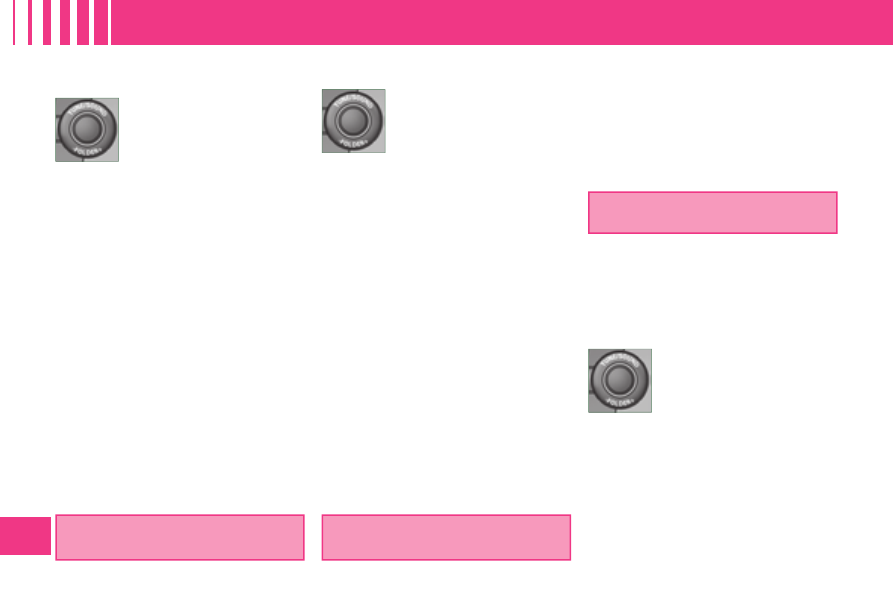

Selecting the surround effect
“FIELD”

Turn the “SOUND” dial; the
surround effects change in
the following order:
NORMAL / STAGE / LIVE /
HALL.

“NORMAL”: produces a sound in which
the  voices  are  at  the  front  and  the  in-
struments surround the listener.
“STAGE”:  produces  a  sound  in  which
the  voices  are  immediately  facing  the
listener, as on a stage.
“LIVE”:  produces  a  sound  similar  to
that of a live show, in which the sound
reaches the listener from all directions.
“HALL”:  produces  a  sound  similar  to

that of a concert hall with deﬂ ection of

the sound.

Setting the bass “BASS”

Turn the “SOUND” dial to
set the required bass value.

Setting the mid tone “MID”

Turn the “SOUND” dial to set the
required mid tone value.

Setting the treble “TREBLE”

Turn the “SOUND” dial to set the
required treble value.

Setting the front/rear sound
distribution “FADER”

Turn  the  “SOUND”  dial  to  set  the
balance  of  the  volume  of  the  front  and
rear speakers.

Setting the right/left sound
distribution “BALANCE”

Turn the “SOUND” dial to set the
balance of the volume of the right and
left speakers.

If the “FIELD” is changed, the sound

cuts out brieﬂ y.

If the value “0” is set, an audible
signal will be heard.

Automatic volume adjustment
“SCV”

This permits automatic adjustment of
the “VOLUME”, “BASS”, “MID” and
“TREBLE” parameters in relation to the
vehicle speed.

Press the “SOUND” button
for more than two seconds to
gain access to the functions
setting mode.
Then,

press

this

same

button several times; the

functions  setting  mode  changes  in  the
following order:
AF / CT / REG / TP-S / PTY (languages) /
SCV / PHONE / OFF.
Turn  the  “SOUND”  dial  respectively  to
the  left  to  deactivate  the  function  or  to
the right to activate it.

If the “SUB PUNCH” is changed, the

sound cuts out brieﬂ y.

Setting the volume of the bass
box “SUB PUNCH”

Turn the “SOUND” dial to set the volume

of the bass box.

Only vehicles ﬁ tted with the “Premium

Sound” system can offer the “SUB
PUNCH” setting.

Once the surround effect has been se-
lected, press the “SOUND” button to

conﬁ rm.

Content .. 8 9 10 11 ..
