P R A C T I C A L I N F O R M A T I O N

127

Parking the vehicle
Immobilise the vehicle where it does

not block trafﬁ c: if possible, park the

vehicle on level, stable and non-
slippery ground.
Apply the handbrake, switch off the

ignition and engage ﬁ rst gear to lock

the wheels.
If  necessary,  place  a  chock  under
the  wheel  diagonally  opposite  the
wheel to be changed.
Never  go  underneath  a  vehicle
raised using a jack; use a stand.

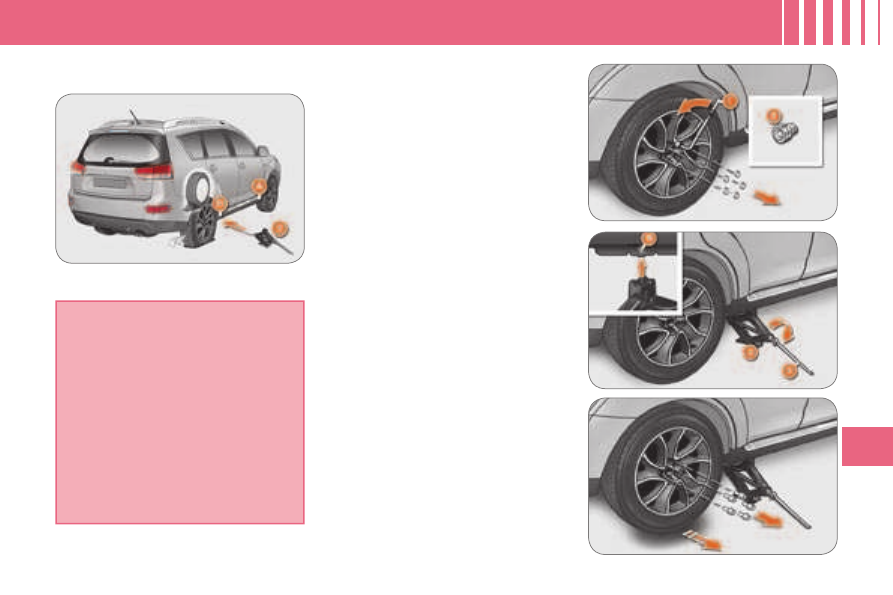

Removing the wheel

List of operations


Fit the anti-theft socket 5 on the

wheelbrace 1 to unlock the anti-theft
bolt.



Unlock the other bolts using the

wheelbrace 1 only.



Place the jack 2 in contact with one

of the two front A or rear B locations
provided on the underframe, whi-
chever is closest to the wheel to be
changed.



Extend the jack 2 until its base plate

is in contact with the ground. Ensure
that  the  centreline  of  the  jack  base
plate is directly below the location  A
or  B  used.



Raise the vehicle until there is sufﬁ -

cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.



Remove the bolts and store them in

a clean place.



Remove the wheel.

P R A C T I C A L I N F O R M A T I O N

128

After changing a wheel
When

using

the

“space-saving”

spare wheel, do not exceed a speed

of 50 mph (80 km/h).
   Have  the  tightening  of  the  bolts  and
the  pressure  of  the  spare  wheel
checked  by  a   CITROËN   dealer
without delay.
Have  the  punctured  wheel  repaired
and replace it on the vehicle as soon
as possible.

Fitting the wheel

List of operations



Lower the vehicle fully.



Fold the jack 2 and detach it.



Lock the anti-theft bolt using the

wheelbrace 1

ﬁ tted with the anti-

theft socket 5 .



Lock the other bolts using the

wheelbrace 1 only.



Store the tools (refer to the

paragraph “Access to the tools”).

Fitting snow tyres
If you equip your vehicle with snow

tyres ﬁ tted on steel wheel rims, it

is   imperative   that  special  bolts
available from your  CITROËN  dealer
are used.



Put the wheel in place on the hub.



Screw in the bolts by hand to the

stop.



Pre-tighten the anti-theft bolt using

the wheelbrace 1

ﬁ tted with the anti-

theft socket 5.



Pre-tighten the other bolts using the

wheelbrace 1 only.

P R A C T I C A L I N F O R M A T I O N

129

CHANGING A BULB

Handle the bulbs using a dry
cloth.
Do not clean the headlamps

using a dry or abrasive cloth, or us-
ing detergent or solvent products,
use a sponge and soapy water.

certain

climatic

conditions

(low  temperature,  humidity),   t  he
presence  of  condensation  on  the
inside  of  the  headlamp  glass  is
normal ; it disappears a few minutes
after the lights are switched on.

Front lights

  Blown bulb
Refer  to  the  appropriate  procedure  to
change the corresponding bulb.

1. Direction indicators

(PY21W - 21 W).

2. Dipped headlamps (H11 - 55 W)

or xenon bulb (D2S - 35 W).

3. Side lights (W5W - 5 W).
4. Main beam headlamps

(H7 - 55 W).

5. Front fog lamps

(H11 - 55 W).

WARNING: RISK OF
ELECTROCUTION

Xenon bulbs must be replaced by a
CITROËN dealer.

Operating procedure for replacing a
faulty bulb with a new bulb.

P R A C T I C A L I N F O R M A T I O N

130

Changing the direction
indicators (1)

Coloured bulbs must be replaced

with bulbs of identical speciﬁ cation

and colour.



Turn the bulb holder A to the left

and remove it.



Pull the bulb and change it.

To reﬁ t, carry out these operations in

reverse order.

Access to the bulbs
on the left-hand side

When you change a bulb on the left-

hand side, remove the relay box ﬁ xing

nut B

and move the relay box towards

the rear.

Access to the bulbs
on the right-hand side

When you change a bulb on the right-
hand side:


Remove the screenwash reservoir

ﬁ xing C and move the reservoir

towards the rear.



Remove the coolant reservoir ﬁ xing

nut D .



Remove the clip E and raise the

reservoir moving it towards the

front.

P R A C T I C A L I N F O R M A T I O N

131

Changing the side lights (3)



Unscrew the cover H .



Disconnect the connector.



Turn the bulb holder I a quarter of a

turn and remove it.



Pull the bulb and change it.

To reﬁ t, carry out these operations in

reverse order.



Unscrew the cover F .



Disconnect the connector.



Turn the bulb G to the left and re-

move it.

To reﬁ t, carry out these operations in

reverse order.

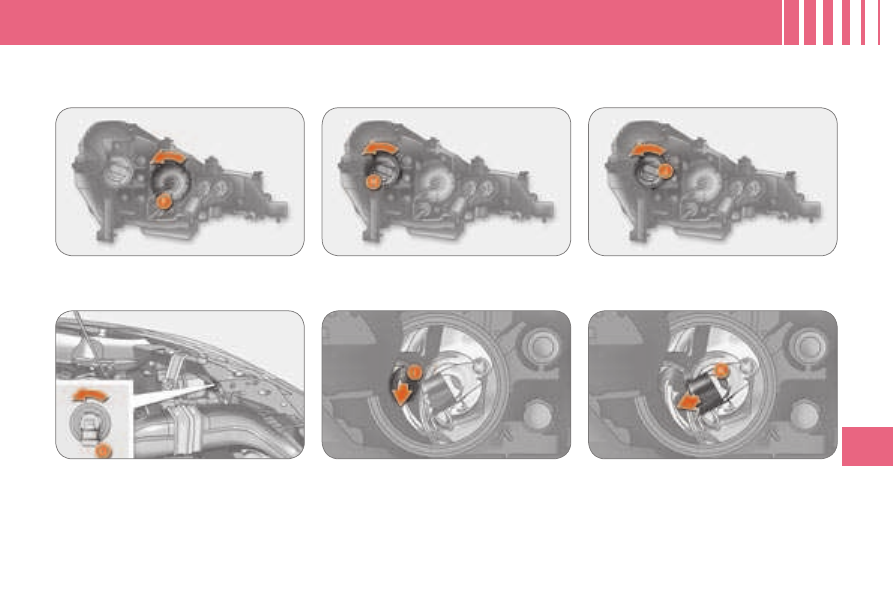

Changing the dipped headlamps (2)

Changing the main beam
headlamps (4)



Unscrew the cover J .



Disconnect the connector.



Move aside the spring K to release

the bulb and remove it.

To reﬁ t, carry out these operations in

reverse order.

P R A C T I C A L I N F O R M A T I O N

132

Changing the integrated direction
indicator side repeaters



Push the repeater A towards the

rear and detach it.



Unclip the repeater.



Disconnect the repeater connector

and change the repeater.

To reﬁ t, carry out these operations in

reverse order.
To obtain repeaters, contact a CITROËN
dealer.

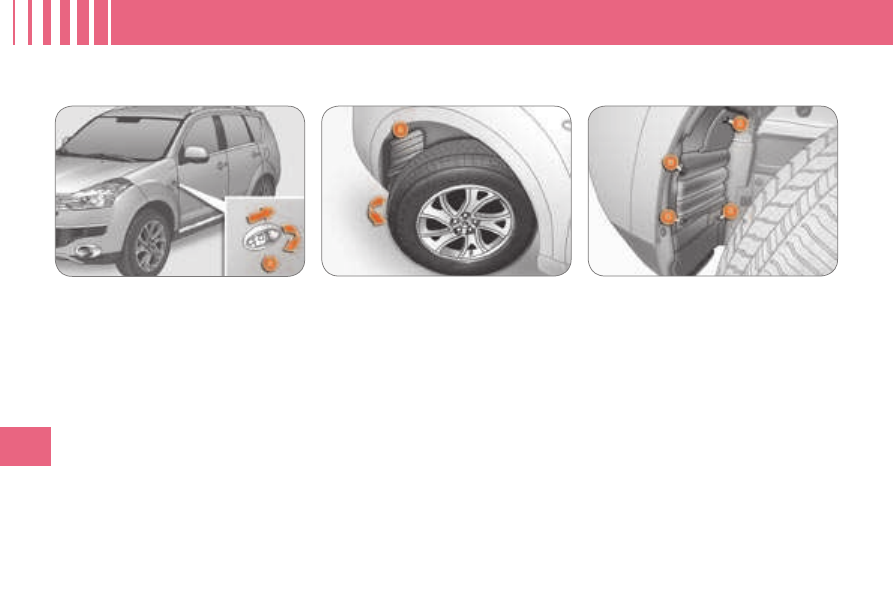

Changing the fog lamps (5)



Turn the wheel fully towards the out-

side for easy access to the ﬂ ap A

located in the wheelarch.



Using a screwdriver, remove the four

clips B located in the wheelarch.

P R A C T I C A L I N F O R M A T I O N

133



Using a screwdriver, remove the

three clips C located below the
bumper.



Lift the access ﬂ ap D located in the

wheelarch and slide it downwards.



Disconnect the connector E .



Turn the bulb F to the left and

remove it.

To reﬁ t, carry out these operations in

reverse order.

P R A C T I C A L I N F O R M A T I O N

134

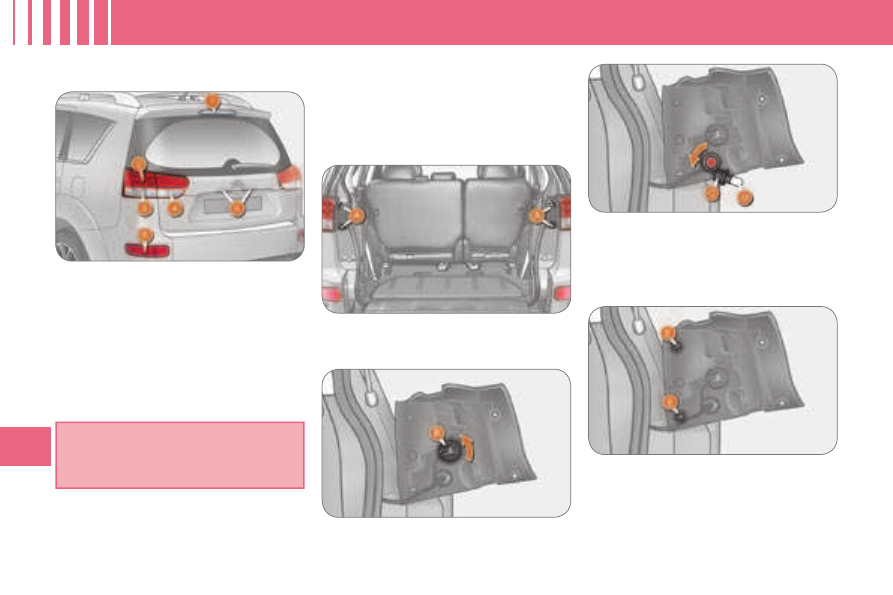

Rear lights

1. Third brake light (diodes).
2. Brake lights / Side lights

(21/5 - W21W - 5 W).

3. Direction indicators

(WY21W - 21 W).

  4.    Reversing lights (W21W - 21 W).
  5.    Number plate lights (W5W - 5W).
  6.    Fog lamps (W21W - 21 W).

  Changing the brake lights / side
lights and direction indicators
These  two  bulbs  are  changed  from
outside with the tailgate open:
   

Open the tailgate (refer to the

“Access” section),



Remove the two light ﬁ xing bolts A ,



Extract the light from outside,



Turn the pin C to the left and remove it.



Pull the bulb D and change it.

To reﬁ t, carry out these operations in

reverse order.



Turn the pin B to the left and remove it.



Pull the bulb and change it.

When reﬁ tting the light, align the

two pins E with the openings on the
vehicle.

Amber coloured bulbs, such as the
direction indicators, must be replaced

with bulbs of identical speciﬁ cation

and colour.

  Changing the third brake light
(diodes)
   All  work  on  the  diode  lights  must  be
carried out by a  CITROËN  dealer.

P R A C T I C A L I N F O R M A T I O N

135

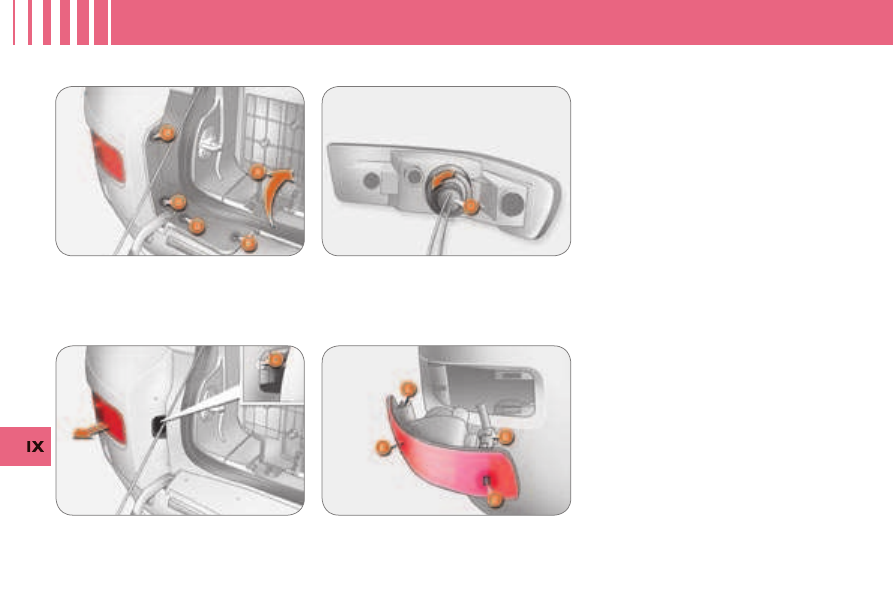

Changing the reversing lights



Open the tailgate (refer to the

“Access” section),



From the inside of the tailgate, in-

sert a screwdriver in the opening on
the cover A to use it as a lever to
open the cover.

Changing the number plate lights



Open the tailgate (refer to the

“Access” section) to gain access to
the number plate lights D ,



Remove the light unit D while

pressing it to the left.



Turn the pin B to the left and remove

it.



Pull the bulb C and change it.

To reﬁ t, carry out these operations in

reverse order.



Insert a thin screwdriver in the ope-

ning on the lens to press the tab E .



Remove the lens.



Pull the bulb and change it.

To reﬁ t, carry out these operations in

reverse order.



To reﬁ t the light unit, insert the end

of the tab F

ﬁ rst, then align the

tab G .

P R A C T I C A L I N F O R M A T I O N

136

Changing the fog lamps



Open the tailgate and the lower tail-

gate (refer to the “Access” section)
and fold down the cover A .



Remove the 4 clips B using a

screwdriver to detach the light
cover.



Remove the bolts C and remove the

light unit.



Turn the pin and bulb assembly D to

the left.



Remove the bulb.

To reﬁ t, carry out these operations in

reverse order.



When reﬁ tting the light unit, align

the clips E with the openings on the
bodywork.

P R A C T I C A L I N F O R M A T I O N

137

INTERIOR BULBS

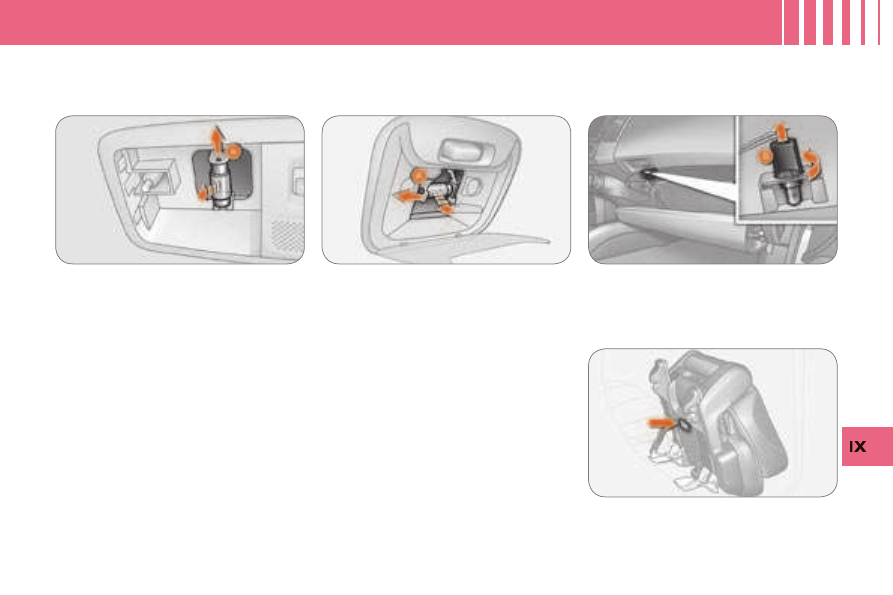

Front and rear courtesy lights



Insert a screwdriver to remove the courtesy light cover.



Remove the bulb while pressing the tab A .

To reﬁ t the cover, align the hooks on the holes located in the body of the vehicle.

Glove box light



Turn the pin B anticlockwise and re-
move it.



Remove the bulb.

Low level light



Insert a screwdriver to remove the

light cover.



Remove the bulb.

P R A C T I C A L I N F O R M A T I O N

138

CHANGING A FUSE

Access to the tools

The extraction pliers are installed in the

engine compartment fuse box.
To gain access to them:


Open the bonnet (refer to the

“Access” section),



Press on the hook A and release the

catch,



Remove the cover completely,



Remove the pliers B .

CITROËN will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for

rectifying  the  malfunctions  resulting
from  the  installation  of  accessories
not  supplied  and  not  recommended
by  CITROËN  and not installed in ac-
cordance with its instructions, in par-
ticular when the consumption of all of
the  additional  equipment  connected

exceeds 10 milliamperes.

Your  vehicle’s  electrical  system  is
designed  to  operate  with  standard
or optional equipment.
   Before  installing  other  electrical
equipment  or  accessories  in  your
vehicle, contact a  CITROËN  dealer.

Changing a fuse

Before changing a fuse, the cause of the

failure must be identiﬁ ed and rectiﬁ ed.


Identify the faulty fuse by checking

the condition of its ﬁ lament.



Use the special pliers to extract the

fuse from its location.



Always replace the faulty fuse with

a fuse of the same rating.



Check the correspondence between

the number etched on the box, the

rating etched on the top and the
tables below.

Correct

Incorrect

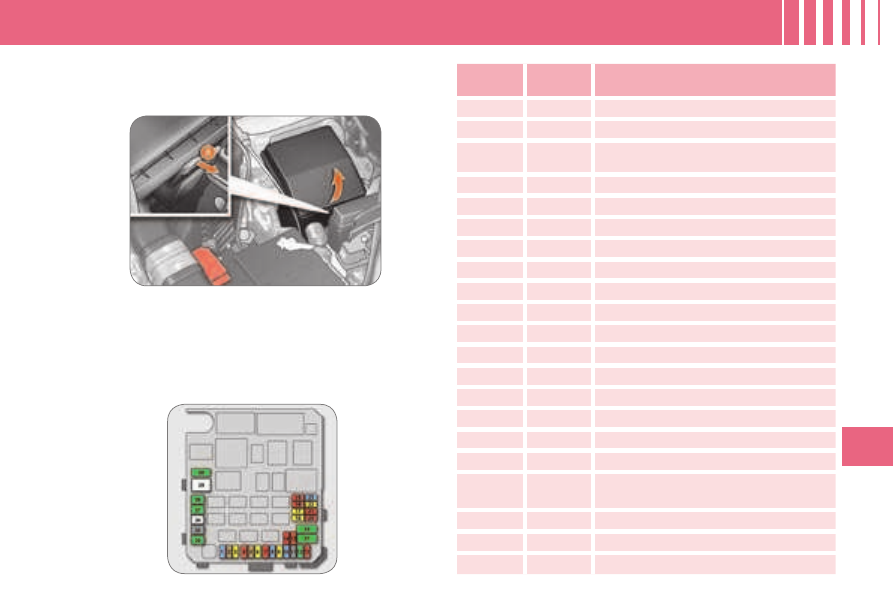

The spare fuses are located on the

engine compartment fuse box cover.

Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure in the corresponding function.

P R A C T I C A L I N F O R M A T I O N

139

Fascia fuses

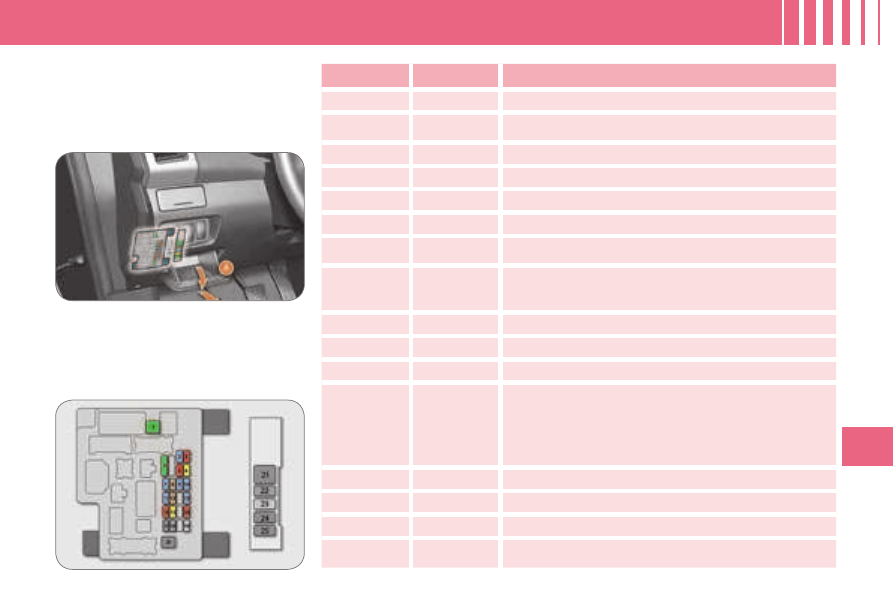

The fuse boxes are placed in the lower

part of the fascia behind the enclosed
storage compartment (left-hand side).

Access to the fuses


Open the cover A ,



Pull it towards you to extract it,



Change the fuse (refer to the

corresponding paragraph).

Fuse N°

Rating

Functions

30 A

Heating.

15 A

Brake lights, third brake light, built-in systems
interface.

10 A

Rear fog lamps.

30 A

Windscreen wipers and wash-wipe.

10 A

Diagnostic socket.

20 A

Central locking, exterior mirrors.

15 A

Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.

7.5 A

Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.

15 A

Multifunction display, instrument panel.

15 A

Built-in systems interface.

15 A

Rear wiper.

7.5 A

Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.

Not used.

10 A

Ignition switch.

20 A

Sunroof.

10 A

Exterior mirrors, audio equipment, telematics, rear

DVD player.

P R A C T I C A L I N F O R M A T I O N

140

Access to the fuses


Open the cover A ,



Pull it towards you to extract it,



Change the fuse (refer to the

corresponding paragraph).

* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried

out by a CITROËN dealer.

Fuse N°

Rating

Functions

10 A

4 wheel drive control unit.

7.5 A

Reversing lights, parking assistance control unit,
reversing camera, air bags control unit.

15 A

Accessories socket.

20*

30 A

Electric window controls.

30 A

Rear screen demisting.

7.5 A

Heated exterior mirrors.

Not used.

25 A

Driver’s electric seat, footwell lighting, releasing of
the rear bench seat.

30 A

Heated seats.

P R A C T I C A L I N F O R M A T I O N

141

Engine compartment fuses

The fuse box is placed in the engine compartment near the

battery (left-hand side).

Access to the fuses


Open the bonnet (refer to the “Access” section),



Press on the hook A to release the catch,



Remove the cover completely,



Change the fuse (refer to the corresponding paragraph).



When you have ﬁ nished, close the cover carefully to

guarantee the sealing of the fuse box.

Fuse N°

Rating

Functions

15 A

Front fog lamps.

7 A

Engine ECU 2.4 litre 16 V

20 A

CVT automatic gearbox ECU, relay

CVT automatic gearbox ECU

10 A

Horn.

7.5A

Alternator 2.4 litre 16V

20 A

Headlamp wash.

10 A

Air conditioning.

15 A

Engine ECU 2.4 litre 16 V

Not used.

15 A

Demisting, wipers.

Not used.

10 A

Left-hand main beam headlamp.

10 A

Right-hand main beam headlamp.

20 A

Left-hand dipped headlamp (xenon).

20 A

Right-hand dipped headlamp (xenon).

10 A

Left-hand dipped headlamp, manual

and automatic headlamp

adjustment.

10 A

Right-hand dipped headlamp.

Not used.

10 A

Ignition coils

P R A C T I C A L I N F O R M A T I O N

142

Spare fuses
The spare fuses are located under the engine compartment

fuse box cover.

The cover does not contain spare fuses with an amper-
age of 7.5 A, 25 A or 30 A. If one of the fuses with these
amperages develops a fault, replace it with the following
fuse:
A  7.5 A fuse  must be replaced with the  10 A spare fuse ,
a  25 A fuse  with a  20 A spare fuse  and a  30 A fuse  with
the  audio system fuse (N° 31) .

* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried

out by a CITROËN dealer.

Fuse N°

Rating

Functions

20 A

Engine control unit, water in diesel detector, injection pump (Diesel), air ﬂ ow sensor.

15 A

Petrol pump, fuel gauge.

30 A

Starter.

Not used.

40 A

ABS control unit, ASC control unit.

27*

30 A

ABS control unit, ASC control unit.

30 A

Condenser fan.

40 A

Radiator fan.

30 A

Passenger compartment fuse box.

30 A

Audio ampliﬁ er.

30 A

Engine control unit

Fuse N°

Rating

10 A

15 A

20 A

Citroen C-Crosser Dag (2008 year). Instruction - part 9
