FUEL TANK

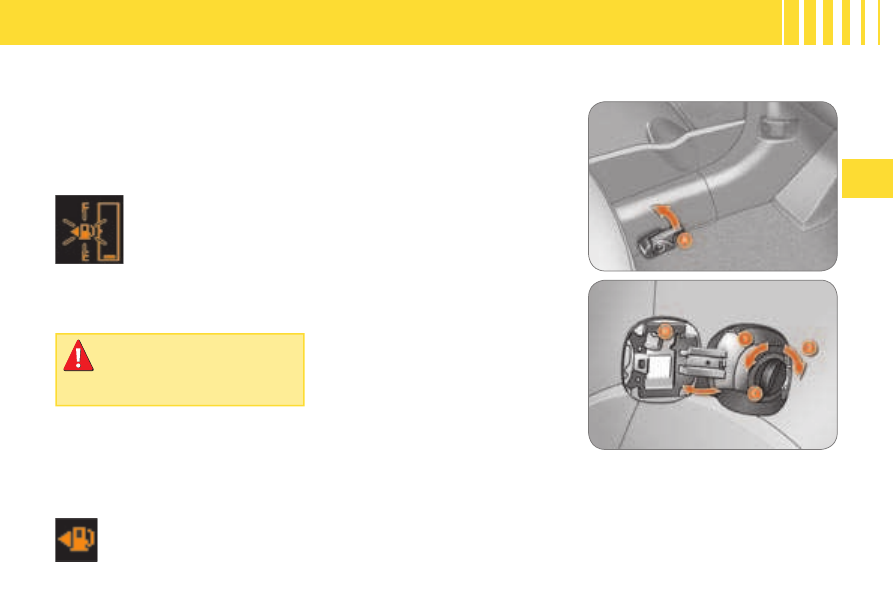

To ﬁ ll the tank safely:


it is imperative that the engine is

switched off,



pull the control A located at the bot-

tom left of the driver’s seat to re-

lease the fuel ﬁ ller ﬂ ap,



open the fuel ﬁ ller ﬂ ap B ,



turn the cap C to the left,

When you have ﬁ lled the tank:


reﬁ t the cap, inserting the upper part

ﬁ rst,



screw in the cap to the right,



close the ﬂ ap.

Ensure that the fuel ﬁ ller ﬂ ap is closed

correctly.



remove the cap C ,



ﬁ ll the tank, but do not continue

after the 3

cut-off of the nozzle ;

this could cause malfunctions.

Low fuel level

Filling

A label, afﬁ xed on the inside of the ﬂ ap,

reminds you of the type of fuel to be
used in relation to your engine.

When the tank’s minimum

level is reached (approxi-

mately 10 litres), this indica-
tion appears on the instru-
ment panel display.
The symbol

ﬂ ashes slowly

(approximately once per second).
  You  have  enough  fuel  remaining
to  drive  approximately  30  miles
(50 km)  .

When the symbol begins to

ﬂ ash rapidly (approximately

twice per second), there is not

much fuel remaining in your tank (ap-

proximately 5 litres).

This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.

Location of the cap

1. Opening.
2. Closing.

System for ﬁ lling with fuel, after taking

into account the detection of the associ-
ated low level.
Capacity of the tank: approximately
60 litres.

V I S I B I L I T Y

LIGHTS STALK

Main lighting

The  various  front  and  rear  lights  of
the  vehicle  are  designed  to  adapt  the
driver’s visibility progressively in relation
to the climatic conditions:
   -

side lights, to be seen,

dipped headlamps to see without
dazzling other drivers,

main beam headlamps to see clearly
when the road is clear.

Additional lighting

Other lights are installed to fulﬁ l the re-

quirements of particular driving condi-
tions:
-

rear fog lamps to be seen from a
distance,

front fog lamps for even better
visibility,

daytime lights to be seen during the
day.

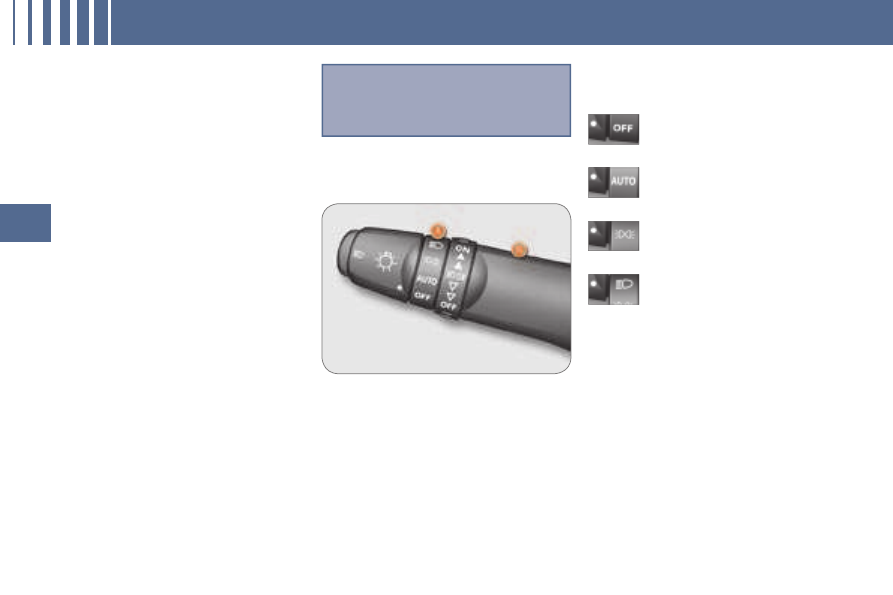

Manual controls

The lighting commands are issued di-
rectly by the driver by means of the ring
A and the lever B .

lights off,

automatic switching on of the
lights,

side lights only,

B. lever for inversion of the lights by

pulling: dipped headlamps / main
beam headlamps.

In the lights off and side lights modes,
the driver can switch on the main beam

headlamps directly (“headlamp ﬂ ash”)

for as long as he pulls the lever.

Displays

Lighting of the corresponding indicator

light on the instrument panel conﬁ rms

the selective switching on of the lighting
selected.

A. main lighting mode selection ring,

with:

dipped headlamps or main
beam headlamps.

System for selection and control of the
various front and rear lights providing
the vehicle’s lighting.

Certain functions of the lights stalk
(automatic lighting, sensitivity) can

be conﬁ gured via the colour display

“Equipment” menu.

V I S I B I L I T Y

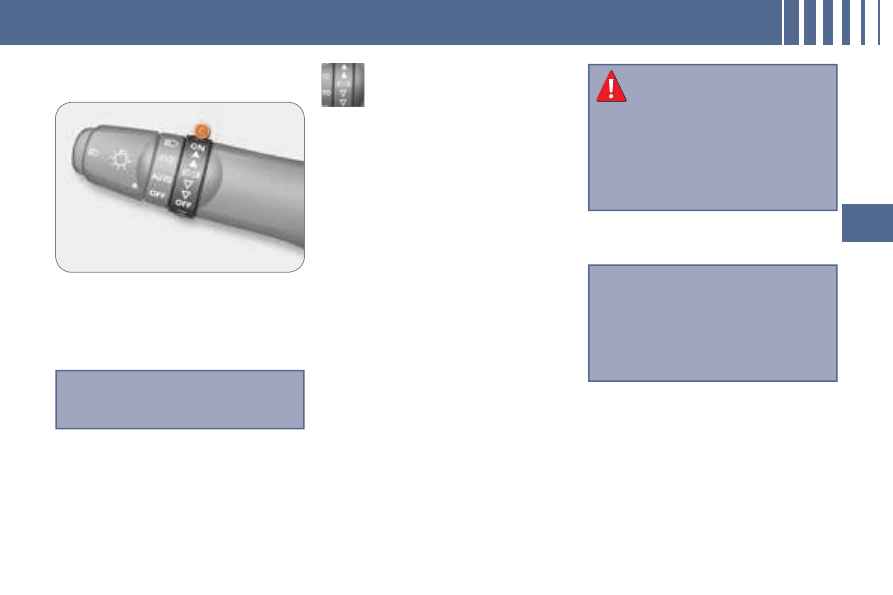

Front and rear fog lamps

C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps.

front and rear fog lamps



To switch on the front fog lamps,

turn the push ring C forwards one
notch.



To switch on the rear fog lamps, turn

the push ring C forwards two notch-
es.



To switch off the front fog lamps,

turn the push ring C rearwards one
notch.



To switch off the rear fog lamps,

turn the push ring C rearwards two
notches.

The  ring   C   returns  to  its  initial  position
automatically.
The front fog lamps are switched on au-
tomatically when you switch on the rear
fog lamps.
The  rear  fog  lamps  are  switched  off
automatically  when  you  switch  off  the
dipped/main  beam  headlamps  or  the
front fog lamps.
On  vehicles  ﬁ tted  with  daytime  lights,

the rear fog lamps can be switched on
even if the lights stalk is in the “OFF”
position.

      In good or rainy weather, both
day  and  night,  the  front  fog
lamps  and  the  rear  fog  lamps

are  prohibited.  In  these  situations,
the power of their beams may dazzle
other drivers.
Do  not  forget  to  switch  off  the  front
fog  lamps  and  the  rear  fog  lamps
when they are no longer necessary.

  Lights on buzzer
The  triggering  of  an  audible  signal
when  the  driver’s  door  is  opened
warns  the  driver  that  he  has  forgot-
ten  to  switch  off  his  vehicle’s  lights,
with the ignition off.
In  this  case,  switching  off  the  lights
stops the audible signal.

If condensation is present, it is advis-
able to switch the headlamps on for a
few minutes in order to clear it.

V I S I B I L I T Y

In foggy weather or in snow,
the brightness sensor can de-

tect sufﬁ cient light. The lights

will not come on automatically.
Do not cover the brightness sensor,
the associated functions will no long-
er be controlled.

Automatic lighting

Daytime lights *

* According to country.

This warning light comes on
on the instrument panel.

The  instruments  and  controls  (instru-
ment  panel,  multifunction  display,  air
conditioning control panel, ...) are lit.

Automatic switching off

When the lights stalk is at “dipped head-
lamps or main beam headlamps”, if the
ignition switch is at “LOCK” or “ACC” or
if  the  key  has  been  removed  from  the
ignition switch, the lights switch off au-
tomatically   when  the  driver’s  door  is
opened .

On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.

The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a

low level of exterior light is detected or

if the wipers are switched on.
When the light returns to a sufﬁ cient

level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a CITROËN dealer to adjust
the sensitivity of the sensor.

The sensitivity of the automatic light-

ing can be conﬁ gured via the colour

display “Equipment” menu.

V I S I B I L I T Y

MANUAL ADJUSTMENT
OF THE HEADLAMPS

  To avoid dazzling other road users, the
height  of  the  headlamps  must  be  ad-
justed  in  relation  to  the  load  in  the  ve-
hicle.

AUTOMATIC HEADLAMP
ADJUSTMENT

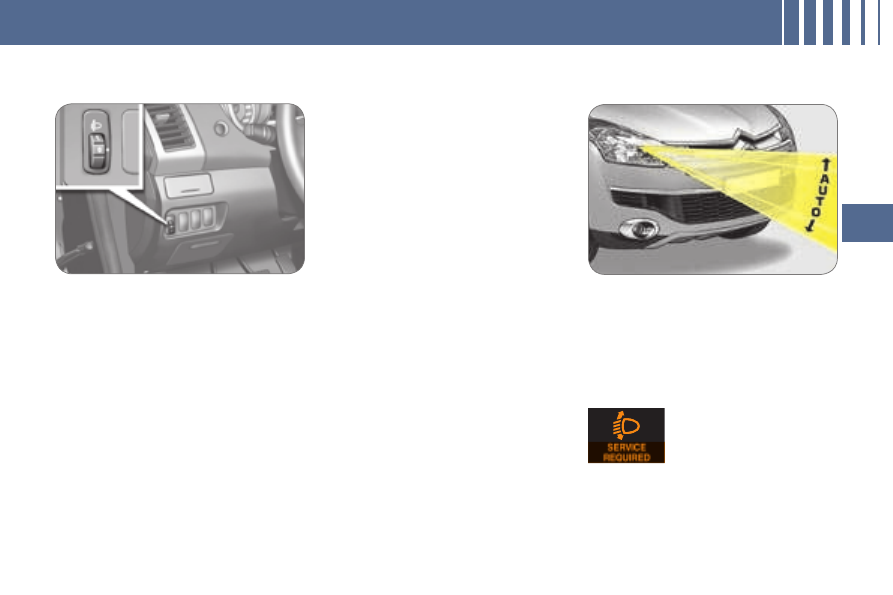

On vehicles with xenon bulbs: when

stationary ,  the  system  automatically
corrects  the  height  of  the  beam,  what-
ever  the  load  of  the  vehicle.  The  driv-
er  is  then  assured  of  having  optimum
lighting  and  not  causing  a  nuisance  to
other road users.

In cases of malfunction ,
this message appears on
the multifunction display.

7-seat version

0. Driver only or Driver

+ 1 passenger in the front.

1 or 2. Driver + 1 passenger in the

front + 2 passengers on the
third bench seat.

3. 7 occupants (including the driver

with or without maximum authorised

load).

Driver + maximum authorised load.

5-seat version

0. Driver only or Driver

+ 1 passenger in the front.

1 or 2. 5 occupants

(including the driver).

3. 5 occupants (including the driver) +

maximum authorised load.

Driver + maximum authorised load.

Do not touch the xenon bulbs. Consult

a CITROËN dealer.

V I S I B I L I T Y

WIPER CONTROLS

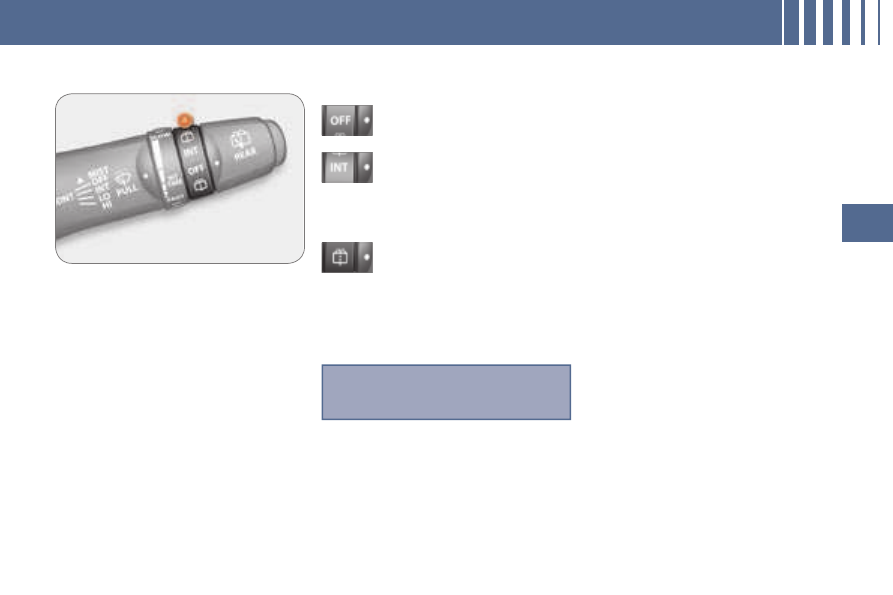

Manual controls

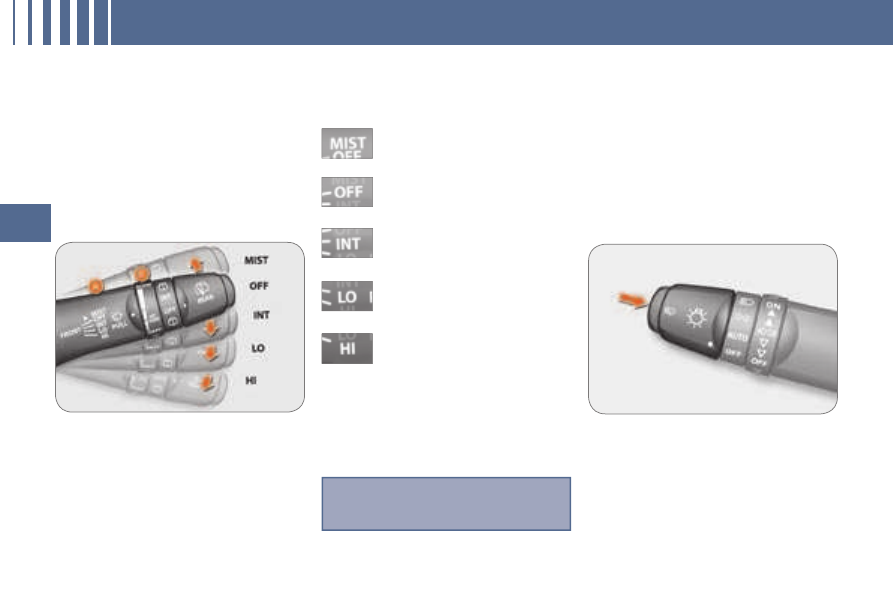

The wiper commands are issued direct-
ly by the driver by means of the lever A
and the ring B .

single wipe.

Windscreen wipers
A. wiping speed selection lever:

park.

intermittent (the speed can be
set manually),

slow.

fast.

B. intermittence adjustment ring.
You can increase or decrease the
wiping frequency when the intermittent
mode is active.

Windscreen wash

Pull  the  wipers  stalk  towards  you.
The  windscreen  wash  then  the  wipers
operate for a set time.
The headlamp wash is also activated  if
the dipped headlamps are on .

Headlamp wash

Press the end of the lights stalk to
activate the headlamp wash, when the
dipped headlamps are on.

System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle’s various front and rear wip-
ers are designed to improve the driver’s
visibility progressively in relation to the
climatic conditions.

Certain windscreen wiper functions

(intermittence, ...) can be conﬁ gured

via the colour display “Equipment”
menu.

V I S I B I L I T Y

A. rear wiper selection ring:

park

intermittent wipe

wipe with screen wash

Rear wiper

The wiper wipes twice then switches to
intermittent mode with an interval of a
few seconds.

Keep the ring in this position to operate
the screen wash with several wipes of
the wiper.

The intermittence of the rear wiper

can be conﬁ gured via the colour

display “Equipment” menu.

V I S I B I L I T Y

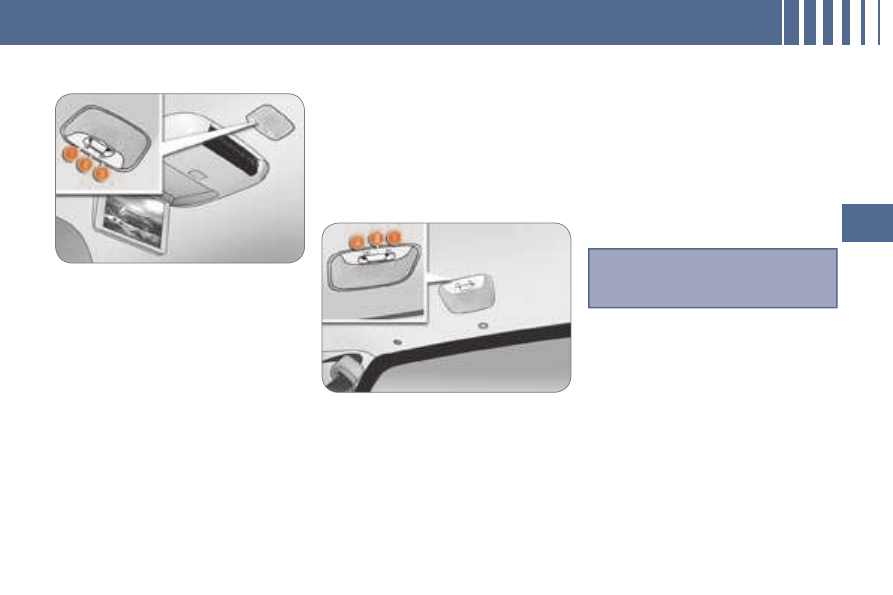

COURTESY LIGHTS

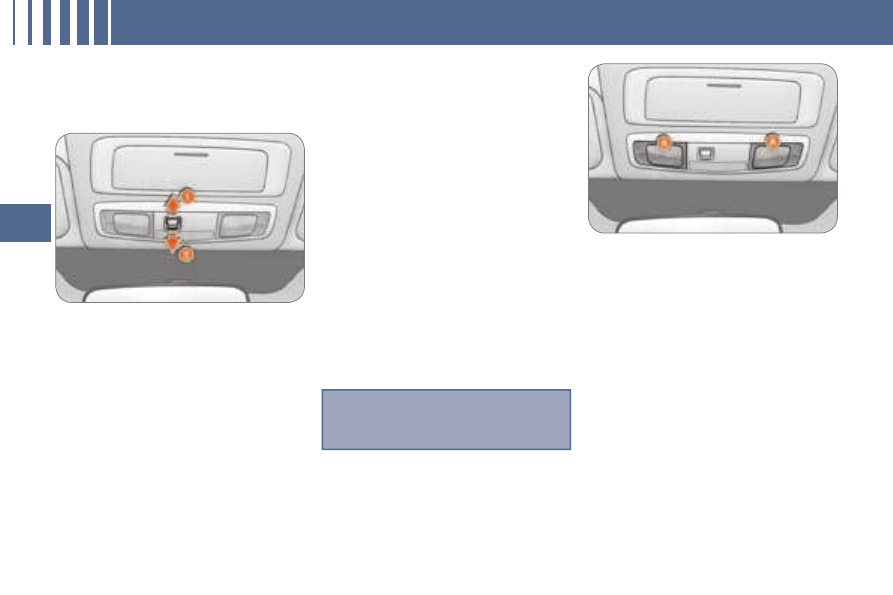

Front courtesy light

Map reading lights

There  are two map reading  lights,  one
on each side of the courtesy light.
Press  the  corresponding  transparent
block  A .

  Position 1
The  courtesy  light  comes  on  when  a
door or the tailgate is opened.
When the door or the tailgate is closed
again,  the  lighting  gradually  dims  for  a
few seconds before switching off.
However, the courtesy light is switched
off automatically in the following cases:
   -

When the doors and the tailgate
are closed and the ignition switch is
placed in the “ON” position.

When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.

System for selection and control of the
various passenger compartment lights.

Position 2
The courtesy light is off, regardless of
whether the doors or tailgate are open
or closed.

The durations of lighting of the front

courtesy lights can be conﬁ gured

via the colour display “Equipment”
menu.

V I S I B I L I T Y

Rear courtesy light

Position 1 “ON”
The courtesy light is permanently on.

When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.

Automatic switching off
of the courtesy lights

To  prevent  discharging  of  the  battery,
the  courtesy  lights  and  map  reading
lights  switch  off  automatically  after
30 minutes.
The  courtesy  lights  are  switched  on
again  if  the  ignition  switch  is  placed  in
the “ON” or “ACC” position, if you open
then  close  a  door  or  the  tailgate  or  if
you use the remote control.

Boot courtesy light

  Position 1 “ON”
The  courtesy  light  is  on,  regardless  of
whether the tailgate is open or closed.

  Position 2 “ ”
The  courtesy  light  comes  on  when  a
door  or  the  tailgate  is  opened.  When
the door or the tailgate is closed again,
the  lighting  gradually  dims  for  a  few
seconds before switching off.
However, the courtesy light is switched
off immediately in the following cases:
   -

When the doors and the tailgate
are closed and the ignition switch is
placed in the “ON” position.

Position 3 “OFF”
The courtesy light is permanently off.

Position 2 “ ”
The courtesy light comes on if the tail-
gate is opened and switches off when
the tailgate is closed.

  Position 3 “OFF”
The  courtesy  light  is  off,  regardless  of
whether the tailgate is open or closed.

The durations of lighting of the rear

courtesy lights can be conﬁ gured

via the colour display “Equipment”
menu.

C H I L D S A F E T Y

Although one of CITROËN’s main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.

INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT

Intermediate longitudinal position

* The rules for transporting children are

speciﬁ c to each country. Consult the

current legislation in your country.

GENERAL POINTS RELATING
TO CHILD SEATS

“Forwards-facing”

“Rearwards-facing”

For maximum safety, please follow

these precautions:
-

in accordance with Directive
2003/20, all children under the
age of 12 or less than one me-

tre ﬁ fty * tall must travel in ap-

proved child seats suited to
their weight ,

on seats ﬁ tted with

a seat belt or ISOFIX mountings * ,

statistically, the safest seats in
your  vehicle  for  the  transpor-
tation  of  children  are  the  rear
seats,

a child weighing less than 9 kg
must  travel  in  the  “rearwards-
facing”  position  both  in  the
front and in the rear.

When

“rearwards-facing”

child seat is installed on the

front passenger seat , it is

essential that the passenger

air bag is disarmed. Otherwise, the

child would risk being seriously

injured or killed if the air bag were

to inﬂ ate.

  CITROËN    recommends   that  children
should travel in the  rear seats  of your
vehicle:
   -

“rearwards-facing” up to the age
of 2,

“forwards-facing” over the age
of 2.

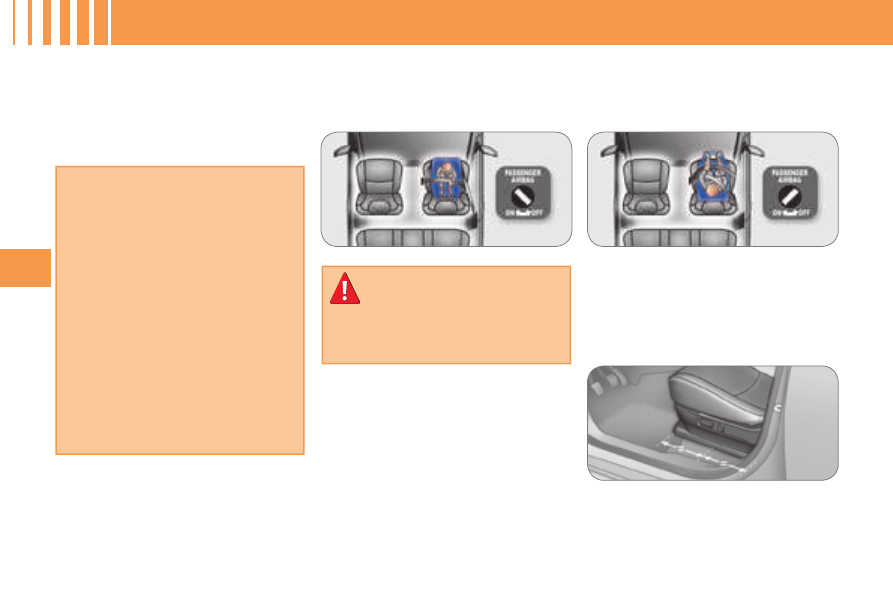

When  a  “forwards-facing”  child  seat  is
installed on the  front passenger seat ,
adjust the vehicle’s seat to the interme-
diate longitudinal position with the seat
back  upright  and  leave  the  passenger
air bag armed.

C H I L D S A F E T Y

ADVICE ON CHILD SEATS

The incorrect installation of a

child  seat  in  a  vehicle  compromises
the child’s protection in the event of an
accident.
Remember to fasten the seat belts or
the  child  seat  harnesses  keeping  the
slack in relation to the child’s body to a
minimum, even for short journeys.
For  optimum  installation  of  the  “for-
ward  facing”  child  seat,  ensure  that
the back of the child seat is in contact
with the back of the vehicle’s seat and
that the head restraint does not cause
any discomfort.
If  the  head  restraint  has  to  be  re-
moved,  ensure  that  it  is  stored  or  at-
tached securely to prevent it from be-
ing  thrown  around  the  vehicle  in  the
event of sharp braking.
Children under the age of 10 must not
travel  in  the  “forward  facing”  position
on  the  front  passenger  seat,  unless
the rear seats are already occupied by
other  children,  cannot  be  used  or  are
absent.
Disarm  the  passenger  air  bag  when
a  “rear  facing”  child  seat  is  installed
on the front seat. Otherwise, the child
would  risk  being  seriously  injured  or

killed if the air bag were to inﬂ ate.

  Installing a booster seat
The  chest  part  of  the  seat  belt  must
be  positioned  on  the  child’s  shoulder
without touching the neck.
Ensure  that  the  lap  part  of  the  seat
belt  passes  correctly  over  the  child’s
thighs.
  CITROËN   recommends  the  use  of

a booster seat which has a back, ﬁ t-

ted with a seat belt guide at shoulder
level.

As a safety precaution, do not leave:
-

one or more children alone and un-
supervised in a vehicle,

a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

the keys within reach of children
inside the vehicle.

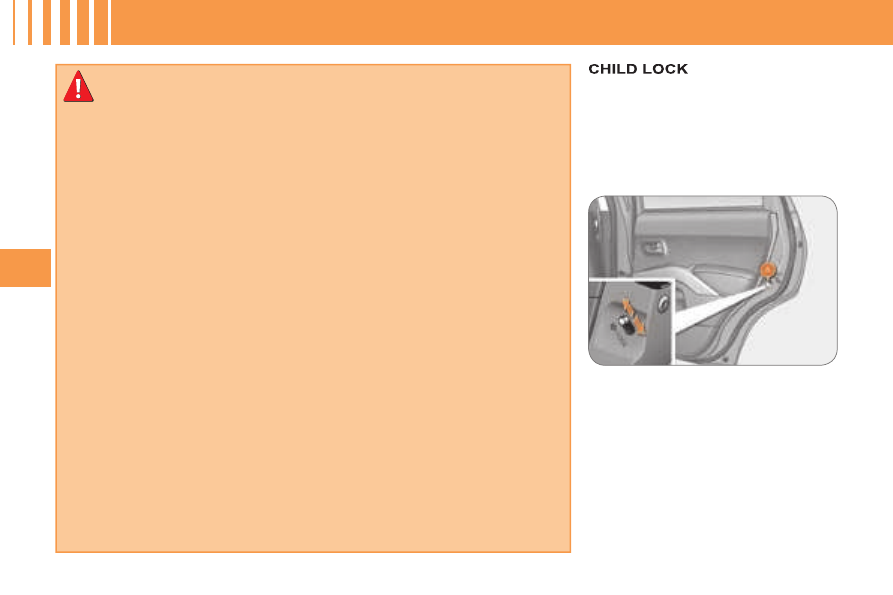

To  prevent  accidental  opening  of  the
doors, use the “Child lock”.
Take  care  not  to  open  the  rear  win-
dows by more than one third.
To  protect  young  children  from  the

rays of the sun, ﬁ t side blinds on the

rear windows.



Lower the control A to position 1 .

Locking

Unlocking


Raise the control A to position 2 .

Mechanical system to prevent opening
of  the  rear  door  using  its  interior  con-
trol.
The  control  is  located  on  the  edge  of
each rear door.

C H I L D S A F E T Y

Although one of CITROËN’s main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.

INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT

Intermediate longitudinal position

* The rules for transporting children are

speciﬁ c to each country. Consult the

current legislation in your country.

GENERAL POINTS RELATING
TO CHILD SEATS

“Forwards-facing”

“Rearwards-facing”

For maximum safety, please follow

these precautions:
-

in accordance with Directive
2003/20, all children under the
age of 12 or less than one me-

tre ﬁ fty * tall must travel in ap-

proved child seats suited to
their weight ,

on seats ﬁ tted with

a seat belt or ISOFIX mountings * ,

statistically, the safest seats in
your  vehicle  for  the  transpor-
tation  of  children  are  the  rear
seats,

a child weighing less than 9 kg
must  travel  in  the  “rearwards-
facing”  position  both  in  the
front and in the rear.

When

“rearwards-facing”

child seat is installed on the

front passenger seat , it is

essential that the passenger

air bag is disarmed. Otherwise, the

child would risk being seriously

injured or killed if the air bag were

to inﬂ ate.

  CITROËN    recommends   that  children
should travel in the  rear seats  of your
vehicle:
   -

“rearwards-facing” up to the age
of 2,

“forwards-facing” over the age
of 2.

C H I L D S A F E T Y

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured
using a three point seat belt :

Passenger air bag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

“ROMER Baby-Safe Plus”

Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

“KIDDY Life”

For the safety of young children

(from 9 to 18 kg),

CITROËN recommends use

of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

“RECARO Start’’

“KLIPPAN Optima”

From the age

of 6 years

(approximately

22 kg), the booster

is used on its own.

C H I L D S A F E T Y

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child seats se-
cured using a seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.

(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before installing your child on this seat.
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved, “rear facing” and/or

“forward facing”.

X: seat not suitable for the installation of a child seat of the weight group indicated.
L-: only the child seats indicated can be installed on the seat concerned (according to country).

Seat

Weight of the child and indicative age

Less than 13 kg

(groups 0 (b) and 0+)

Up to ≈ 1 year

From 9 to 18 kg

(group 1)

From 1 to

≈ 3 years

From 15 to 25 kg

(group 2)

From 3 to

≈ 6 years

From 22 to 36 kg

(group 3)

From 6 to

≈ 10 years

Front passenger seat
(c) with passenger
air bag activated

L3, L4

Front passenger seat
(c) with passenger
air bag disarmed

L3, L4

Rear side seats
(row 2)

Rear centre seat
(row 2)

L3, L4

Rear side seats
(row 3)

L3, L4

C H I L D S A F E T Y

The incorrect installation of a child
seat in a vehicle compromises
the child’s protection in the event
of an accident.

For information regarding the ISOFIX
child seats which can be installed in
your  vehicle,  consult  the  summary
table  for  the  location  of  the  ISOFIX
child seats.

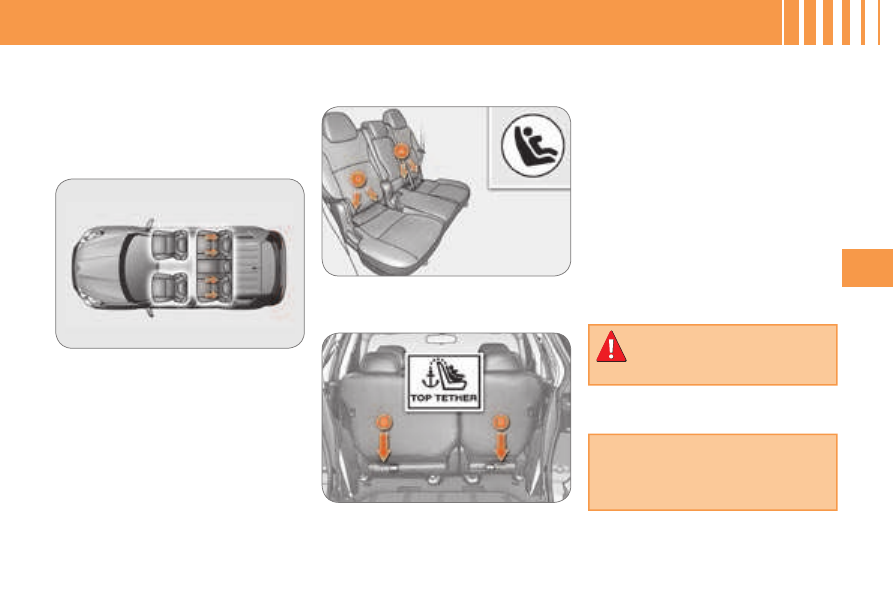

“ISOFIX” MOUNTINGS

These are three rings for each seat:

two rings A , located between the

vehicle seat back and cushion,
indicated by a label,

a ring B ,

used to ﬁ x the upper strap,

referred to as the TOP TETHER ,
indicated by a label.

This ISOFIX mounting system guaran-

tees you fast, reliable and safe ﬁ tting of

the child seat in your vehicle.
The ISOFIX child seats

are ﬁ tted with

two  locks  which  are  secured  easily  on
the two rings  A .
Some also have an  upper strap  which
is attached to the ring  B .
To  attach  this  strap,  remove  the  vehi-

cle seat’s head restraint. Then ﬁ x the

hook on the ring B and tighten the up-
per strap.

Your vehicle has been approved in ac-
cordance with the new ISOFIX regula-
tion .
The seats, represented below, are ﬁ tted

with regulation ISOFIX mountings:

C H I L D S A F E T Y

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE

This child seat can also be used on seats which are not ﬁ tted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for ﬁ tting the child seat given in the seat manufacturer’s installation guide.

ISOFIX RÖMER Duo Plus (size category B1 )

Group 1: from 9 to 18 kg

Installed in the forward facing position.

Fitted with an upper strap to be secured on the ISOFIX upper ring,

referred to as the TOP TETHER.

Three seat body angles: sitting, reclining, lying.

Citroen C-Crosser Dag (2008 year). Instruction - part 6
