C O M F O R T

Rear armrest

Lower the armrest to use it.
To return to the initial conﬁ guration,

push the armrest until it locks in its ver-
tical position.

Access to the third row

The  passenger  gains  access  to  the
third  row  of  seats  by  tilting  a  second
row seat.
To  put  this  seat  back  in  place,  refer  to
the following pages.

C O M F O R T

Folding the second row

1. Raise the rear seat lever A , or

Pull the button in the boot B for at least one second, or
Pull the rear seat releasing strap C towards you.

2. The seat backs fold forwards then the cushion rises and folds forwards.
3. After carrying out these operations, press on the seat lightly to check that it is secured correctly.

Before folding the seats, lower the head restraints fully.
Before folding the seat backs forwards, insert the seat belt buckles in the slots provided for this purpose in the rear seat
cushion.

Before folding the seats , ensure that no object or person is hindering the execution of the operations.
Do not place luggage on the folded seats.

C O M F O R T

Returning the second row to the normal position

1. Lower the seat pulling simultane-

ously on the releasing strap A lo-
cated at the rear of the cushion and
supporting the seat with your hand.

Force may be necessary to carry out these operations.
On vehicles ﬁ tted with a third row, the rear of the cushion of the second row is ﬁ tted with a low light B .

When the releasing strap is pulled, the light comes on for approximately 10 seconds to light the ﬂ oor at the base of the

third row.

2. Press on the cushion to put it in

place until it engages.

3. Pull the seat back upright pulling si-

multaneously on the releasing strap
located at the rear of the seat back.

4. After putting the seat back back in

place,  push  the  seat  and  the  seat
back  lightly  to  ensure  that  they  are
secured correctly.

C O M F O R T

“Lowered seats” configuration

   1.   Remove the head restraints from the front seats.
  2.   Raise the rear armrest and remove the load space cover.
  3.   Move the rear seats as far back as possible.
  4.   Move the front seats as far forward as possible and tilt their seat backs fully.
  5.   Tilt the seat back of the rear seats.

To return the seats to their normal position, carry out these operations in reverse order.

C O M F O R T

REAR BENCH SEAT (ROW 3)

The rear bench seat can be folded. It

retracts into a location in the ﬂ oor of the

vehicle.

The label on the bench seat back illus-
trates  the  various  steps  to  be  followed
when  unfolding  and  folding  the  rear
bench seat.

1. Open the tailgate and the lower tail-

gate (refer to the “Access section”).

2. Pull the cover A from the rear and

ﬁ x it to the seat back using the press

stud of the band B .

Unfolding the bench seat

For comfort, it is advisable to fold the
bench seat when its is not is use.

C O M F O R T

3. Pull the black strap C located at the

centre of the seat back to raise the
seat back.

4. Pull the black strap D to release the

bench seat cushion.

5. Tilt the bench seat rearwards.

6. Raise the head restraints.

7. Lift and push the bench seat assem-

bly forwards until it locks.

Undo the press stud of band B to re-
lease the cover.

C O M F O R T

1. Open the tailgate and the lower tail-

gate (refer to the “Access” section).

2. Lift the cover A

and ﬁ x it to the seat

back using the press stud of the
band B .

3. Unlock the head restraints by sliding

the controls C and fold them onto
the seat back.

4. Pull the grey strap D and bring the

bench seat towards you. Press on
the bench seat to lock it.

5. Tilt and push the bench seat for-

wards.

6. Pull the black strap E located at the

centre of the seat back to fold the
seat back.

Undo the press stud of the band B to
put the cover back in place.

Folding the bench seat

C O M F O R T

EXTERIOR MIRRORS

Electric folding / unfolding
-

from inside, with the ignition switch
in the “ON” or “ACC” position



by pressing the control C .

from inside, with the ignition switch
in the “LOCK” position:



by pressing the control C, within
30 seconds.

from outside using the remote
control:



by pressing the “closed padlock”

button brieﬂ y 3 times to fold

them,



by pressing the “open padlock”

button brieﬂ y 3 times to unfold

them.

  Adjustment
The  mirrors  can  be  adjusted  when  the
ignition  switch  is  in  the  “ON”  or  “ACC”
position.
   

Move  control   A   to  the  right  or  to
the  left  to  select  the  corresponding
mirror.



Direct control B in all four direc-
tions to adjust the mirror.

When adjustment is complete, return
control A to the central position.

If you switch the engine off then re-
start  it  with  the  mirrors  folded,  they
will  unfold  automatically  when  the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded man-
ually or electrically after starting the
engine, they are not unfolded  auto-
matically.
In this case:
   

Press the control C to unfold

them.

If you have folded the mirrors
using the control C , you must
use this control to unfold them,

otherwise the mirrors will not be
locked correctly.

The folding and unfolding of the exte-

rior mirrors can be conﬁ gured via the

colour display “Equipment” menu or
deactivated by a CITROËN dealer.

The mirrors can also be folded manually.

C O M F O R T

INTERIOR MIRROR

Adjust the mirror by moving it up or
down and/or to the left or right.
The interior mirror has two positions:
-

day (normal),

night (anti-dazzle).

To change from one to the other, push
or pull the lever on the lower edge of
the mirror.

MANUAL STEERING WHEEL
HEIGHT ADJUSTMENT



Pull the locking lever downwards

(position B ) while supporting the
steering wheel.



Adjust the steering wheel to the re-

quired height.



Lock the steering wheel by push-
ing the lever upwards (position A ).

The sun visors fold forwards, and to the
side when they are unhooked.
They are ﬁ tted with a courtesy mirror

and a ticket holder.

As  a  safety  precaution,  it  is
imperative  that  these  opera-
tions are carried out while the
vehicle is stationary.

C O M F O R T

FRONT INTERIOR LAYOUT

    1.   Spectacles storage.
  2.   Storage compartment.
  3.

Upper glove box with

air conditioning.

Lower glove box with lock.

5. Lighter

12 volt socket (120 W max).

6. Armrest with storage compartments

12 volt socket (120 W max).

  7.   Cup holder.
  8.   Removable ashtray.
  9.   Bottle holder.
  10.  Enclosed storage compartment.
  11.  Cup holder.

C O M F O R T

Upper glove box with
air conditioning

Storage box

Press the front part of the lid to open.
To close, fold down the lid until it locks.

Press button A on the lid to open it.
To close it, push the lid up.
It is ﬁ tted with a ventilation nozzle which

can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment.

Spectacles storage

Press the cover to open it.
To close it, push the cover until it locks.

C O M F O R T

Lower glove box

This is ﬁ tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle A .
To close it, push the lid up.
To lock it, turn the key to the right.
It is ﬁ tted with a pen holder and a card

holder.
It is lit on opening when the lights stalk
is activated.

Lighter
12 volt socket (120 W max)

When the ignition switch is in the “ON”
or “ACC” position, press the lighter.
After  a  moment  you  hear  a  click  when
the lighter pops out.
When the lighter socket is used to con-
nect  electrical  equipment,  ensure  that
this  equipment  operates  correctly  with
a voltage of 12 volts and has an electri-

cal power of 120 W maximum.

The  prolonged  use  of  electri-
cal equipment without running
the  engine  may  discharge  the
battery.

Armrest with storage compartments
12 volt socket (120 W max)

  Upper storage compartment
Pull  the  right-hand  lever  to  open  the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks.

C O M F O R T

Removable ashtray

Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.

Lower storage compartment

Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.

12 volt socket (120 W max)

This operates when the ignition switch is
in the “LOCK”, “ACC” or “ON” position.
Open the cover to gain access to the
socket.

Check that the electrical equip-
ment operates with 12 volts

and that its maximum electri-

cal power is 120 W.
When you use the two sockets

at the same time, ensure that the two
items of equipment together operate
with 12V and that their combined

electrical power is 120W maximum.
The  prolonged  use  of  electrical
equipment  without  running  the  en-
gine may discharge the battery.

C O M F O R T

Enclosed storage compartment

Pull the storage compartment lid to
open it.

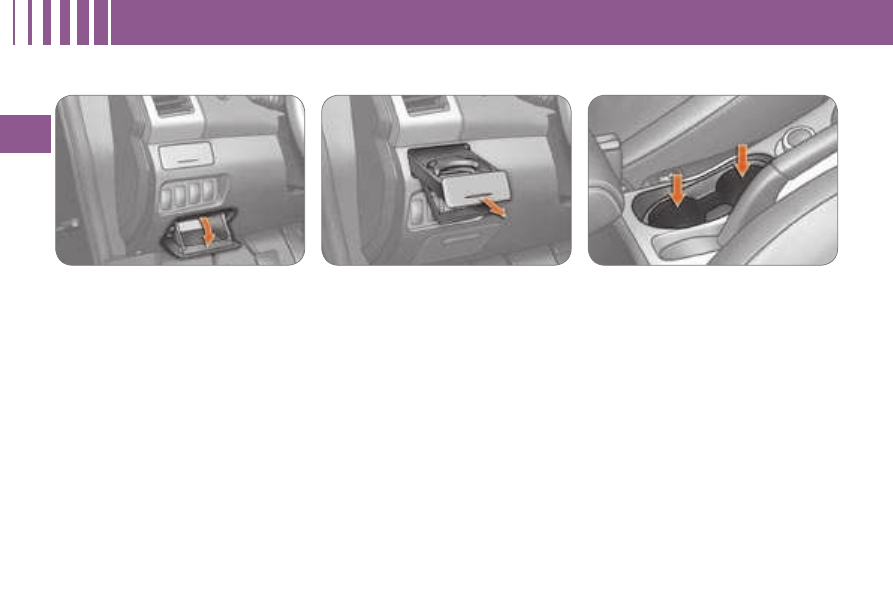

Cup holder

There is a cup holder incorporated in
the fascia on the driver’s side.
Press on the centre of the cover to ex-

tract the plate.
Pull it fully to use it.
Push it fully to store it.

Two further cup holders are available in
front of the front armrest.

C O M F O R T

REAR INTERIOR LAYOUT

Rear armrest

Pull the armrest forwards to lower it.

Cup holder

Open the cover  A  located at the end of
the  armrest  holding  the  side  with  your
hand.

Bottle holder

There is a bottle holder in each rear
door.

Grab handle

Pull the handle downwards to lower it.

Coat hook

The rear left grab handle is ﬁ tted with a

coat hook.

C O M F O R T

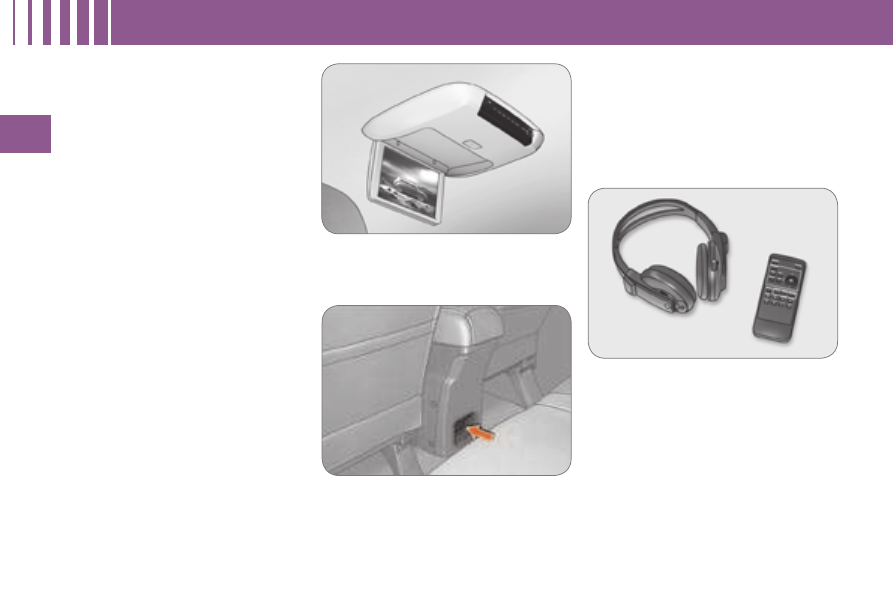

DVD player

This video assembly will allow the rear
passengers to pass the time agree-

ably while watching their favourite ﬁ lm

or playing their favourite game, in par-
ticular by means of the connection of a
DVD player or games console.

The screen is incorporated in a central
console on the roof.

The three video sockets are located un-
der the cover at the rear of the central
armrest.

This video assembly consists of:
-

a 9 inch colour screen,

two wireless HF stereo headphones,

a remote control.
