Citroen Berlingo First Dag (2010 year). Instruction - part 7

PRACTICAL INFORMATION -

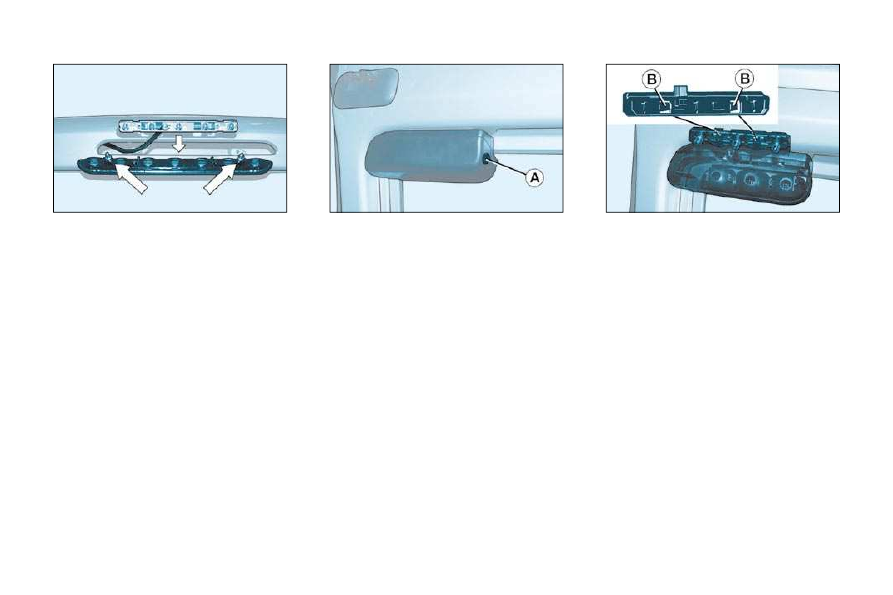

Third brake light (tailgate)

(W 5 W)



With the tailgate open, unscrew

the two nuts.



Unclip the support to gain access

to the bulbs.



Change the faulty bulb.

Third brake light

(rear left door) (W 5 W)



Remove the housing cover by

pressing the tab A

(round sec-

tion) at the end of the light.



Pull the housing cover rearwards.



Squeeze the two tabs B to re-

move the bulb holder.



Pull the faulty bulb and change it.

To reﬁ t, proceed in the reverse order.

PRACTICAL INFORMATION

94 -

Removing and ﬁ tting a fuse

Before changing a fuse, the cause

of the fault must be found and reme-

died. The fuse numbers are indicated

on the fuse box.
Use the pliers B .

CHANGING A FUSE

The fuse boxes are located under

the fascia and in the engine compart-
ment.

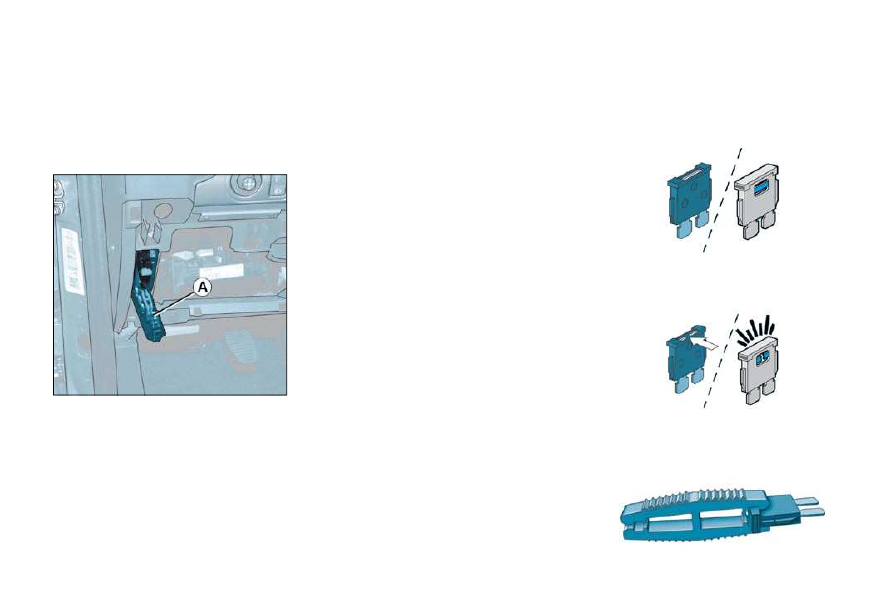

Fascia fuse box

Unclip the cover to gain access to the

fuses.

The spare fuses and the pliers B are

secured on the inside of the cover A .

Correct

Incorrect

Pliers B

Always replace a faulty fuse with a fuse

of the same rating (two fuse types ac-

cording to manufacturer - see images).

PRACTICAL INFORMATION

94 -

Removing and ﬁ tting a fuse

Before changing a fuse, the cause

of the fault must be found and reme-

died. The fuse numbers are indicated

on the fuse box.
Use the pliers B .

CHANGING A FUSE

The fuse boxes are located under

the fascia and in the engine compart-
ment.

Fascia fuse box

Unclip the cover to gain access to the

fuses.

The spare fuses and the pliers B are

secured on the inside of the cover A .

Correct

Incorrect

Pliers B

Always replace a faulty fuse with a fuse

of the same rating (two fuse types ac-

cording to manufacturer - see images).

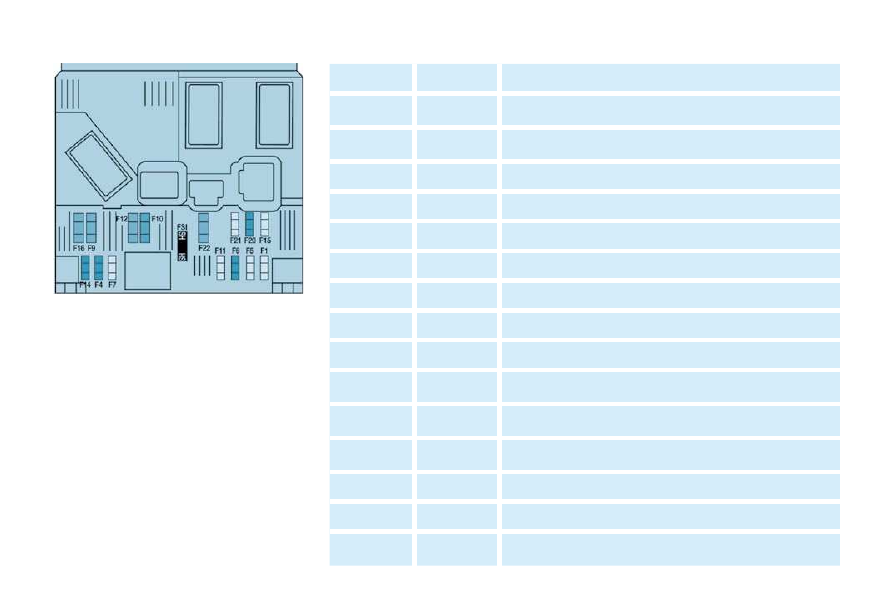

PRACTICAL INFORMATION -

Fuse

Rating

Functions

15A

Rear wiper.

20A

Multi-function display - Instrument panel - Audio

equipment - Steering wheel controls.

Not used.

10A

Diagnostic socket.

Not used.

30A

Heated seats.

40A

Rear windows and mirrors demisting.

15A

Rear wiper (tailgate).

30A

Front electric windows.

10A

Engine fuse box - Steering wheel controls.

15A

Instrument panel - Multi-function display - Audio

equipment.

30A

Locking/unlocking controls for doors, bonnet and boot.

10A

Right-hand brake light.

15A

Left-hand brake light.

20A

Front courtesy light - Map reading light - Lighter -

Electric mirror.

PRACTICAL INFORMATION

96 -

The electrical circuit of your vehicle is designed to operate with standard or optional equipment.

Before installing other electrical equipment or accessories in your vehicle, consult a CITROËN dealer.

Some electrical accessories or the way in which they are ﬁ tted may have an adverse effect on the operation of your

vehicle (its electronic control circuits, the audio circuit and the electrical charging circuit).

CITROËN declines any responsibility for expenses incurred through the repair of your vehicle or for any malfunctions

resulting from the installation of auxiliary accessories, not supplied and not recommended by CITROËN and not installed in

accordance with it's instructions, in particular for any equipment the power consumption of which exceeds 10 milliamps.

The maxi fuses provide additional protection for the electrical systems. Any work on these fuses must be carried out by a

CITROËN dealer.

PRACTICAL INFORMATION -

Fuse N°

Rating

Functions

10A

Pre-heat unit (diesel) - Brake and clutch switches -

Reversing lights.

15A

Fuel pump.

10A

ABS control unit.

10A

Engine control unit.

Not used.

15A

Front fog lamps.

20A

Headlamp wash pump.

20A

Fan assembly relay - Engine control unit.

15A

Left-hand dipped beam.

15A

Right-hand dipped beam.

10A

Left-hand main beam.

10A

Right-hand main beam.

15A

Horn.

10A

Front and rear windscreen wash pumps.

30A

Oxygen sensor - Air ﬂ ow sensor.

30A

Air pump relay.

30A

Front windscreen wiper.

40A

Air conditioning fan.

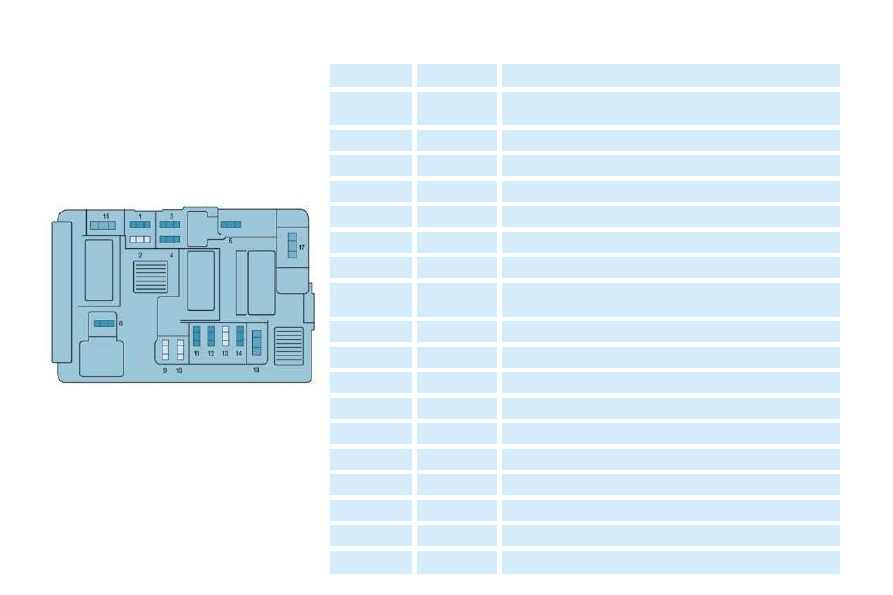

Engine compartment fuse box

To gain access to the box in the
engine compartment (next to the

battery), unclip the cover.

After carrying out work, close the

cover very carefully.

PRACTICAL INFORMATION

98 -

ECONOMY MODE FUNCTION

After the engine has stopped, with

the key in the "accessories" position,

certain functions (windscreen wiper,

electric windows, courtesy lights,

audio equipment, etc.) can only be

used for a combined duration of ap-

proximately thirty minutes, to prevent

discharging the battery.
Once the thirty minutes are over, a

switching to economy mode mes-

sage appears on the multi-function

display and the active functions are

put on standby.

These functions are reactivated au-

tomatically next time the vehicle is
driven.
In order to resume the use of these

functions immediately, the engine

must be started and left to run for a

few minutes.

The time available to you will then

be double the duration for which the

engine is left running. However, this

period will always be between ﬁ ve

and thirty minutes.

BATTERY

It is advisable to disconnect the

battery if the vehicle is not to be

used for a period of more than

one month.

Before disconnecting the bat-

tery, you must wait 2 minutes

after switching off the ignition.
Never disconnect a terminal

when the engine is running.

Never charge a battery without ﬁ rst

disconnecting the terminals.
Close the windows and the roof before
disconnecting the battery.
After every reconnection of the bat-

tery, switch on the ignition and wait

1 minute before starting to allow the

electronic systems to be initialised. If

slight difﬁ culties are experienced af-

ter this, please contact a CITROËN

dealer.

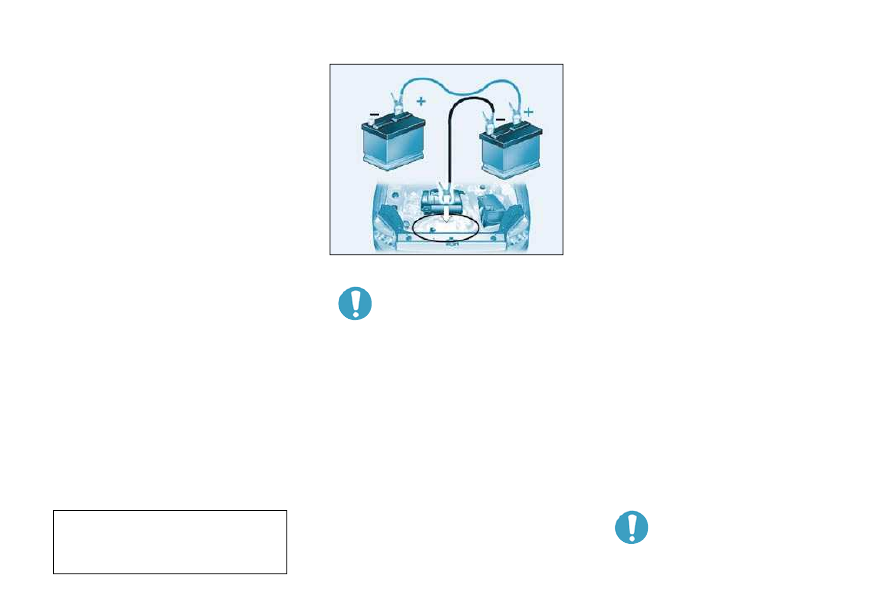

A ﬂ at battery prevents the

engine from starting.

To start the vehicle from

another battery:

Connect the red cable to the positive

(+) terminals of the two batteries,

Connect one end of the green or
black cable to the negative (-) ter-

minal of the slave battery,

Connect  the  other  end  of  the
green or black cable to an earth
point  on  the  broken  down  vehi-
cle  as  far  as  possible  from  the

battery (for example, right-hand

engine mounting).

Operate the starter, let the engine run.

Wait for the engine to return to idle,

then disconnect the cables.

To charge the battery using a

battery charger:

- Disconnect the battery,
- Follow the instructions for use

given by the battery charger man-

ufacturer,

Reconnect starting with the nega-

tive (-) terminal,

Check that the terminals and
connectors are clean. If they are

covered with sulphate (white or

greenish deposit), disconnect

them and clean them.

PRACTICAL INFORMATION -

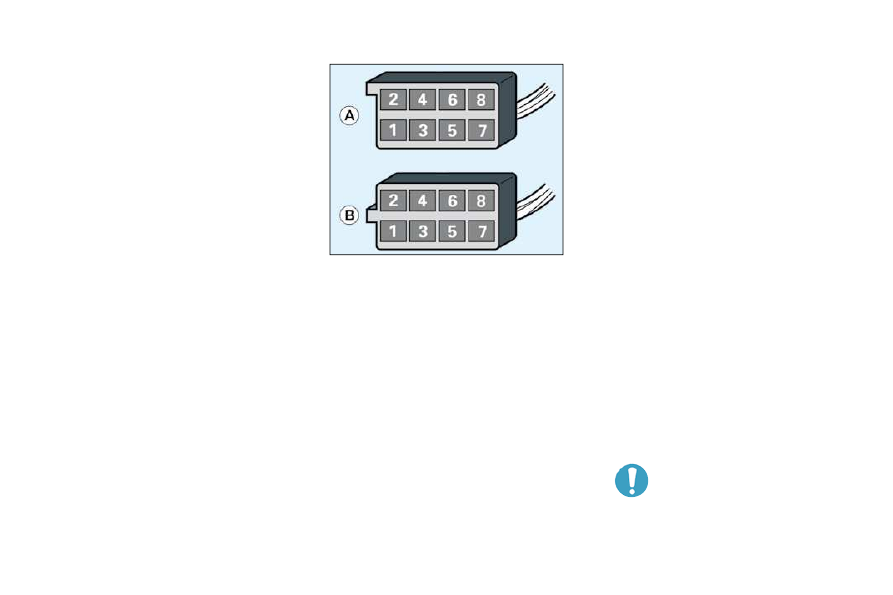

Making the connections
A1: -

A2: -

Digital control

(manufacturer)

A3: -

Digital control

(manufacturer)

A4: -

Audio equipment

multiplexing (manufacturer)

A5: -

A6: (+ve) Accessories

A7: (+ve) Permanent

A8: (-ve) Earth

B1: (+)

B2: (-)

B3: (+)

Front right speaker and

tweeter

B4: (-)

Front right speaker and

tweeter

B5: (+)

Front left speaker and

tweeter

B6: (-)

Front left speaker and

tweeter

B7: (+)

B8: (-)

FITTING SPEAKERS

The factory-ﬁ tted equipment allows

the ﬁ tting of:
-

35 mm diameter tweeters in the

fascia,

165 mm diameter speakers in the
front doors.

FITTING AUDIO EQUIPMENT

Your vehicle is equipped with certain

factory-ﬁ tted audio equipment:

   -   roof aerial,
  -   coaxial aerial cable,
  -   basic interference suppression,
  -   supply  to  front  speakers  and

tweeters,

two 8-way connectors.

Contact a CITROËN dealer

before ﬁ tting audio equip-

ment or speakers in your

vehicle.

PRACTICAL INFORMATION

100 -

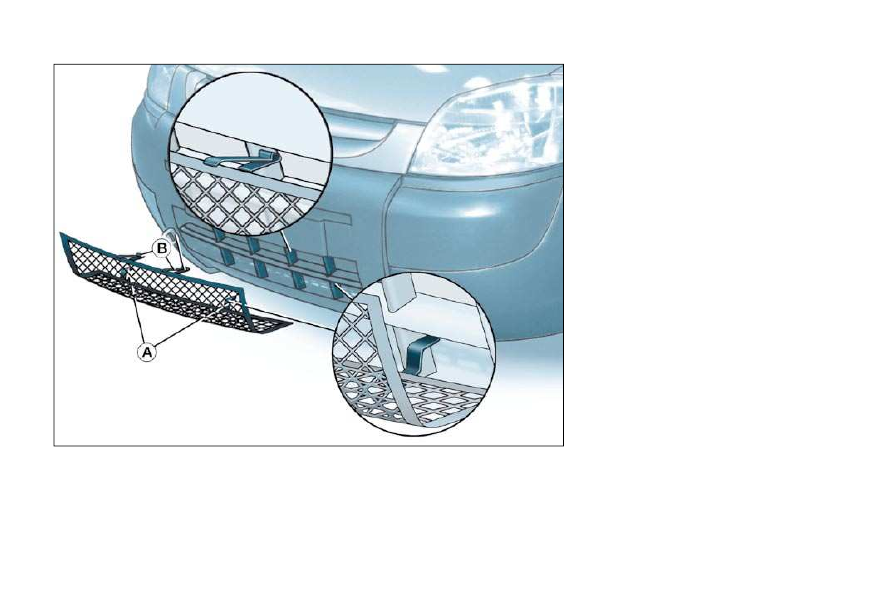

SNOW SCREEN *

The snow screen is installed on the

lower part of the front bumper to pre-

vent the accumulation of snow at the

radiator cooling fan.
Remove the snow screen:

- when the exterior temperature is

higher than 10 °C,

- when towing,
-

for speeds higher than 75 mph
(120 km/h).

FITTING



Offer up the snow screen facing

the front bumper.



Put it in place positioning the lower

clips A

in the bumper.

 Press the snow screen at each

upper clip B .

REMOVAL



Press the two upper clips B and

pull the snow screen.

As an accessory or according to country.

101

PRACTICAL INFORMATION -

Without lifting (four wheels on

the ground)
You must always use a towbar.

By lifting (two wheels only on

the ground)
It is preferable to lift the vehicle by
the wheels.

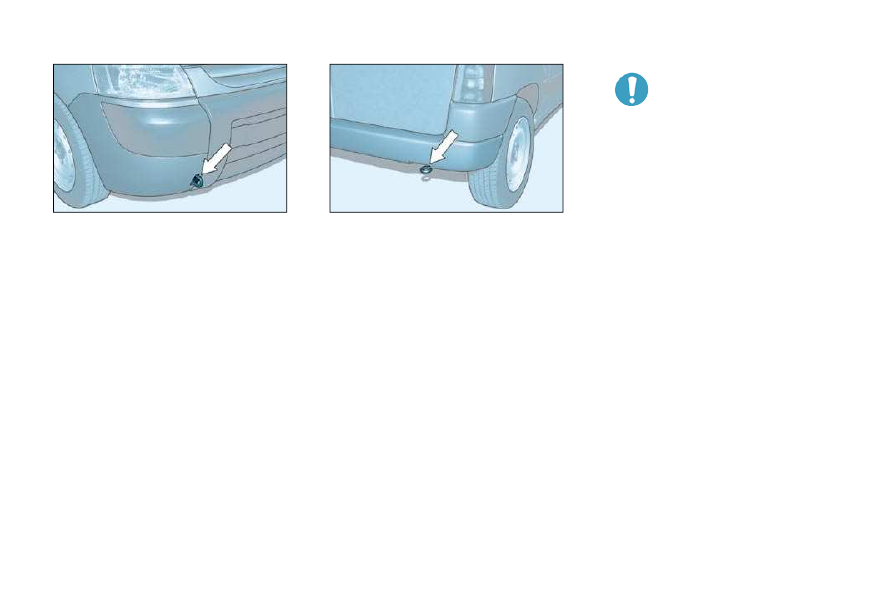

TOWING YOUR VEHICLE

From the front or the rear
Attach the towbar to the towing eye.

Never use the radiator cross-

member.
When towing another vehicle,

it must freewheel.

Place the gearbox in "neutral".

Failure to observe this instruction

may result in damage to certain brak-

ing  components  and  the  absence  of
braking  assistance  when  the  engine
is started again.

PRACTICAL INFORMATION

102 -

TOWING A TRAILER,

CARAVAN, BOAT, ETC.

We recommend the use of original

CITROËN  towbars  and  their  har-
nesses  that  have  been  tested  and
approved  from  the  design  stage  of

your vehicle and that the ﬁ tting of the

towbar is entrusted to a CITROËN

dealer.
If the towbar is not ﬁ tted by a

CITROËN dealer, it is imperative that

it is ﬁ tted using the electrical pre-

equipment installed at the rear of the

vehicle, in accordance with the man-

ufacturer's instructions.

Your vehicle is primarily designed

for transporting people and luggage

but it may also be used for towing a

trailer.
Driving with a trailer subjects the tow-

ing vehicle to more signiﬁ cant stress

and its driver must be particularly

careful.

Air density decreases with altitude,

thus reducing engine performance.

Above 1 000 metres, the maximum

towing load must be reduced by 10 %

and so on for every 1 000 metres of

altitude.

Driving advice

Tyres:

Check the tyre pressures of

the towing vehicle and of the trailer,

observing the recommended pres-

sures.
  Braking:  Towing increases the braking
distance.
  Lights:  Check the electrical signalling
on the trailer.
  Side  wind:

Take into account the

increased sensitivity to side wind.

Cooling: Towing a trailer on a slope

increases the temperature of the

coolant.
As the fan is electrically controlled,

its cooling capacity is not dependent
on the engine speed.
On the contrary, use a high gear to

lower the engine speed and reduce

your speed.

The maximum towing load on a long

slope depends on the gradient and

the outside temperature.

In all cases, pay attention to the coolant

temperature.

In certain cases of particularly ardu-

ous use (towing the maximum load

on a steep gradient in high tempera-

tures), switching off the air condition-

ing  permits  the  recovery  of  engine
power  and  therefore  an  increase  in
the towing capacity.
If  the  warning  light  comes  on,  stop

the vehicle and switch off the engine
as soon as possible.

Distribution of loads: Distribute the

load in the trailer so that the heaviest
items are as close as possible to the
axle and the nose weight approach-

es the maximum permitted without

exceeding it.

103

PRACTICAL INFORMATION -

ACCESSORIES

These accessories and parts, hav-

ing been tested and approved for

reliability and safety, are all adapted

to your vehicle. A wide range of rec-

ommended accessories and original
parts is offered.

The ﬁ tting of electrical equip-

ment or accessories which
are not recommended by

Automobiles CITROËN may

result in the failure of your vehicle's

electronic system. Please note this

speciﬁ c warning. You are advised

to contact a representative of the

Marque to be shown the range of

recommended equipment and ac-

cessories.
Depending on the country in which

the vehicle is sold or operated, it is

compulsory to have a high visibility

safety jacket, warning triangle and

replacement bulbs available in the

vehicle.

Screenwash, interior and exterior

cleaning and maintenance products,

replacement bulbs, ...

Anti-theft alarm, window engraving,

ﬁ rst aid kit, high visibility safety jack-

et, rear parking assistance, warning

triangle, ...

Audio equipment, hands-free kit,

speakers, CD changer, navigation, ...

Regardless of the audio and telemat-

ic equipment offered on the market,

the technical constraints linked with

the ﬁ tting of equipment of these fami-

lies of products mean that the spe-

cial features of the equipment and

its compatibility with the capacities

of the your vehicle's standard equip-

ment must be taken into account.

Please contact a CITROËN dealer

for information before ﬁ tting such

equipment.

Front mud ﬂ aps, rear mud ﬂ aps,

15/17 inch alloy wheels, wheelarch

trim, leather steering wheel, ...

Range of professional equipment
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer

towbar which must be ﬁ tted by the

CITROËN network.

Separation partitions and grilles,

smooth, non-slip wooden protective

ﬂ oor.
Protective grilles.

Installation of

radiocommunication transmitters
Before installing accessory radio-

communication transmitters with an

external aerial on your vehicle, you

are advised to contact a representa-

tive of the CITROËN marque.
The CITROËN Network will inform

you of the speciﬁ cations (frequency

band, maximum output power, aerial

position, speciﬁ c installation condi-

tions) of the transmitters which can be

ﬁ tted, in accordance with the Motor

Vehicle Electromagnetic Compatibility

Directive (2004/104/CE).

Range of comfort, leisure and

maintenance equipment

Front seat covers compatible with

air bags, bench, rubber mats, car-

pet mats, snow chains, blind, tailgate

bicycle carrier, roof bars (max load

120 kg), transverse roof bars (max

load 100 kg), ...
To prevent the mat from becoming

caught under the pedals:

- ensure that the mat and its ﬁ xings

are positioned correctly,

never ﬁ t one mat on top of another.

TECHNICAL DATA

104 -

EXTERIOR DIMENSIONS (IN MM)

105

TECHNICAL DATA -

Light van

Ludospace

4 137

4 437

1 796 to 1 819

1 810

2 693

836

608

570

550

1 440

1 440 or 1 452

1 960

1 420

1 420 or 1 436

1 724

TECHNICAL DATA

106 -

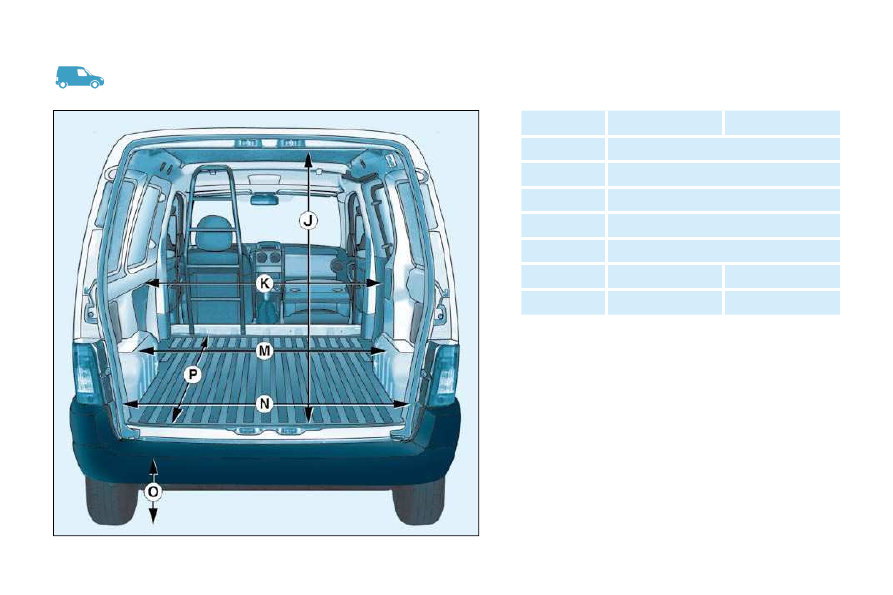

INTERIOR DIMENSIONS (IN MM) AND VOLUMES (IN M

) LIGHT VAN

1 155

1 320

1 190

568

1 340

1 640

3.25

3.6

107

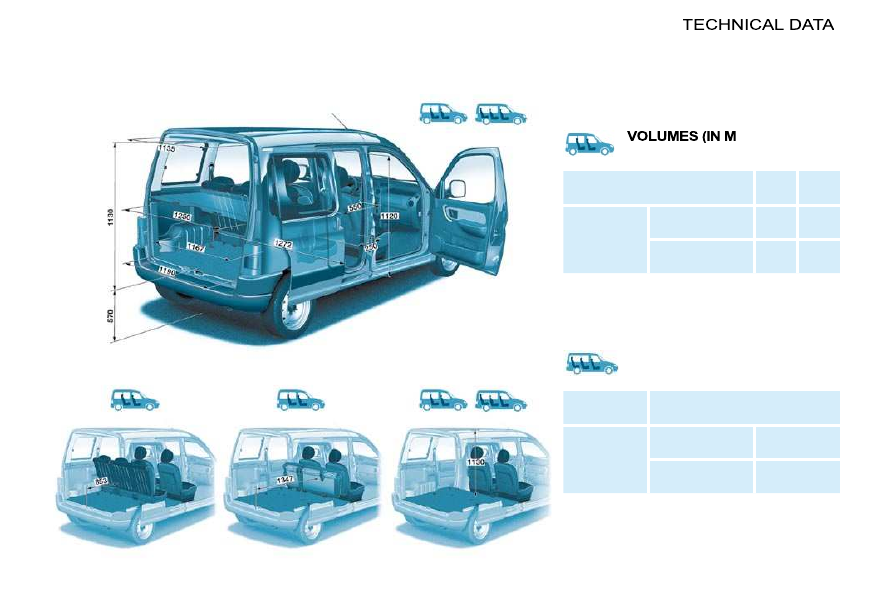

INTERIOR DIMENSIONS (IN MM) LUDOSPACE

Row

2 bench

seat in

position

- normal

1.25 1.75

- fully folded

2.8

3.25

VOLUMES (IN M

)

LUDOSPACE 7 SEAT VERSION

Row 2 and

row 3 bench

seats in

position

- normal

0.2

- fully folded

)

LUDOSPACE 5 SEAT VERSION

Content .. 5 6 7 8 ..
