56

GETTING TO KNOW YOUR VEHICLE



Operating Tips Chart

INTERIOR STORAGE AND EQUIPMENT

S

TORAGE

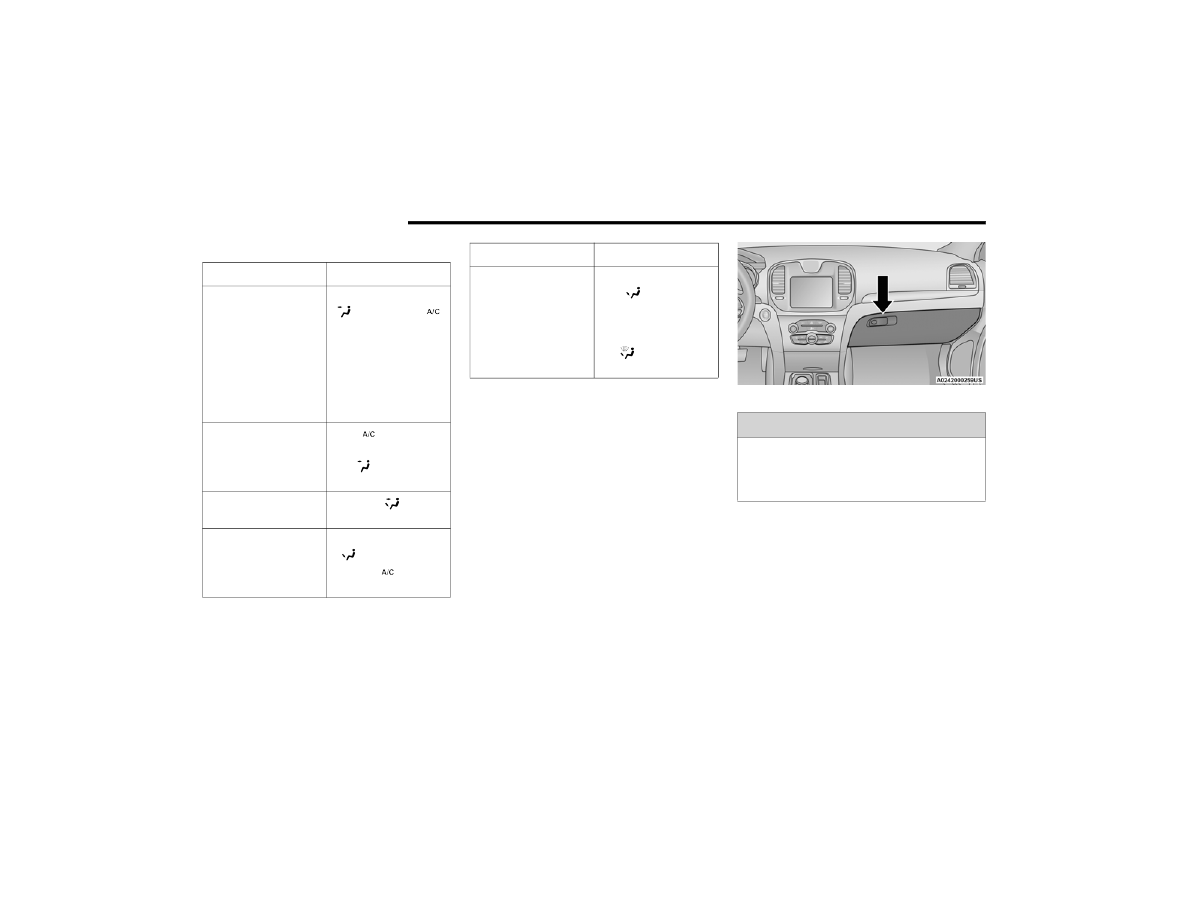

Glove Compartment

The glove compartment is located on the

passenger side of the instrument panel.
To open the glove compartment, pull the release

handle.

Glove Compartment

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is Very

Hot

Set the mode control to

 (Panel Mode),

(MAX A/C) on, and

blower on high. Roll

down the windows for a

minute to flush out the

hot air. Adjust the

controls as needed to

achieve comfort.

Warm Weather

Turn   (A/C) on and

set the mode control to

the   (Panel Mode)

position.

Cool Sunny

Operate in   (Bi-Level

Mode) position.

Cool & Humid

Conditions

Set the mode control to

 (Mix Mode) and

turn on   (A/C) to

keep windows clear.

Cold Weather

Set the mode control to

the   (Floor Mode)

position. If windshield

fogging starts to occur,

move the control to the

 (Mix Mode)

position.

WEATHER

CONTROL SETTINGS

WARNING!

Do not operate this vehicle with a glove

compartment in the open position. Driving with

the glove compartment open may result in injury

in a collision.

GETTING TO KNOW YOUR VEHICLE

57

Cubby Bin

There is a cubby bin located forward of the gear

selector. The cubby bin is covered with a

push-push actuated door. Push inward on the door

to open it; push the door a second time to close it.

Cubby Bin

Door Storage

The door panels contain storage areas.

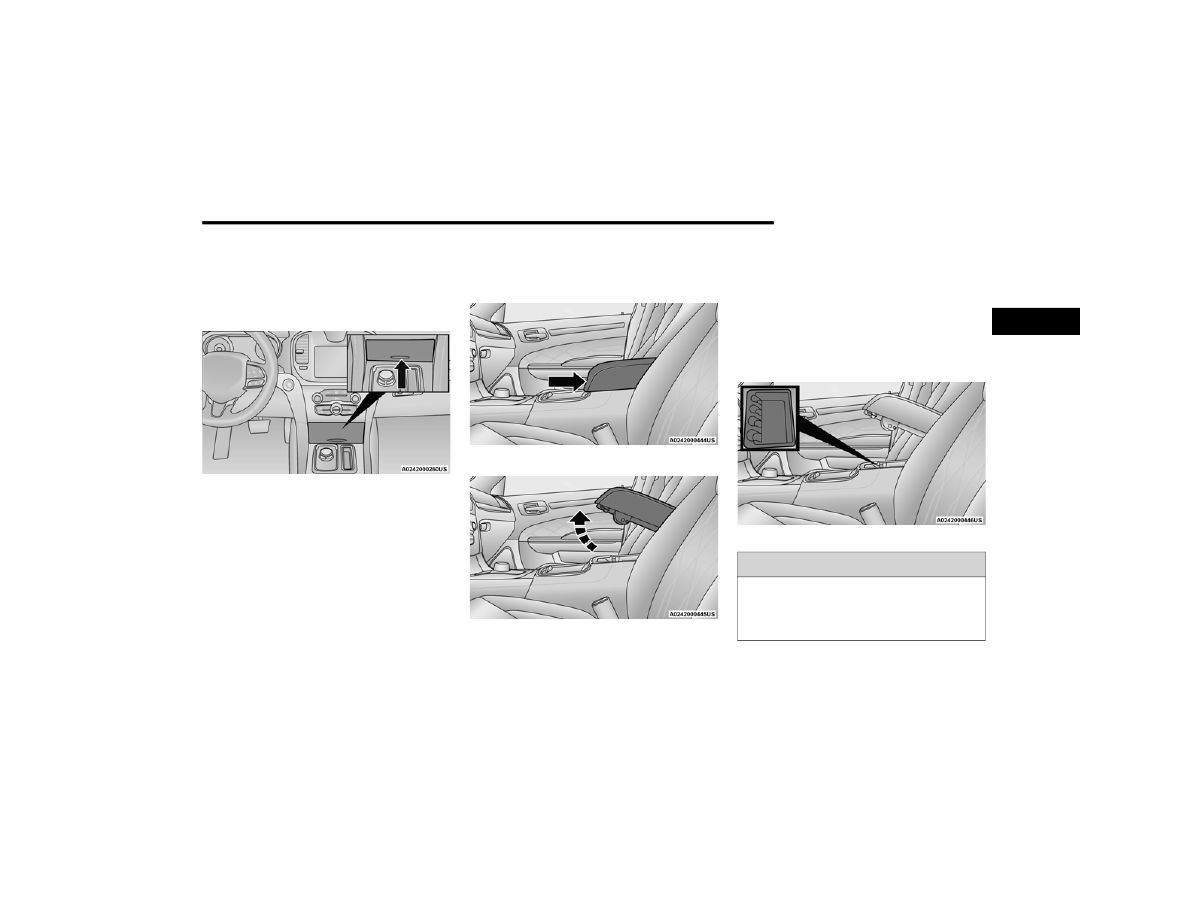

Console Features

Two separate storage compartments are located

underneath the center console armrest.

Center Console Location

Center Console Open

Inside the center console armrest, there is a

removable upper storage tray that can be slid

forward/rearward on rails for access to the lower

storage area. This tray has an integrated coin

holder, along with additional area for small items

and handheld devices. Below the upper tray, the

lower storage compartment is made for larger

items. In addition, the 12 Volt power outlet, USB,

and AUX jack are located here.

Upper Storage Tray

WARNING!

Do not operate this vehicle with a console

compartment lid in the open position. Driving

with the console compartment lid open may

result in injury in a collision.

2

58

GETTING TO KNOW YOUR VEHICLE



Rear Seat Armrest Storage — If Equipped

For rear passengers, there is a storage bin located

in the armrest. Lift upward on the latch to open the

storage compartment.

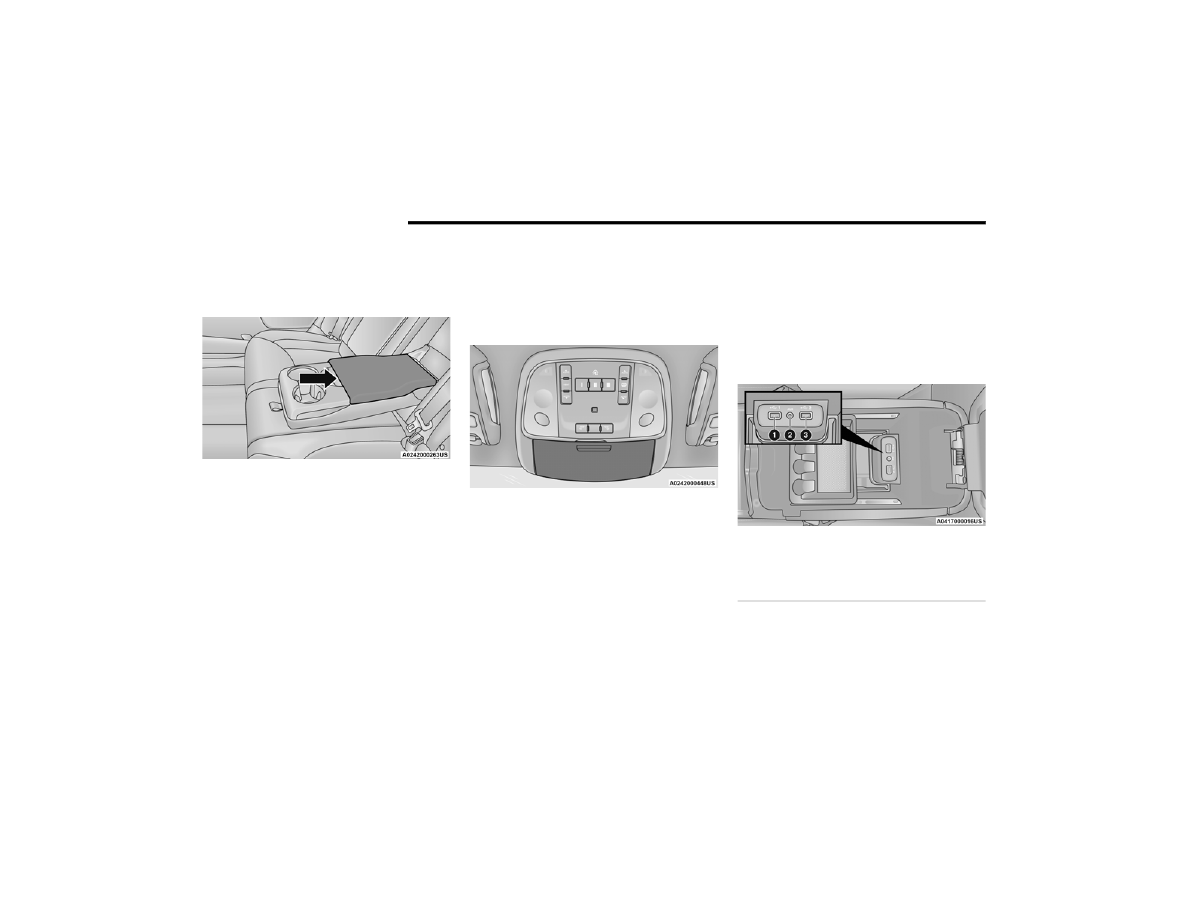

Rear Armrest Storage

Sunglasses Bin Door

At the front of the console, a compartment is

provided for the storage of a pair of sunglasses.

The storage compartment access is a push-push

design. Push the chrome pad on the door to open.

Push the chrome pad on the door to close.

Sunglasses Bin Door

USB/AUX C

ONTROL



This feature allows an external USB device to be

plugged into the USB port.
Plugging in a smartphone device to a USB port may

activate Android Auto™ or Apple CarPlay®

features, if equipped. For further information, refer

to “Android Auto™” or “Apple CarPlay®” in the

Owner’s Manual Supplement.

AUX/USB Ports

1 — USB 1 Port
2 — AUX Jack
3 — USB 2 Port

GETTING TO KNOW YOUR VEHICLE

59

Located on the rear of the front center console are

dual USB “Charge Only” ports. The USB “Charge

Only” ports will recharge battery operated USB

devices when connected.

Rear USB Charging Ports

L

IGHTED

 C

UPHOLDERS

 — I

F

 E

QUIPPED

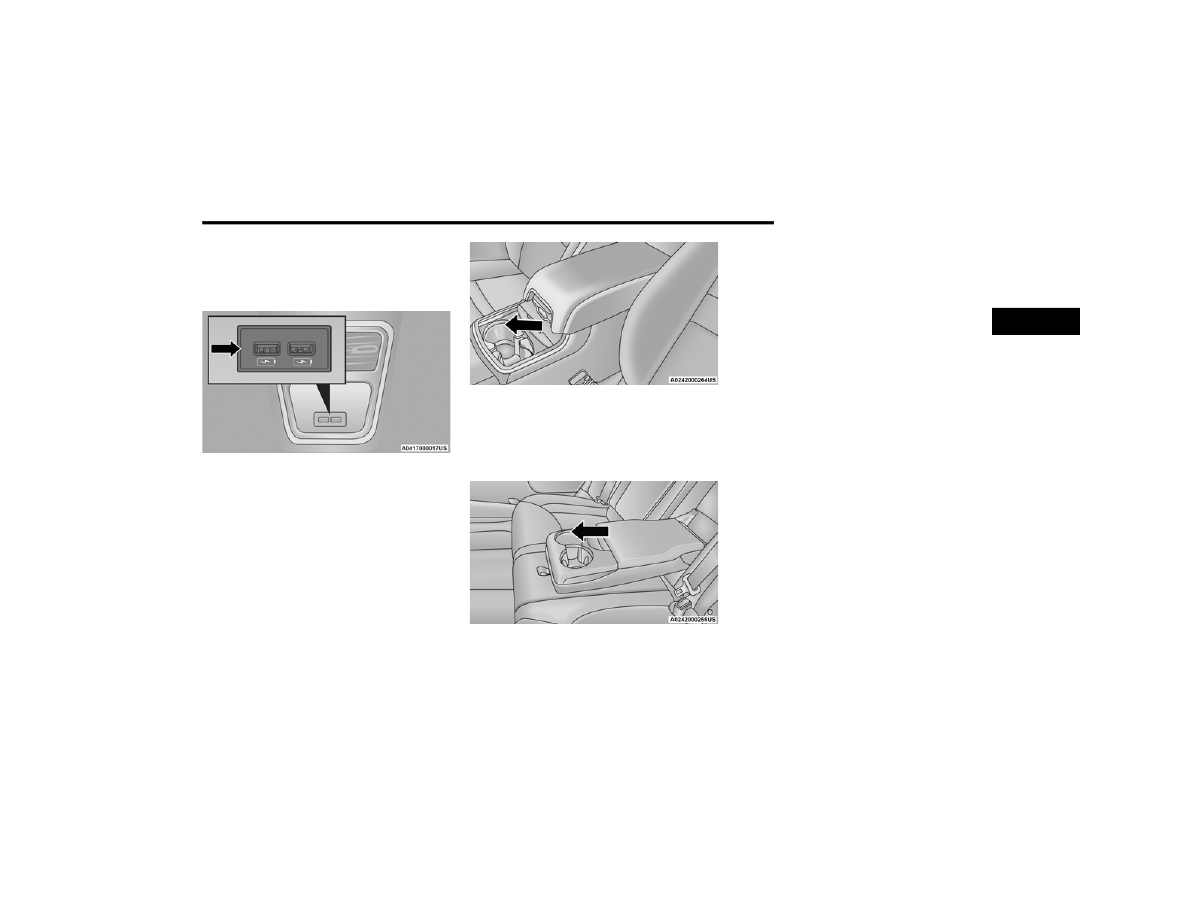

On some vehicles, the front cupholders are

equipped with a light ring that illuminates the

cupholders for the front passengers.

Light Ring In Front Cupholder

The rear cupholders may also be equipped with a

light ring that illuminates the cupholders for the

rear passengers. The light ring is controlled by the

Dimmer Control

Ú

page 49.

Light Ring In Rear Cupholder

P

OWER

 S

UNSHADE

 — I

F

 E

QUIPPED

Your vehicle may be equipped with a power

sunshade that will reduce the amount of sunlight

that will shine through the rear windshield.
The power sunshade can be operated using the

Uconnect system

Ú

page 129.

Press the Controls button and then press the “Rear

Sunshade” button to raise the power sunscreen.

Press the Rear Sunshade button a second time to

lower the sunshade.
If the sunshade is in the raised position and the

vehicle is placed in REVERSE, the sunshade will

automatically fully lower. When the transmission is

shifted out of REVERSE the sunshade will

automatically return to the fully raised position

after a brief delay.
The power sunshade can also be operated by

passengers in the rear seats. The power sunshade

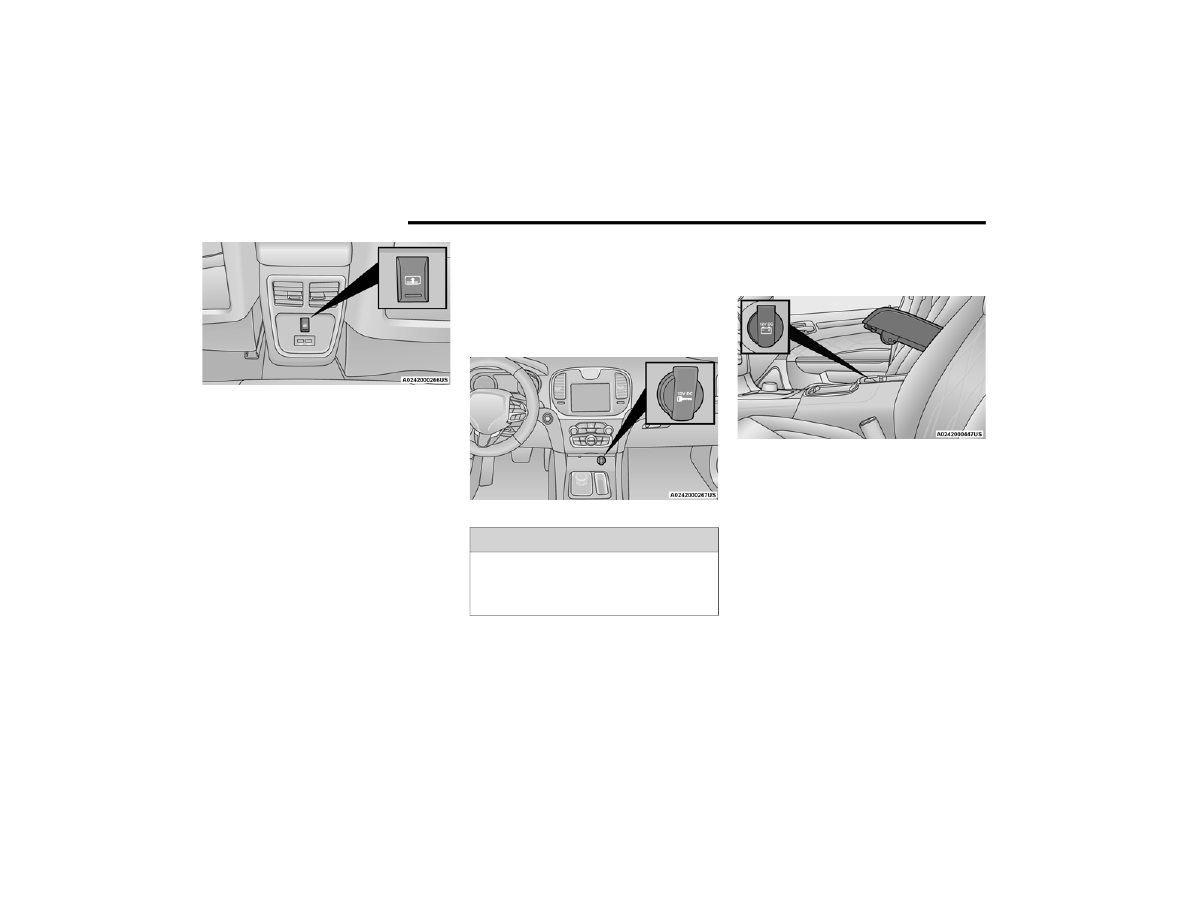

switch is located on the back of the center console

between the heated seat switches. Push the

switch once to raise the sunshade. Push the switch

a second time to lower the sunshade.

2

60

GETTING TO KNOW YOUR VEHICLE



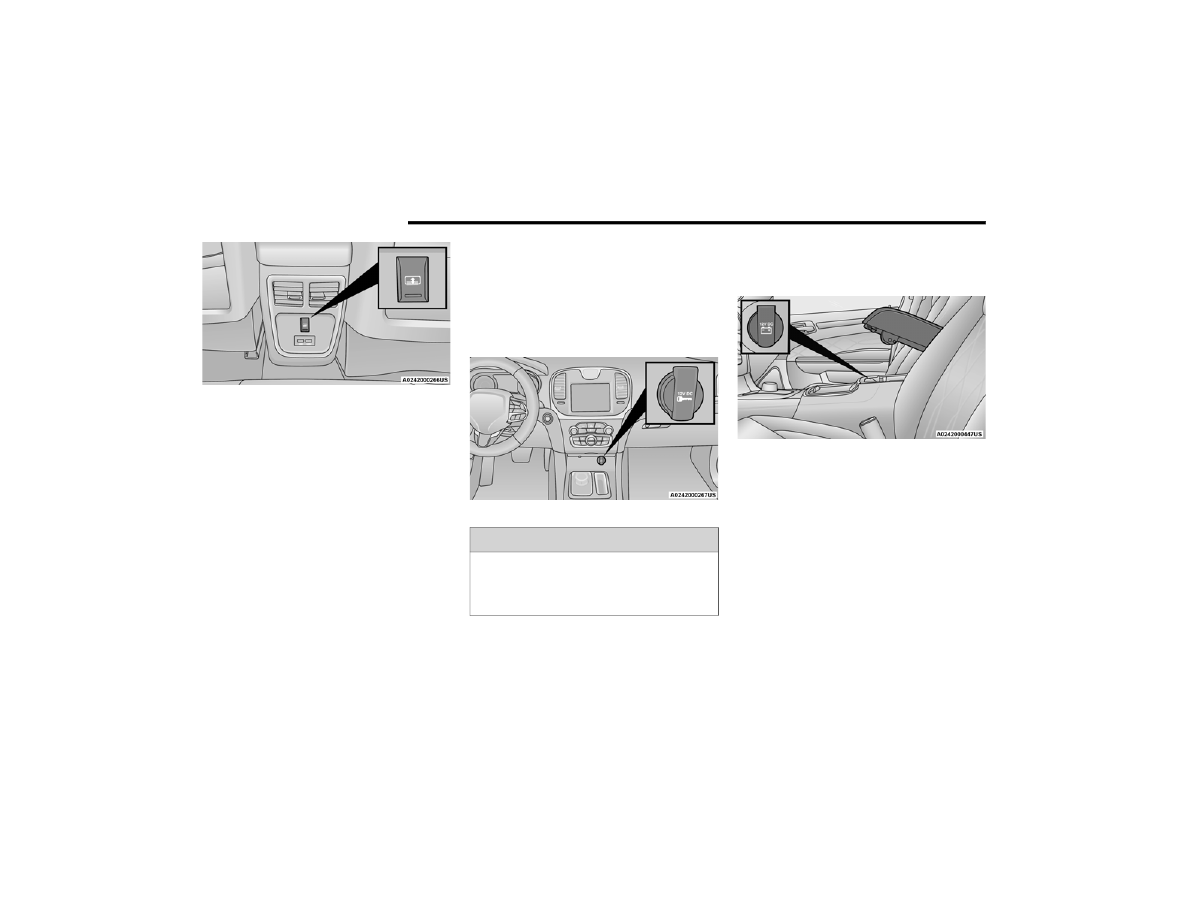

Power Sunshade Switch Behind Center Console

NOTE:

The rear sunshade control switch can be locked

out along with the rear passenger window controls

from the driver switch window lockout switch.

P

OWER

 O

UTLETS



Your vehicle is equipped with one 12 Volt

(13 Amp) power outlet on the instrument panel

and one 12 Volt (13 Amp) power outlet in the

center console that can be used to power cellular

phones, small electronics and other low powered

electrical accessories. The power outlets are

labeled with either a “key” symbol or a “battery”

symbol to indicate how the outlet is powered.

Power outlets labeled with a key symbol are

powered when the ignition switch is in the ACC or

ON/RUN position, while the outlets labeled with a

battery symbol are connected directly to the

battery and powered at all times.

NOTE:

All accessories connected to the battery powered

outlets should be removed or turned off when the

vehicle is not in use to protect the battery against

discharge.
The front power outlet is located inside the storage

area on the center stack of the instrument panel.

Front Power Outlet

In addition to the front power outlet, there is also a

power outlet located in the storage area of the

center console.

Center Console Power Outlet

NOTE:

If the Media Hub is in use, do not exceed the

maximum power of 100 Watts (8 Amps) for the

center console power outlet. When the Media Hub

is not in use, the outlet can deliver up to 120 Watts

(10 Amps). If the power rating is exceeded, the

fuse protecting the system will need to be

replaced.
The instrument panel power outlet and dual rear

console USB ports can be changed to battery

powered at all times by moving the #12 20 Amp

fuse from “IGN” to “B+”. These fuses are located in

the fuse box in the trunk, below the load floor.

WARNING!

Do not place ashes inside the cubby bin located

on the center console on vehicles not equipped

with the ash receiver tray. A fire leading to bodily

injury could result.

GETTING TO KNOW YOUR VEHICLE

61

Power Outlet Fuse Locations

WINDOWS

P

OWER

 W

INDOW

 C

ONTROLS

The window controls on the driver's door control all

the door windows.

Power Window Switches

The passenger door windows can also be operated

by using the single window controls on the

passenger door trim panel. The window controls

will operate only when the ignition is in the ACC or

ON/RUN position.
NOTE:

The power window switches will remain active for

up to 10 minutes after the ignition is placed in the

OFF position. Opening either front door will cancel

this feature. The timing is programmable within

Uconnect Settings

Ú

page 129.

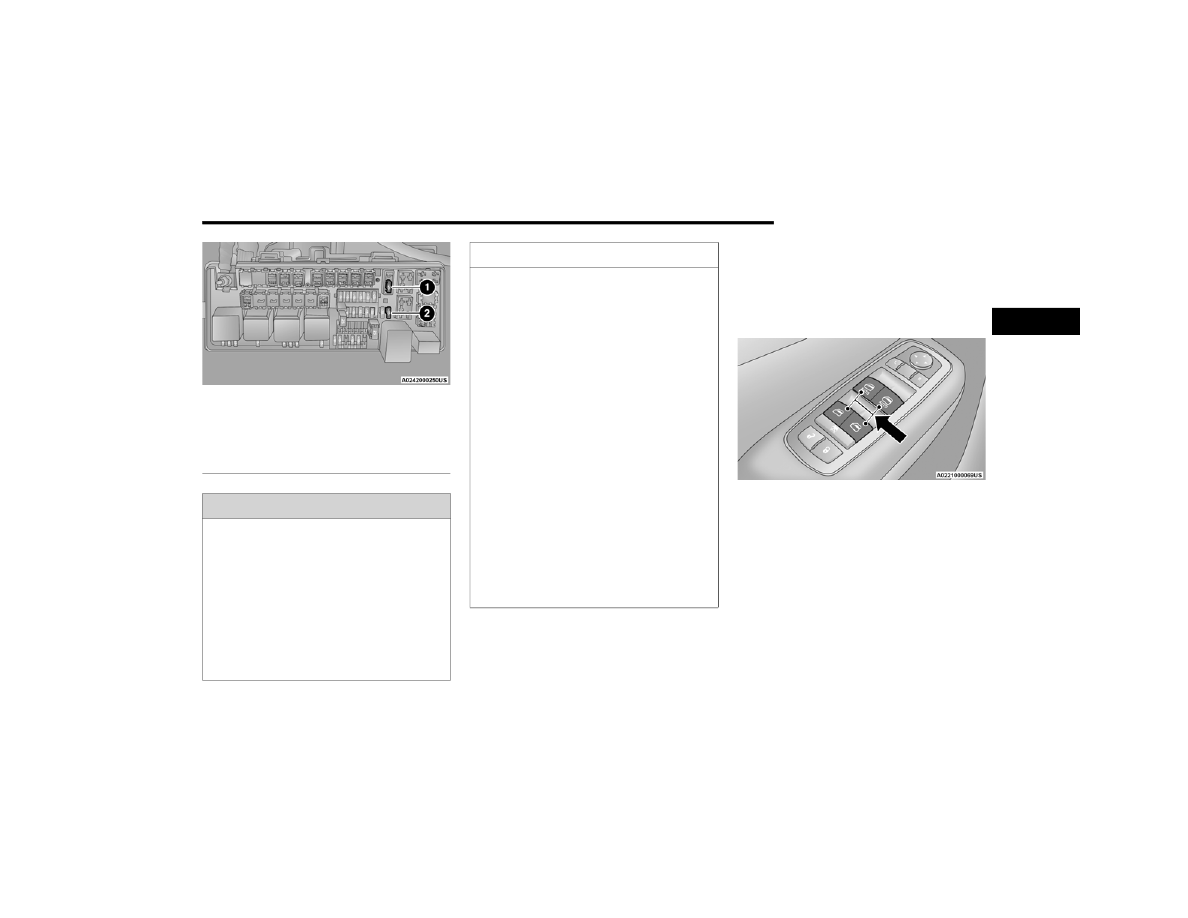

1 — #12 Fuse 20 Amp Yellow Instrument Panel

Power Outlet/Dual USB Charge Only Ports
2 — #38 Fuse 20 Amp Yellow Center Console

Power Outlet/Media Hub

WARNING!

To avoid serious injury or death:

Only devices designed for use in this type of

outlet should be inserted into any 12 Volt

outlet.

Do not touch with wet hands.

Close the lid when not in use and while driving

the vehicle.

If this outlet is mishandled, it may cause an

electric shock and failure.

CAUTION!

Many accessories that can be plugged in draw

power from the vehicle's battery even when

not in use (i.e., cellular phones, etc.). Eventu

-

ally, if plugged in long enough, the vehicle's

battery will discharge sufficiently to degrade

battery life and/or prevent the engine from

starting.

Accessories that draw higher power (i.e.,

coolers, vacuum cleaners, lights, etc.) will

degrade the battery even more quickly. Only

use these intermittently and with greater

caution.

After the use of high power draw accessories

or long periods of the vehicle not being started

(with accessories still plugged in), the vehicle

must be driven a sufficient length of time to

allow the alternator to recharge the vehicle's

battery.

Power outlets are designed for accessory

plugs only. Do not hang any type of accessory

or accessory bracket from the plug. Improper

use of the power outlet can cause damage.

2

62

GETTING TO KNOW YOUR VEHICLE



A

UTOMATIC

 W

INDOW

 F

EATURES



Auto-Down Feature
The driver and front passenger door power window

switches have an Auto-Down feature. Push the

window switch down to the second detent, release,

and the window will go down automatically.
To stop the window from going all the way down

during the Auto-Down operation, pull up or push

down on the switch briefly.

Auto-Up Feature With Anti-Pinch Protection
Pull the window switch up to the second detent and

the window will go up automatically.
To stop the window from going all the way up

during the Auto-Up operation, push down on the

switch briefly.
To close the window part way, lift the window

switch briefly and release it when you want the

window to stop.
If the window runs into any obstacle during

auto-closure, it will reverse direction and then go

back down. Remove the obstacle and use the

window switch again to close the window.
NOTE:

Any impact due to rough road conditions may

trigger the auto-reverse function unexpectedly

during auto-closure. If this happens, pull the switch

lightly and hold to close the window manually.

R

ESET

 A

UTO

-U

P



Should the Auto-Up feature stop working, the

window may need to be reset. To reset Auto-Up:
1. Make sure the door is fully closed.
2. Pull the window switch up to close the window

completely and continue to hold the switch up

for an additional two seconds after the window

is closed.

3. Push the window switch down firmly to the

second detent to open the window completely

and continue to hold the switch down for an

additional two seconds after the window is

fully open.

W

INDOW

 L

OCKOUT

 S

WITCH

The window lockout switch on the driver's door trim

panel allows you to disable the window controls on

the rear passenger doors. To disable the window

controls, push and release the window lockout

button. To enable the window controls, push and

release the window lockout button again.

WARNING!

Never leave children unattended in a vehicle, and

do not let children play with power windows. Do

not leave the key fob in or near the vehicle, or in a

location accessible to children, and do not leave

the ignition of a vehicle equipped with Keyless

Enter ‘n Go™ in the ACC or ON/RUN position.

Occupants, particularly unattended children, can

become entrapped by the windows while

operating the power window switches. Such

entrapment may result in serious injury or death.

WARNING!

There is no anti-pinch protection when the

window is almost closed. To avoid personal

injury be sure to clear your arms, hands, fingers

and all objects from the window path before

closing.

GETTING TO KNOW YOUR VEHICLE

63

Window Lockout Switch

W

IND

 B

UFFETING



Wind buffeting can be described as the perception

of pressure on the ears or a helicopter-type sound

in the ears. Your vehicle may exhibit wind buffeting

with the windows down, or the sunroof (if

equipped) in certain open or partially open

positions. This is a normal occurrence and can be

minimized. If the buffeting occurs with the rear

windows open, open the front and rear windows

together to minimize the buffeting. If the buffeting

occurs with the sunroof open, adjust the sunroof

opening to minimize the buffeting or open any

window.

PANORAMIC SUNROOF — IF EQUIPPED

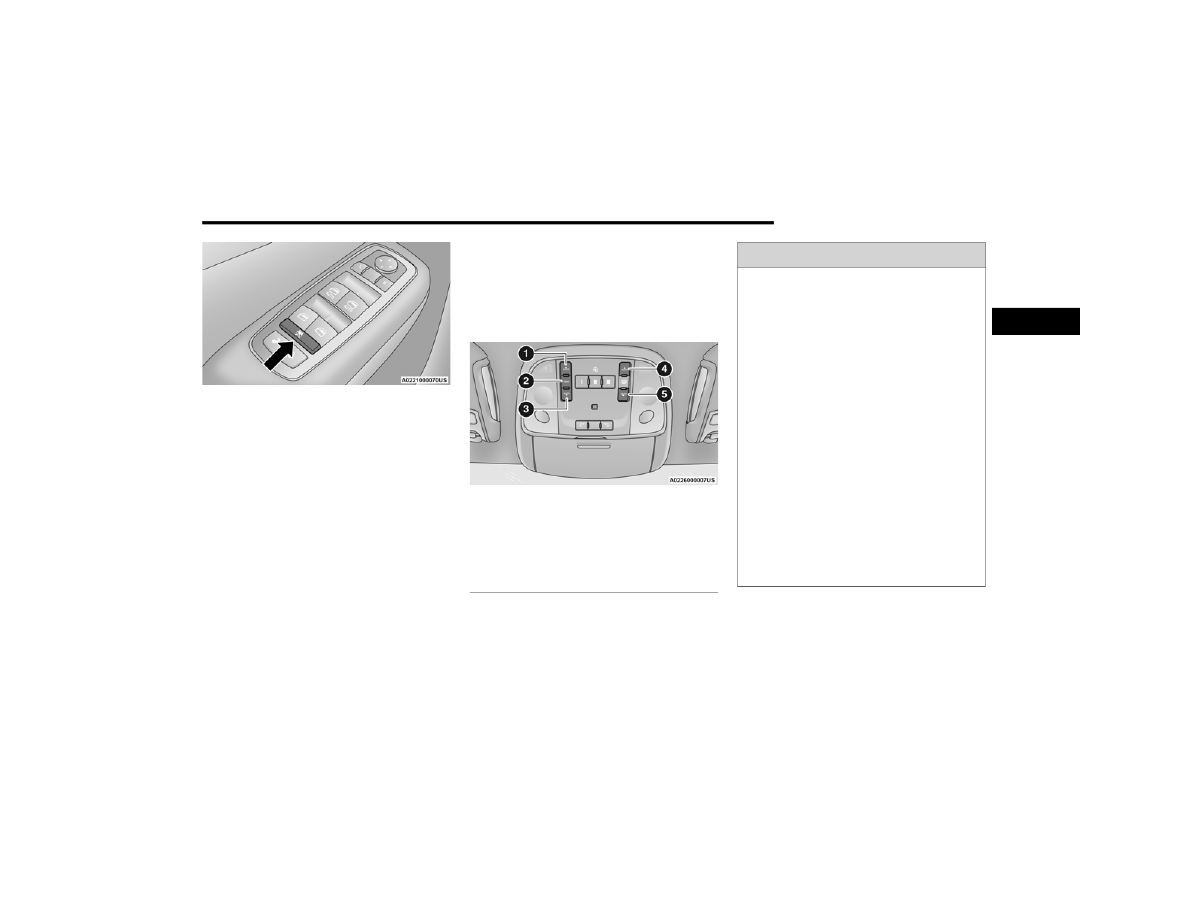

The Panoramic sunroof switch is located to the left

between the sun visors on the overhead console.
The power shade switch is located to the right

between the sun visors on the overhead console.

Panoramic Sunroof And Power Shade Switches

1 — Sunroof Close Switch
2 — Vent Switch
3 — Sunroof Open Switch
4 — Sunshade Close Switch
5 — Sunshade Open Switch

WARNING!

Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in a

location accessible to children. Do not leave

the ignition of a vehicle equipped with Keyless

Enter ‘n Go™ in the ACC or ON/RUN position.

Occupants, particularly unattended children,

can become entrapped by the power sunroof

while operating the power sunroof switch.

Such entrapment may result in serious injury

or death.

In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.

Do not allow small children to operate the

sunroof. Never allow your fingers, other body

parts, or any object, to project through the

sunroof opening. Injury may result.

2

64

GETTING TO KNOW YOUR VEHICLE



O

PENING

 A

ND

 C

LOSING

 T

HE

 S

UNROOF

Express Open/Close
Push the switch rearward and release it within

one-half second and the sunroof will open

automatically from any position. The sunroof will

open fully and stop automatically.
Push the switch forward and release it within

one-half second and the sunroof will close

automatically from any position. The sunroof will

close fully and stop automatically.
During Express Open or Express Close operation,

any other movement of the sunroof switch will stop

the sunroof.
Manual Open/Close
To open the sunroof, push and hold the switch

rearward to full open.
To close the sunroof, push and hold the switch in

the forward position.
Any release of the switch during open or close

operation will stop the sunroof movement. The

sunroof and sunshade will remain in a partially

opened position until the switch is operated and

held again.

Venting The Sunroof
Push and release the Vent switch within one half

second and the sunroof will open to the vent

position. During vent operation, any other

movement of the sunroof switch will stop the

sunroof.
NOTE:

If the sunshade is in the closed position when the

vent switch is pushed, the sunshade will automati

-

cally cycle to the halfway open position prior to the

sunroof opening to the Vent position.

P

INCH

 P

ROTECT

 F

EATURE

This feature will detect an obstruction in the

closing of the sunroof during the Express Close

operation. If an obstruction in the path of the

sunroof is detected, the sunroof will automatically

retract. Remove the obstruction if this occurs.
NOTE:

If three consecutive sunroof close attempts result

in Pinch Protect reversals, Pinch Protect will

disable and the sunroof must be closed in Manual

Mode.

O

PENING

 A

ND

 C

LOSING

 T

HE

 P

OWER



S

HADE

Express Open/Close
Push the shade switch rearward and release it

within one-half second and the shade will

automatically open to the halfway position and

stop automatically. Push the switch again to fully

open the shade.
Push the switch forward and release it within

one-half second and the shade will close

automatically from any position.
During Express Open or Express Close operation,

any other movement of the shade switch will stop

the shade.
Manual Open/Close
To open the shade, push and hold the switch

rearward. The shade will open and stop

automatically at the half-open position. Push and

hold the switch again and the shade will fully open.
To close the shade, push and hold the switch in the

forward position.
Any release of the switch will stop the movement

and the shade will remain in a partially closed

condition until the switch is pushed again.

GETTING TO KNOW YOUR VEHICLE

65

S

UNROOF

 M

AINTENANCE

Use only a non-abrasive cleaner and a soft cloth to

clean the glass panel. Periodically check for and

clear out any debris that may have collected in the

tracks.

I

GNITION

 O

FF

 O

PERATION

The power sunroof switch can remain active in

Accessory Delay for up to approximately

10 minutes after the vehicle’s ignition is placed to

the OFF position. Opening either front door will

cancel this feature.
This feature is programmable using the Uconnect

system

Ú

page 129.

HOOD

O

PENING

 T

HE

 H

OOD



To open the hood, two latches must be released.
1. Pull the release lever located underneath the

driver’s side of the instrument panel.

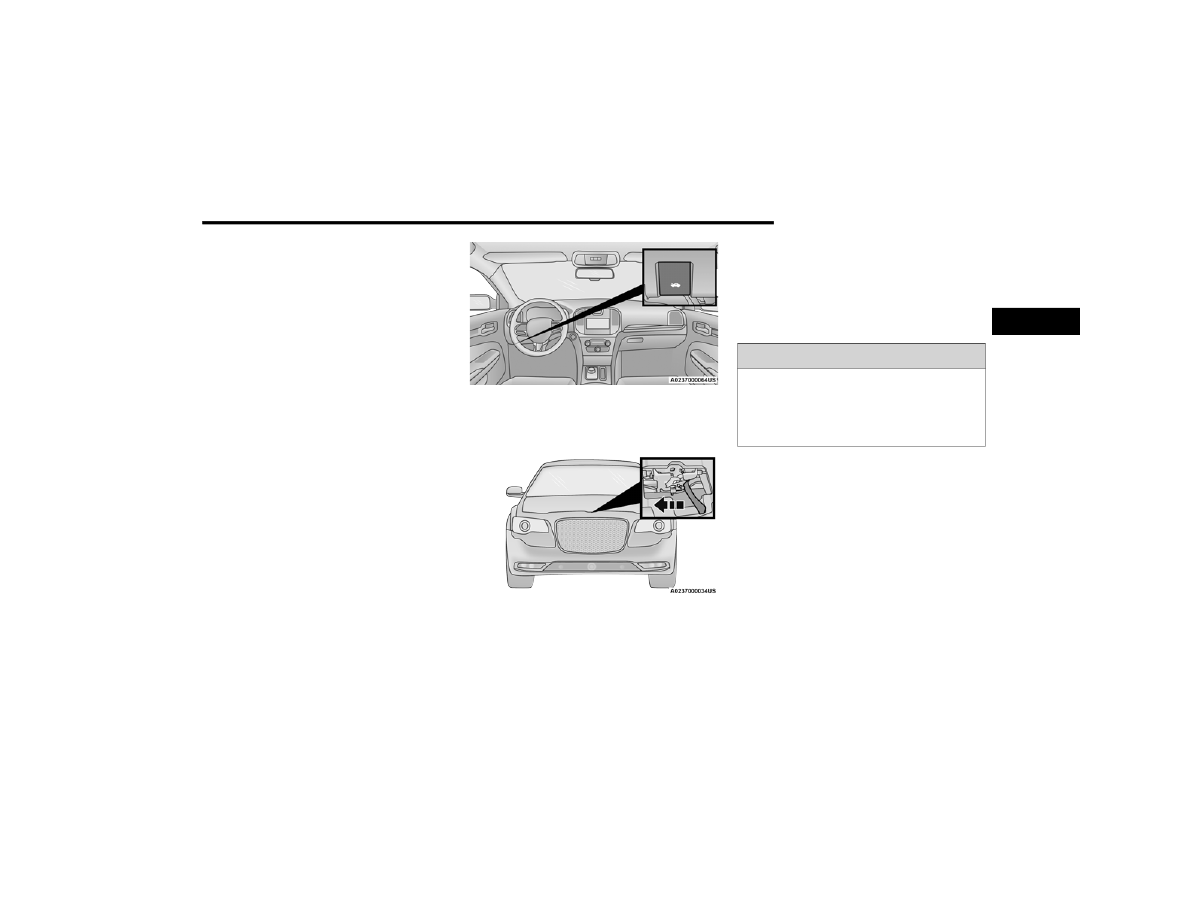

Hood Release Lever

2. Reach under the hood, move the safety latch

to the left, and lift the hood.

Hood Safety Latch

C

LOSING

 T

HE

 H

OOD

In one continuous motion, pull down on the front

edge of the hood with moderate force until the

angle is below the crossover point (where the gas

props are no longer resisting) and let the hood

continue to fall closed from its own inertia.

TRUNK

O

PENING

 T

HE

 T

RUNK

The trunk may be opened in several ways:

Power trunk release button on the instrument

panel

Trunk button on the key fob

Trunk Passive Entry button

Ú

page 23

WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

2

66

GETTING TO KNOW YOUR VEHICLE



With the ignition in the ON/RUN position, the trunk

open symbol will display in the instrument cluster

indicating that the trunk is open. The odometer

display will reappear once the trunk is closed.
With the ignition in the OFF position, the trunk

open symbol will display until the trunk is closed.
Power Trunk Release Button

The trunk can be opened from inside the

vehicle using the power trunk release

button located on the instrument panel

to the left of the steering wheel.

NOTE:

The transmission must be in PARK before the

button will operate.
Key Fob Trunk Release Button

Push the power trunk button on the key

fob twice within five seconds to release

the trunk.

Passive Entry Button
Push the trunk Passive Entry button which is

located on the right side of the trunk lid. With a

valid Passive Entry key fob within 5 ft (1.5 m) of the

trunk, push the Passive Entry button to open the

trunk.

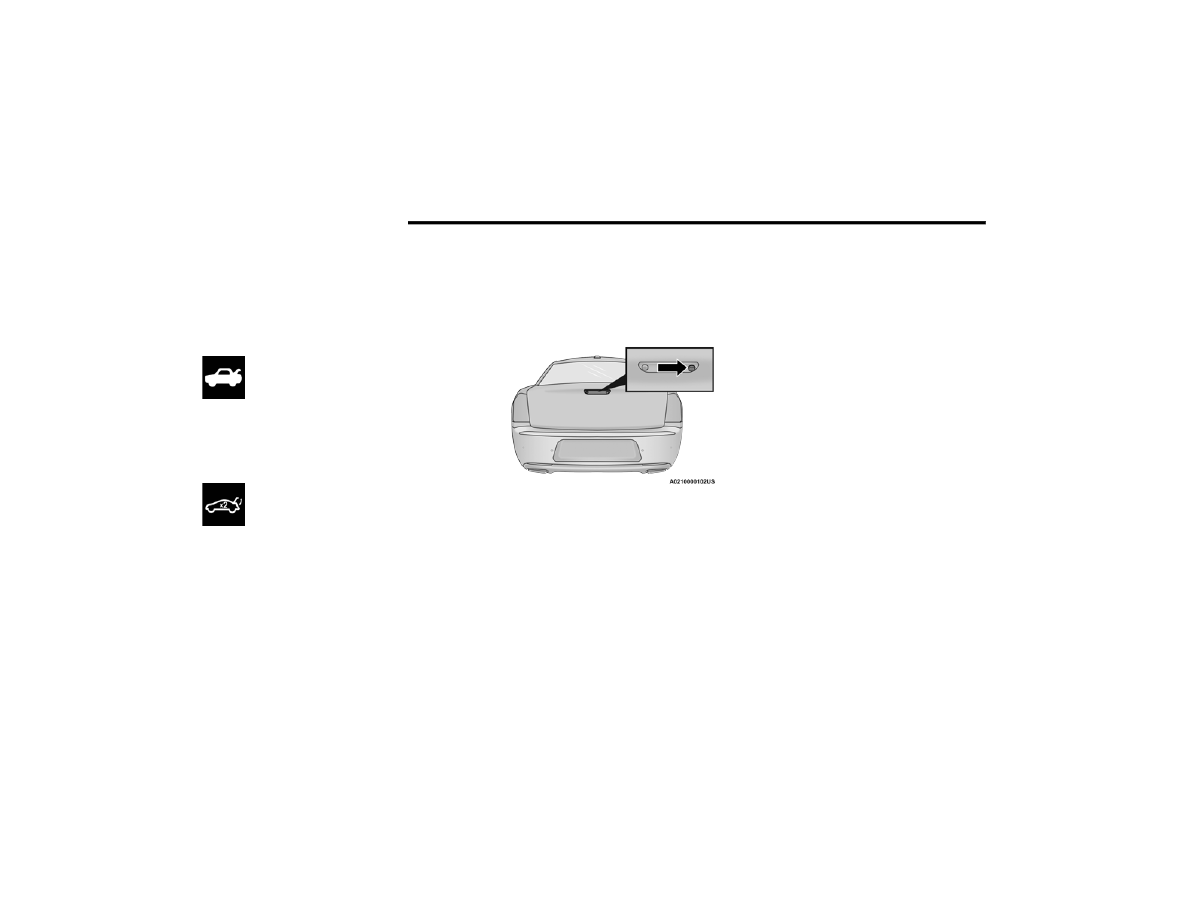

Trunk Passive Entry Button

C

LOSING

 T

HE

 T

RUNK

With one or more hands placed on the outside

trunk surface push the trunk lid down until you

hear the trunk lock latch into place.
NOTE:

Before closing the trunk lid make sure your key fob

isn’t inside the trunk area. The trunk will latch then

automatically unlock if the key fob is detected, not

allowing the key fob to be locked in the trunk area.

T

RUNK

 S

AFETY

Trunk Emergency Release
As a security measure, a trunk internal emergency

release lever is built into the trunk latching

mechanism. In the event of an individual being

locked inside the trunk, the trunk can be opened

by actuating the glow-in-the-dark handle attached

to the trunk latching mechanism.

GETTING TO KNOW YOUR VEHICLE

67

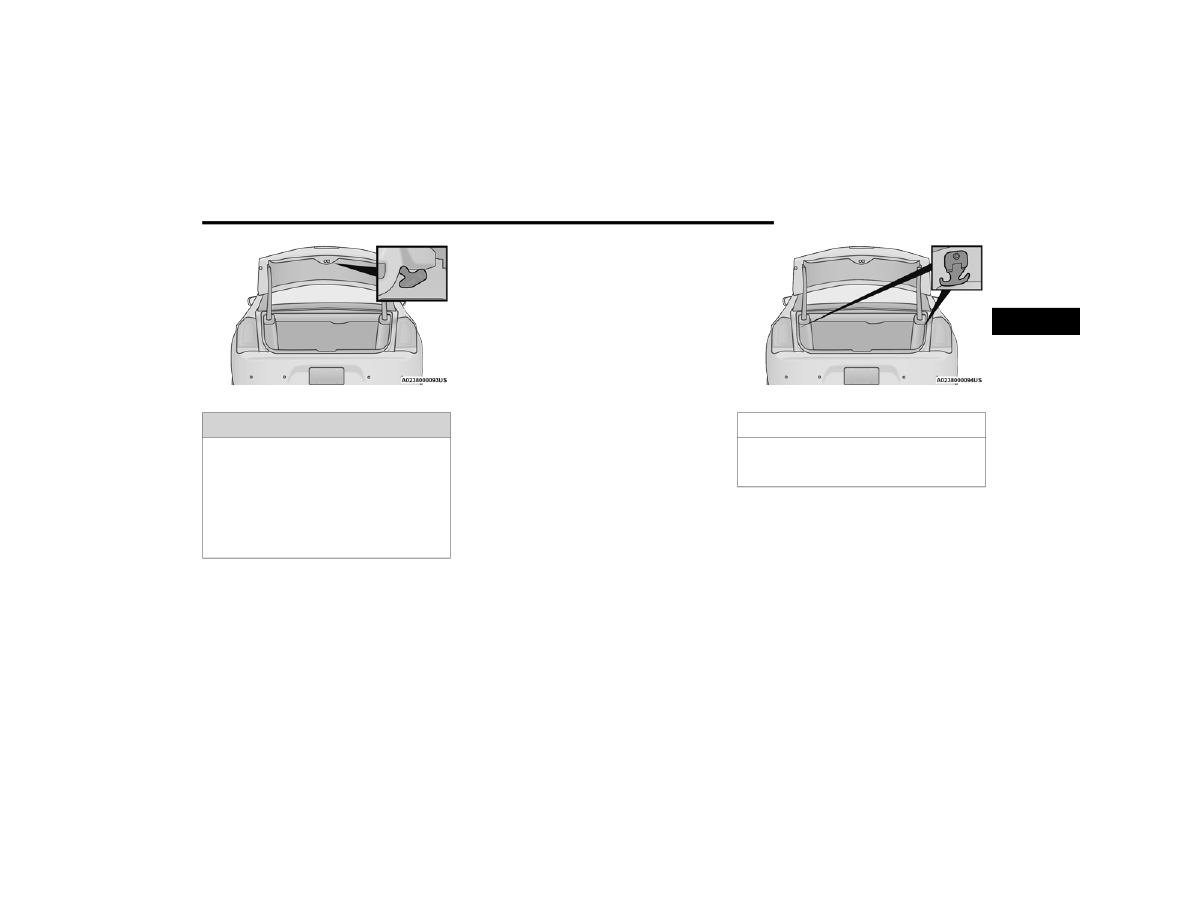

Trunk Emergency Release

C

ARGO

 A

REA

 F

EATURES



Trunk Mat — If Equipped

A trunk mat covers the bottom of the cargo area.

The trunk mat is used to protect the interior of the

trunk from mud, snow, and debris.

Grocery Bag Hooks

The rear cargo area is equipped with grocery bag

hooks, located on either side of the rear cargo

area.

Grocery Bag Hooks

WARNING!

Do not allow children to have access to the

trunk, either by climbing into the trunk from

outside, or through the inside of the vehicle.

Always close the trunk lid when your vehicle is

unattended. Once in the trunk, young children

may not be able to escape, even if they entered

through the rear seat. If trapped in the trunk,

children can die from suffocation or heat stroke.

CAUTION!

Do not exceed the maximum weight limit 50 lb

(22 kg) of the grocery bag hook. Damage may

occur to hook and mounting surface.

2

68

GETTING TO KNOW YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER

GETTING TO KNOW YOUR INSTRUMENT PANEL

69

3

70

GETTING TO KNOW YOUR INSTRUMENT PANEL



I

NSTRUMENT

 C

LUSTER

 D

ESCRIPTIONS

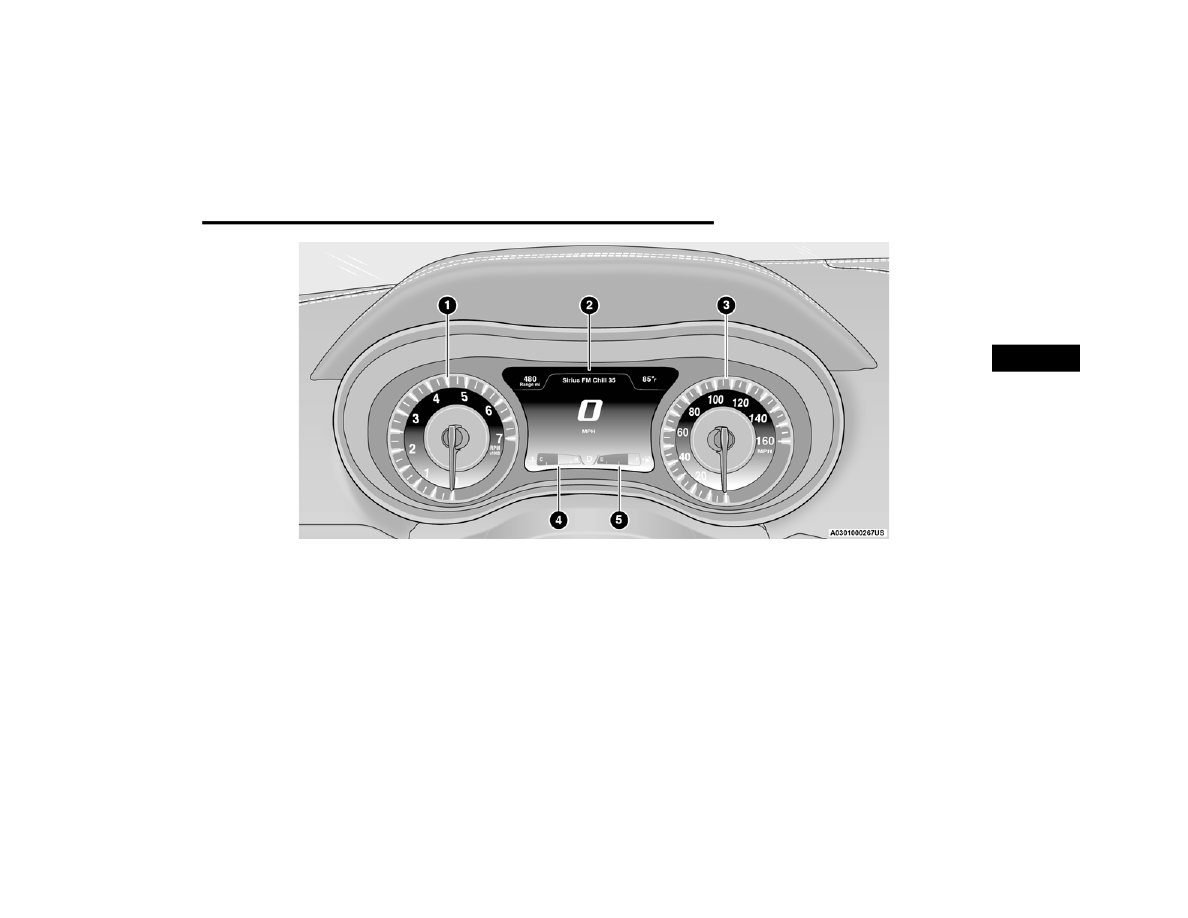

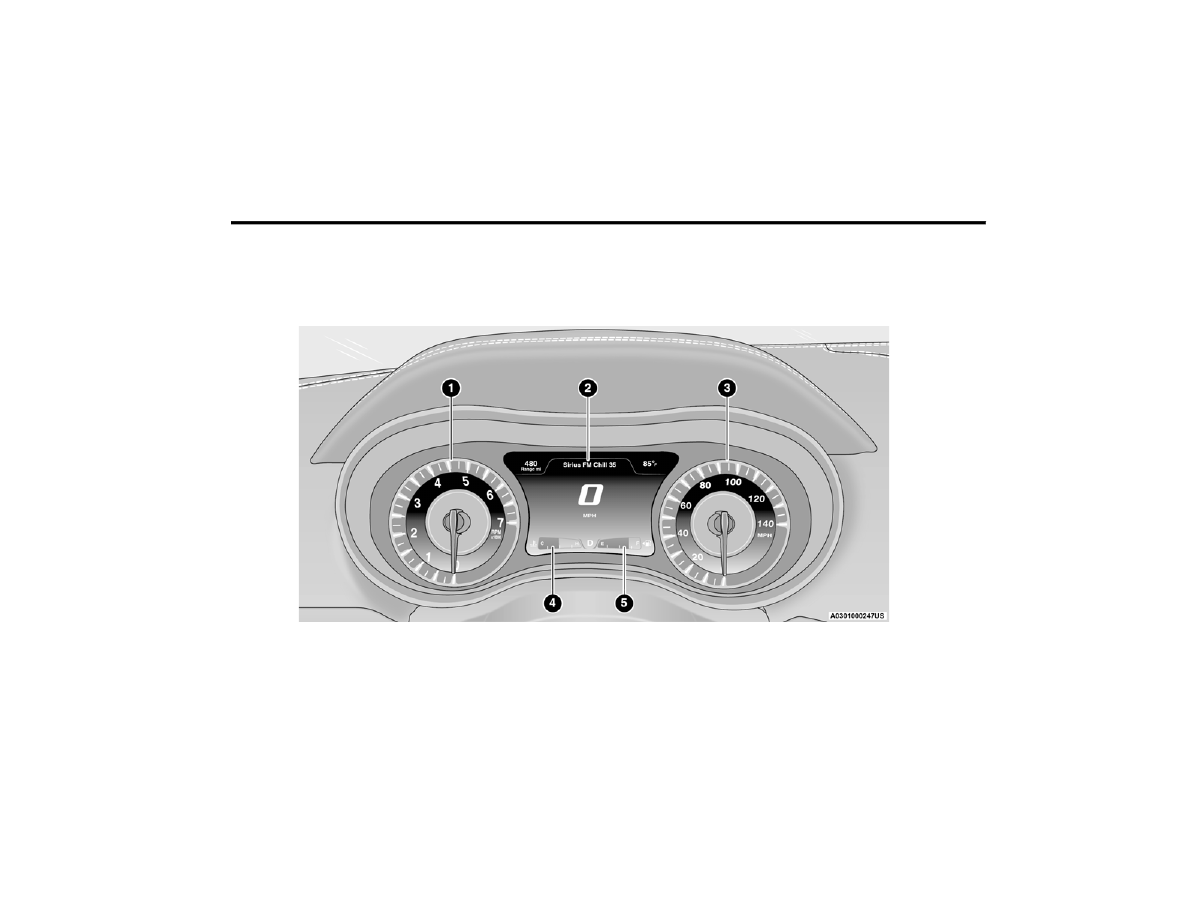

1. Tachometer

Indicates the engine speed in revolutions

per minute (RPM x 1000).

2. Instrument Cluster Display

When the appropriate conditions exist, this

display shows the instrument cluster

display messages

Ú

page 70.

3. Speedometer

Indicates vehicle speed.

4. Temperature Gauge

The temperature gauge shows engine

coolant temperature. Any reading within the

normal range indicates that the engine

cooling system is operating satisfactorily.

The gauge pointer will likely indicate a

higher temperature when driving in hot

weather, up mountain grades, or when

towing a trailer. It should not be allowed to

exceed the upper limits of the normal oper

-

ating range.

5. Fuel Gauge

The pointer shows the level of fuel in the

fuel tank when the Keyless Push Button

Ignition is in the ON/RUN position.

 The fuel pump symbol points to

the side of the vehicle where the

fuel door is located.

NOTE:

The warning / indicator Lights will briefly illuminate

for a bulb check when the ignition is first cycled.

INSTRUMENT CLUSTER DISPLAY

Your vehicle is equipped with an instrument cluster

display, which offers useful information to the

driver. With the ignition in the OFF mode, opening/

closing of a door will activate the display for

viewing, and display the total miles, or kilometers,

in the odometer. Your instrument cluster display is

designed to display important information about

your vehicle’s systems and features. Using a driver

interactive display located on the instrument

panel, your instrument cluster display can show

you how systems are working and give you

warnings when they are not. The steering wheel

mounted controls allow you to scroll through the

main menus and submenus. You can access the

specific information you want and make selections

and adjustments.

WARNING!

A hot engine cooling system is dangerous. You or

others could be badly burned by steam or boiling

coolant. It is recommended to call an authorized

dealer for service if your vehicle overheats

Ú

page 224.

CAUTION!

Driving with a hot engine cooling system could

damage your vehicle. If the temperature gauge

reads “H,” pull over and stop the vehicle. Idle the

vehicle with the air conditioner turned off until

the pointer drops back into the normal range. If

the pointer remains on the “H,” turn the engine

off immediately and call an authorized dealer for

service.

GETTING TO KNOW YOUR INSTRUMENT PANEL

71

L

OCATION

 A

ND

 C

ONTROLS

The instrument cluster display features an

interactive display which is located in the

instrument cluster.
This system conveniently allows the driver to select

a variety of useful information by pushing the

arrow buttons located on the left side of the

steering wheel.

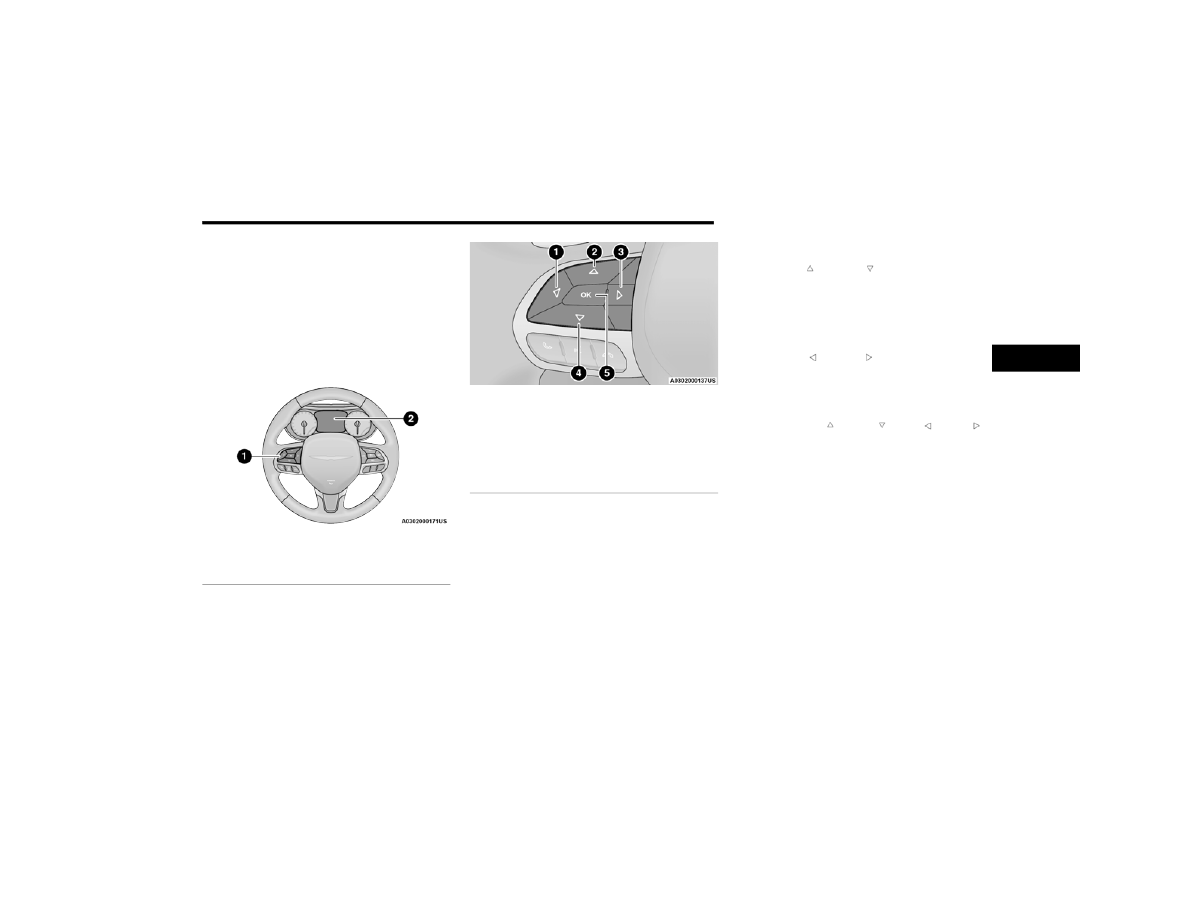

Instrument Cluster Display Location

Instrument Cluster Display Controls

Up And Down Arrow Buttons:
Using the up   or down   arrow buttons allows

you to cycle through the Main Menu Items.
Changes the Main Screen area and Menu Title

area.
Left And Right Arrow Buttons:
Using the left   or right   arrow button allows

you to cycle through the submenu items of the

Main menu item.
NOTE:

Holding the up   / down   or left   / right

arrow button will loop the user through the

currently selected menu or options presented on

the screen.

Upon returning to a main menu, the last

submenu screen viewed within that main menu

will be displayed.

OK Button:
For Digital Speedometer:

Pushing the OK button changes units (mph or

km/h).

1 – Instrument Cluster Display Controls
2 – Instrument Cluster Display Screen

1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button

3















Content      ..     2      3      4      5     ..
