Chrysler 300 (2022 year). Manual in english - page 2





24

GETTING TO KNOW YOUR VEHICLE



NOTE:

The vehicle will only unlock the doors when a valid

Passive Entry key fob is detected inside the

vehicle. The vehicle will not unlock the doors when

any of the following conditions are true:

The doors are manually locked using the door

lock knobs.

Three attempts are made to lock the doors

using the door panel switch and then the doors

are closed.

There is a valid Passive Entry key fob outside the

vehicle and within 5 ft (1.5 m) of either Passive

Entry door handle.

To Lock The Vehicle’s Doors And Trunk
With one of the vehicle’s Passive Entry key fobs

within 5 ft (1.5 m) of either door handle, pushing

the Passive Entry lock button will lock both doors.

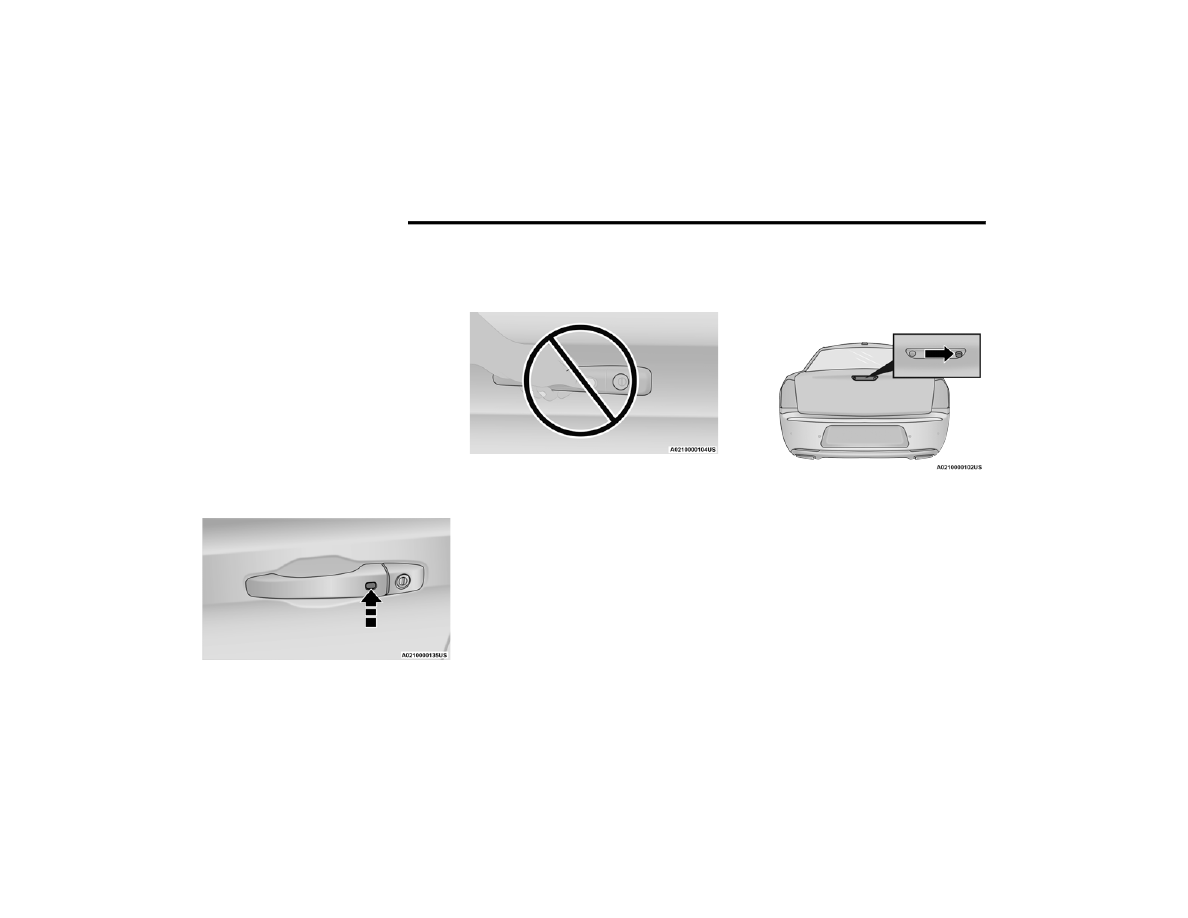

Push The Door Handle Button To Lock

NOTE:

Do NOT grab the door handle when pushing the

door handle lock button. This could unlock the

door(s).

Do NOT Grab The Door Handle When Locking

NOTE:

After pushing the door handle button, you must

wait two seconds before you can lock or unlock

the doors, using either Passive Entry door

handle. This is done to allow you to check if the

vehicle is locked by pulling the door handle,

without the vehicle unlocking.

The Passive Entry system will not operate if the

key fob battery is depleted.

To Unlock/Enter The Trunk
With a valid Passive Entry key fob within 5 ft

(1.5 m) of the deck lid, push the button on the right

side of the Center High Mounted Stop Lamp

(CHMSL), which is located on the deck lid.

Trunk Passive Entry Button

NOTE:

If you inadvertently leave your vehicle's Passive

Entry key fob in the trunk and try to close the deck

lid, the deck lid will automatically unlatch, unless

another one of the vehicle’s Passive Entry key fobs

is outside the vehicle and within 5 ft (1.5 m) of the

deck lid

Ú

page 273.

GETTING TO KNOW YOUR VEHICLE

25

A

UTOMATIC

 U

NLOCK

 D

OORS

 O

N

 E

XIT



The doors will unlock automatically on vehicles

with power door locks if:

The Automatic Unlock Doors On Exit feature is

enabled within Uconnect Settings

Ú

page 129.

The gear selector was not in PARK, then is

placed in PARK.

The driver door is opened.

The doors were not previously unlocked.

NOTE:

Use the Automatic Unlock Doors On Exit feature in

accordance with local laws.

A

UTOMATIC

 D

OOR

 L

OCKS

 —

I

F

 E

QUIPPED



The auto door lock feature default condition is

enabled. When enabled, the door locks will lock

automatically when the vehicle's speed exceeds

15 mph (24 km/h). The auto door lock feature can

be enabled or disabled by an authorized dealer per

written request of the customer. Please see an

authorized dealer for service.

C

HILD

-P

ROTECTION

 D

OOR

 L

OCK



S

YSTEM

 — R

EAR

 D

OORS



To provide a safer environment for small children

riding in the rear seats, the rear doors are

equipped with Child-Protection Door Lock system.
To use the system, open each rear door, use a flat

blade screwdriver (or emergency key) and rotate

the dial to the lock or unlock position.

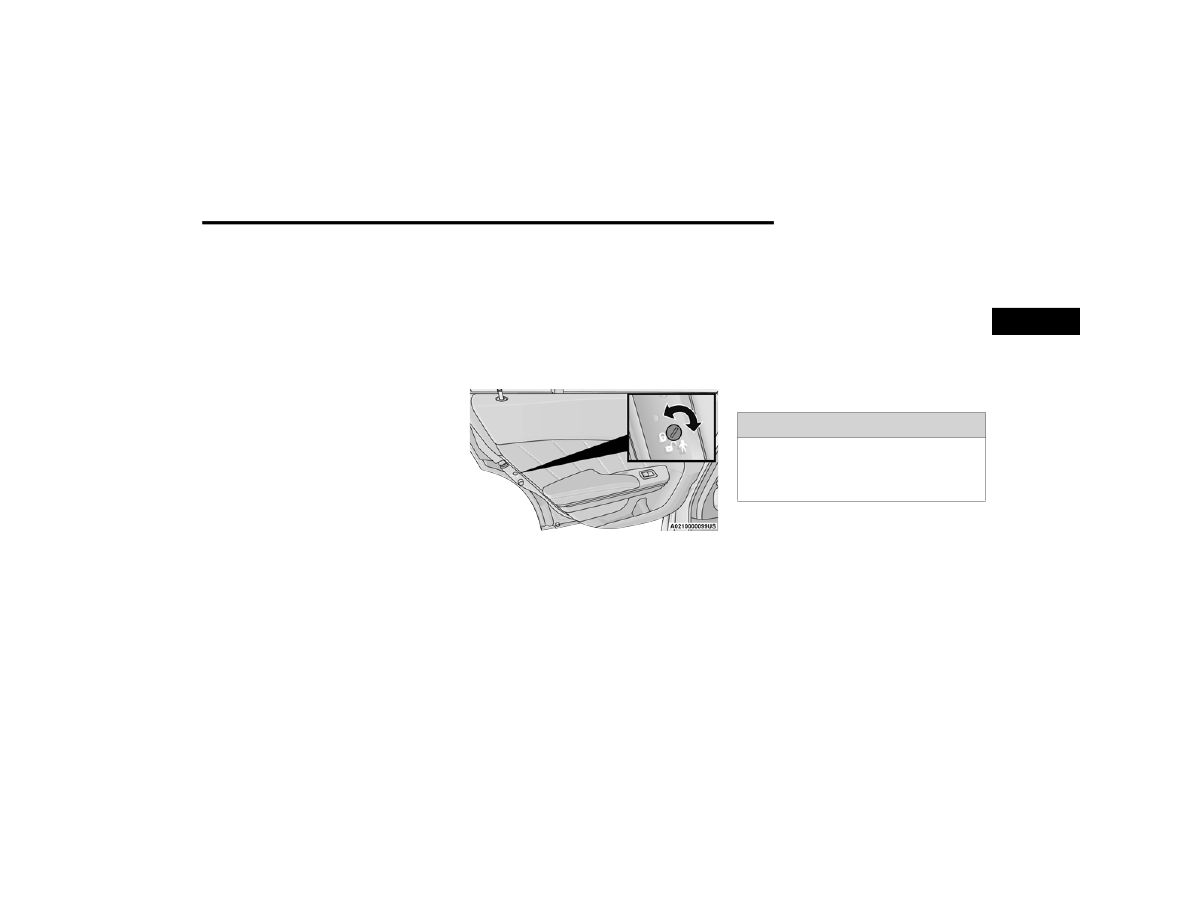

Child-Protection Door Lock Function

NOTE:

When the Child-Protection Door Lock system is

engaged, the door can be opened only by using

the outside door handle even though the inside

door lock is in the unlocked position.

After disengaging the Child-Protection Door

Lock system, always test the door from the

inside to make certain it is in the unlocked posi

-

tion.

After engaging the Child-Protection Door Lock

system, always test the door from the inside to

make certain it is in the locked position.

For emergency exit with the system engaged,

pull up on the door lock knob (unlocked posi

-

tion), roll down the window, and open the door

with the outside door handle.

NOTE:

Always use this device when carrying children.

After engaging the child lock on both rear doors,

check for effective engagement by trying to open a

door with the internal handle. Once the

Child-Protection Door Lock system is engaged, it is

impossible to open the doors from inside the

vehicle. Before getting out of the vehicle, be sure to

check that there is no one left inside.

WARNING!

Avoid trapping anyone in a vehicle in a collision.

Remember that the rear doors can only be

opened from the outside with the

Child-Protection locks are engaged (locked).

2

26

GETTING TO KNOW YOUR VEHICLE



STEERING WHEEL

M

ANUAL

 T

ILT

/T

ELESCOPING

 S

TEERING



C

OLUMN

 — I

F

 E

QUIPPED



This feature allows you to tilt the steering column

upward or downward. It also allows you to lengthen

or shorten the steering column. The tilt/

telescoping control is located below the steering

wheel at the end of the steering column.

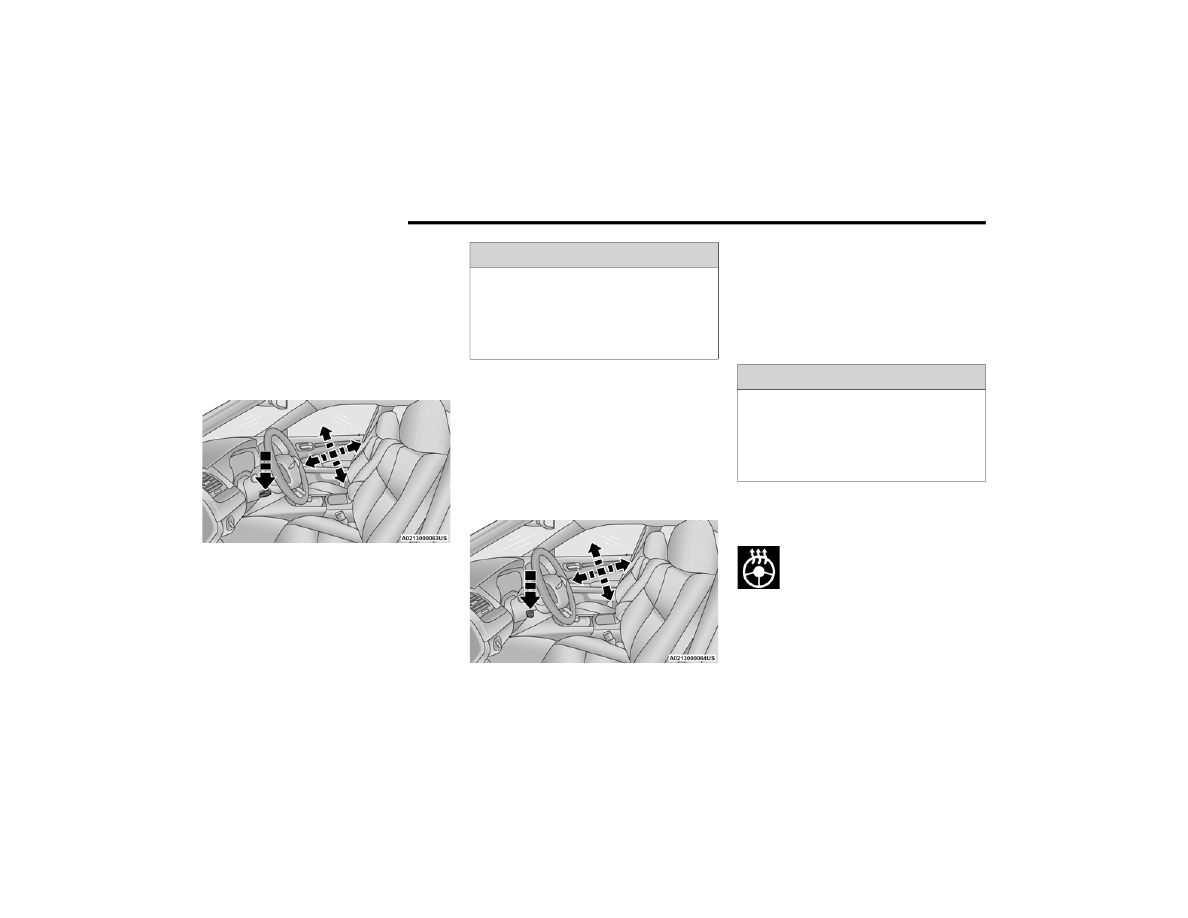

Manual Tilt/Telescoping Control

To unlock the steering column, push the control

downward (toward the floor). To tilt the steering

column, move the steering wheel upward or

downward as desired. To lengthen or shorten the

steering column, pull the steering wheel outward

or push it inward as desired. To lock the steering

column in position, push the control upward until

fully engaged.

P

OWER

 T

ILT

/T

ELESCOPING

 S

TEERING



C

OLUMN

 — I

F

 E

QUIPPED



This feature allows you to tilt the steering column

upward or downward. It also allows you to lengthen

or shorten the steering column. The power tilt/

telescoping steering column control is located

below the multifunction lever on the steering

column.

Power Tilt/Telescoping Steering Control

Use the four-way control to adjust the steering

column.
NOTE:

For vehicles equipped with Driver Memory

Settings, use the key fob or the memory switch on

the driver's door trim panel to return the tilt/tele

-

scopic steering column to saved positions

Ú

page 28.

H

EATED

 S

TEERING

 W

HEEL

 —

I

F

 E

QUIPPED

The steering wheel contains a heating

element that helps warm your hands in

cold weather. The heated steering wheel

has only one temperature setting. Once

the heated steering wheel has been turned on, it

will stay on for an average of 80 minutes before

automatically shutting off. This time will vary based

on environmental temperatures. The heated

WARNING!

Do not adjust the steering column while driving.

Adjusting the steering column while driving or

driving with the steering column unlocked, could

cause the driver to lose control of the vehicle.

Failure to follow this warning may result in

serious injury or death.

WARNING!

Do not adjust the steering column while driving.

Adjusting the steering column while driving or

driving with the steering column unlocked, could

cause the driver to lose control of the vehicle.

Failure to follow this warning may result in

serious injury or death.

GETTING TO KNOW YOUR VEHICLE

27

steering wheel can shut off early or may not turn on

when the steering wheel is already warm.
The heated steering wheel button is located within

the Uconnect system. You can access the button

through the climate screen or the controls screen.

Press the heated steering wheel button once to

turn the heating element on.

Press the heated steering wheel button a

second time to turn the heating element off.

NOTE:

The engine must be running for the heated

steering wheel to operate.
For information on use with the Remote Start

system, see

Ú

page 18.

UCONNECT VOICE RECOGNITION QUICK TIPS

I

NTRODUCING

 U

CONNECT

Start using Uconnect Voice Recognition (VR) with

these helpful quick tips. It provides the key Voice

Commands and tips you need to know to control

your Uconnect system.
NOTE:

The NAV icon on the bottom bar or in the Apps

menus of your touchscreen means you have the

Uconnect 4C NAV system. If not, you have a

Uconnect 4C system.

Voice Recognition

B

ASIC

 V

OICE

 C

OMMANDS

The basic Voice Commands below can be given at

any point while using your Uconnect system.
Push the VR button  . After the beep, say:

“Cancel” to stop a current voice session

“Help” to hear a list of suggested Voice

Commands

“Repeat” to listen to the system prompts again

Notice the visual cues that inform you of your voice

recognition system’s status. Cues appear on the

touchscreen.

G

ET

 S

TARTED

The VR button is used to activate/deactivate your

VR system.
Helpful hints for using VR:

Reduce background noise. Wind and passenger

conversations are examples of noise that may

impact recognition.

Speak clearly at a normal pace and volume

while facing straight ahead.

Each time you give a Voice Command, you must

first push the VR button, wait until after the

beep, then say your Voice Command.

You can interrupt the help message or system

prompts by pushing the VR button and saying a

Voice Command from the current category.

WARNING!

Persons who are unable to feel pain to the skin

because of advanced age, chronic illness,

diabetes, spinal cord injury, medication, alcohol

use, exhaustion, or other physical conditions

must exercise care when using the steering

wheel heater. It may cause burns even at low

temperatures, especially if used for long periods.

Do not place anything on the steering wheel

that insulates against heat, such as a blanket

or steering wheel covers of any type and mate

-

rial. This may cause the steering wheel heater

to overheat.

2

28

GETTING TO KNOW YOUR VEHICLE



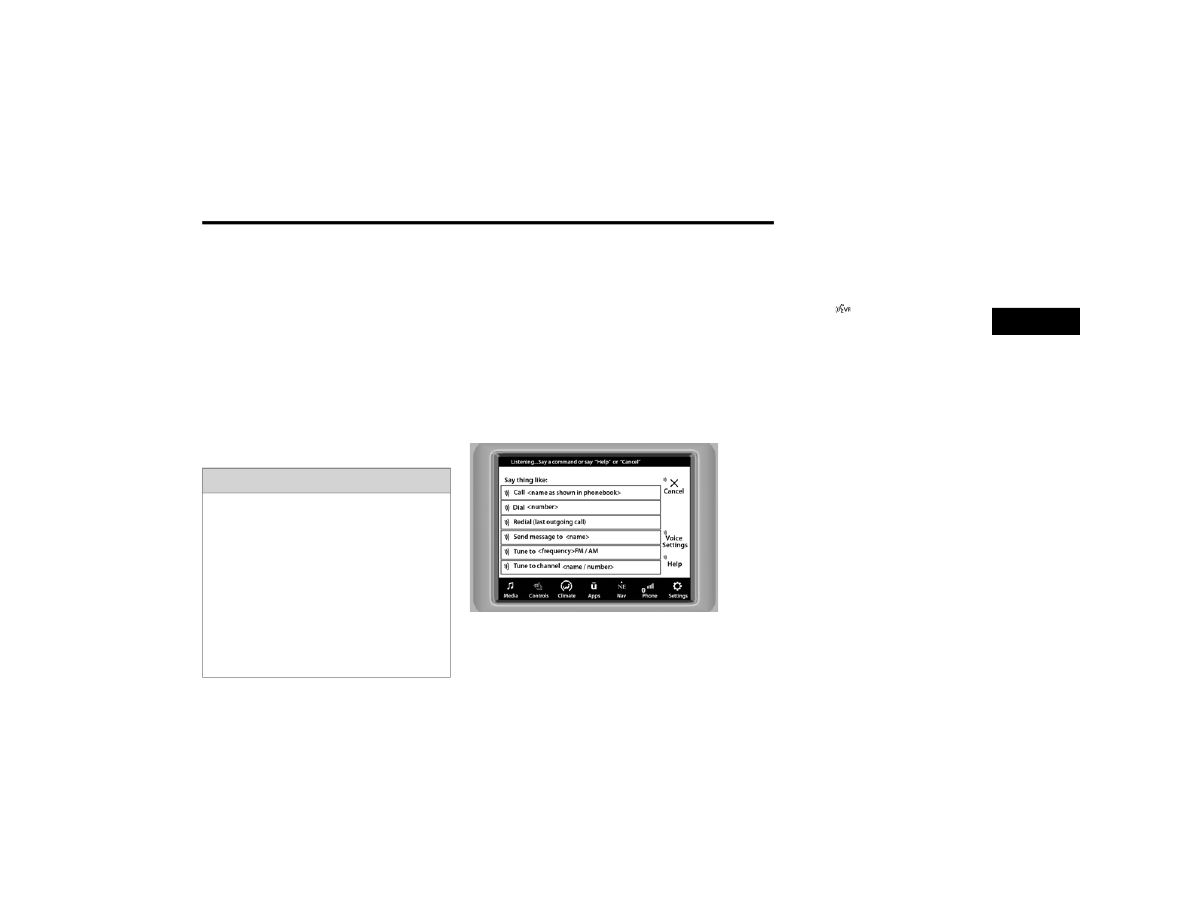

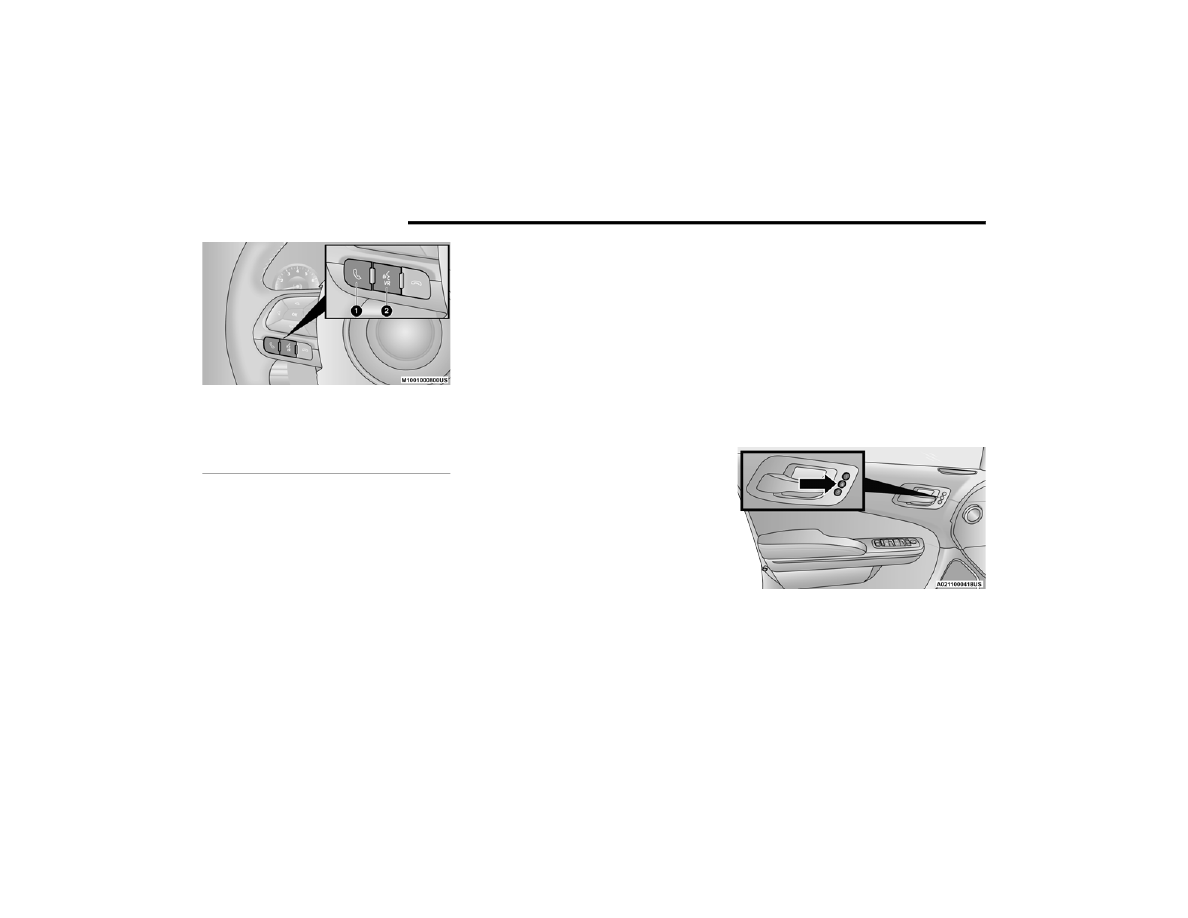

Uconnect Voice Command Buttons

A

DDITIONAL

 I

NFORMATION

Uconnect are registered trademarks and Mopar

Owner Connect is a trademark of FCA US LLC.

SiriusXM® and all related marks and logos are

trademarks of SiriusXM® Radio Inc.

Uconnect System Support:

US residents visit

www.DriveUconnect.com or

call: 1-877-855-8400 (24 hours a day 7 days a

week)

Canadian residents visit

www.DriveUcon

-

nect.ca or call: 1-800-465-2001 (English) or

1-800-387-9983 (French)

SiriusXM Guardian™ services support:

US residents visit

www.driveuconnect.com/

sirius-xm-guardian or call: 1-844-796-4827

Canadian residents visit

https://www.driveu

-

connect.ca/en/sirius-xm-guardian or call:

1-877-324-9091

DRIVER MEMORY SETTINGS — IF EQUIPPED

This feature allows the driver to save up to two

different memory profiles for easy recall through a

memory switch. Each memory profile saves

desired position settings for the following features:

Driver seat

Easy Entry/Exit seat operation (if equipped)

Side mirrors

Power tilt and telescopic steering column (if

equipped)

A set of desired radio station presets

NOTE:

Your vehicle is equipped with two key fobs, each

can be linked to either memory position 1 or 2.

Be sure to program the radio presets prior to

programming the memory settings.

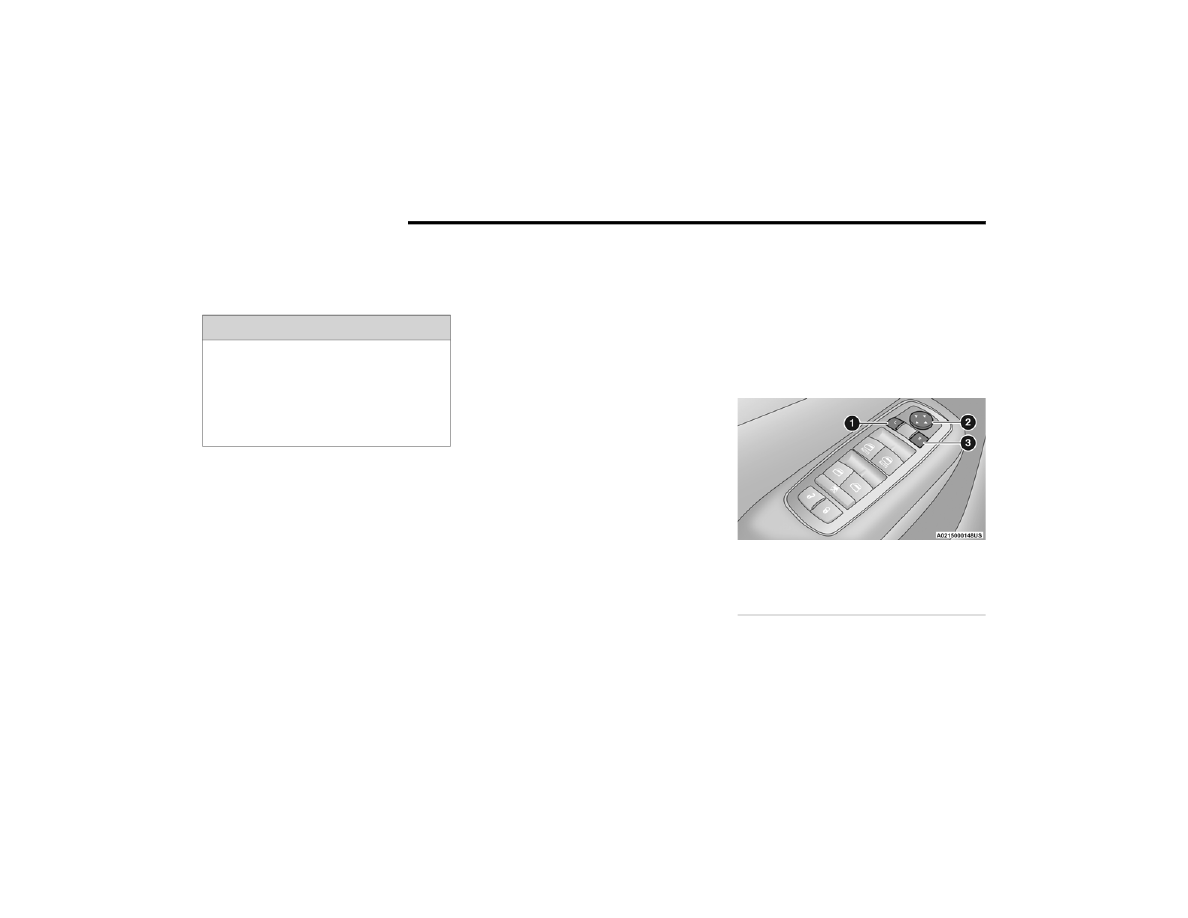

The memory settings switch is located on the

driver’s door trim panel. The switch consists of

three buttons:

The set (S) button, which is used to activate the

memory save function.

The (1) and (2) buttons which are used to recall

either of two saved memory profiles.

Memory Switch

1 — Push To Start Or Answer A Phone Call And

Send Or Receive A Text
2 — Push The VR Button To Begin Radio, Media,

And Climate Functions

GETTING TO KNOW YOUR VEHICLE

29

P

ROGRAMMING

 T

HE

 M

EMORY

 F

EATURE

To create a new memory profile, perform the

following:
NOTE:

Saving a new memory profile will erase the

selected profile from memory.
1. Place the vehicle’s ignition in the ON/RUN

position (do not start the engine).

2. Adjust all memory profile settings to desired

preferences (i.e., seat, side mirror, power tilt

and telescopic steering column [if equipped],

and radio station presets).

3. Push and release the set (S) button on the

memory switch, and then push the desired

memory button (1 or 2) within five seconds.

The instrument cluster display will display

which memory position has been set.

NOTE:

Memory profiles can be set without the vehicle in

PARK, but the vehicle must be in PARK to recall a

memory profile.

L

INKING

 A

ND

 U

NLINKING

 T

HE

 K

EY

 F

OB



T

O

 M

EMORY

Your key fobs can be programmed to recall one of

two saved memory profiles.
NOTE:

Before programming your key fobs you must select

the “Memory Linked To Fob” feature through the

Uconnect system

Ú

page 129.

To program your key fobs, perform the following:
1. Place the vehicle’s ignition in the OFF

position.

2. Select a desired memory profile, 1 or 2.
3. Once the profile has been recalled, push and

release the set (S) button on the memory

switch.

4. Within five seconds, push and release button

(1) or (2) accordingly. “Memory Profile Set” (1

or 2) will display in the instrument cluster.

5. Push and release the lock button on the key

fob within 10 seconds.

NOTE:

Your key fob can be unlinked from your memory

settings by pushing the set (S) button, followed by

pushing the unlock button on the key fob within 10

seconds.

M

EMORY

 P

OSITION

 R

ECALL

NOTE:

If a recall is attempted when the vehicle is not in

PARK, a message will be displayed in the

instrument cluster display.
To recall the memory settings for driver one or two,

push the desired memory button number (1 or 2)

or the unlock button on the key fob linked to the

desired memory position.
A recall can be canceled by pushing any of the

memory buttons (S, 1, or 2) during a recall. When

a recall is canceled, the driver seat will stop

moving. A delay of one second will occur before

another recall can be selected.

2

30

GETTING TO KNOW YOUR VEHICLE



(Continued)

SEATS

Seats are a part of the Occupant Restraint system

of the vehicle.

M

ANUAL

 A

DJUSTMENT

 (R

EAR

 S

EATS

)

Folding Rear Seat

The rear seatbacks can be folded forward to

provide an additional storage area. To fold the rear

seatback, pull on the loops located on the upper

seatback.
NOTE:

These loops can be tucked away when not in use.

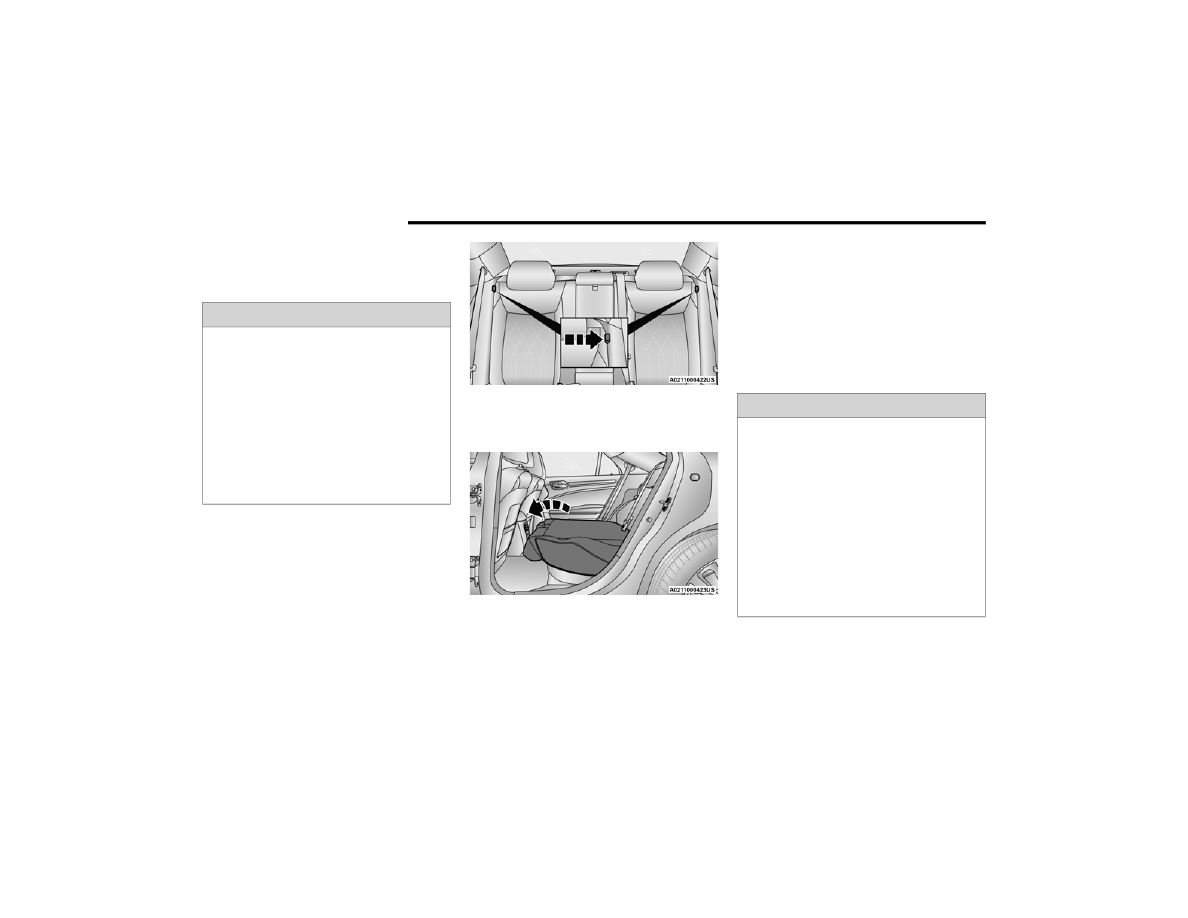

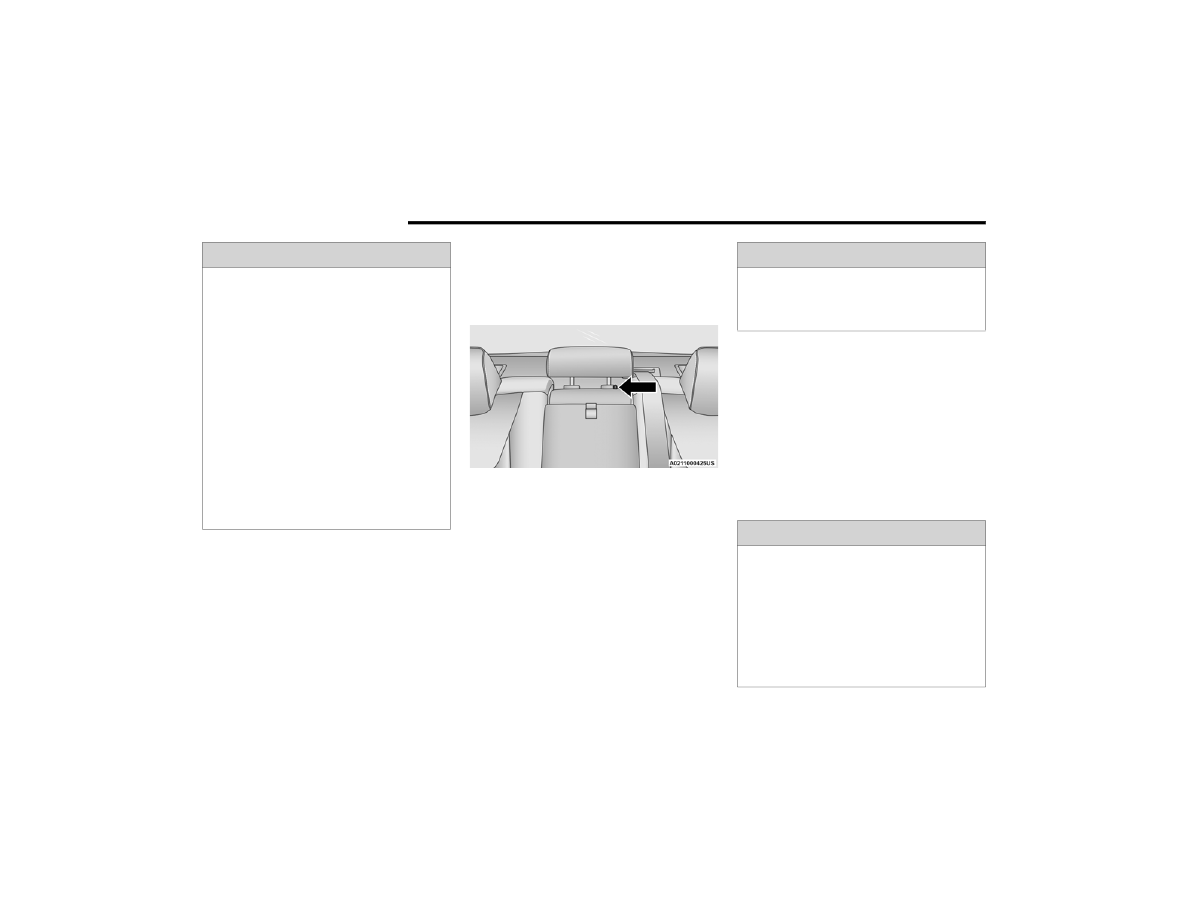

Rear Seatback Loop

After releasing the seatback, it can be folded

forward.

Folded Rear Seatback

NOTE:

You may experience deformation in the seat

cushion from the seat belt buckles if the seats are

left folded for an extended period of time. This is

normal and by simply unfolding the seats to the

open position, over time the seat cushion will

return to its normal shape.
When the seatback is folded to the upright

position, make sure it is latched by strongly pulling

on the top of the seatback above the seat strap.

WARNING!

It is dangerous to ride in a cargo area, inside

or outside of a vehicle. In a collision, people

riding in these areas are more likely to be seri

-

ously injured or killed.

Do not allow people to ride in any area of your

vehicle that is not equipped with seats and

seat belts. In a collision, people riding in these

areas are more likely to be seriously injured or

killed.

Be sure everyone in your vehicle is in a seat

and using a seat belt properly.

WARNING!

Be certain that the seatback is securely

locked into position. If the seatback is not

securely locked into position, the seat will not

provide the proper stability for child seats

and/or passengers. An improperly latched

seat could cause serious injury.

The cargo area in the rear of the vehicle (with

the rear seatbacks in the locked-up or folded

down position) should not be used as a play

area by children at any time. They could be

seriously injured in a collision. Children should

be seated and using the proper restraint

system.

GETTING TO KNOW YOUR VEHICLE

31

P

OWER

 A

DJUSTMENT

 (F

RONT

 S

EATS

Your vehicle may be equipped with eight-way

power driver and front passenger seats. The power

seat switches are located on the outboard side of

the seat. There are two switches that control the

movement of the seat cushion and the seatback.

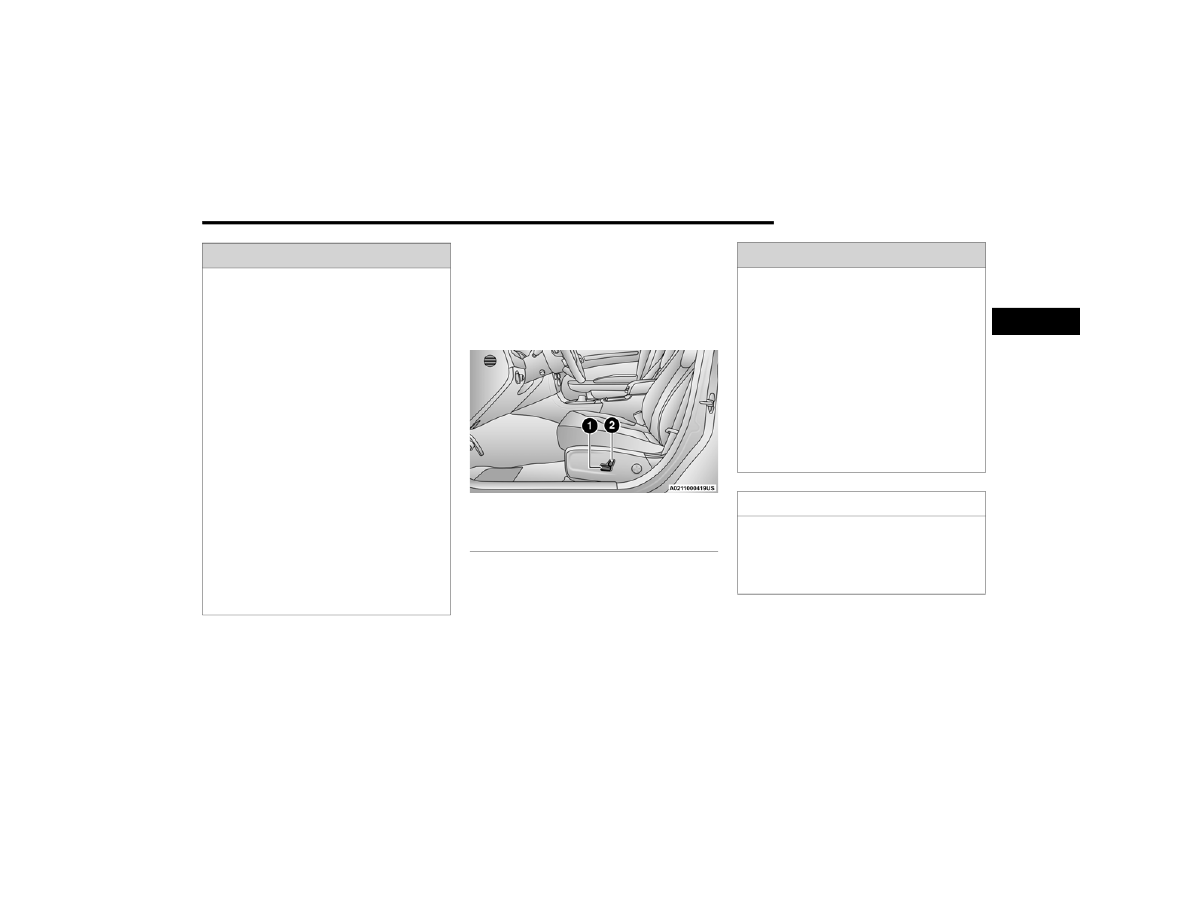

Power Seat Switches

To help protect against personal injury,

passengers should not be seated in the rear

cargo area. The rear cargo space is intended

for load carrying purposes only, not for

passengers, who should sit in seats and use

seat belts.

The weight and position of cargo and

passengers can change the vehicle center of

gravity and vehicle handling. To avoid loss of

control resulting in personal injury, follow these

guidelines for loading your vehicle:

Always place cargo evenly on the cargo floor.

Put heavier objects as low and as far forward

as possible.

Place as much cargo as possible in front of the

rear axle. Too much weight or improperly

placed weight over or behind the rear axle can

cause the rear of the vehicle to sway.

Do not pile luggage or cargo higher than the

top of the seatback. This could impair visibility

or become a dangerous projectile in a sudden

stop or collision.

WARNING!

1 — Seat Control
2 — Seatback Control (If Equipped)

WARNING!

Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.

Seats should be adjusted before fastening the

seat belts and while the vehicle is parked.

Serious injury or death could result from a

poorly adjusted seat belt.

Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt, which could result in serious

injury or death.

CAUTION!

Do not place any article under a power seat or

impede its ability to move as it may cause

damage to the seat controls. Seat travel may

become limited if movement is stopped by an

obstruction in the seat's path.

2

32

GETTING TO KNOW YOUR VEHICLE



Adjusting The Seat Forward Or Rearward

The seat can be adjusted both forward and

rearward by using the power seat switch. The seat

will move in the direction of the switch. Release the

switch when the desired position has been

reached.

Adjusting The Seat Up Or Down

The height of the seats can be adjusted up or down

by using the power seat switch. The seat will move

in the direction of the switch. Release the switch

when the desired position has been reached.

Tilting The Seat Up Or Down

The angle of the seat cushion can be adjusted up

or down using the power seat switch. The front of

the seat cushion will move in the direction of the

switch. Release the switch when the desired

position has been reached.

Reclining The Seatback

The angle of the seatback can be adjusted forward

or rearward by using the power seat switch. The

seat will move in the direction of the switch.

Release the switch when the desired position is

reached.

Power Lumbar — If Equipped

Vehicles equipped with power driver or passenger

seats may also be equipped with power lumbar.

The power lumbar switch is located on the

outboard side of the power seat. Push the switch

forward or rearward to increase or decrease the

lumbar support.

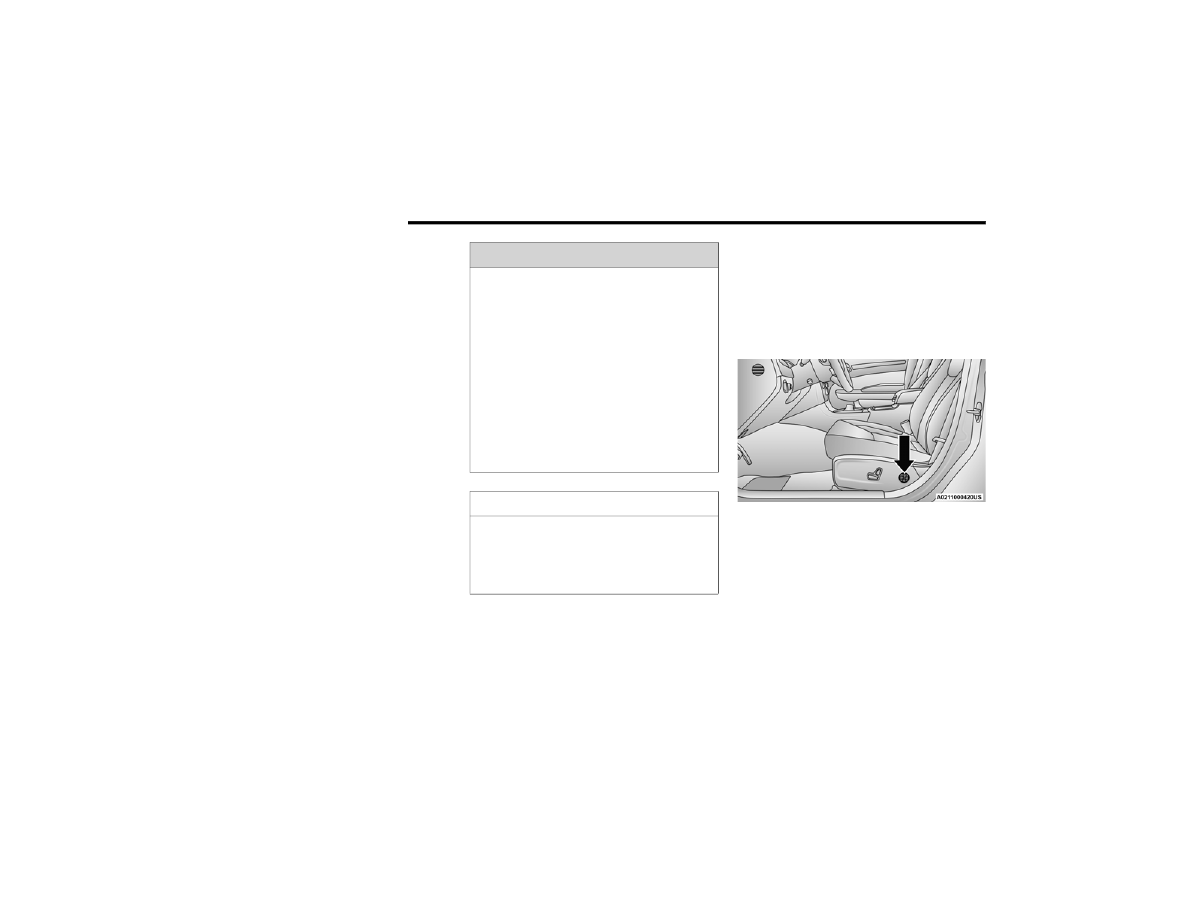

Power Lumbar Switch

WARNING!

Adjusting a seat while driving may be

dangerous. Moving a seat while driving could

result in loss of control which could cause a

collision and serious injury or death.

Seats should be adjusted before fastening the

seat belts and while the vehicle is parked.

Serious injury or death could result from a

poorly adjusted seat belt.

Do not ride with the seatback reclined so that

the shoulder belt is no longer resting against

your chest. In a collision you could slide under

the seat belt, which could result in serious

injury or death.

CAUTION!

Do not place any article under a power seat or

impede its ability to move as it may cause

damage to the seat controls. Seat travel may

become limited if movement is stopped by an

obstruction in the seat’s path.

GETTING TO KNOW YOUR VEHICLE

33

Easy Entry/Exit Seat — If Equipped

This feature provides automatic driver seat

positioning to enhance driver mobility when

entering and exiting the vehicle.
The distance the driver seat moves depends on

where you have the driver seat positioned when

you place the vehicle’s ignition in the OFF position.

When you place the vehicle’s ignition in the OFF

position, the driver seat will move about

2.4 inches (60 mm) rearward if the driver seat

position is greater than or equal to 2.7 inches

(67.7 mm) forward of the rear stop. The seat will

return to its previously set position when you

place the vehicle’s ignition in the ACC or RUN

position.

The Easy Entry/Easy Exit feature is disabled

when the driver seat position is less than 0.9 of

an inch (22.7 mm) forward of the rear stop. At

this position, there is no benefit to the driver by

moving the seat for Easy Exit or Easy Entry.

When enabled in Uconnect Settings, Easy Entry

and Easy Exit positions are stored in each memory

setting profile

Ú

page 28.

NOTE:

The Easy Entry/Exit feature is enabled or disabled

through the programmable features in the

Uconnect system

Ú

page 129.

H

EATED

 S

EATS

 — I

F

 E

QUIPPED



On some models, the front and rear seats may be

equipped with heaters located in the seat cushions

and seatbacks.

Front Heated Seats

The front heated seat control buttons

are located within the climate or

controls screen of the touchscreen.
You can choose from HI, LO, or OFF heat

settings. The indicator arrows in touchscreen

buttons indicate the level of heat in use. Two

indicator arrows will illuminate for HI, and one for

LO. Turning the heating elements off will return the

user to the radio screen.

Press the heated seat button once to turn the HI

setting on.

Press the heated seat button a second time to

turn the LO setting on.

Press the heated seat button a third time to turn

the heating elements off.

If the HI-level setting is selected, the system will

automatically switch to LO-level after

approximately 60 minutes of continuous

operation. At that time, the display will change

from HI to LO, indicating the change. The LO-level

setting will turn off automatically after

approximately 45 minutes.

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion or other physical

condition must exercise care when using the

seat heater. It may cause burns even at low

temperatures, especially if used for long

periods of time.

Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

-

heated could cause serious burns due to the

increased surface temperature of the seat.

2

34

GETTING TO KNOW YOUR VEHICLE



NOTE:

Once a heat setting is selected, heat will be felt

within two to five minutes.

The engine must be running for the heated

seats to operate.

For information on use with the Remote Start

system, see

Ú

page 18.

Rear Heated Seats — If Equipped

On some models, the two rear outboard

seats may be equipped with heated

seats. There are two heated seat

switches that allow the rear passengers

to operate the seats independently. The heated

seat switches for each heater are located on the

rear of the center console.
You can choose from HI, LO, or OFF heat settings.

Amber indicator lights in each switch indicate the

level of heat in use. Two indicator lights will

illuminate for HI, one for LO and none for OFF.

Push the heated seat button once to turn the HI

setting on.

Push the heated seat button a second time to

turn the LO setting on.

Push the heated seat button a third time to turn

the heating elements off.

When the HI-level setting is selected, the heater

will provide a boosted heat level during the first

four minutes of operation. Then, the heat output

will drop to the normal HI-level. If the HI-level

setting is selected, the system will automatically

switch to LO-level after approximately 60 minutes

of continuous operation. At that time, the number

of indicator lights changes from two to one,

indicating the change. The LO-level setting will turn

off automatically after approximately 45 minutes.

NOTE:

Once a heat setting is selected, heat will be felt

within two to five minutes.

The engine must be running for the heated

seats to operate.

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion or other physical

condition must exercise care when using the

seat heater. It may cause burns even at low

temperatures, especially if used for long

periods of time.

Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

-

heated could cause serious burns due to the

increased surface temperature of the seat.

WARNING!

Persons who are unable to feel pain to the

skin because of advanced age, chronic illness,

diabetes, spinal cord injury, medication,

alcohol use, exhaustion or other physical

condition must exercise care when using the

seat heater. It may cause burns even at low

temperatures, especially if used for long

periods of time.

Do not place anything on the seat or seatback

that insulates against heat, such as a blanket

or cushion. This may cause the seat heater to

overheat. Sitting in a seat that has been over

-

heated could cause serious burns due to the

increased surface temperature of the seat.

GETTING TO KNOW YOUR VEHICLE

35

F

RONT

 V

ENTILATED

 S

EATS

 —

I

F

 E

QUIPPED



The ventilated seats are equipped with

fans that can be controlled through the

climate and control screen in the

Uconnect system. The fans operate at

two speeds, HI and LO.

Press the ventilated seat button once to choose

HI.

Press the ventilated seat button a second time

to choose LO.

Press the ventilated seat button a third time to

turn the ventilated seat off.

NOTE:

The engine must be running for the ventilated

seats to operate.
For information on use with the Remote Start

system, see

Ú

page 18.

H

EAD

 R

ESTRAINTS



Head restraints are designed to reduce the risk of

injury by restricting head movement in the event of

a rear impact. Head restraints should be adjusted

so that the top of the head restraint is located

above the top of your ear.

NOTE:

Do not reverse the head restraints (making the

rear of the head restraint face forward) in an

attempt to gain additional clearance to the back of

your head.

Reactive Head Restraints — Front Seats

The front driver and passenger seats are equipped

with Reactive Head Restraints (RHR). In the event

of a rear impact, the RHR will automatically extend

forward minimizing the gap between the back of

the occupant’s head and the RHR.

The RHR will automatically return to their normal

position following a rear impact. If the RHR do not

return to their normal position, see an authorized

dealer immediately.
To raise the head restraint, pull upward on the

head restraint. To lower the head restraint, push

the adjustment button located at the base of the

head restraint and push downward on the head

restraint.

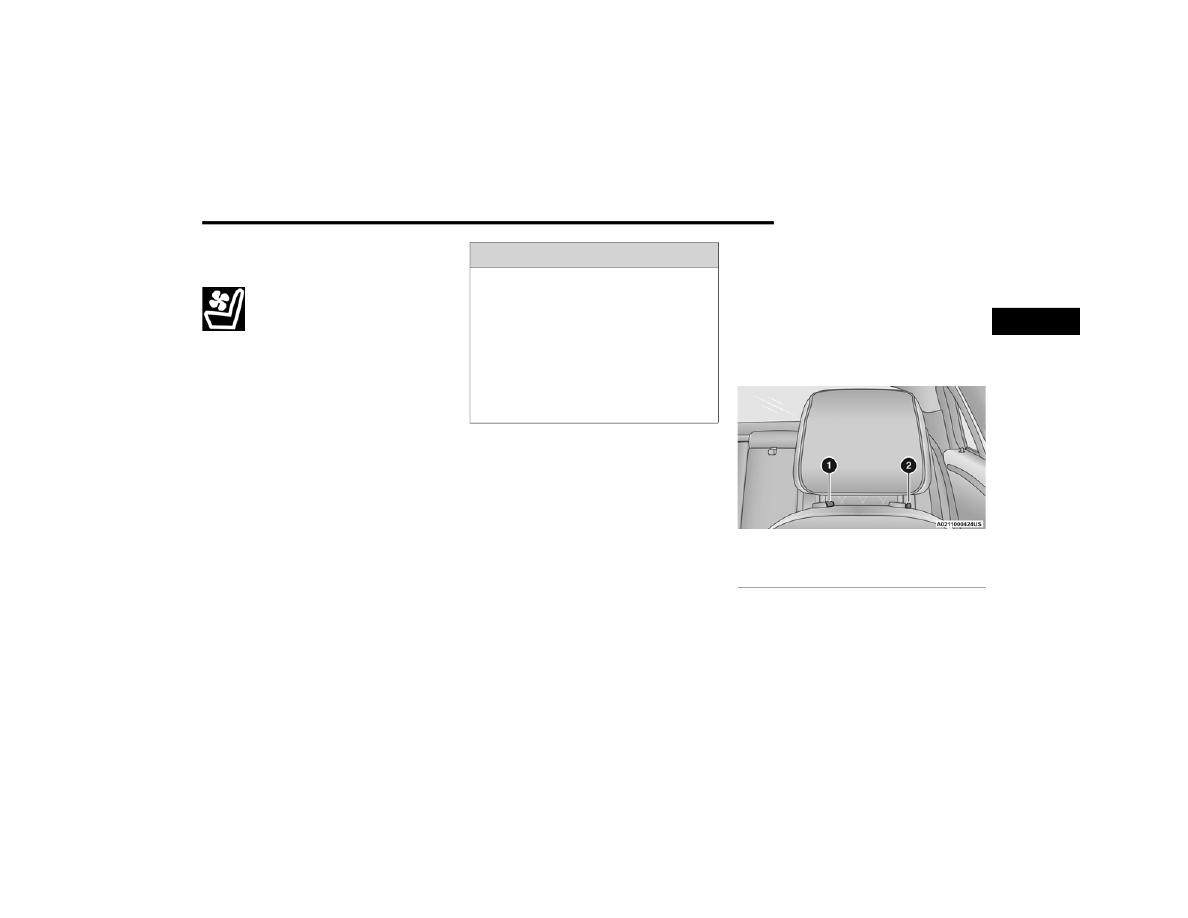

Front Head Restraint

WARNING!

All occupants, including the driver, should not

operate a vehicle or sit in a vehicle’s seat until

the head restraints are placed in their proper

positions in order to minimize the risk of neck

injury in the event of a crash.

Head restraints should never be adjusted

while the vehicle is in motion. Driving a vehicle

with the head restraints improperly adjusted

or removed could cause serious injury or

death in the event of a collision.

1 — Release Button
2 — Adjustment Button

2

36

GETTING TO KNOW YOUR VEHICLE



Rear Head Restraints

The center head restraint has two adjustable

positions: up or down. When the center seat is

being occupied, the head restraint should be in the

raised position. When there are no occupants in

the center seat, the head restraint can be lowered

for maximum visibility for the driver.

To raise the head restraint, pull upward on the

head restraint. To lower the head restraint, push

the adjustment button located at the base of the

head restraint and push downward on the head

restraint.

Rear Head Restraint Adjustment Button

NOTE:

The head restraint should only be removed by

qualified technicians, for service purposes only.

If the center rear head restraint requires

removal, see an authorized dealer.

The outboard head restraints are not

adjustable.

Front Head Restraint Removal

To remove the head restraint, raise it up as far as

it can go. Then, push the adjustment button and

the release button at the base of each post while

pulling the head restraint up. To reinstall the head

restraint, put the head restraint posts into the

holes. Then, adjust it to the appropriate height.
NOTE:

Do not reposition the head restraint 180 degrees

to the incorrect position in an attempt to gain addi

-

tional clearance to the back of the head.

WARNING!

A loose head restraint thrown forward in a

collision or hard stop could cause serious

injury or death to occupants of the vehicle.

Always securely stow removed head

restraints in a location outside the occupant

compartment.

ALL the head restraints MUST be reinstalled

in the vehicle to properly protect the occu

-

pants. Follow the reinstallation instructions

above prior to operating the vehicle or occu

-

pying a seat.

Do not place items over the top of the Reac

-

tive Head Restraint, such as coats, seat

covers or portable DVD players. These items

may interfere with the operation of the Reac

-

tive Head Restraint in the event of a collision

and could result in serious injury or death.

WARNING!

ALL the head restraints MUST be reinstalled in

the vehicle to properly protect the occupants.

Follow the reinstallation instructions above prior

to operating the vehicle or occupying a seat.

WARNING!

A loose head restraint thrown forward in a colli

-

sion or hard stop could cause serious injury or

death to occupants of the vehicle. Always

securely stow removed head restraints in a

location outside the occupant compartment.

ALL the head restraints MUST be reinstalled in

the vehicle to properly protect the occupants.

Follow the reinstallation instructions above prior

to operating the vehicle or occupying a seat.

GETTING TO KNOW YOUR VEHICLE

37

MIRRORS

I

NSIDE

 R

EARVIEW

 M

IRROR

Automatic Dimming Mirror

The rearview mirror can be adjusted up, down, left,

and right. The mirror should be adjusted to center

on the view through the rear window.
This mirror automatically adjusts for headlight

glare from vehicles behind you.
NOTE:

The Automatic Dimming Mirror feature is disabled

when the vehicle is in REVERSE to improve the

driver’s rear view.
The Automatic Dimming feature can be turned on

or off through the Uconnect system

Ú

page 129.

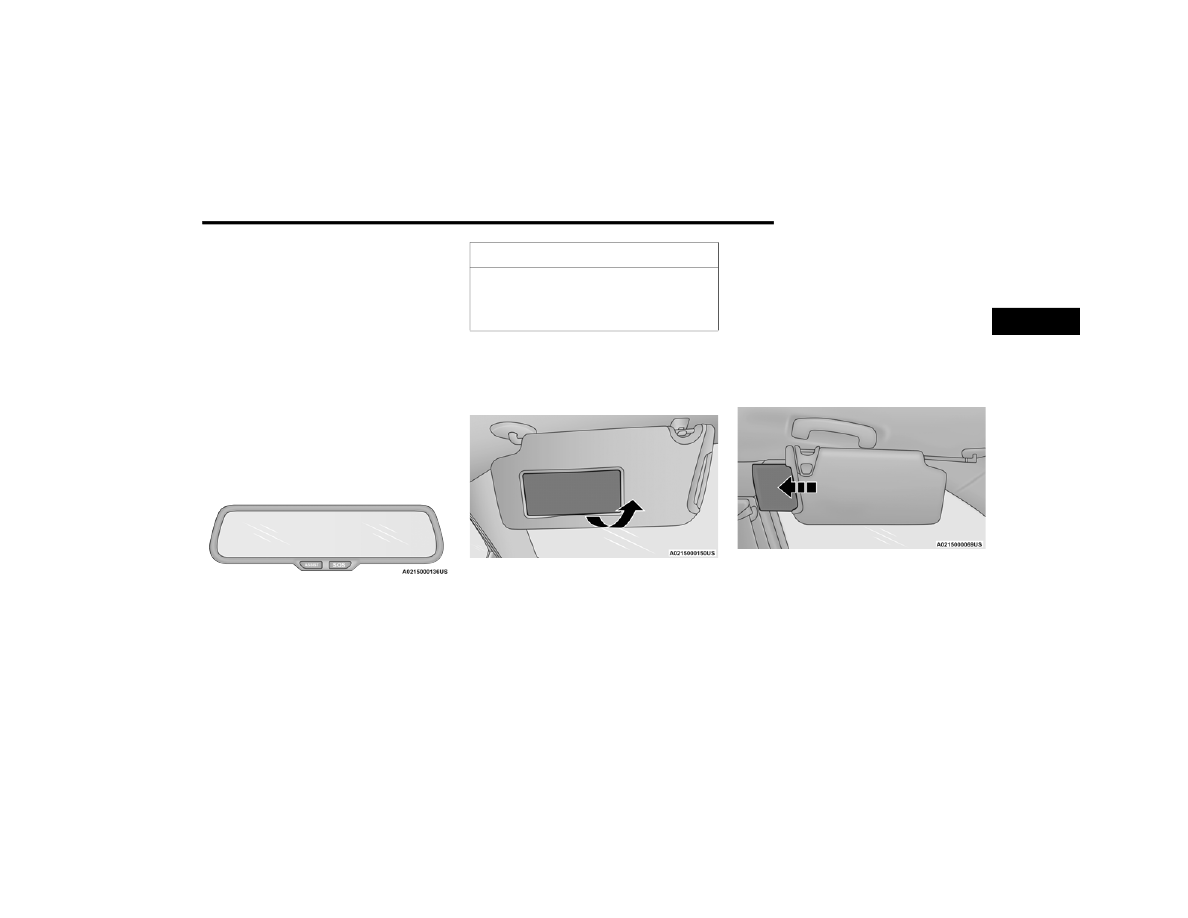

Automatic Dimming Mirror

I

LLUMINATED

 V

ANITY

 M

IRRORS

To access an illuminated vanity mirror, flip down

one of the visors and lift the cover.

Illuminated Vanity Mirror

Sun Visor “Slide-On-Rod” Feature

The sun visor “Slide-On-Rod” feature allows for

additional flexibility in positioning the sun visor to

block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from the corner clip.
3. Pivot the sun visor toward the side window.
4. Extend the sun visor for additional sun

blockage.

Slide-On-Rod Feature

NOTE:

The sun visor can also be extended while the sun

visor is against the windshield for additional sun

blockage through the front of the vehicle.

CAUTION!

To avoid damage to the mirror during cleaning,

never spray any cleaning solution directly onto

the mirror. Apply the solution onto a clean cloth

and wipe the mirror clean.

2

38

GETTING TO KNOW YOUR VEHICLE



O

UTSIDE

 M

IRRORS



The outside mirror(s) can be adjusted to the center

of the adjacent lane of traffic to achieve the

optimal view.

D

RIVER

'

S

 O

UTSIDE

 A

UTOMATIC



D

IMMING

 M

IRROR

 — I

F

 E

QUIPPED

The driver’s outside mirror will automatically adjust

for glare from vehicles behind you. This feature is

controlled by the inside automatic dimming mirror

and will automatically adjust for headlight glare

when the inside mirror adjusts.

O

UTSIDE

 M

IRRORS

 W

ITH

 T

URN

 S

IGNAL



A

ND

 A

PPROACH

 L

IGHTING

 —

I

F

 E

QUIPPED

Driver and passenger outside mirrors with turn

signal and approach lighting contain four LEDs,

which are located in the upper outer corner of each

mirror.
Three of the LEDs are turn signal indicators, which

flash with the corresponding turn signal lights in

the front and rear of the vehicle. Turning on the

Hazard Warning flashers will also activate these

LEDs.
The fourth LED supplies illuminated entry lighting,

which turns on in both mirrors when you use the

key fob or open any door. This LED shines outward

to illuminate the front and rear door handles. It

also shines downward to illuminate the area in

front of the doors.
The illuminated entry lighting fades to off after

about 30 seconds or it will fade to off immediately

once the ignition is placed into the ON/RUN

position.
NOTE:

The approach lighting will not function when the

gear selector is moved out of the PARK position.

P

OWER

 M

IRRORS



The power mirror controls are located on the

driver's door trim panel.
The power mirror controls consist of mirror select

buttons and a four-way mirror control switch. To

adjust a mirror, push the mirror select button for

the mirror that you want to adjust. Using the mirror

control switch, push on any of the four arrows for

the direction that you want the mirror to move.

Power Mirror Controls

Power mirror positions can be saved with a Driver

Memory Settings profile

Ú

page 28.

WARNING!

Vehicles and other objects seen in an outside

convex mirror will look smaller and farther away

than they really are. Relying too much on side

convex mirrors could cause you to collide with

another vehicle or other object. Use your inside

mirror when judging the size or distance of a

vehicle seen in a side convex mirror.

1 — Left Mirror Selection
2 — Mirror Direction Control
3 — Right Mirror Selection

GETTING TO KNOW YOUR VEHICLE

39

P

OWER

 F

OLDING

 O

UTSIDE

 M

IRRORS

 —

I

F

 E

QUIPPED

If equipped with power folding mirrors, they can be

electrically folded rearward and unfolded into the

drive position.
The switch for the power folding mirrors is located

between the power mirror switches L (left) and R

(right). Push the switch once and the mirrors will

fold in, pushing the switch a second time will return

the mirrors to the normal driving position.
If the mirror is manually folded after electrically

cycled, a potential extra button push is required to

get the mirrors back to the drive position. If the

mirror does not electrically fold, check for ice or dirt

buildup at the pivot area which can cause

excessive drag.

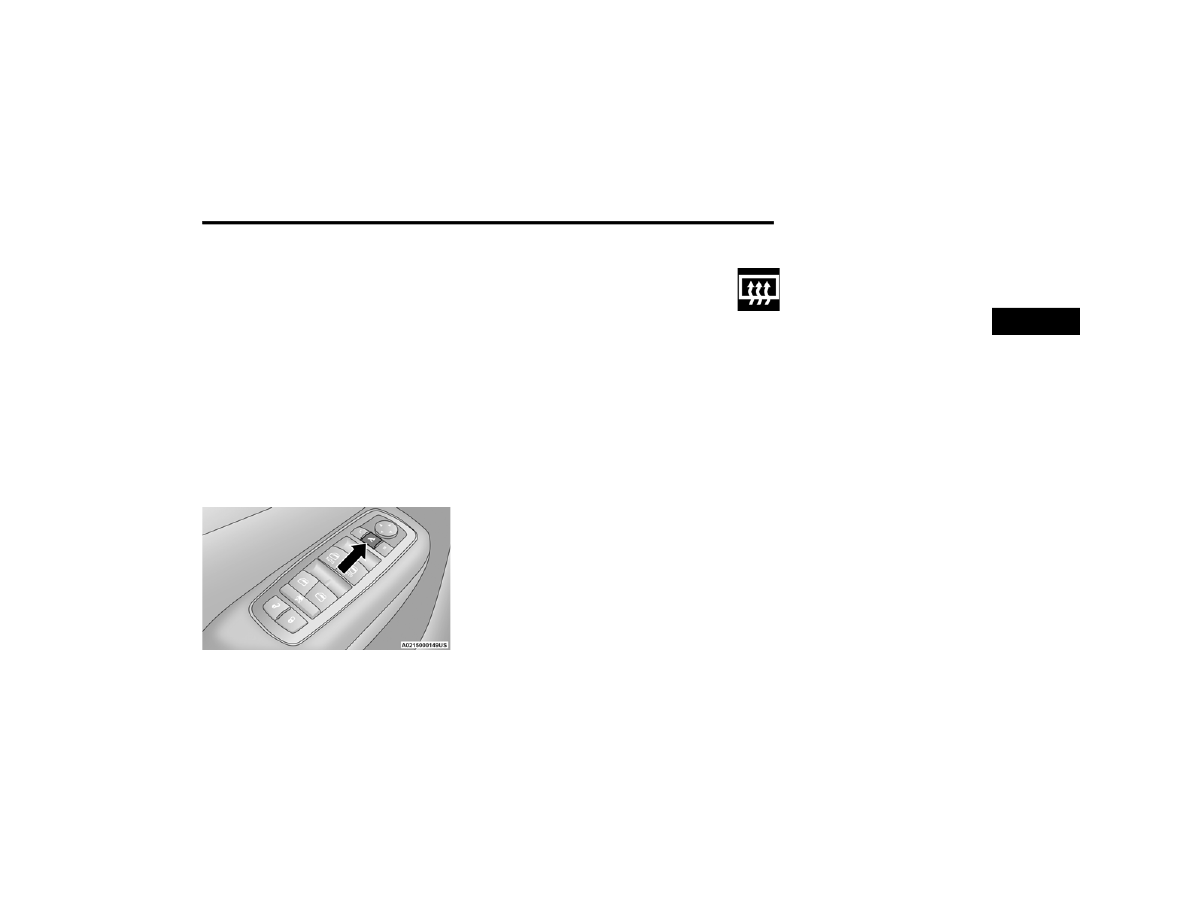

Power Folding Mirror Switch

Resetting The Power Folding Outside Mirrors
You may need to reset the power folding mirrors if

the following occurs:

The mirrors are accidentally blocked while

folding.

The mirrors are accidentally manually folded/

unfolded.

The mirrors come out of the unfolded position.

The mirrors shake and vibrate at normal driving

speeds.

To reset the power folding mirrors, fold and unfold

them by pushing the button (this may require

multiple button pushes). This resets them to their

normal position.

H

EATED

 M

IRRORS

 — I

F

 E

QUIPPED



These mirrors are heated to melt frost or

ice. This feature will be activated

whenever you turn on the rear window

defroster (if equipped)

Ú

page 52.

T

ILT

 S

IDE

 M

IRRORS

 I

N

 R

EVERSE

 —

I

F

 E

QUIPPED

This feature provides automatic outside mirror

positioning which will assist with the driver’s

ground visibility. The outside mirrors will move

slightly downward from the present position when

the vehicle is shifted into REVERSE. The outside

mirrors will then return to the original position

when the vehicle is shifted out of REVERSE. If the

vehicle is equipped with memory settings, this

feature will be linked to the programmable

settings.
NOTE:

The Tilt Side Mirrors In Reverse feature can be

turned on and off using the Uconnect system

Ú

page 129.

2















Content      ..      1      2      3      ..
