Chrysler RG Voyager. Manual - part 1141





FRONT SEAT CUSHION - OCS

REMOVAL

A non-calibrated Occupant Classification Module

(OCM) is the only component of the Occupant Clas-
sification System (OCS) that is available for separate
service replacement, as outlined in the procedures
that follow. The OCS components of the passenger
side front seat cushion including the cushion frame,
springs, pad, occupant detection bladder, pressure
sensor, seat cushion foam and the OCM are a factory-
calibrated and assembled unit. Once this unit is con-
nected

to

a

vehicle

electrically,

the

calibration

settings are uploaded from the OCM and stored in
the memory of the Airbag Control Module (ACM). If
only the OCM is subsequently replaced, the new,
non-calibrated OCM learns the proper calibration
settings from the ACM after it is connected to the
vehicle electrically.

If any of the remaining OCS components of the

passenger side front seat cushion require replace-
ment, they are serviced only as a factory-calibrated,
assembled, and tamper-evident service replacement
package. This package includes the assembled frame,
springs, pad, bladder, sensor, foam, wiring and a cal-
ibrated OCM. When installing this package, always
replace all of the existing components with the new
components as a unit. Do not attempt to separate or
disconnect any of the new OCS components con-
tained in the service replacement package from each
other, and do not attempt to reuse any of the
replaced components in this or any other vehicle.

Once any of the original factory-installed compo-

nents except the OCM have been replaced with the
service replacement package components, the OCM
can only be serviced by replacing the entire passen-
ger side front seat cushion unit with another com-
plete service replacement package.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OCCUPANT
CLASSIFICATION

SYSTEM,

SEAT

BELT

TEN-

SIONER,

IMPACT

SENSOR,

OR

INSTRUMENT

PANEL COMPONENT DIAGNOSIS OR SERVICE.
DISCONNECT AND ISOLATE THE BATTERY NEGA-
TIVE (GROUND) CABLE, THEN WAIT TWO MINUTES
FOR THE SYSTEM CAPACITOR TO DISCHARGE
BEFORE PERFORMING FURTHER DIAGNOSIS OR
SERVICE. THIS IS THE ONLY SURE WAY TO DIS-
ABLE THE SUPPLEMENTAL RESTRAINT SYSTEM.
FAILURE TO TAKE THE PROPER PRECAUTIONS
COULD RESULT IN ACCIDENTAL AIRBAG DEPLOY-
MENT.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH ON VEHICLES EQUIPPED WITH THE OCCU-
PANT CLASSIFICATION SYSTEM (OCS), ONLY THE
OCCUPANT CLASSIFICATION MODULE (OCM) AND
THE SEAT CUSHION TRIM MAY BE SERVICED SEP-
ARATELY. ALL OTHER COMPONENTS OF THE PAS-
SENGER SIDE FRONT SEAT CUSHION ASSEMBLY
MUST BE SERVICED ONLY AS A COMPLETE FAC-
TORY-CALIBRATED, ASSEMBLED AND TAMPER-EV-
IDENT SERVICE REPLACEMENT PACKAGE. THIS
PACKAGE INCLUDES THE FRAME, SPRINGS, PAD,
BLADDER, SENSOR, FOAM, WIRING AND A CALI-
BRATED OCM. WHEN INSTALLING THIS PACKAGE
ALWAYS REPLACE ALL OF THE EXISTING COMPO-
NENTS WITH THE NEW COMPONENTS AS A UNIT.
DO NOT ATTEMPT TO SEPARATE OR DISCONNECT
ANY OF THE NEW OCS COMPONENTS IN THE SER-
VICE

REPLACEMENT

PACKAGE

FROM

EACH

OTHER, AND DO NOT ATTEMPT TO REUSE ANY OF
THE REPLACED COMPONENTS IN THIS OR ANY
OTHER VEHICLE. FAILURE TO TAKE THE PROPER
PRECAUTIONS COULD RESULT IN FAILURE OF
THE PASSENGER AIRBAG TO DEPLOY WHEN
REQUIRED, OR IN PASSENGER AIRBAG DEPLOY-
MENT WHEN NOT REQUIRED.

(1) Remove seat cushion side covers, and leave

connector connected, if equipped. (Refer to 23 -
BODY/SEATS/FRONT

SEAT

CUSHION

SIDE

COVER - REMOVAL)

(2) Remove seat track front and rear covers if

equipped. (Refer to 23 - BODY/SEATS/SEAT TRACK
REAR COVER - REMOVAL) and (Refer to 23 -
BODY/SEATS/SEAT

TRACK

FRONT

COVER

-

REMOVAL)

(3) If equipped, open storage bin to access front

pan bolts.

(4) Remove bolts attaching seat cushion pan to

seat track.

(5) Disconnect wire connectors, if equipment.
(6) Remove seat cushion from seat.
(7) Disengage J-strap retainers holding seat cover

to cushion.

(8) Remove seat cushion pan from cover and pad.

INSTALLATION

A non-calibrated Occupant Classification Module

(OCM) is the only component of the Occupant Clas-
sification System (OCS) that is available for separate
service replacement, as outlined in the procedures
that follow. The OCS components of the passenger
side front seat cushion including the cushion frame,
springs, pad, occupant detection bladder, pressure
sensor, seat cushion foam and the OCM are a factory-
calibrated and assembled unit. Once this unit is con-
nected

to

a

vehicle

electrically,

the

calibration

RS

SEATS

23 - 143

settings are uploaded from the OCM and stored in
the memory of the Airbag Control Module (ACM). If
only the OCM is subsequently replaced, the new,
non-calibrated OCM learns the proper calibration
settings from the ACM after it is connected to the
vehicle electrically.

If any of the remaining OCS components of the

passenger side front seat cushion require replace-
ment, they are serviced only as a factory-calibrated,
assembled, and tamper-evident service replacement
package. This package includes the assembled frame,
springs, pad, bladder, sensor, foam, wiring and a cal-
ibrated OCM. When installing this package, always
replace all of the existing components with the new
components as a unit. Do not attempt to separate or
disconnect any of the new OCS components con-
tained in the service replacement package from each
other, and do not attempt to reuse any of the
replaced components in this or any other vehicle.

Once any of the original factory-installed compo-

nents except the OCM have been replaced with the
service replacement package components, the OCM
can only be serviced by replacing the entire passen-
ger side front seat cushion unit with another com-
plete service replacement package.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OCCUPANT
CLASSIFICATION

SYSTEM,

SEAT

BELT

TEN-

SIONER,

IMPACT

SENSOR,

OR

INSTRUMENT

PANEL COMPONENT DIAGNOSIS OR SERVICE.
DISCONNECT AND ISOLATE THE BATTERY NEGA-
TIVE (GROUND) CABLE, THEN WAIT TWO MINUTES
FOR THE SYSTEM CAPACITOR TO DISCHARGE
BEFORE PERFORMING FURTHER DIAGNOSIS OR
SERVICE. THIS IS THE ONLY SURE WAY TO DIS-
ABLE THE SUPPLEMENTAL RESTRAINT SYSTEM.
FAILURE TO TAKE THE PROPER PRECAUTIONS
COULD RESULT IN ACCIDENTAL AIRBAG DEPLOY-
MENT.

WARNING: To avoid personal injury or death on
vehicles equipped with the occupant classification
system (ocs), only the occupant classification mod-
ule (ocm) and the seat cushion trim may be ser-
viced separately. All other components of the
passenger side front seat cushion assembly must
be serviced only as a complete factory-calibrated,
assembled and tamper-evident service replacement
package. This package includes the frame, springs,
pad, bladder, sensor, foam, wiring and a calibrated
ocm. When installing this package always replace
all of the existing components with the new compo-

nents as a unit. Do not attempt to separate or dis-
connect any of the new ocs components in the
service replacement package from each other, and
do not attempt to reuse any of the replaced compo-
nents in this or any other vehicle. Failure to take
the proper precautions could result in failure of the
passenger airbag to deploy when required, or in
passenger airbag deployment when not required.

NOTE: After replacing passenger front seat cushion
and/or Occupant Classification Module (OCM) there
may be a wire connector not used from the Belt
Tension Sensor. Secure wire connector to the seat
cushion frame with wire ties.

(1) Place seat cushion cover in position on seat

cushion.

(2) Engage J-strap retainers to hold seat cover to

cushion.

(3) Place seat cushion in position on seat.
(4) Connect wire connectors, if equipment.
(5) Install bolts attaching seat cushion to seat

track. Tighten bolts to 28.5 N·m (21 ft. lbs.) torque.

(6) If equipped, close storage bin.
(7) Install seat track front and rear covers, if

equipped. (Refer to 23 - BODY/SEATS/SEAT TRACK
REAR COVER - INSTALLATION) and (Refer to 23 -
BODY/SEATS/SEAT

TRACK

FRONT

COVER

-

INSTALLATION)

(8) Install seat cushion side covers. (Refer to 23 -

BODY/SEATS/FRONT

SEAT

CUSHION

SIDE

COVER - INSTALLATION)

FRONT SEAT CUSHION SIDE
COVER

REMOVAL

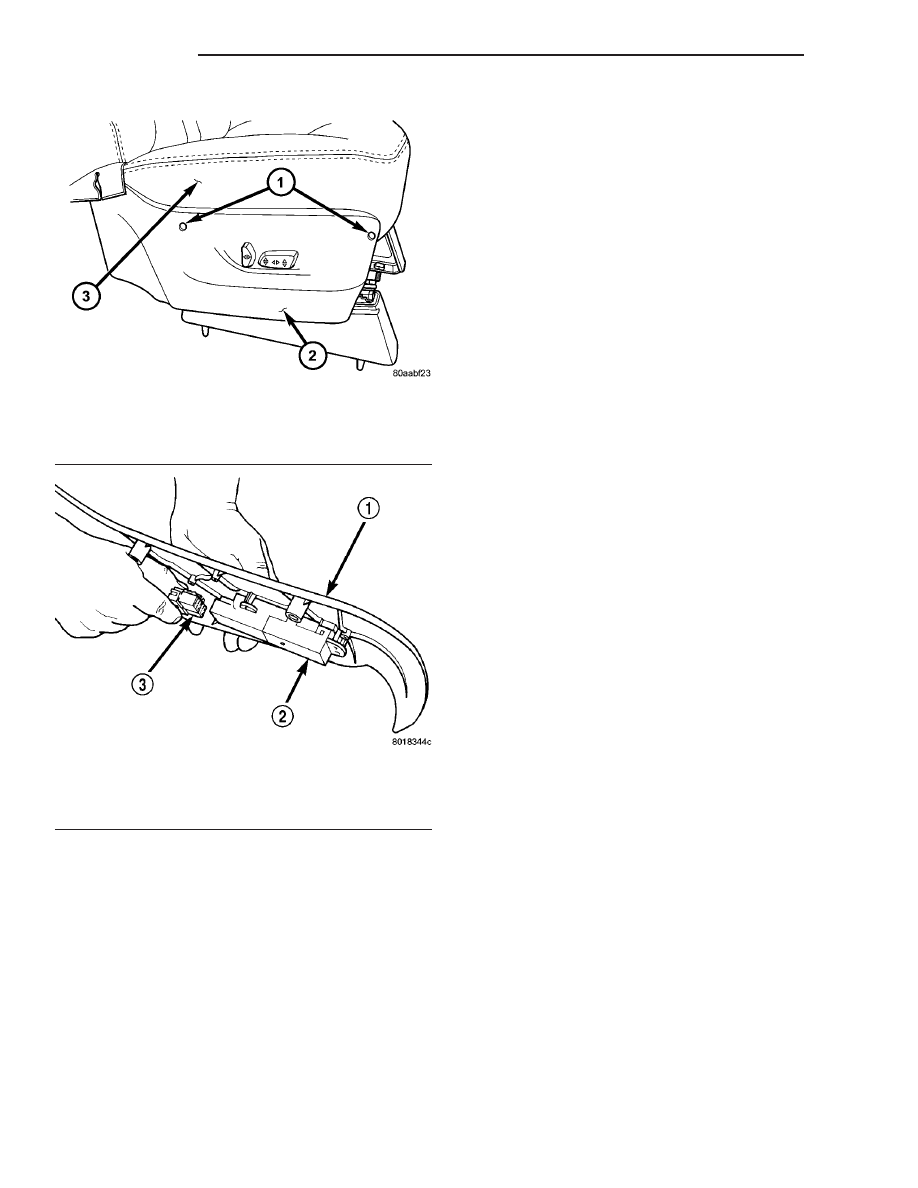

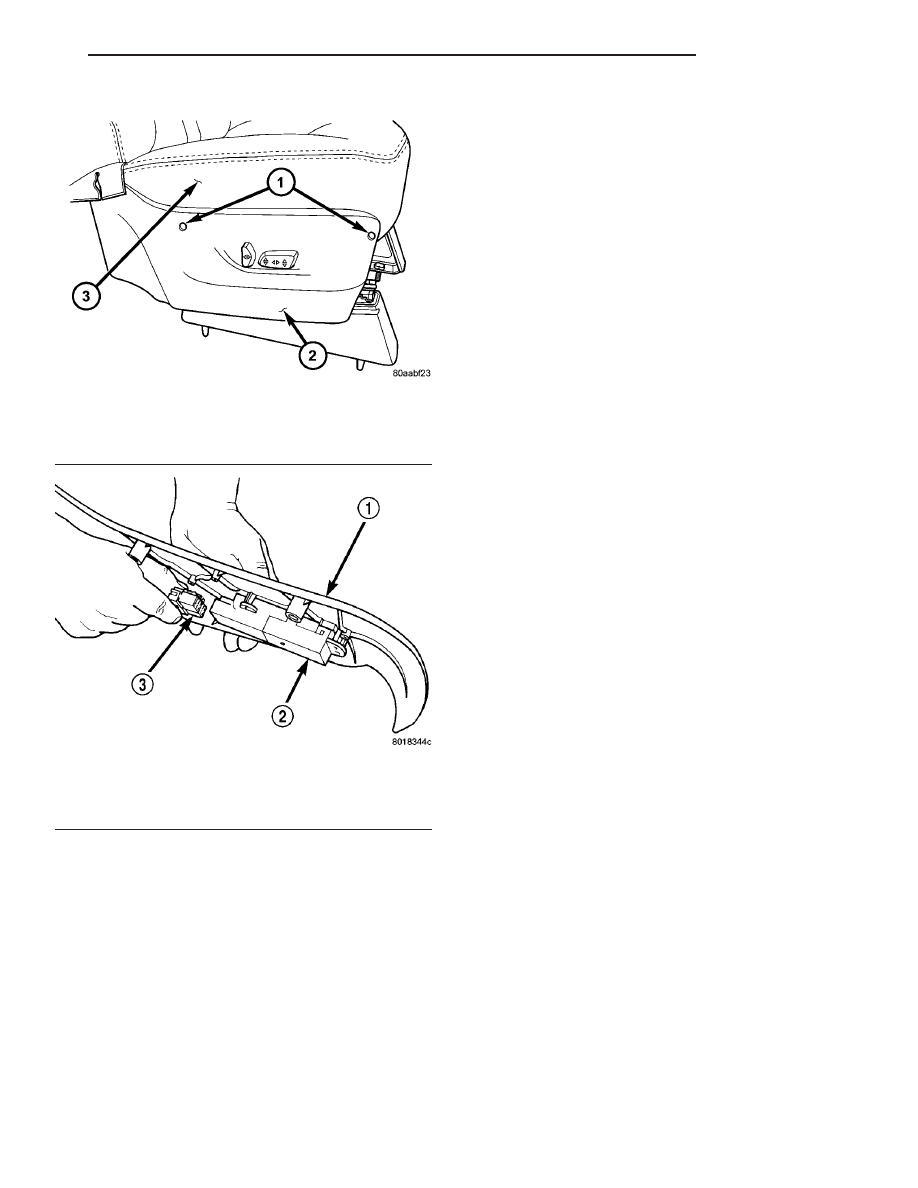

(1) Remove screws and plastic push pin attaching

seat cushion side cover to bucket seat (Fig. 32).

(2) Disengage J-strap along rear of seat cushion to

access screw.

(3) Remove screw attaching rear of side cover to

seat cushion frame.

(4) Remove side cover from seat cushion.
(5) If equipped, disconnect wire connector from

power seat switch (Fig. 33).

INSTALLATION

(1) Place side cover in position on seat cushion.
(2) If equipped, connect wire connector into power

seat switch (Fig. 33).

(3) Install screw attaching rear of side cover to

seat cushion frame. Tighten screw to 1 N·m (9 in.
lbs.) torque.

23 - 144

SEATS

RS

FRONT SEAT CUSHION - OCS (Continued)

(4) Engage J-strap along rear of seat cushion to

access screw.

(5) Install screws attaching seat cushion side cover

to bucket seat (Fig. 32).

FRONT SEAT CUSHION SIDE
COVER - OCS

REMOVAL

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OCCUPANT
CLASSIFICATION

SYSTEM,

SEAT

BELT

TEN-

SIONER,

IMPACT

SENSOR,

OR

INSTRUMENT

PANEL COMPONENT DIAGNOSIS OR SERVICE.
DISCONNECT AND ISOLATE THE BATTERY NEGA-
TIVE (GROUND) CABLE, THEN WAIT TWO MINUTES
FOR THE SYSTEM CAPACITOR TO DISCHARGE
BEFORE PERFORMING FURTHER DIAGNOSIS OR
SERVICE. THIS IS THE ONLY SURE WAY TO DIS-
ABLE THE SUPPLEMENTAL RESTRAINT SYSTEM.
FAILURE TO TAKE THE PROPER PRECAUTIONS
COULD RESULT IN ACCIDENTAL AIRBAG DEPLOY-
MENT.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH ON VEHICLES EQUIPPED WITH THE OCCU-
PANT CLASSIFICATION SYSTEM (OCS), ONLY THE
OCCUPANT CLASSIFICATION MODULE (OCM) AND
THE SEAT CUSHION TRIM MAY BE SERVICED SEP-
ARATELY. ALL OTHER COMPONENTS OF THE PAS-
SENGER SIDE FRONT SEAT CUSHION ASSEMBLY
MUST BE SERVICED ONLY AS A COMPLETE FAC-
TORY-CALIBRATED, ASSEMBLED AND TAMPER-EV-
IDENT SERVICE REPLACEMENT PACKAGE. THIS
PACKAGE INCLUDES THE FRAME, SPRINGS, PAD,
BLADDER, SENSOR, FOAM, WIRING AND A CALI-
BRATED OCM. WHEN INSTALLING THIS PACKAGE
ALWAYS REPLACE ALL OF THE EXISTING COMPO-
NENTS WITH THE NEW COMPONENTS AS A UNIT.
DO NOT ATTEMPT TO SEPARATE OR DISCONNECT
ANY OF THE NEW OCS COMPONENTS IN THE SER-
VICE

REPLACEMENT

PACKAGE

FROM

EACH

OTHER, AND DO NOT ATTEMPT TO REUSE ANY OF
THE REPLACED COMPONENTS IN THIS OR ANY
OTHER VEHICLE. FAILURE TO TAKE THE PROPER
PRECAUTIONS COULD RESULT IN FAILURE OF
THE PASSENGER AIRBAG TO DEPLOY WHEN
REQUIRED, OR IN PASSENGER AIRBAG DEPLOY-
MENT WHEN NOT REQUIRED.

(1) Remove screws and plastic push pin attaching

seat cushion side cover to bucket seat (Fig. 34).

(2) Disengage J-strap along rear of seat cushion to

access screw.

(3) Remove screw attaching rear of side cover to

seat cushion frame.

(4) Remove side cover from seat cushion.
(5) If equipped, disconnect wire connector from

power seat switch (Fig. 35).

Fig. 32 FRONT SEAT SIDE SHIELD

1 - SCREWS
2 - SIDE SHIELD
3 - SEAT CUSHION

Fig. 33 POWER SEAT SWITCH WIRE CONNECTOR

1 - SEAT CUSHION SIDE COVER
2 - POWER SEAT SWITCH
3 - WIRE CONNECTOR

RS

SEATS

23 - 145

FRONT SEAT CUSHION SIDE COVER (Continued)

INSTALLATION

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS,
DISABLE THE SUPPLEMENTAL RESTRAINT SYS-
TEM

BEFORE

ATTEMPTING

ANY

STEERING

WHEEL, STEERING COLUMN, AIRBAG, OCCUPANT
CLASSIFICATION

SYSTEM,

SEAT

BELT

TEN-

SIONER,

IMPACT

SENSOR,

OR

INSTRUMENT

PANEL COMPONENT DIAGNOSIS OR SERVICE.
DISCONNECT AND ISOLATE THE BATTERY NEGA-
TIVE (GROUND) CABLE, THEN WAIT TWO MINUTES
FOR THE SYSTEM CAPACITOR TO DISCHARGE
BEFORE PERFORMING FURTHER DIAGNOSIS OR
SERVICE. THIS IS THE ONLY SURE WAY TO DIS-

ABLE THE SUPPLEMENTAL RESTRAINT SYSTEM.
FAILURE TO TAKE THE PROPER PRECAUTIONS
COULD RESULT IN ACCIDENTAL AIRBAG DEPLOY-
MENT.

WARNING:

TO

AVOID

PERSONAL

INJURY

OR

DEATH ON VEHICLES EQUIPPED WITH THE OCCU-
PANT CLASSIFICATION SYSTEM (OCS), ONLY THE
OCCUPANT CLASSIFICATION MODULE (OCM) AND
THE SEAT CUSHION TRIM MAY BE SERVICED SEP-
ARATELY. ALL OTHER COMPONENTS OF THE PAS-
SENGER SIDE FRONT SEAT CUSHION ASSEMBLY
MUST BE SERVICED ONLY AS A COMPLETE FAC-
TORY-CALIBRATED, ASSEMBLED AND TAMPER-EV-
IDENT SERVICE REPLACEMENT PACKAGE. THIS
PACKAGE INCLUDES THE FRAME, SPRINGS, PAD,
BLADDER, SENSOR, FOAM, WIRING AND A CALI-
BRATED OCM. WHEN INSTALLING THIS PACKAGE
ALWAYS REPLACE ALL OF THE EXISTING COMPO-
NENTS WITH THE NEW COMPONENTS AS A UNIT.
DO NOT ATTEMPT TO SEPARATE OR DISCONNECT
ANY OF THE NEW OCS COMPONENTS IN THE SER-
VICE

REPLACEMENT

PACKAGE

FROM

EACH

OTHER, AND DO NOT ATTEMPT TO REUSE ANY OF
THE REPLACED COMPONENTS IN THIS OR ANY
OTHER VEHICLE. FAILURE TO TAKE THE PROPER
PRECAUTIONS COULD RESULT IN FAILURE OF
THE PASSENGER AIRBAG TO DEPLOY WHEN
REQUIRED, OR IN PASSENGER AIRBAG DEPLOY-
MENT WHEN NOT REQUIRED.

(1) Place side cover in position on seat cushion.
(2) If equipped, connect wire connector into power

seat switch.

(3) Install screw attaching rear of side cover to

seat cushion frame. Tighten screw to 1 N·m (9 in.
lbs.) torque.

(4) Engage J-strap along rear of seat cushion to

access screw.

(5) Install screws attaching seat cushion side cover

to bucket seat (Fig. 34).

Fig. 34 FRONT SEAT SIDE SHIELD

1 - SCREWS
2 - SIDE SHIELD
3 - SEAT CUSHION

Fig. 35 POWER SEAT SWITCH WIRE CONNECTOR

1 - SEAT CUSHION SIDE COVER
2 - POWER SEAT SWITCH
3 - WIRE CONNECTOR

23 - 146

SEATS

RS

FRONT SEAT CUSHION SIDE COVER - OCS (Continued)















Content   ..  1139  1140  1141  1142   ..
