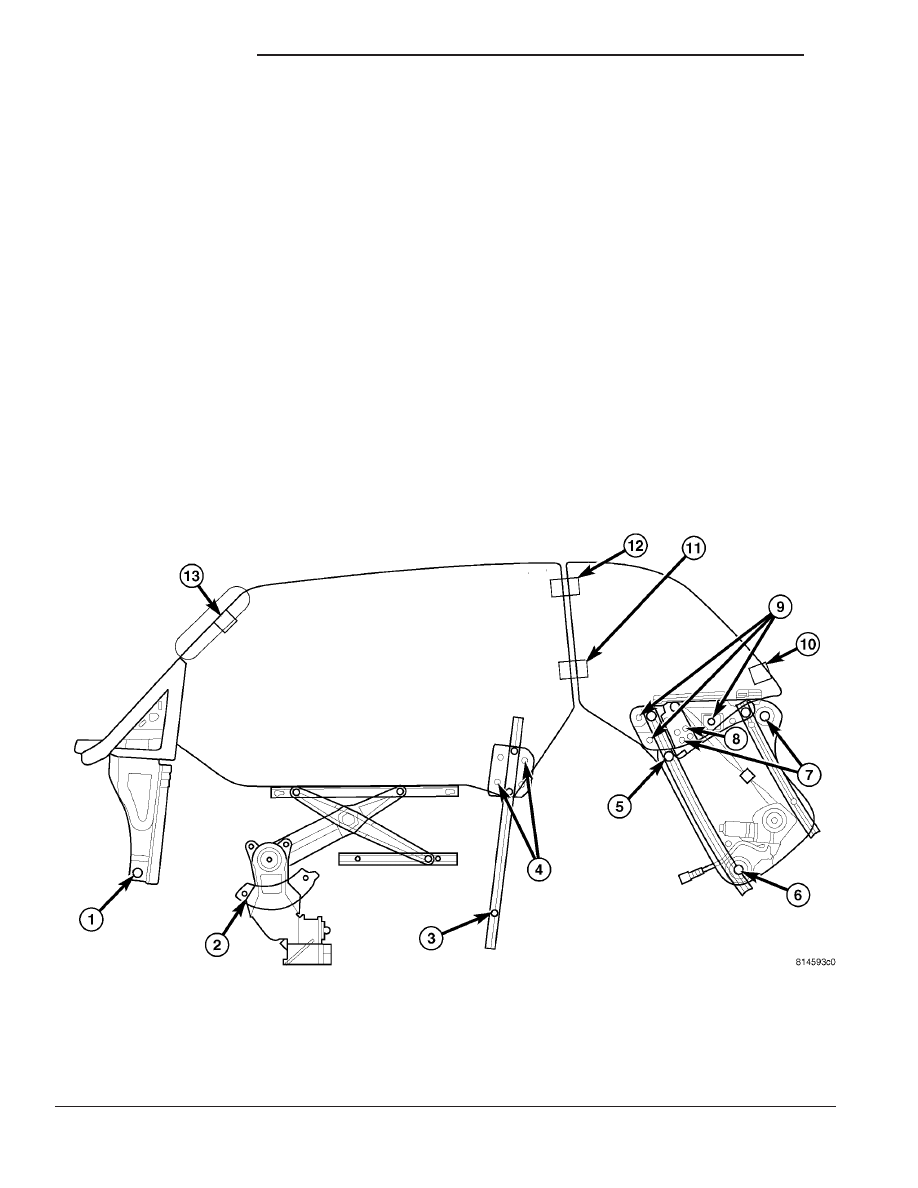

CONDITION - DOOR GLASS NOISE ALONG A-PILLAR WHEN (1) Verify that the door glass and quarter glass adjustment procedures have been checked. (2) Apply masking tape to outside of glass surface in locations (10), (11), (12), and (13) (3) Close and latch top. (4) With vehicle’s engine running, raise quarter glass full up and then raise door glass up then turn (5) Mark tape at all four locations. should be between 5 to 7 mm. Location (11) and (12) (8) Loosen both fore and aft screws (4) and move glass fore/aft as necessary, and then tighten to 8.5 (9) If location (13) is not within range 5 to 7 mm, loosen fore and aft screw (9), and drop glass approx- (10) If locations (11) and (12) are not within the range of 5 to 12 mm. Adjust location (5) up stop (11) If location (10) is not within the range of 10 to 16 mm, verify CONDITION - Height Mismatch (12) With vehicle engine running, lower, all glasses and then raise quarter glasses full up and then raise (13) Remark and measure, if adjustment is not within range of 10 to 16 mm repeat Steps 8 though Fig. 18 NOISE ALONG A-PILLAR 1 - CROSS CAR SCREW - IN AND OUT ADJUSTMENT 8 - CROSS CAR SCREW - IN AND OUT ADJUSTMENT 23 - 54 DOOR - FRONT PT FRONT DOOR GLASS (Continued) |
