(7) Install a wheel mounting nut on the wheel
mounting stud being removed from the hub far
enough so the threads on the stud are even with end
of lug nut. Rotate the hub so the stud requiring
removal is aligned with notch cast into front of the
steering
knuckle.
Install
Remover,
Special
Tool
C-4150A, on hub flange and wheel stud (Fig. 27).
(8) Tighten the remover, pushing the wheel mount-
ing stud out the rear of the hub flange. When the
shoulder of the stud is past the flange, remove the
remover from the hub. Remove the nut from the
stud, then remove the stud from the flange.
INSTALLATION
Use the following procedure to remove and install
one of five studs on one wheel hub.
(1) Install the wheel mounting stud in the flange
of hub from the rear side. Install several washers
and a wheel mounting nut on the stud (Fig. 28). The
wheel mounting nut must be installed with the flat
side of the wheel mounting nut against the washers
to eliminate binding.
(2) Tighten the wheel mounting nut. This will pull
the wheel mounting stud into the flange of the hub.
When the head of the stud is fully seated against the
rear of the hub flange, remove the wheel mounting
nut and washers from the stud.
(3) Install the brake rotor on the hub (Fig. 26).
(4) Install the disc brake caliper (with pads) on the
brake rotor and steering knuckle. The left side cali-
per is installed by first sliding the top of the caliper
past the top abutment on the steering knuckle to
hook the top edge of the caliper, then pushing the
lower end of the caliper into place against the
knuckle (Fig. 29). The right side caliper is installed
by first sliding the bottom edge of the caliper past
the lower abutment on the steering knuckle to hook
the lower edge of the caliper, then pushing the top of
the caliper into place against the steering knuckle.
(5) Install the two guide pin bolts securing the
front disc brake caliper to the steering knuckle (Fig.
26). Tighten the guide pin bolts to a torque of 22 N·m
(192 in. lbs.).
(6) Install the tire and wheel assembly. Install the
wheel mounting nuts and tighten them to a torque of
135 N·m (100 ft. lbs.).
(7) Lower the vehicle.

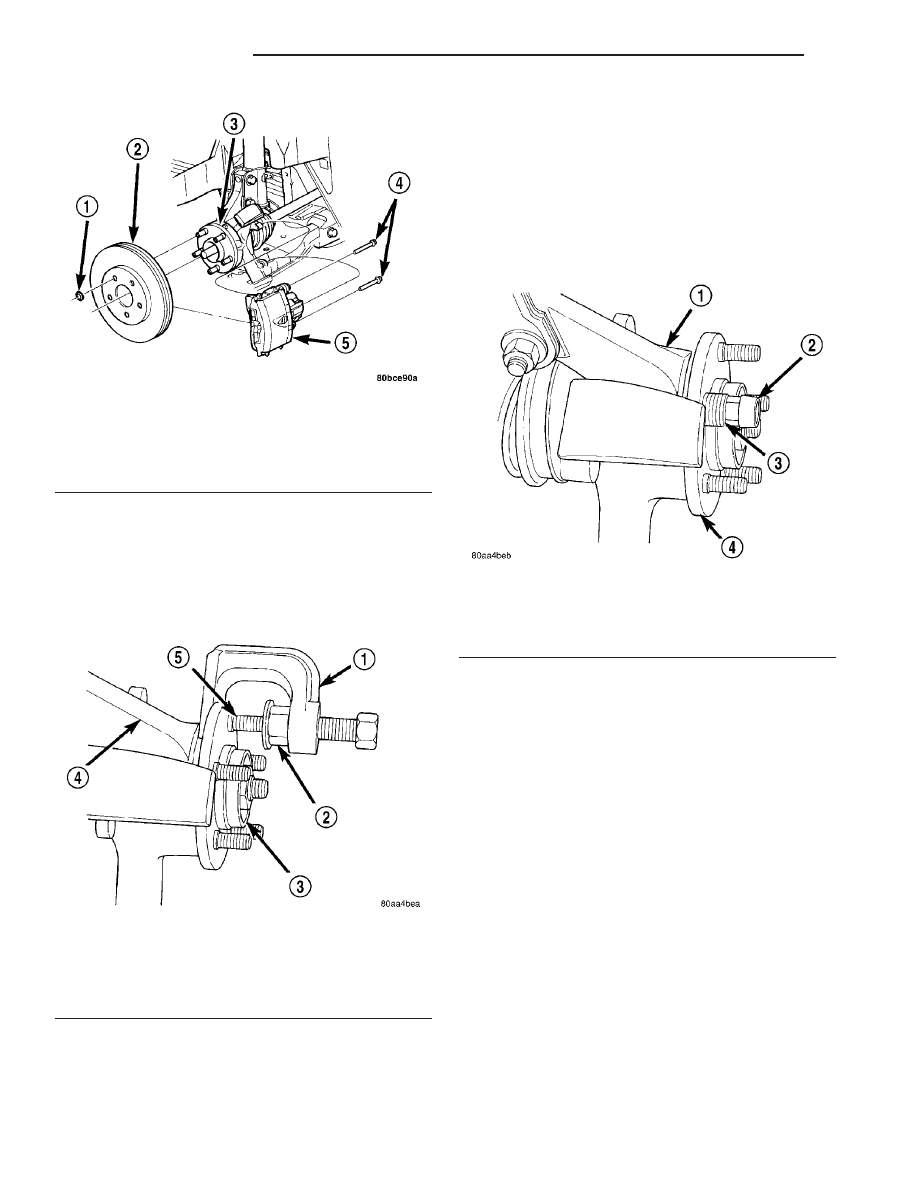

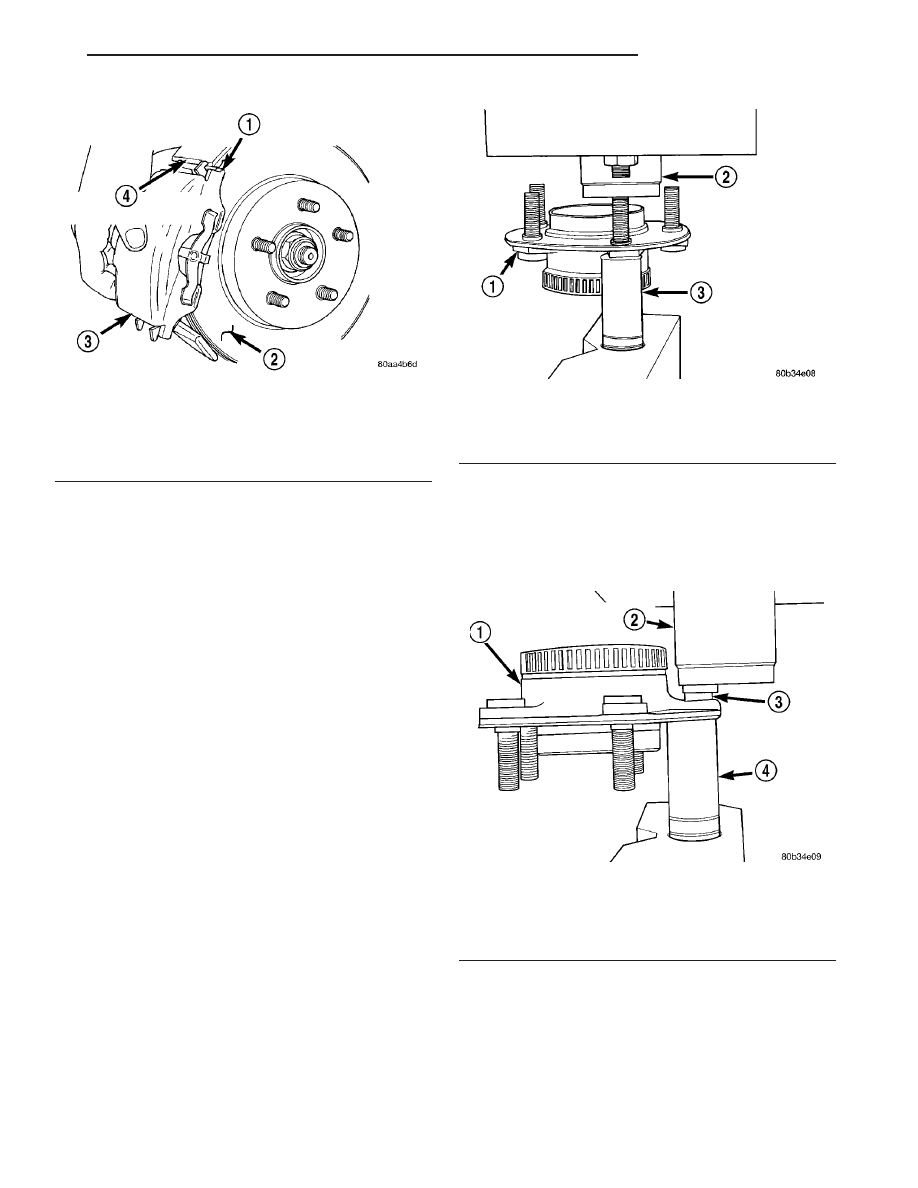

Fig. 26 Brake Caliper And Rotor
1 - RETAINER CLIP
2 - BRAKE ROTOR
3 - HUB
4 - GUIDE PIN BOLTS
5 - DISC BRAKE CALIPER
Fig. 27 Wheel Stud Removal
1 - SPECIAL TOOL C-4150A
2 - LUG NUT
3 - HUB/BEARING
4 - STEERING KNUCKLE
5 - WHEEL STUD
Fig. 28 Installing Wheel Stud
1 - STEERING KNUCKLE
2 - WHEEL LUG NUT
3 - WASHERS
4 - HUB/BEARING
22 - 16
TIRES/WHEELS
PT
WHEEL MOUNTING STUDS - FRONT (Continued)
