(11) Engage fifth and reverse gears as shown in

(Fig. 71) (Fig. 72).

(12) Install new bearing retainer screws and

torque to 90-100 N·m (66-74 ft. lbs.) (Fig. 73).

(13) Install input and output shaft oil diverters as

shown in (Fig. 74) (Fig. 75).

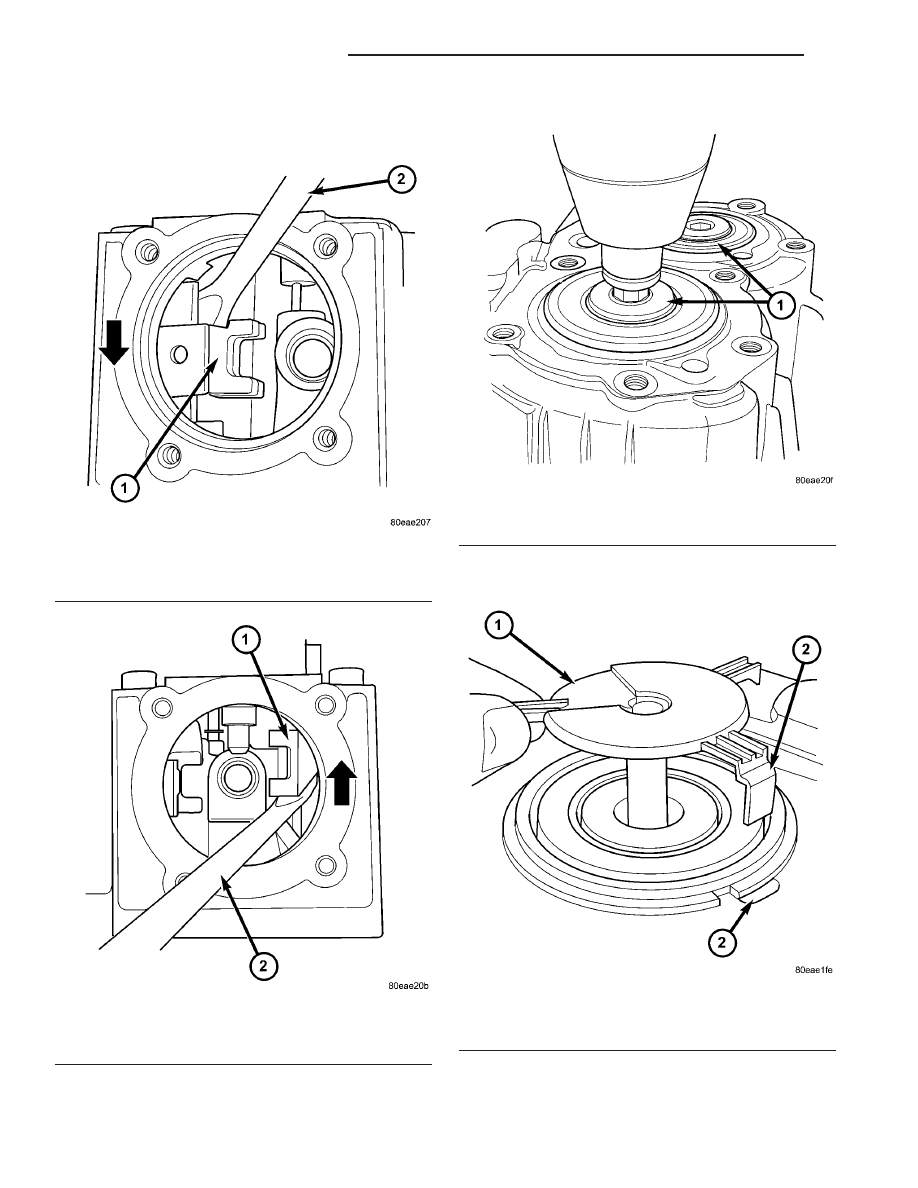

Fig. 71 Engage Fifth Gear

1 - FIFTH GEAR FORK
2 - SCREWDRIVER

Fig. 72 Engage Reverse Gear

1 - REVERSE GEAR FORK
2 - SCREWDRIVER

Fig. 73 Bearing Retaining Screws

1 - RETAINING SCREWS (2)

Fig. 74 Input Shaft Oil Diverter

1 - DIVERTER
2 - LOCATING PROVISIONS

21 - 30

G288 MANUAL TRANSAXLE

PT

G288 MANUAL TRANSAXLE (Continued)

(14) Install a bead of Mopar

t Gear Sealant RTV to

geartrain housing as shown in (Fig. 76).

(15) Install a bead of Mopar

t Gear Sealant RTV to

end cover as shown in (Fig. 77).

(16) Immediately install end cover to geartrain

housing. Install and torque nine (9) bolts to 20-25
N·m (15-18 ft. lbs.) (Fig. 78).

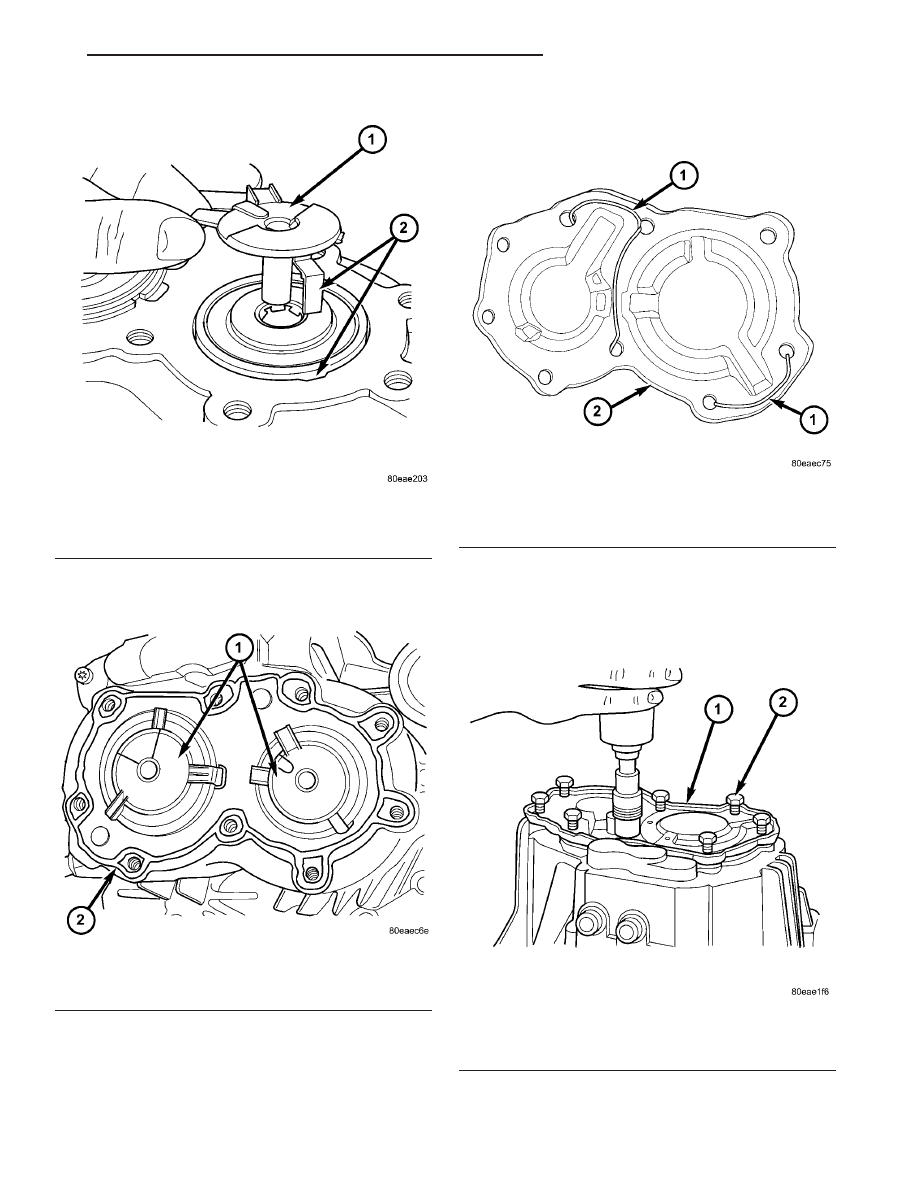

Fig. 75 Output Shaft Oil Diverter

1 - DIVERTER
2 - LOCATOR PROVISIONS

Fig. 76 Proper Sealer Application

1 - OIL DIVERTERS
2 - SEALER BEAD

Fig. 77 Apply Sealer to Cover

1 - SEALER BEAD
2 - END COVER

Fig. 78 End Cover-to-Case Bolts

1 - END COVER
2 - BOLT (9)

PT

G288 MANUAL TRANSAXLE

21 - 31

G288 MANUAL TRANSAXLE (Continued)

(17) Install bead of Mopar

t Gasket Maker or

Omnifit FD-1664 to shift shaft assy mounting pad as
shown in (Fig. 79).

NOTE: When installing shift shaft assembly, do not
handle assembly by counterweight.

(18) Install shift shaft assembly. Use caution when

installing. It is necessary to guide slot in shaft
assembly over locating pin which is pressed into case.

(19) Install crossover lever assembly and four (4)

bolts (Fig. 80). Torque shift shaft-to-geartrain hous-
ing bolts to 20-25 N·m (15-18 ft. lbs.).

(20) Install shift shaft crossover detent pin, spring,

and plug. Torque plug to 20 N·m (15 ft. lbs.) (Fig. 81).

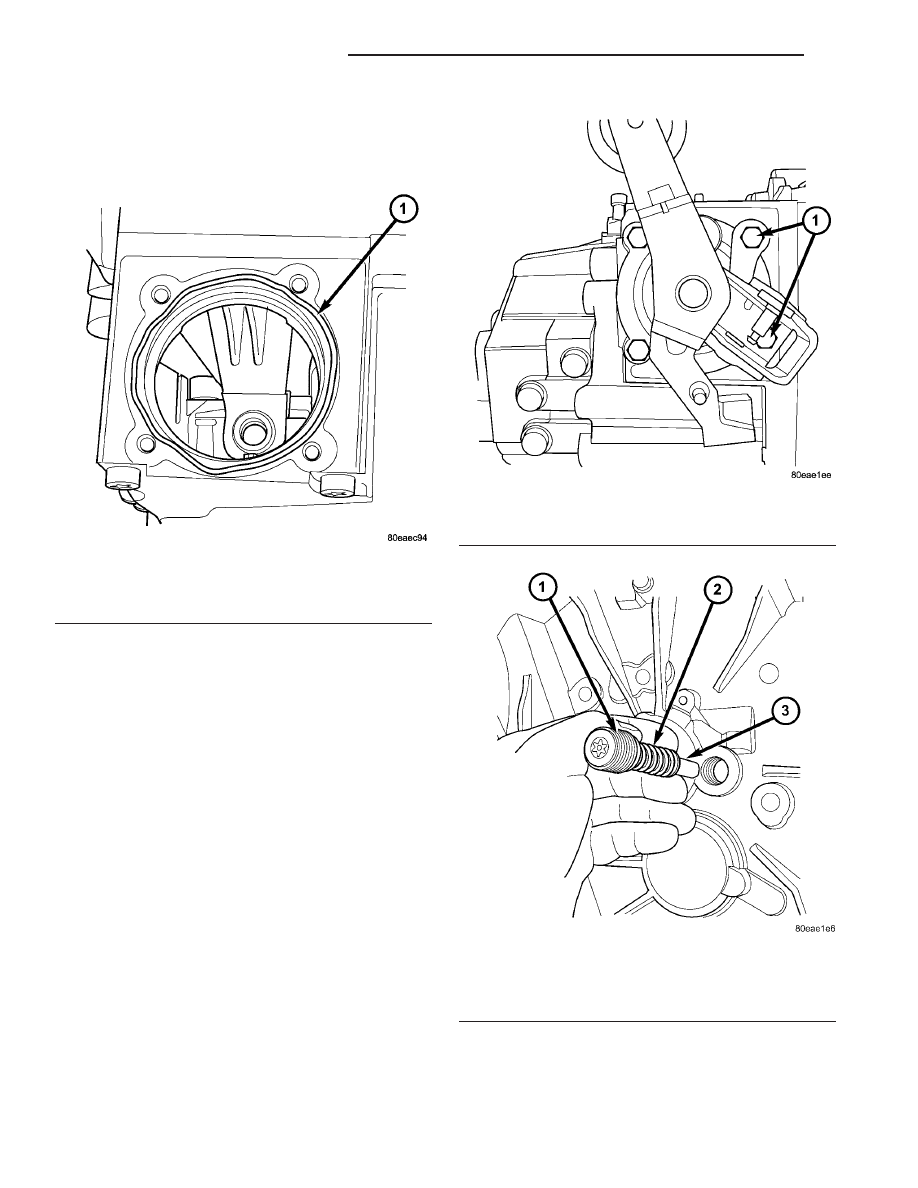

Fig. 79 Apply Sealer to Shift Shaft Mounting

Location

1 - SEALER BEAD

Fig. 80 Shift Shaft-to-Case Bolts

1 - BOLT (4)

Fig. 81 Shift Shaft Crossover Detent Components

1 - PLUG
2 - SPRING
3 - PIN

21 - 32

G288 MANUAL TRANSAXLE

PT

G288 MANUAL TRANSAXLE (Continued)

(21) Install shift shaft selector detent assembly

with Mopar

t Lock ’n Seal™ (Fig. 82). Torque detent

assembly 20-25 N·m (15-18 ft. lbs.).

(22) Install back-up lamp switch (Fig. 83). Torque

switch to 24 N·m (18 ft. lbs.).

(23) Install four (4) shift rod detent plugs. Install

new plugs as necessary. Tap into place using a
soft-tipped hammer (Fig. 84).

(24) Install input shaft seal using Tool 8864 (Fig.

85).

(25) Install output (axle) shaft seals (Fig. 86) using

Tool 8916.

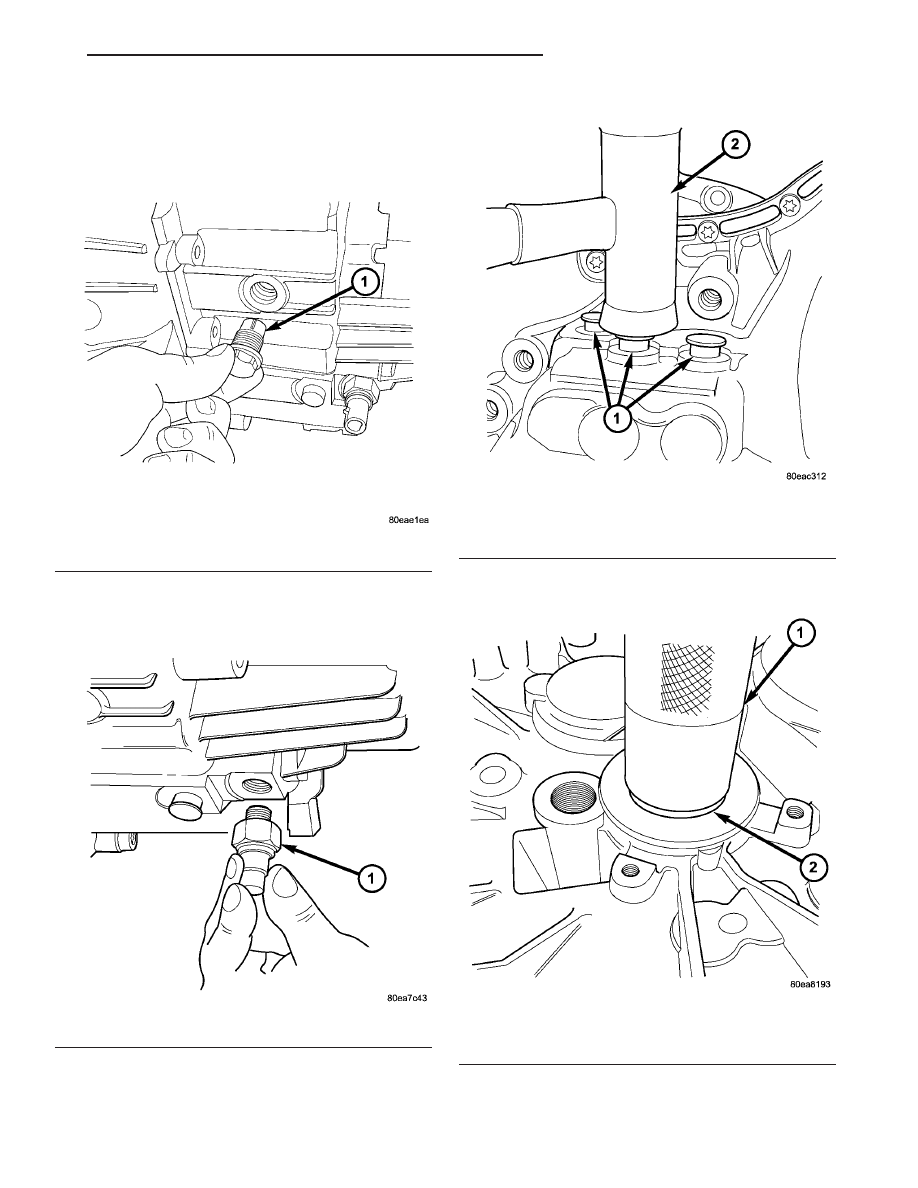

Fig. 82 Shift Shaft Detent Assembly

1 - DETENT ASSEMBLY

Fig. 83 Backup Lamp Switch

1 - BACKUP LAMP SWITCH

Fig. 84 Seat with Soft-Tipped Hammer

1 - DETENT PLUGS
2 - SOFT-TIPPED HAMMER

Fig. 85 Input Shaft Seal Installation

1 - TOOL 8864
2 - SEAL, INPUT SHAFT

PT

G288 MANUAL TRANSAXLE

21 - 33

G288 MANUAL TRANSAXLE (Continued)
