(9) Install the rubber body plugs or install new
mastic tape patches, if equipped.
(10) Close liftgate.
REAR BUMPER
REINFORCEMENT
REMOVAL
(1) Remove rear fascia (Refer to 13 - FRAME &
BUMPERS/BUMPERS/REAR
BUMPER
-
REMOVAL).
(2) Remove bolts attaching reinforcement to rear
closure panel (Fig. 10).
(3) Remove bumper reinforcement from vehicle.
INSTALLATION
(1) Position bumper reinforcement to vehicle (Fig.
10).
(2) Install bolts attaching reinforcement to rear
closure panel.
(3) Install rear fascia.
FRAME
SPECIFICATIONS

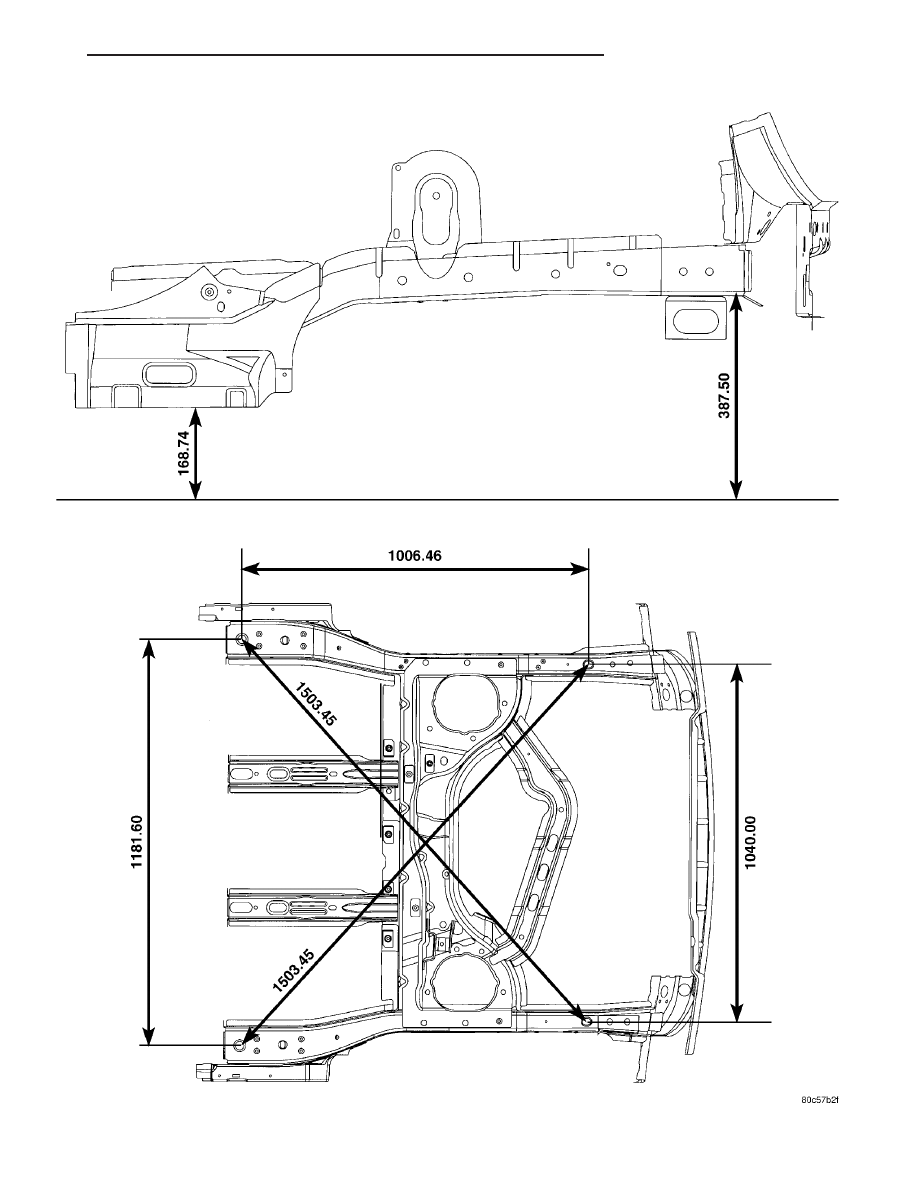

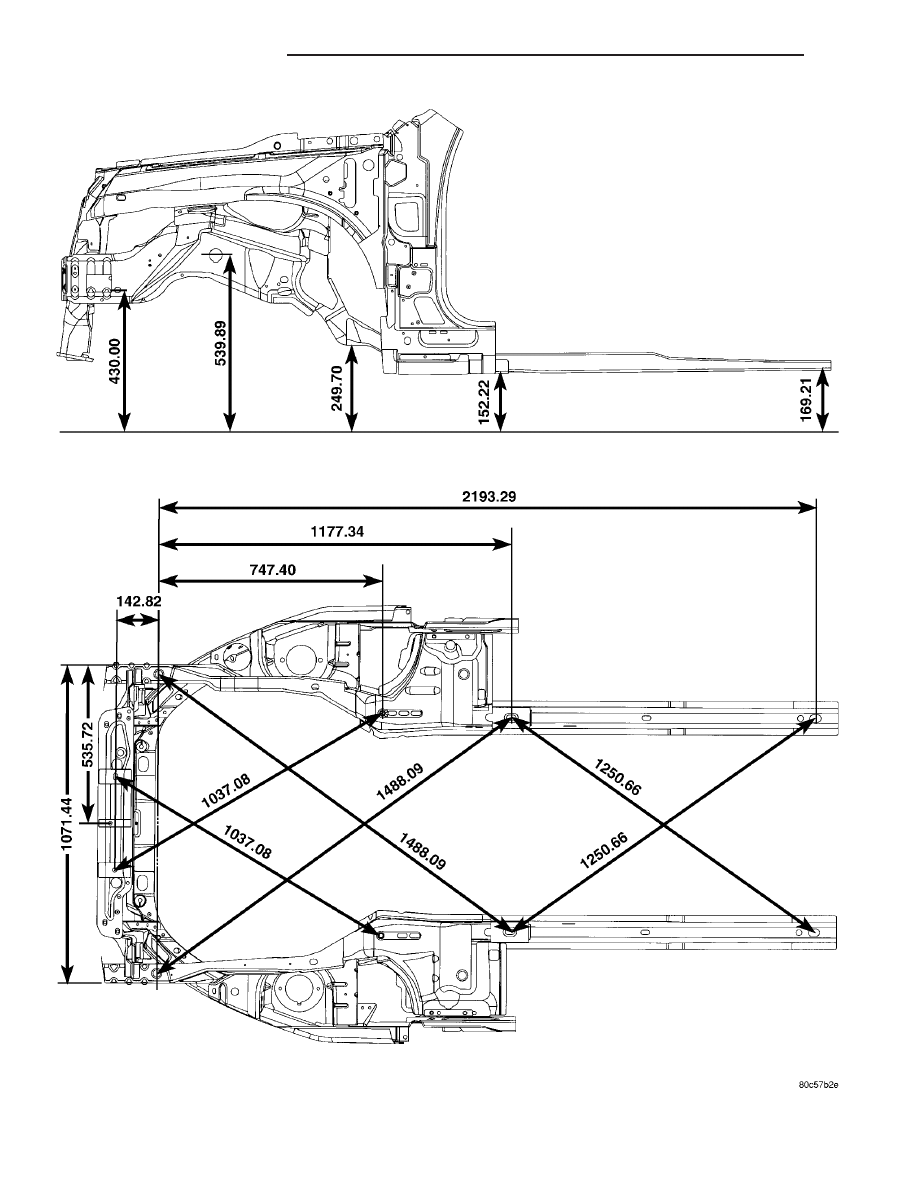

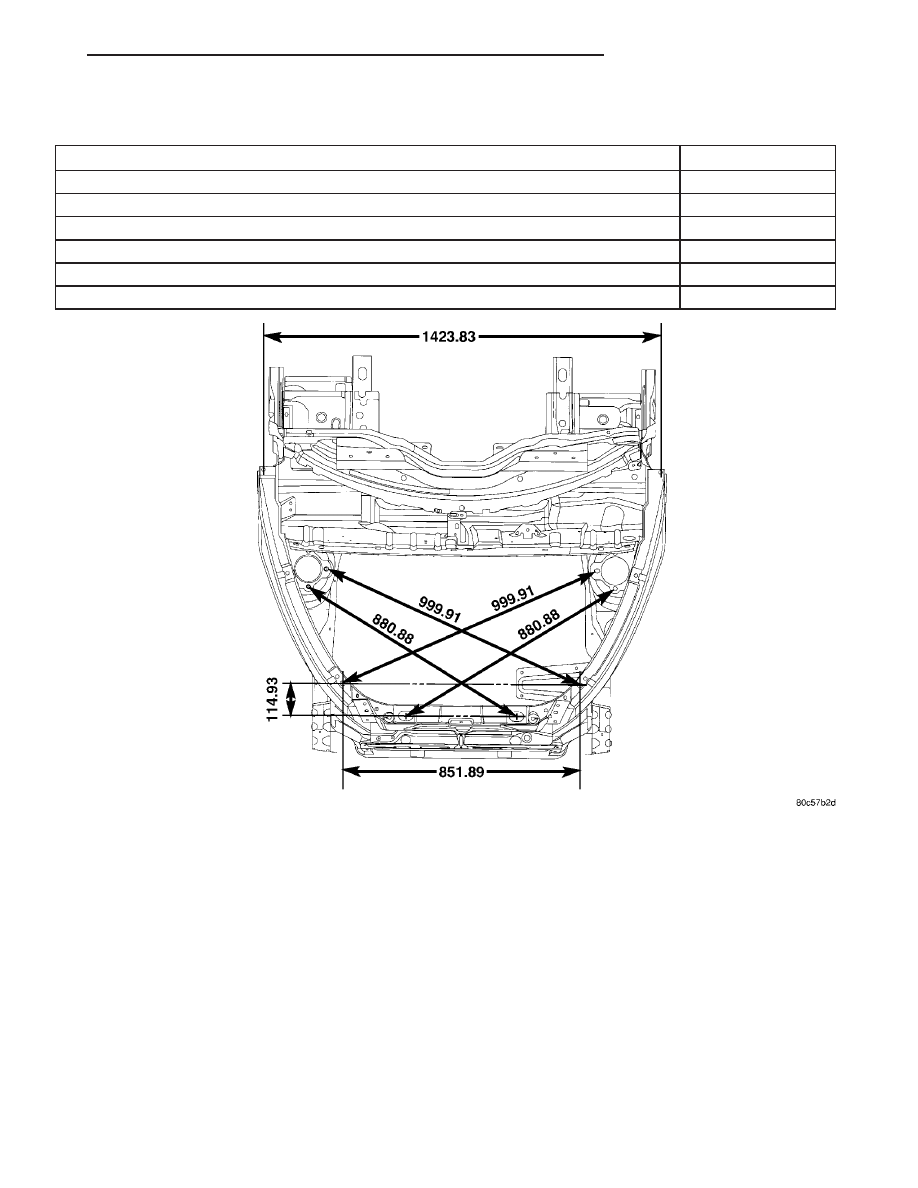

SPECIFICATIONS - FRAME DIMENSIONS
Frame dimensions are listed in metric scale. All
dimensions are from center to center of Principal
Locating Point (PLP), or from center to center of PLP
and fastener location.
VEHICLE PREPARATION
Position the vehicle on a level work surface. Using
screw or bottle jacks, adjust the vehicle PLP heights
to the specified dimension above a level work surface.
Vertical dimensions can be taken from the work sur-
face to the locations indicated were applicable.

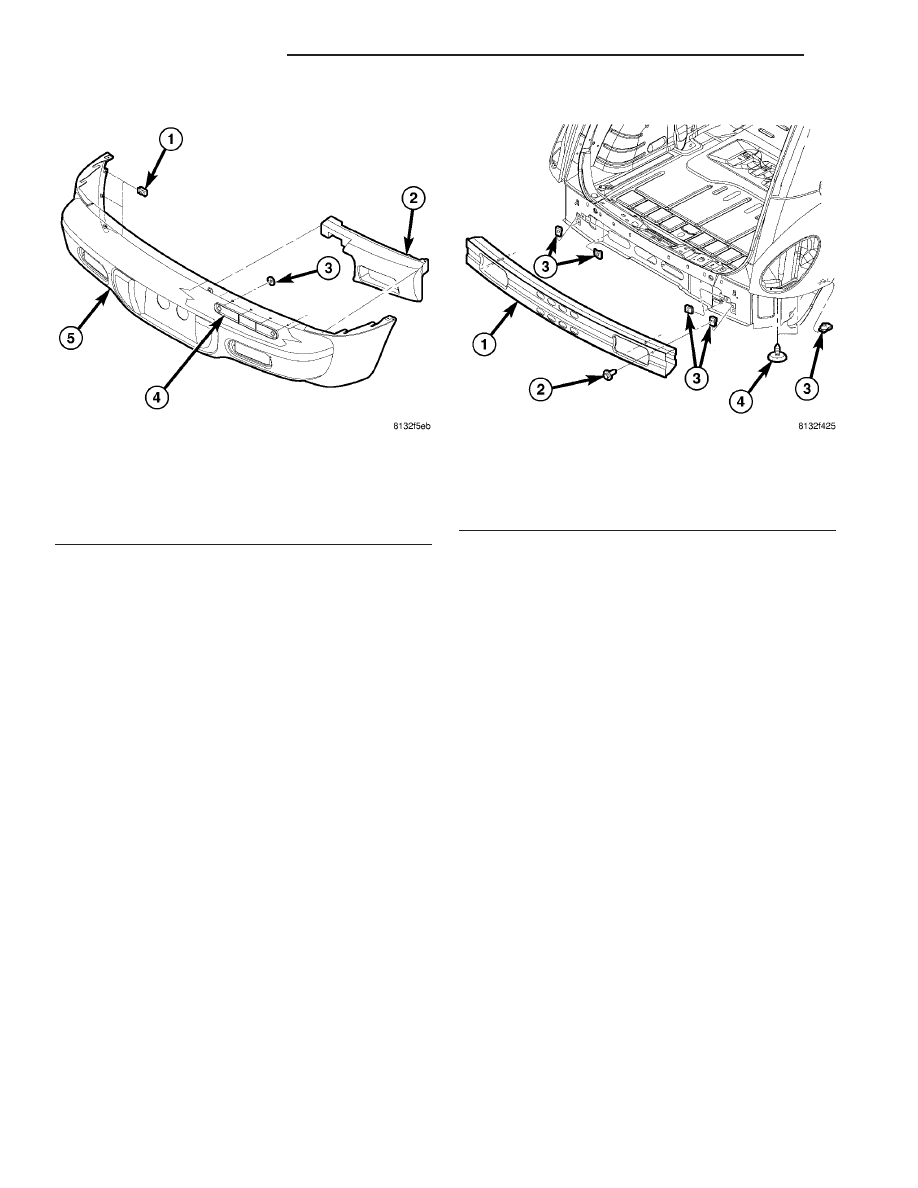

Fig. 9 REAR BUMPER FASCIA ENERGY FOAM
1 - U-NUT(S)
2 - REAR BUMPER FASCIA ENERGY FOAM
3 - SPRING NUT(S)
4 - REAR FASCIA TO CLOSURE STUD PLATE
5 - REAR BUMPER FASCIA
Fig. 10 REAR BUMPER REINFORCEMENT
1 - REAR BUMPER REINFORCEMENT
2 - ATTACHING SCREW(S)
3 - U-NUT(S)
4 - REAR FASCIA FASTENER
13 - 6
FRAME & BUMPERS
PT
REAR BUMPER FASCIA (Continued)
