(6) Disengage and remove the PDC housing from

its mounting bracket.

(7) Remove the PDC and the engine compartment

wire harness from the engine compartment as a unit.

INSTALLATION

The Power Distribution Center (PDC) is serviced

as a unit with the engine compartment wire harness.
If any internal circuit of the PDC or the PDC hous-
ing is faulty or damaged, the entire PDC and engine
compartment wire harness unit must be replaced.

NOTE: If the power distribution center (PDC) is
being replaced with a new unit, be certain to trans-
fer each of the fuses and relays from the old power
distribution center to the proper cavities of the new
power distribution center. Refer to Wiring Diagrams
for the proper power distribution center cavity
assignments.

(1) Position the PDC in the engine compartment.
(2) Align the PDC on its mounting bracket and

install.

(3) Route the engine compartment wire harness

from the PDC through the engine compartment,
engaging each of the harness retainers to the mount-
ing provisions in the vehicle body and chassis compo-
nents.

Refer

to

Wiring

Diagrams

for

more

information on the harness routing and retainer loca-
tions.

(4) Install and tighten the fasteners that secure

each of the engine compartment wire harness ground
eyelets to the vehicle body and chassis components.
Refer to Wiring Diagrams for more information on
the ground eyelet locations.

(5) Reconnect each of the engine compartment

wire harness connectors. Refer to Wiring Diagrams
for more information on the locations of the affected
connectors.

(6) Torque nut retaining positive battery cable at

PDC to 96 - 141 N·m (85 - 130 in. lbs.).

(7) Reconnect the battery negative cable.
(8) Close hood.
(9) Verify vehicle and system operation.

RELAY

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove cover from Power Distribution Center

(PDC).

(3) Using special tool C-4817, grip the relay by the

sides and pull upward with an even effort (Fig. 7).

INSTALLATION

(1) Align relay with Power Distribution Center

(PDC) and press into position.

(2) Install cover to PDC.
(3) Connect battery negative cable.

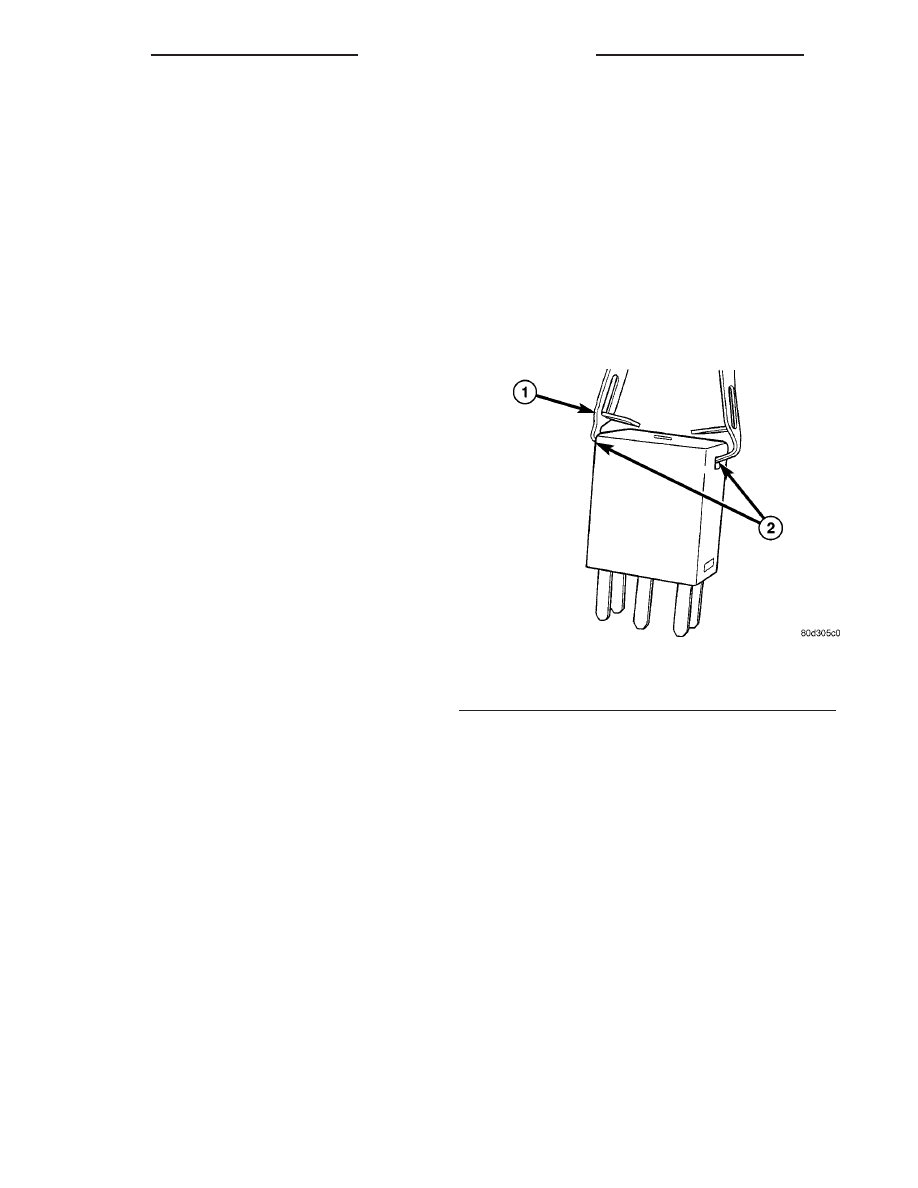

Fig. 7 RELAY REMOVAL

1 - SPECIAL TOOL C-4817
2 - RELAY

8W - 97 - 6

8W-97 POWER DISTRIBUTION

PT

POWER DISTRIBUTION CENTER (Continued)

ENGINE

TABLE OF CONTENTS

page

page

ENGINE 1.6L SOHC . . . . . . . . . . . . . . . . . . . . . . . . 1

ENGINE 2.4L DOHC . . . . . . . . . . . . . . . . . . . . . . . 74

ENGINE 1.6L SOHC

TABLE OF CONTENTS

page

page

ENGINE 1.6L SOHC

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 3

DIAGNOSIS AND TESTING

INTRODUCTION

. . . . . . . . . . . . . . . . . . . . . . . 3

ENGINE PERFORMANCE

. . . . . . . . . . . . . . . . 4

ENGINE MECHANICAL

. . . . . . . . . . . . . . . . . . 6

CYLINDER COMPRESSION PRESSURE

TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CYLINDER COMBUSTION PRESSURE

LEAKAGE TEST . . . . . . . . . . . . . . . . . . . . . . . 9

CYLINDER HEAD GASKET

. . . . . . . . . . . . . . . 9

LASH ADJUSTER NOISE DIAGNOSIS

. . . . . . . 9

ENGINE OIL LEAK INSPECTION

. . . . . . . . . . 10

STANDARD PROCEDURE

REPAIR OF DAMAGED OR WORN

THREADS . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

HYDROSTATIC LOCKED ENGINE

. . . . . . . . . 11

FORM-IN-PLACE GASKETS AND SEALERS

. 11

ENGINE GASKET SURFACE PREPARATION

. 12

MEASURING BEARING CLEARANCE USING

PLASTIGAGE . . . . . . . . . . . . . . . . . . . . . . . . 13

ENGINE CORE AND OIL GALLERY PLUGS

. . 13

REMOVAL - ENGINE ASSEMBLY

. . . . . . . . . . . 14

INSTALLATION - ENGINE ASSEMBLY

. . . . . . . . 16

SPECIFICATIONS

1.6L SOHC ENGINE

. . . . . . . . . . . . . . . . . . . 18

TORQUE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

SPECIAL TOOLS

1.6L SOHC ENGINE

. . . . . . . . . . . . . . . . . . . 23

AIR CLEANER ELEMENT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 27

AIR CLEANER HOUSING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 27

CYLINDER HEAD

REMOVAL - CYLINDER HEAD

. . . . . . . . . . . . . 27

CLEANING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 29

INSTALLATION - CYLINDER HEAD

. . . . . . . . . . 30

CYLINDER HEAD COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

CLEANING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 33

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 33

SPARK PLUG TUBE SEAL

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 34

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 34

SPARK PLUG TUBE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 34

ROCKER ARM SHAFT / ROCKER ARM / LASH

ADJUSTER
DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 36

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 36

CAMSHAFT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 38

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 38

VALVE SPRINGS AND SEALS (ON VEHICLE

SERVICE)
STANDARD PROCEDURE - VALVE SPRINGS

AND SEALS (ON VEHICLE SERVICE)

. . . . . . 39

VALVE SPRINGS AND SEALS (CYLINDER

HEAD REMOVED)
STANDARD PROCEDURE - VALVE SPRINGS

AND SEALS (CYLINDER HEAD REMOVED)

. 41

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 41

INTAKE/EXHAUST VALVES & SEATS

STANDARD PROCEDURE - VALVE AND

VALVE SEAT REFACING

. . . . . . . . . . . . . . . . 42

ENGINE BLOCK

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 43

PT

ENGINE

9 - 1

STANDARD PROCEDURE

CYLINDER BORE HONING

. . . . . . . . . . . . . . 44

CLEANING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 44

CRANKSHAFT MAIN BEARINGS

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 45

CRANKSHAFT

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 45

STANDARD PROCEDURE - CRANKSHAFT

END PLAY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 45

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 46

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 47

CRANKSHAFT OIL SEAL - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 48

CRANKSHAFT OIL SEAL - REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 48

PISTON & CONNECTING ROD

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 49

STANDARD PROCEDURE

CONNECTING ROD AND BEARING -

FITTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

CYLINDER BORE AND PISTON - FITTING

. . 50

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 51

PISTON RINGS

STANDARD PROCEDURE - PISTON RING -

FITTING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 52

VIBRATION DAMPER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 53

ENGINE MOUNTING

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 53

TORQUE STRUTS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 55

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 55

RIGHT ENGINE MOUNT BRACKET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 56

RIGHT MOUNT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 56

LEFT MOUNT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 57

LUBRICATION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 58

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 58

DIAGNOSIS AND TESTING

CHECKING ENGINE OIL PRESSURE

. . . . . . 60

OIL FILTER CARTRIDGE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 60

OIL FILTER CARTRIDGE HOUSING

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 61

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 61

OIL PAN

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 62

OIL PUMP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 63

OIL PUMP PICK-UP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 63

INTAKE MANIFOLD

REMOVAL

UPPER INTAKE MANIFOLD

. . . . . . . . . . . . . . 63

LOWER INTAKE MANIFOLD

. . . . . . . . . . . . . 64

INSTALLATION

UPPER INTAKE MANIFOLD

. . . . . . . . . . . . . . 64

LOWER INTAKE MANIFOLD

. . . . . . . . . . . . . 64

EXHAUST MANIFOLD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

CLEANING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 65

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 65

VALVE TIMING

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 66

STANDARD PROCEDURE

VALVE TIMING VERIFICATION

. . . . . . . . . . . 66

TIMING CHAIN COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 68

TIMING CHAIN/GUIDES/SPROCKETS

REMOVAL

TIMING CHAIN AND GUIDES

. . . . . . . . . . . . 69

CAMSHAFT SPROCKET

. . . . . . . . . . . . . . . . 69

CRANKSHAFT SPROCKET

. . . . . . . . . . . . . . 70

INSTALLATION

CRANKSHAFT SPROCKET

. . . . . . . . . . . . . . 70

CAMSHAFT SPROCKET

. . . . . . . . . . . . . . . . 71

TIMING CHAIN AND GUIDES

. . . . . . . . . . . . 71

9 - 2

ENGINE 1.6L SOHC

PT

ENGINE 1.6L SOHC

DESCRIPTION

The 1.6 Liter (97.6 cu. in.) in-line four cylinder

engine is a single over head camshaft with four
valves per cylinder design. The engine does not have
provisions for a “free wheeling” valve train.

The cylinders are numbered from front of the

engine to the rear. The firing order is 1–3–4–2.

The engine identification number is stamped onto

a machined pad located on the right front of the cyl-
inder block below the cylinder head sealing surface
(Fig. 1).

DIAGNOSIS AND TESTING

INTRODUCTION

Engine diagnosis is helpful in determining the

causes of malfunctions not detected and remedied by
routine maintenance.

These malfunctions may be classified as either

mechanical (e.g., a strange noise), or performance
(e.g., engine idles rough and stalls).

Refer to the Engine Mechanical and the Engine

Performance diagnostic charts, for possible causes
and corrections of malfunctions (Refer to 9 - ENGINE
- DIAGNOSIS AND TESTING - MECHANICAL)
(Refer to 9 - ENGINE - DIAGNOSIS AND TESTING
- PERFORMANCE).

For fuel system diagnosis, (Refer to 14 - FUEL

SYSTEM/FUEL DELIVERY

-

DIAGNOSIS AND

TESTING).

Additional tests and diagnostic procedures may be

necessary for specific engine malfunctions that can-
not be isolated with the Service Diagnosis charts.
Information concerning additional tests and diagno-
sis is provided within the following:

• Cylinder Compression Pressure Test

• Cylinder Combustion Pressure Leakage Test

• Engine Cylinder Head Gasket Failure Diagnosis

• Lash Adjuster Noise Diagnosis

• Engine Oil Leak Inspection

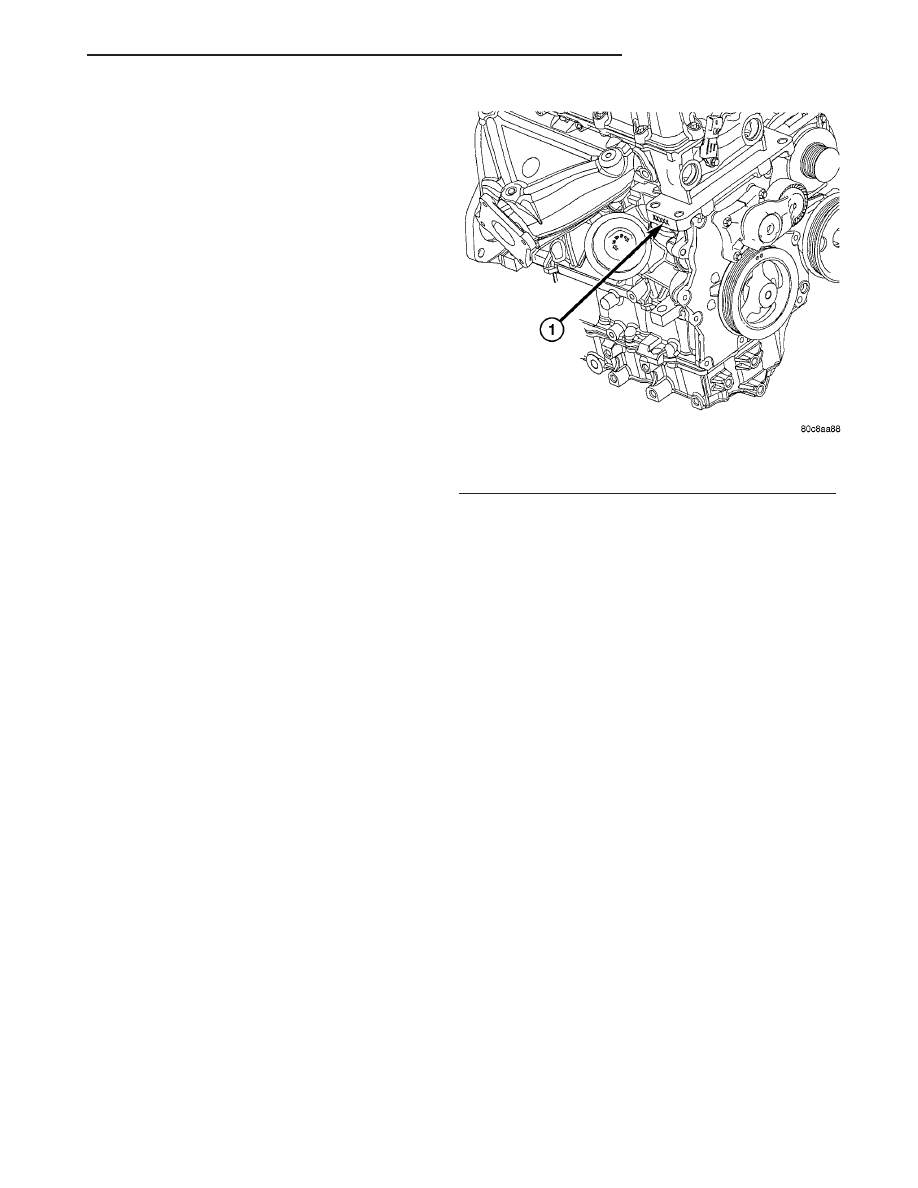

Fig. 1 Engine Identification

1 - LOCATION OF V.I.N.

PT

ENGINE 1.6L SOHC

9 - 3















Content   ..  678  679  680  681   ..
