Fig.

2

Engine

Compartment

Connections

(Right

Side)

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 7

DESCRIPTION AND OPERATION (Continued)

Fig.

3

Right

Headlamp

Connectors

8W - 90 - 8

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)

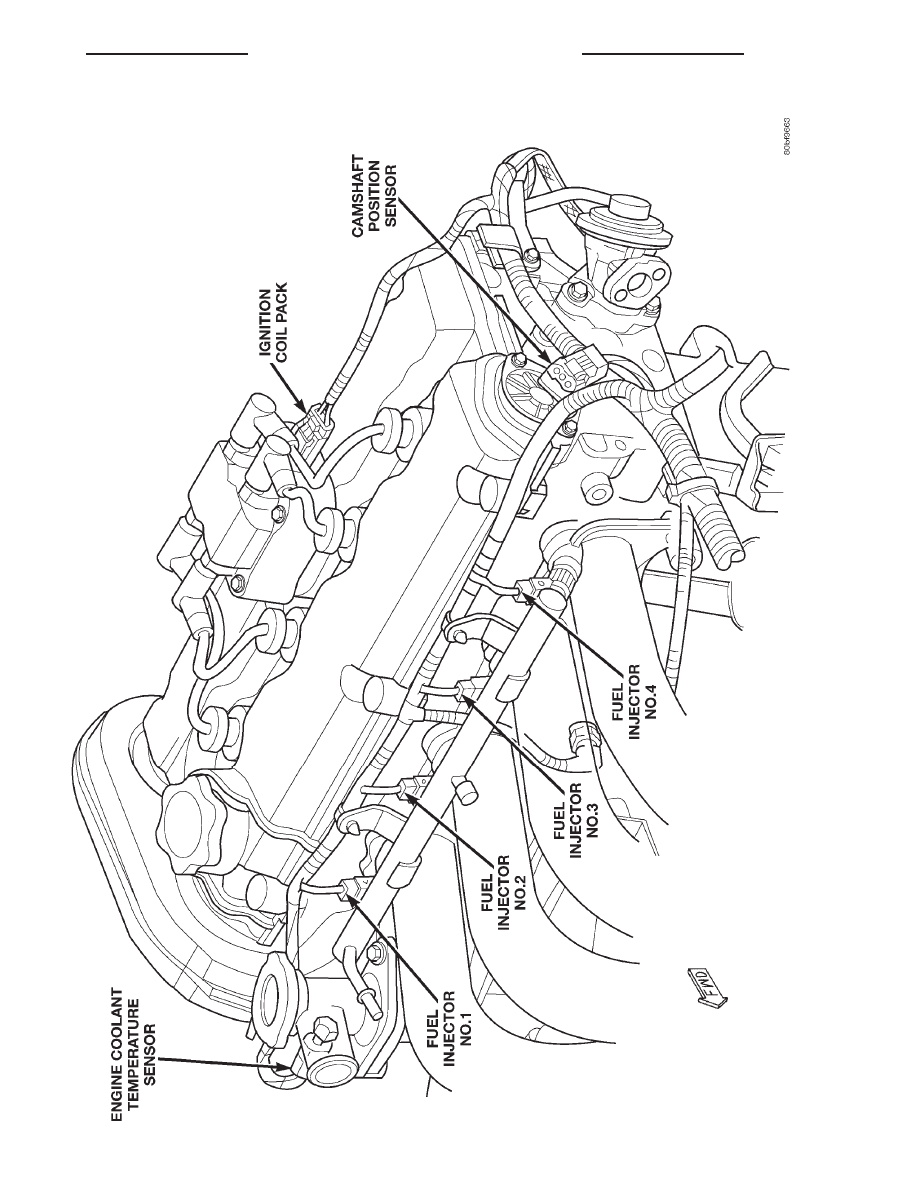

Fig.

4

2.0L–2.4L

Fuel

Injector

Connectors

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 9

DESCRIPTION AND OPERATION (Continued)

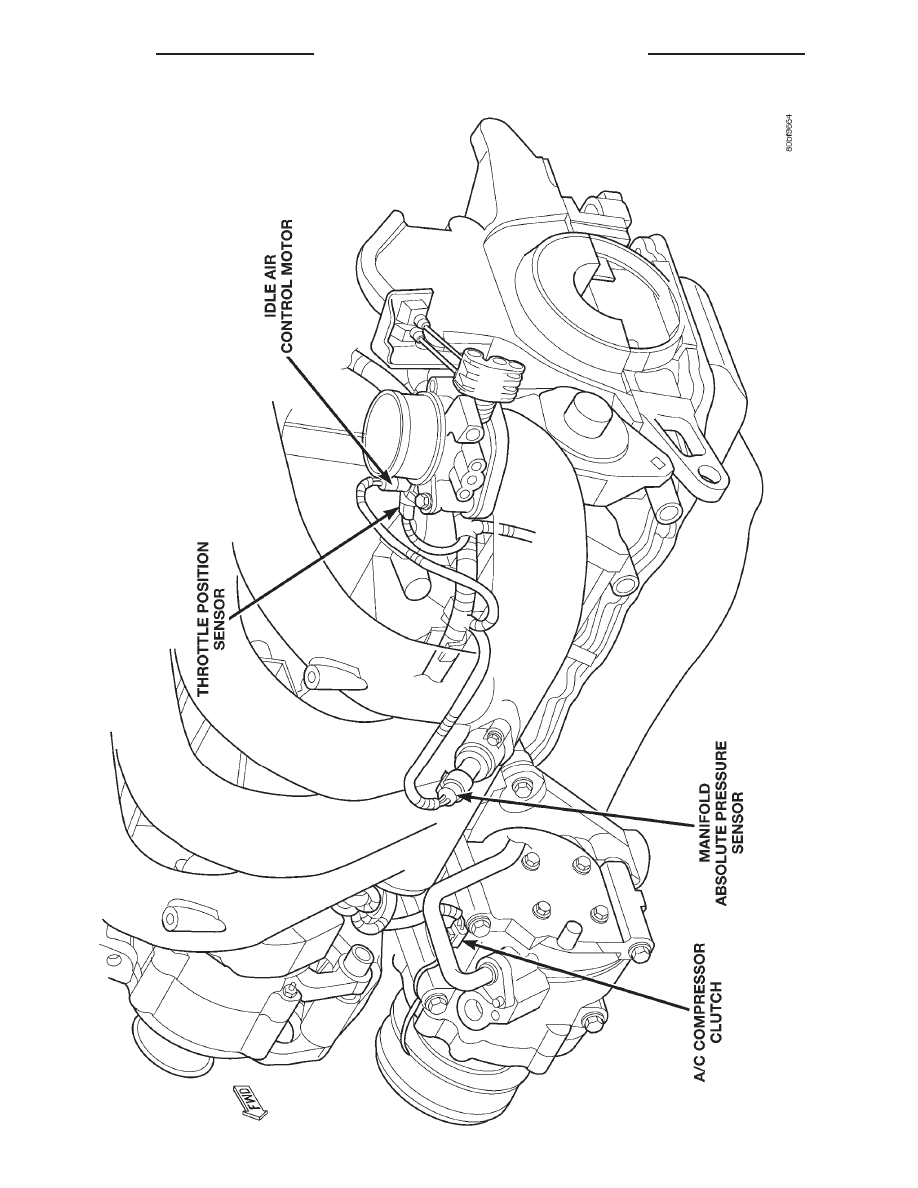

Fig.

5

2.0L–2.4L

Engine

Front

8W - 90 - 10

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)
