Chrysler Stratus Convertible. Manual - part 356

Connector
Name/Number

Color

Location

Fig.

G306

Base of
Gearshift

N/S

G307

Trunk

21

Generator

BK

Rear of
Generator

6, 9,
10

Glove Box
Lamp

BK

At Lamp

15

High Note Horn

BK

Right Front
Fender

3

Horizontal Motor

BK

At Motor

N/S

Idle Air Control
Motor

BK

On Throttle
Body

5, 8

Ignition Coil
Pack

BK

Top of Valve
Cover

4

Ignition Switch
C1

BK

At Switch

14

Ignition Switch
C2

BK

At Switch

14

Illuminated
Entry Relay

BK

Right of
Steering
Column

19

Instrument
Cluster C1

RD

Rear of Clustrer

15

Instrument
Cluster C2

BL

Rear of Cluster

15

Input Speed
Sensor

GY

At Transmission

13

Intake Air Temp
Sensor

GY

Rear of Intake

6, 11

Junction Block
C1

BR

At Junction
Block

16

Junction Block
C2

NAT

At Junction
Block

16

Junction Block
C3

WT

At Junction
Block

16

Junction BLock
C4

BL

At Junction
Block

15

Junction Block
C5

GY

At Junction
Block

15

Junction Block
C6

WT

At Junction
Block

15

Junction Block
C7

NAT

At Junction
Block

15

Junction Block
C8

BK

At Junction
Block

16

Junction Block
C9

WT

At Junction
Block

16

Connector
Name/Number

Color

Location

Fig.

Junction Block
C10

NAT

At Junction
Block

N/S

Junction Block
C11

BK

At Junction
Block

15

Key-In Switch

GN

At Switch

14

Left Back-Up
Lamp

NAT

At Lamp

N/S

Left Door
Arm/Disarm
Switch

BK

At Switch

N/S

Left Door
Courtesy Lamp

BK

At Lamp

23

Left Door
Speaker

BK

Left Door

23

Left Door
Window Motor
Relay

GY

Left Door

N/S

Left Fog Lamp

GY

At Lamp

1

Left Front
Instrument
Panel Speaker

BK

At Speaker

15

Left Front
Power Window
Motor

BK

At Motor

23

Left Front
Wheel Speed
Sensor

BK

Left Fender
Side Shield

N/S

Left Headlamp

BK

At Lamp

N/S

Left Park/Turn
Signal Lamp

BK

At Lamp

N/S

Left Power Door
Lock Motor

GY

Left Door

23

Left Power Door
Lock Switch

WT

Left Door

23

Left Power
Mirror

NAT

At Mirror

23

Left Rear
Park/Turn
Signal Lamp

BK

At Lamp

N/S

Left Rear Power
Window Motor

BK

At Motor

N/S

Left Rear
Speaker

BK

At Speaker

N/S

Left Rear Wheel
Speed Sensor

BK

Left Quarter
Panel

22

Left Side
Marker Lamp

GY

At Lamp

N/S

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 3

DESCRIPTION AND OPERATION (Continued)

Connector
Name/Number

Color

Location

Fig.

Left Tail/Stop
Lamp

BK

At Lamp

21

Left Visor/Vanity
Lamp

BK

At Lamp

18

License Lamp

NAT

At Lamp

N/S

Low Note Horn

BK

Right Front
Fender

3

Manifold
Absolute
Pressure
Sensor

BK

Rear of Intake

5, 11

Master Power
WIndow Switch

BL

At Switch

23

Mode Door
Actuator

NAT

Left Side of
HVAC

17

Multi-Function
Switch C1

BK

Left Side of
Switch

14

Multi-Function
Switch C2

BL

Right Side of
Switch

14

Oil Pressure
Switch

GN

At Switch

7, 10,
11

Output Speed
Sensor

GY

Front of
Transmission

13

Overhead Map
Lamp

BK

At Lamp

18

Oxygen Sensor
1/1 Upstream

BK

At Upstream
Oxygen Sensor

7, 11

Oxygen Sensor
1/2 Downstream

NAT

At Downstream
Oxygen Sensor

1

Passenger Seat
Belt Solenoid

NAT

In Seat

N/S

Passenger Side
Airbag

YL

At Airbag

15

Power Amplifier
C1

WT

At Amplifier

14, 20

Power Amplifier
C2

WT

At Amplifier

14, 20

Power Mirror
Switch

BK

At Switch

23

Power Seat
Switch

BK

Under Seat

20

Power Steering
Pressure Switch

BL

Left Side of
Steering Gear

1

Power Top
Pump Motor

BK

Front Center of
Trunk Area

22

Power Top
Switch

BL

Center Console

N/S

Connector
Name/Number

Color

Location

Fig.

Power Top
Up/Down
Relays

BK

Front Center of
Trunk Area

22

Powertrain
Control Module
C1

BK

Side of PDC

1

Powertrain
Control Module
C2

BK

Side of PDC

1

Proportional
Purge Solenoid

BK

At Solenoid

3

PRNDL
Illumination LED

BR

Base of
Gearshifter

N/S

Radiator Fan
Motor Assembly

BK

Rear of Motor

N/S

Radio C1

BK

Rear of Radio

14

Radio C2

GY

Rear of Radio

14

Rear Floor
Courtesy Lamp

WT

At Lamp

N/S

Rear Vertical
Motor

BK

At Motor

N/S

Resistor Block

BK

Right Side
Instrument
Panel

15, 17

Right Back-Up
Lamp

NAT

At Lamp

N/S

Right Door
Arm/Disarm
Switch

GY

At Switch

24

Right Door
Courtesy Lamp

BK

At Lamp

24

Right Door
Speaker

BK

At Speaker

24

Right Door
Window Motor
Relay

GY

In Left Door

N/S

Right Fog Lamp

GY

At Lamp

3

Right Front
Instrument
Panel Speaker

BK

At Speaker

15

Right Front
Power Window
Motor

BK

At Motor

24

Right Front
Wheel Speed
Sensor

BK

Right Fender
Side Shield

1

Right Headlamp

BK

At Lamp

3

8W - 90 - 4

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)

Connector
Name/Number

Color

Location

Fig.

Right Park/Turn
Signal Lamp

BK

At Lamp

3

Right Power
Door Lock
Motor

GY

Right Door

24

Right Power
Door Lock
Switch

NAT

Right Door

24

Right Power
Mirror

NAT

At Mirror

24

Right Power
Window Switch

BL

At Motor

24

Right Rear
Park/Turn
Signal Lamp

BK

At Lamp

N/S

Right Rear
Power Window
Motor

BK

At Motor

24

Right Rear
Speaker

BK

At Speaker

N/S

Right Rear
Wheel Speed
Sensor

BK

Right Side
Trunk Area

22

Right Side
Marker Lamp

GY

At Lamp

N/S

Right Tail/Stop
Lamp

BK

At Lamp

N/S

Right Visor/
Vanity Lamp

BK

At Lamp

18

Seat Belt
Control Module

NAT

Rear of Center
Console

20

Seat Belt Switch

GN

In Buckle

N/S

Sentry Key
Immobilizer
Module

BK

Steering
Column

14

Connector
Name/Number

Color

Location

Fig.

Throttle Position
Sensor

BK

On Throttle
Body

5, 8

Traction Control
Switch

NAT

Steering
Column

14

Transmission
Control Module

BK

Next to PDC

1

Transmission
Range Sensor

BK

Front of
Transmision

13

Transmission
Solenoid and
Pressure Switch
Assembly

BK

Front of
Transmission

13

Traveler

BK

Rear of
Traveler

15

Trunk Key
Cylinder Switch

BK

At Switch

22

Trunk Lamp

BK

At Lamp

21

Vehicle Speed
Control Servo

BK

At Servo

1

Vehicle Speed
Sensor

BK

Front of
Transmission

12

Washer Fluid
Level Switch

BK

Washer
Reservoir

N/S

Window Timer
Module

NAT

Left Front Door

N/S

Windshiel
Washer Pump

BK

Bottom of
Reservior

3

Windshield
Wiper Motor

LT/GY

Left Strut Tower

1

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 5

DESCRIPTION AND OPERATION (Continued)

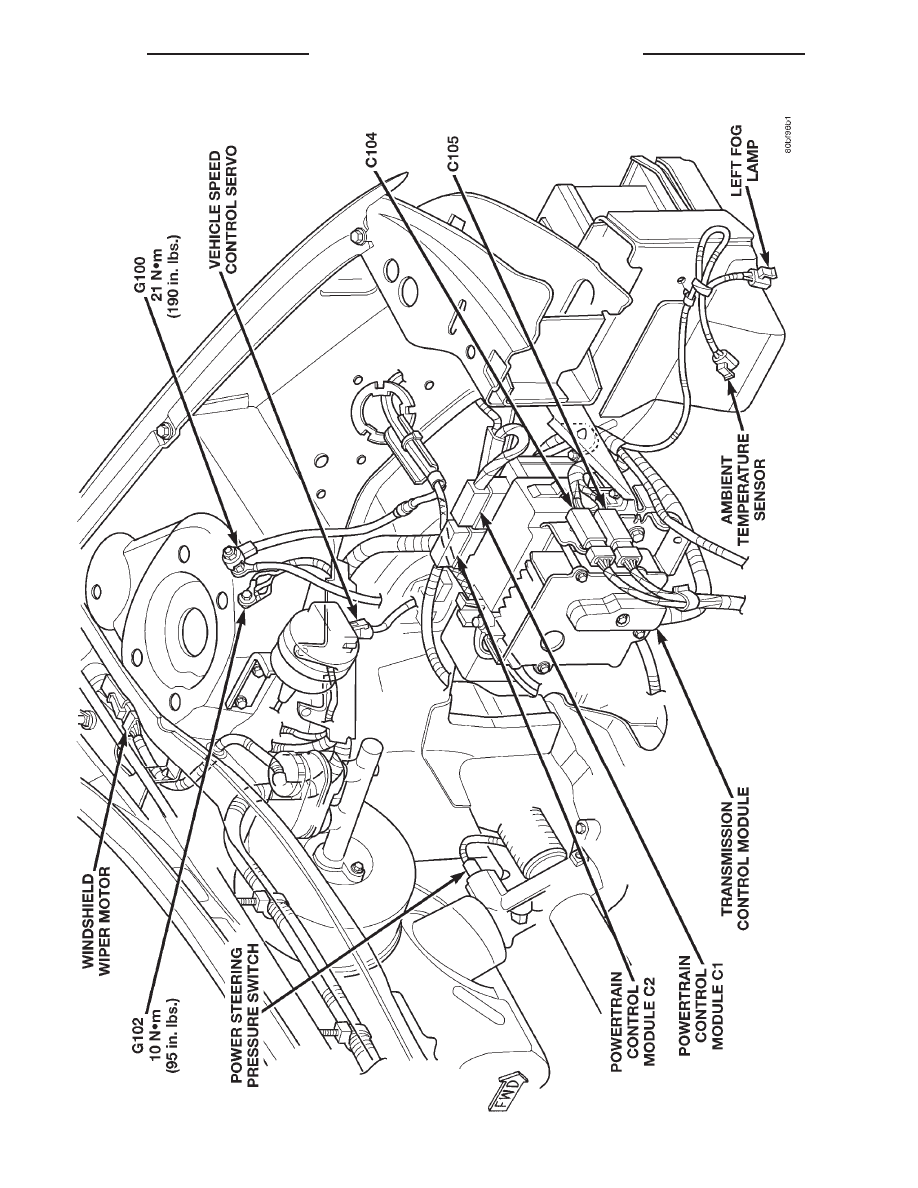

Fig.

1

Engine

Compartment

Connections

(Left

Side)

8W - 90 - 6

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)
