Chrysler Stratus Convertible. Manual - part 355

CIRCUIT

FUNCTION

SPEED CONTROL VACUUM SOLENOID CONTROL

SPEED CONTROL VENT SOLENOID CONTROL

SPEED CONTROL BRAKE SWITCH OUTPUT

GROUND

CAV

1

2

3

4

V36 20WT/VT

V35 20LG/RD

V30 20DB/RD

Z1 20BK

CIRCUIT

FUNCTION

GROUND

WASHER FLUID SWITCH SENSE

CAV

A

B

Z1 20BK

G29 20BK/TN

4

1

BLACK

B A

VEHICLE SPEED

CONTROL SERVO

WASHER FLUID

LEVEL SWITCH

BLACK

VEHICLE SPEED

SENSOR

G7 18WT/OR

K4 18BK/LB

K7 18OR

3

2

1

CAV

VEHICLE SPEED SENSOR SIGNAL

SENSOR GROUND

8V SUPPLY

FUNCTION

CIRCUIT

BLACK

(MTX)

1

3

JX

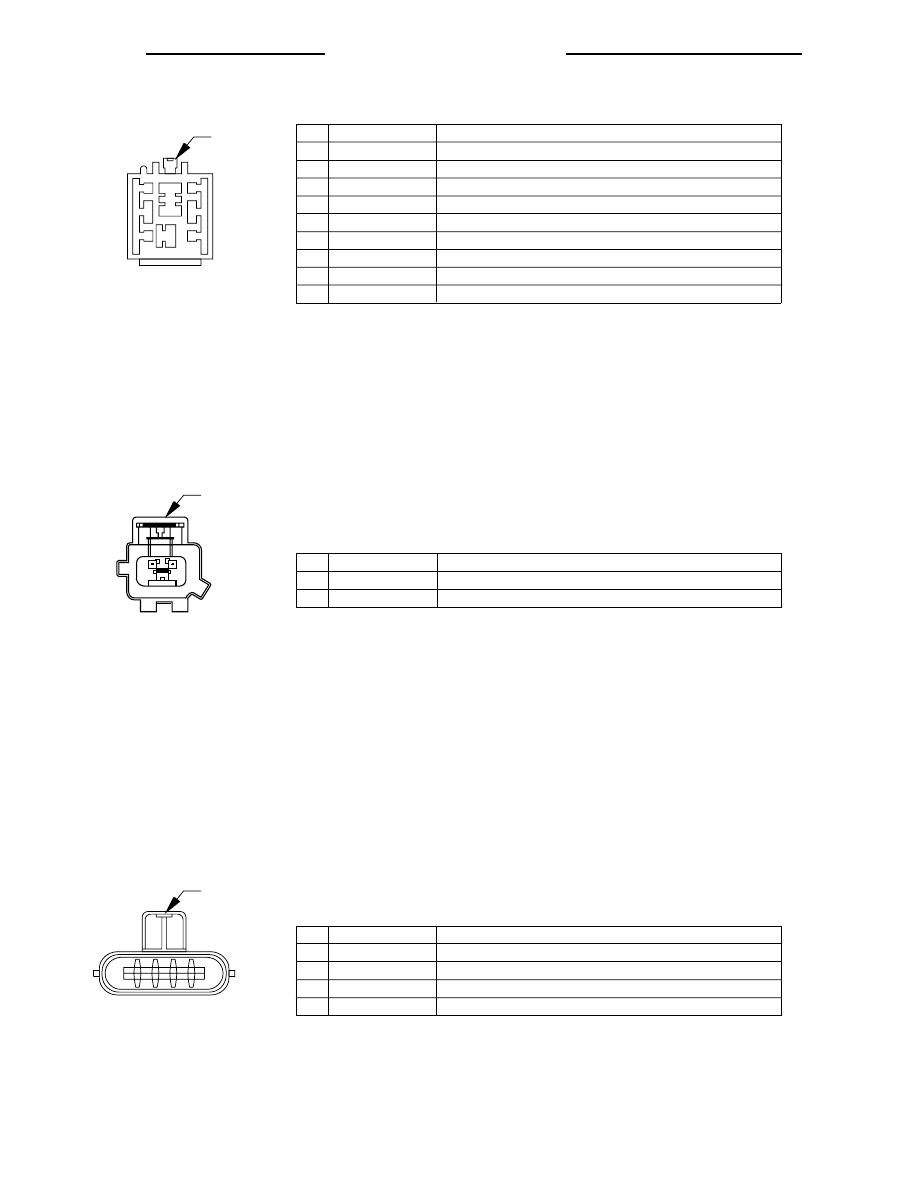

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 61

JXI08061

008W-14

CIRCUIT FUNCTION

WASHER PUMP CONTROL SWITCH OUTPUT

GROUND

CAV

1

2

V10 18BR/DB

Z1 18BK

LIGHT
GRAY

CIRCUIT

WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT

WIPER HIGH/LOW RELAY LOW SPEED OUTPUT

GROUND

WIPER PARK SWITCH SENSE

CAV

A

B

C

D

V4 14RD/YL

V3 14BR/OR

Z1 16BK

V55 20TN/RD

D  C  B  A

CIRCUIT

CONVERTIBLE TOP DOWN RELAY B(+)

FUSED IGNITION SWITCH OUTPUT (RUN)

CONVERTIBLE TOP UP RELAY B(+)

LEFT RIGHT  WINDOW DRIVER (DOWN)

RIGHT REAR WINDOW DRIVER (DOWN) (SWITCH)

RIGHT REAR WINDOW DRIVER (DOWN)

WINDOW MOTOR RELAY CONTROL

LEFT REAR WINDOW DRIVER (DOWN) (SWITCH)

GROUND

CAV

1

2

3

4

5

6

7

8

9

P5 20YL/RD

F21 14TN

P6 20RD/WT

Q27 14RD/BK

Q32 14BR

Q28 14DG/WT

G10 20LG/RD

Q31 14OR

Z1 20BK

NATURAL

3

2

5

1

8

6

4

9

7

FUNCTION

FUNCTION

WINDOW TIMER

MODULE

WASHER PUMP

WINDSHIELD

WIPER MOTOR

WINDSHIELD

BLACK

1

2

8W - 80 - 62

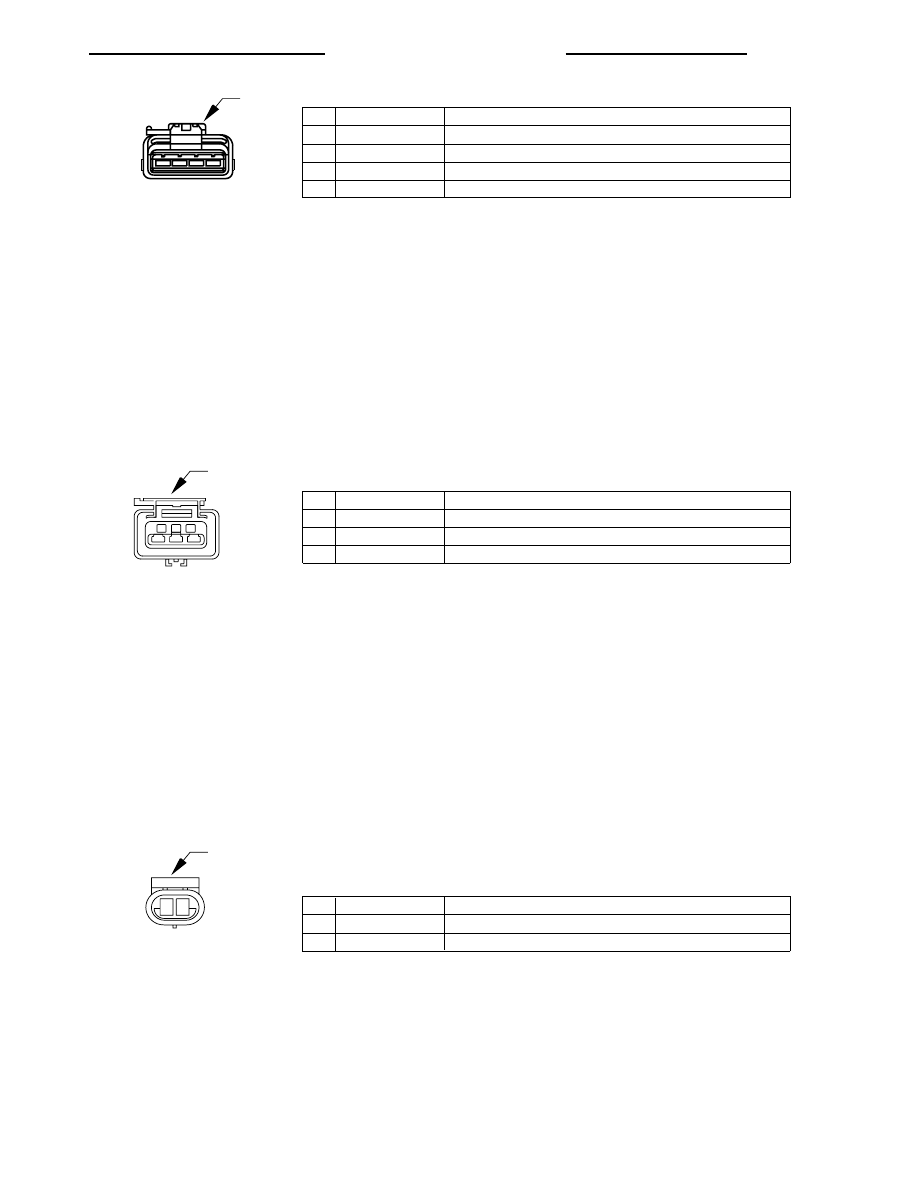

8W-80 CONNECTOR PIN-OUTS

JX

008W-14

JXI08062

8W-90 CONNECTOR/GROUND LOCATIONS

DESCRIPTION AND OPERATION

INTRODUCTION

This section provides illustrations identifying com-

ponent and connector locations in the vehicle. A con-
nector index is provided. Use the wiring diagrams in

each section for connector number identification.
Refer to the index for the proper figure number.

CONNECTOR/GROUND LOCATIONS

For items not shown in this section a N/S is placed

in the Fig. column.

Connector
Name/Number

Color

Location

Fig.

A/C
Compressor
Clutch

GY

Top of
Compressor

5, 6, 9,
10

A/C Evaporator
Temperature
Sensor

BK

Right Side of
HVAC

15, 17

A/C-Heater
Control C1

NAT

Rear of Control

15, 17

A/C-Heater
Control C2

BK

Rear of Control

15, 17

A/C Pressure
Transducer

GY

Top of A/C
Compressor

6, 9,
10

Airbag Control
Module C1

GY

At Module

14, 20

Airbag Control
Module C2

YL

At Module

14, 20

Ash Receiver
Lamp

BK

Rear of Lamp

N/S

Automatic
Day/Night Mirror

BK

At Mirror

18

Autostick Switch

NAT

Base of Shifter

14

Back-Up Lamp
Switch

GY

Rear of
Transmission

12

Battery
Temperature
Sensor

GY

Near Battery

N/S

Body Control
Module C1

BK

At Module

16

Body Control
Module C2

NAT

At Module

15

Body Control
Module C3

NAT

At Module

15

Body Control
Module C4

NAT

At Module

15

Body Control
Module C5

BK

At Module

16

Connector
Name/Number

Color

Location

Fig.

Brake Fluid
Level Switch

BK

On Master
Cylinder

N/S

Brake Lamp
Switch

GY

Top of Brake
Pedal

19

Brake Shift
Interlock
Solenoid

Left Side
Instrument
Panel Lower
Steering
Column

N/S

C104

LT/GY

Under PDC

1

C105

BK

Under PDC

1

C111

BK

Rear of PCM

N/S

C113

LT/GY

Rear of PCM

N/S

C121

GN

Left Side Cowl
Panel

19

C126

BL

Near Junction
Block

15, 16

C127

Near Junction
Block

15

C165 (2.5L)

BK

Left Side of
Intake

11

C169

BK

Manual
Transmission to
Headlamp and
Dash Harness

N/S

C224

GY

Left Side of
Steering
Column

N/S

C300

BK

Trunk

21

C301

BK

RT Quarter
Panel

N/S

C305

RD

Near Trunk
Latch

21

C309

GY

Under Seat

20

C310

BR

Left A-Pillar

23

C311

BL

Left A-Pillar

23

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 1

Connector
Name/Number

Color

Location

Fig.

C315

BR

Right A-Pillar

24

C316

BL

Right A-Pillar

24

C332

BK

Left Side Cowl

18

C340

BK

Under Drivers
Seat

20

C341

GN

Under
Passengers
Seat

20

C342

BK

Front of Floor
Console

20

Camshaft
Position Sensor

BK

Left Side of Cyl
Head

4

Center High
Mounted Stop
Lamp

BK

At Lamp

21

Clockspring
No.1

NAT

Rear of
Clockspring

14

Clockspring
No.1

YL

Rear of
Clockspring

14

Clutch Interlock
Switch

BK

Top of Clutch
Pedal Bracket

N/S

Controller
Anti-Lock Brake

BK

Right Fender
Side Shield

1

Crankshaft
Position Sensor
2.4L

BK

Rear of Cyl
Block

7

Crankshaft
Position Sensor
2.5L

BK

Under
Distributor

10

Data Link
Connector

BK

LT Side of
Steering
Column

15, 16

Decklid Release
Relay

BK

RT of Steering
Column

19

Decklid Release
Switch

BK

Center Console

N/S

Decklid
Solenoid

BK

On Decklid
Latch

22

Distributor C1

BK

On Distributor

10

Distributor C2

BK

On Distributor

10

Driver Seat Belt
Solenoid

NAT

In Seat

N/S

EGR Solenoid

BK

At Solenoid

7, 9

Engine Coolant
Temperature
Sensor

BK

At Sensor

4, 8

Connector
Name/Number

Color

Location

Fig.

Front Vertical
Motor

BK

At Motor

N/S

Fuel Injector
No.1 (2.4L)

BK

At Injector

4

Fuel Injector
No.1 (2.5L)

BK

At Injector

N/S

Fuel Injector
No.2 (2.4L)

BK

At Injector

4

Fuel Injector
No.2 (2.5L)

BK

At injector

8

Fuel Injecotr
No.3 (2.4L)

BK

At Injector

4

Fuel Injector
No.3 (2.5L)

BK

At Injector

N/S

Fuel Injector
No.4 (2.4L)

BK

At Injector

4

Fuel Injector
No.4 (2.5L)

BK

At Injector

8

Fuel Injector
No.5 (2.5L)

BK

At Injector

N/S

Fuel Injector
No.6 (2.5L)

BK

At Injector

8

Fuel Pump
Module

BK

Right Side of
Trunk Area

22

G100

Left Strut Tower

1

G102

Left Strut Tower

1

G103

Right Strut
Tower

1

G104

Right Strut
Tower

N/S

G105

Left Front of
Engine

9

G111

Left Strut Tower

N/S

G200

Right I. P.
Center Support

15

G201

Base of
Gearshift

14, 20

G300

Left Side of
Trunk Opening

21

G301

Left Side Cowl

19

G302

Center of Deck
Lid

22

G303

Right Rear
Quarter Panel

21

G304

Base of
Gearshift

20

8W - 90 - 2

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)
