Chrysler Stratus Convertible. Manual - part 245





AUDIO SYSTEMS

TABLE OF CONTENTS

page

page

DESCRIPTION AND OPERATION

AUDIO SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INTERFERENCE ELIMINATION . . . . . . . . . . . . . . . 1
REMOTE AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . 2
REMOTE CD CHANGER . . . . . . . . . . . . . . . . . . . . 2

DIAGNOSIS AND TESTING

AUDIO DIAGNOSTIC TEST PROCEDURES . . . . . . 2
DIAGNOSTIC CONDITIONS. . . . . . . . . . . . . . . . . . 2
MANUAL ANTENNA . . . . . . . . . . . . . . . . . . . . . . 13
REMOTE CD CHANGER . . . . . . . . . . . . . . . . . . . 13

REMOVAL AND INSTALLATION

DOOR MOUNTED SPEAKER. . . . . . . . . . . . . . . . 14
INSTRUMENT PANEL SPEAKER. . . . . . . . . . . . . 15
MANUAL ANTENNA AND MAST. . . . . . . . . . . . . 15
RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
REAR QUARTER PANEL SPEAKER(S) . . . . . . . . 16
REMOTE AMPLIFIER . . . . . . . . . . . . . . . . . . . . . 16
REMOTE CD CHANGER AND MOUNTING

BRACKET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

DESCRIPTION AND OPERATION

AUDIO SYSTEM

DESCRIPTION

Several

combinations

of

radio

receivers

and

speaker systems are offered as optional equipment.
The audio system uses an ignition switched source of
battery current so that the system will only operate
when the ignition switch is in the ON or Accessory
positions.

The audio system includes the following compo-

nents:

• Antenna

• Power amplifier (with premium speaker system

only)

• Radio noise suppression components

• Radio receiver

• Speakers
The vehicle has two speaker systems:

STANDARD SPEAKER SYSTEM

• Two instrument panel speakers

• Two door speakers

• Two rear quarter panel speakers

INFINITY AMPLIFIED SPEAKER SYSTEM

• Amplifier mounted under the passenger seat

• Two instrument panel speakers

• Two door speakers

• Two rear quarter panel speakers

OPERATION

See the owner’s manual in the vehicle glove box for

more information on the features, use and operation
of each of the available audio systems.

INTERFERENCE ELIMINATION

DESCRIPTION

Some

components

used

on

the

vehicles

are

equipped with a capacitor to suppress radio fre-
quency interference/static.

OPERATION

Capacitors are mounted in various locations inter-

nal to the alternator, instrument cluster and wind-
shield wiper motor.

To eliminate radio interference, ground straps are

used in different areas of the vehicle. These ground
circuits should be securely tightened to assure good
metal to metal contact. The ground straps conduct
very small high frequency electrical signals to ground
and require clean surface contact area. The radio
ground wire is supplied from the instrument panel
harness and is attached to the rear of the radio.
Some engines have other ground straps to eliminate
further radio interference:

• Engine to shock tower, 2.0L - 2.4L - 2.5L engines

• Engine to transmission, 2.5L engine

• Muffler to bumper beam, 2.0L - 2.4L engines
Radio resistance type spark plug cables in the high

tension circuit of the ignition system complete the
interference

suppression.

Faulty

or

deteriorated

spark plug wires should be replaced.

JX

AUDIO SYSTEMS

8F - 1

REMOTE AMPLIFIER

DESCRIPTION

The amplifier is located under the right front seat.

OPERATION

When the radio system is ON, and all or some

speakers are not operating or have a noise distortion
refer to the diagnostic tests. Refer to Group 8W, Wir-
ing Diagrams for Pin numbers and location.

The amplifier provides unique sound equalizations

when the convertible top is in the up position or in
the down position. The amplifier remembers which
mode it is in as long as the battery voltage (B+) is
supplied to the amplifier. If the battery voltage is
removed for only a few minutes by:

• Disconnecting the battery

• Dead battery

• Fuse Removal

• Amplifier disconnected
The amplifier reverts to a top up condition even if

the top is down. If the amplifier mode does not match
the convertible top position, operate the convertible
top one cycle and this will reset amplifier to the cor-
rect mode.

REMOTE CD CHANGER

DESCRIPTION

The remote CD changer is located in the center

console and is capable of holding up to six discs in a
magazine.

OPERATION

The magazine can be ejected at anytime that the

ignition switch is in the ON position. After the igni-
tion switch is turned OFF, the magazine can only be
ejected within one minute. After that period, the
magazine will be locked in the CD changer.

DIAGNOSIS AND TESTING

AUDIO DIAGNOSTIC TEST PROCEDURES

CAUTION: The CD changer/player is designed to
operate between approximate temperatures of -23°C
and +65°C (-10°F and +145°F).

Whenever a radio malfunction occurs;
(1) First check FUSES in the Junction Block:

(a) Fuse 5, Memory feed – Power Amplifier (if

equipped)

(b) Fuse 7, Illumination
(c) Fuse 14, Ignition feed

NOTE: The vehicles are shipped with the INTERIOR
LAMP fuse disconnected.

(2) Verify, the radio wire harness are properly con-

nected before starting normal diagnosis and repair
procedures. Refer to Audio Diagnostic Charts and/or
Group 8W, Wiring Diagrams.

DIAGNOSTIC CONDITIONS

NOISE DISTORTION IN ALL SPEAKERS

Does the distortion occur through all operations:
• AM and FM stations

• Cassette tape

• Compact disc
If not, check for radio interference, damaged tape

or disc that may be causing the distortion. Refer to
Sound Systems Operating Instructions in the Owners
Manual for cleaning procedures of the cassette tape
player.

• Check battery voltage, for 11 Volts or more

• Check amplifier connector for proper connection

• If OK, check radio, refer to Radio Diagnosis

• If OK, check circuit between the radio and the

amplifier. If OK, check between the amplifier and the
speakers.

• If OK, replace amplifier

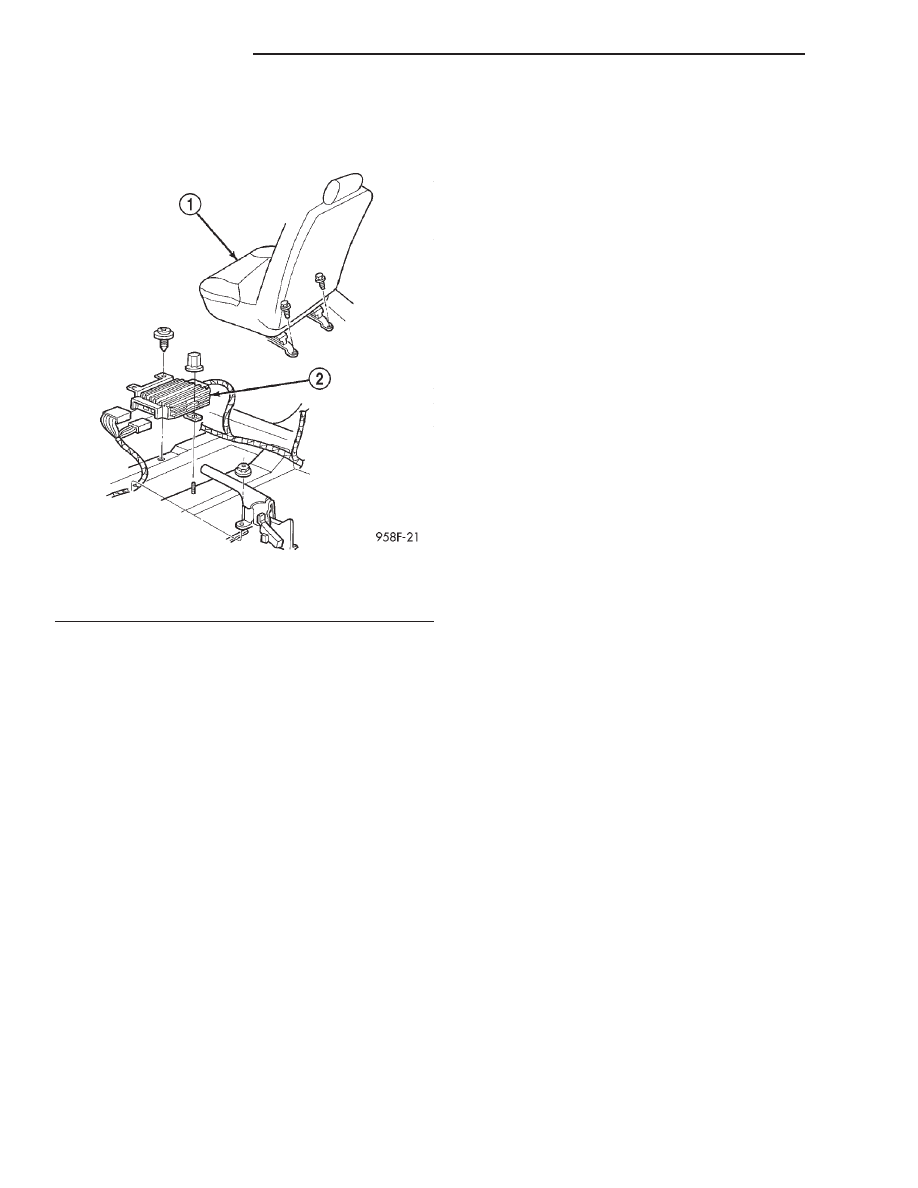

Fig. 1 Remote Amplifier Location

1 – PASSENGER SEAT
2 – AMPLIFIER

8F - 2

AUDIO SYSTEMS

JX

DESCRIPTION AND OPERATION (Continued)

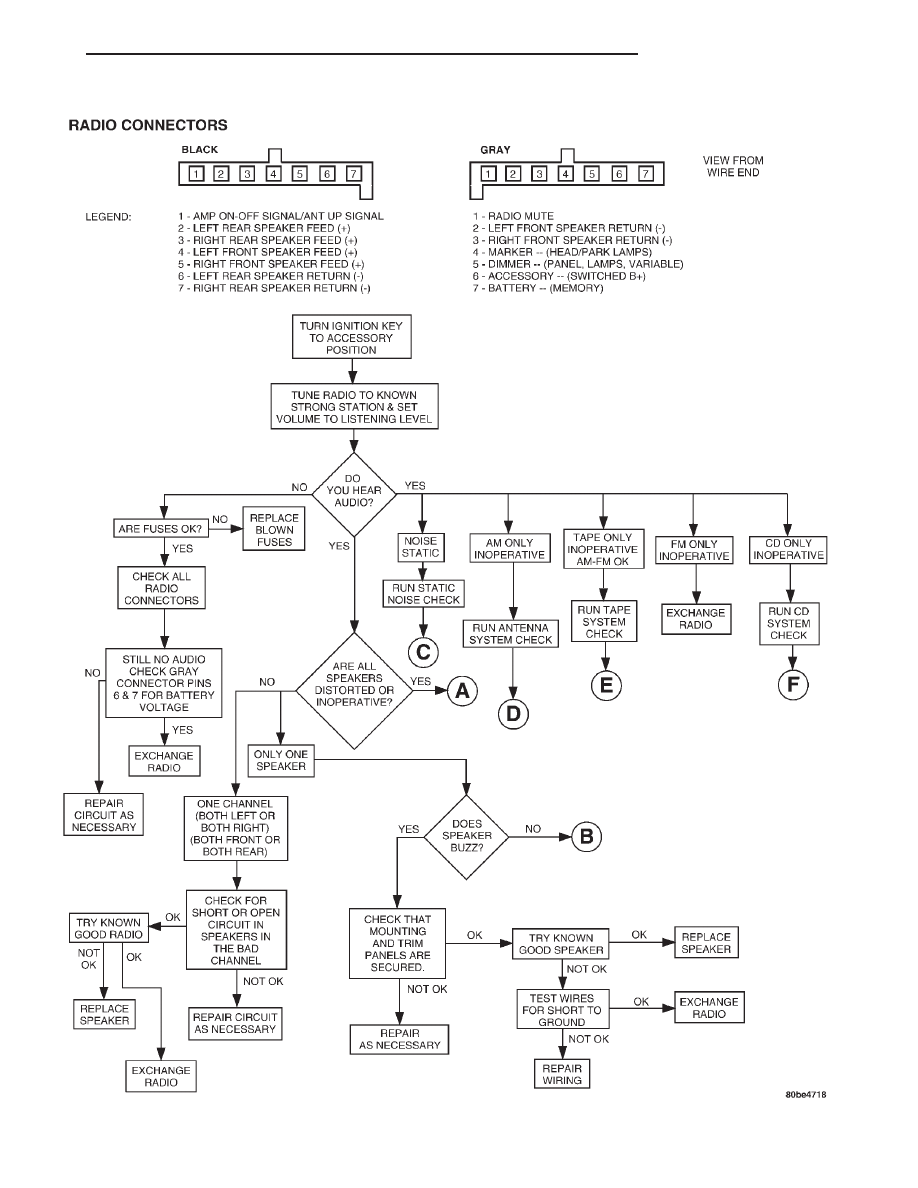

STANDARD SYSTEM

JX

AUDIO SYSTEMS

8F - 3

DIAGNOSIS AND TESTING (Continued)

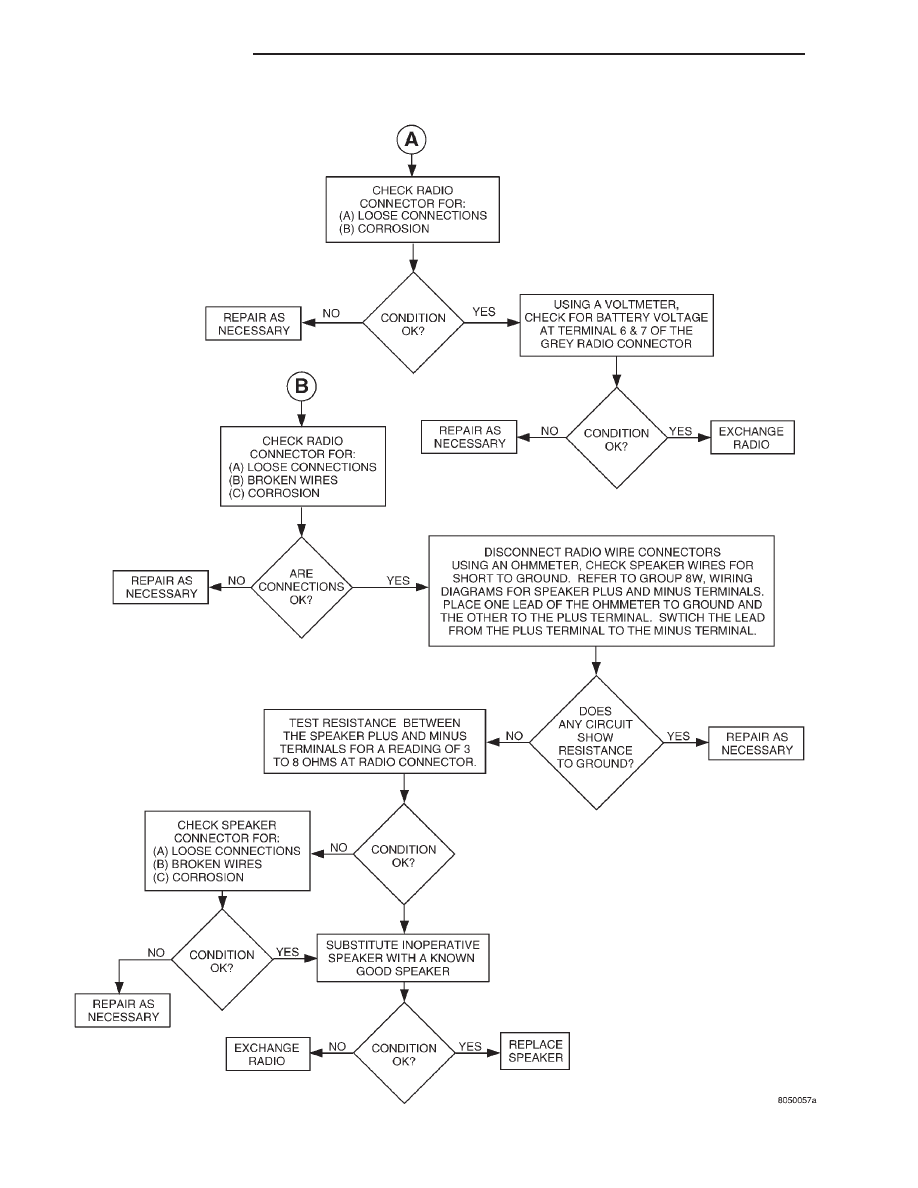

STANDARD SYSTEM CONTINUED

8F - 4

AUDIO SYSTEMS

JX

DIAGNOSIS AND TESTING (Continued)
