Chery    QQ    Maintenance Manual                  Transmission System




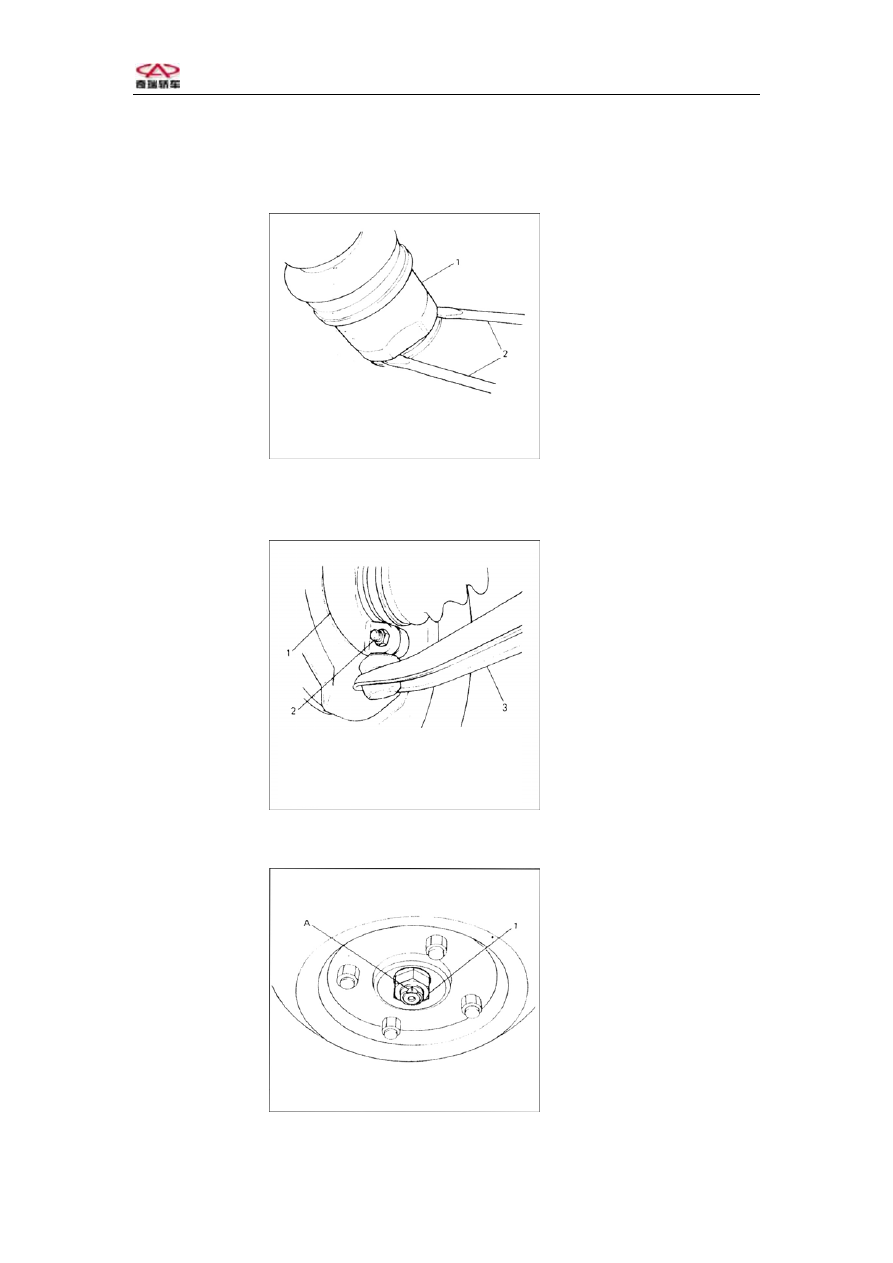

（1）Let out the transaxles oil.
（2）Remove the driven shaft cardan joint    to make the snap ring. Break away from
the differential cardan joint Splined hub.


1、Driven  shaft cardan joint

（left）














（3）  Remove the joint from the Suspension arm.
（4）Remove the ball joint bolt and    nut and disconnect the suspension arm from the
steering  .

1、  Steering

2 、   Ball  joint  bolt  and  nut

3、

Suspension

arm












（5） For disassembling the driven shaft assembly, first pull out the inner cardan
joint,second pull out the wheel cardan joint    from the    steering    .


1、Driven    shaft    nut        A、Rivet













-100-



Chery    QQ    Maintenance Manual                  Transmission System




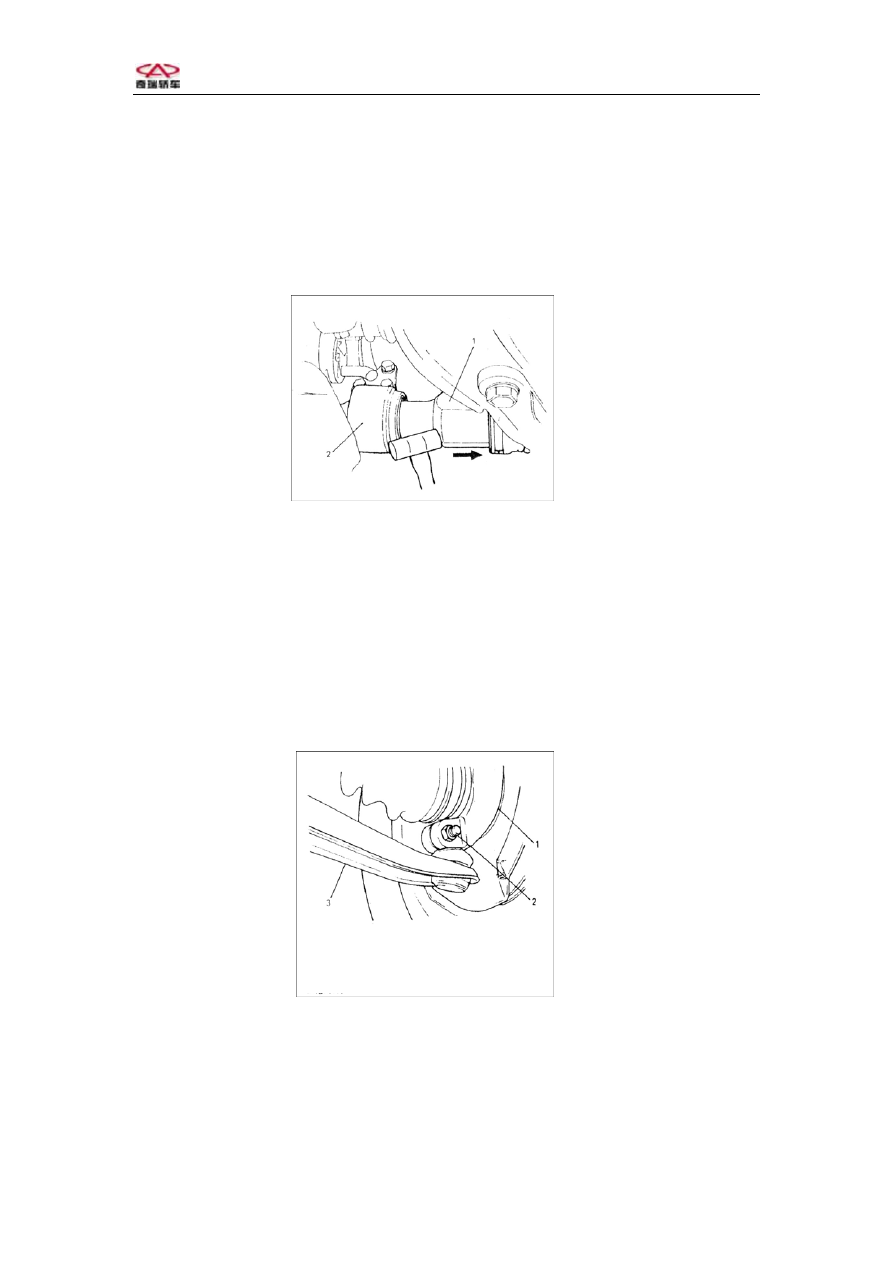

Caution: When disassembling the driven shaft assembly,
Be sure to prevent the rough touch and collision.

2. Disassembling the right shaft.
On the ground:

Loosen the rivet and remove the driven    shaft nut and gasket    .












On the Lift:
（1）Use plastic hammer to knock the driven shaft cardan joint to break the snap ring
away from differential cardan joint splined hub.
（2）Disconnect the joint from the suspension arm.
（3）Remove the ball joint bolt and nut, and then disconnect the    suspension arm
from the steering.
（4）For disassembling the driven shaft assembly, first pull out the inner cardan joint
from the output shaft, secondly pull out the end  of  wheel cardan joint  from the
cardan joint.


1 、   Steering    2 、  Ball  joint

bolt and  nut













Caution: When disassembling the driven shaft assembly, Be sure to prevent the

rough touch and collision.


（5）Let out the transaxles oil.


-101-



Chery    QQ    Maintenance Manual                  Transmission System




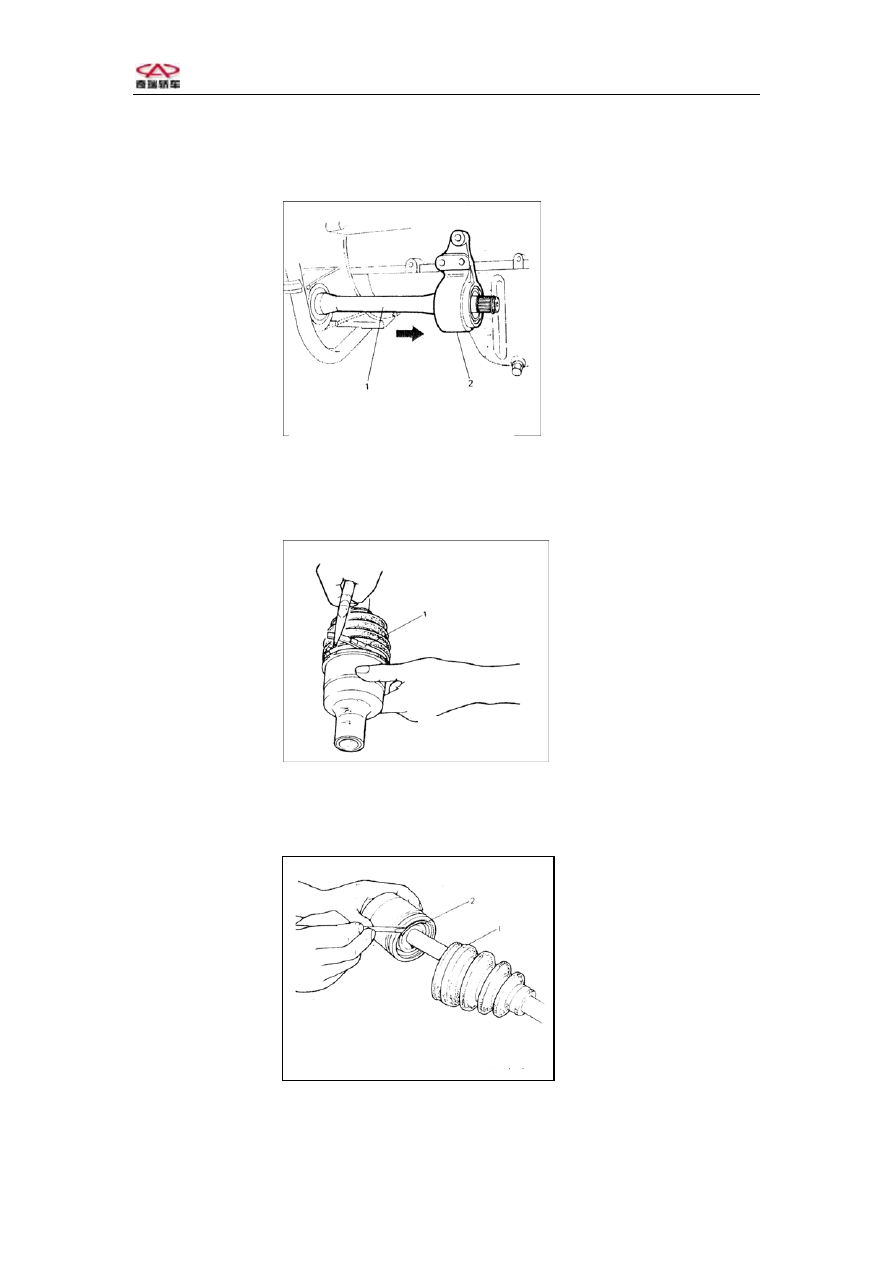

（6） Loosen the central bearing seat bolt, remove the output shaft from

differential side gear.



1 、   centralbearing  2 、

1、  Central bearing

2、  Central bearing   race












3. Disassemble the driven shaft.
（1） Remove the differential cardan joint boot hoop.














1、 Boot  hoop

（2） Move the boot to the middle position and take out the shaft from the

bell-mouthed.






1、Boot              2、    Snap    ring













-102-



Chery    QQ    Maintenance Manual                  Transmission System





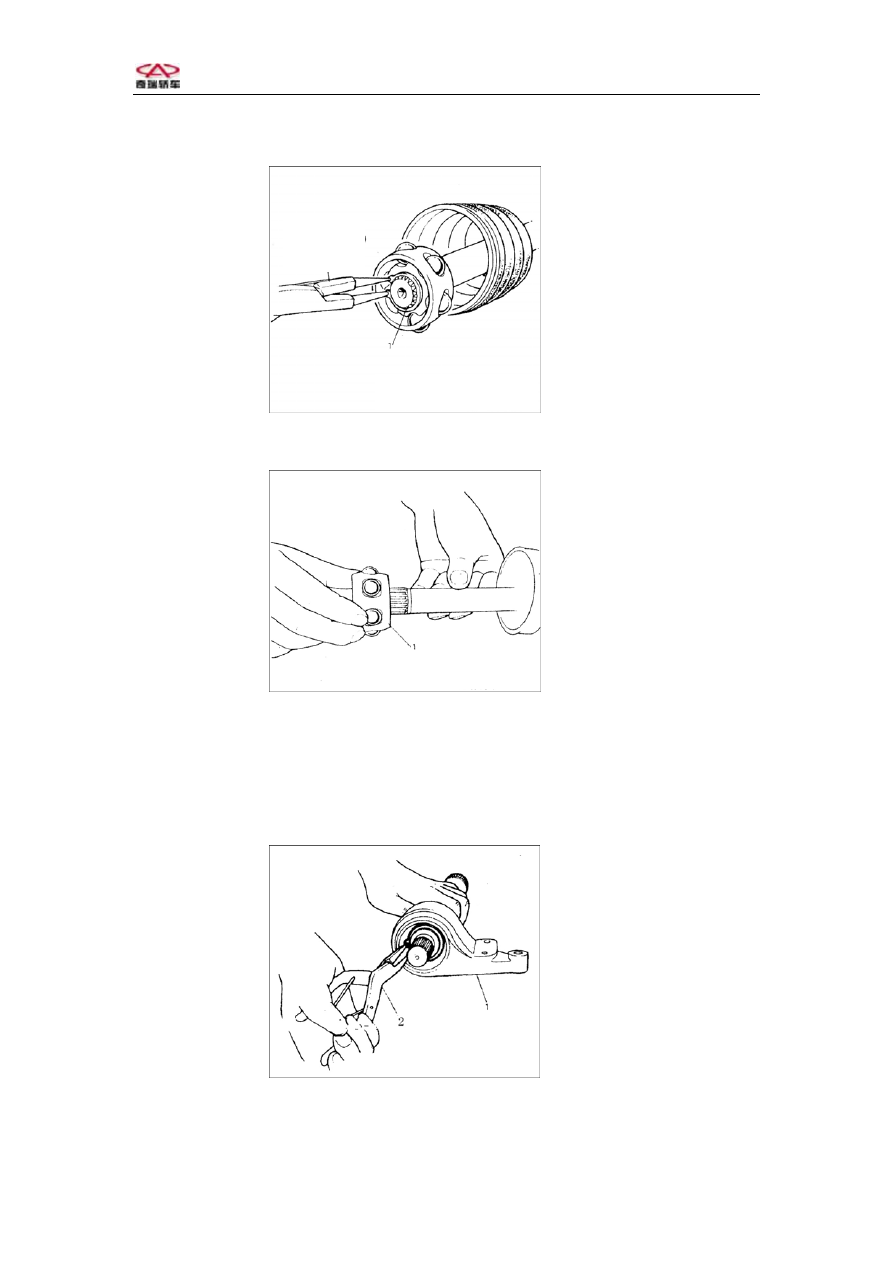

（3）Scrape off the lubricant and remove the holding snap ring with special tool (A).





1、 Boot  hoop













（4）Draw out the holding and boot.



1、  Holding












Notice:
The end of wheel cardan joint。



4. Disassemble the output shaft and bearing race.

（1） Remove the right oil seal from the    central bearing    race.
















1 、

Central

bearing  race

-103-
