SQR7080  Maintenance Manual           372 Engine Mechanical System





Water pump pulley assembly

wrench

water pump Assembly

Measuring
tools

Feeler, gap gauge, caliper, ruler, cylinder gauge, gap ruler, pressure meter, torque
wrench

Tool

Piston ring dismounting device

Oils

Engine lubiricating oil, adhesion agents





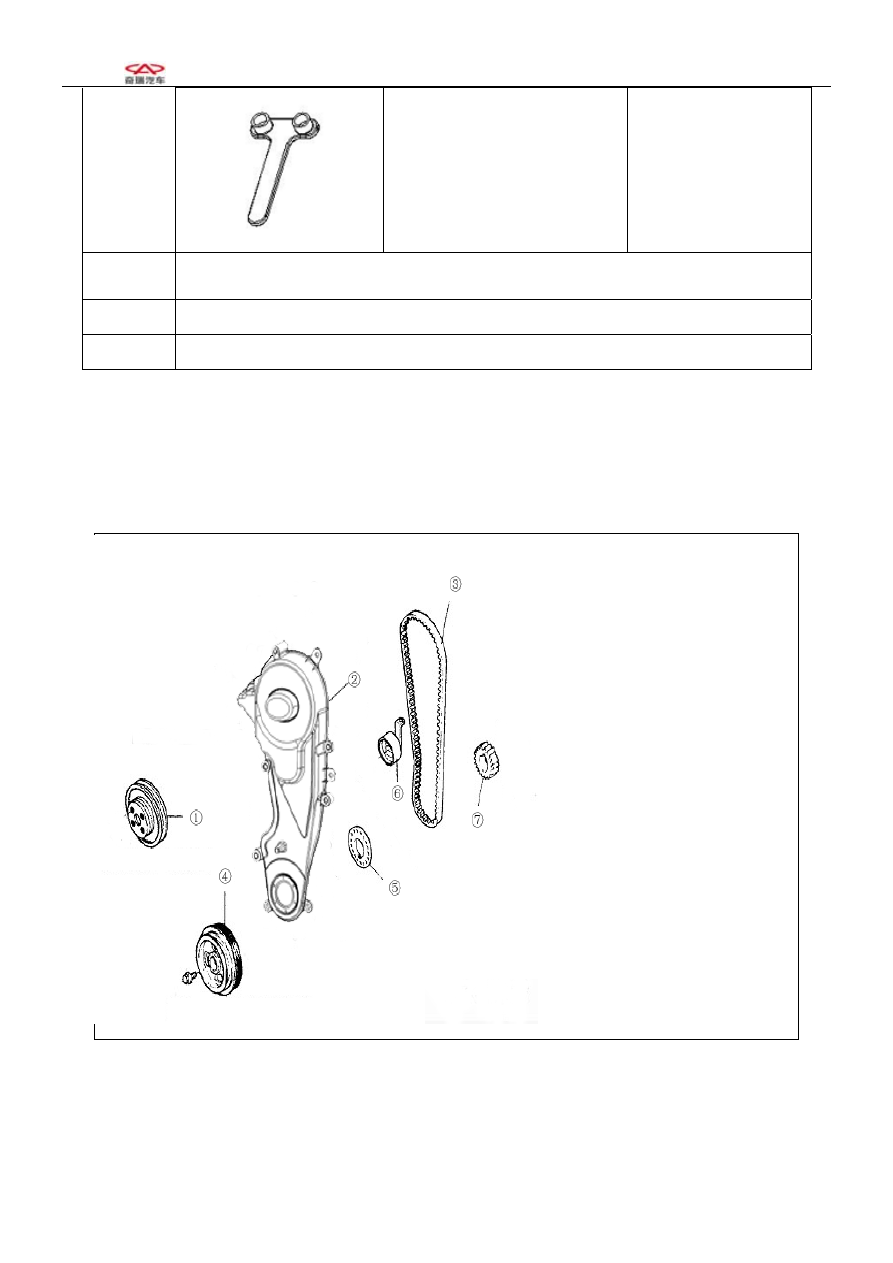

Chapter 2    Timing Blet Service

1. Configuration diagram



1  Water pump pulley
2  Timing belt cover
3  Timing belt
4  Torsion shock absorber
5  Timing pulley damper
6  Tensioner
7  Crankshaft timing pulley


※  ：

Non-reusable part

Unit：N·m(kg·cm)











3



SQR7080  Maintenance Manual           372 Engine Mechanical System





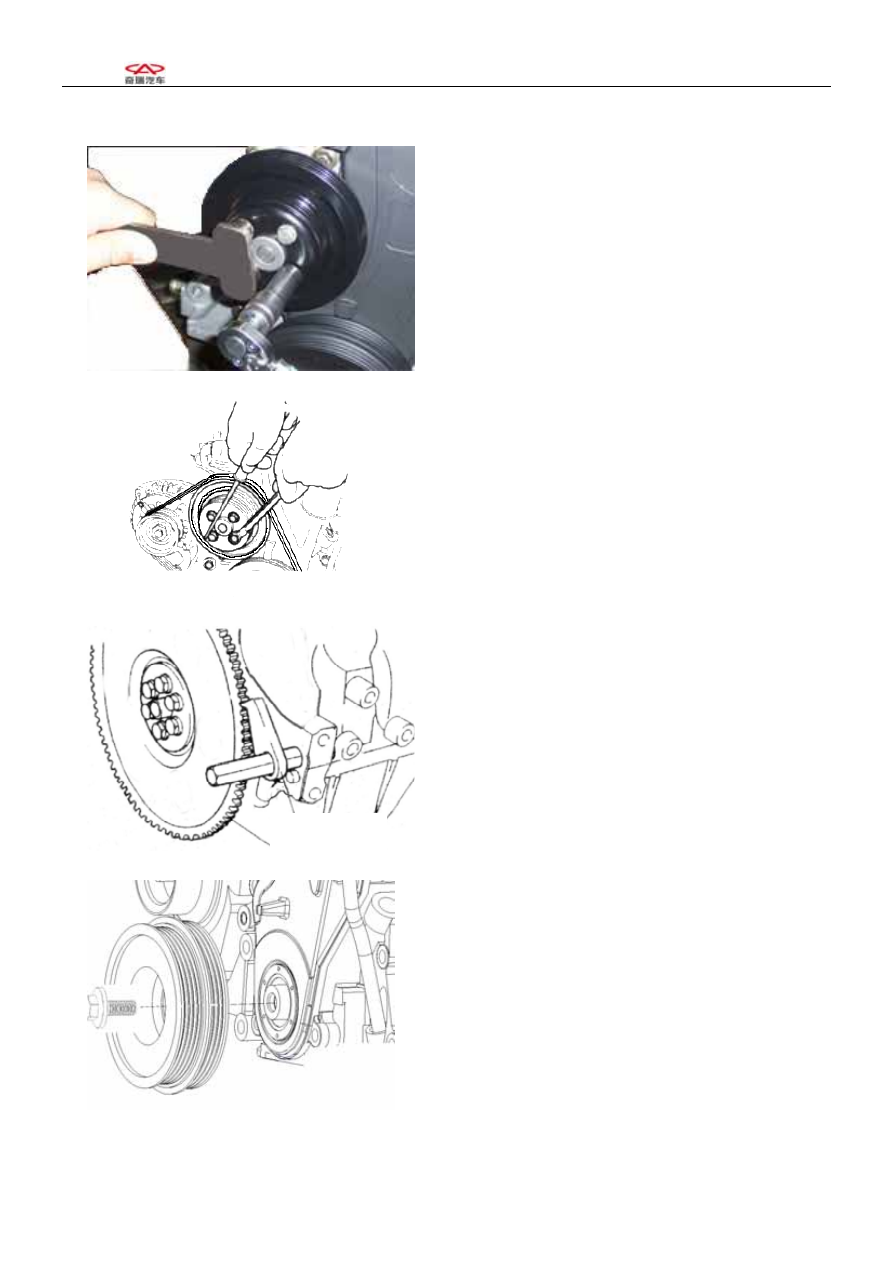

Remove torsional vibriation damper.

Remove water pump pulley.
Remove the water pump pulley according to the
illustration.
Remove with SST,if there are any.




Please remove with screwdriver and wrench
accordingly,if there is no SST at hand.

SST



Remove torsional vibriation damper
(1) Prevent the gear ring from rotating with SST.





(2) Remove bolt of torsional vibriation damper.

图

29



4



SQR7080  Maintenance Manual           372 Engine Mechanical System



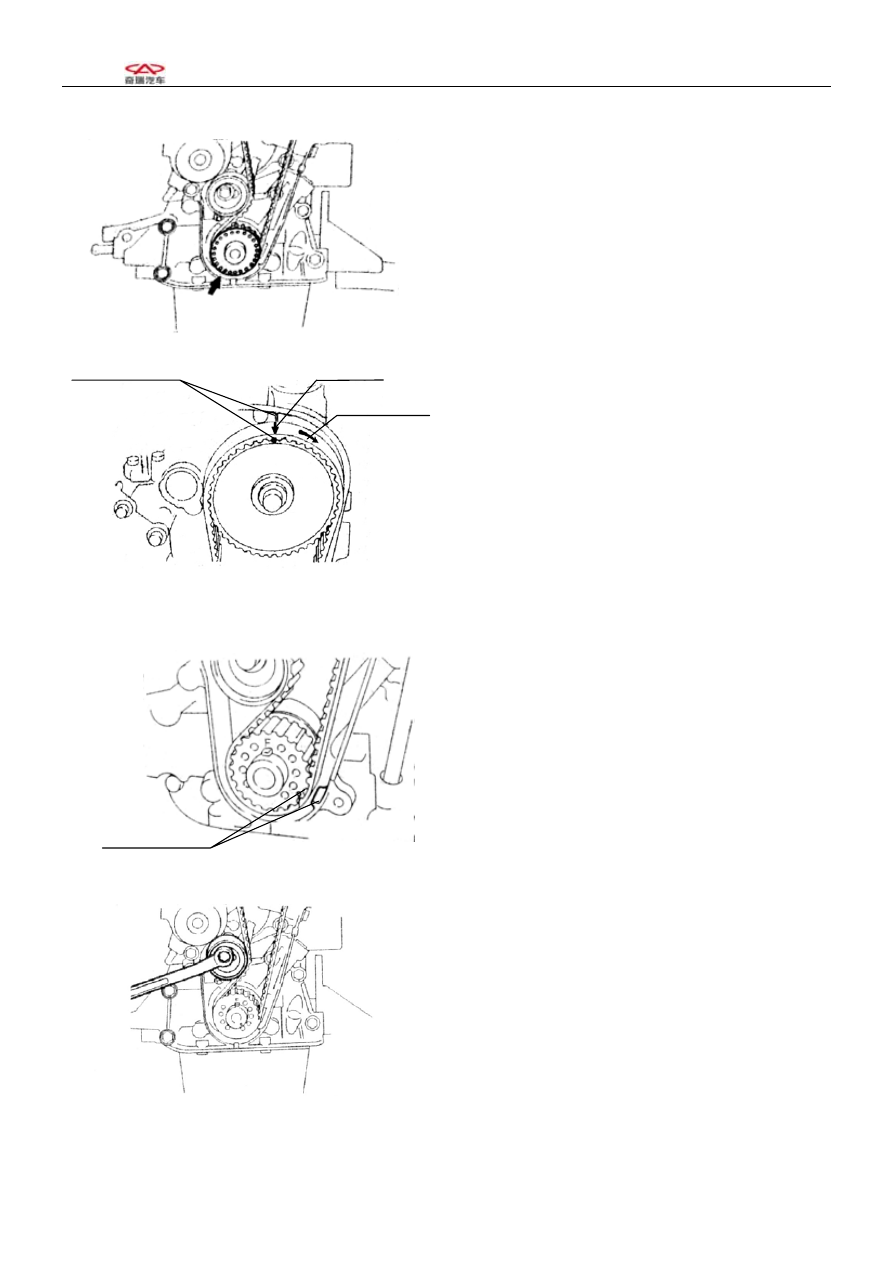

Remove  timing cover cap
Torque: 6±1N.m



Remove timing pulley damper



Remove the tensioner
（１）

Carry out the operation at the upper thrust point

of compression of the first cylinder piston
(2) After removing the timing cover cap,turn the bolt
and rotate the timing gear clockwise with wrench,align
timing mark of camshaft timing gear with the cam
mark of camshaft cover cap;

Attention: You can rotate the engine clockwise
only,after installing the pulley;
Before removal,make a arrow mark on the position of
timing mark,assemble according to original state.



(3) Make sure that the crankshaft timing pulley wheel
mark is aligned with the mark of the oil pump.













(4) Remove the tensioner bolt, and take off the
tensioner





Do“mark”

Timing mark

Clockwise

Timing mark



5



SQR7080  Maintenance Manual           372 Engine Mechanical System

Remove the timing belt.
[Caution]  It is absolutely not allowed to use screw
driver or some other sharp-edged tools to remove the
belt.

Attention: Pay Attention to the following points while
using timing belt:
-  Don’t bend the belt even at a small angle,otherwise

it will result in rope fracture inside the belt.

-  - Service life of belt is short,don’t pollute the belt

with grease and water.

-   You have no choice but rotate the engine

clockwise after installing the belt.



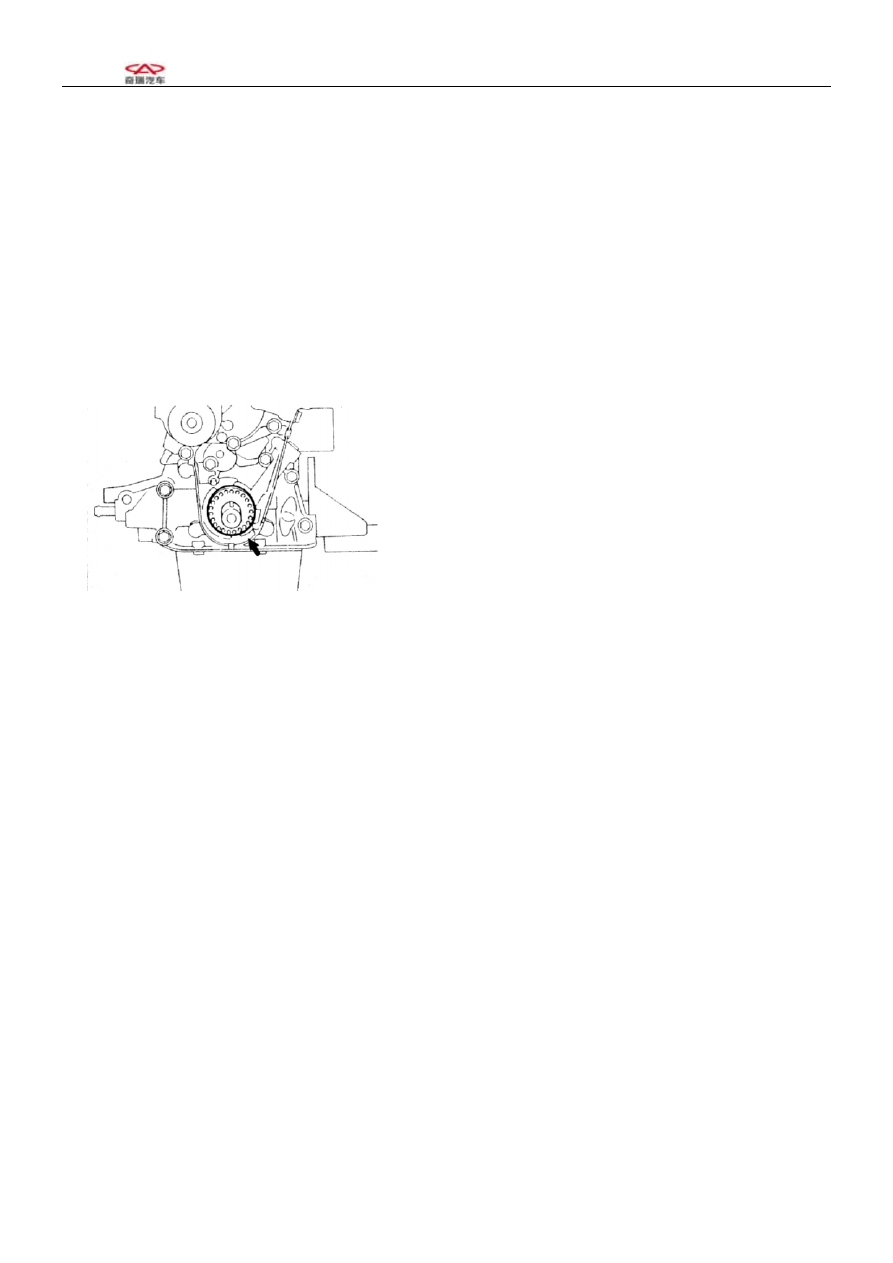

2.7 Remove the crankshaft timing gear
