  Chery    QQ    Maintenance Manual                                                    Body System

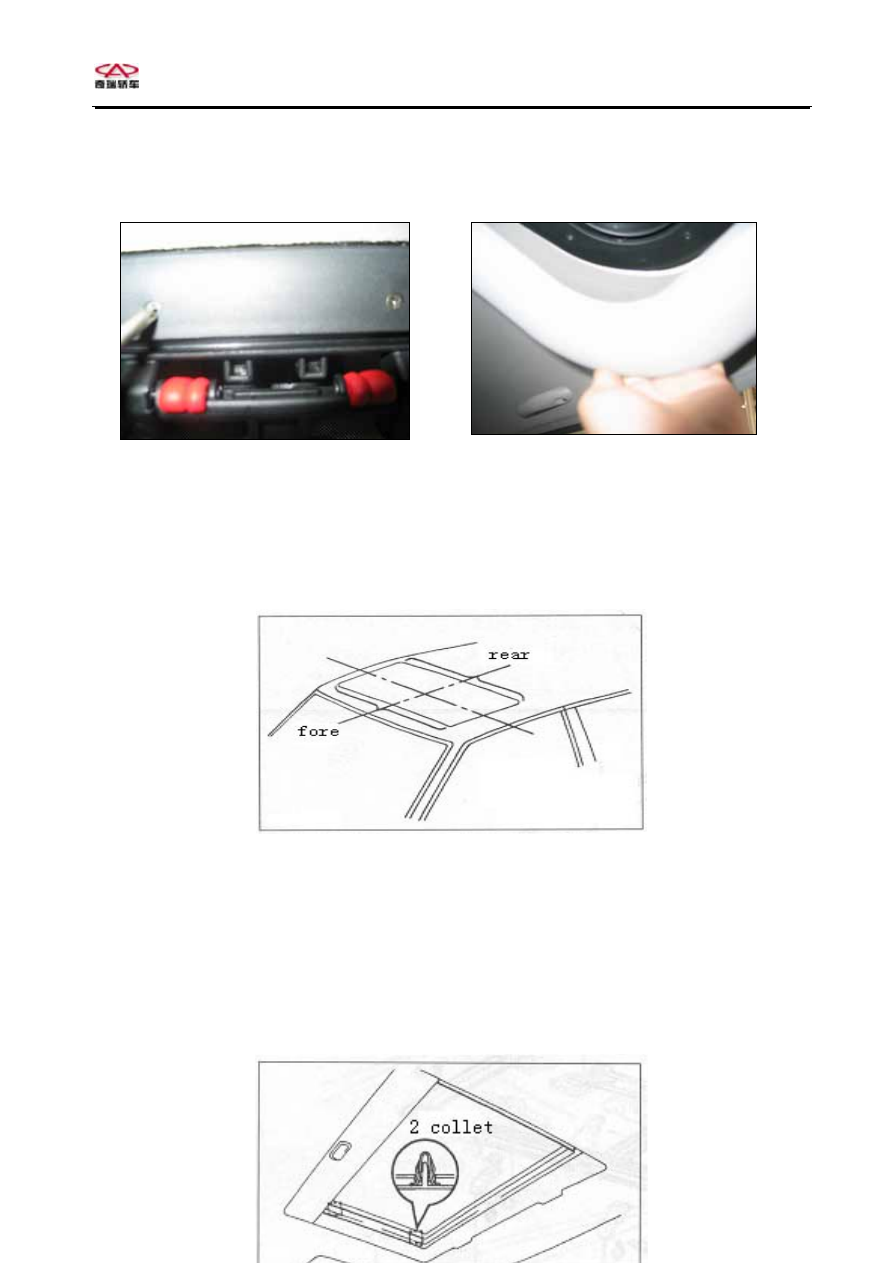

9.1.1 Removal of louver assembly
1、Loosen 24 set screws of louver and vehicle body.
2、Prize open    the plastic protective cover.
3、Take out the louver assembly.
















9.1.2 Check alignment of louver

Check to see if there is any leakage when louver is closed.
Check to see if there is any height differential between sealed strip of louver and the roof panel.
Front end：0±1.0mm（0±0.039in）
Rear end：0±1.0mm（0±0.039in）













9.1.3 Adjustment of louver
1、Remove Louver decorative piece Remove Louver decorative piece of right and left before
adjustment.
Hint: Install louver decorative piece once again after adjustment.
2、Adjust height differential Adjust the height difference, tighten or loosen bolt with screwdriver.
The height difference: 0±2.0mm


-

76









  Chery    QQ    Maintenance Manual                                                    Body System

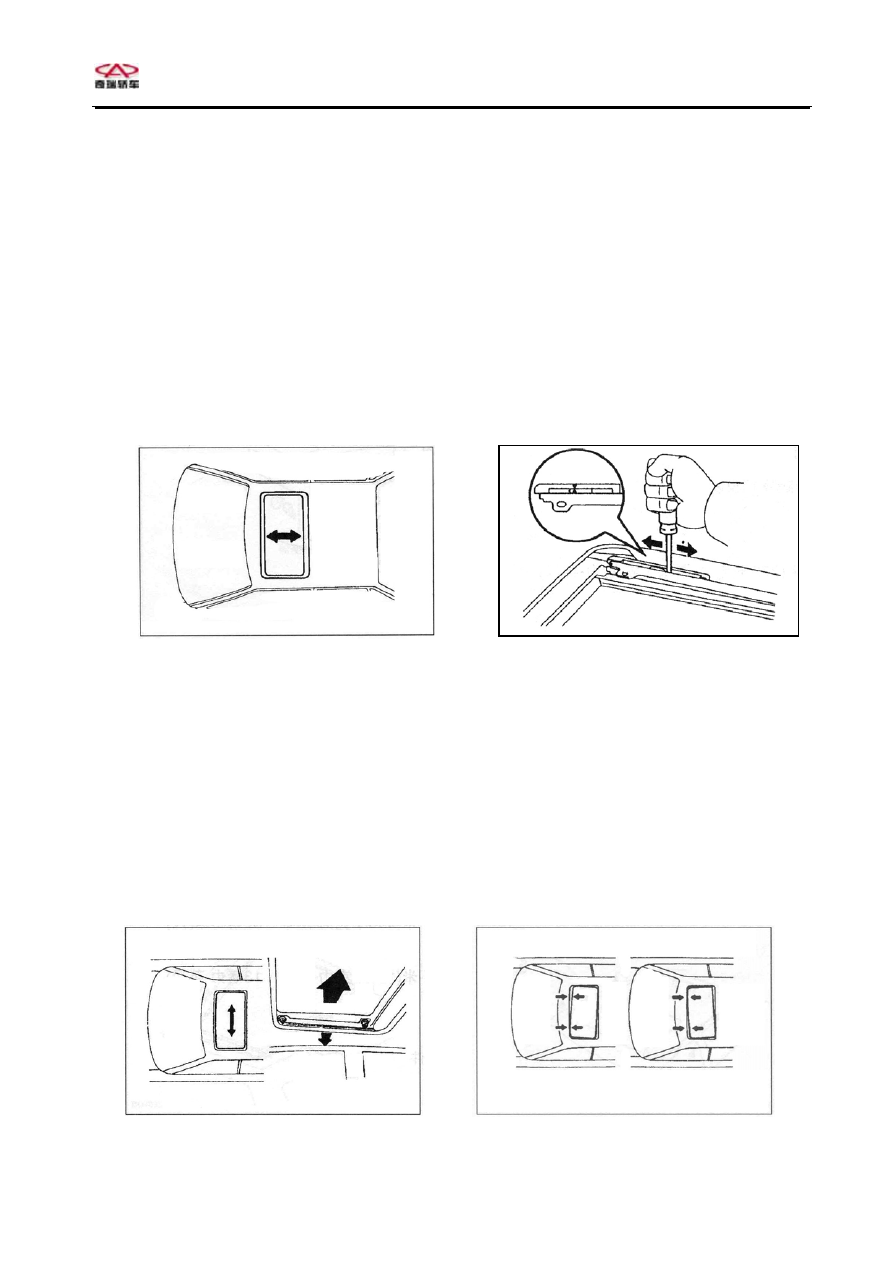

3、Front/rear adjustment

Loosen installation bolt of louver, move louver forward and backward to carry out

adjustment.Shown as the illustration, you should make the connecting rod slide frontward and
backwards with screwdriver, you should align with the 2 marks, you should make the bracket slide
to the most front end by hand.

















4、Left/right adjustment

Loosen rear support spacer installation bolt of the louver, move the louver to left and right

direction to carry out the adjustment.
5、. Adjust clearance (clearance difference between left and right)
Loosen installation screws of louver, adjust the louver to the right position once again.







-

77





  Chery    QQ    Maintenance Manual                                                    Body System

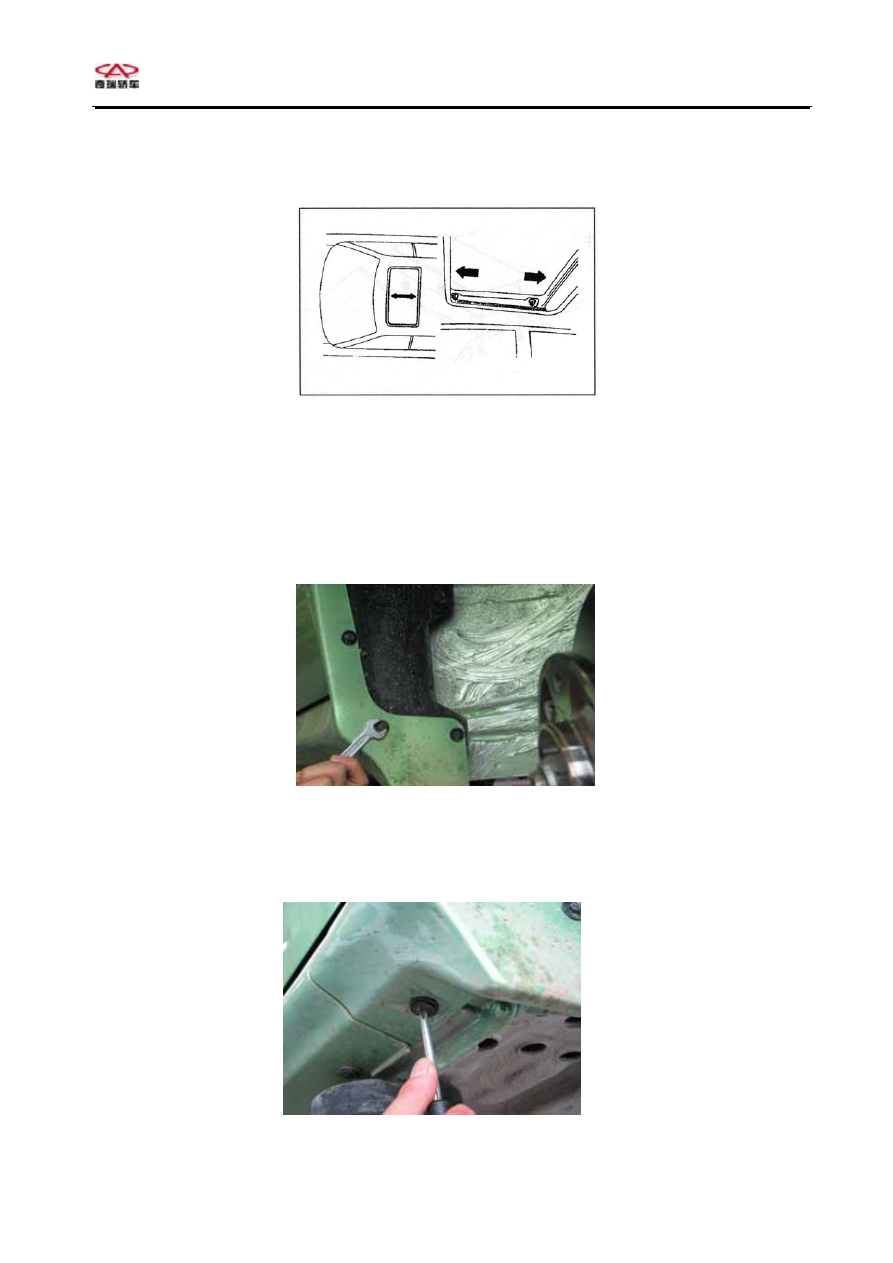

9.1.3

oval procedures..












Chapter 10 Bumper


0.1 Maintenance guide
0.1.1 Remove front bumper

1) Loosen 3 bolts






 Loosen set bolts, rem











The order of installation is just reversed to rem







1
1
(










2

ove clamp buckle with remover.








-

78





  Chery    QQ    Maintenance Manual                                                    Body System

-

79

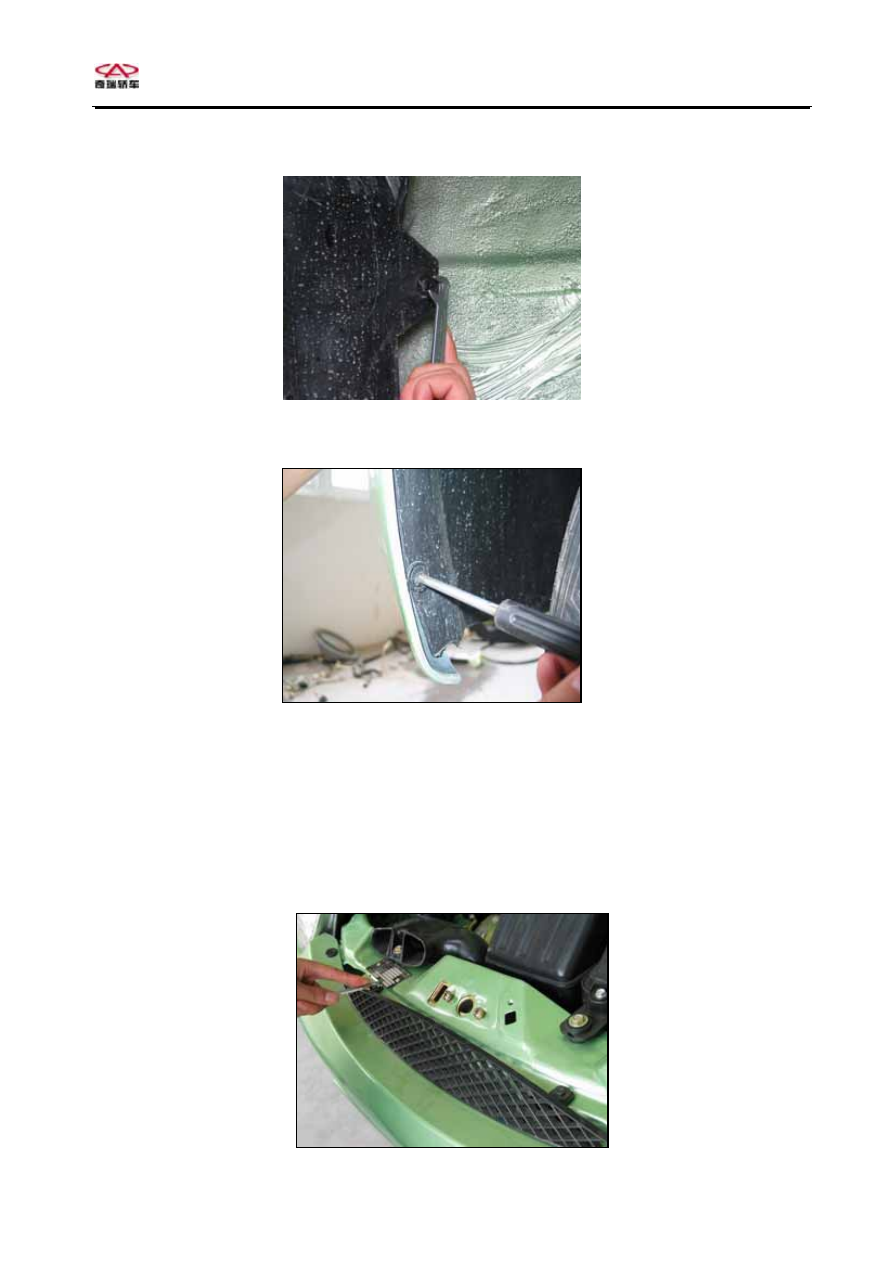

10.1.2 Removal of front shield (front /left/right)

1) Loosen 3 set screws o









2)Remove 3 clip buckles with screwdriver and remover, take off the front shield.

0.1.3 Removal of front grille

oosen 2 set screws ,take off the grille.











(

f front shield.






(
