  Chery QQ Service Manual                                                    Chassis System







104










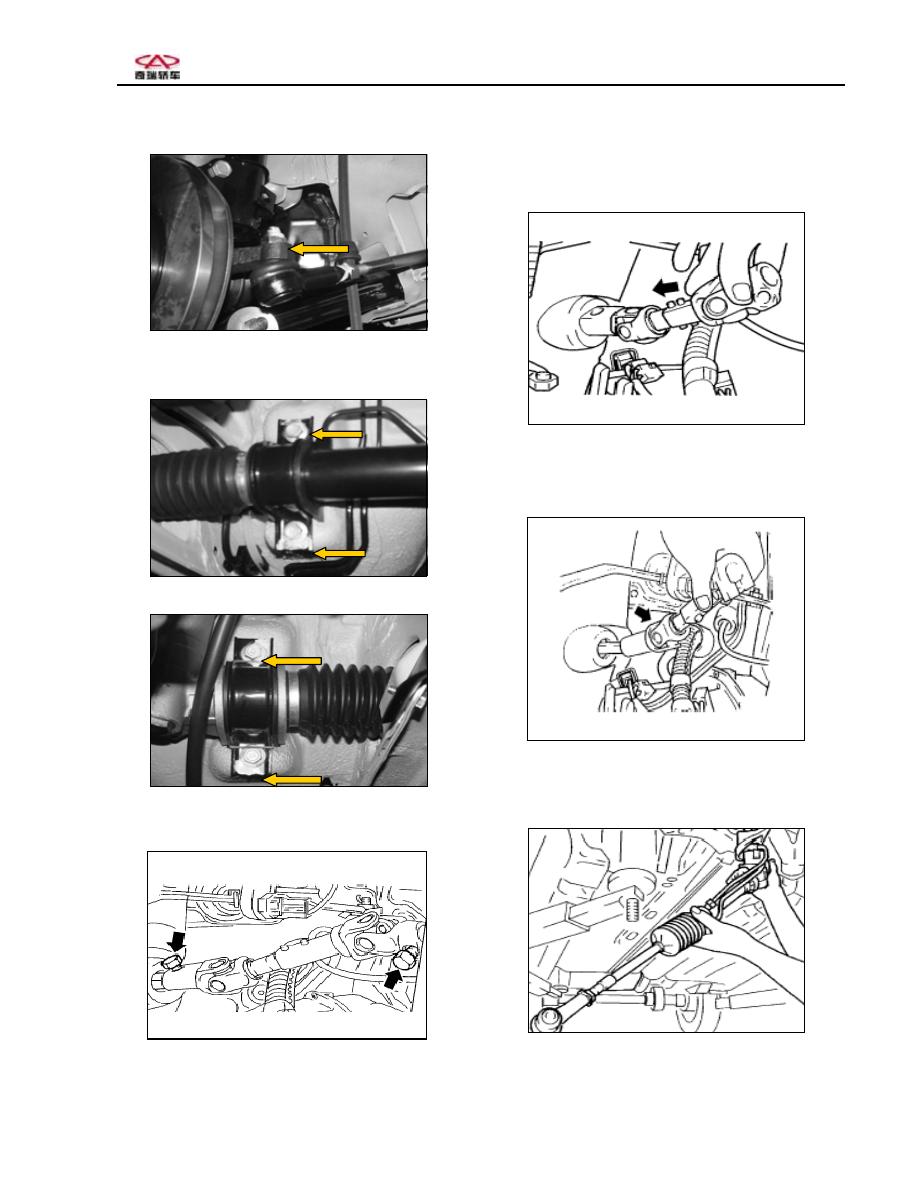

4. Remove bolts on pivot.





















5. Loosen two bolts on steering node.














6. Push lower end of node to side of steering
pivot to disconnect up end with steering pillar.













7. Remove steering node assembly.














8. Remove steering assembly.









Chery QQ Service Manual

- 1 -

Chapter 1 Start System

Section 1 Summary



Start circuit

Start circuit is composed of battery, start motor, ignition switch and relational circuit.

The connection of these parts is shown in the following figure. This chapter only

refers to start motor.

Starter motor

Starter motor is composed of start motor bracket, armature, overspeed clutch, magnet

switch, end cover of rectifier, brush holder and start pinion fork.



In the circuit of following figure, when ignition switch is closed, magnet switch coil is

magnetized, plunger and pinion fork moves, then start pinion mesh with the flywheel

gear ring and magnet switch contact point close, so start is begin.



When engine starts, before magnet switch dose not cut off, overspeed clutch protect

armature not overspeed. Here, return spring put the start pinion come away.





Magnet switch

Suction coil

Retain coil

Plunger

Contact point of magnet switch

Ignition

Start

Battery

Ignition and

start switch

Battery

Start pinion fork

Start pinion and

overspeed clutch



Chery QQ Service Manual

- 2 -

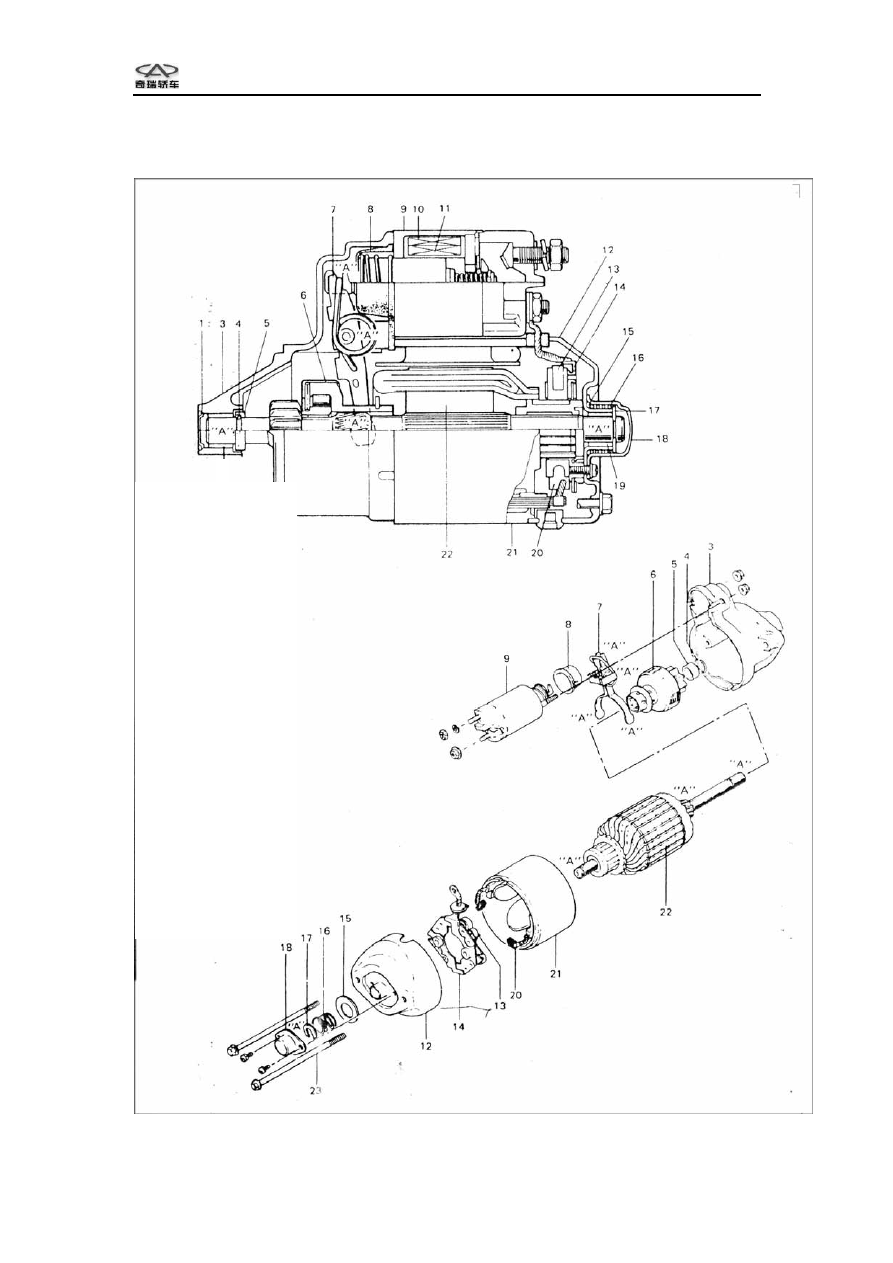

1.Drive cap protective cover
2.Drive shaft sleeve
3.Drive
4. Armature snap ring
5.Pinion stop ring
6.Overspeed clutch assembly
7.Start pinion fork
8.Magnet switch protective
cover
9.Magnet switch
10.Retain coil
11.Suction coil
12.Rectifier end cover
13.Brush press spring
14.Brush bracket assembly
15.End cover seal gasket
16.Armature spring
17.Armature clip plate
18.Rectifier rear cover
19.Rectifier end sleeve
20.Brush
21.start motor bracket
assembly
22.Armature
23.Bolt
“A” daub lubricating grease:
99000-25010

2



Chery QQ Service Manual

Section 2



Fault Diagnoses





The description of start system fault:

1. Starter motor dose not run (or run slowly)

2. Start motor can run but can not start the engine

3. Abnormal noise

4. Fault state

5

.

Battery connection post (include engine side earth wire link) and starter motor

connection post is tightened or not.

6. Battery is charged or not.

It must put up correct diagnoses to ensure the fault position exactly ---battery, harness,

starter motor, engine, or start switch. Don’t removal starter motor vexedly when

starter motor dose not run. You can check following items to lessen scope of fault

reason.

Condition Possible

causes

Action



Starter motor

dose not run

Magnet switch has no working sound

1.Battery is discharged

2.Owing to battery transformation, the voltage is

too low

3.Battery post dose not connect well

4.The connection of earth wire is loose

5.Fuse loose or break off

6.Ignition switch contact not well

7.Harness connector has not inserted in position

8.Ignition switch and magnet switch is open

circuit

9.Suction coil is turnoff

10.Slippage of plunger is ineffective

11.Central guard against theft controller is in

guard against theft state or central guard against

theft controller has fault



Charge the battery

Replace the battery



Tighten or replace

Tighten

Replace

Tighten or replace

Inserted in position

Inspect or replace



Repair

Replace magnet switch

Replace

Starter motor

dose not run

Magnet switch has working sound

1.Battery is discharged

2.Owing to battery transformation, the voltage is

too low

3.Battery wire connect loose

4.Magnet switch main contact point ablate or

contact not well



Charge the battery

Replace the battery



Tighten

Replace magnet switch
