  Chery QQ Service Manual                                                    Chassis System


















96

























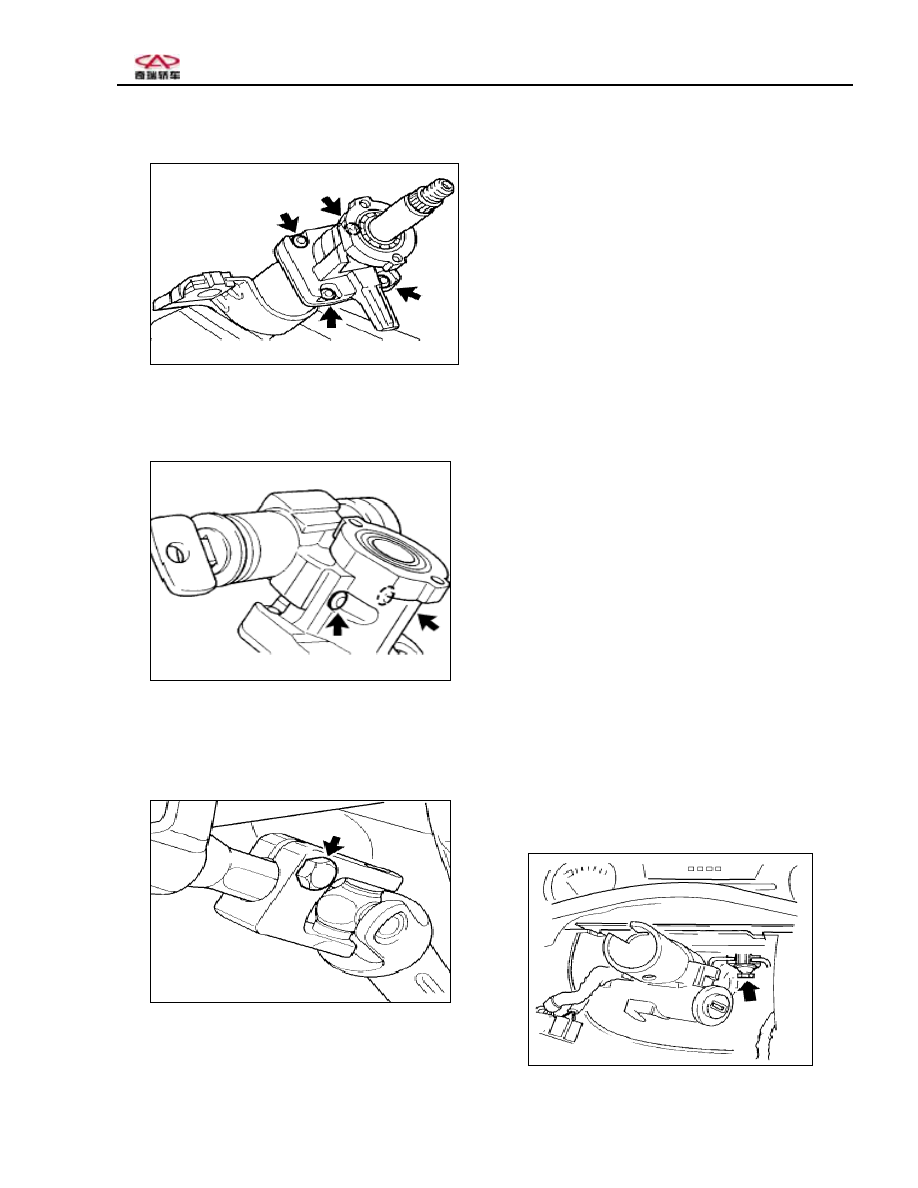

Steering column replace
Points of attention
Observe safety regulation during operating air
bag.
Remove procedure
1.  Remove air bag unit and the steering
wheel with air bag.
2.  Loosen the bolts.

3.  Loosen the safety bolts.


Drill holes on safety bolts with electric
screwdriver to pull out the bolts.
4.  Remove steering column.
Points of attention
  Don’t turn ignition switch in LOCK position.
5.    Remove up steering shaft and lower
steering guide bearing from pillar.
6.    Remove lower steering guide bearing from
pillar.
7. Replace steering column.
Steps of installation
1.    Insert steering column screw.
Points of attention
Note guide ears on shell.

























2. Use 4 bolts to fix the shell and pillar.










  Chery QQ Service Manual                                                    Chassis System







97











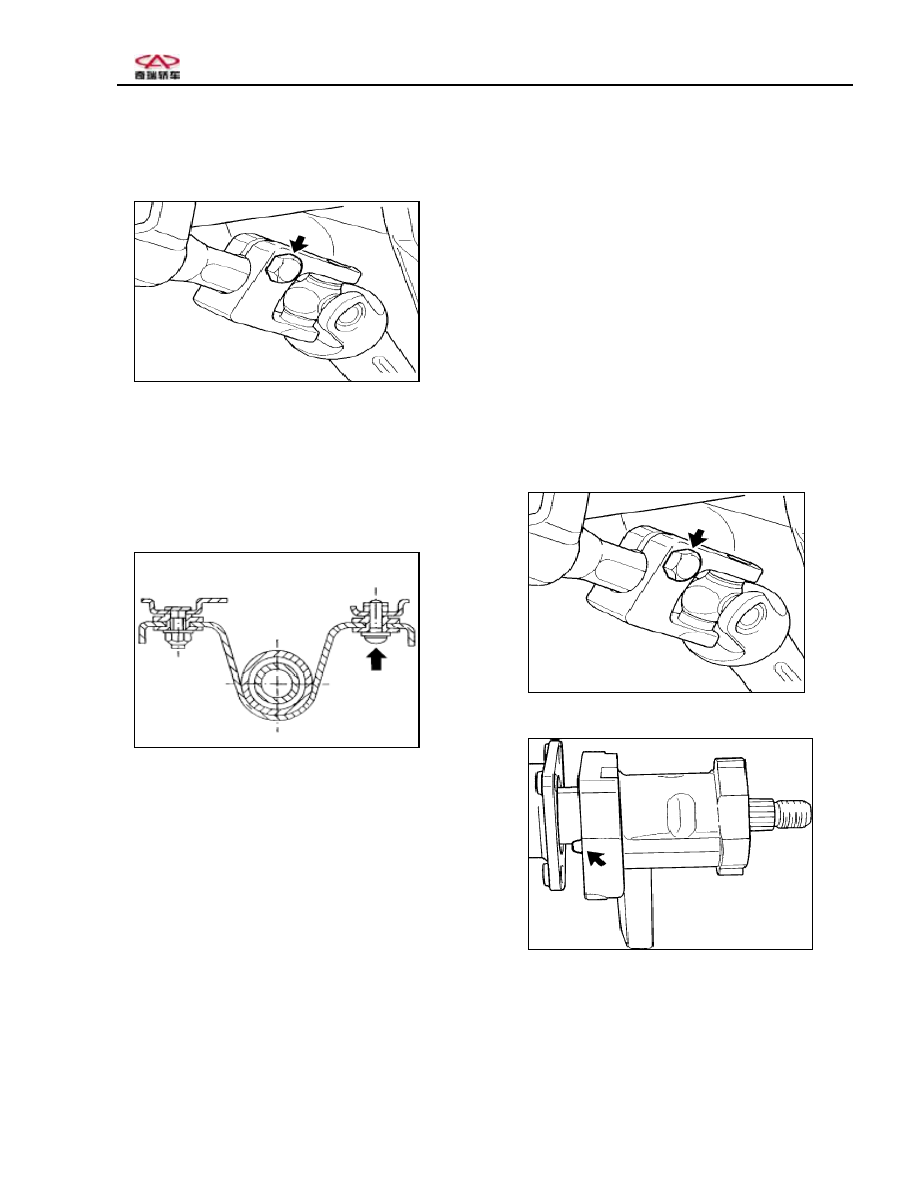

3. Use bolts to fix ignition lock shell and shaft
shell.
4. Insert new shaft into pillar.












Points of attention
Don’t turn steering and ignition lock in LOCK
position.
5. Push guide bearing into pillar.
6. Insert and fix steering shaft.











7. Screw bolts.
8. Install steering wheel with air bag and air

bag components.

Fixture
Screw shaft flange bolts to 22.5-27.5Nm.
Screw gear flange bolts to 22.5-27.5 Nm.
Screw steering wheel and shaft bolts to
27-33Nm.
10. Check forwards position for steering
mechanics.
Description and operation
Description Steering wheel and steering
column
Steering component can realize the functions
besides of steering.
1. Steering column
Steering can absorb energy. When crashing
happens, the pillar will shrink to reduce the
probability to hurt driver.
2. Ignition switch and steering lock Ignition
switch and steering lock can prevent stealing
vehicle.
3. Multi-purpose operation lever
  Multi-purpose operation lever can control
following parts:
-

High beam of head lamp

-

Windshield wiper and cleaner

Remove and re-install steering pillar
Use specified bolts to fix the pillar to make
sure absorb engine action. Be careful to
remove or transport the pillar.
1.  The drawer to remove steering wheel is not

recommended one.

2.  The top of pillar is knock badly.
3.  Something leans against the pillar.
4.    The pillar falls off.







  Chery QQ Service Manual                                                    Chassis System

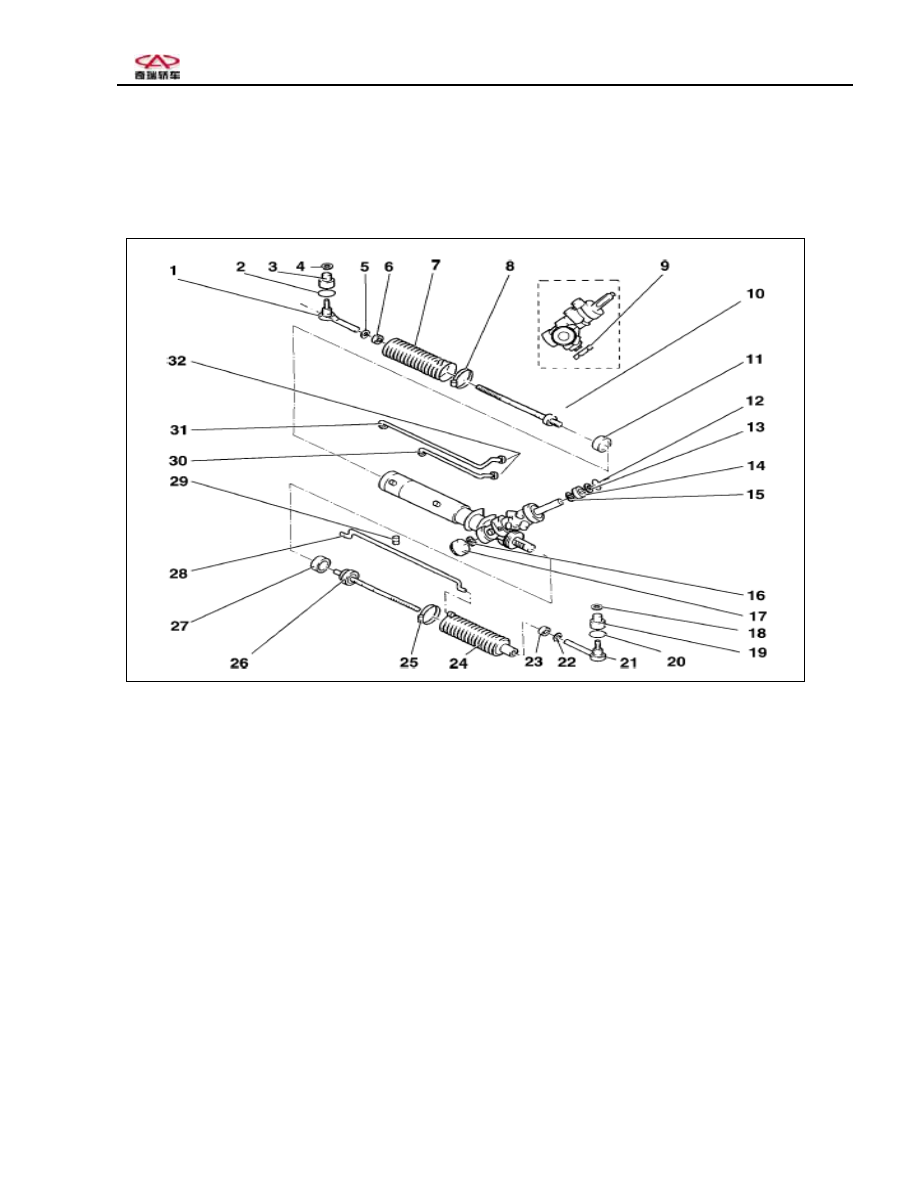

Power steering system

Exterior identify



Power steering box


























98


(1) Steering tie rod
socket unit
(2) Fixed ring
(3) Dust cap
(4) Lock
(5) Check nut
(6) Tie rod ripple cowl hoop
(7) Ripple cowl
(8) Steering box shell ripple cowl clamp
(9) Lock nut
(10) Tie rod in band ball
(11) Limiting stopper
(12) Circlet
(13) Facing ring
(14) Searing ring
(15) Bearing



























(16) Nut
(17) Cover cap
(18) Lock nut
(19) Dust cap
(20) Circlet
(21) Tie rod end
(22) Check nut
(23) Tie rod ripple cowl hoop
  (24) Ripple cowl
(25) Steering box
(26) Tie rod in band ball unit
(27) Limiting stopper
(28) Tube
(29) Oil pipe clip
  (30) Hydraulic piping
(31) Hydraulic piping
(32) Trust sealing ring








  Chery QQ Service Manual                                                    Chassis System





99

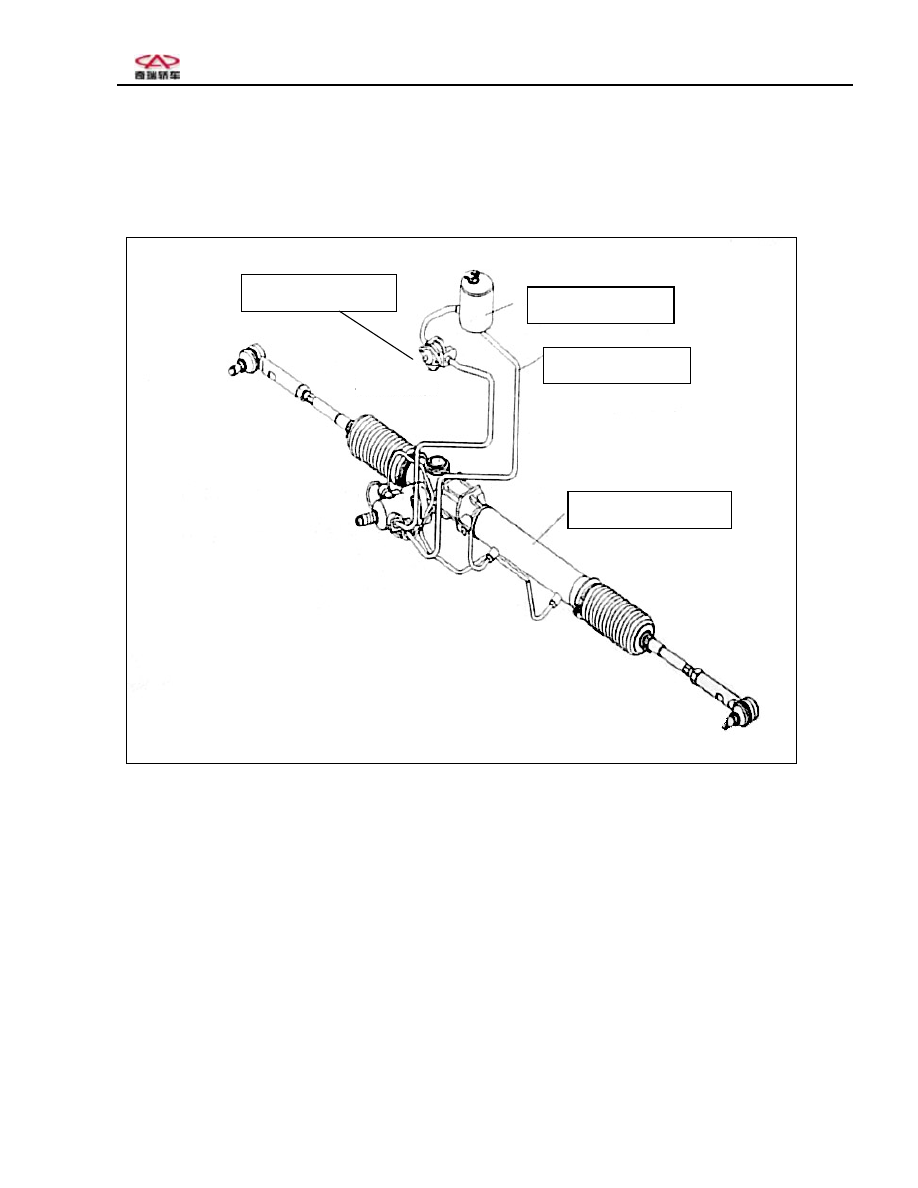

Steering oil  tank

Steering oil  pipe

Power steering gear

Steering oil  pump

Power steering service schematic diagram
