  Chery QQ Service Manual                                                    Chassis System



Chapter  4   Steering System



Torque specifications

Application



Specifications



Steering box installation nut



70-80Nm

Tie rod and rack fixture nut

63-77Nm

Tie rod end plane and steering knuckle fixture nut

32-38Nm

Power steering pump installation bolt



22-28Nm

Steering column and crosstree



13-17Nm

Steering knuckle and steering box



22.5-27.5Nm

Steering wheel and steering shaft nut

27-33Nm

Steering shaft flange clamping bolt



22.5-27.5Nm



Nipple torque specifications

Application



Specifications



Power steering oil hosepipe and power steering

pump socket

2-3Nm

Power steering oil hosepipe and power steering

storage tank socket



2-3Nm

Power steering high pressure hosepipe and power

steering pump socket



20-35Nm

Power steering high pressure hosepipe and power

steering box inlet nipple



27-33Nm

power steering box oil inlet and power steering

box socket



27-33Nm

power steering box gusher pipe and power

steering box socket



27-33Nm

power steering box gusher pipe and power

steering oil return pipe socket



27-33Nm



88











  Chery QQ Service Manual                                                    Chassis System




Manipulate part overhaul

Steering wheel  and steering column

decompose

view

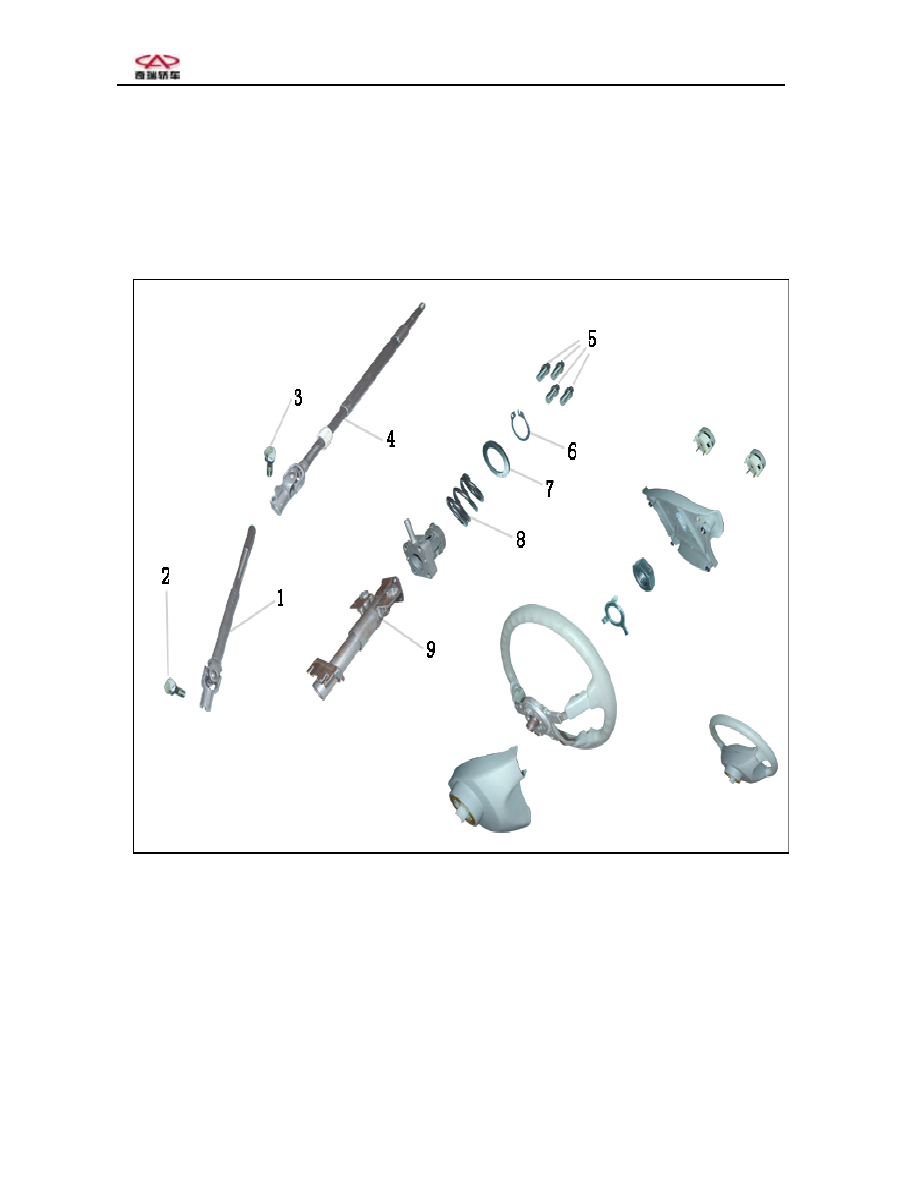

1.  Steering universal coupling shaft and universal coupling；  2，3. Bolts；
4. Steering core shaft assembly； 5. Bolts；  6. Jump ring； 7. Washer； 8. Spring
9.Steering column








89















  Chery QQ Service Manual                                                    Chassis System



Steering wheel free-play inspection





90



In the assembled mode, check the

free-play of the steering wheel while the car is
driving in straight line. The free play of the
steering wheel in the circumferential direction
should be no larger than 0~30mm. In the case
that the free play goes beyond the specified
value, the following items should be checked
to see: if the joint of the steering horizontal
lever is worn out (when a torque of over
0.2N.m is applied, the joint should be moved);
if the lower ball knuckle is worn out; if the
steering shaft universal coupling is worn out;
if the steering small gears or gear rack is worn
out or damaged and if the fixture or joining of
the parts is loose.





Control institute

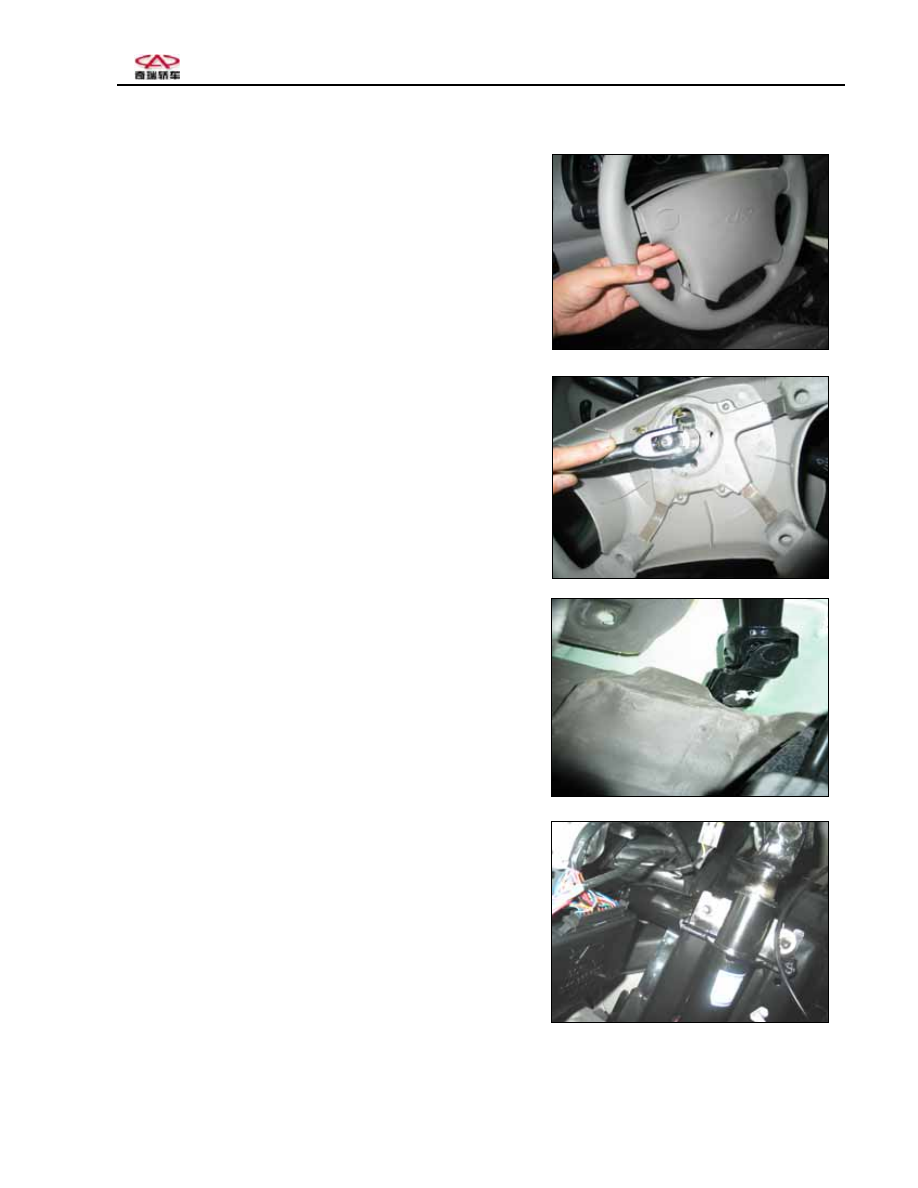

Steering wheel Removal
Remove the battery jumper wires; remove the
steering wheel label cover assembly; remove
the steering shaft screw nut. To facilitate
positioning in the installation, matching signs
are to be made on the steering wheel and the
steering shaft, then remove the steering wheel
with the special purpose remover.


Removal of the steering column assembly
1)  Remove the wire bundle of the steering
wheel cover and horn switch.
2)  Remove the fastening screw nuts the
steering wheel.
3)

Remove the combination switch

assembly.

4) Remove the joining bolt for the steering

column and steering power tilt.
5)  Remove the four fastening screws for the
steering column.




























































  Chery QQ Service Manual                                                    Chassis System






Inspection
1、The steering shaft and universal coupling: check to see if the steering shaft is bent, or if the
spine is damaged; check to see if there are any cracks on the universal coupling, or if the free
play is too large. If so, replace the universal coupling assembly.

2、Steering column: check all the covers of the steering column stand, with the spaces from
the slot bottom within 1.00mm. If not, make proper replacements. Check to see if the steering
column is bent, cracked or deformed.

Installation
The order of installation steps is just the opposite to that for removal.
Attention: Apply alkali-based lubricating grease on the interior slot of the rubber sleeve of
the steering column, and tighten the associated bolts and screw nuts with the specified torque.


Manual Steering Gear
Manual steering gear components

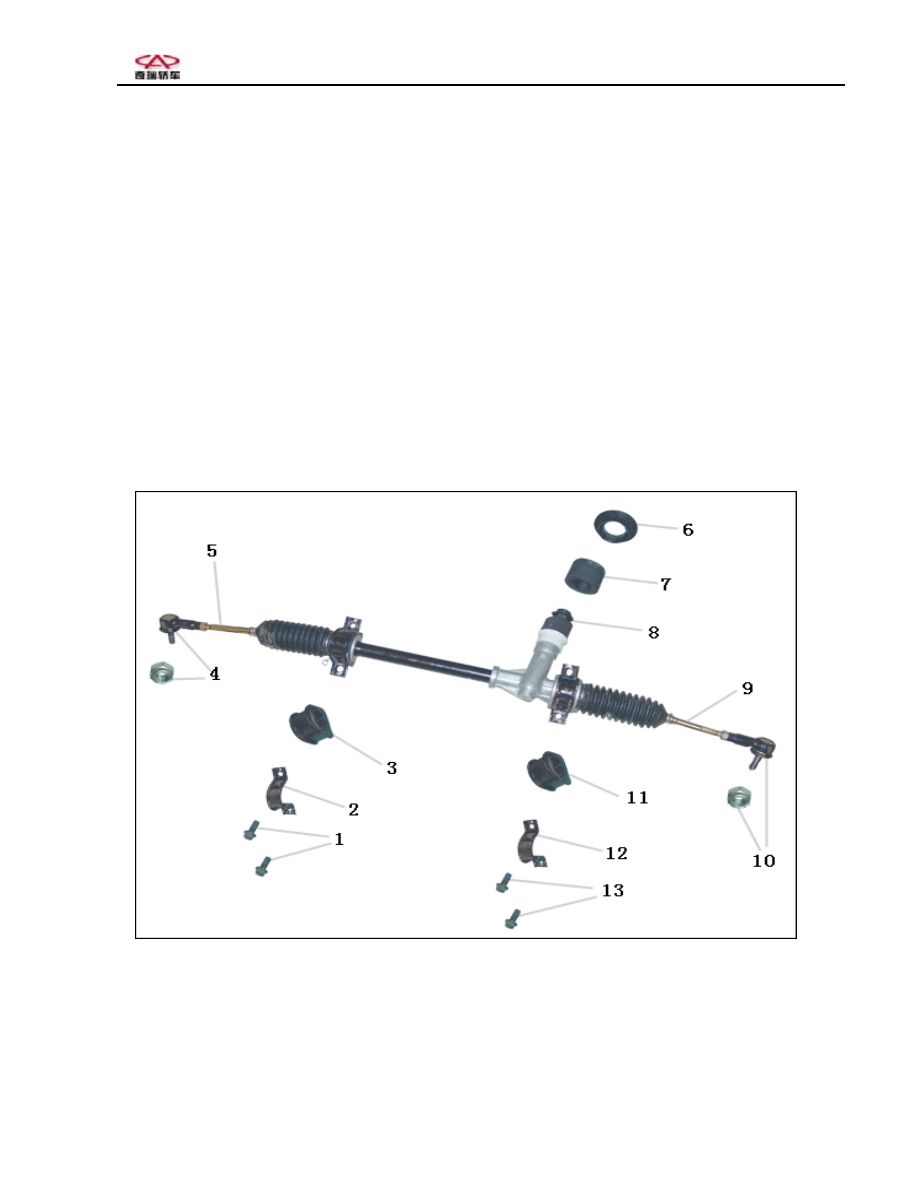

1. Bolts; 2. Right supporting frame;  3. Right supporting frame sleeve;4. Right steering
horizontal lever joints assembly;  5. Right horizontal lever;6. Steering gear washer;  7.
Gear bearing stopper;  8. O-shaped ring;  9. Left horizontal lever; 10. Left steering
horizontal lever joints assembly; 11. Left supporting frame sleeve;  12. Left supporting
frame; 13. Bolt
