Chery QQ Service Manual                                        Transmission System



-105-

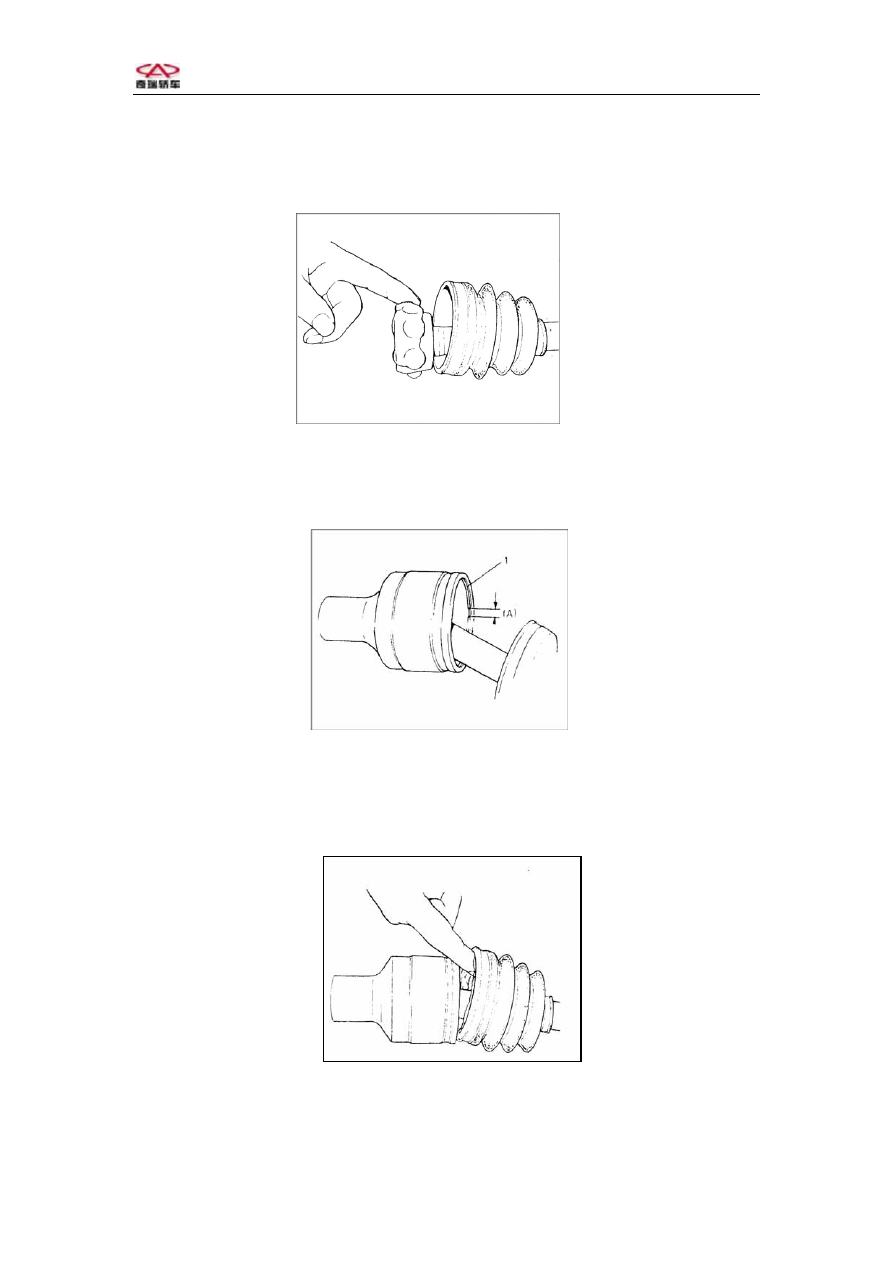

（6）Spread 30-40 g of SUZUKI high class grease H on the surface of the holding.
















（7）. Put the holding into the bell-mouthed, and then put the snap ring in the snap
ring slot.
Caution: snap ring hatch (A) can not aim at the ball.













（8）Fill in 23-35g of SUZUKI high class grease H, put the boot on the bell-mouth,
Then install boot on bell-mouth。













After installing the boot, insert a driven screw into bell-mouthed boot, send air

into boot.



Chery QQ Service Manual                                        Transmission System



-106-

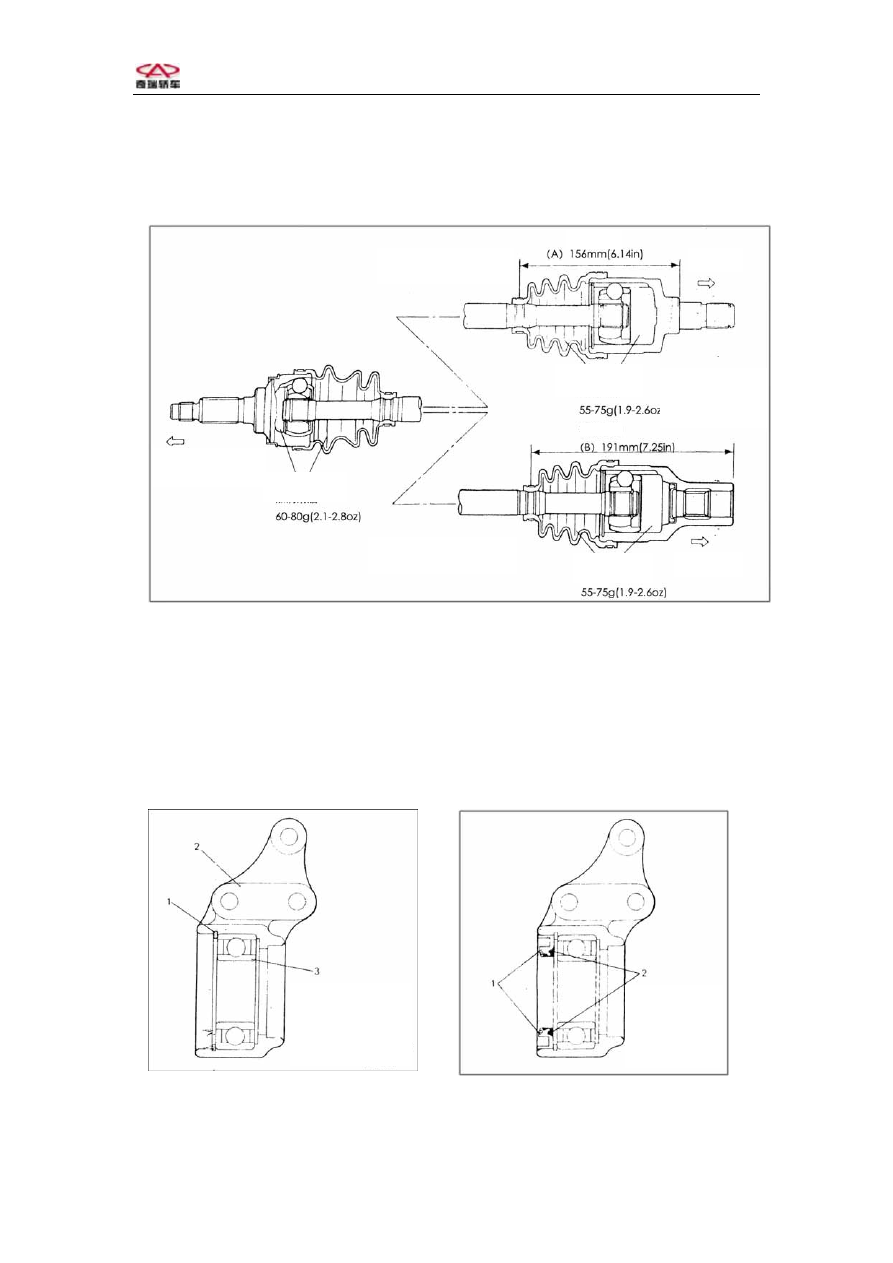

9. Fix the boot on the bell-mouthed. Adjust the measure (A) and (B) to accord

with the fig. Below.




















Left drive shaft

Right drive shaft

Differential

side

lubricate

lubricate

lubricate

 Wheel side


（2）install output  shaft  and  bearing  race.
Install the output shaft according to the reverse order and pay attention to the

followings.

When installing the bearing race snap ring, be sure the snap ring        has been

fixed tightly in the central bearing race snap ring slot; keep the left oil seal in the right
direction shown in the fig. below.




1. Snap ring

2. Central bearing

race














1.Left oil seal

2.Lubricate



Fix the snap ring tightly in the snap ring slot.

When install the right oil seal, keep the right direction shown in the fig. below.

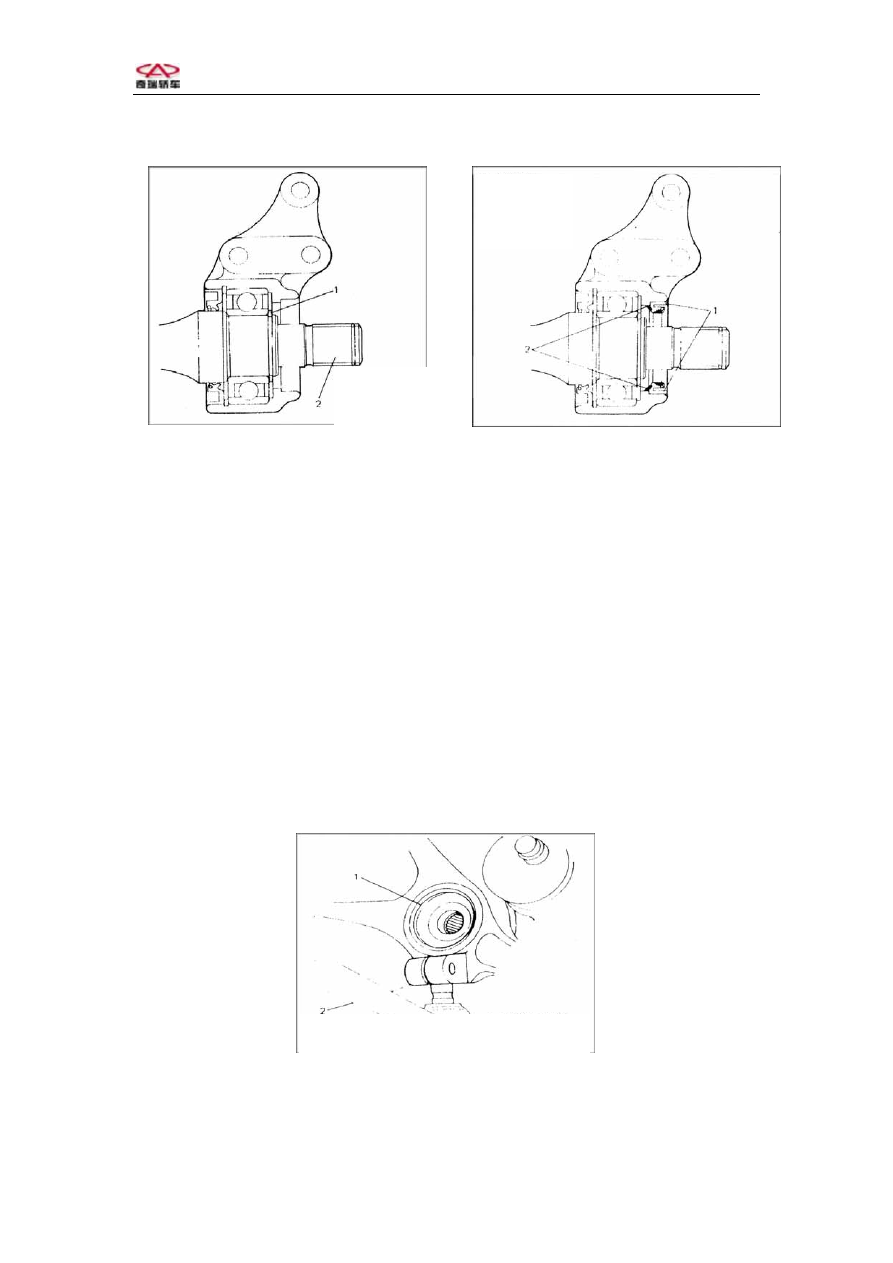

Chery QQ Service Manual                                        Transmission System



-107-




















1.Snap ring

2.Output shaft

1.Right oil
seal
2

，

L b i t




VI， Installation

Install the propeller shaft assembly according to the reverse order, clean the front
wheel bearing oil seal and spread lubricant.

First install the end of wheel universal joint on the steering and then install the

universal joint on the end of differential.

Manual transaxles drain plug seal。
Fill up the transaxles.
Caution:
Do not hurt oil seal and boot.
Do not hammer the universal joint boot to adjust, use the hands to insert the

universal joint.

Be sure the differential universal joint has been inserted to the right position and

the snap ring has been placed on the original position.




1.  Front wheel bearing seal

2. Suspension

arm
















Chery QQ Service Manual                                        Transmission System



-108-





V．  Recommended Value of torque



Torque

Screw down parts

N·m kg·m 1b-ft

Drain plug

Manual

transaxles

25-30 2.5-3.0

18.5-21.5



Automatic

transaxles

18-23 1.8-2.3

13.5-16.5

Oil level, refill plug

Manual

transaxles

36-54 3.6-5.4

26.5-39.0

Ball joint bolt and nut

50-70

5.0-7.0

36.5-50.5

Propeller shaft nut

150-200

15.0-20.0

108.5-144.5

Central bearing race bolt

40-60

4.0-6.0

29.0-43.0

Joint nut

18-28

1.8-2.8

13.5-20.0



Maintenance Materials Needed

Materials

Recommended SUZUKI Products

Used Parts

Lithium

lubricator

SUZUKI    lubricator A

（99000-25010）

Oil seal

Seal sub

SUZUKI        glue 1215

（99000-31110）

Manual transaxles Drain

plug

Lubricator

SUZUKI    lubricator

（99000-25120）

Driven shaft universal

joint
