Chery QQ Service Manual                                        Transmission System



-101-




Caution: When disassembling the propeller shaft assembly,
Be sure to prevent the rough touch and collision.

2. Disassembling the right shaft.
On the ground:

Loosen the rivet and remove the propeller shaft nut and gasket    .












On the lift:
（1）Use plastic hammer to knock the propeller shaft universal joint to break the snap
ring away from differential universal joint splined hub.
（2）Disconnect the joint from the suspension arm.

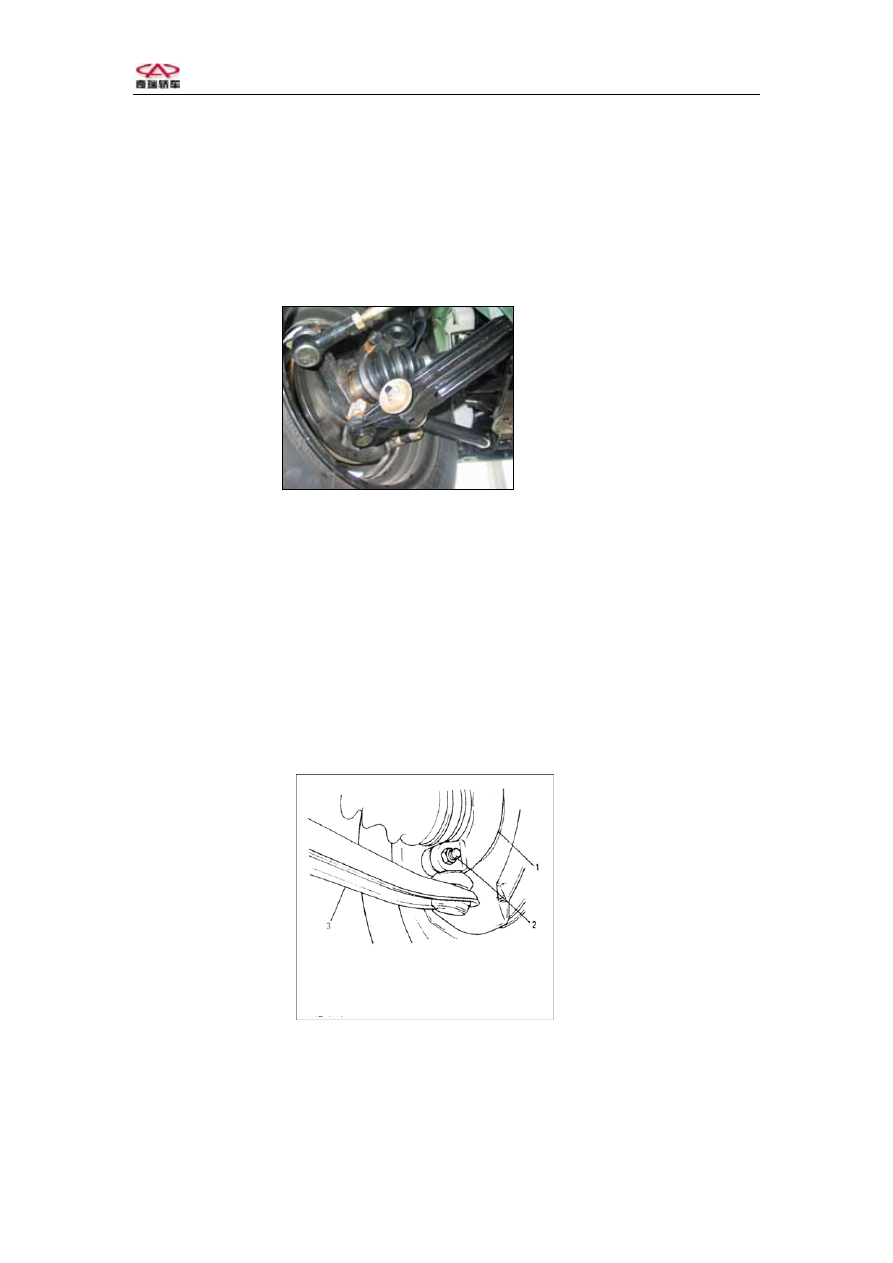

（3）Remove the ball joint bolt and nut, and then disconnect the    suspension arm
from the steering.
（4）For disassembling the propeller shaft assembly, first pull out the inner universal
joint from the output shaft, secondly pull out the end  of  wheel universal joint
from the universal joint.



1，      Steering        2，      Ball    joint

bolt and  nut












Caution: When disassembling the propeller shaft assembly, be sure to prevent the

rough touch and collision.


（5）Let out the transaxles oil.




Chery QQ Service Manual                                        Transmission System



-102-




（6） Loosen the central bearing seat bolt, remove the output shaft from

differential side gear.













3. Disassemble the propeller shaft.

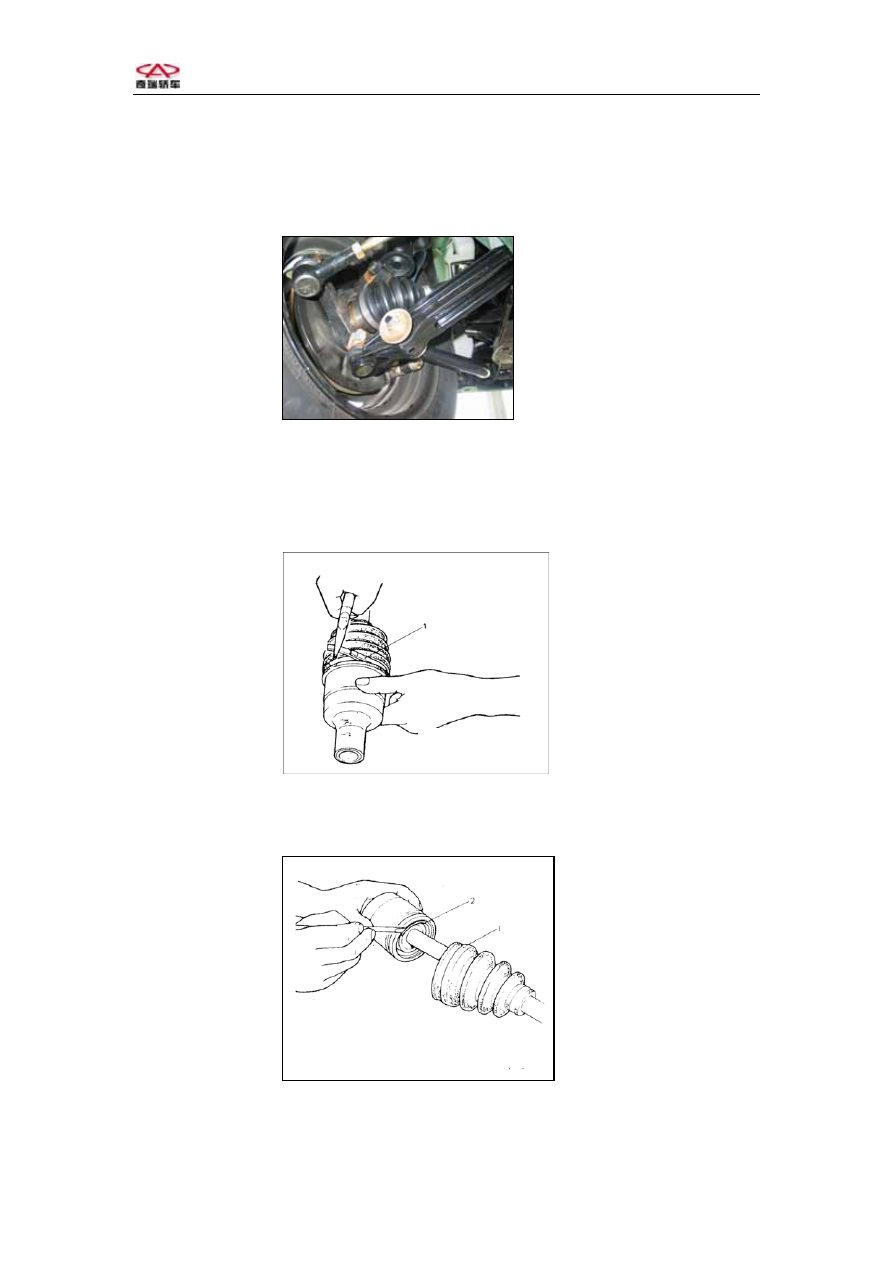

（1） Remove the differential universal joint boot hoop.














1，  Boot  hoop

（2） Move the boot to the middle position and take out the shaft from the

bell-mouthed.






1，  Boot              2，      Snap    ring















Chery QQ Service Manual                                        Transmission System



-103-

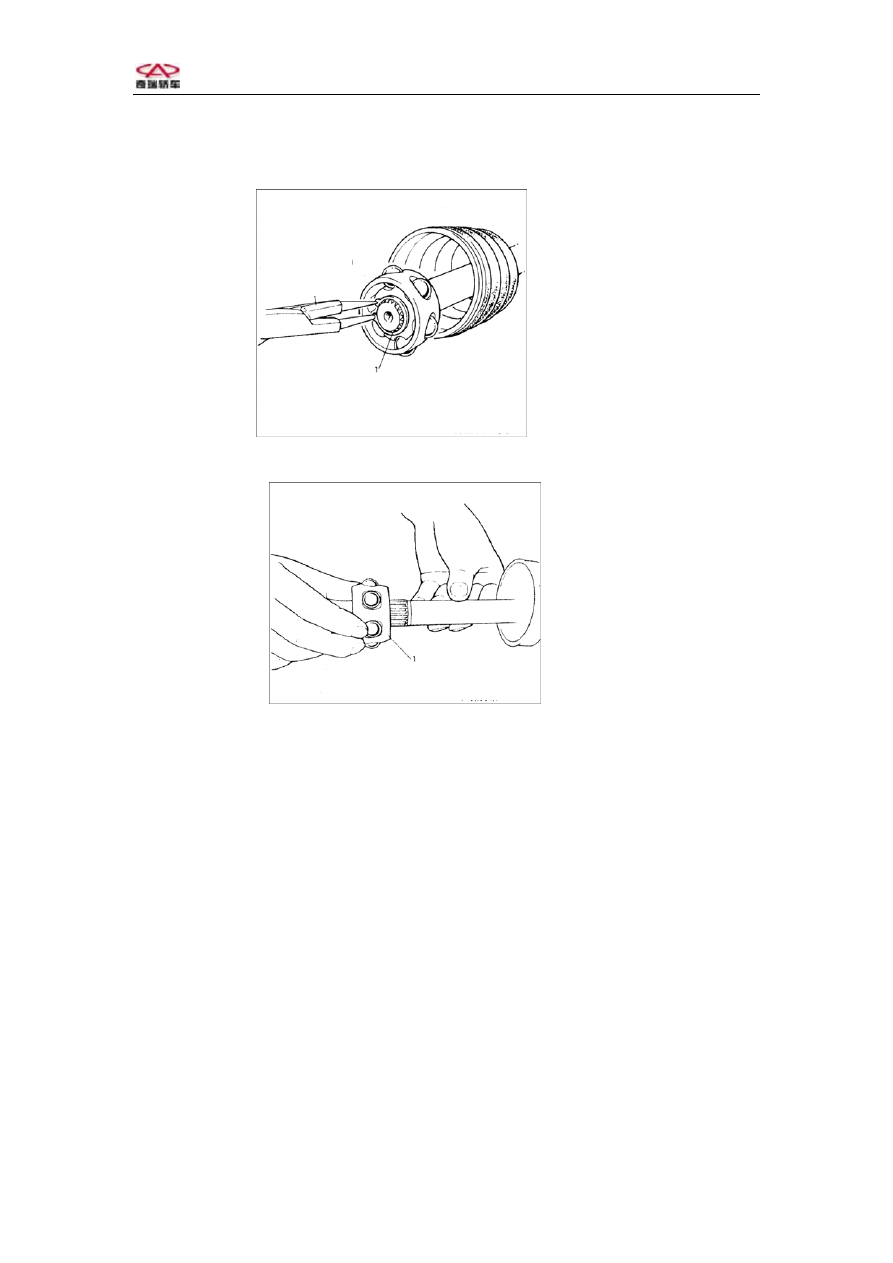

（3）Scrape off the lubricant and remove the holding snap ring with special tool (A).






1，  Boot  hoop












（4）Draw out the holding and boot.




1，   Holding











Notice:
The end of wheel universal joint。










III， Installation
1，  Installation of propeller shaft.
（1）Clean the parts (except the boot) and dry the parts with compressed air.
（2）Use a piece of clean and dry cloth to clean the boot, be sure not to use skim milk
(such as gasoline or coal oil).
（3）Put the boot onto the axle till the small diameter    set in the shaft    slot and fix
the hoop.




Chery QQ Service Manual                                        Transmission System



-104-

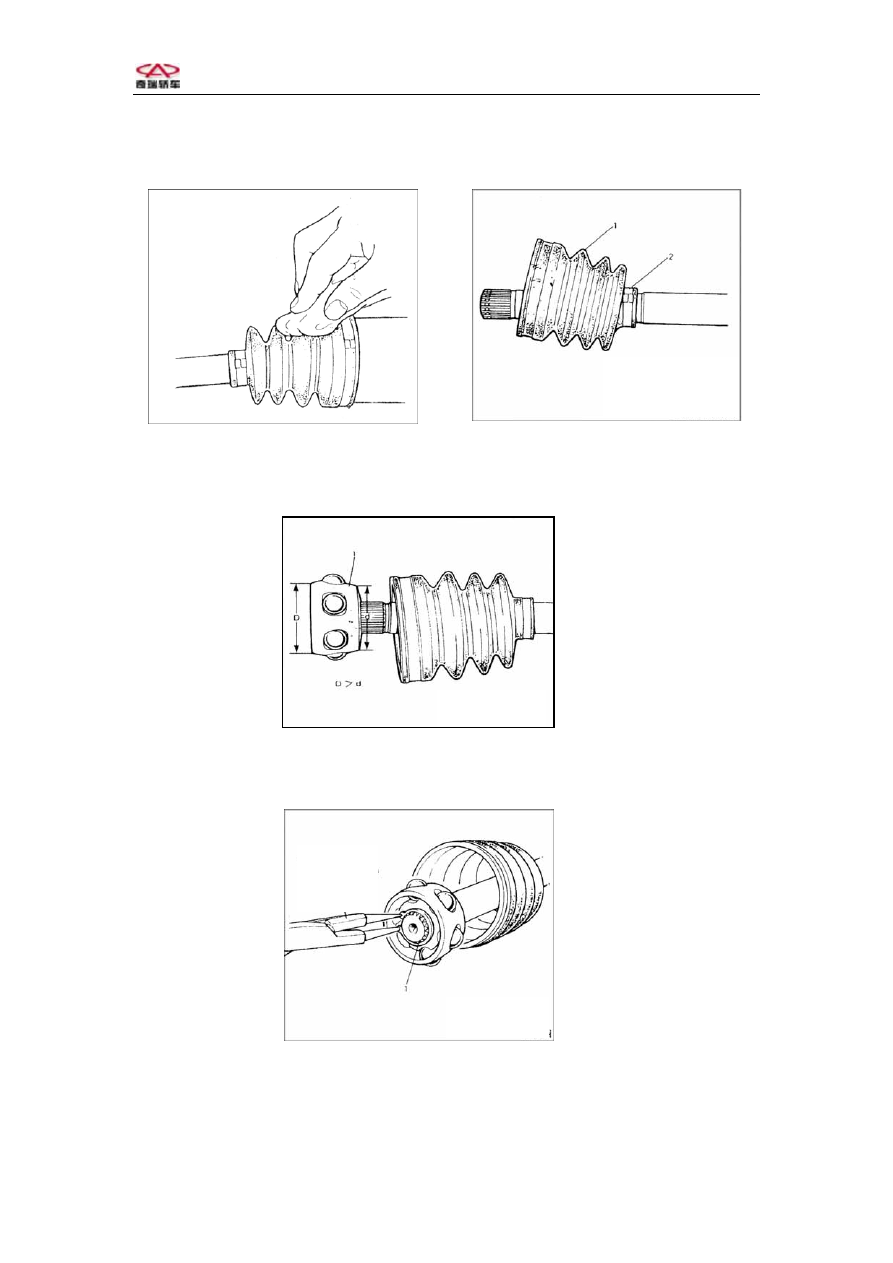

1.Boot

2.Boot hoop













（4）Install the holding    .

Caution: When installing the holding, keep the small diameter towards the shaft

end.






1，  Holding










（5）Use special tool (A) to install the snap ring.














1.Snap ring
