Chery S11 / Chery QQ. Manual - part 18
Chery QQ Service Manual Transmission System

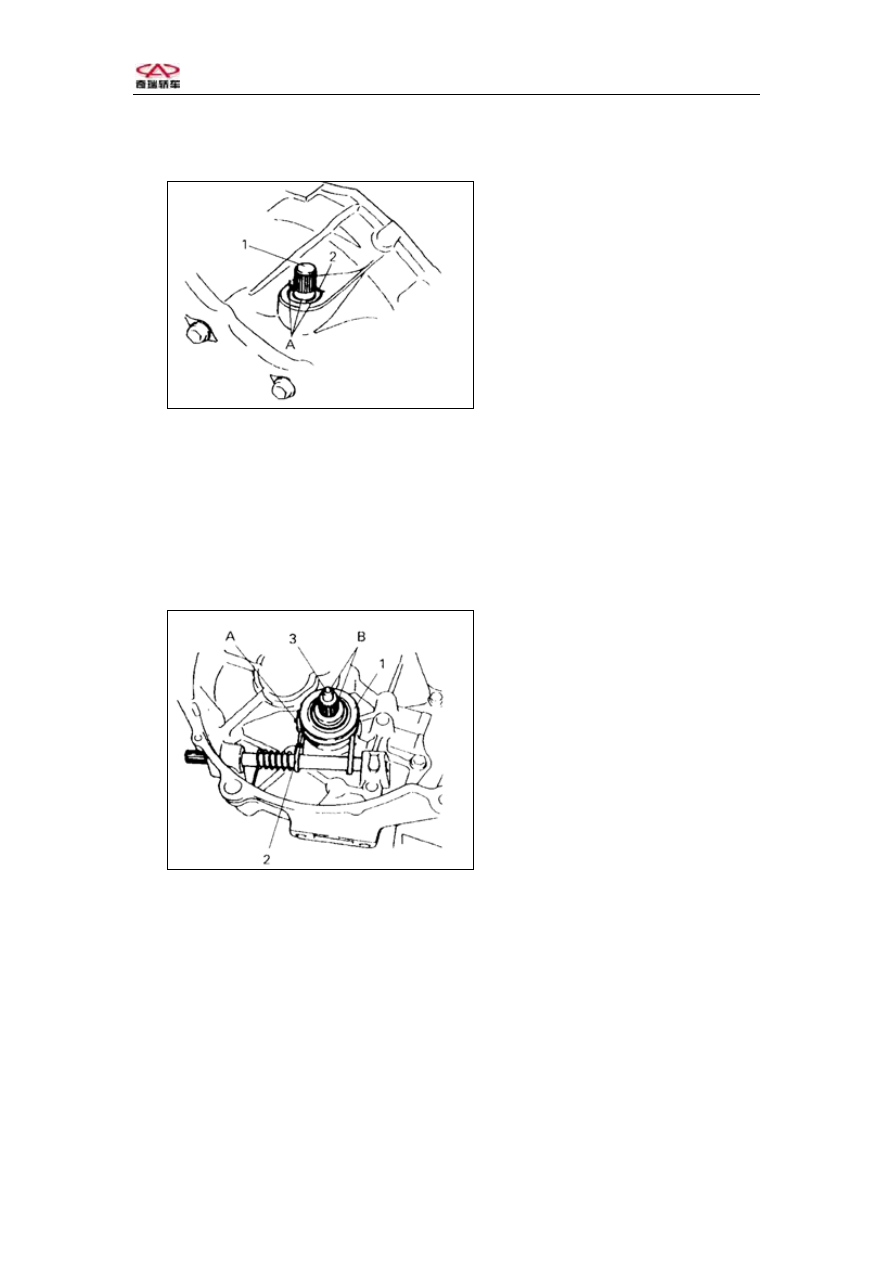

5, Use hammer or special tools to punch 3 small holes.
1-Releaseshaft
2-Oil seal
A ：Plug
Fig.3-93
6, Hang the return spring.
7, Spread lubricant inside the release bearing and on the release shaft, install the
release bearing.
8, Spread a small quantity of lubricant on the end face of the input shaft splined
hub.
1-Release bearing
2-Release shaft
3-Input shaft
A, B ：Baste
Fig.3-94
9, Put the marks of clutch fork and release shaft in order, and then screw down
the bolt.
-93-
