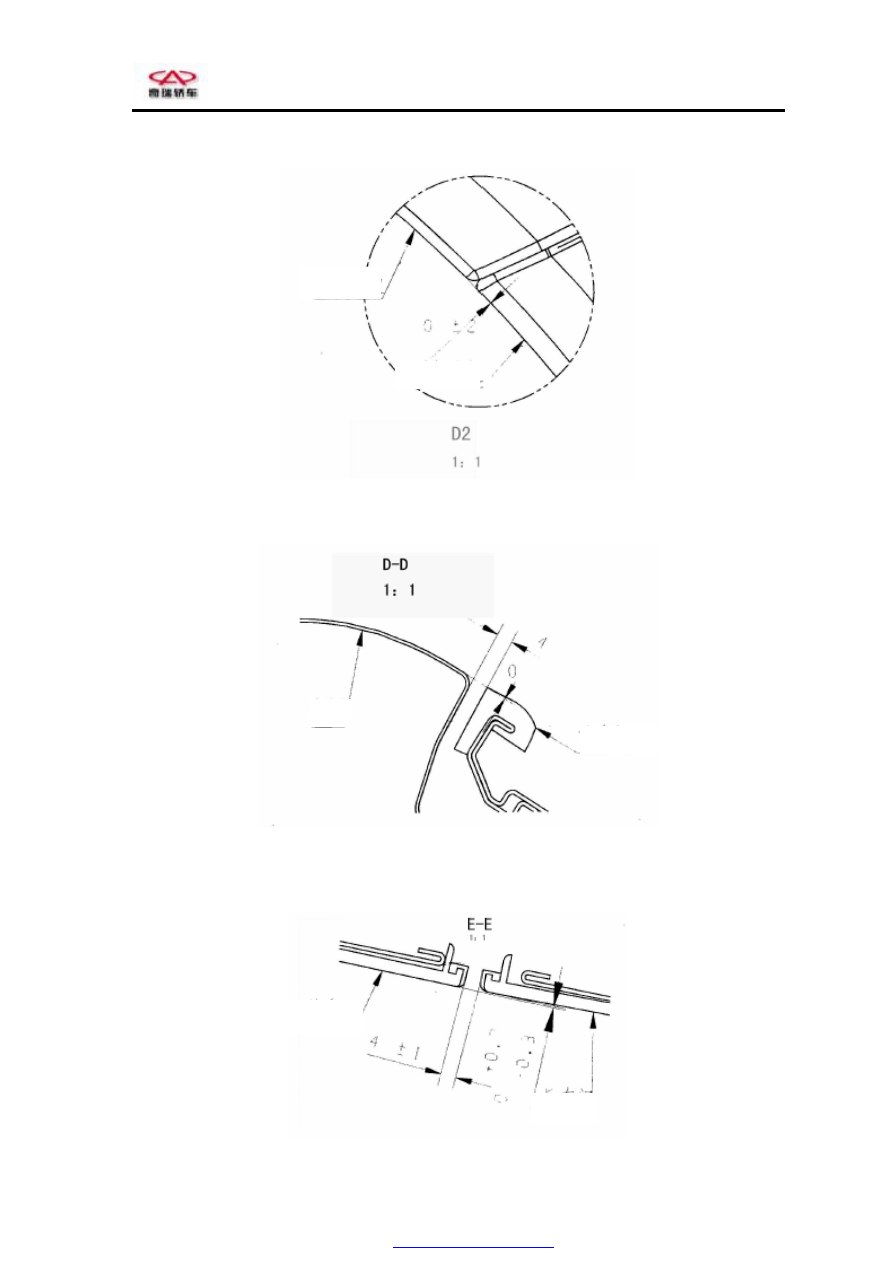

The assembly tolerance between the rear fender and the rear bumper is 0±2 mm at D2.

The clearance between the side and the front door is 4 ram at D-D. and its assembly tolerance is 0

mm.

The clearance between the front door and rear door is 4±l mm at E-E. and its assembly tolerance

−

Rear fender

Rear bumper

Side

Front door

Rear door

PDF created with pdfFactory Pro trial version

Chery Eastar Service Manual Body Dimension and Accessories

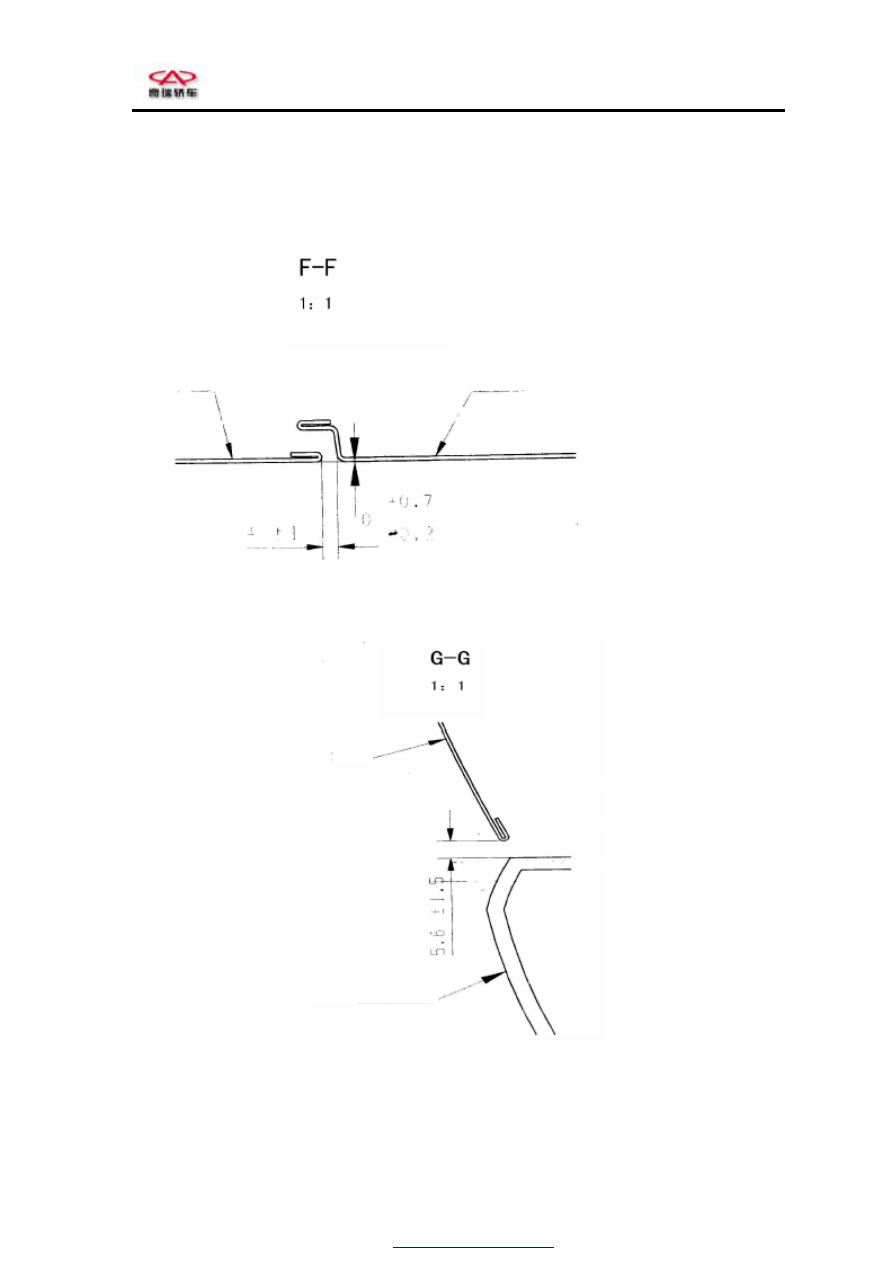

The clearance between the front door and rear door is 4±l mm at F-F. and its assembly tolerance

−

The clearance between the door and the doorsill guard plate is 5.6±l.5 mm at G-G.

Door

Doorsill guard plate

Front door

Rear door

PDF created with pdfFactory Pro trial version

Chery Eastar Service Manual Body Dimension and Accessories

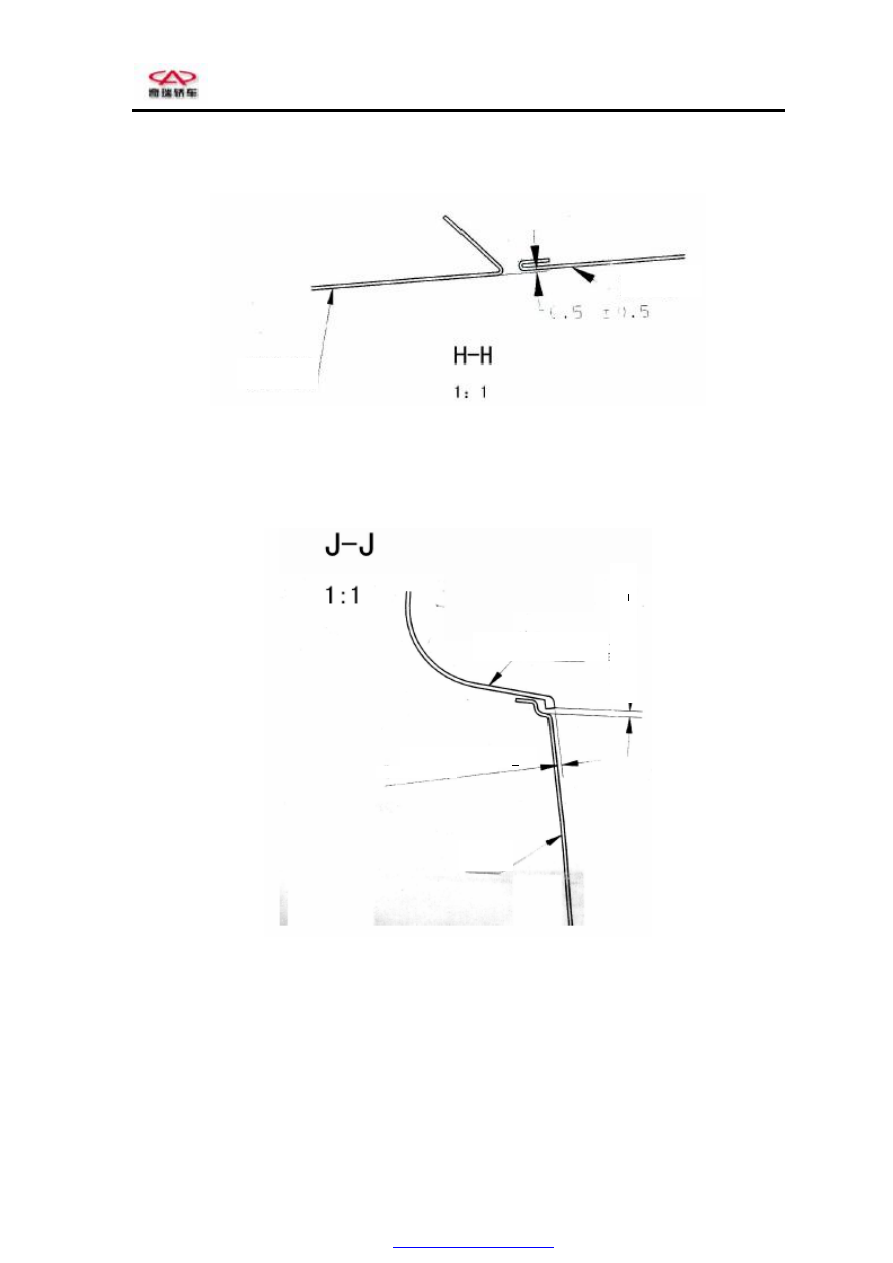

The assembly tolerance between the front fender and the front door is 0.5±0.5 mm at H-H.

The clearance between the door exterior handle and the door is 1±1 mm at J-J. and its assembly

tolerance is 0.5±0.5 mm.

Front fender

Front door

Door

Door exterior handle

0.5(Circumferential)+0.5

al)

PDF created with pdfFactory Pro trial version

Chery Eastar Service Manual Body Dimension and Accessories

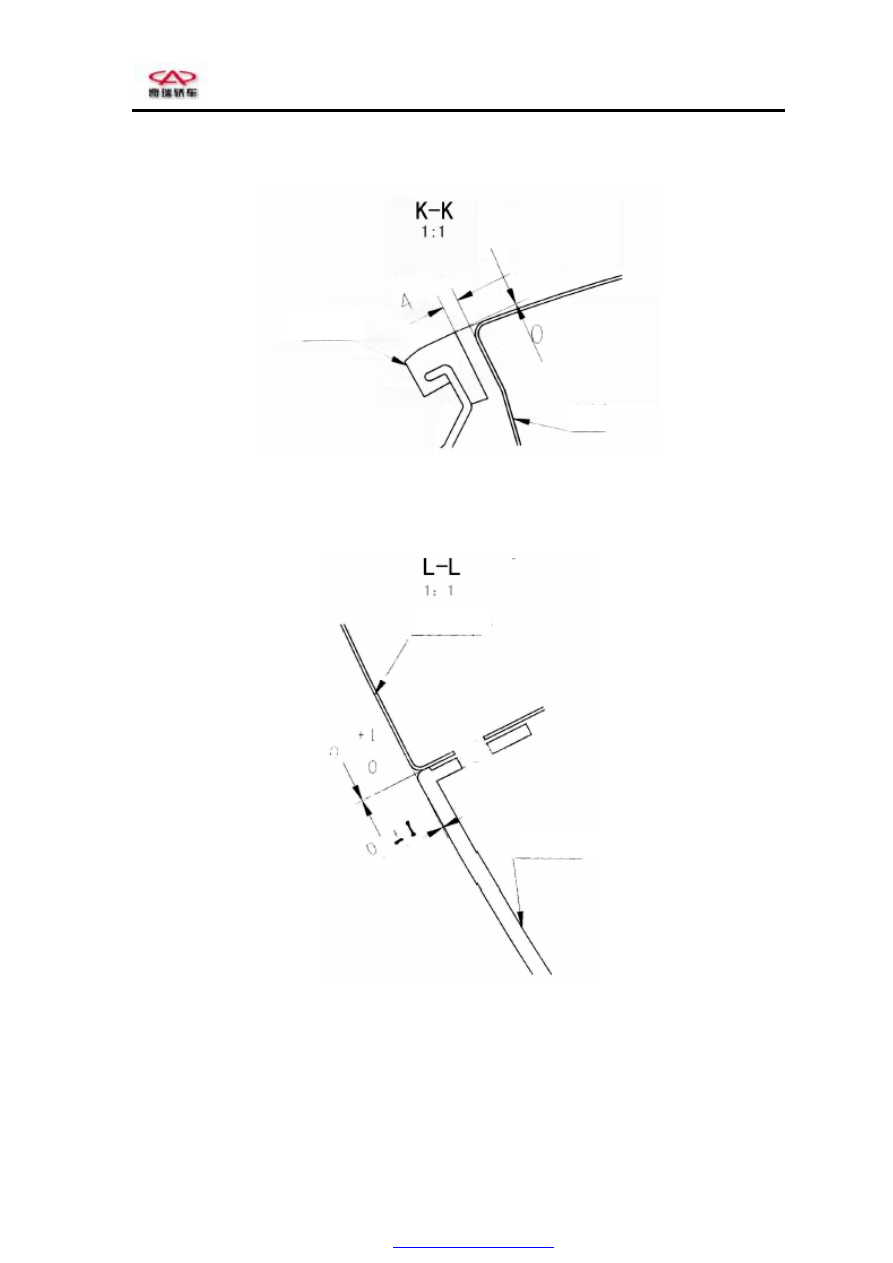

The clearance between the rear door and the side is 4 mm at K-K. and its assembly tolerance is 0 mm.

The clearance between the rear fender and the rear bumper is

at L-L. and its assembly tolerance

is 0±1 mm.

Rear door

Side

Rear fender

Rear bumper
