Chery·Maintenance Manual for Oriental Son



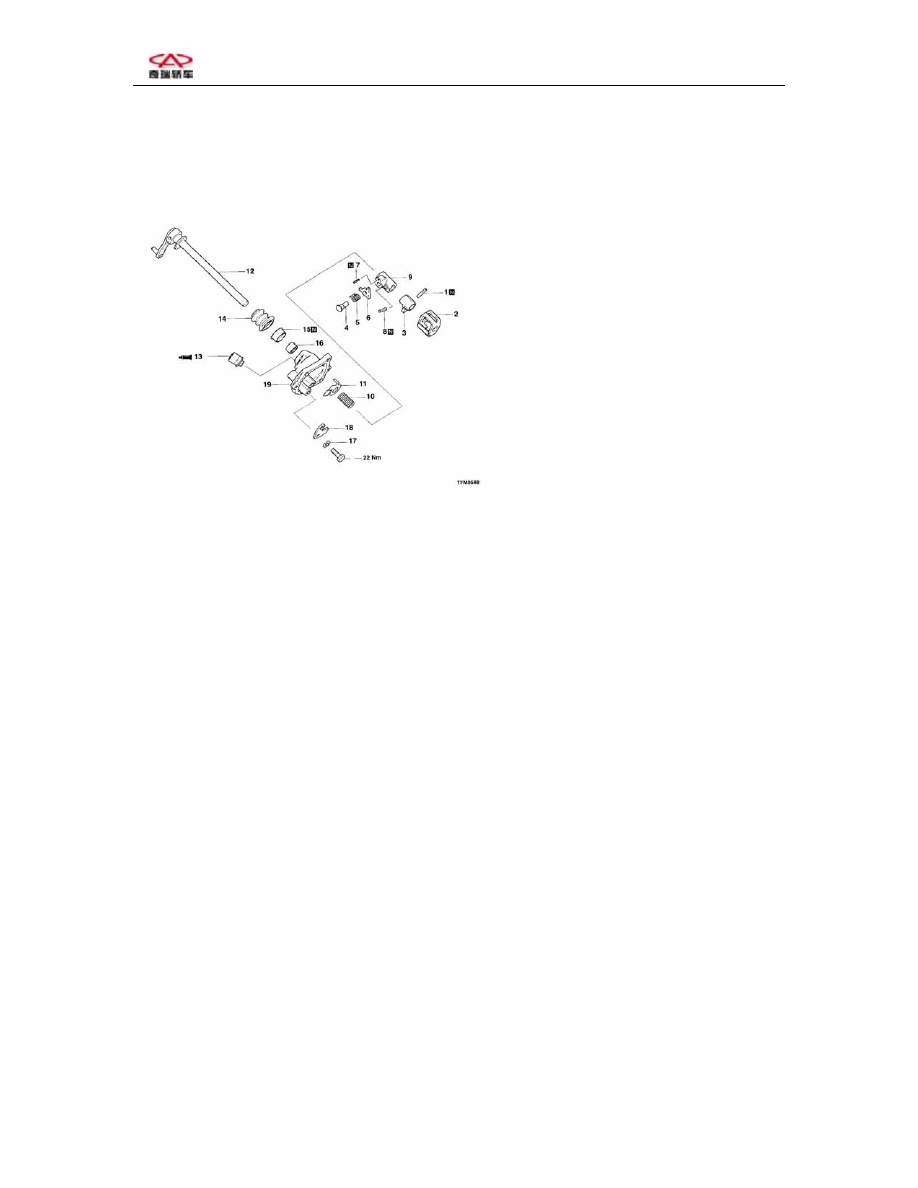

Manual Transmission


Controller Cover
Assembly and Disassembly




18. Localizer bracket






























Disassembly steps:
1. Lock pin
2. Interlocking plate
3. Control finger
4. Pin
5. Return spring
6. Retainer plate
7. Spring pin
8. Spring pin
9. Localizer
10. Middle return spring
11. Spacer
12. Control shaft
13. Air vent
14. Control shaft rubber sheath
15. Oil seal
16. Needle bearing
17. Spring washer

19. Controller cover





















9



Chery·Maintenance Manual for Oriental Son



Manual Transmission

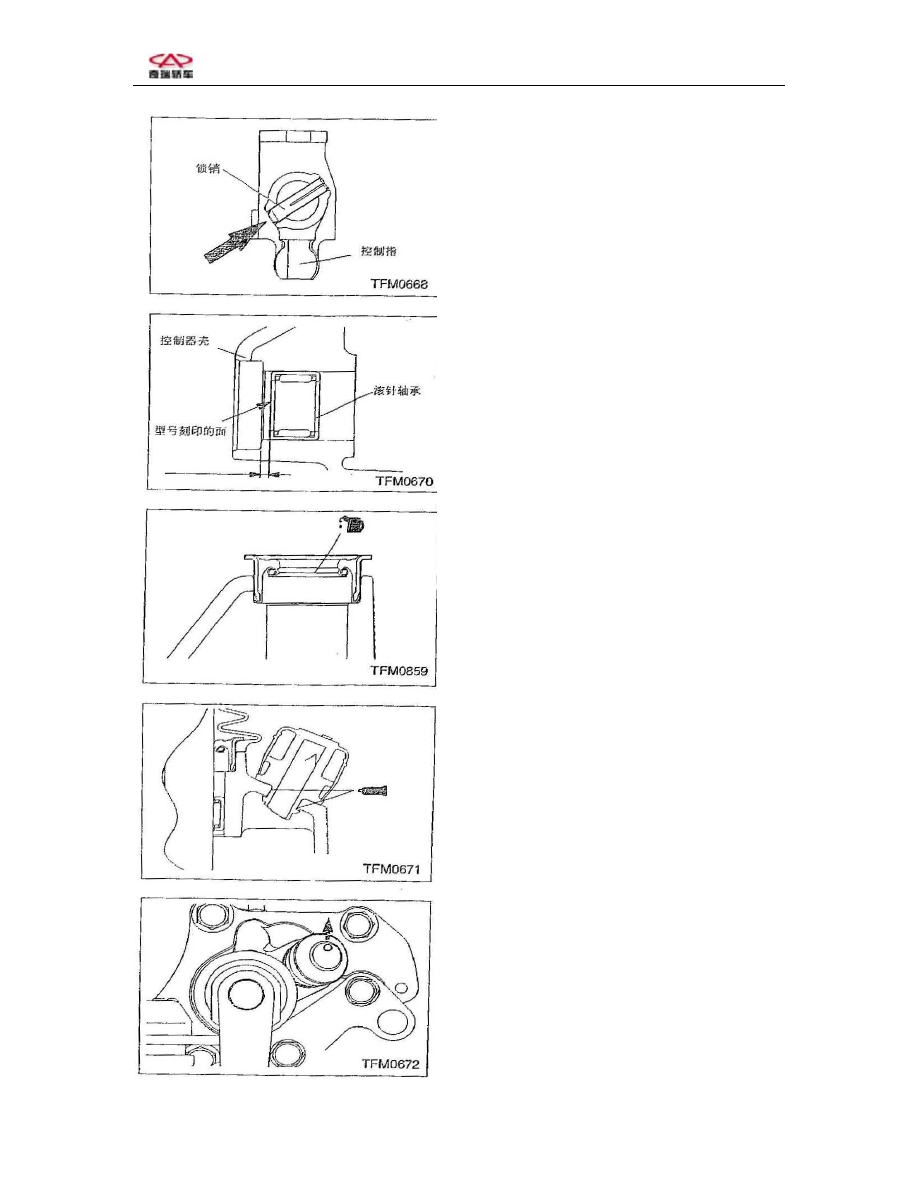

Notice for disassembly

Lockpin

Unfixing the lockpin
Strike out the lockpin in the direction as
the figure shows

Control
finger






Notice for assembly
Fixing the needle bearing

Controller
cover

Press the needle bearing in as the figure
shows. The side with model engraving
shall be on the side of the controller
cover.

Needle
bearing

Side with model
engraving





Fixing the oil seal
Apply gearbox oil onto oil seal lip.
Gearbox oil:
Hypoid gearbox oil SAE75W-85W
that complies API categorization GL-4
or above



Fixing the air vent
(1) Apply sealant onto the insertion
surface.
Required sealant:
3M SUPER WEATHERSTRIP No.
8001 or equivalent




(2) Ensure that the protruding part is in
the direction as the arrow shows.






10



Chery·Maintenance Manual for Oriental Son



Manual Transmission

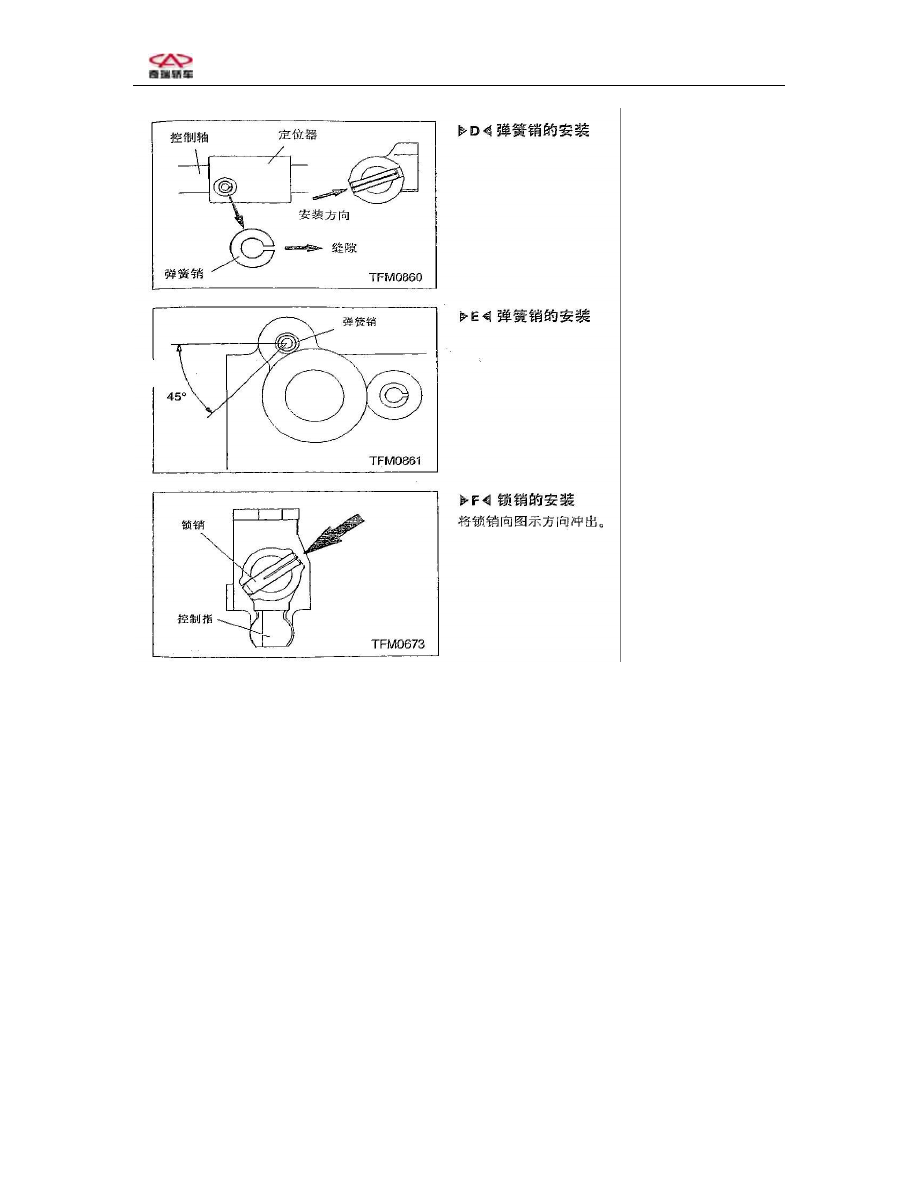

Localizer

Fixing the spring pin

Control
shaft






Fixing direction



Spring
pin

Clearance






Spring
pin

Fixing the spring pin








Fixing the lockpin

Lockpin

Strike out the lockpin in the direction as
the figure shows.




Control
finger







11



Chery·Maintenance Manual for Oriental Son



Manual Transmission

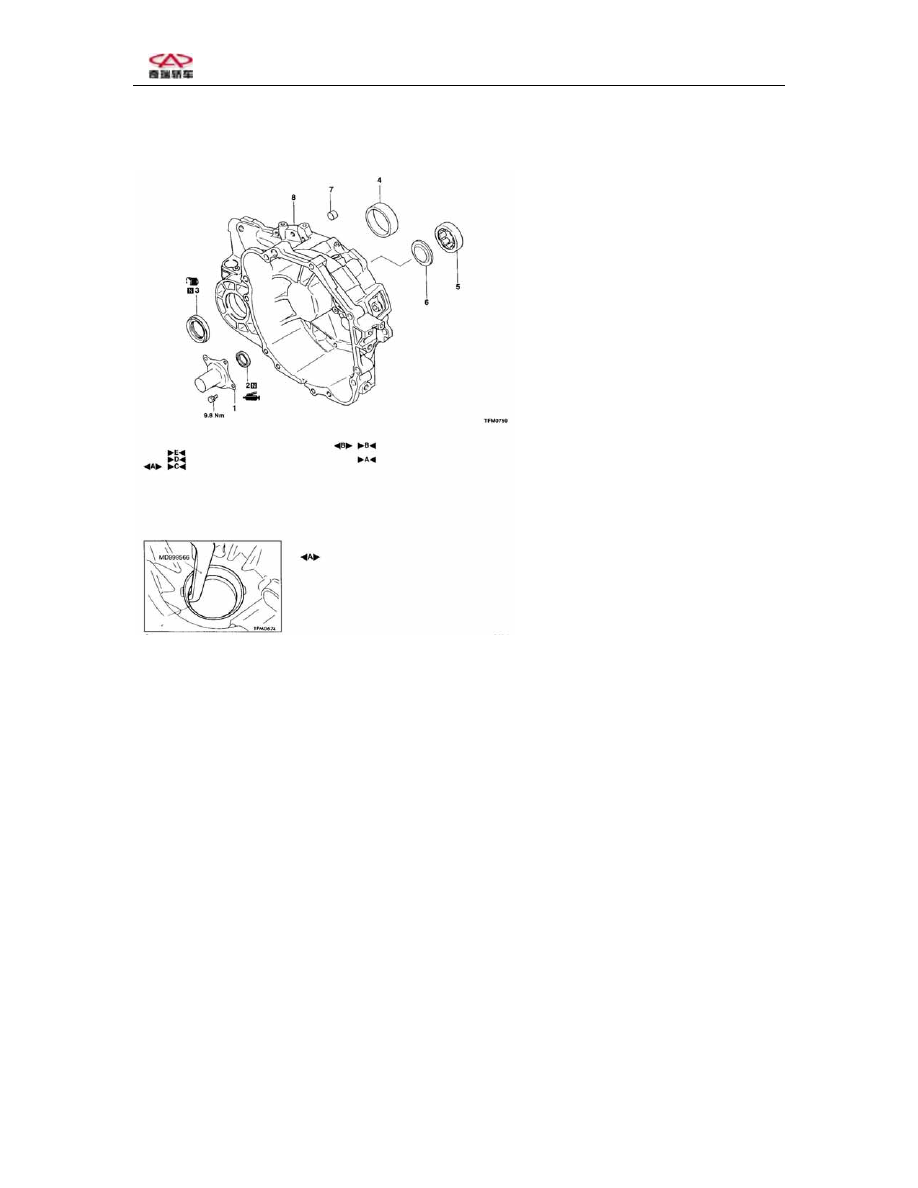

Clutch Cover
Assembly and Disassembly



























Disassembly steps:
1. Clutch release bearing bracket
2. Oil seal
3. Oil seal
4. Outer ring















5. Outer ring
6. Lining
7. Clutch cover


Outer ring


Notice for disassembly
Unfixing the outer ring











1
