Chery·Maintenance Manual for Oriental Son



Manual Transmission



Unfixing of the outer ring









Notice for assembly

Protruding
end

Fixing the lining

Air vent

Press the lining in as the figure shows so
that the protruding end of the lining does
not match with the air vent.















Fixing the outer ring
Fix the outer ring so that the side with
engraved model is located as the figure
shows.

Side with engraved
model














2



Chery·Maintenance Manual for Oriental Son



Manual Transmission

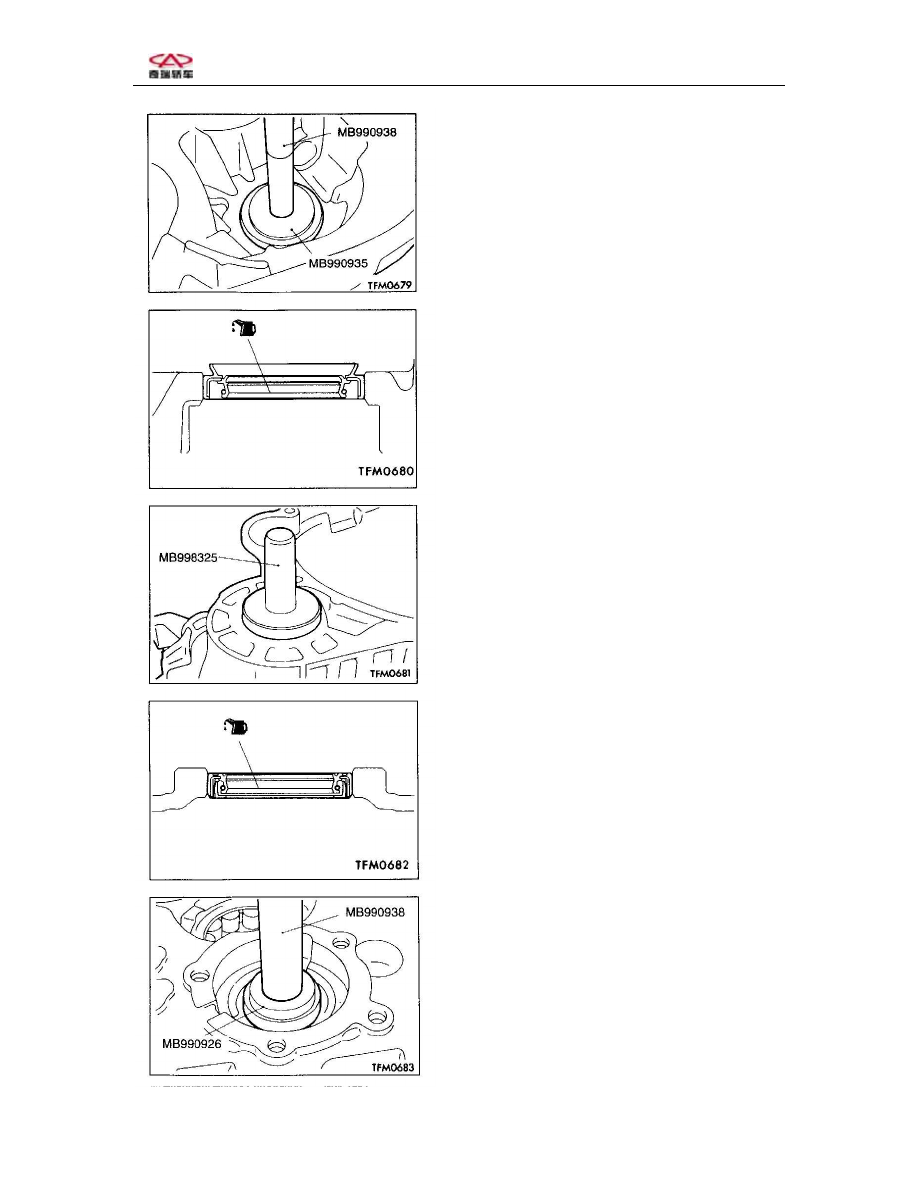

Fixing the outer ring








Fixing the oil seal
Apply gearbox oil onto the oil seal lip.
Required oil:
Hypoid gearbox oil SAE75-85W that
complies with API classification GL-4
or above













Fixing the oil seal
Fill lubricating oil into the oil seal lip.
Required lubricating grease
Mitsubishi Lubricating Grease Part
No. 0101011 or equivalent













3



Chery·Maintenance Manual for Oriental Son



Manual Transmission


Gearbox Cover
Assembly and Disassembly






















isassembly steps:

earing

p ring

 cover




D
1. Oil seal
2. Needle b
3. Oil guide
4. Spring sna
5. Lining
6. Gearbox




4



Chery·Maintenance Manual for Oriental Son



Manual Transmission

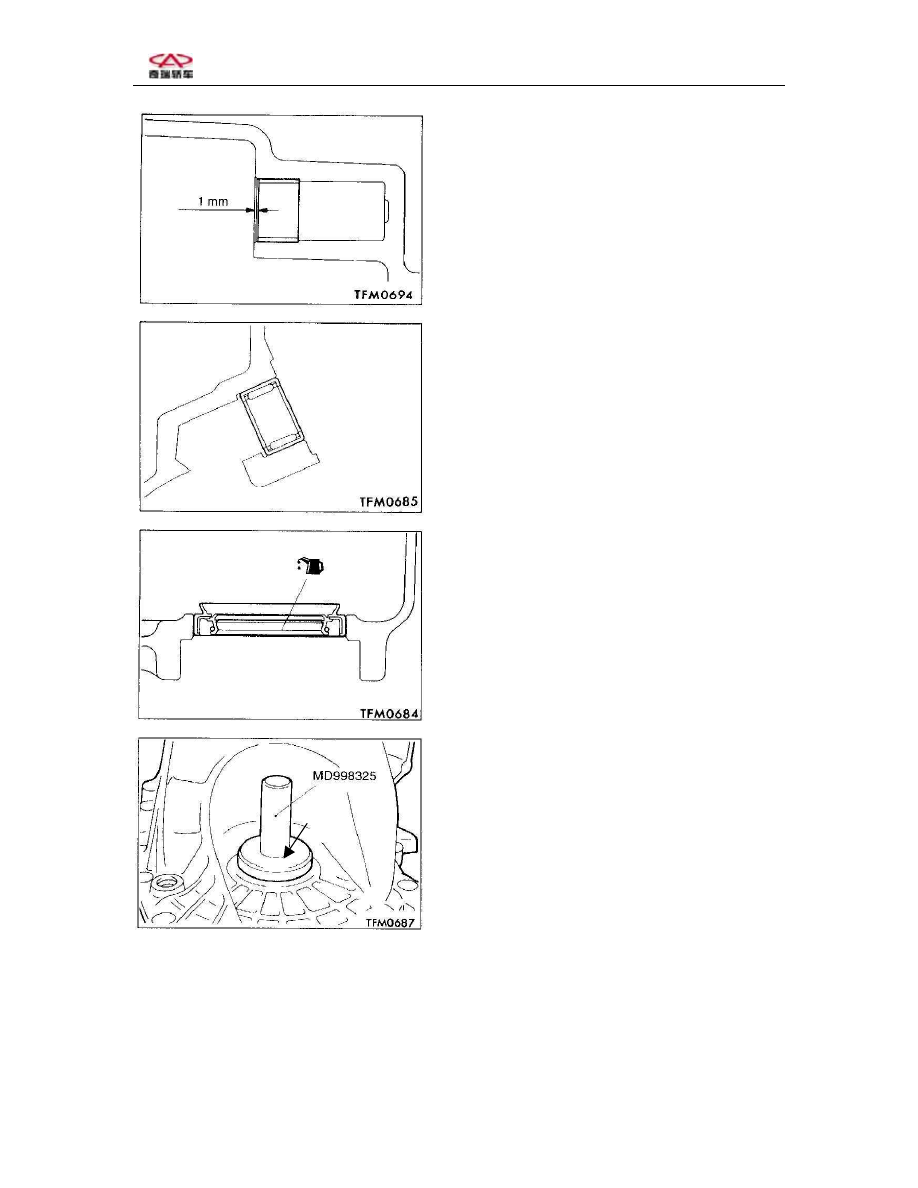

ixing the needle bearing

ress the needle bearing in so that it is

nsure that



ixing the oil seal

pply gearbox oil onto the oil seal lip.

PI classification GL-4

otice for assembly

ixing the lining

 the figure shows

ding end of the

.







F
P
aligned with the cover and e
the side with engraved model is located
as the figure shows.





F
A
Required oil:
Hypoid gearbox oil SAE75-85W that
complies with A
or above















N
F

Model engraving

Press the lining in as
so that the protru
lining does not match with the air vent










5
