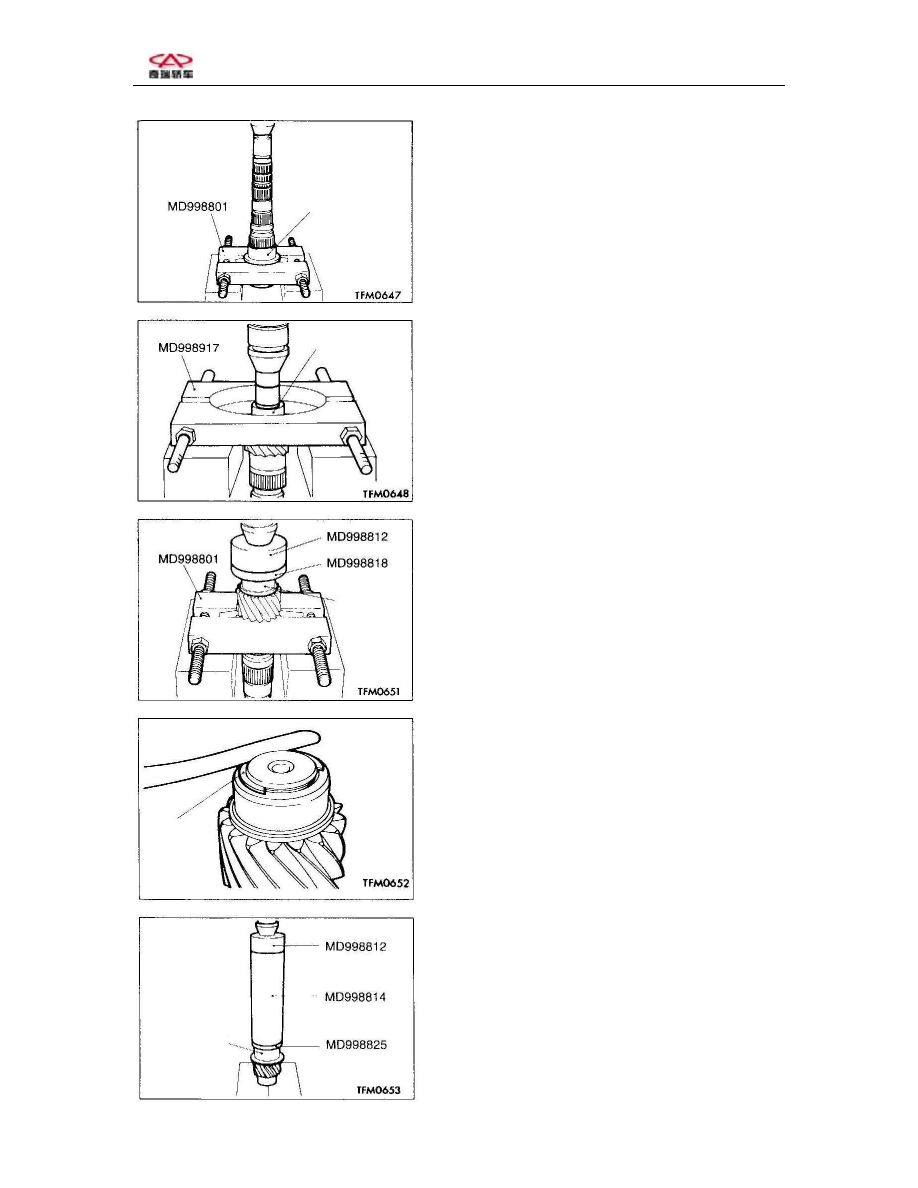

Chery·Maintenance Manual for Oriental Son



Manual Transmission





Unfixing the first-speed gear sleeve


Sleeve









Inner ring

Unfixing the inner ring of the roller
bearing








Notice for disassembly
Fixing the inner ring of the roller
bearing

Inner ring








Fixing the spring snap ring
Select and fix the spring snap ring so
that the axial clearance of the front
bearing of the output shaft complies with
the standard value.

Spring
snap ring

Standard value: -0.01-0.12mm




Fixing the first-speed gear sleeve



Sleeve




1

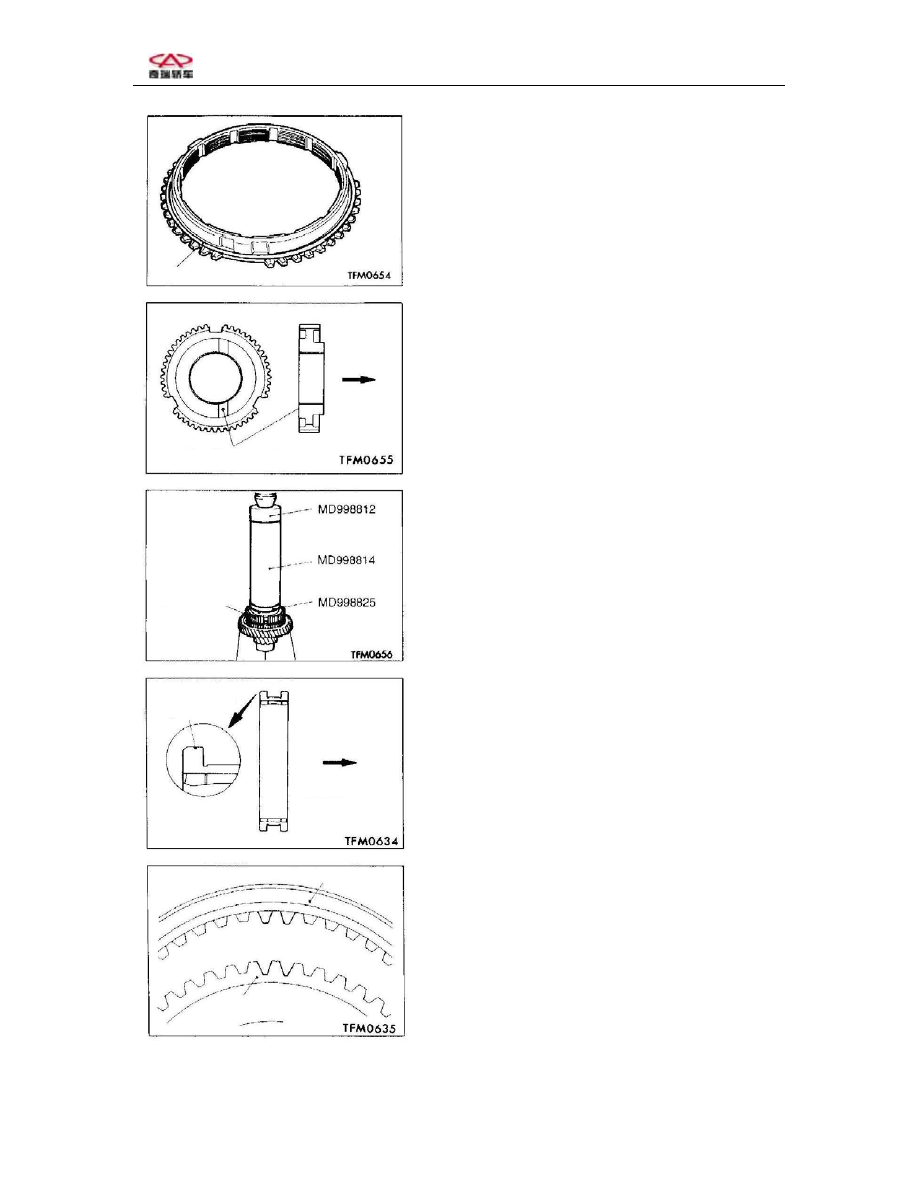

Chery·Maintenance Manual for Oriental Son



Manual Transmission






Fixing the synchronizer spring
Fix the synchronizer spring onto the
synchronizer ring as the figure shows.





Synchronizer
spring

Fixing the first-gear and second-gear
synchronizer hub
Fix the first-gear and second-gear
synchronizer hub as the figure shows.


Gearbox rear






Identification mark


Note:
Please make sure that the
synchronizer ring is not locked during
fixing of the synchronizer hub.


Synchronizer
hub







Identification
groove

Fixing the synchronizer sleeve
(1) Fix the synchronizer sleeve as the
figure shows



Gearbox rear






Synchronizer
sleeve

(2) Please make sure that the two deep
tooth grooves of the synchronizer hub
are aligned with the two high racks of
the sleeve.



Synchronizer
hub





2

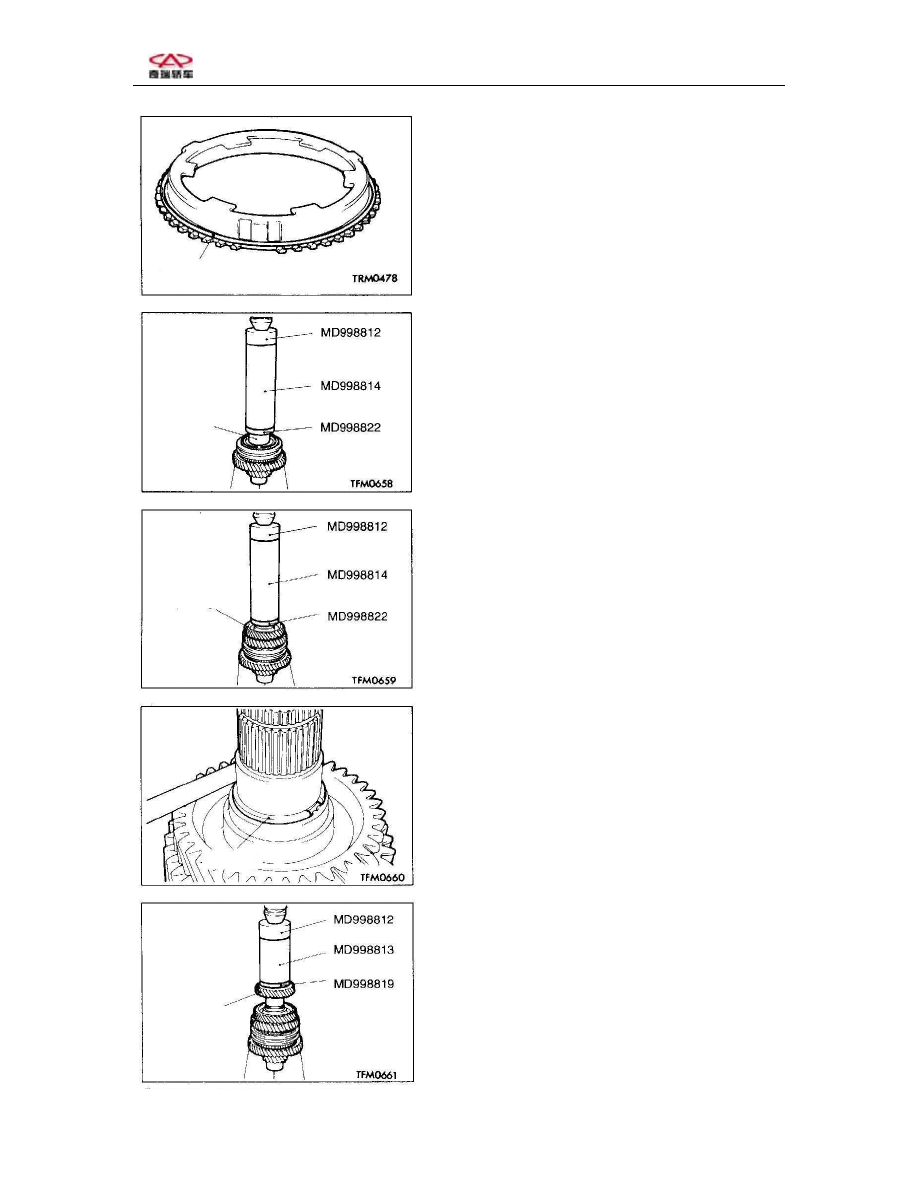

Chery·Maintenance Manual for Oriental Son



Manual Transmission




Fixing the synchronizer spring







Synchronizer
spring




Fixing the second-speed gear sleeve








Fixing the third-speed gear sleeve








Fixing the spring snap ring
Fix the spring snap ring so that the axial
clearance of the third-speed gear of the
output shaft complies with the standard
value.
Standard value: -0.01-0.09mm




Fixing the fourth-speed gear




Sleeve thrust
plate





3

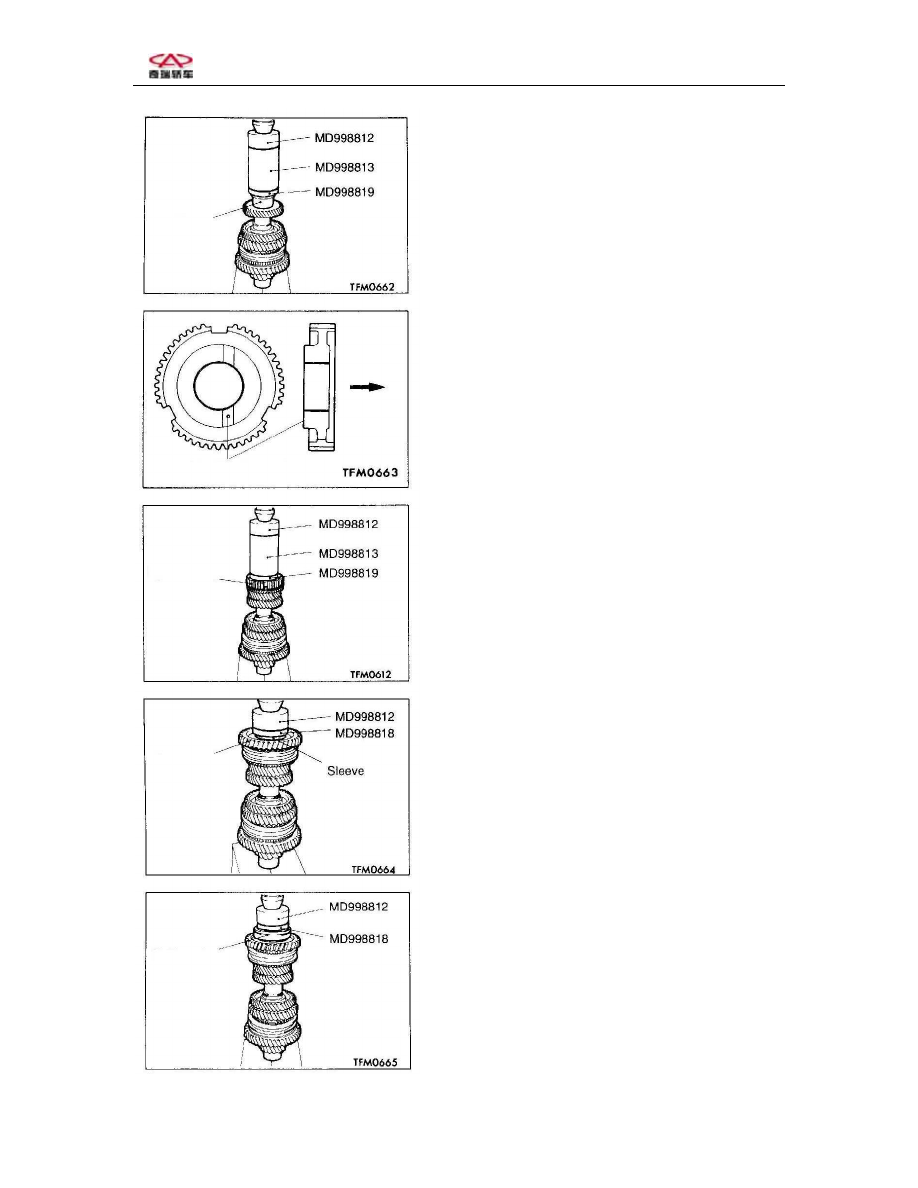

Chery·Maintenance Manual for Oriental Son



Manual Transmission




Fixing the fifth-speed gear sleeve





Third-speed
gear





Fixing the fifth-gear and reverse-gear
synchronizer hub
Fix the fifth-gear and reverse-gear
synchronizer hub as the figure show.





Spring snap ring



Note:
Please make sure that the
synchronizer ring is not locked during
fixing of the fifth-gear and reverse-
gear synchronizer hub.

Fourth-speed
gear





Fixing the reverse gear/needle
bearing/reverse-gear bearing sleeve








Fixing the ball bearing







4
