Chery B11. Manual - part 49



Maintenance Manual for Chery·Oriental Son

Engine Section









12. Lubrication System

Structure Features

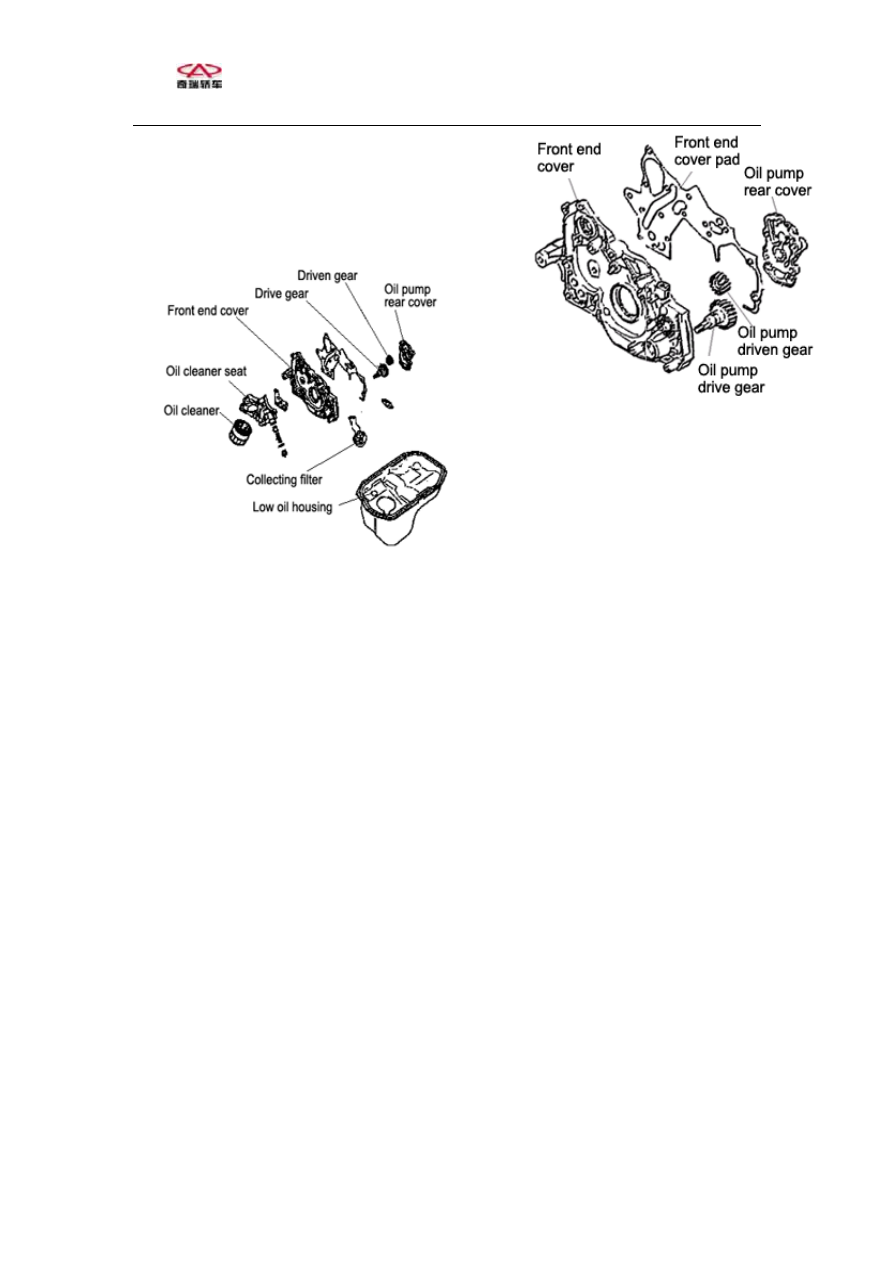

被动齿轮 Driven gear

主动齿轮 Drive gear

机油泵后壳 Oil pump rear cover

前端盖板 Front end cover

机油滤清器座 Oil cleaner seat

机油滤清器 Oil cleaner

集滤器 Collecting filter

油低壳 Low oil housing







前端盖板 Front end cover

前端盖板垫 Front end cover pad

机油泵后壳 Oil pump rear cover

机油泵从动齿 Oil pump driven

gear

机油泵主动齿 Oil pump drive gear

 12



Maintenance Manual for Chery·Oriental Son

Engine Section

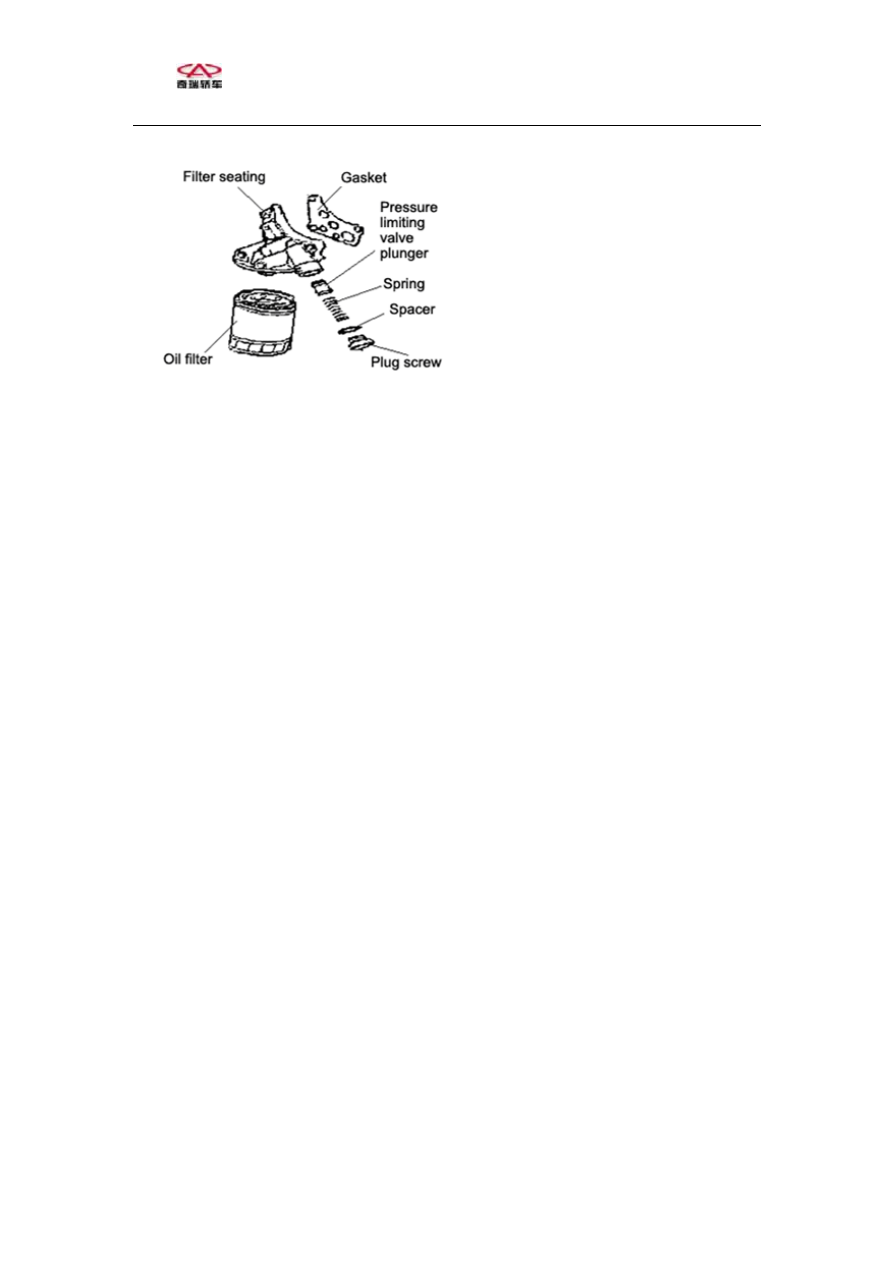

滤座 Filter seating

垫片 Gasket

限压阀柱 Pressure limiting valve plunger

弹簧 Spring

调整垫 Spacer

机油滤器 Oil filter

      螺塞 Plug screw

External gear oil pump is applied and its oil

supply performance is better than current rotor

pump. The efficiency of external gear pump is

high, that is, the efficiency of oil supply is

proportional to the speed, which may satisfy

large-load oil supply requirement. However, if

rotor pump speed increase, the oil pump

efficiency will increase at low speed, but it will

drop gradually when the speed reach mid-speed as

shown, which will cause lack of large-load oil

supply. Therefore, large load should be considered

when designing rotor pump, but it will consume

power during low loading.















Oil filter seating and pressure

limiting valve – Pressure limiting

valve is of plunger spring structure.

 13



Maintenance Manual for Chery·Oriental Son

Engine Section







23

Chapter 3 Valve gear

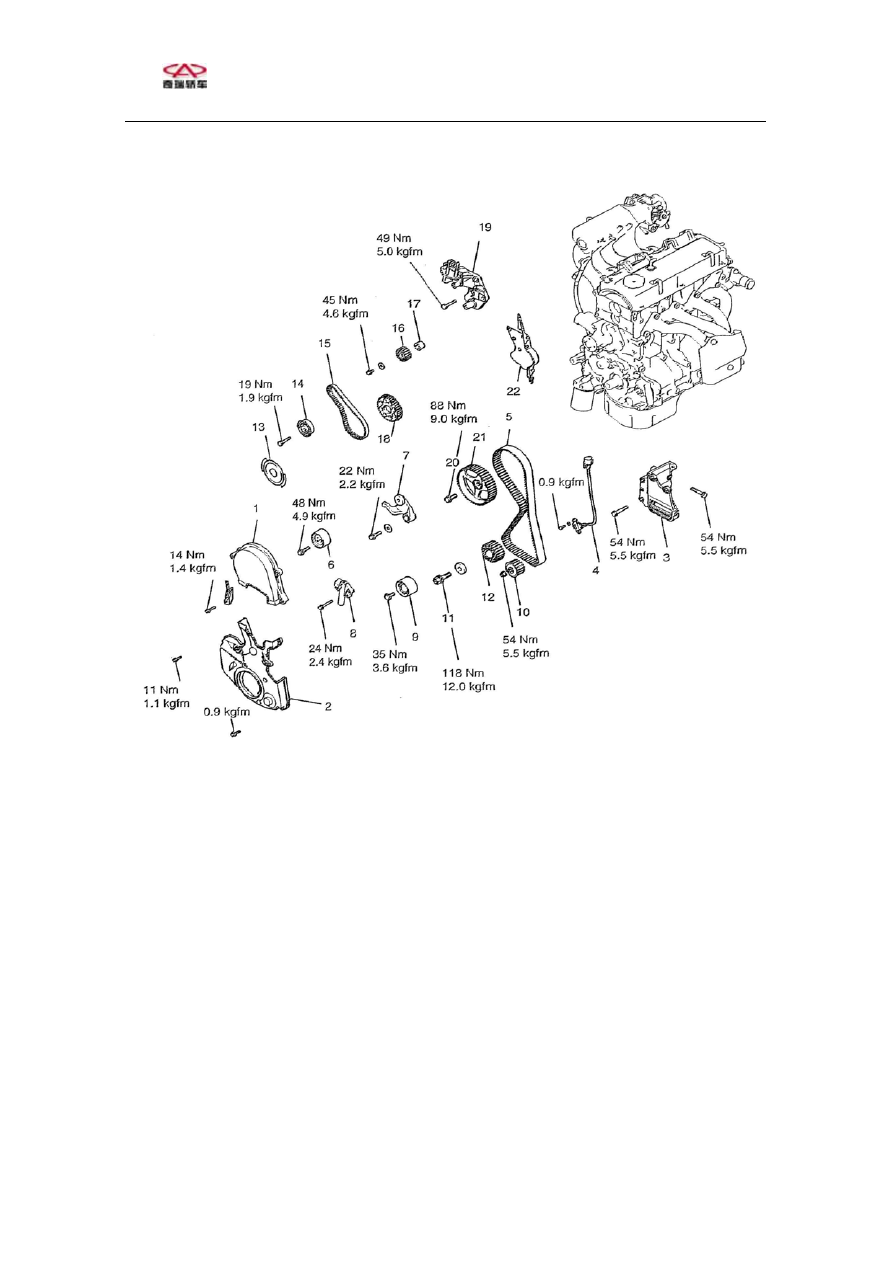

I. Timing belt





















































8.8N.m





















8.8N.m



Disassembling
illustration





Disassembling steps

1.  front upper cap of timing belt

2.  front lower cap of timing belt

3.  power steering bracket

4.  crankshaft position sensor

5.  timing belt

6.  tensioning gear

7.  tensioner arm

8.  automatic tensioner

9.  idler

10. oil pump pulley

11. crankshaft screw bolt



12.crankshaft

timing pulley

13.flange

14.tensioner B

15.timing belt B

16. pulley of upper balance shaft

17.bushing

18.crankshaft

timing pulley B

19.right bracket component of engine

20.screw bolt of camshaft pulley

21.camshaft timing pulley
