Maintenance Manual for Chery·Oriental Son

Engine Section









Valve seat working surface angle（43.5--44

° ） is a little less than valve working

surface angle（45°）

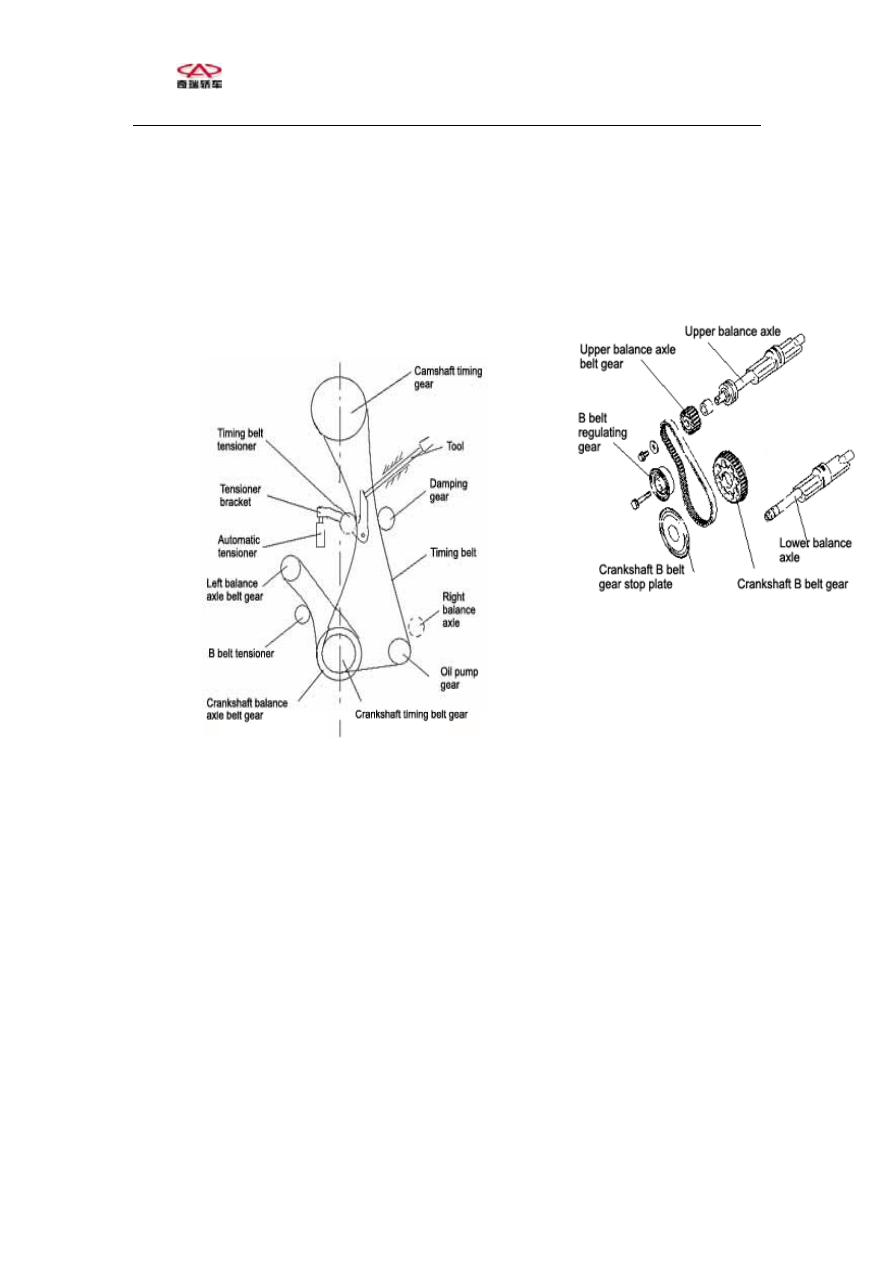

11. Timing Gears Train



凸轮轴正时轮 Camshaft timing gear

正时带张紧轮 Timing belt tensioner

张紧轮支架 Tensioner bracket

工具 Tool

自动张紧器 Automatic tensioner

左平衡轴齿带轮 Left balance axle belt gear

B 带张紧轮 B belt tensioner

曲轴平衡轴齿带轮 Crankshaft balance axle

belt gear

曲轴正时齿带轮 Crankshaft timing belt

gear

机油泵轮 Oil pump gear

右平衡轴 Right balance axle

正时齿带 Timing belt

阻尼轮 Damping gear





上平衡轴 Upper balance axle

上平衡轴齿带轮 Upper balance axle

belt gear

B 带调整轮 B belt regulating gear

曲轴 B 带轮挡片 Crankshaft B belt

gear stop plate

曲轴 B 带轮 Crankshaft B belt gear

下平衡轴 Lower balance axle



Upper Balance Axle

Belt Fitting Mark

 13



Maintenance Manual for Chery·Oriental Son

Engine Section

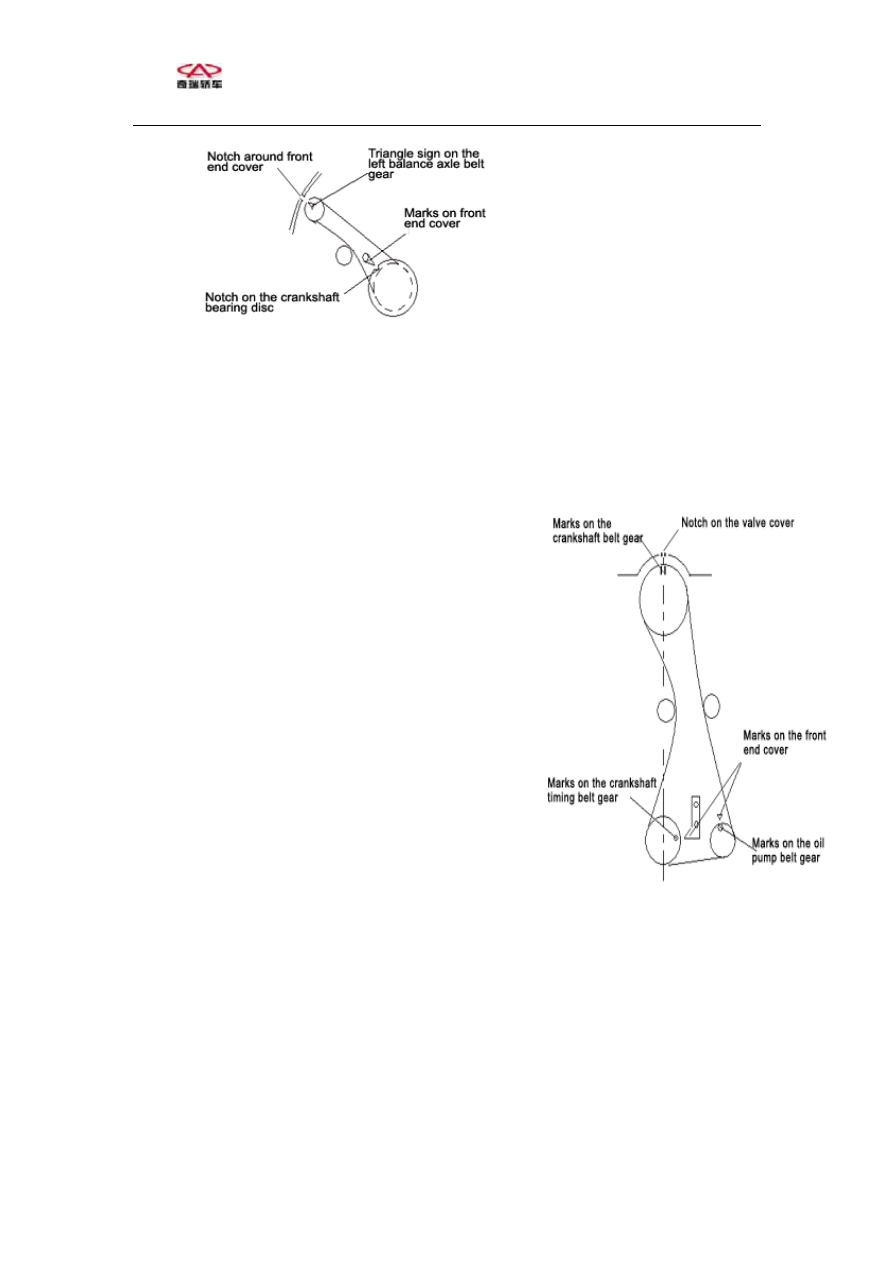

前端盖边缺口标记 Notch around front

end cover

左 平 衡 轴 齿 带 轮 上 三 角 标 Triangle

sign on the left balance axle belt gear

前 端 盖 上 标 记 Marks on front end

cover

曲轴挡盘上缺口标记 Notch on the

crankshaft bearing disc



There is an independent transmission belt

on the upper-left balance axle. Tension

wheel B is located on the loosened side,

which is to adjust belt tension manually.

The teeth number of drive gear is 38 teeth

and the teeth number of driven gear is 19.









Please note that align the marks of

crankshaft B belt gear and front end cover

and the marks of upper-left balance axle

belt gear and front end cover

when installing left balance

axle belt gear, which is as

shown.









Timing Belt Fitting

Mark





凸轮轴齿带轮上的标记 Marks

on the crankshaft belt gear

气门罩盖上的缺口标记 Notch

on the valve cover

前端盖上的标记 Marks on the

front end cover

 14



Maintenance Manual for Chery·Oriental Son

Engine Section







曲 轴 正 时 带 轮 上 的 标 记 Marks on the

crankshaft timing belt gear



机油泵齿带轮上的标记 Marks on the oil pump

belt gear

 15



Maintenance Manual for Chery·Oriental Son

Engine Section

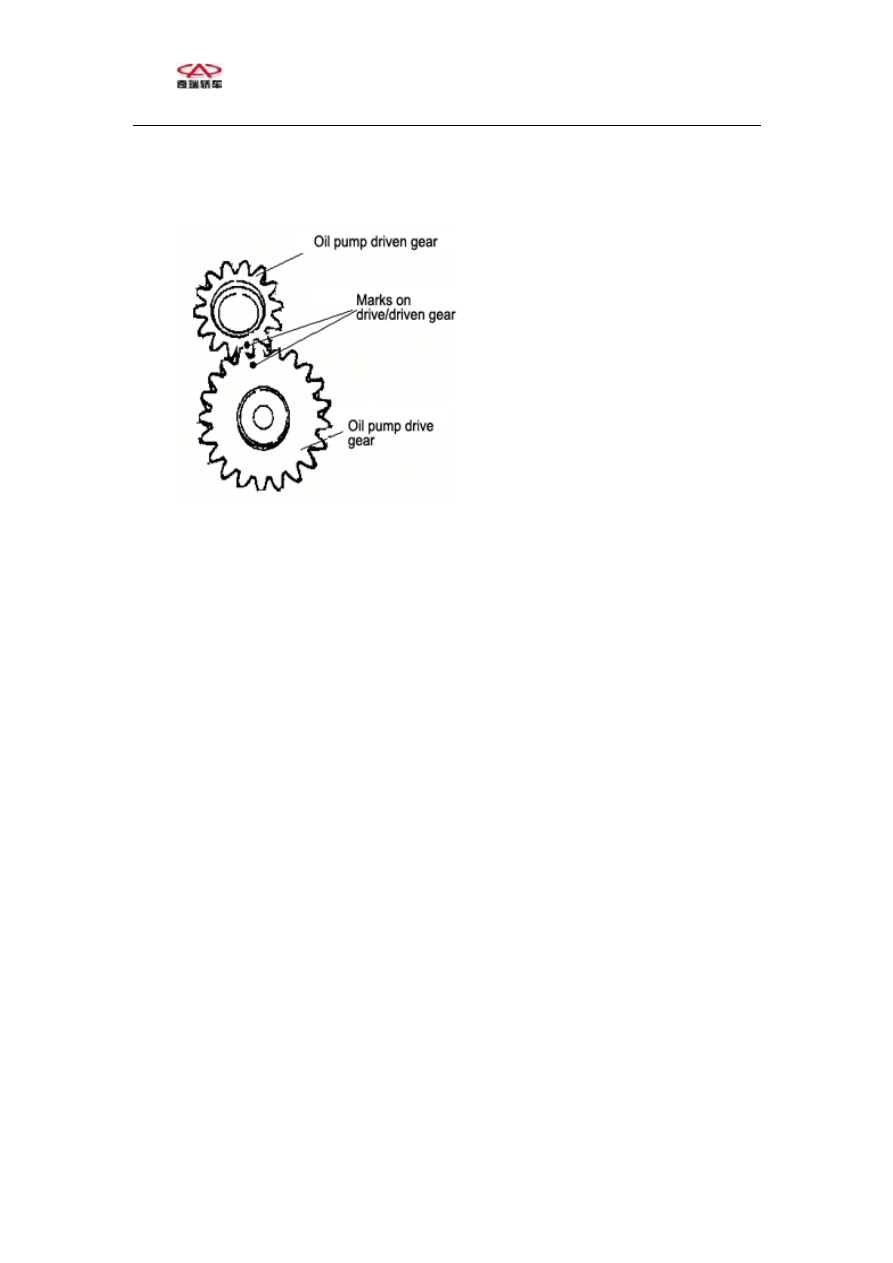

Oil Pump Gears Mark



机油泵从动齿轮 Oil pump driven gear

主 、 从 动 轮 上 的 标 记 Marks on

drive/driven gear

机油泵主动齿轮 Oil pump drive gear











Please note that align the marks of camshaft

belt gear and valve cover, the marks of

crankshaft timing belt gear and front end

cover and the marks of oil pump belt gear

and front end cover when installing timing

belt. (The 60mm-length screw drive must

be inserted into the lower balance test hole,

otherwise turn around oil pump belt gear

and then align timing mark.)











Please align the marks of

drive/driven gears when

installing oil pump gears as

shown.
