Chery B11. Manual - part 46

Maintenance Manual for Chery·Oriental Son

Engine Section

cylinder body and the other half on front end

cover)

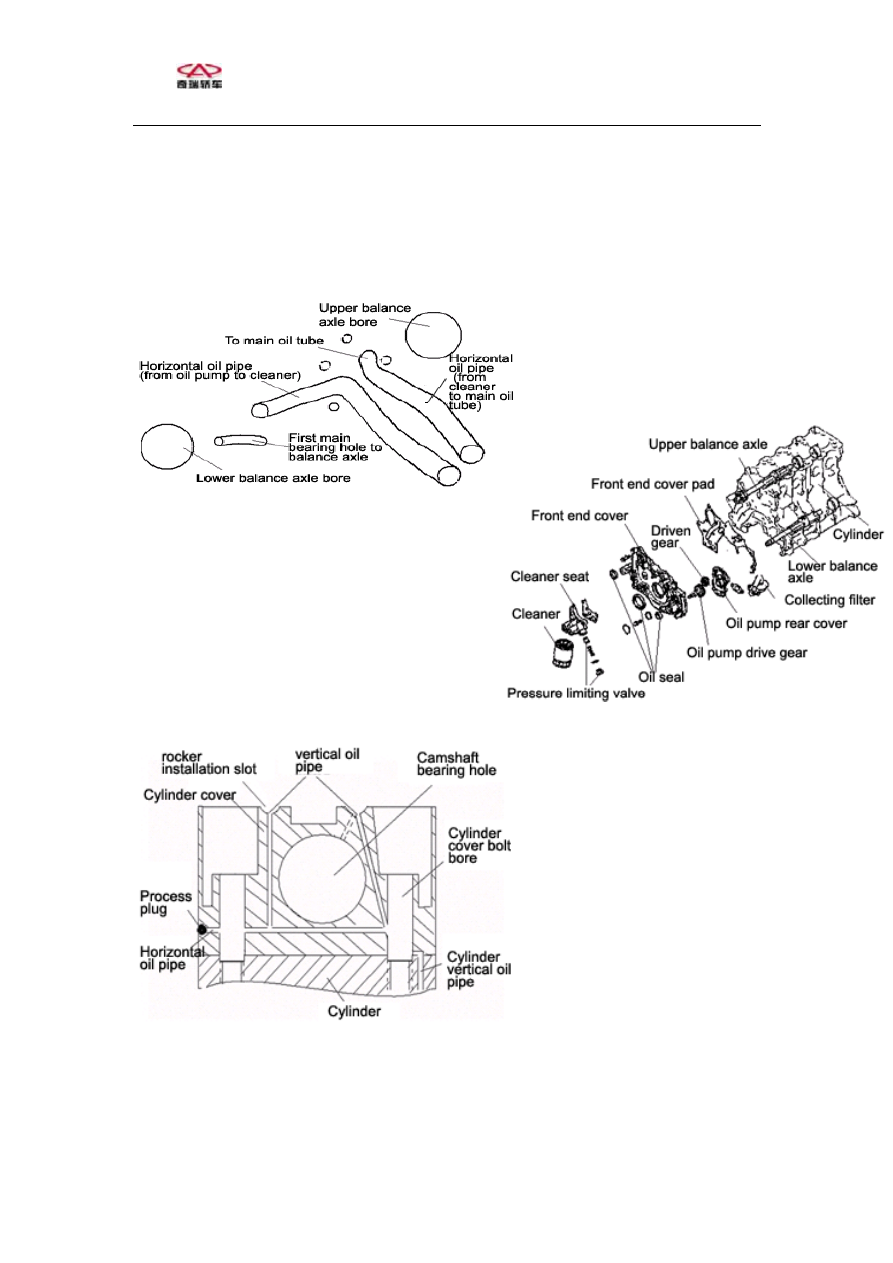

上平衡轴孔 Upper balance axle bore
至主油道 To main oil tube
横向油道（机油泵至滤清器）Horizontal oil pipe

(from oil pump to cleaner)
横向油道（滤清器至主油道）Horizontal oil pipe

(from cleaner to main oil tube)
第一道主轴承孔至平衡轴 First main bearing hole to

balance axle
下平衡轴孔 Lower balance axle bore

摇臂轴安装槽 rocker installation slot
垂直油道 vertical oil pipe
缸盖 Cylinder cover

凸轮轴支承孔 Camshaft bearing hole
缸盖螺栓孔 Cylinder cover bolt bore
工艺堵 Process plug
横向油道 Horizontal oil pipe
缸体垂直油道 Cylinder vertical oil

pipe
缸体 Cylinder

6. Front End Cover

Features

上平衡轴 Upper balance axle
前端盖板垫 Front end cover pad
前端盖板 Front end cover
滤清器座 Cleaner seat
滤清器 Cleaner
限压阀 Pressure limiting valve
从动齿 Driven gear
油封 Oil seal
缸体 Cylinder
下平衡轴 Lower balance axle
集滤器 Collecting filter
机油泵后壳 Oil pump rear cover
机油泵主动齿 Oil pump drive gear

2、There is a vertical oil pipe in the rear

end of cylinder cover, which provides

lubricant to air distribution mechanism.

Maintenance Manual for Chery·Oriental Son

Engine Section

The front end cover is made of molten horniness

aluminum metal. Oil pump and cleaner system are

located on the front end cover’s board. The cover

board itself is front housing of oil pump.

Maintenance Manual for Chery·Oriental Son

Engine Section

前端盖板 Front end cover
上平衡轴 Upper balance axle
油封座 Oil seal seat
下平衡轴 Lower balance axle

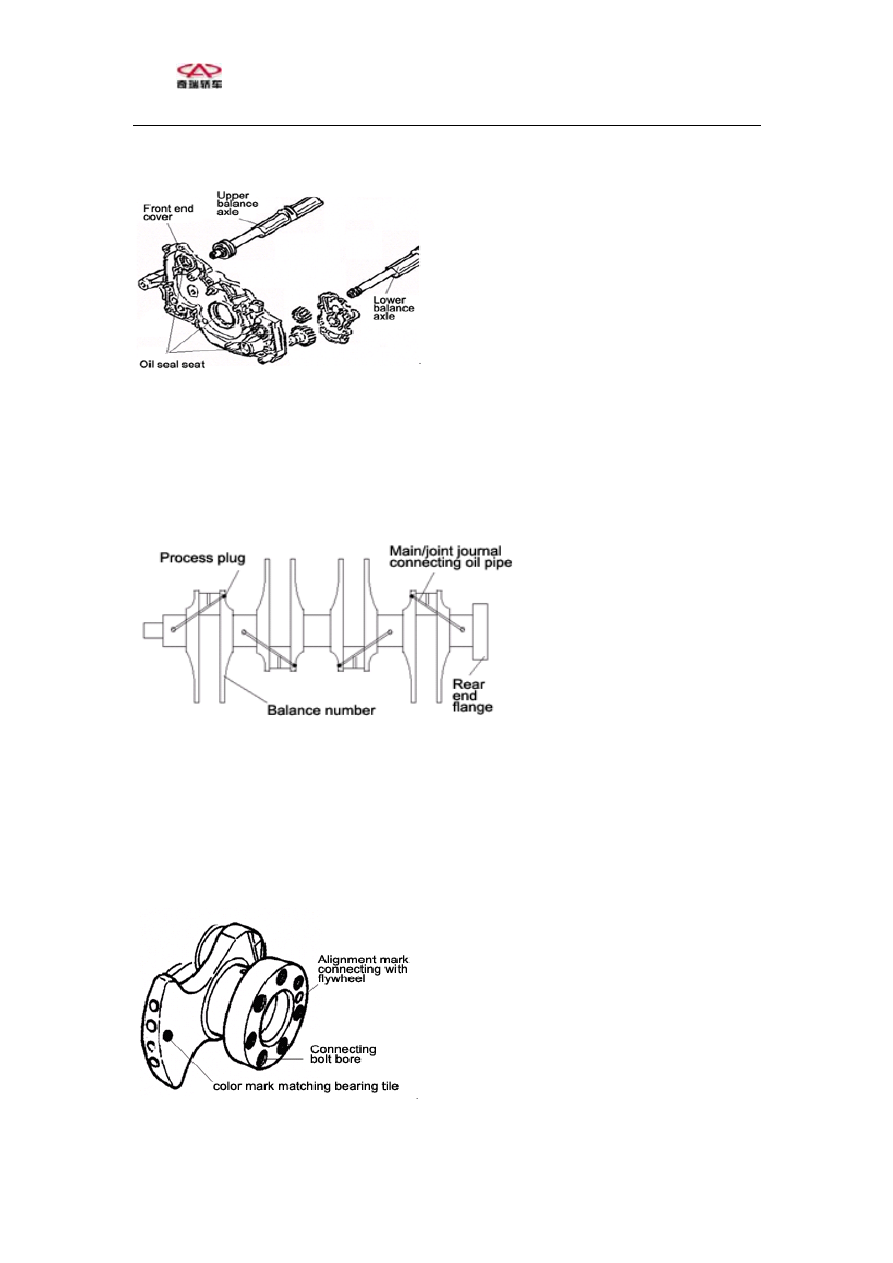

7. Crank Connecting Rod Mechanism

工艺堵 Process plug
主、连轴颈联接油道 Main/joint journal connecting oil

pipe
平衡块 Balance number
后端法兰 Rear end flange

与飞轮连接定位标记 Alignment mark connecting

with flywheel

连接螺孔 Connecting bolt bore
配轴承瓦颜色标记 color mark

matching bearing tile

Front crank oil seal, oil pump seal and

upper balance axle oil seal are pressed

and fixed on front cover board.

The cylinder front end is combined as

horizontal oil pipe and there is an oil

pipe to lubricate the rear bearing of

lower balance axle.

Both upper and lower balance axles are

supported by front end cover board.

Lower balance axle is also driven axle

of oil pump.

Crankshaft is made of forged carbon

steel, which surface is machining

processed

The location of crankshaft oil pipe is as

shown.

Crankshaft is full-balance type, that is

Balance Number = Number of

Cylinders × 2.

The rotary radius of crankshaft main

axle center and crankshaft pin center is

separately 88/2（4G63）

，100/2（4G64）.

Main axle diameter/57mm、Connecting

rod diameter/45mm（The diameter of

4G63 and 64 is same）

；

The rear end flange is thickened as oil

seal top and don’t impact it. Seven

flywheel bolts are part distributed and

there is a flywheel locking pin.

Maintenance Manual for Chery·Oriental Son

Engine Section

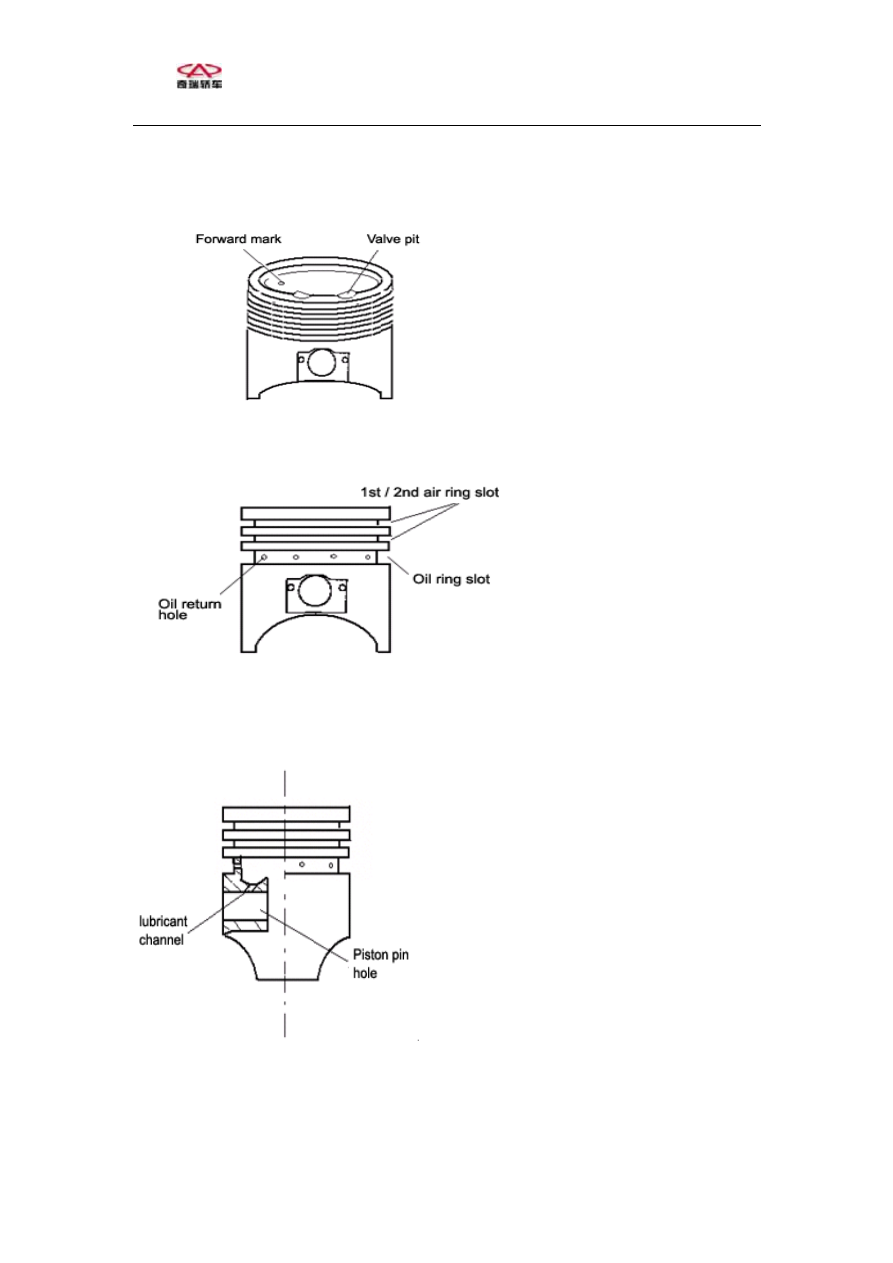

8. Piston Structure Features

朝前标记 Forward mark
气门让坑 Valve pit

第一、

二道气环槽 1st / 2

air ring slot

回油孔 Oil return hole
油环槽 Oil ring slot

润滑油道 lubricant channel
活塞销孔 Piston pin hole

It is made of molten horniness

aluminum, which has been surface

processed.

There is a roundness concave on the top,

which makes chamber compacted,

decreases F/V value, reduces

nocuousness emission, increases power

and decreases oil consumption. There is

valve pit on the right side of piston,

which makes chamber structure more

impacted.

There are two air ring slots and one oil

ring slot. A oil return hole is drilled in

the oil ring slot, which lubricate piston

pin mating and reduce dynamic

pressure of oil ring.

There is oil slot in the inside upper of

piston pin seating, which collect splash

oil to lubricate piston pin mating
