Maintenance Manual for Chery·Oriental Son



Engine Section

Tool Number Name

Purpose



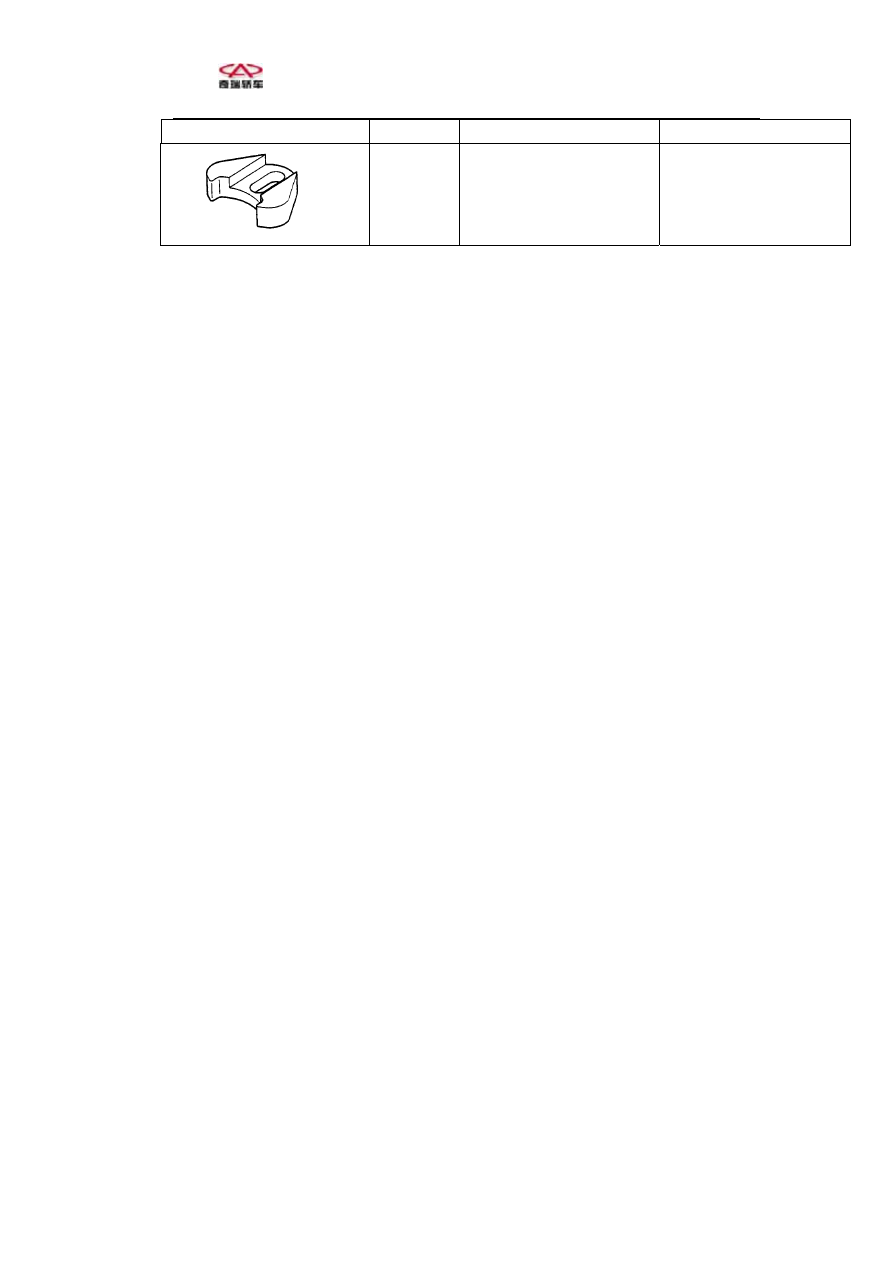

MD998785

Timing belt gear stopper

Keep balance axle belt gear.







11



Maintenance Manual for Chery·Oriental Son

Engine Section







 12

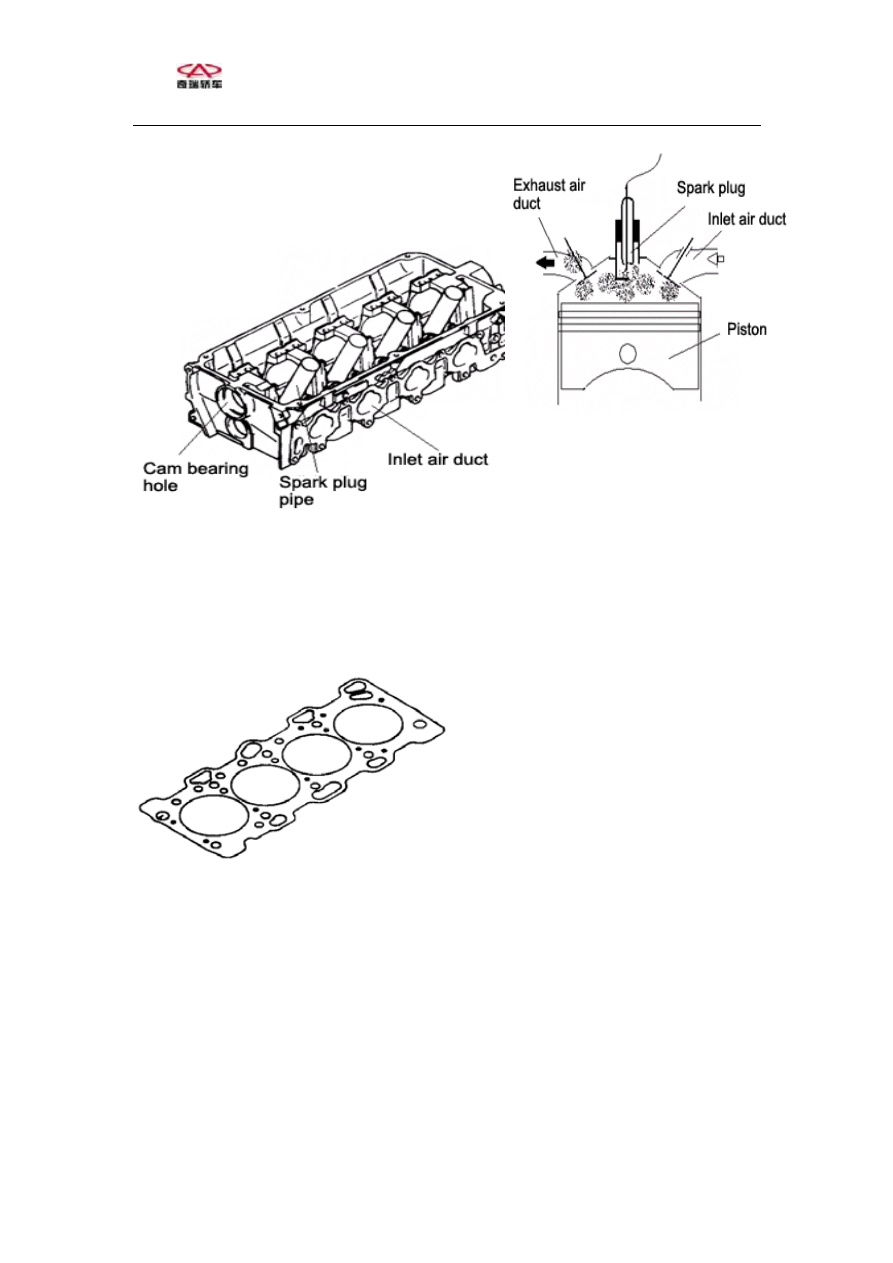

Chapter 2 Engine Structure Features

1.Cylinder Cover Structure Features



凸轮轴承孔 Cam bearing hole
火花塞导管 Spark plug pipe
进气道 Inlet air duct

2.Cylinder Cushion Structure



3.Spark Plug Position



排气道 Exhaust air duct
火花塞 Spark plug
进气道 Inlet air duct
活塞 Piston



Cylinder cover is made of horniness

aluminium alloy, which is firstly

low-pressure-molten and then

machining.

Four-valve structure is applied and its

advantage is increasing emission

channel area and decreasing valve

movement inertia.



Agile fiberboard structure is applied.

Many 1.5mm-diameter through holes

are pressed in the steel board and fiber

liquid mixture is filtered through steel

board. And then sealant is sprayed on

both sides of agile broad and the

important part is additionally sprayed

with seal thread.







Spark plug is located in the center of

chamber, which may let flame reach



Maintenance Manual for Chery·Oriental Son

Engine Section







each chamber corner at almost the same time.



 13



Maintenance Manual for Chery·Oriental Son

Engine Section

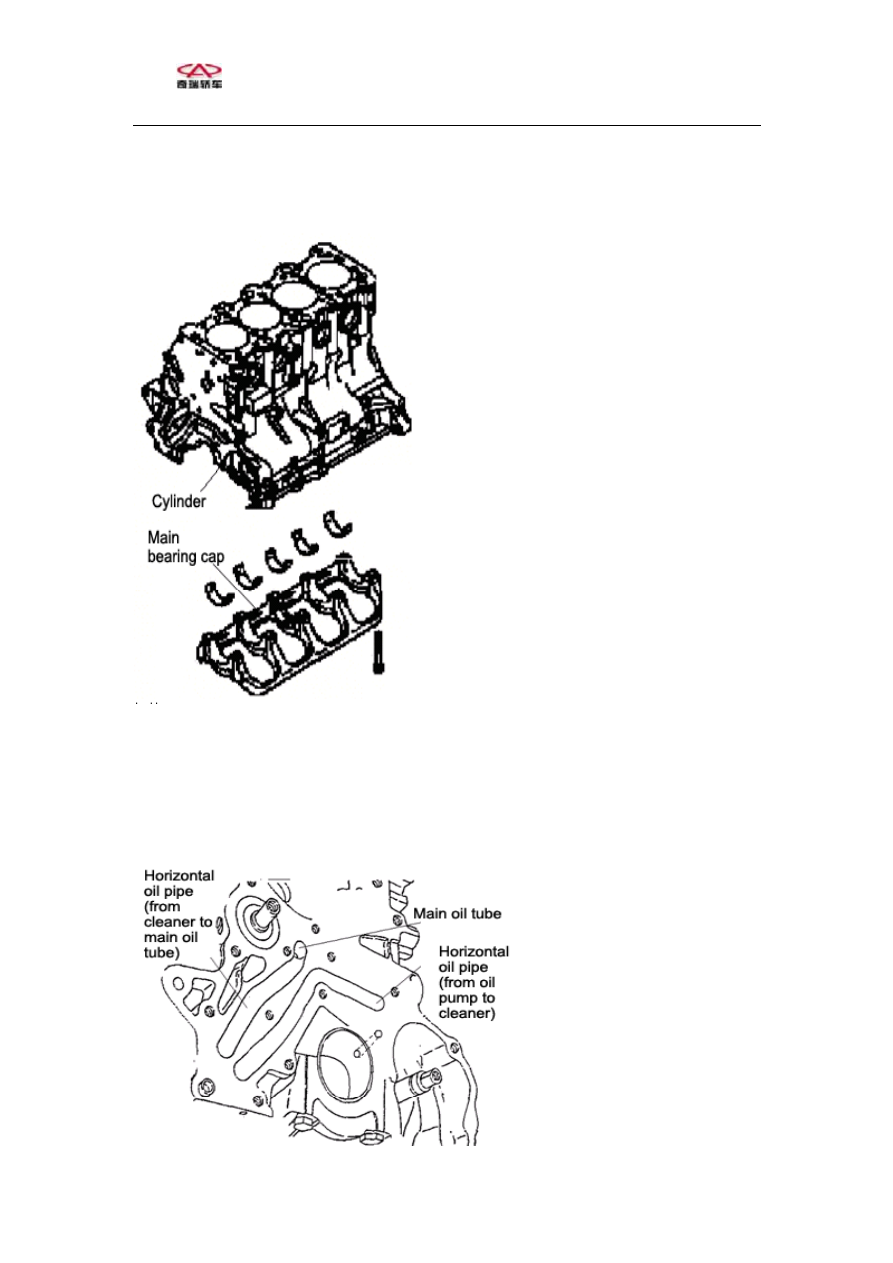

4.Cylinder Main Bearing Cap



缸体 Cylinder
主轴承盖 Main bearing cap



5.Oil Tube Features



主油道 Main oil tube
横 向 油 道 （ 滤 清 器 至 主 油 道 ）

Horizontal oil pipe (from cleaner to

main oil tube)
横 向 油 道 （ 机 油 泵 至 滤 清 器 ）

Horizontal oil pipe (from oil pump to

cleaner)











Integrated main bearing cap is

applied, which may increase

engine operation rigidity,

observe and distribute

efficiently periodic viable force

generated by crank running,

and ensure engine stable and

smooth running at high speed,

large load or large torque.









1、Modular oil pipe is applied.

(The whole oil pipe consists of

the half oil pipe cast on
