Chery B11. Manual - part 15

Air Condition System

61

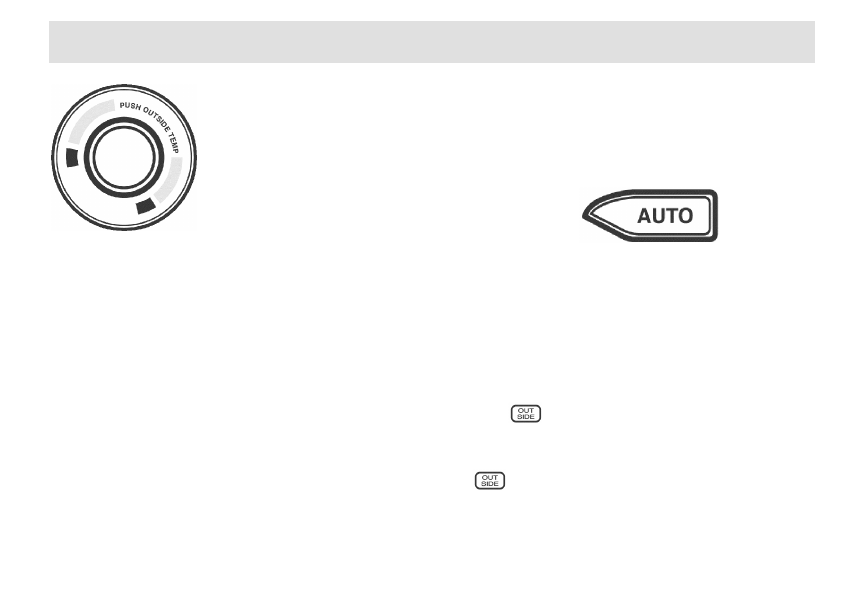

The knob is used to adjust air temperature

by 0.5

.

Ÿ

Right turn——temperature rise,

increasing 0.5

by rotating one

step.

Ÿ

Left turn-- Temperature descend,

reducing 0.5

by rotating one step.

The setting value of temperature will be

displayed on the screen.

The recommended value is 22

. Use this

knob to set temperature between 19

to

32

. It will display “LO” if temperature

is under 18

and display “HI” if

temperature is higher than 32

.

You can turn left to increase the cooling

effect while cooling system is working.

The system will be set in cold state when

in position “LO” (temperature is under

18

). The system will not be set to high

temperature state but not steady

temperature when it is in position “HI”

(temperature is higher than 32

),

The temperature showed on the screen will

be updated with the outdoor temperature

while pressing the knob. Symbol “

”

will also apprear on the screen. After three

seconds, the temperature showed on the

screen will be reset and

symbol

disappears. The temperature set value does

not change by turning knob when outdoor

temperature is showed on the screen.

4.Auto mode button

When you press this button, the control

system will adjust position of mixture vent,

AC state, blower speed and ventilation

from outside or indoor air recirculation,

according to pre-set temperature value or

outside temperature and variety of inside

temperature. The actual indoor

temperature can reach to pre-set

temperature value.

“Auto Mode” will be displayed in the

screen.

Air Condition System

62

The initial blowing mode is “floor” and

“panel” when using “AUTO” mode. You

can switch the model by pressing the

“Mode” button. Auto button and Mode

button are separated functional buttons.

“Defrosting” button work based on

windshield wiper signal, which means the

air conditioning system is working in

“defrosting” mode automatically (no state

change of wind volume), once the

windshield wiper starts.

The working state of AC compressor is

determined by pre-set temperature, the

compressor will NOT aspirate when

temperature is higher than 28

.

The system will switch to

internal-recirculation mode automatically,

when one of the following three conditions

is satisfied:

Ÿ

Air conditioning system just starts

working (compressor just start up)

Ÿ

The vehicle is moving with 10K m/h

for more than ten seconds.

Ÿ

The engine is stopped.

The system will run with the mode or

interface that the user has set up last time.

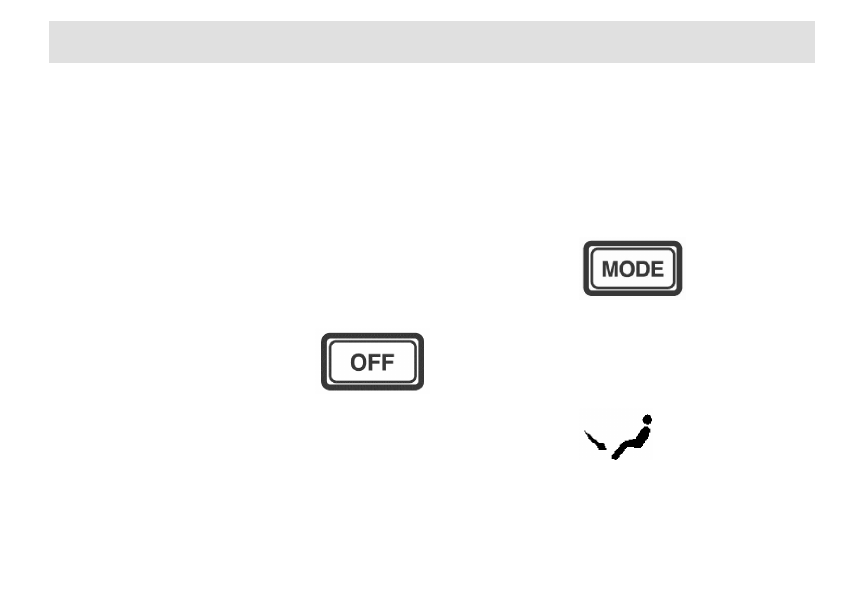

5. “OFF” Button

Switch off Air conditioning system.

The system will be shut down when

pressing this button. Screen will be shut

down as well. At the same ime, all

executing system is off.

The system will start automatically when

pressing “AUTO” button or AC button or

“Defrost” button ,even the system is off.

The system will run with the mode or

interface the user has set up last time.

7. Blowing Mode Button

The airflow model will be switched in the

following models when you press

“MODE” button each time. At the same

time, the following symbol appreas:

Ÿ

Floor, air flows mainly into the

footwell.

Air Condition System

63

Ÿ

Panel, air flows toward the upper

body.

Ÿ

Bi-level: Air flows toward both

footwell and the upper body.

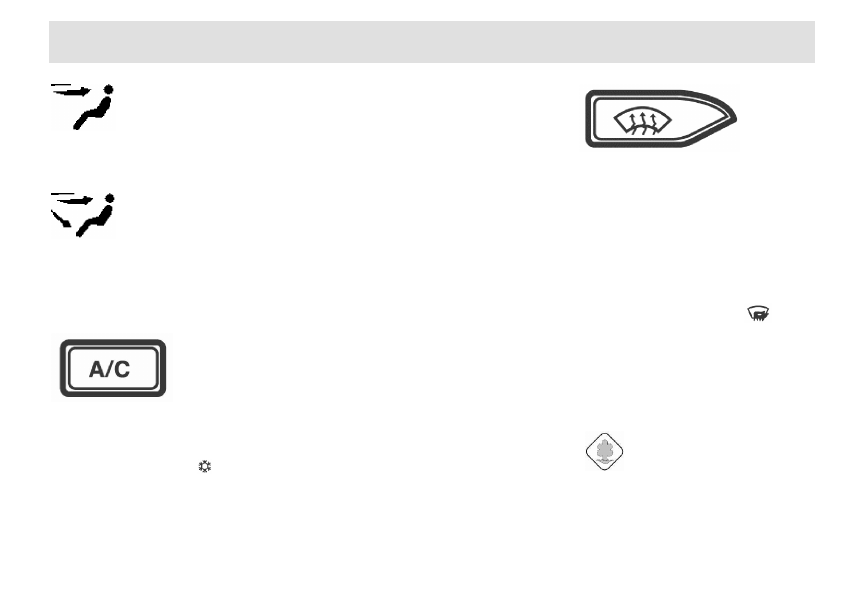

7. Air Conditioner Button

Air conditioning system will start while

pressing the “AC” button. At the same

time, snowflake symbol “

” appears on

the screen.

Air conditioning system only works under

the following condition:

Ÿ

Engine is running.

Ÿ

Temperature is higher than -1

.

Ÿ

Blower is set from level 1 to level 4

When air conditioning system starts, it

will not only decrease the temperature in

vehicle but also decrease the air humidity

from outside. It makes passengers feel

comfortable and also it can avoid moisture

condensed on the window.

To achieve the best effect of cooling, all

windows must be closed when the air

conditioning system is engaged.

8.  Windshield Defroster/defoger

button

This button is used to windshield

defogging. Once you press the button, it

changes air supply from inside to outside.

Air conditioning system also starts up.

All airflow flows toward the vents of rear

windshield and side window.

Windshield defroster symbol

Will appear on the display screen.

Air conditioning system economical

running

The air conditioning system will

consume engine power and

increase fule consumption. To

save energy, please do not start air

Air Condition System

64

conditioning system when unnecessary.

The interior temperature can be very high,

when vehicle is exposed under sun. Please

open door or window, it will help warm air

to go away. It is helpful for decreasing fule

consumption and enhancing cooling

effect.

Do NOT use air conditioning system, if

window is open while driving.

General Instruction

Air conditioning system will absorb

moisture and water vapour condensing

into water. It is normal phenomenon that

small watermark is found under the

vehicle, when the vehicle stops for a

while.

The heating effect depends on the

temperature of engine coolant. Therefore,

the heating system works efficiently when

engine is warm up.

To avoid windows fog over, it is suggested

that set the blower to low speed.

Do NOT allow the cold air blow to your

body.

Air conditioning system
operation instruction in the
hot wheather

1.    Press “AUTO” button.

2.Press “MODE” button to select

recirculated air mode.

3. Set temperature to “LO”

4.Re-set the temperature that is pleasant

for you when temperature drops.

Suggestions:

Please keep recirculated air mode in the

hot weather. It will achieve the best

cooling performance and prevent outside

odors.

Trouble Shooting

Cooling System malfunction

Ÿ

Temperature is lower than –1

.

Ÿ

Fuse is burned out.

Check fuse and replace it when necessary.

If the problem is not related to fuse, please

shut down your air conditioning system

and let the professional technicians to

check it.

Cooling capacity decrease
