Fresh Air Filter

Fresh air filter can prevent the harmful

particles (e.g. pollen, industrial dust or

dust in the road) from flowing in the

vehicle.

We suggest closing the airblower to avoid

the wax left on the fresh air filter while

using automatic car washer.

Fresh air filter should be replaced

according to the driving environments and

the customer’s habits.

Airflow Distrubition

You can adjust the volume and direction of

the airflow, by pressing the button on the

air-conditioned control panel ,and using

the control device of the side /central

vents.

The central and the side vents

Adjusting it when necessary.

Maximum airflow

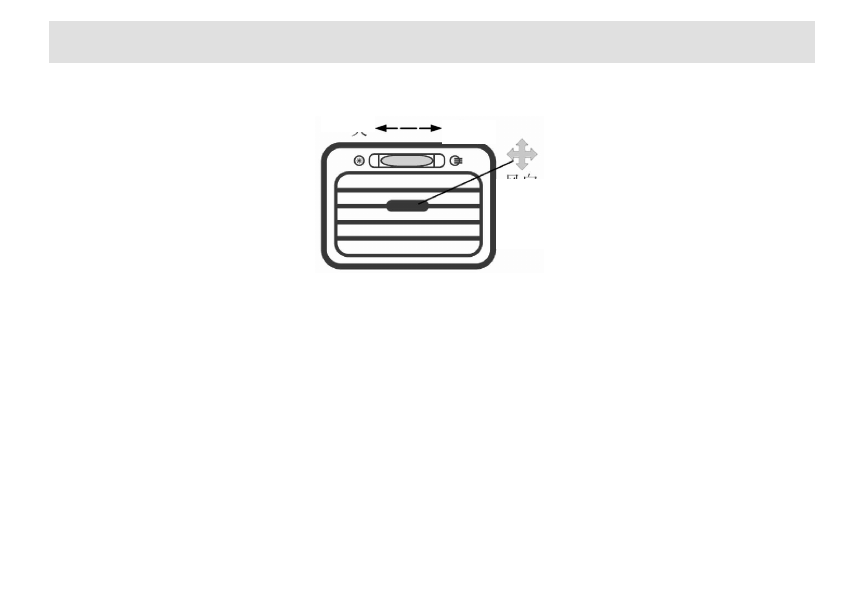

If you close the central and side vents, the

maximum airflow will flow toward the

footwell and the windshield.

OFF

ON

Adjust
Airflow
direction

Air Condition System

58

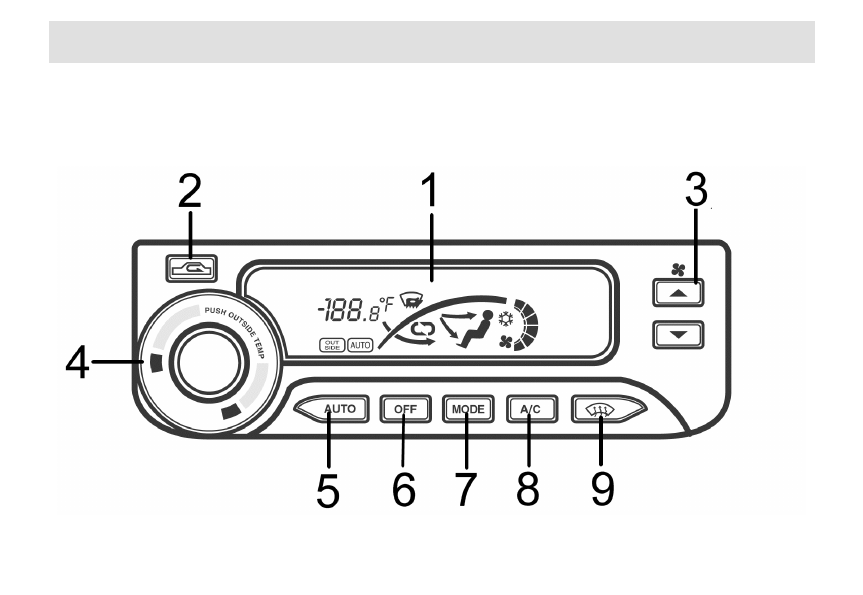

Electric-controlled automatic air conditioner system

Air Condition System

59

Air-conditioning display panel

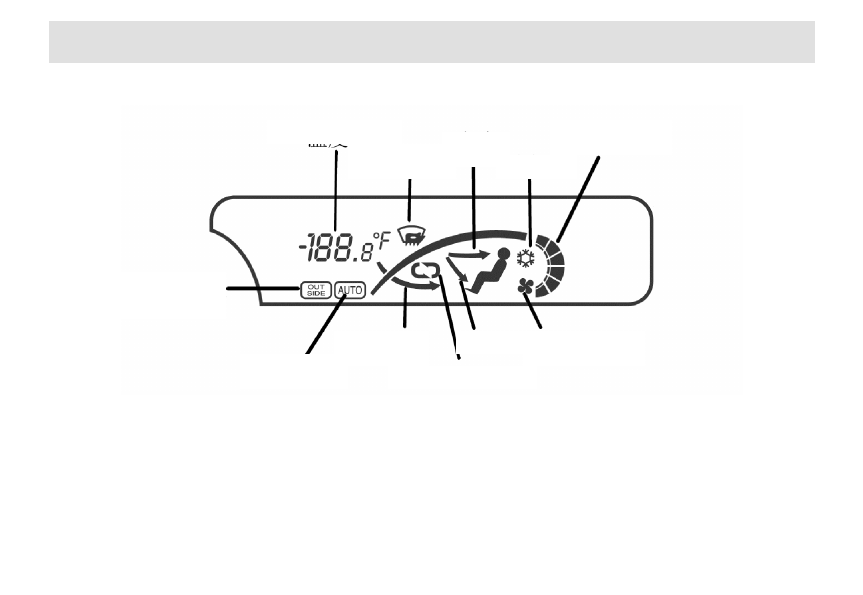

The figure shows all the symbols used in the air conditioning system. When the air conditioner is working, all of these symbols will not

appear at the same time. They will only appear in the corresponding function mode. Therefore, they represent the current function mode of

the air conditioner.

AUTO Mode

Outside
temperature  display
button

Temperature value

Refrigerator

Out inlet

Windshield
defroster

Facial

Foot

Blower speed of
revolution

Blower running

Inside air-circulating

Air Condition System

60

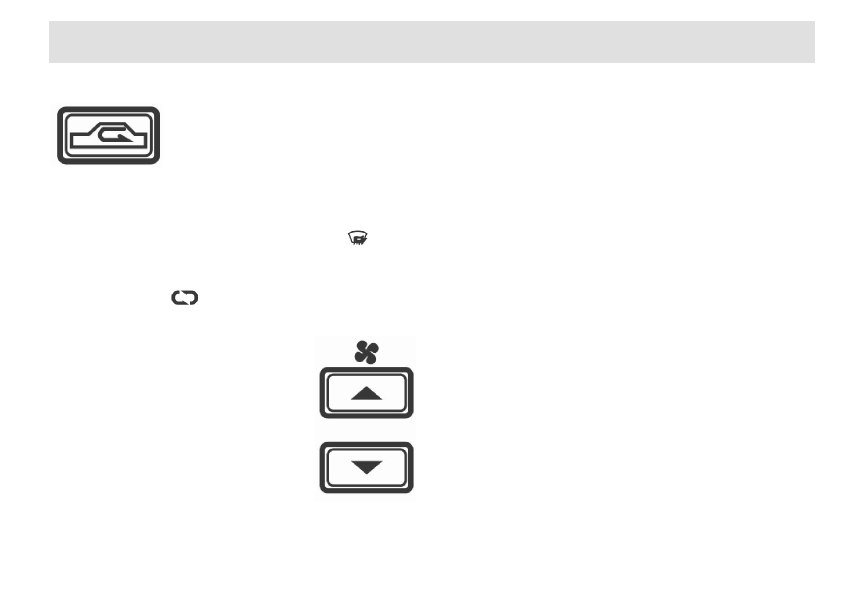

1. Airflow recirculation button

Press the airflow recirculation button to

switch between exterior ventilation mode

and interior airflow recirculation mode.

When it is under interior ventilated

recirculation mode, the interior ventilated

recirculation symbol

will appear.

When switching to interior ventilated

recirculation mode, blower voltage

decreases 1V(the blower is working at the

range from 4.9V to 10V.); when switching

to outside ventilation mode, the blower

voltage comes back to the original state.

When temperature is high, you can

decrease the interior temperature quickly

by switching on the air conditioner and

pressing the airflow recirculation button.

You can also block the unpleasant odors

from outside by using of the interior

ventilated recirculation mode.

When it is under windshield defrost

mode

, the airflow recirculation button

will not work and the interior ventilated

recirculation mode cannot be set.

2.Blower Speed Control Button

Press the triangle up button to increase the

blower speed and airflow volume; press

the triangle down button to decrease the

blower speed and airflow volume.

The blower speed can be adjusted

manually from level 1 (minimum volume)

to level 6 (maximum volume).

When you select the AUTO mode, the air

conditioning system will adjust the blower

speed automatically to keep the

temperature retaining on the set value. You

can also adjust the blower speed manually

under this model. When the airflow

volume is set to level 1, AUTO mode is

off; when the airflow volume is set to level

6, AUTO model is also off

3.Temperature control knob/outside
